Hitachi / Hikoki TRB24EAP Engine Blower Spare Parts

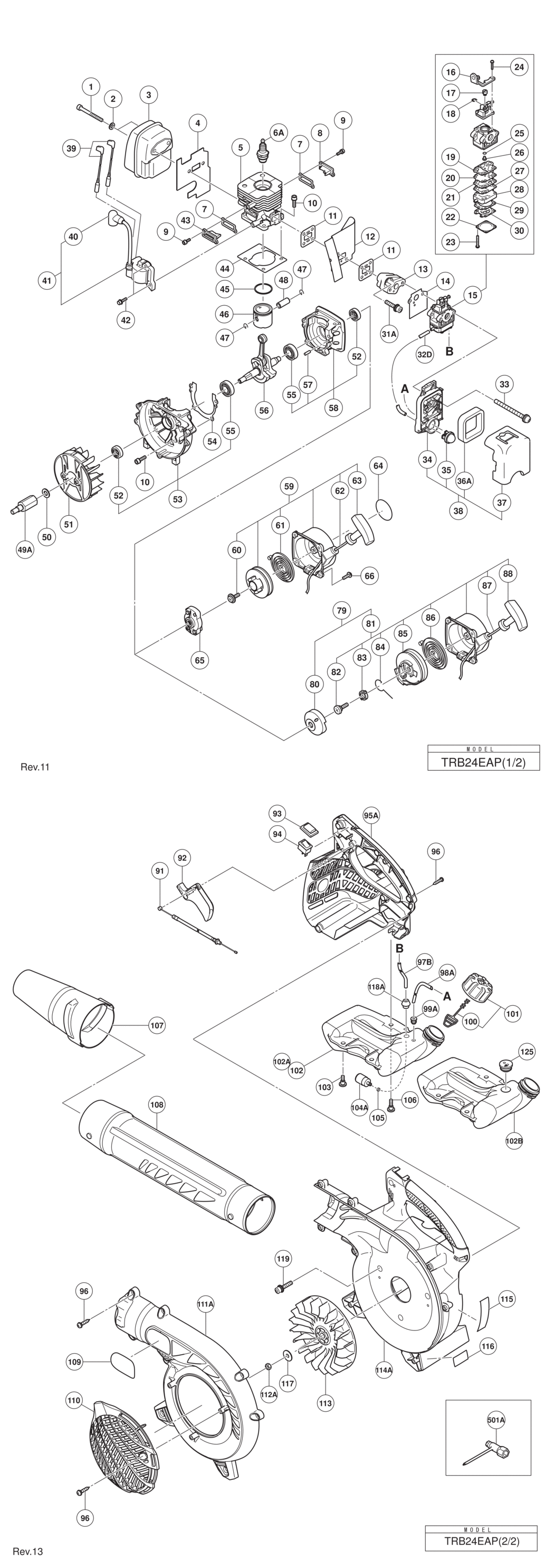

An exploded diagram and spare parts listing for the Hitachi / Hikoki TRB24EAP Engine Blower

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT M6X65 HIT-6698384.A0 6698384	-
2 - BOLT WASHER M6 (10 PCS.) HIT-949432.A36 949432	£1.67	£2.00
3 - MUFFLER HIT-6698375.A0 6698375	£34.15	£40.98
4 - HEAT PROTECTION PLATE HIT-6698374.A3 6698374	£9.43	£11.32
5 - CYLINDER HIT-6698362.A0 6698362	£39.68	£47.62
*6A - SPARK PLUG ASS'Y BMR7A HIT-6699316.A35 6699316	£12.43	£14.92
*6A - SPARK PLUG ASS'Y CJ6 FOR USA HIT-6699322.A31 6699322	£3.73	£4.48
7 - COVER PACKING HIT-6698365.A16 6698365	£1.67	£2.00
8 - SCAVENGING COVER(A) HIT-6698363.A3 6698363	-
9 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A45 6698385	-
10 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A0 6698386	-
11 - INSULATOR GASKET HIT-6684865.A9 6684865	£1.67	£2.00
12 - FLASH PAN HIT-6698372.A3 6698372	£3.56	£4.27
13 - CARBURETOR INSULATOR HIT-6698387.A54 6698387	£4.72	£5.66
14 - CARBURETOR PACKING HIT-6698405.A59 6698405	£3.12	£3.74
15 - CARBURETOR ASS'Y (WYC-27) INCLUD.16-30 HIT-6698373.A0 6698373	£59.46	£71.35
16 - BRACKET CABLE HIT-000000.A2332 000000	-
17 - SWIVEL HIT-6696830.A36 6696830	-
18 - STOP RING HIT-6684696.A34 6684696	-
19 - PUMP GASKET HIT-6684692.A99 6684692	£17.28	£20.73
20 - PUMP DIAPHRAGM HIT-6684693.A30 6684693	£5.70	£6.84
21 - PUMP PLATE HIT-6691242.A54 6691242	-
22 - DIAPHRAGM COVER-METERING HIT-6685222.A105 6685222	£5.70	£6.84
23 - SET SCREW HIT-6691312.A57 6691312	-
24 - SET SCREW M3X12 HIT-6696829.A16 6696829	-
25 - O-RING HIT-6684695.A163 6684695	£1.67	£2.00
26 - MAIN JET #36 HIT-6697090.A0 6697090	-
27 - CIRCUIT PLATE HIT-6691234.A6 6691234	-
28 - PUMP BODY COMP. HIT-6696828.A36 6696828	£13.28	£15.93
29 - DIAPHRAGM PACKING-METERING HIT-6685220.A73 6685220	£2.81	£3.37
30 - METERING DIAPHRAGM HIT-6684690.A106 6684690	£24.05	£28.86
31A - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A12 6698844	£1.67	£2.00
32D - FUEL PIPE HIT-6601444.A28 6601444	-
33 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A43 307224	£1.67	£2.00
34 - AIR CLEANER HOUSING HIT-66965549.A18 66965549	£15.62	£18.74
35 - PRIMING PUMP COMP. HIT-6685139.A88 6685139	£10.67	£12.80
36A - CLEANER SPONGE HIT-6600704.A7 6600704	-
37 - AIR CLEANER COVER HIT-6696831.A9 6696831	£9.68	£11.62
38 - AIR CLEANER ASS'Y INCLUD.34-37 HIT-6696549.A3 6696549	£13.36	£16.03
39 - CORD (L325) HIT-6696566.A1 6696566	-
40 - CORD HIT-6696833.A5 6696833	-
41 - IGNITION COIL ASS'Y INCLUD.40 HIT-6698397.A7 6698397	£24.24	£29.09
42 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A0 6698388	£1.67	£2.00
43 - SCAVENGING COVER (B) HIT-6698364.A0 6698364	£1.67	£2.00
44 - CYLINDER PACKING HIT-6698366.A3 6698366	£1.67	£2.00
45 - PISTON RING HIT-6698404.A6 6698404	£7.03	£8.44
46 - PISTON HIT-6698368.A9 6698368	£11.35	£13.62
47 - CIR CLIP HIT-6684590.A139 6684590	£1.67	£2.00
48 - PISTON PIN HIT-6684591.A9 6684591	£3.29	£3.95
49A - SPECIAL BOLT HIT-6600347.A1 6600347	-
50 - BOLT WASHER M8 (BLACK) HIT-323212.A59 323212	£1.67	£2.00
51 - MAGNETO ROTOR COMP. HIT-6698396.A2 6698396	£11.52	£13.82
52 - OIL SEAL TB 12227 HIT-6684607.A144 6684607	£4.07	£4.88
53 - CRANK CASE (B) ASS'Y INCLUD.52 HIT-6698370.A17 6698370	£23.00	£27.60
54 - CRANK CASE PACKING HIT-6698371.A1 6698371	£1.67	£2.00
55 - BALL BEARING 6001 C3 HIT-6684608.A61 6684608	£5.70	£6.84
56 - CRANK SHAFT COMP. HIT-6696533.A27 6696533	£42.11	£50.53
57 - KNOCK PIN 4X12 HIT-6696947.A41 6696947	-
58 - CRANK CASE (A) ASS'Y INCLUD.52 HIT-6698369.A1 6698369	£17.94	£21.53
59 - RECOIL STARTER BODY ASS'Y INCLUD.60-63 TILL 7.2014 HIT-6696572.A6 6696572	£13.43	£16.12
60 - SET SCREW TILL 7.2014 HIT-6693633.A17 6693633	£1.67	£2.00
61 - RECOIL SPRING TILL 7.2014 HIT-6684675.A30 6684675	£8.82	£10.58
62 - ROPE TILL 7.2014 HIT-6693168.A51 6693168	£2.82	£3.39
63 - STARTER HANDLE TILL 7.2014 HIT-6693227.A11 6693227	-
64 - NAME PLATE HIT-000000.A2333 000000	-
65 - STARTER PULLEY ASS'Y TILL 7.2014 HIT-6696471.A5 6696471	£8.35	£10.02
66 - SCREW (W/WASHERS) M4X16 HIT-6698398.A0 6698398	-
79 - RECOIL STARTER ASS'Y INCLUD.80 HIT-6600408.A7 6600408	£12.85	£15.42
80 - STARTER PULLEY SINCE 8.2014 HIT-6600407.A3 6600407	£1.67	£2.00
81 - RECOIL ASS'Y INCLUD.82-88 SINCE 8.2014 HIT-6600406.A7 6600406	£18.74	£22.49
82 - RECOIL SET SCREW SINCE 8.2014 HIT-6600404.A7 6600404	-
83 - SWING ARM HOLDER SINCE 8.2014 HIT-6600402.A7 6600402	-
84 - SWING ARM SINCE 8.2014 HIT-6600401.A3 6600401	-
85 - RECOIL REEL SINCE 8.2014 HIT-6600405.A3 6600405	-
86 - RECOIL SPRING SINCE 8.2014 HIT-6600403.A3 6600403	-
87 - RECOIL ROPE 3X800 SINCE 8.2014 HIT-6600400.A7 6600400	-
88 - RECOIL HANDLE SINCE 8.2014 HIT-6600399.A3 6600399	-
91 - THROTTLE WIRE COMP. HIT-6698399.A6 6698399	£3.24	£3.89
92 - THROTTLE LEVER HIT-6698391.A10 6698391	£1.67	£2.00
93 - SWITCH COVER HIT-6698400.A0 6698400	-
94 - STOP SWITCH HIT-6685364.A2 6685364	£6.75	£8.10
95A - MUFFLER PROTECTOR HIT-6699427.A2 6699427	£14.95	£17.94
96 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A17 302089	£1.67	£2.00
97B - FUEL PIPE HIT-6601525.A0 6601525	-
98A - FUEL PIPE L70 HIT-6699014.A29 6699014	£2.77	£3.32
99A - RETURN GROMMET TILL 7.2014 HIT-6697846.A153 6697846	£2.08	£2.50
100 - TANK CAP CHAIN HIT-6684625.A1 6684625	-
101 - FUEL TANK CAP ASS'Y INCLUD.100 HIT-6698402.A76 6698402	-
102 - TANK FOR USA HIT-6698377.A1 6698377	-
102A - TANK (B) TILL 7.2014 EXCEPT FOR USA HIT-6600317.A28 6600317	£12.36	£14.83
102A - TANK TILL 7.2014 FOR USA HIT-6600355.A1 6600355	-
102B - TANK (C) SINCE 8.2014 FOR EXCEPT USA HIT-6600354.A25 6600354	-
102B - TANK (D) SINCE 8.2014 FOR USA HIT-6600356.A0 6600356	-
103 - BOLT (W/FLANGE) L 17.8 HIT-6698511.A1 6698511	-
104A - PUMP FILTER HIT-6600351.A26 6600351	£4.45	£5.34
105 - CLIP HIT-6696949.A39 6696949	£1.67	£2.00
106 - BOLT (W/FLANGE) L23.8 HIT-6698512.A25 6698512	£1.67	£2.00
107 - NOZZLE (B) HIT-6698394.A6 6698394	£8.72	£10.47
108 - NOZZLE (A) HIT-6698393.A0 6698393	£14.44	£17.33
109 - TANAKA LABEL HIT-000000.A2334 000000	-
110 - GUARD NET HIT-6698381.A3 6698381	£3.02	£3.63
111A - VOLUTE CASE HIT-6699428.A1 6699428	£12.43	£14.92
112A - U-NUT M8 HIT-6684932.A5 6684932	£1.67	£2.00
113 - FAN HIT-6698378.A0 6698378	£9.10	£10.92
114A - FAN CASE HIT-6699429.A2 6699429	£24.24	£29.09
115 - CAUTION MARK HIT-000000.A2335 000000	-
116 - CAUTION MARK EU EMISSION HIT-000000.A2337 000000	-
117 - WASHER 8.1X30 HIT-6684924.A1 6684924	-
118A - FUEL GROMMET TILL 7.2014 HIT-6688156.A28 6688156	-
119 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A11 6698844	£1.67	£2.00
125 - FUEL GROMMET SINCE 8.2014 HIT-6600358.A22 6600358	£1.67	£2.00
501A - COMBI BOX SPANNER 13X19 PLUS EXCEPT FOR USA HIT-6684979.A4 6684979	-
601 - FLAT NOZZLE HIT-6699184.A3 6699184	-
