Hitachi / Hikoki TPS-200H Attachment Spare Parts

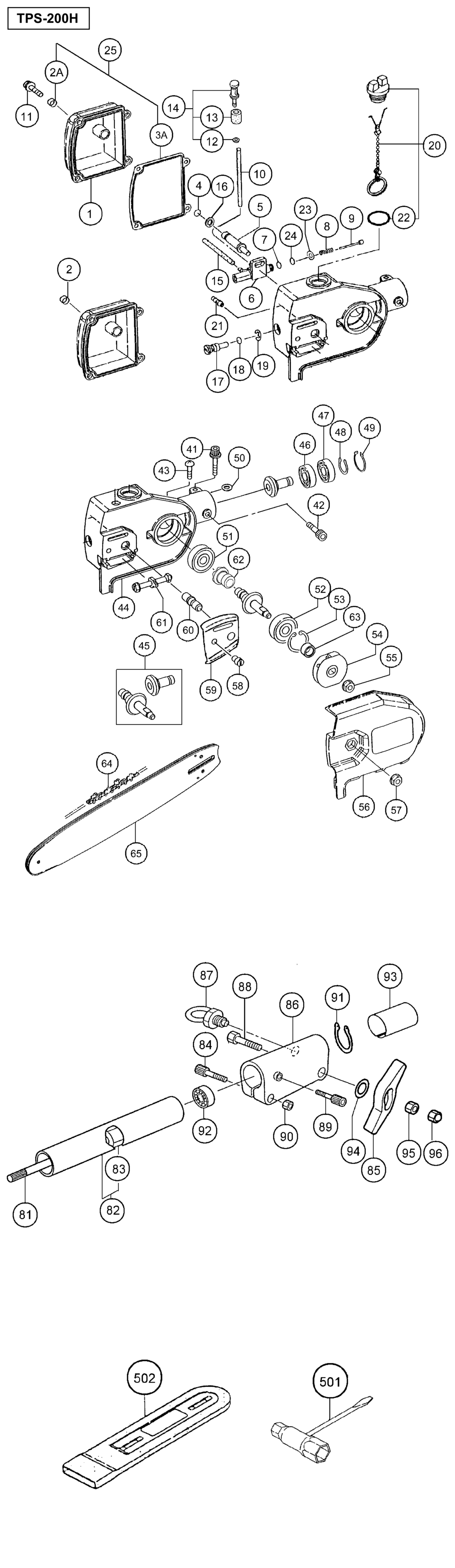

An exploded diagram and spare parts listing for the Hitachi / Hikoki TPS-200H Attachment

	Ex VAT	Inc VAT
1 - OIL TANK COVER HIT-6686138.A1 6686138	£2.81	£3.37
2 - COLLAR 3 TILL G008000 HIT-6685961.A2 6685961	£1.67	£2.00
2A - COLLAR 3 SINCE G008001 HIT-6699273.A7 6699273	-
3A - OIL TANK PACKING HIT-6699567.A5 6699567	£2.77	£3.32
4 - O-RING P-5 HIT-6695661.A28 6695661	£1.67	£2.00
5 - STEP BOLT A HIT-6689757.A8 6689757	-
6 - OIL PUMP COMP. HIT-6686487.A3 6686487	£39.35	£47.22
7 - O-RING P-5 HIT-6695661.A29 6695661	£1.67	£2.00
8 - OIL PUMP SPRING HIT-6690381.A4 6690381	-
9 - OIL PUMP PISTON COMP. HIT-6686608.A4 6686608	-
10 - FUEL PIPE 3X5X60 HIT-6692414.A7 6692414	-
11 - SMALL SCREW 4X12WS HIT-6695403.A16 6695403	-
12 - WASHER 5 HIT-6684661.A16 6684661	£1.67	£2.00
13 - OIL FILTER HIT-6690917.A4 6690917	£1.67	£2.00
14 - FILTER ASS'Y HIT-6690913.A4 6690913	-
15 - FUEL PIPE 3X5X75 HIT-6692415.A4 6692415	-
16 - 8 PUSH NUT HIT-6695239.A11 6695239	-
17 - OIL PUMP ADJUSTER HIT-6691066.A10 6691066	£8.79	£10.55
18 - O-RING P-5 HIT-6695661.A27 6695661	£1.67	£2.00
19 - STOP RING E-6 HIT-6695311.A11 6695311	£1.67	£2.00
20 - OIL TANK CAP ASS'Y HIT-6692050.A8 6692050	£15.87	£19.04
21 - BANJO 1 HIT-6686637.A8 6686637	-
22 - O-RING P-15 HIT-6698966.A24 6698966	£1.67	£2.00
23 - WASHER 2 HIT-6695187.A7 6695187	-
24 - O-RING 1.4 HIT-6695656.A4 6695656	-
25 - TANK PACKING ASS'Y TILL G008008 INCLUD.2A HIT-6699566.A2 6699566	£3.48	£4.17
41 - HEX. HOLE BOLT 5X22/S HIT-6695492.A26 6695492	-
42 - HEX. HOLE BOLT 5X10 HIT-6695042.A10 6695042	£1.67	£2.00
43 - SCREW 6X8 HIT-6695458.A3 6695458	-
44 - CASE HIT-6685793.A8 6685793	£12.52	£15.03
45 - GEAR PINION SET SPARE HIT-6688836.A6 6688836	-
46 - BALL BEARING 609 HIT-6684734.A27 6684734	-
47 - BALL BEARING 609Z ST HIT-6684735.A13 6684735	£15.48	£18.57
48 - STOP RING C-9 1 HIT-6695281.A18 6695281	-
49 - STOP RING C-24 1 HIT-6684732.A44 6684732	£1.67	£2.00
51 - BALL BEARING 627 C3 HIT-6695568.A7 6695568	£8.95	£10.74
52 - BALL BEARING 638Z HIT-6697603.A1 6697603	-
53 - STOP RING C-28 1 HIT-6684741.A6 6684741	-
54 - SPROCKET COMP. 1 HIT-6689117.A8 6689117	£47.37	£56.84
55 - FLANGE NUT 6 HIT-6695170.A46 6695170	£1.67	£2.00
56 - SIDE COVER COMP. HIT-6686038.A8 6686038	£9.67	£11.60
57 - CHAIN BAR CLAMP NUT HIT-6687105.A26 6687105	£1.67	£2.00
58 - CHAIN BAR KNOCK PIN HIT-6687130.A7 6687130	-
59 - GUIDE PLATE HIT-6697596.A10 6697596	£4.38	£5.26
60 - CHAIN BAR TIGHTENING BOLT HIT-6686803.A7 6686803	£8.53	£10.24
61 - CHAIN TENSIONER HIT-6687063.A1 6687063	£5.70	£6.84
62 - CAM HIT-6690428.A10 6690428	-
63 - COLLAR HIT-6685962.A4 6685962	-
64 - SAW CHAIN HIT-6699679.A6 6699679	£20.67	£24.80
65 - GUIDE BAR S/N HIT-6686875.A1 6686875	£33.19	£39.83
81 - DRIVE SHAFT COMP. HIT-6689441.A4 6689441	-
82 - DRIVE SHAFT PIPE COMP. HIT-6689311.A1 6689311	-
83 - BUSH ASS'Y HIT-6684831.A4 6684831	-
84 - HEX. HOLE BOLT M5X25/S HIT-6684709.A211 6684709	£1.67	£2.00
85 - HANDLE KNOB HIT-6684823.A4 6684823	£3.51	£4.21
86 - JOINT CASE HIT-6688517.A5 6688517	£35.37	£42.44
87 - LOCK PIN COMP. HIT-6689601.A6 6689601	£9.58	£11.50
88 - HEX. BOLT 6X50 HIT-6684824.A19 6684824	£1.67	£2.00
89 - HEX. HOLE BOLT 5X10 HIT-6695042.A9 6695042	£1.67	£2.00
90 - NUT M5 (BLACK) HIT-6685075.A20 6685075	-
91 - STOP RING C-10 1 HIT-6684821.A4 6684821	£1.67	£2.00
92 - BALL BEARING 6900ZZ 1 HIT-6695578.A6 6695578	-
93 - COLLAR (B) HIT-6689530.A1 6689530	£7.48	£8.97
94 - CLUTCH WASHER B HIT-6684642.A31 6684642	£1.67	£2.00
95 - NUT M6 HIT-6684792.A31 6684792	-
96 - CAP NUT 6 HIT-6684828.A21 6684828	£1.67	£2.00
501 - COMBI. BOX SPANNER 13X19 MINUS HIT-6693809.A35 6693809	-
502 - GUIDE BAR COVER 1 HIT-6694796.A10 6694796	£11.79	£14.15

Attribute Name	Value
Brand	Hikoki
