Hitachi / Hikoki TPH-200H Attachment Spare Parts

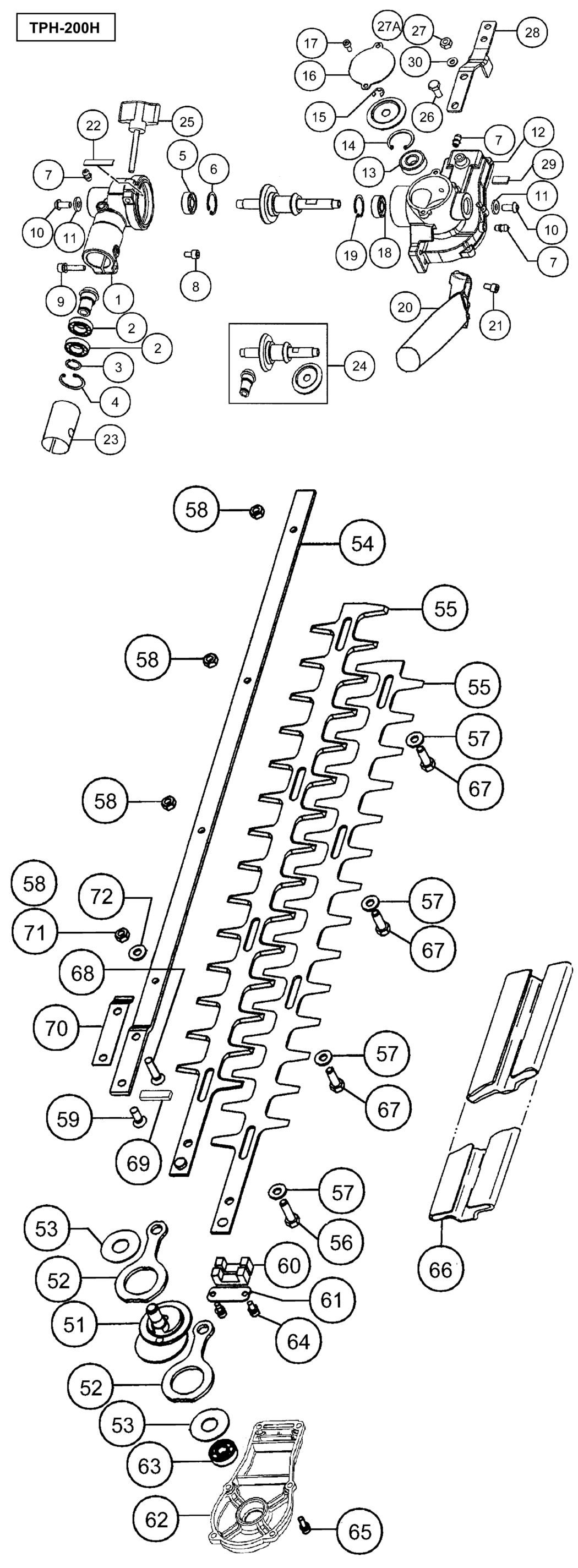

An exploded diagram and spare parts listing for the Hitachi / Hikoki TPH-200H Attachment

	Ex VAT	Inc VAT
1 - GEAR CASE A HIT-6688642.A1 6688642	£55.85	£67.02
2 - BALL BEARING 6901ZZ 2 HIT-6695582.A10 6695582	£15.31	£18.37
3 - STOP RING S-12 1 HIT-6695302.A6 6695302	£1.67	£2.00
4 - STOP RING C-24 1 HIT-6684732.A33 6684732	£1.67	£2.00
5 - BALL BEARING 608ZZC3 HIT-6698772.A31 6698772	£2.84	£3.41
6 - RETAINING RING C-TYPE D22 HIT-6695293.A17 6695293	£1.67	£2.00
7 - GREASE NIPPLE COMP. HIT-6688643.A35 6688643	£1.67	£2.00
8 - HEX. HOLE BOLT 5X10 HIT-6695042.A18 6695042	£1.67	£2.00
9 - HEX. HOLE BOLT M5X25/S HIT-6684709.A150 6684709	£1.67	£2.00
10 - HEX. HOLE BOLT 6X12 HIT-6695078.A10 6695078	£1.67	£2.00
11 - SPECIAL WASHER B HIT-6684822.A31 6684822	£1.67	£2.00
12 - GEAR CASE B HIT-6695981.A5 6695981	£40.62	£48.75
13 - BALL BEARING #6000DD 1 HIT-6695528.A3 6695528	-
14 - RETAINING RING C-TYPE D26 HIT-6695294.A24 6695294	-
15 - RETAINING RING E-TYPE D6 HIT-6695310.A2 6695310	£1.67	£2.00
16 - GEAR CASE COVER (A) HIT-6689167.A13 6689167	-
17 - HEX HOLE BOLT 4X8 HIT-6695035.A13 6695035	-
18 - BALL BEARING 608ZZC3 HIT-6698772.A30 6698772	£2.84	£3.41
19 - RETAINING RING C-TYPE D22 HIT-6695293.A18 6695293	£1.67	£2.00
20 - HANDLE HIT-6688089.A6 6688089	£7.75	£9.30
21 - HEX HOLE BUTTON SCREW 6X15 HIT-6695079.A8 6695079	£1.67	£2.00
22 - GREASE STOP (D) HIT-6686669.A6 6686669	£1.67	£2.00
23 - COLLAR (B) HIT-6689530.A5 6689530	£7.48	£8.97
24 - GEAR SET PN HIT-6696411.A5 6696411	£97.03	£116.44
25 - HANDLE KNOB A COMP. HIT-6691200.A12 6691200	£12.10	£14.52
26 - PLUS BOLT 6X14 HIT-6695016.A12 6695016	-
27 - HEX.NUT 6 TILL D071250 HIT-6684835.A22 6684835	£1.67	£2.00
27A - LOCK NUT 6 UPS-P SINCE D071251 HIT-6695175.A27 6695175	£1.67	£2.00
28 - SUPPORT PLATE HIT-6690744.A10 6690744	£17.82	£21.39
29 - GREASE STOP (B) HIT-6686659.A6 6686659	£1.67	£2.00
30 - BOLT WASHER 6 SINCE D071521 HIT-6684639.A91 6684639	£1.67	£2.00
51 - CAM SHAFT COMP. HIT-6686790.A7 6686790	£62.78	£75.33
52 - CAM ROD HIT-6686809.A2 6686809	£11.92	£14.30
53 - CAM-ROD GUIDE PLATE HIT-6686611.A0 6686611	£2.98	£3.57
54 - CUTTER GUIDE 625.5MM HIT-6687125.A16 6687125	£37.68	£45.21
55 - CUTTER (A) HIT-6687079.A8 6687079	£46.75	£56.10
56 - FIXING BOLT A M6 HIT-6687158.A47 6687158	£1.67	£2.00
57 - WASHER 7 BLACK HIT-6687187.A22 6687187	£1.67	£2.00
*58 - FLANGE NUT 6 TILL D071250 HIT-6695170.A2 6695170	£1.67	£2.00
*58 - FLANGE NUT 6 SINCE D071251 HIT-6695170.A3 6695170	£1.67	£2.00
59 - HEX HOLE FLUSH SCREW 6X16 HIT-6695073.A11 6695073	£1.67	£2.00
60 - GREASE STOP (A) HIT-6686647.A4 6686647	£1.67	£2.00
61 - CAM ROD PLATE HIT-6686826.A4 6686826	£1.67	£2.00
62 - GEAR CASE COVER B HIT-6689172.A0 6689172	£15.41	£18.49
63 - BALL BEARING 608 ZZ C3 HIT-6695547.A21 6695547	£10.17	£12.20
64 - HEX. HOLE BOLT 4X10S HIT-6695484.A36 6695484	£1.67	£2.00
65 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 HIT-6684595.A41 6684595	£1.67	£2.00
66 - CUTTER COVER HIT-6687301.A16 6687301	-
67 - CUTTER FIXING BOLT B HIT-6687162.A14 6687162	£1.67	£2.00
68 - HEX. HOLE FLUSH BOLT 6X25 HIT-6695075.A8 6695075	£1.67	£2.00
69 - GREASE STOP (C) HIT-6686666.A7 6686666	-
70 - SPACER HIT-6688633.A4 6688633	-
71 - LOCK NUT 6 UPS-P SINCE D071251 HIT-6695175.A12 6695175	£1.67	£2.00
72 - BOLT WASHER 6 SINCE D071251 HIT-6684639.A58 6684639	£1.67	£2.00

Attribute Name	Value
Brand	Hikoki
