Hitachi / Hikoki THT2000 Engine Hedge Trimmer Spare Parts

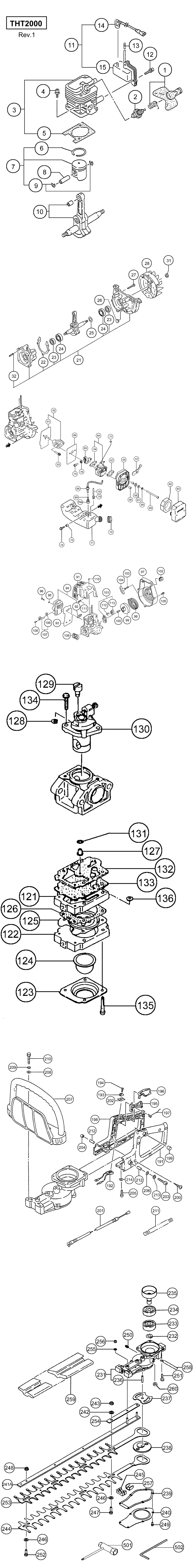

An exploded diagram and spare parts listing for the Hitachi / Hikoki THT2000 Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - SPARK PLUG CAP HIT-6687476.A19 6687476	-
2 - SPARK PLUG ASS'Y BPM6A HIT-6699317.A25 6699317	-
3 - CYLINDER ASS'Y HIT-6685480.A13 6685480	£47.88	£57.46
4 - HEX.HOLE BOLT M5X18/S HIT-6684586.A45 6684586	-
5 - CYLINDER GASKET HIT-6685744.A22 6685744	£1.67	£2.00
6 - PISTON RING HIT-6686118.A6 6686118	£6.94	£8.33
7 - PISTON ASS'Y HIT-6685869.A9 6685869	£28.00	£33.60
8 - PISTON PIN HIT-6696944.A11 6696944	£5.61	£6.73
9 - CIR CLIP HIT-6684590.A98 6684590	£1.67	£2.00
10 - CRANK SHAFT COMP HIT-6686208.A1 6686208	£54.94	£65.93
11 - IGNITION COIL ASS'Y HIT-6697150.A2 6697150	£35.37	£42.44
12 - HEX. HOLE BOLT M4X18/WS HIT-6684599.A48 6684599	-
13 - INSULATOR TUBE 50L HIT-6684597.A12 6684597	-
14 - CORD 200M HIT-6687918.A10 6687918	-
15 - IGNITION COIL COMP HIT-6695939.A1 6695939	£34.64	£41.57
21 - CRANK CASE ASS'Y HIT-6686574.A11 6686574	-
22 - CRANK CASE GASKET HIT-6686720.A3 6686720	-
23 - OIL SEAL TB 12227 HIT-6684607.A186 6684607	£4.07	£4.88
24 - BALL BEARING 6001 C3 HIT-6684608.A21 6684608	£5.70	£6.84
*25 - GEAR SHAFT SHIM 0.10 HIT-6689177.A1 6689177	-
*25 - GEAR SHAFT SHIM 0.15 HIT-6689178.A34 6689178	-
*25 - GEAR SHAFT SHIM 0.20 HIT-6684604.A37 6684604	-
*25 - GEAR SHAFT SHIM 0.30 HIT-6684605.A44 6684605	-
27 - HEX. SOCKET HD. BOLT M5X30 S HIT-6684786.A35 6684786	£1.67	£2.00
28 - MAGNETO ROTOR COMP. HIT-6687396.A1 6687396	-
31 - HEX. NUT M8 HIT-6684612.A69 6684612	-
32 - STUD BOLT 6X22 HIT-6686771.A10 6686771	-
51 - INTAKE PIPE GASKET HIT-6689891.A13 6689891	£3.38	£4.06
52 - CARB. INSULATOR SET 1 HIT-6689966.A22 6689966	£13.22	£15.87
53 - HEX. HOLE BOLT M5X25WS HIT-6695515.A45 6695515	£1.67	£2.00
54 - CARBURETOR GASKET HIT-6684615.A15 6684615	£1.67	£2.00
55 - CLEANER BODY COMP. HIT-6690091.A1 6690091	£9.67	£11.60
56 - COLLAR HIT-6690801.A5 6690801	-
57 - CHOKE PLATE 1 HIT-6691267.A2 6691267	-
58 - SPACER HIT-6684859.A7 6684859	-
59 - S.WASHER 5 HIT-6684662.A54 6684662	£1.67	£2.00
60 - SCREW 5X65 HIT-6694918.A1 6694918	-
61 - WASHER 5 HIT-6684661.A44 6684661	£1.67	£2.00
62 - CLEANER ELEMENT HIT-6690350.A6 6690350	£7.15	£8.58
63 - AIR CLEANER CAP HIT-6690142.A6 6690142	£9.10	£10.92
64 - CARBURETOR SET WYL212 HIT-6690495.A1 6690495	£63.02	£75.62
65 - THROTTLE WIRE FIXING PLATE HIT-6684629.A8 6684629	-
66 - CARBURETOR GASKET HIT-6689839.A10 6689839	£2.98	£3.57
67 - CLEANER GASKET HIT-6690184.A3 6690184	£1.67	£2.00
68 - SHIELD TUBE HIT-6685247.A2 6685247	£4.32	£5.19
69 - CLIP D6 HIT-6685198.A76 6685198	-
70A - PUMP FILTER BODY COMP HIT-66A3864.A96 66A3864	-
71 - TANK WHT HIT-6691647.A0 6691647	£11.71	£14.05
72 - TANK CAP D ASS'Y 1 HIT-6691715.A0 6691715	£8.55	£10.26
73 - COLLAR 5.8 HIT-6692244.A12 6692244	£1.67	£2.00
74 - HEX. HOLE BOLT 5X18PS HIT-6695505.A11 6695505	-
75 - CABLE ADJUSTER HIT-6684871.A4 6684871	-
76 - LOCK NUT M6 HIT-6684872.A86 6684872	-
77 - SWIVEL CAP HIT-6691337.A15 6691337	£1.67	£2.00
78 - FUEL PIPE 3X5X75 HIT-6692357.A3 6692357	£1.67	£2.00
79 - RETURN GROMMET HIT-6697846.A109 6697846	£2.08	£2.50
91 - MUFFLER PROTECTOR HIT-6692795.A8 6692795	-
92 - MUFFLER GASKET HIT-6692744.A11 6692744	£1.67	£2.00
93 - HEAT SHIELD HIT-6687252.A8 6687252	£2.82	£3.39
94 - MUFFLER SET 1 HIT-6692483.A0 6692483	-
95 - WASHER 5 HIT-6684661.A43 6684661	£1.67	£2.00
96 - HEX. SOCKET HD. BOLT M5X50 HIT-6685114.A24 6685114	£1.67	£2.00
97 - FAN CASE COMP. 1 HIT-6687010.A3 6687010	£20.73	£24.88
98 - RECOIL SPRING HIT-6684675.A75 6684675	£8.82	£10.58
99 - STARTER ROPE REEL HIT-6693066.A8 6693066	£5.17	£6.20
100 - SET SCREW HIT-6693633.A5 6693633	£1.67	£2.00
101 - STARTER PULLEY ASS'Y HIT-6693405.A13 6693405	£7.75	£9.30
102 - GROMMET HIT-6688050.A4 6688050	£1.67	£2.00
103 - ROPE HIT-6693168.A35 6693168	£2.82	£3.39
104 - STARTER HANDLE HIT-6693237.A16 6693237	£4.55	£5.46
105 - HEX. HOLE BOLT 4X15/PS HIT-6684682.A30 6684682	£1.67	£2.00
106 - MUFFLER SPECIAL GASKET HIT-6692886.A2 6692886	-
107 - TAIL PIPE SET HIT-6692657.A0 6692657	-
108 - MACHINE SCREW (W/SP. WASHER) M4X8 HIT-6685109.A32 6685109	-
109 - CLUTCH HIT-6688494.A17 6688494	£14.82	£17.78
110 - TAPPING SCREW D4.5X16 HIT-6684636.A20 6684636	£1.67	£2.00
111 - BOLT 4X12PS HIT-6695441.A15 6695441	-
112 - STARTER PAWL SPRING HIT-6684684.A54 6684684	£3.29	£3.95
113 - STARTER PAWL HIT-6693319.A7 6693319	£3.29	£3.95
121 - PUMP BODY COMP. HIT-6691433.A2 6691433	£32.83	£39.40
122 - PRIMING PUMP COMP. HIT-6684687.A42 6684687	£9.27	£11.12
123 - DIAPHRAGM COVER HIT-6684688.A57 6684688	£5.70	£6.84
124 - PRIMING BODY HIT-6684689.A42 6684689	£5.87	£7.04
125 - METERING DIAPHRAGM COMP. HIT-6690830.A7 6690830	£14.58	£17.50
126 - DIAPHRAGM GASKET HIT-6684691.A43 6684691	£5.70	£6.84
127 - MAIN JET #39 HIT-6684878.A5 6684878	-
128 - STOP RING HIT-6684696.A107 6684696	-
129 - SWIVEL HIT-6684697.A78 6684697	-
130 - THROTTLE VALVE HIT-6684883.A14 6684883	£32.24	£38.69
131 - O-RING HIT-6684695.A102 6684695	£1.67	£2.00
132 - PUMP GASKET HIT-6691457.A9 6691457	£8.48	£10.18
133 - PUMP DIAPHRAGM HIT-6684693.A96 6684693	£5.70	£6.84
134 - THROTTLE SET SCREW HIT-6684698.A35 6684698	-
135 - SET SCREW HIT-6684699.A53 6684699	-
136 - INLET SCREEN HIT-6684700.A120 6684700	-
191 - HANDLE A HIT-6686270.A1 6686270	-
192 - STOP SWITCH COMP. HIT-6687764.A1 6687764	-
193 - BUTTON STOP HIT-6688366.A39 6688366	£1.67	£2.00
194 - SCREW 3X10 HIT-6684913.A49 6684913	£1.67	£2.00
195 - THROTTLE LEVER HIT-6688226.A0 6688226	£4.12	£4.94
196 - SAFETY LEVER HIT-6688235.A1 6688235	£1.67	£2.00
197 - THROTTLE LEVER SPRING HIT-6688243.A0 6688243	-
198 - HANDLE B HIT-6686307.A1 6686307	-
199 - CAP HIT-6693002.A9 6693002	£1.67	£2.00
200 - TAPPING SCREW 4X18 HIT-6695263.A0 6695263	-
201 - THROTTLE WIRE COMP. HIT-6693917.A0 6693917	£9.67	£11.60
202 - STOP BUTTON MARK HIT-6694585.A10 6694585	-
203 - HEX. HOLE BOLT 5X45 HIT-6695055.A4 6695055	£1.67	£2.00
204 - NYLON NUT M5 HIT-6696987.A1 6696987	-
205 - HEX. HOLE BOLT 6X18/S HIT-6695495.A38 6695495	-
206 - SMALL WASHER 5 HIT-6684864.A119 6684864	-
207 - FRONT HANDLE HIT-6688096.A2 6688096	£16.62	£19.94
208 - BRAKE SHAFT WASHER HIT-6689680.A1 6689680	£1.67	£2.00
209 - SPRING WASHER 5 HIT-6684834.A47 6684834	£1.67	£2.00
210 - HEX. HOLE BOLT 5X40 HIT-6695054.A24 6695054	£1.67	£2.00
211 - PROTECTION TUBE 10X150L HIT-6687558.A0 6687558	-
212 - COLLAR 5.8 HIT-6692244.A11 6692244	£1.67	£2.00
213 - S.WASHER 5 HIT-6684662.A55 6684662	£1.67	£2.00
214 - BOLT WASHER 6 HIT-6684639.A72 6684639	£1.67	£2.00
231 - GEAR CASE COMP. HIT-6688683.A0 6688683	£61.43	£73.72
232 - STOP RING C-15 1 HIT-6695285.A12 6695285	£1.67	£2.00
233 - BALL BEARING #6002Z 1 HIT-6695538.A8 6695538	£12.57	£15.08
234 - BALL BEARING #6002Z 1 HIT-6695538.A9 6695538	£12.57	£15.08
235 - CLUTCH DRUM COMP. HIT-6688570.A5 6688570	£22.90	£27.48
236 - GEAR SHAFT HIT-6688960.A2 6688960	£2.81	£3.37
237 - GUIDE PLATE HIT-6686614.A2 6686614	£5.70	£6.84
238 - GEAR 2 HIT-6688979.A0 6688979	£47.02	£56.43
239 - GEAR CASE GASKET HIT-6688909.A9 6688909	£1.67	£2.00
240 - GEAR CASE COVER HIT-6692102.A2 6692102	£11.79	£14.15
241A - CUTTER GUIDE 590 HIT-6697700.A1 6697700	£15.87	£19.04
242 - BOLT WASHER 6 HIT-6684639.A73 6684639	£1.67	£2.00
243 - LOCK NUT 6 UPS-P HIT-6695175.A21 6695175	£1.67	£2.00
244 - CUTTER B HIT-6697674.A0 6697674	-
245 - GREASE SEAL A HIT-6686658.A4 6686658	£1.67	£2.00
246 - WASHER 7 BLACK HIT-6687187.A27 6687187	£1.67	£2.00
247 - FIXING BOLT A M6 HIT-6687158.A40 6687158	£1.67	£2.00
248 - FLANGE NUT 6 HIT-6695170.A13 6695170	£1.67	£2.00
249 - HEX. HOLE BOLT 4X10S HIT-6695484.A30 6695484	£1.67	£2.00
250 - GREASE NIPPLE COMP. HIT-6688643.A39 6688643	£1.67	£2.00
251 - HEX. HOLE BOLT 6X18/S HIT-6695495.A37 6695495	-
252 - CUTTER FIXING BOLT B HIT-6687162.A21 6687162	£1.67	£2.00
253 - CUTTER A HIT-6697675.A0 6697675	£36.46	£43.75
254 - SUPPORT PLATE HIT-6690761.A3 6690761	£14.51	£17.41
255 - SMALL WASHER 5 HIT-6684864.A120 6684864	-
256 - NYLON NUT M5 HIT-6696987.A0 6696987	-
257 - HOLDING PLATE HIT-6686468.A3 6686468	£3.51	£4.21
258 - CORD CLAMP COMP. HIT-6688008.A13 6688008	-
259 - CUTTER COVER HIT-6687311.A3 6687311	-
260 - SPRING NUT 6 HIT-6695475.A17 6695475	-
501 - COMBI. BOX SPANNER 10X19 1 HIT-6685997.A21 6685997	-
502 - HEX. BAR WRENCH 4MM HIT-6684813.A43 6684813	-
