Hitachi / Hikoki THT-2530 Engine Hedge Trimmer Spare Parts

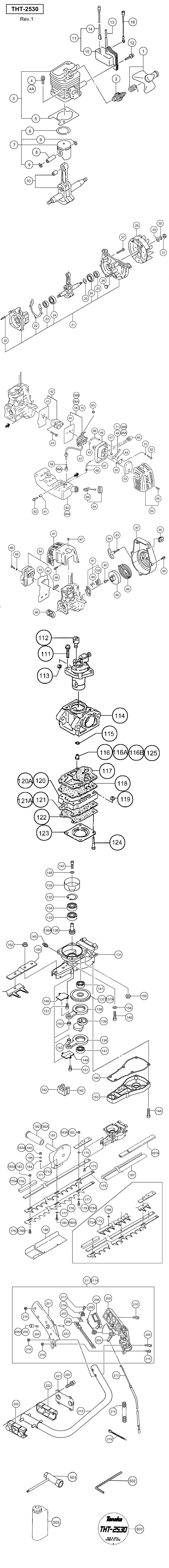

An exploded diagram and spare parts listing for the Hitachi / Hikoki THT-2530 Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - SPARK PLUG CAP HIT-6687476.A15 6687476	-
2 - SPARK PLUG ASS'Y RCJ8Y HIT-6699328.A28 6699328	£5.70	£6.84
3 - CYLINDER ASS'Y HIT-6685481.A2 6685481	£68.00	£81.60
4 - HEX.HOLE BOLT M5X18/S TILL G146930 HIT-6684586.A27 6684586	-
4A - HEX.HOLE BOLT M5X20/S SINCE G146931 HIT-6684668.A68 6684668	-
5 - CYLINDER GASKET HIT-6685744.A14 6685744	£1.67	£2.00
6 - PISTON RING HIT-6684588.A6 6684588	£6.38	£7.66
7 - PISTON ASS'Y HIT-6685893.A5 6685893	£34.72	£41.67
8 - PISTON PIN HIT-6684591.A24 6684591	£3.29	£3.95
9 - PISTON PIN CIRCLIP HIT-6686028.A3 6686028	-
10 - CRANK SHAFT COMP. HIT-6686205.A8 6686205	£145.70	£174.84
11 - IGNITION COIL ASS'Y HIT-6695927.A4 6695927	£30.92	£37.11
12 - HEX. HOLE BOLT M4X18/WS HIT-6684599.A60 6684599	-
13 - INSULATOR TUBE 50L HIT-6684597.A6 6684597	-
14 - CORD HIT-6687866.A6 6687866	-
15 - IGNITION COIL COMP HIT-6695939.A4 6695939	£34.64	£41.57
16 - CORD HIT-6688477.A5 6688477	£8.18	£9.81
21 - CRANK CASE ASS'Y HIT-6601159.A2 6601159	-
22 - CRANK CASE GASKET HIT-6686720.A8 6686720	-
23 - OIL SEAL TB 12227 HIT-6684607.A114 6684607	£4.07	£4.88
24 - BALL BEARING 6001 C3 HIT-6684608.A86 6684608	£5.70	£6.84
*25 - GEAR SHAFT SHIM 0.10 HIT-6689177.A16 6689177	-
*25 - GEAR SHAFT SHIM 0.15 HIT-6689178.A19 6689178	-
*25 - GEAR SHAFT SHIM 0.20 HIT-6684604.A24 6684604	-
*25 - GEAR SHAFT SHIM 0.30 HIT-6684605.A57 6684605	-
27 - HEX. SOCKET HD. BOLT M5X30 S HIT-6684786.A24 6684786	£1.67	£2.00
28 - MAGNETO ROTOR COMP. HIT-6687389.A9 6687389	-
29 - BOLT WASHER M8 HIT-6684611.A38 6684611	-
30 - S.WASHER 8 HIT-6684971.A4 6684971	-
31 - HEX. NUT M8 HIT-6684612.A87 6684612	-
32 - STUD BOLT 6X22 HIT-6686771.A2 6686771	-
41 - INTAKE PIPE GASKET HIT-6689891.A18 6689891	£3.38	£4.06
42 - CARB. INSULATOR SET 1 HIT-6689966.A16 6689966	£13.22	£15.87
43 - HEX. HOLE BOLT M5X25WS HIT-6695515.A53 6695515	£1.67	£2.00
44 - CARBURETOR GASKET HIT-6689839.A6 6689839	£2.98	£3.57
45 - O-RING P-15 HIT-6698966.A19 6698966	£1.67	£2.00
46 - CLEANER BODY COMP. HIT-6690119.A13 6690119	£8.95	£10.74
47 - COLLAR 7.5 HIT-6690804.A3 6690804	£1.67	£2.00
48 - CHOKE VALVE TILL U100576 FOR EUROPE HIT-6691274.A3 6691274	-
48A - CHOKE VALVE TILL B028600 FOR EUROPE HIT-6691272.A9 6691272	£1.67	£2.00
48B - CHOKE VALVE SINCE B028601 FOR EUROPE HIT-6691274.A2 6691274	-
49 - WAVE WASHER 8 HIT-6684658.A49 6684658	£1.67	£2.00
50 - BLOW OVER CHECK BOARD HIT-6690843.A5 6690843	£1.67	£2.00
51 - S.WASHER 5 HIT-6684662.A86 6684662	£1.67	£2.00
52 - SCREW M5X60 HIT-6684660.A25 6684660	-
53 - CLEANER SPONGE HIT-6690364.A17 6690364	£1.67	£2.00
54 - CLEANER COVER ASS'Y HIT-6690417.A5 6690417	£11.15	£13.38
55 - SPECIAL SCREW HIT-6689737.A17 6689737	-
56 - CARBURETOR SET 1 HIT-6690488.A0 6690488	-
56A - CARBURETOR SET WYL112 TILL B028600 FOR EUROPE HIT-6690482.A1 6690482	£73.85	£88.62
56B - CARBURETOR SET 1 HIT-6690487.A1 6690487	£69.98	£83.97
57 - SHIELD TUBE HIT-6685247.A9 6685247	£4.32	£5.19
58 - CLIP D6 HIT-6685198.A56 6685198	-
59A - PUMP FILTER BODY COMP HIT-66A3864.A73 66A3864	-
60 - TANK WHT TILL U100576 HIT-6697631.A0 6697631	£18.71	£22.45
60A - TANK WHT SINCE U100577 HIT-6691582.A6 6691582	£11.71	£14.05
61 - COLLAR 5.8 HIT-6692244.A28 6692244	£1.67	£2.00
62 - HEX. HOLE BOLT 5X18PS HIT-6695505.A7 6695505	-
63 - SWIVEL CAP SINCE A138351 HIT-6691337.A26 6691337	£1.67	£2.00
64 - TANK CAP D ASS'Y 1 HIT-6691763.A3 6691763	£13.46	£16.15
65 - PRIMING PUMP COMP. SINCE U100577 HIT-6685139.A103 6685139	£10.67	£12.80
66 - FUEL PIPE 2.5X4X80 SINCE U100577 HIT-6692347.A21 6692347	£1.67	£2.00
67 - FUEL PIPE 2.5X4X70 SINCE U100577 HIT-6692346.A6 6692346	£1.67	£2.00
68 - RETURN GROMMET SINCE U100577 HIT-6697846.A140 6697846	£2.08	£2.50
69 - TANK CAP CHAIN HIT-6684625.A26 6684625	-
70 - CARBURETOR SET WYL112 FOR ISR HIT-6690482.A2 6690482	£73.85	£88.62
71 - CHOKE VALVE FOR ISR HIT-6691272.A10 6691272	£1.67	£2.00
81 - MUFFLER PROTECTOR HIT-6692799.A1 6692799	£10.64	£12.77
82 - MUFFLER GASKET HIT-6692744.A4 6692744	£1.67	£2.00
83 - HEAT SHIELD HIT-6687252.A4 6687252	£2.82	£3.39
84 - MUFFLER ASS'Y HIT-6692477.A3 6692477	£38.70	£46.44
85 - WASHER 5 HIT-6684661.A12 6684661	£1.67	£2.00
86 - HEX. SOCKET HD. BOLT M5X50 HIT-6685114.A33 6685114	£1.67	£2.00
87 - FAN CASE COMP. 1 HIT-6687010.A0 6687010	£20.73	£24.88
88 - RECOIL SPRING HIT-6684675.A17 6684675	£8.82	£10.58
89 - STARTER ROPE REEL HIT-6693066.A5 6693066	£5.17	£6.20
90 - SET SCREW HIT-6693633.A10 6693633	£1.67	£2.00
91 - STARTER PULLEY ASS'Y HIT-6693405.A9 6693405	£7.75	£9.30
92 - GROMMET HIT-6688050.A13 6688050	£1.67	£2.00
93 - ROPE HIT-6693168.A41 6693168	£2.82	£3.39
94 - STARTER HANDLE HIT-6693237.A26 6693237	£4.55	£5.46
95 - HEX. HOLE BOLT 4X15/PS HIT-6684682.A4 6684682	£1.67	£2.00
96 - CLUTCH HIT-6688494.A19 6688494	£14.82	£17.78
97 - TAPPING SCREW D4.5X16 HIT-6684636.A37 6684636	£1.67	£2.00
98 - BOLT 4X12PS HIT-6695441.A23 6695441	-
99 - STARTER PAWL SPRING HIT-6684684.A7 6684684	£3.29	£3.95
100 - STARTER PAWL HIT-6693319.A3 6693319	£3.29	£3.95
111 - THROTTLE SET SCREW HIT-6684698.A13 6684698	-
112 - SWIVEL HIT-6684697.A141 6684697	-
113 - STOP RING HIT-6684696.A20 6684696	-
114 - THROTTLE VALVE TILL B028600 HIT-6684883.A7 6684883	£32.24	£38.69
115 - O-RING HIT-6684695.A174 6684695	£1.67	£2.00
116 - MAIN JET #41.5 TILL U100576 FOR EUROPE HIT-6691885.A3 6691885	-
116A - MAIN JET #40 TILL B028600 FOR EUROPE HIT-6691845.A7 6691845	-
116B - MAIN JET #34.5 SINCE B028601 FOR EUROPE HIT-6691888.A2 6691888	-
117 - PUMP GASKET HIT-6691457.A34 6691457	£8.48	£10.18
118 - PUMP DIAPHRAGM HIT-6684693.A19 6684693	£5.70	£6.84
119 - INLET SCREEN HIT-6684700.A11 6684700	-
120 - PUMP BODY COMP. TILL U100576 HIT-6691432.A6 6691432	-
120A - PUMP BODY COMP. SINCE U100577 HIT-6691430.A1 6691430	-
121 - DIAPHRAGM GASKET TILL U100576 HIT-6690837.A4 6690837	£3.29	£3.95
121A - DIAPHRAGM PACKING-METERING SINCE U100577 HIT-6685220.A60 6685220	£2.81	£3.37
122 - METERING DIAPHRAGM COMP. HIT-6690827.A68 6690827	£14.02	£16.83
123 - DIAPHRAGM COVER-METERING HIT-6685222.A119 6685222	£5.70	£6.84
124 - SET SCREW HIT-6691312.A64 6691312	-
125 - MAIN JET #40 FOR ISR HIT-6691845.A6 6691845	-
131 - NO LONGER AVAILABLE HIT-6688672.A2 6688672	-
132 - RETAINING RING C-TYPE D26 HIT-6695294.A46 6695294	-
133 - BALL BEARING #6000 1 HIT-6695524.A33 6695524	-
134 - BALL BEARING #6000Z 1 HIT-6695526.A8 6695526	-
135 - CLUTCH HOUSING COMP. HIT-6688571.A4 6688571	-
136 - GEAR 1 TILL C024000 HIT-6688967.A1 6688967	-
136A - GEAR 1 SINCE C024001 HIT-6688968.A2 6688968	-
137A - GEAR 2 SINCE C024001 HIT-6688978.A5 6688978	£29.02	£34.82
138 - CAM-ROD COMP. HIT-6686810.A1 6686810	£31.02	£37.23
139 - CAM SHAFT HIT-6686791.A1 6686791	-
140 - GEAR CASE GASKET HIT-6688910.A0 6688910	-
141 - BALL BEARING #608 2 HIT-6684738.A5 6684738	-
142 - GREASE SEAL A HIT-6686655.A2 6686655	-
143 - COLLAR HIT-6688293.A3 6688293	-
144 - HEX. HOLE BOLT M5X25/S HIT-6684709.A194 6684709	£1.67	£2.00
145 - GREASE NIPPLE COMP. HIT-6688643.A67 6688643	£1.67	£2.00
146 - HEX. HOLE BOLT 6X18/S HIT-6695495.A27 6695495	-
147 - HEX HOLE BUTTON SCREW 6X15 HIT-6695079.A19 6695079	£1.67	£2.00
148 - SMALL WASHER 6 HIT-6695183.A8 6695183	-
149 - FIXING PLATE HIT-6686467.A1 6686467	-
150 - SUPPORT PLATE HIT-6690758.A1 6690758	-
151 - HEX. SOCKET HD. BOLT M4X10 HIT-6685093.A3 6685093	£1.67	£2.00
152 - SPRING NUT 6 HIT-6695475.A8 6695475	-
154 - S.WASHER 6 TILL A138350 HIT-6695219.A26 6695219	£1.67	£2.00
155 - SPRING NUT 6 HIT-6695475.A7 6695475	-
171 - CUTTER GUIDE TILL A157900 HIT-6687142.A0 6687142	-
171A - CUTTER GUIDE 830L M6 SINCE A157901 HIT-6687151.A2 6687151	-
172 - PROTECTION PLATE TILL U235830 HIT-6687287.A0 6687287	-
*172A - PROTECTION PLATE SINCE U235831 HIT-6687288.A0 6687288	-
*172A - PROTECTION PLATE TILL B028600 HIT-6687288.A1 6687288	-
173 - HEX. HOLE SCREW 6X25 HIT-6695074.A2 6695074	-
174 - SPECIAL WASHER B SINCE B028601 HIT-6684822.A48 6684822	£1.67	£2.00
*175 - CUTTER B 852L FOR EUROPE HIT-6687113.A1 6687113	-
*175 - CUTTER B FOR ISR HIT-6695910.A0 6695910	-
*176 - CUTTER A FOR EUROPE HIT-6687091.A1 6687091	-
*176 - CUTTER A FOR ISR HIT-6695909.A0 6695909	-
177 - WASHER 7 BLACK HIT-6687187.A38 6687187	£1.67	£2.00
178 - CUTTER FIXING BOLT A TILL A157900 HIT-6687160.A1 6687160	£1.67	£2.00
178A - FIXING BOLT A M6 SINCE A157901 HIT-6687158.A21 6687158	£1.67	£2.00
179 - BLADE HOLDER TILL B028600 HIT-6687181.A2 6687181	-
179A - BLADE HOLDER SINCE B028601 HIT-6687180.A3 6687180	-
180 - CUTTER FIXING BOLT B TILL A157900 HIT-6687167.A0 6687167	£1.67	£2.00
180A - FIXING BOLT B M6 SINCE A157901 HIT-6687168.A4 6687168	£1.67	£2.00
181 - HANDLE B COMP. HIT-6686311.A2 6686311	£24.92	£29.91
182 - HANDLE GRIP L TILL U100576 HIT-6691225.A0 6691225	-
182A - HANDLE GRIP SINCE U100577 HIT-6684708.A3 6684708	£3.56	£4.27
183 - CUTTER FIXING NUT TILL A157900 HIT-6687156.A0 6687156	£1.67	£2.00
183A - FLANGE NUT 6 SINCE A157901 HIT-6695170.A33 6695170	£1.67	£2.00
184 - BOLT WASHER 6 HIT-6684639.A42 6684639	£1.67	£2.00
185 - S.WASHER 6 HIT-6695219.A27 6695219	£1.67	£2.00
186 - BOLT WASHER 6 TILL A157900 HIT-6684639.A41 6684639	£1.67	£2.00
187A - CUTTER COVER 1 HIT-6687308.A1 6687308	-
188 - GATHERING PLATE 1 HIT-6689539.A0 6689539	£32.99	£39.59
201 - HANDLE GRIP A HIT-6686338.A3 6686338	-
202 - HANDLE GRIP B HIT-6686349.A0 6686349	-
203 - THROTTLE LEVER HIT-6688229.A6 6688229	£4.12	£4.94
204 - SAFETY LEVER HIT-6688238.A3 6688238	-
205 - THROTTLE LEVER SPRING HIT-6686414.A2 6686414	-
206 - STOP SWITCH COMP. HIT-6687758.A1 6687758	-
207 - STOP BUTTON MARK HIT-6694585.A6 6694585	-
208 - PUSH PIN CAP TILL U100576 HIT-6692681.A2 6692681	£1.67	£2.00
208A - CAP SINCE U100577 HIT-6693002.A5 6693002	£1.67	£2.00
209 - SCREW 4X30/WS HIT-6695412.A7 6695412	-
210 - SCREW 4X25/WS HIT-6695411.A2 6695411	-
211 - HANDLE GRIP ASS'Y TILL U100576 HIT-6686355.A0 6686355	-
211A - HANDLE GRIP ASS'Y SINCE U100577 HIT-6686354.A1 6686354	-
212 - HANDLE A COMP. HIT-6686275.A2 6686275	-
213 - THROTTLE WIRE 270+49 HIT-6693877.A0 6693877	£6.61	£7.93
214 - PROTECTION TUBE 10X150L HIT-6687558.A1 6687558	-
215 - SCREW 4X16WS HIT-6695404.A0 6695404	-
216 - NYLON LOCK NUT 4 HIT-6695163.A7 6695163	-
217 - SCREW 3X10 HIT-6684913.A35 6684913	£1.67	£2.00
218 - BUTTON STOP HIT-6688366.A31 6688366	£1.67	£2.00
219 - CORD CLAMP HIT-6688015.A18 6688015	-
220 - HEX.HOLE BOLT M5X12/S HIT-6684667.A3 6684667	£1.67	£2.00
221 - HANDLE BRACKET HIT-6686370.A2 6686370	-
222 - HANDLE DUMPER RUBBER HIT-6686396.A2 6686396	-
223 - PUSH PIN TILL U100576 HIT-6686433.A0 6686433	-
224 - STOPPER SPRING TILL U100576 HIT-6686447.A13 6686447	£1.67	£2.00
501 - COMBI BOX SPANNER 10/19MM HIT-6685257.A9 6685257	-
502 - HEX. BAR WRENCH 4MM HIT-6684813.A21 6684813	-
503 - FUEL PREMIX CANISTER FOR CHN HIT-6693785.A0 6693785	-
601 - NAME PLATE HIT-6699687.A0 6699687	-
