Hitachi / Hikoki THT-2510S Engine Hedge Trimmer Spare Parts

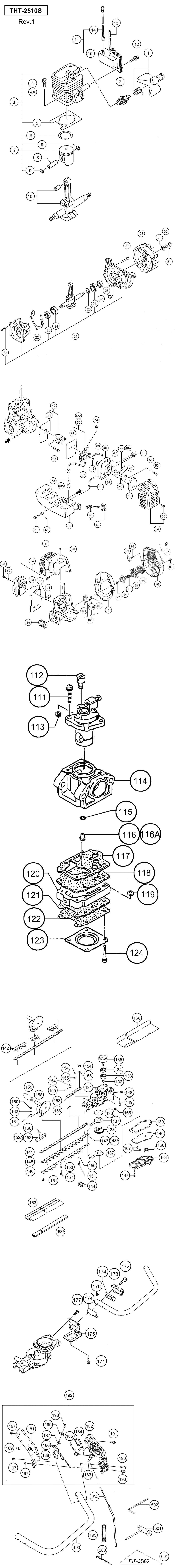

An exploded diagram and spare parts listing for the Hitachi / Hikoki THT-2510S Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - SPARK PLUG CAP HIT-6687476.A2 6687476	-
2 - SPARK PLUG ASS'Y RCJ8Y HIT-6699328.A7 6699328	£5.70	£6.84
3 - CYLINDER ASS'Y HIT-6685481.A6 6685481	£68.00	£81.60
4 - HEX.HOLE BOLT M5X20/S HIT-6684668.A4 6684668	-
5 - CYLINDER GASKET HIT-6685744.A7 6685744	£1.67	£2.00
6 - PISTON RING HIT-6684588.A17 6684588	£6.38	£7.66
7 - PISTON ASS'Y HIT-6685893.A2 6685893	£34.72	£41.67
8 - PISTON PIN HIT-6684591.A64 6684591	£3.29	£3.95
9 - PISTON PIN CIRCLIP HIT-6686028.A11 6686028	-
10 - CRANK SHAFT COMP. HIT-6686205.A5 6686205	£145.70	£174.84
11 - IGNITION COIL ASS'Y HIT-6695927.A2 6695927	£30.92	£37.11
12 - HEX. HOLE BOLT M4X18/WS HIT-6684599.A19 6684599	-
13 - INSULATOR TUBE 50L HIT-6684597.A26 6684597	-
14 - CORD HIT-6687866.A2 6687866	-
15 - IGNITION COIL COMP HIT-6695939.A10 6695939	£34.64	£41.57
21 - CRANK CASE ASS'Y HIT-6686574.A7 6686574	-
22 - CRANK CASE GASKET HIT-6686720.A13 6686720	-
23 - OIL SEAL TB 12227 HIT-6684607.A92 6684607	£4.07	£4.88
24 - BALL BEARING 6001 C3 HIT-6684608.A109 6684608	£5.70	£6.84
*25 - GEAR SHAFT SHIM 0.10 HIT-6689177.A34 6689177	-
*25 - GEAR SHAFT SHIM 0.15 HIT-6689178.A1 6689178	-
*25 - GEAR SHAFT SHIM 0.20 HIT-6684604.A68 6684604	-
*25 - GEAR SHAFT SHIM 0.30 HIT-6684605.A13 6684605	-
27 - HEX. SOCKET HD. BOLT M5X30 S HIT-6684786.A73 6684786	£1.67	£2.00
28 - MAGNETO ROTOR COMP. HIT-6687389.A0 6687389	-
29 - BOLT WASHER M8 HIT-6684611.A83 6684611	-
30 - S.WASHER 8 HIT-6684971.A31 6684971	-
31 - HEX. NUT M8 HIT-6684612.A33 6684612	-
32 - STUD BOLT 6X22 HIT-6686771.A17 6686771	-
41 - INTAKE PIPE GASKET HIT-6689891.A2 6689891	£3.38	£4.06
42 - CARB. INSULATOR SET 1 HIT-6689966.A7 6689966	£13.22	£15.87
43 - HEX. HOLE BOLT M5X25WS HIT-6695515.A12 6695515	£1.67	£2.00
44 - CARBURETOR GASKET HIT-6689839.A20 6689839	£2.98	£3.57
45 - O-RING P-15 HIT-6698966.A20 6698966	£1.67	£2.00
46 - CLEANER BODY COMP. HIT-6690119.A15 6690119	£8.95	£10.74
47 - COLLAR 7.5 HIT-6690804.A1 6690804	£1.67	£2.00
48 - CHOKE VALVE TILL B032540 HIT-6691272.A12 6691272	£1.67	£2.00
48A - CHOKE VALVE SINCE B032541 HIT-6691274.A0 6691274	-
49 - WAVE WASHER 8 HIT-6684658.A51 6684658	£1.67	£2.00
50 - BLOW OVER CHECK BOARD HIT-6690843.A8 6690843	£1.67	£2.00
51 - S.WASHER 5 HIT-6684662.A84 6684662	£1.67	£2.00
52 - SCREW M5X60 HIT-6684660.A23 6684660	-
53 - CLEANER SPONGE HIT-6690364.A19 6690364	£1.67	£2.00
54 - CLEANER COVER ASS'Y HIT-6690417.A3 6690417	£11.15	£13.38
55 - SPECIAL SCREW HIT-6689737.A19 6689737	-
56 - CARBURETOR SET WYL112 TILL B032540 HIT-6690482.A3 6690482	£73.85	£88.62
56A - CARBURETOR SET 1 HIT-6690487.A0 6690487	£69.98	£83.97
57 - SHIELD TUBE HIT-6685247.A10 6685247	£4.32	£5.19
58 - CLIP D6 HIT-6685198.A55 6685198	-
59A - PUMP FILTER BODY COMP HIT-66A3864.A74 66A3864	-
60 - TANK WHT HIT-6691582.A4 6691582	£11.71	£14.05
61 - COLLAR 5.8 HIT-6692244.A30 6692244	£1.67	£2.00
62 - HEX. HOLE BOLT 5X18PS HIT-6695505.A5 6695505	-
63 - SWIVEL CAP SINCE A138651 HIT-6691337.A23 6691337	£1.67	£2.00
64 - TANK CAP D ASS'Y 1 HIT-6691763.A5 6691763	£13.46	£16.15
65 - PRIMING PUMP COMP. HIT-6685139.A105 6685139	£10.67	£12.80
66 - FUEL PIPE 2.5X4X80 HIT-6692347.A23 6692347	£1.67	£2.00
67 - FUEL PIPE 2.5X4X70 HIT-6692346.A4 6692346	£1.67	£2.00
68 - RETURN GROMMET HIT-6697846.A136 6697846	£2.08	£2.50
69 - TANK CAP CHAIN HIT-6684625.A29 6684625	-
81 - MUFFLER PROTECTOR HIT-6692799.A0 6692799	£10.64	£12.77
82 - MUFFLER GASKET HIT-6692744.A5 6692744	£1.67	£2.00
83 - HEAT SHIELD HIT-6687252.A2 6687252	£2.82	£3.39
84 - MUFFLER ASS'Y HIT-6692477.A5 6692477	£38.70	£46.44
85 - WASHER 5 HIT-6684661.A14 6684661	£1.67	£2.00
86 - HEX. SOCKET HD. BOLT M5X50 HIT-6685114.A31 6685114	£1.67	£2.00
87 - GROMMET HIT-6688050.A15 6688050	£1.67	£2.00
88 - HEX.HOLE BOLT 4X18PS HIT-6695502.A18 6695502	£1.67	£2.00
89 - CLUTCH HIT-6688494.A22 6688494	£14.82	£17.78
90 - TAPPING SCREW D4.5X16 HIT-6684636.A39 6684636	£1.67	£2.00
91 - BOLT 4X12PS HIT-6695441.A25 6695441	-
92 - FAN CASE COMP. HIT-6687014.A0 6687014	£21.02	£25.23
93 - STARTER ROPE REEL HIT-6693072.A13 6693072	£9.60	£11.52
94 - CAM PLATE HIT-6684678.A2 6684678	£5.17	£6.20
95 - DAMPER SPRING HIT-6684677.A105 6684677	£5.70	£6.84
96 - RECOIL SPRING HIT-6684675.A19 6684675	£8.82	£10.58
97 - SET SCREW HIT-6684679.A146 6684679	£2.98	£3.57
98 - ROPE 3X890 HIT-6693172.A0 6693172	£3.70	£4.44
99 - STARTER HANDLE HIT-6693237.A24 6693237	£4.55	£5.46
100 - STARTER PULLEY ASS'Y HIT-6684681.A107 6684681	£18.16	£21.79
101 - DEFLECTOR HIT-6687209.A13 6687209	-
102 - STARTER PAWL HIT-6684685.A98 6684685	£5.07	£6.08
103 - STARTER PAWL SPRING HIT-6684684.A9 6684684	£3.29	£3.95
104 - D4E RETAINING RING HIT-6685101.A111 6685101	-
111 - THROTTLE SET SCREW HIT-6684698.A14 6684698	-
112 - SWIVEL HIT-6684697.A140 6684697	-
113 - STOP RING HIT-6684696.A21 6684696	-
114 - THROTTLE VALVE TILL B032541 HIT-6684883.A5 6684883	£32.24	£38.69
115 - O-RING HIT-6684695.A173 6684695	£1.67	£2.00
116 - MAIN JET #40 TILL B032540 HIT-6691845.A4 6691845	-
116A - MAIN JET #34.5 SINCE B032541 HIT-6691888.A5 6691888	-
117 - PUMP GASKET HIT-6691457.A37 6691457	£8.48	£10.18
118 - PUMP DIAPHRAGM HIT-6684693.A20 6684693	£5.70	£6.84
119 - INLET SCREEN HIT-6684700.A13 6684700	-
120 - PUMP BODY COMP. HIT-6691430.A3 6691430	-
121 - DIAPHRAGM PACKING-METERING HIT-6685220.A57 6685220	£2.81	£3.37
122 - METERING DIAPHRAGM COMP. HIT-6690827.A70 6690827	£14.02	£16.83
123 - DIAPHRAGM COVER-METERING HIT-6685222.A122 6685222	£5.70	£6.84
124 - SET SCREW HIT-6691312.A66 6691312	-
131 - GEAR CASE COMP. HIT-6688678.A0 6688678	£30.16	£36.19
132 - STOP RING C-15 1 HIT-6695285.A9 6695285	£1.67	£2.00
133 - BALL BEARING 6002 C3 HIT-6697745.A3 6697745	-
134 - BALL BEARING 6002 C3 HIT-6697745.A4 6697745	-
135 - CLUTCH DRUM COMP. HIT-6688570.A2 6688570	£22.90	£27.48
136 - GUIDE PLATE HIT-6686612.A7 6686612	£1.67	£2.00
137 - CAM ROD HIT-6686811.A3 6686811	£15.71	£18.85
138 - GEAR 2 COMP. HIT-6688625.A1 6688625	£38.48	£46.17
139 - GEAR CASE GASKET HIT-6688909.A16 6688909	£1.67	£2.00
140 - GEAR CASE COVER HIT-6692101.A5 6692101	-
141 - CUTTER GUIDE 858L M6 HIT-6687133.A0 6687133	£30.92	£37.11
142 - PROTECTION PLATE TILL B032540 HIT-6687288.A3 6687288	-
143 - HEX HOLE FLUSH SCREW 6X16 TILL C192400 HIT-6695073.A3 6695073	£1.67	£2.00
143A - HEX. HOLE FLUSH BOLT 6X25 SINCE C192401 HIT-6695075.A3 6695075	£1.67	£2.00
144 - GREASE SEAL A HIT-6686654.A10 6686654	£1.67	£2.00
145 - CUTTER B (820L) HIT-6687108.A0 6687108	£50.78	£60.93
146 - CUTTER A 820L HIT-6687082.A0 6687082	£48.75	£58.50
147 - HEX. HOLE BOLT 4X15/S HIT-6695487.A5 6695487	£3.72	£4.46
148 - GREASE NIPPLE COMP. HIT-6688643.A64 6688643	£1.67	£2.00
149 - HEX. HOLE BOLT 6X18/S HIT-6695495.A23 6695495	-
150 - WASHER 7 BLACK HIT-6687187.A37 6687187	£1.67	£2.00
151 - FIXING BOLT A M6 HIT-6687158.A24 6687158	£1.67	£2.00
152 - BLADE HOLDER TILL B032540 HIT-6687181.A3 6687181	-
152A - BLADE HOLDER SINCE B032541 HIT-6687180.A2 6687180	-
153 - SUPPORT PLATE SINCE C192401 HIT-6690764.A4 6690764	£4.72	£5.66
154 - LOCK NUT 6 UPS-P SINCE C192401 HIT-6695175.A7 6695175	£1.67	£2.00
155 - BOLT WASHER 6 HIT-6684639.A39 6684639	£1.67	£2.00
156 - SPECIAL WASHER B HIT-6684822.A51 6684822	£1.67	£2.00
157 - FIXING BOLT B M6 HIT-6687168.A5 6687168	£1.67	£2.00
158 - HANDLE B COMP. HIT-6686311.A3 6686311	£24.92	£29.91
159 - HANDLE GRIP HIT-6684708.A2 6684708	£3.56	£4.27
160 - FLANGE NUT 6 HIT-6695170.A32 6695170	£1.67	£2.00
161 - BOLT WASHER 6 HIT-6684639.A38 6684639	£1.67	£2.00
162 - S.WASHER 6 HIT-6695219.A28 6695219	£1.67	£2.00
163A - CUTTER COVER 1 HIT-6687308.A2 6687308	-
164 - GEAR CASE B HIT-6688844.A1 6688844	-
165 - SPRING NUT 6 HIT-6695475.A6 6695475	-
166 - GATHERING PLATE 1 HIT-6689539.A1 6689539	£32.99	£39.59
167 - HEX HOLE BOLT 4X10/S HIT-6695485.A0 6695485	-
168 - BALL BEARING 608 ZZ C3 HIT-6695547.A13 6695547	£10.17	£12.20
171 - HEX. HOLE BOLT 4X15/S HIT-6695487.A6 6695487	£3.72	£4.46
172 - HEX.HOLE BOLT M5X35 HIT-6684934.A11 6684934	-
173 - HANDLE HOLDER HIT-6686362.A0 6686362	-
174 - DAMPER RUBBER HIT-6686398.A2 6686398	-
175 - HANDLE BRACKET COMP. HIT-6686369.A0 6686369	£4.45	£5.34
176 - EARTH TERMINAL HIT-6687800.A0 6687800	-
177 - HEX HOLE BOLT 5X12/S HIT-6695489.A0 6695489	-
181 - HANDLE GRIP A HIT-6686338.A2 6686338	-
182 - HANDLE GRIP B HIT-6686349.A1 6686349	-
183 - THROTTLE LEVER HIT-6688229.A7 6688229	£4.12	£4.94
184 - SAFETY LEVER HIT-6688238.A2 6688238	-
185 - THROTTLE LEVER SPRING HIT-6686414.A1 6686414	-
186 - STOP BUTTON COMP. HIT-6687765.A0 6687765	-
187 - STOP BUTTON MARK HIT-6694585.A7 6694585	-
188 - EARTH TERMINAL HIT-6689128.A0 6689128	-
189 - CAP HIT-6693002.A6 6693002	£1.67	£2.00
190 - SCREW 4X30/WS HIT-6695412.A8 6695412	-
191 - SCREW 4X25/WS HIT-6695411.A1 6695411	-
192 - HANDLE GRIP ASS'Y HIT-6686357.A2 6686357	-
193 - HANDLE A COMP. HIT-6686274.A0 6686274	£38.31	£45.97
194 - THROTTLE WIRE 270+49 HIT-6693877.A1 6693877	£6.61	£7.93
195 - PROTECTION TUBE 7X165L HIT-6687525.A2 6687525	£1.67	£2.00
196 - SCREW 4X16WS HIT-6695404.A1 6695404	-
197 - NYLON LOCK NUT 4 HIT-6695163.A8 6695163	-
198 - SCREW 3X10 HIT-6684913.A37 6684913	£1.67	£2.00
199 - BUTTON STOP HIT-6688366.A32 6688366	£1.67	£2.00
200 - CORD CLAMP HIT-6688015.A17 6688015	-
501 - COMBI BOX SPANNER 10/19MM HIT-6685257.A8 6685257	-
502 - HEX. BAR WRENCH 4MM HIT-6684813.A20 6684813	-
601 - NAME PLATE THT2510S HIT-6694195.A0 6694195	-
