Hitachi / Hikoki THT-210SB Engine Hedge Trimmer Spare Parts

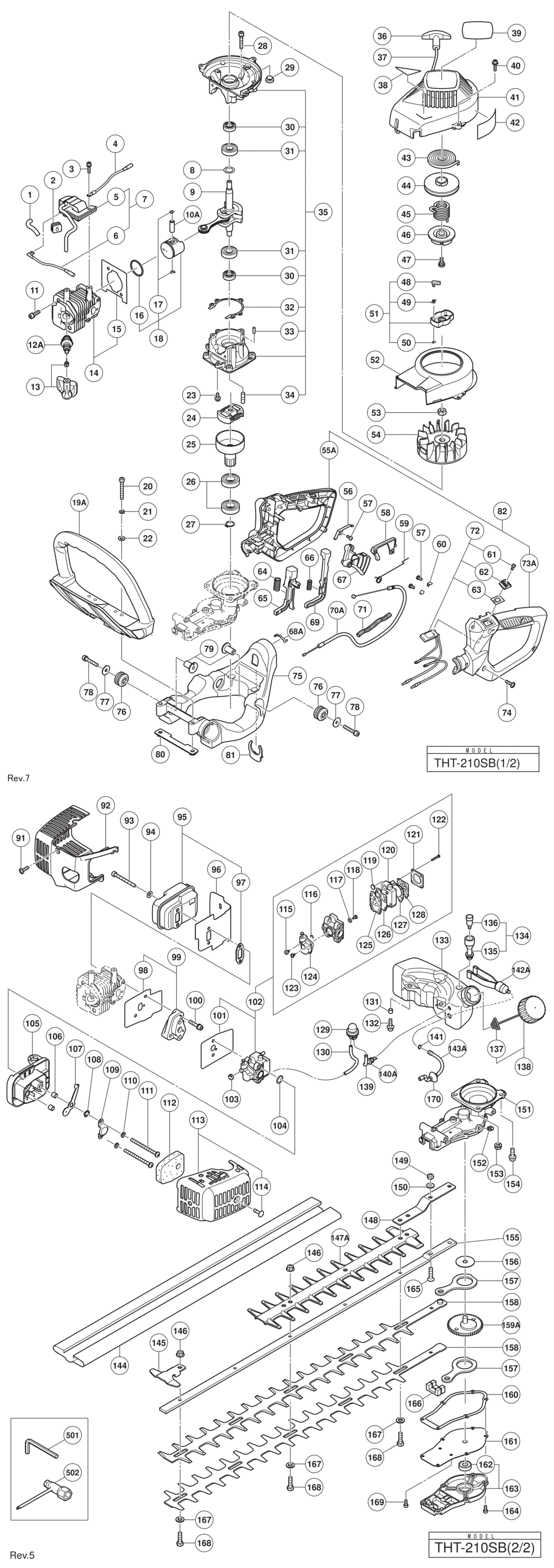

An exploded diagram and spare parts listing for the Hitachi / Hikoki THT-210SB Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - INSULATOR TUBE 50L HIT-6684597.A20 6684597	-
2 - GROMMET HIT-6688050.A33 6688050	£1.67	£2.00
3 - HEX. HOLE BOLT M4X18/WS HIT-6684599.A27 6684599	-
4 - CORD HIT-6688477.A3 6688477	£8.18	£9.81
6 - CORD 200M HIT-6687918.A5 6687918	-
*8 - GEAR SHAFT SHIM 0.20 HIT-6684604.A64 6684604	-
*8 - GEAR SHAFT SHIM 0.30 HIT-6684605.A17 6684605	-
9 - CRANK SHAFT COMP HIT-6686208.A6 6686208	£54.94	£65.93
10A - PISTON PIN HIT-6696944.A50 6696944	£5.61	£6.73
11 - HEX.HOLE BOLT M5X18/S HIT-6684586.A80 6684586	-
12A - SPARK PLUG ASS'Y BPMR6A HIT-6699319.A14 6699319	-
13 - SPARK PLUG CAP HIT-6687476.A8 6687476	-
14 - CYLINDER ASS'Y INCLUD.15 HIT-6685480.A5 6685480	£47.88	£57.46
15 - CYLINDER GASKET HIT-6685744.A4 6685744	£1.67	£2.00
16 - PISTON RING HIT-6686118.A22 6686118	£6.94	£8.33
17 - CIR CLIP HIT-6684590.A41 6684590	£1.67	£2.00
18 - PISTON SET INCLUD.16 HIT-6685892.A5 6685892	£33.09	£39.71
19A - HANDLE HIT-6699079.A19 6699079	£8.55	£10.26
20 - HEX. HOLE BOLT 5X40 HIT-6695054.A16 6695054	£1.67	£2.00
21 - SPRING WASHER 5 HIT-6684834.A19 6684834	£1.67	£2.00
22 - WASHER M5 (BLACK) HIT-6684918.A26 6684918	£1.67	£2.00
23 - BOLT 4X12PS HIT-6695441.A6 6695441	-
24 - CLUTCH HIT-6688494.A6 6688494	£14.82	£17.78
25 - CLUTCH DRUM COMP. HIT-6688570.A11 6688570	£22.90	£27.48
26 - BALL BEARING #6002Z 2 HIT-6695538.A19 6695538	£12.57	£15.08
27 - STOP RING C-15 1 HIT-6695285.A39 6695285	£1.67	£2.00
28 - HEX. SOCKET HD. BOLT M5X30 S HIT-6684786.A69 6684786	£1.67	£2.00
30 - OIL SEAL TB 12227 HIT-6684607.A85 6684607	£4.07	£4.88
31 - BALL BEARING 6001 C3 HIT-6684608.A116 6684608	£5.70	£6.84
32 - CRANK CASE GASKET HIT-6686720.A20 6686720	-
33 - KNOCK PIN 4X12 HIT-6695521.A43 6695521	-
34 - STUD BOLT 6X22 HIT-6686771.A18 6686771	-
35 - CRANK CASE ASS'Y INCLUD.30-34 HIT-6686574.A5 6686574	-
36 - STARTER HANDLE HIT-6693237.A8 6693237	£4.55	£5.46
37 - ROPE 3X890 HIT-6693172.A10 6693172	£3.70	£4.44
38 - TANAKA LABEL HIT-000000.A4020 000000	-
39 - NAME PLATE HIT-000000.A4021 000000	-
40 - HEX.HOLE BOLT 4X18PS HIT-6695502.A5 6695502	£1.67	£2.00
41 - FAN CASE COMP. HIT-6687014.A9 6687014	£21.02	£25.23
42 - CAUTION MARK (A) HIT-000000.A4022 000000	-
43 - RECOIL SPRING HIT-6684675.A84 6684675	£8.82	£10.58
44 - STARTER ROPE REEL HIT-6693072.A3 6693072	£9.60	£11.52
45 - DAMPER SPRING HIT-6684677.A55 6684677	£6.66	£7.99
46 - CAM PLATE HIT-6684678.A13 6684678	£5.17	£6.20
47 - SET SCREW HIT-6684679.A70 6684679	£2.98	£3.57
48 - STARTER PAWL HIT-6684685.A51 6684685	£5.07	£6.08
49 - STARTER PAWL SPRING HIT-6684684.A62 6684684	£3.29	£3.95
50 - D4E RETAINING RING HIT-6685101.A36 6685101	-
51 - STARTER PULLEY ASS'Y INCLUD.48-50 HIT-6684681.A56 6684681	£18.16	£21.79
52 - DEFLECTOR HIT-6687209.A2 6687209	-
53 - HEX. NUT M8 HIT-6684612.A37 6684612	-
54 - MAGNETO ROTOR COMP. HIT-6687396.A6 6687396	-
55A - HANDLE A HIT-6698868.A3 6698868	-
56 - EARTH TERMINAL HIT-6696350.A3 6696350	-
57 - TAPPING SCREW D3X6 HIT-696352.A8 696352	-
58 - TRIGGER LOCKOUT HIT-6696344.A7 6696344	£2.84	£3.41
59 - THROTTLE LEVER SPRING HIT-6696345.A25 6696345	£2.84	£3.41
60 - TAB TERMINAL HIT-6696355.A2 6696355	-
61 - SCREW 3X10 HIT-6684913.A26 6684913	£1.67	£2.00
62 - BUTTON STOP HIT-6688366.A14 6688366	£1.67	£2.00
63 - STOP BUTTON MARK HIT-6694588.A17 6694588	£2.98	£3.57
64 - SPRING (A) HIT-6696348.A7 6696348	-
65 - LOCK LEVER HIT-6696346.A3 6696346	-
66 - SPRING (B) HIT-6696349.A8 6696349	-
67 - THROTTLE LEVER HIT-6696343.A8 6696343	£2.84	£3.41
68A - CLICK SPRING HIT-6698784.A7 6698784	-
69 - RELEASE LEVER HIT-6696347.A8 6696347	-
70A - THROTTLE WIRE HIT-6698828.A1 6698828	£4.45	£5.34
71 - PROTECTION TUBE 150L HIT-6687524.A4 6687524	-
72 - STOP SWITCH ASS'Y (A) INCLUD.61-63 HIT-6696354.A7 6696354	£20.78	£24.93
73A - HANDLE B HIT-6698869.A9 6698869	-
74 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A85 305812	£1.67	£2.00
75 - FRAME HIT-6696363.A1 6696363	£19.04	£22.85
76 - DAMPER B HIT-6688412.A4 6688412	£1.67	£2.00
77 - BRAKE SHAFT WASHER HIT-6689680.A13 6689680	£1.67	£2.00
78 - HEX. SOCKET HD. BOLT M5X30 S HIT-6684786.A70 6684786	£1.67	£2.00
79 - DAMPER COLLAR B HIT-6688485.A4 6688485	£1.67	£2.00
80 - HANDLE SUPPORT COMP. HIT-6686111.A1 6686111	£4.81	£5.77
81 - CLIP HIT-6696359.A21 6696359	£2.84	£3.41
82 - NO LONGER AVAILABLE HIT-6698870.A2 6698870	-
91 - TAPPING SCREW D4.5X16 HIT-6684636.A11 6684636	£1.67	£2.00
92 - MUFFLER PROTECTOR HIT-6692795.A4 6692795	-
93 - HEX. SOCKET HD. BOLT M5X50 HIT-6685114.A14 6685114	£1.67	£2.00
94 - WASHER 5 HIT-6684661.A69 6684661	£1.67	£2.00
95 - MUFFLER ASS'Y INCLUD.97 HIT-6692477.A8 6692477	£38.70	£46.44
96 - HEAT SHIELD HIT-6687252.A19 6687252	£2.82	£3.39
97 - MUFFLER GASKET HIT-6692744.A18 6692744	£1.67	£2.00
98 - INTAKE PIPE GASKET HIT-6689891.A9 6689891	£3.38	£4.06
99 - CARB. INSULATOR SET 1 HIT-6689966.A3 6689966	£13.22	£15.87
100 - HEX. HOLE BOLT M5X25WS HIT-6695515.A17 6695515	£1.67	£2.00
101 - CARBURETOR GASKET HIT-6689839.A16 6689839	£2.98	£3.57
*102 - CARBURETOR SET 1 HIT-6690487.A8 6690487	£69.98	£83.97
*102 - CARBURETOR SET WYL112 INCLUD.101 HIT-6690482.A7 6690482	£73.85	£88.62
104 - O-RING P-15 HIT-6695670.A11 6695670	-
105 - CLEANER BODY COMP. HIT-6690119.A4 6690119	£8.95	£10.74
106 - COLLAR 7.5 HIT-6690804.A19 6690804	£1.67	£2.00
*107 - CHOKE VALVE HIT-6691274.A10 6691274	-
*107 - CHOKE VALVE FOR AUS HIT-6691272.A1 6691272	£1.67	£2.00
108 - WAVE WASHER 8 HIT-6684658.A27 6684658	£1.67	£2.00
109 - BLOW OVER CHECK BOARD HIT-6690843.A28 6690843	£1.67	£2.00
110 - S.WASHER 5 HIT-6684662.A36 6684662	£1.67	£2.00
111 - SCREW M5X60 HIT-6684660.A7 6684660	-
112 - CLEANER SPONGE HIT-6690364.A5 6690364	£1.67	£2.00
113 - CLEANER COVER ASS'Y INCLUD.114 HIT-6690415.A13 6690415	£5.70	£6.84
114 - SPECIAL SCREW HIT-6689737.A48 6689737	-
115 - SWIVEL HIT-6684697.A67 6684697	-
116 - STOP RING HIT-6684696.A119 6684696	-
117 - O-RING HIT-6684695.A91 6684695	£1.67	£2.00
*118 - MAIN JET #34.5 HIT-6691888.A12 6691888	-
*118 - MAIN JET #40 FOR AUS HIT-6691845.A12 6691845	-
119 - INLET SCREEN HIT-6684700.A132 6684700	-
120 - PUMP BODY COMP. HIT-6691430.A13 6691430	-
121 - DIAPHRAGM COVER-METERING HIT-6685222.A42 6685222	£5.70	£6.84
122 - SET SCREW HIT-6691312.A20 6691312	-
123 - THROTTLE SET SCREW HIT-6684698.A41 6684698	-
124 - THROTTLE VALVE HIT-6684883.A28 6684883	£32.24	£38.69
125 - PUMP GASKET HIT-6691457.A66 6691457	£8.48	£10.18
126 - PUMP DIAPHRAGM HIT-6684693.A107 6684693	£5.70	£6.84
127 - DIAPHRAGM PACKING-METERING HIT-6685220.A133 6685220	£2.81	£3.37
128 - METERING DIAPHRAGM COMP. HIT-6690827.A39 6690827	£14.02	£16.83
129 - PRIMING PUMP COMP. HIT-6685139.A65 6685139	£10.67	£12.80
130 - FUEL PIPE 2.5X4X80 HIT-6692347.A4 6692347	£1.67	£2.00
131 - COLLAR 5.8 HIT-6692244.A55 6692244	£1.67	£2.00
132 - HEX. HOLE BOLT 5X18PS HIT-6695505.A21 6695505	-
*133 - TANK HIT-6696360.A2 6696360	£10.00	£12.00
*133 - TANK FOR AUS HIT-6696361.A3 6696361	-
134 - AIR VENT ASS'Y INCLUD.135 HIT-6691389.A1 6691389	£16.64	£19.97
136 - AIR VENT VALVE ASS'Y FOR AUS HIT-6692171.A3 6692171	-
137 - TANK CAP CHAIN HIT-6684625.A78 6684625	-
*138 - TANK CAP D ASS'Y 1 HIT-6691763.A22 6691763	£13.46	£16.15
*138 - TANK CAP ASS'Y INCLUD.137 FOR AUS HIT-6691714.A3 6691714	£8.44	£10.13
139 - FUEL PIPE 2.5X4X70 HIT-6692346.A15 6692346	£1.67	£2.00
140A - RETURN GROMMET HIT-6697846.A39 6697846	£2.08	£2.50
141 - CLIP 1 HIT-6684619.A40 6684619	£1.67	£2.00
142A - PUMP FILTER HIT-6698874.A5 6698874	£15.94	£19.13
143A - FUEL PIPE HIT-6698715.A8 6698715	£12.74	£15.29
144 - CUTTER COVER HIT-6687302.A0 6687302	£16.36	£19.63
145 - GUARD PLATE HIT-6687275.A10 6687275	£4.47	£5.36
146 - FLANGE NUT 6 HIT-6695170.A60 6695170	£1.67	£2.00
147A - PROTECTION PLATE HIT-6601209.A2 6601209	-
148 - SUPPORT PLATE HIT-6690762.A4 6690762	£8.27	£9.92
149 - LOCK NUT 6 UPS-P HIT-6695175.A35 6695175	£1.67	£2.00
150 - BOLT WASHER 6 HIT-6684639.A145 6684639	£1.67	£2.00
151 - GEAR CASE COMP. HIT-6688684.A5 6688684	£64.00	£76.80
152 - GREASE NIPPLE COMP. HIT-6688643.A12 6688643	£1.67	£2.00
153 - SPRING NUT 6 HIT-6695475.A33 6695475	-
154 - HEX. HOLE BOLT 6X18/S HIT-6695495.A10 6695495	-
155 - CUTTER GUIDE 734L M6 HIT-6687147.A4 6687147	£28.68	£34.41
156 - GUIDE PLATE HIT-6686612.A2 6686612	£1.67	£2.00
157 - CAM ROD HIT-6686811.A10 6686811	£15.71	£18.85
158 - CUTTER A (696.5L) HIT-6687086.A2 6687086	£48.75	£58.50
159A - GEAR 2 COMP. HIT-6698773.A3 6698773	-
160 - GEAR CASE GASKET HIT-6688909.A3 6688909	£1.67	£2.00
161 - GEAR CASE COVER HIT-6692101.A0 6692101	-
162 - BALL BEARING 608 ZZ C3 HIT-6695547.A0 6695547	£10.17	£12.20
163 - GEAR CASE B COMP. INCLUD.162 HIT-6695985.A0 6695985	£12.74	£15.29
164 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 HIT-6684595.A21 6684595	£1.67	£2.00
165 - HEX. HOLE FLUSH BOLT 6X25 HIT-6695075.A36 6695075	£1.67	£2.00
166 - GREASE SEAL A HIT-6686654.A3 6686654	£1.67	£2.00
167 - WASHER 7 BLACK HIT-6687187.A9 6687187	£1.67	£2.00
168 - FIXING BOLT A M6 HIT-6687158.A7 6687158	£1.67	£2.00
169 - HEX. HOLE BOLT 4X10S HIT-6695484.A13 6695484	£1.67	£2.00
170 - FUEL GROMMET HIT-6688156.A97 6688156	-
501 - HEX. BAR WRENCH 4MM HIT-6684813.A68 6684813	-
502 - COMBI. BOX SPANNER 10X19 1 HIT-6685997.A12 6685997	-
