Hitachi / Hikoki THT-2100SB Engine Hedge Trimmer Spare Parts

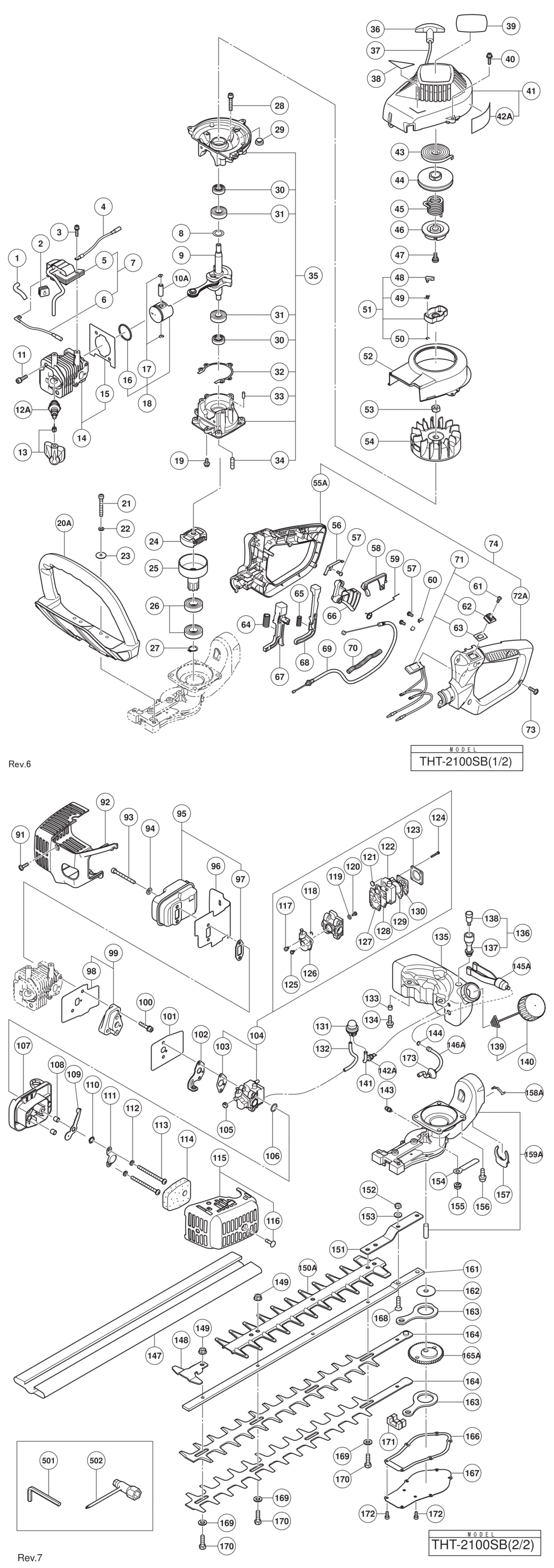

An exploded diagram and spare parts listing for the Hitachi / Hikoki THT-2100SB Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - INSULATOR TUBE 50L HIT-6684597.A21 6684597	-
2 - GROMMET HIT-6688050.A34 6688050	£1.67	£2.00
3 - HEX. HOLE BOLT M4X18/WS HIT-6684599.A26 6684599	-
4 - CORD HIT-6688477.A4 6688477	£8.18	£9.81
6 - CORD 200M HIT-6687918.A6 6687918	-
*8 - GEAR SHAFT SHIM 0.20 HIT-6684604.A65 6684604	-
*8 - GEAR SHAFT SHIM 0.30 HIT-6684605.A16 6684605	-
9 - CRANK SHAFT COMP HIT-6686208.A7 6686208	£54.94	£65.93
10A - PISTON PIN HIT-6696944.A49 6696944	£5.61	£6.73
11 - HEX.HOLE BOLT M5X18/S HIT-6684586.A78 6684586	-
12A - SPARK PLUG ASS'Y BPMR6A HIT-6699319.A13 6699319	-
13 - SPARK PLUG CAP HIT-6687476.A7 6687476	-
14 - CYLINDER ASS'Y INCLUD.15 HIT-6685480.A3 6685480	£47.88	£57.46
15 - CYLINDER GASKET HIT-6685744.A6 6685744	£1.67	£2.00
16 - PISTON RING HIT-6686118.A24 6686118	£6.94	£8.33
17 - CIR CLIP HIT-6684590.A43 6684590	£1.67	£2.00
18 - PISTON ASS'Y INCLUD.16 HIT-6685869.A13 6685869	£28.00	£33.60
19 - BOLT 4X12PS HIT-6695441.A5 6695441	-
20A - HANDLE HIT-6699079.A18 6699079	£8.55	£10.26
21 - HEX. HOLE BOLT 5X40 HIT-6695054.A15 6695054	£1.67	£2.00
22 - SPRING WASHER 5 HIT-6684834.A20 6684834	£1.67	£2.00
23 - BRAKE SHAFT WASHER HIT-6689680.A14 6689680	£1.67	£2.00
24 - CLUTCH HIT-6688494.A7 6688494	£14.82	£17.78
25 - CLUTCH DRUM COMP. HIT-6688570.A10 6688570	£22.90	£27.48
26 - BALL BEARING #6002Z 2 HIT-6695538.A18 6695538	£12.57	£15.08
27 - STOP RING C-15 1 HIT-6695285.A40 6695285	£1.67	£2.00
28 - HEX. SOCKET HD. BOLT M5X30 S HIT-6684786.A72 6684786	£1.67	£2.00
30 - OIL SEAL TB 12227 HIT-6684607.A86 6684607	£4.07	£4.88
31 - BALL BEARING 6001 C3 HIT-6684608.A115 6684608	£5.70	£6.84
32 - CRANK CASE GASKET HIT-6686720.A18 6686720	-
33 - KNOCK PIN 4X12 HIT-6695521.A44 6695521	-
34 - STUD BOLT 6X22 HIT-6686771.A20 6686771	-
35 - CRANK CASE ASS'Y INCLUD.30-34 HIT-6686574.A4 6686574	-
36 - STARTER HANDLE HIT-6693237.A7 6693237	£4.55	£5.46
37 - ROPE 3X890 HIT-6693172.A9 6693172	£3.70	£4.44
38 - TANAKA LABEL HIT-000000.A4016 000000	-
39 - NAME PLATE HIT-000000.A4017 000000	-
40 - HEX.HOLE BOLT 4X18PS HIT-6695502.A4 6695502	£1.67	£2.00
41 - FAN CASE COMP. HIT-6687014.A10 6687014	£21.02	£25.23
42 - CAUTION MARK (A) HIT-000000.A4018 000000	-
43 - RECOIL SPRING HIT-6684675.A85 6684675	£8.82	£10.58
44 - STARTER ROPE REEL HIT-6693072.A2 6693072	£9.60	£11.52
45 - DAMPER SPRING HIT-6684677.A54 6684677	£5.70	£6.84
46 - CAM PLATE HIT-6684678.A14 6684678	£5.17	£6.20
47 - SET SCREW HIT-6684679.A68 6684679	£2.98	£3.57
48 - STARTER PAWL HIT-6684685.A52 6684685	£5.07	£6.08
49 - STARTER PAWL SPRING HIT-6684684.A61 6684684	£3.29	£3.95
50 - D4E RETAINING RING HIT-6685101.A37 6685101	-
51 - STARTER PULLEY ASS'Y INCLUD.48-50 HIT-6684681.A57 6684681	£18.16	£21.79
52 - DEFLECTOR HIT-6687209.A3 6687209	-
53 - HEX. NUT M8 HIT-6684612.A38 6684612	-
54 - MAGNETO ROTOR COMP. HIT-6687396.A7 6687396	-
55A - HANDLE A HIT-6698868.A5 6698868	-
56 - EARTH TERMINAL HIT-6696350.A2 6696350	-
57 - TAPPING SCREW D3X6 HIT-696352.A9 696352	-
58 - TRIGGER LOCKOUT HIT-6696344.A6 6696344	£2.84	£3.41
59 - THROTTLE LEVER SPRING HIT-6696345.A26 6696345	£2.84	£3.41
60 - TAB TERMINAL HIT-6696355.A1 6696355	-
61 - SCREW 3X10 HIT-6684913.A28 6684913	£1.67	£2.00
62 - BUTTON STOP HIT-6688366.A12 6688366	£1.67	£2.00
63 - STOP BUTTON MARK HIT-6694588.A18 6694588	£2.98	£3.57
64 - SPRING (A) HIT-6696348.A6 6696348	-
65 - SPRING (B) HIT-6696349.A9 6696349	-
66 - THROTTLE LEVER HIT-6696343.A9 6696343	£2.84	£3.41
67 - LOCK LEVER HIT-6696346.A2 6696346	-
68 - RELEASE LEVER HIT-6696347.A9 6696347	-
69 - THROTTLE WIRE HIT-6698827.A3 6698827	-
70 - PROTECTION TUBE 130L HIT-6687521.A4 6687521	£1.67	£2.00
71 - STOP SWITCH ASS'Y (A) INCLUD.61-63 HIT-6696354.A8 6696354	£20.78	£24.93
72A - HANDLE B HIT-6698869.A7 6698869	-
73 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A83 305812	£1.67	£2.00
74 - NO LONGER AVAILABLE HIT-6698870.A4 6698870	-
91 - TAPPING SCREW D4.5X16 HIT-6684636.A10 6684636	£1.67	£2.00
92 - MUFFLER PROTECTOR HIT-6692795.A5 6692795	-
93 - HEX. SOCKET HD. BOLT M5X50 HIT-6685114.A12 6685114	£1.67	£2.00
94 - WASHER 5 HIT-6684661.A66 6684661	£1.67	£2.00
95 - MUFFLER SET INCLUD.97 HIT-6692481.A0 6692481	£31.85	£38.22
96 - HEAT SHIELD HIT-6687252.A17 6687252	£2.82	£3.39
97 - MUFFLER GASKET HIT-6692744.A17 6692744	£1.67	£2.00
98 - INTAKE PIPE GASKET HIT-6689891.A7 6689891	£3.38	£4.06
99 - CARB. INSULATOR SET 1 HIT-6689966.A5 6689966	£13.22	£15.87
100 - HEX. HOLE BOLT M5X25WS HIT-6695515.A14 6695515	£1.67	£2.00
101 - CARBURETOR GASKET HIT-6689839.A18 6689839	£2.98	£3.57
102 - THROTTLE WIRE FIXING PLATE HIT-6684629.A12 6684629	-
103 - CARBURETOR GASKET HIT-6684615.A30 6684615	£1.67	£2.00
*104 - CARBURETOR SET 1 HIT-6690487.A10 6690487	£69.98	£83.97
*104 - CARBURETOR SET WYL112 INCLUD.103 HIT-6690482.A6 6690482	£73.85	£88.62
106 - O-RING P-15 HIT-6695670.A12 6695670	-
*107 - CLEANER BODY COMP. HIT-6690122.A0 6690122	-
*107 - CLEANER BODY COMP. FOR AUS HIT-6690119.A2 6690119	£8.95	£10.74
108 - COLLAR 7.5 HIT-6690804.A18 6690804	£1.67	£2.00
*109 - CHOKE VALVE HIT-6691274.A12 6691274	-
*109 - CHOKE VALVE FOR AUS HIT-6691272.A0 6691272	£1.67	£2.00
110 - WAVE WASHER 8 HIT-6684658.A26 6684658	£1.67	£2.00
111 - BLOW OVER CHECK BOARD HIT-6690843.A27 6690843	£1.67	£2.00
112 - S.WASHER 5 HIT-6684662.A39 6684662	£1.67	£2.00
113 - SCREW M5X60 HIT-6684660.A8 6684660	-
114 - CLEANER SPONGE HIT-6690364.A4 6690364	£1.67	£2.00
115 - CLEANER COVER ASS'Y INCLUD.116 HIT-6690415.A14 6690415	£5.70	£6.84
116 - SPECIAL SCREW HIT-6689737.A46 6689737	-
117 - SWIVEL HIT-6684697.A68 6684697	-
118 - STOP RING HIT-6684696.A118 6684696	-
119 - O-RING HIT-6684695.A92 6684695	£1.67	£2.00
*120 - MAIN JET #34.5 HIT-6691888.A11 6691888	-
*120 - MAIN JET #40 FOR AUS HIT-6691845.A13 6691845	-
121 - INLET SCREEN HIT-6684700.A133 6684700	-
122 - PUMP BODY COMP. HIT-6691430.A12 6691430	-
123 - DIAPHRAGM COVER-METERING HIT-6685222.A41 6685222	£5.70	£6.84
124 - SET SCREW HIT-6691312.A21 6691312	-
125 - THROTTLE SET SCREW HIT-6684698.A40 6684698	-
126 - THROTTLE VALVE HIT-6684883.A27 6684883	£32.24	£38.69
127 - PUMP GASKET HIT-6691457.A67 6691457	£8.48	£10.18
128 - PUMP DIAPHRAGM HIT-6684693.A106 6684693	£5.70	£6.84
129 - DIAPHRAGM PACKING-METERING HIT-6685220.A134 6685220	£2.81	£3.37
130 - METERING DIAPHRAGM COMP. HIT-6690827.A40 6690827	£14.02	£16.83
131 - PRIMING PUMP COMP. HIT-6685139.A63 6685139	£10.67	£12.80
132 - FUEL PIPE 2.5X4X80 HIT-6692347.A6 6692347	£1.67	£2.00
133 - COLLAR 5.8 HIT-6692244.A54 6692244	£1.67	£2.00
134 - HEX. HOLE BOLT 5X18PS HIT-6695505.A20 6695505	-
*135 - TANK HIT-6696360.A1 6696360	£10.00	£12.00
*135 - TANK FOR AUS HIT-6696361.A4 6696361	-
136 - AIR VENT ASS'Y INCLUD.137 HIT-6691389.A2 6691389	£16.64	£19.97
138 - AIR VENT VALVE ASS'Y FOR AUS HIT-6692171.A4 6692171	-
139 - TANK CAP CHAIN HIT-6684625.A80 6684625	-
*140 - TANK CAP D ASS'Y 1 HIT-6691763.A21 6691763	£13.46	£16.15
*140 - TANK CAP ASS'Y INCLUD.139 FOR AUS HIT-6691714.A4 6691714	£8.44	£10.13
141 - FUEL PIPE 2.5X4X80 HIT-6692347.A7 6692347	£1.67	£2.00
142A - RETURN GROMMET HIT-6697846.A40 6697846	£2.08	£2.50
143 - GREASE NIPPLE COMP. HIT-6688643.A11 6688643	£1.67	£2.00
144 - CLIP 1 HIT-6684619.A39 6684619	£1.67	£2.00
145A - PUMP FILTER HIT-6698874.A4 6698874	£15.94	£19.13
146A - FUEL PIPE HIT-6698715.A7 6698715	£12.74	£15.29
147 - CUTTER COVER HIT-6687301.A9 6687301	-
148 - GUARD PLATE HIT-6687275.A9 6687275	£4.47	£5.36
149 - FLANGE NUT 6 HIT-6695170.A61 6695170	£1.67	£2.00
150A - PROTECTION PLATE HIT-6601209.A1 6601209	-
152 - LOCK NUT 6 UPS-P HIT-6695175.A34 6695175	£1.67	£2.00
153 - BOLT WASHER 6 HIT-6684639.A144 6684639	£1.67	£2.00
154 - CORD CLAMP COMP. HIT-6688008.A2 6688008	-
155 - SPRING NUT 6 HIT-6695475.A32 6695475	-
156 - HEX. HOLE BOLT 6X18/S HIT-6695495.A9 6695495	-
157 - CLIP HIT-6696359.A22 6696359	£2.84	£3.41
158A - CLICK SPRING HIT-6698784.A6 6698784	-
159A - GEAR CASE (A) HIT-6699126.A1 6699126	-
161 - CUTTER GUIDE 625.5L M6 HIT-6687137.A2 6687137	£27.59	£33.11
162 - GUIDE PLATE HIT-6686612.A3 6686612	£1.67	£2.00
163 - CAM ROD HIT-6686811.A11 6686811	£15.71	£18.85
164 - CUTTER A (591.5L) HIT-6687084.A0 6687084	£42.70	£51.24
165A - GEAR 2 HIT-6698761.A1 6698761	£26.69	£32.03
166 - GEAR CASE GASKET HIT-6688909.A4 6688909	£1.67	£2.00
167 - NO LONGER AVAILABLE HIT-6692100.A1 6692100	-
168 - HEX. HOLE FLUSH BOLT 6X25 HIT-6695075.A35 6695075	£1.67	£2.00
169 - WASHER 7 BLACK HIT-6687187.A8 6687187	£1.67	£2.00
170 - FIXING BOLT A M6 HIT-6687158.A8 6687158	£1.67	£2.00
171 - GREASE SEAL A HIT-6686654.A2 6686654	£1.67	£2.00
172 - HEX. HOLE BOLT 4X10S HIT-6695484.A14 6695484	£1.67	£2.00
173 - FUEL GROMMET HIT-6688156.A96 6688156	-
501 - HEX. BAR WRENCH 4MM HIT-6684813.A69 6684813	-
502 - COMBI. BOX SPANNER 10X19 1 HIT-6685997.A11 6685997	-

Attribute Name	Value
Brand	Hikoki
