Hitachi / Hikoki THT-2000SB Engine Hedge Trimmer Spare Parts

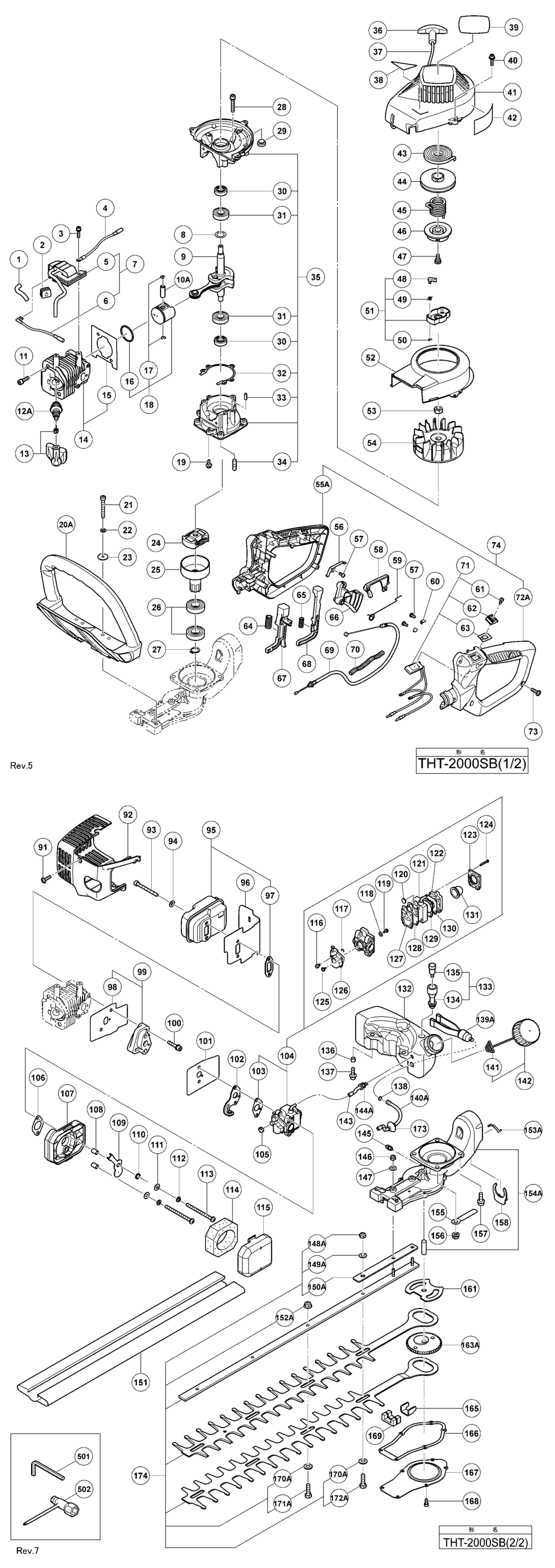

An exploded diagram and spare parts listing for the Hitachi / Hikoki THT-2000SB Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - INSULATOR TUBE 50L HIT-6684597.A13 6684597	-
2 - GROMMET HIT-6688050.A3 6688050	£1.67	£2.00
3 - HEX. HOLE BOLT M4X18/WS HIT-6684599.A47 6684599	-
4 - CORD HIT-6688477.A9 6688477	£8.18	£9.81
6 - CORD 200M HIT-6687918.A9 6687918	-
*8 - GEAR SHAFT SHIM 0.20 HIT-6684604.A38 6684604	-
*8 - GEAR SHAFT SHIM 0.30 HIT-6684605.A43 6684605	-
9 - CRANK SHAFT COMP HIT-6686208.A2 6686208	£54.94	£65.93
10A - PISTON PIN HIT-6696944.A12 6696944	£5.61	£6.73
11 - HEX.HOLE BOLT M5X18/S HIT-6684586.A46 6684586	-
12A - SPARK PLUG ASS'Y BPMR6A HIT-6699319.A29 6699319	-
13 - SPARK PLUG CAP HIT-6687476.A20 6687476	-
14 - CYLINDER ASS'Y INCLUD.15 HIT-6685480.A14 6685480	£47.88	£57.46
15 - CYLINDER GASKET HIT-6685744.A21 6685744	£1.67	£2.00
16 - PISTON RING HIT-6686118.A5 6686118	£6.94	£8.33
17 - CIR CLIP HIT-6684590.A97 6684590	£1.67	£2.00
18 - PISTON ASS'Y INCLUD.16 HIT-6685869.A10 6685869	£28.00	£33.60
19 - BOLT 4X12PS HIT-6695441.A14 6695441	-
20A - HANDLE HIT-6699079.A7 6699079	£8.55	£10.26
21 - HEX. HOLE BOLT 5X40 HIT-6695054.A23 6695054	£1.67	£2.00
22 - SPRING WASHER 5 HIT-6684834.A46 6684834	£1.67	£2.00
23 - BRAKE SHAFT WASHER HIT-6689680.A2 6689680	£1.67	£2.00
24 - CLUTCH HIT-6688494.A16 6688494	£14.82	£17.78
25 - CLUTCH DRUM COMP. HIT-6688570.A4 6688570	£22.90	£27.48
26 - BALL BEARING #6002Z 2 HIT-6695538.A7 6695538	£12.57	£15.08
27 - STOP RING C-15 1 HIT-6695285.A13 6695285	£1.67	£2.00
28 - HEX. SOCKET HD. BOLT M5X30 S HIT-6684786.A34 6684786	£1.67	£2.00
30 - OIL SEAL TB 12227 HIT-6684607.A187 6684607	£4.07	£4.88
31 - BALL BEARING 6001 C3 HIT-6684608.A20 6684608	£5.70	£6.84
32 - CRANK CASE GASKET HIT-6686720.A2 6686720	-
33 - KNOCK PIN 4X12 HIT-6695521.A5 6695521	-
34 - STUD BOLT 6X22 HIT-6686771.A11 6686771	-
35 - CRANK CASE ASS'Y INCLUD.30-34 HIT-6686574.A10 6686574	-
36 - STARTER HANDLE HIT-6693237.A15 6693237	£4.55	£5.46
37 - ROPE 3X890 HIT-6693172.A2 6693172	£3.70	£4.44
38 - TANAKA LABEL HIT-000000.A474 000000	-
39 - NAME PLATE HIT-000000.A475 000000	-
40 - HEX.HOLE BOLT 4X18PS HIT-6695502.A11 6695502	£1.67	£2.00
41 - FAN CASE COMP. HIT-6687014.A3 6687014	£21.02	£25.23
42 - CAUTION MARK (A) HIT-000000.A476 000000	-
43 - RECOIL SPRING HIT-6684675.A74 6684675	£8.82	£10.58
44 - STARTER ROPE REEL HIT-6693072.A7 6693072	£9.60	£11.52
45 - DAMPER SPRING HIT-6684677.A60 6684677	£6.66	£7.99
46 - CAM PLATE HIT-6684678.A9 6684678	£5.17	£6.20
47 - SET SCREW HIT-6684679.A81 6684679	£2.98	£3.57
48 - STARTER PAWL HIT-6684685.A57 6684685	£5.07	£6.08
49 - STARTER PAWL SPRING HIT-6684684.A55 6684684	£3.29	£3.95
50 - D4E RETAINING RING HIT-6685101.A150 6685101	-
51 - STARTER PULLEY ASS'Y INCLUD.48-50 HIT-6684681.A66 6684681	£18.16	£21.79
52 - DEFLECTOR HIT-6687209.A8 6687209	-
53 - HEX. NUT M8 HIT-6684612.A70 6684612	-
54 - MAGNETO ROTOR COMP. HIT-6687396.A0 6687396	-
55A - HANDLE A HIT-6698868.A9 6698868	-
56 - EARTH TERMINAL HIT-6696350.A7 6696350	-
57 - TAPPING SCREW D3X6 HIT-696352.A23 696352	-
58 - TRIGGER LOCKOUT HIT-6696344.A13 6696344	£2.84	£3.41
59 - THROTTLE LEVER SPRING HIT-6696345.A19 6696345	£2.84	£3.41
60 - TAB TERMINAL HIT-6696355.A7 6696355	-
61 - SCREW 3X10 HIT-6684913.A50 6684913	£1.67	£2.00
62 - BUTTON STOP HIT-6688366.A40 6688366	£1.67	£2.00
63 - STOP BUTTON MARK HIT-6694588.A0 6694588	£2.98	£3.57
64 - SPRING (A) HIT-6696348.A12 6696348	-
65 - SPRING (B) HIT-6696349.A5 6696349	-
66 - THROTTLE LEVER HIT-6696343.A5 6696343	£2.84	£3.41
67 - LOCK LEVER HIT-6696346.A6 6696346	-
68 - RELEASE LEVER HIT-6696347.A5 6696347	-
69 - THROTTLE WIRE HIT-6698827.A0 6698827	-
70 - PROTECTION TUBE 130L HIT-6687521.A8 6687521	£1.67	£2.00
71 - STOP SWITCH ASS'Y (A) INCLUD.61-63 HIT-6696354.A4 6696354	£20.78	£24.93
72A - HANDLE B HIT-6698869.A3 6698869	-
73 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A74 305812	£1.67	£2.00
74 - NO LONGER AVAILABLE HIT-6698870.A8 6698870	-
91 - TAPPING SCREW D4.5X16 HIT-6684636.A21 6684636	£1.67	£2.00
92 - MUFFLER PROTECTOR HIT-6692795.A9 6692795	-
93 - HEX. SOCKET HD. BOLT M5X50 HIT-6685114.A25 6685114	£1.67	£2.00
94 - WASHER 5 HIT-6684661.A41 6684661	£1.67	£2.00
95 - MUFFLER SET INCLUD.97 HIT-6692481.A5 6692481	£31.85	£38.22
96 - HEAT SHIELD HIT-6687252.A9 6687252	£2.82	£3.39
97 - MUFFLER GASKET HIT-6692744.A12 6692744	£1.67	£2.00
98 - INTAKE PIPE GASKET HIT-6689891.A14 6689891	£3.38	£4.06
99 - CARB. INSULATOR SET 1 HIT-6689966.A21 6689966	£13.22	£15.87
100 - HEX. HOLE BOLT M5X25WS HIT-6695515.A46 6695515	£1.67	£2.00
101 - CARBURETOR GASKET HIT-6689839.A9 6689839	£2.98	£3.57
102 - THROTTLE WIRE FIXING PLATE HIT-6684629.A6 6684629	-
103 - CARBURETOR GASKET HIT-6684615.A16 6684615	£1.67	£2.00
*104 - CARBURETOR SET WYL212 INCLUD.103 HIT-6690495.A0 6690495	£63.02	£75.62
*104 - CARBURETOR SET WYL-46 INCLUD.103 HIT-6690494.A1 6690494	-
106 - CLEANER GASKET HIT-6690184.A4 6690184	£1.67	£2.00
107 - CLEANER BODY COMP. HIT-6690091.A2 6690091	£9.67	£11.60
108 - COLLAR HIT-6690801.A6 6690801	-
109 - CHOKE PLATE 1 HIT-6691267.A1 6691267	-
110 - SPACER HIT-6684859.A6 6684859	-
111 - WASHER 5 HIT-6684661.A42 6684661	£1.67	£2.00
112 - S.WASHER 5 HIT-6684662.A56 6684662	£1.67	£2.00
113 - SCREW 5X65 HIT-6694918.A0 6694918	-
114 - CLEANER ELEMENT HIT-6690350.A5 6690350	£7.15	£8.58
115 - AIR CLEANER CAP HIT-6690142.A5 6690142	£9.10	£10.92
116 - SWIVEL HIT-6684697.A79 6684697	-
117 - STOP RING HIT-6684696.A106 6684696	-
118 - O-RING HIT-6684695.A103 6684695	£1.67	£2.00
*119 - MAIN JET #39 HIT-6684878.A6 6684878	-
120 - INLET SCREEN HIT-6684700.A119 6684700	-
121 - PUMP BODY COMP. HIT-6691433.A1 6691433	£32.83	£39.40
122 - PRIMING PUMP COMP. HIT-6684687.A43 6684687	£9.27	£11.12
123 - DIAPHRAGM COVER HIT-6684688.A56 6684688	£5.70	£6.84
124 - SET SCREW HIT-6684699.A54 6684699	-
125 - THROTTLE SET SCREW HIT-6684698.A34 6684698	-
126 - THROTTLE VALVE HIT-6684883.A12 6684883	£32.24	£38.69
127 - PUMP GASKET HIT-6691457.A10 6691457	£8.48	£10.18
128 - PUMP DIAPHRAGM HIT-6684693.A95 6684693	£5.70	£6.84
129 - DIAPHRAGM GASKET HIT-6684691.A42 6684691	£5.70	£6.84
*130 - METERING DIAPHRAGM COMP. HIT-6690830.A6 6690830	£14.58	£17.50
*130 - METERING DIAPHRAGM COMP. FOR AUS HIT-6690827.A89 6690827	£14.02	£16.83
131 - PRIMING BODY HIT-6684689.A43 6684689	£5.87	£7.04
*132 - TANK HIT-6696356.A1 6696356	£10.00	£12.00
*132 - TANK FOR AUS HIT-6696357.A0 6696357	-
133 - AIR VENT ASS'Y INCLUD.134 HIT-6691389.A22 6691389	£16.64	£19.97
135 - AIR VENT VALVE ASS'Y FOR AUS HIT-6692171.A13 6692171	-
136 - COLLAR 5.8 HIT-6692244.A10 6692244	£1.67	£2.00
137 - HEX. HOLE BOLT 5X18PS HIT-6695505.A10 6695505	-
138 - CLIP 1 HIT-6684619.A22 6684619	£1.67	£2.00
139A - PUMP FILTER HIT-6698874.A16 6698874	£15.94	£19.13
140A - FUEL PIPE HIT-6698715.A16 6698715	£12.74	£15.29
141 - TANK CAP CHAIN HIT-6684625.A49 6684625	-
*142 - TANK CAP D ASS'Y 1 HIT-6691763.A10 6691763	£13.46	£16.15
*142 - TANK CAP ASS'Y INCLUD.141 FOR AUS HIT-6691714.A12 6691714	£8.44	£10.13
143 - FUEL PIPE 3X5X65 HIT-6684626.A12 6684626	£1.67	£2.00
144A - RETURN GROMMET HIT-6697846.A108 6697846	£2.08	£2.50
145 - GREASE NIPPLE COMP. HIT-6688643.A38 6688643	£1.67	£2.00
146 - NYLON NUT M5 HIT-305491.A6 305491	-
147 - SMALL WASHER 5 HIT-6684864.A121 6684864	-
148A - NYLON NUT M6 HIT-6698766.A6 6698766	-
150A - SUPPORT PLATE HIT-6698890.A1 6698890	-
151 - CUTTER COVER HIT-6687311.A2 6687311	-
152A - U-NUT M6 HIT-6698946.A2 6698946	£3.56	£4.27
153A - CLICK SPRING HIT-6698784.A2 6698784	-
154A - GEAR CASE (A) HIT-6699125.A3 6699125	£26.33	£31.60
155 - CORD CLAMP COMP. HIT-6688008.A12 6688008	-
156 - SPRING NUT 6 HIT-6695475.A18 6695475	-
157 - HEX. HOLE BOLT 6X18/S HIT-6695495.A36 6695495	-
158 - CLIP HIT-6696359.A6 6696359	£2.84	£3.41
161 - GUIDE PLATE HIT-6686614.A1 6686614	£5.70	£6.84
163A - GEAR 2 HIT-6698746.A3 6698746	£25.32	£30.39
165 - HOLDING PLATE HIT-6686468.A4 6686468	£3.51	£4.21
166 - GEAR CASE GASKET HIT-6688909.A10 6688909	£1.67	£2.00
167 - GEAR CASE COVER HIT-6692102.A1 6692102	£11.79	£14.15
168 - HEX. HOLE BOLT 4X10S HIT-6695484.A28 6695484	£1.67	£2.00
169 - GREASE SEAL A HIT-6686658.A3 6686658	£1.67	£2.00
170A - WASHER M7 HIT-6698886.A2 6698886	£1.67	£2.00
171A - BOLT (B) HIT-6698888.A0 6698888	£1.67	£2.00
172A - BOLT (A) HIT-6698887.A1 6698887	£2.84	£3.41
173 - FUEL GROMMET HIT-6688156.A94 6688156	-
174 - BLADE ASS'Y (A) INCLUD.148A-150A HIT-6698747.A0 6698747	£63.88	£76.66
501 - HEX. BAR WRENCH 4MM HIT-6684813.A42 6684813	-
502 - COMBI. BOX SPANNER 10X19 1 HIT-6685997.A19 6685997	-
601 - LOCK NUT 6 UPS-P HIT-6695175.A22 6695175	£1.67	£2.00
602 - BOLT WASHER 6 HIT-6684639.A78 6684639	£1.67	£2.00
603 - SUPPORT PLATE HIT-6690761.A2 6690761	£14.51	£17.41
604 - FLANGE NUT 6 HIT-6695170.A10 6695170	£1.67	£2.00
605A - CUTTER GUIDE 590 HIT-6697700.A0 6697700	£15.87	£19.04
608 - WASHER 7 BLACK HIT-6687187.A31 6687187	£1.67	£2.00
609 - CUTTER FIXING BOLT B HIT-6687162.A19 6687162	£1.67	£2.00
610 - FIXING BOLT A M6 HIT-6687158.A42 6687158	£1.67	£2.00
