Hitachi / Hikoki THB-2510N Engine Blower Spare Parts

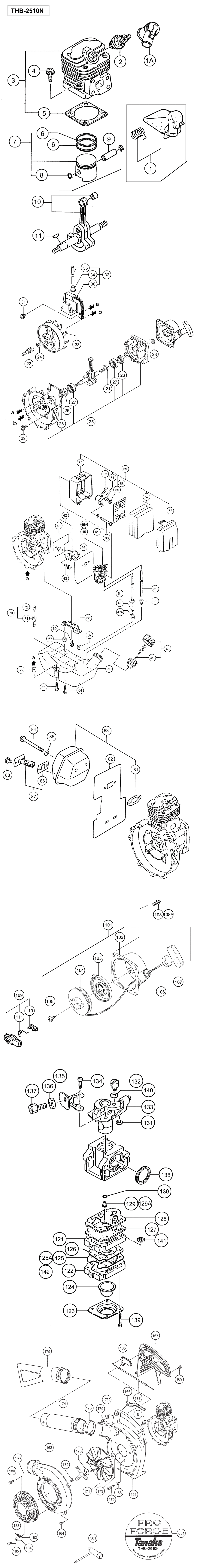

An exploded diagram and spare parts listing for the Hitachi / Hikoki THB-2510N Engine Blower

	Ex VAT	Inc VAT
1 - SPARK PLUG CAP ASS'Y TILL G147000 HIT-6687474.A1 6687474	£7.75	£9.30
1A - SPARK PLUG CAP ASS'Y SINCE G147001 HIT-6687468.A63 6687468	£3.64	£4.37
2 - SPARK PLUG ASS'Y BPMR7A HIT-6699320.A28 6699320	-
3 - CYLINDER SET HIT-6685446.A1 6685446	£68.95	£82.74
4 - HEX.HOLE BOLT M5X18/S HIT-6684586.A53 6684586	-
5 - CYLINDER GASKET HIT-6685709.A9 6685709	£1.67	£2.00
6 - PISTON RING HIT-6684588.A13 6684588	£6.38	£7.66
7 - PISTON SET HIT-6685899.A1 6685899	£36.53	£43.84
8 - CIR CLIP HIT-6684590.A49 6684590	£1.67	£2.00
9 - PISTON PIN HIT-6684591.A56 6684591	£3.29	£3.95
10 - CRANK SHAFT COMP. HIT-6686200.A2 6686200	-
11 - WOODRUFF KEY 3X13X4.5 HIT-6684899.A95 6684899	-
*21 - GEAR SHAFT SHIM 0.10 HIT-6689177.A25 6689177	-
*21 - GEAR SHAFT SHIM 0.15 HIT-6689178.A10 6689178	-
*21 - GEAR SHAFT SHIM 0.20 HIT-6684604.A55 6684604	-
*21 - GEAR SHAFT SHIM 0.30 HIT-6684605.A26 6684605	-
22 - SPECIAL BOLT HIT-6685842.A2 6685842	-
23 - CLUTCH WASHER B HIT-6689645.A35 6689645	£1.67	£2.00
24 - BOLT WASHER M7 HIT-6685103.A25 6685103	-
25 - CRANK CASE ASS'Y HIT-6686578.A2 6686578	-
26 - OIL SEAL TB 12227 HIT-6684607.A53 6684607	£4.07	£4.88
27 - BALL BEARING 6001 C3 HIT-6684608.A146 6684608	£5.70	£6.84
28 - CRANK CASE GASKET HIT-6686718.A1 6686718	-
29 - HEX. HOLE BOLT M5X25/S HIT-6684709.A83 6684709	£1.67	£2.00
30 - IGNITION COIL COMP. HIT-6687641.A1 6687641	-
31 - SCREW 5X20/WS HIT-6695420.A0 6695420	-
32 - IGNITION COIL ASS'Y HIT-6687642.A1 6687642	£31.02	£37.23
33 - MAGNETO ROTOR COMP. HIT-6687361.A2 6687361	-
34 - RUBBER CAP HIT-6684602.A18 6684602	-
35 - HIGH TENSION CORD 1 HIT-6688398.A1 6688398	-
41 - INLET MANIFOLD GASKET HIT-6689893.A2 6689893	-
42 - INSULATOR SET HIT-6689968.A1 6689968	-
43 - SCREW 5X24WS HIT-6695423.A9 6695423	-
44 - CARBURETOR GASKET HIT-6689841.A0 6689841	-
*45A - CARBURETOR SET SINCE B025701 FOR AUS HIT-6690491.A0 6690491	-
*45A - CARBURETOR SET 1 HIT-6690489.A2 6690489	-
46 - CLIP D6 HIT-6685198.A16 6685198	-
47A - PUMP FILTER BODY COMP HIT-66A3864.A15 66A3864	-
48 - TANK CAP ASS'Y HIT-6691714.A0 6691714	£8.44	£10.13
49 - TANK CAP CHAIN HIT-6684625.A61 6684625	-
50 - TANK WHT HIT-6691576.A2 6691576	-
51 - SHIELD TUBE 3X5X180 HIT-6684618.A14 6684618	£6.12	£7.35
52 - AIR CLEANER BODY HIT-6684856.A0 6684856	-
53 - CHOKE VALVE HIT-6684857.A4 6684857	£5.70	£6.84
54 - COLLAR HIT-6684858.A0 6684858	-
55 - SPACER HIT-6684859.A18 6684859	-
56 - BLOW OVER CHECK BOARD HIT-6684860.A0 6684860	£3.42	£4.10
57 - CLEANER SPONGE HIT-6684861.A10 6684861	£6.18	£7.41
58 - CLEANER CAP HIT-6684862.A0 6684862	£8.58	£10.29
59 - AIR CLEANER ASS'Y HIT-6684863.A4 6684863	£18.38	£22.05
60 - SCREW 5X57/S HIT-6695353.A20 6695353	£1.67	£2.00
61 - SMALL WASHER 5 HIT-6684864.A0 6684864	-
62 - FUEL PIPE 3X5X85 HIT-6684880.A24 6684880	-
63 - RETURN GROMMET HIT-6697846.A15 6697846	£2.08	£2.50
64 - SCREW 4X18/PS HIT-6695375.A3 6695375	-
65 - SCREW 5X16/PS HIT-6695386.A4 6695386	£1.67	£2.00
66 - COLLAR 5.8 HIT-6692244.A38 6692244	£1.67	£2.00
67 - COLLAR HIT-6692245.A1 6692245	-
68 - FUEL TANK BRACKET HIT-6692215.A1 6692215	-
69 - SCREW 6X14S HIT-6695357.A0 6695357	-
70 - AIR VENT ASS'Y HIT-6691389.A6 6691389	£16.64	£19.97
71 - AIR VENT PIPE HIT-6697800.A2 6697800	-
72 - AIR VENT VALVE ASS'Y HIT-6692171.A1 6692171	-
81 - MUFFLER GASKET HIT-6692745.A2 6692745	-
82 - HEAT SHIELD HIT-6687255.A1 6687255	-
83 - MUFFLER SET 1 HIT-6692486.A1 6692486	£31.91	£38.29
84 - HEX. HOLE BOLT 5X70 HIT-6695057.A2 6695057	£1.67	£2.00
85 - SPECIAL WASHER B HIT-6684822.A15 6684822	£1.67	£2.00
86 - MUFFLER SPECIAL GASKET HIT-6692883.A7 6692883	-
87 - TAIL PIPE SET 1 HIT-6692664.A2 6692664	£15.31	£18.37
88 - MACHINE SCREW (W/SP. WASHER) M4X8 HIT-6685109.A10 6685109	-
101 - RECOIL STARTER BODY ASSY HIT-6692982.A1 6692982	-
102 - RECOIL STARTER BODY COMP. 1 HIT-6693034.A2 6693034	-
103 - RECOIL SPRING HIT-6684675.A99 6684675	£8.82	£10.58
104 - STARTER ROPE REEL HIT-6693066.A11 6693066	£5.17	£6.20
105 - SET SCREW HIT-6693633.A22 6693633	£1.67	£2.00
106 - ROPE HIT-6693168.A20 6693168	£2.82	£3.39
107 - STARTER HANDLE HIT-6693237.A10 6693237	£4.55	£5.46
108 - SCREW 4X14/PS TILL B095800 HIT-6695372.A7 6695372	-
108A - HEX. HOLE BOLT 4X12WS SINCE B095801 HIT-6695507.A15 6695507	-
109 - STARTER PULLEY ASSY HIT-6693406.A1 6693406	£15.22	£18.27
110 - STARTER PAWL HIT-6693320.A1 6693320	-
111 - STARTER PAWL SPRING HIT-6684684.A78 6684684	£3.29	£3.95
121 - PUMP BODY COMP. HIT-6684879.A41 6684879	£35.37	£42.44
122 - PRIMING PUMP COMP. HIT-6684687.A67 6684687	£9.27	£11.12
123 - DIAPHRAGM COVER HIT-6684688.A32 6684688	£5.70	£6.84
124 - PRIMING BODY HIT-6684689.A67 6684689	£5.87	£7.04
125 - METERING DIAPHRAGM COMP. TILL B029200 FOR AUS HIT-6690827.A21 6690827	£14.02	£16.83
125A - METERING DIAPHRAGM COMP. SINCE B029201 FOR AUS HIT-6690830.A31 6690830	£14.58	£17.50
126 - DIAPHRAGM GASKET HIT-6684691.A66 6684691	£5.70	£6.84
127 - PUMP DIAPHRAGM HIT-6684693.A140 6684693	£5.70	£6.84
128 - PUMP GASKET HIT-6691457.A45 6691457	£8.48	£10.18
129 - MAIN JET #39 TILL B025700 HIT-6684878.A1 6684878	-
*129A - MAIN JET #41.5 SINCE B025701 FOR AUS HIT-6691885.A1 6691885	-
*129A - MAIN JET #38 SINCE B025701 FOR EUROPE HIT-6691844.A4 6691844	-
130 - O-RING HIT-6684695.A59 6684695	£1.67	£2.00
131 - STOP RING HIT-6684696.A154 6684696	-
132 - SWIVEL HIT-6684697.A44 6684697	-
133 - THROTTLE VALVE COMP. HIT-6690943.A0 6690943	-
134 - THROTTLE SET SCREW HIT-6684870.A16 6684870	-
135 - CABLE ADJUSTER STAY HIT-6684873.A57 6684873	-
136 - LOCK NUT M6 HIT-6684872.A20 6684872	-
137 - CABLE ADJUSTER HIT-6684871.A49 6684871	-
138 - CLEANER PACKING HIT-6684875.A59 6684875	-
139 - SET SCREW HIT-6684699.A39 6684699	-
140 - THRUST WASHER HIT-6684874.A16 6684874	-
141 - INLET SCREEN HIT-6684700.A152 6684700	-
142 - METERING DIAPHRAGM COMP. FOR EUROPE HIT-6690827.A20 6690827	£14.02	£16.83
161 - FAN CASE E. COMP. HIT-6685602.A1 6685602	-
162 - VOLUTE CASE HIT-6686322.A2 6686322	-
163 - DUST COVER HIT-6686264.A1 6686264	-
164 - TAPPING SCREW 5X20 HIT-6695255.A25 6695255	-
165 - THROTTLE LEVER HIT-6685670.A2 6685670	-
166 - STOP SWITCH ASS'Y HIT-6687752.A1 6687752	-
167 - MUFFLER PROTECTOR HIT-6692827.A1 6692827	-
168 - SPRING WASHER 5 HIT-6684834.A21 6684834	£1.67	£2.00
169 - TAPPING SCREW 5X20 HIT-6695255.A24 6695255	-
170 - HEX.HOLE BOLT M5X35 HIT-6684934.A3 6684934	-
171 - FAN HIT-6687173.A1 6687173	-
172 - HEX. NUT M8 HIT-6684612.A51 6684612	-
173 - SPECIAL WASHER HIT-6685856.A3 6685856	£3.85	£4.62
174 - STRAIGHT PIPE HIT-6688422.A2 6688422	-
175 - FAN HEADED PIPE HIT-6688433.A1 6688433	£11.18	£13.42
176 - CLAMP BAND COMP. HIT-6690785.A1 6690785	-
177 - THROTTLE WIRE COMP. HIT-6693915.A1 6693915	£5.59	£6.71
178A - STOP BUTTON (RED) HIT-6698995.A2 6698995	-
179 - SCREW 3X10 HIT-6684913.A18 6684913	£1.67	£2.00
180 - SPECIAL KNOB HIT-6689740.A2 6689740	-
181 - GROMMET HIT-6688053.A2 6688053	-
182 - COVER PIN HIT-6686332.A1 6686332	-
183 - SPRING HIT-6693356.A2 6693356	-
184 - WASHER 5 UNI-KURO HIT-334103.A0 334103	-
185 - TAPPING SCREW 5X15 HIT-6695252.A2 6695252	-
501 - COMBI BOX SPANNER 13X19 PLUS HIT-6684979.A17 6684979	-
601 - SYMBOL MARK HIT-6696266.A0 6696266	-

Attribute Name	Value
Brand	Hikoki
