Hitachi / Hikoki TED-270PFHS 1/2inch Chuck Gas Drill Spare Parts

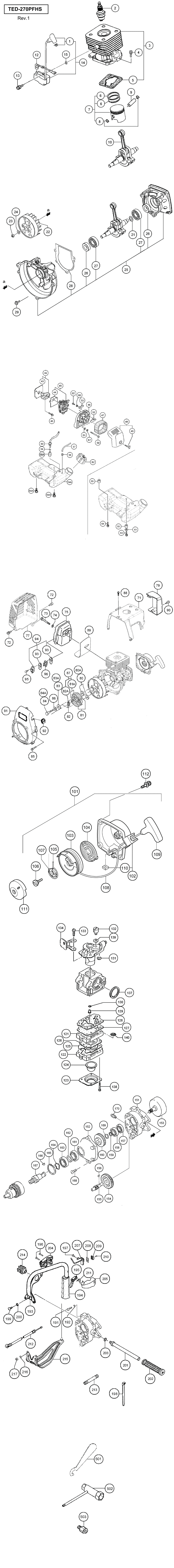

An exploded diagram and spare parts listing for the Hitachi / Hikoki TED-270PFHS 1/2inch Chuck Gas Drill

	Ex VAT	Inc VAT
1 - PLUG CAP HIT-6684894.A8 6684894	£7.75	£9.30
2 - SPARK PLUG ASS'Y CJ8 HIT-6699324.A3 6699324	-
3 - CYLINDER SET HIT-6685495.A10 6685495	£87.22	£104.66
4 - HEX.HOLE BOLT M5X18/S HIT-6684586.A74 6684586	-
5 - CYLINDER GASKET HIT-6684896.A1 6684896	£1.67	£2.00
6 - PISTON RING HIT-6686121.A40 6686121	£6.47	£7.76
7 - PISTON SET HIT-6685902.A4 6685902	£30.58	£36.70
8 - CIR CLIP HIT-6684590.A36 6684590	£1.67	£2.00
9 - PISTON PIN HIT-6684591.A61 6684591	£3.29	£3.95
10 - CRANK SHAFT COMP. HIT-6686219.A20 6686219	£121.07	£145.28
12 - STOP CORD B 190M HIT-6687836.A13 6687836	-
13 - HIGH TENSION SCREW 4X18WS HIT-6695407.A48 6695407	-
14 - IGNITION COIL ASS'Y HIT-6687689.A7 6687689	£51.02	£61.23
15 - WASHER T1.6 HIT-6684600.A54 6684600	-
*21 - GEAR SHAFT SHIM 0.20 HIT-6684604.A71 6684604	-
*21 - GEAR SHAFT SHIM 0.30 HIT-6684605.A10 6684605	-
22 - MAGNETO ROTOR COMP. HIT-6687385.A10 6687385	-
23 - HEX. NUT M8 HIT-6684612.A29 6684612	-
24 - BOLT WASHER M8 HIT-6684611.A87 6684611	-
25 - CRANK CASE ASS'Y HIT-6684905.A4 6684905	£30.92	£37.11
26 - OIL SEAL TB 12227 HIT-6684607.A95 6684607	£4.07	£4.88
27 - BALL BEARING 6001 C3 HIT-6684608.A105 6684608	£5.70	£6.84
28 - CRANK CASE GASKET HIT-6684904.A18 6684904	£1.67	£2.00
29 - HEX. HOLE BOLT M5X16/S HIT-6684903.A24 6684903	-
41 - INLET MANIFOLD GASKET HIT-6689895.A8 6689895	£1.67	£2.00
42 - INSULATOR SET HIT-6689972.A8 6689972	£6.59	£7.91
43 - HEX. HOLE BOLT 5X25/WS HIT-6684617.A16 6684617	-
44 - CARBURETOR PACKING HIT-6684616.A12 6684616	£1.67	£2.00
45 - CABURETOR SET WYJ-463 HIT-6690522.A9 6690522	£84.48	£101.37
46 - CLEANER BODY COMP. HIT-6690120.A33 6690120	£12.32	£14.78
47 - CLEANER SPONGE HIT-6690365.A37 6690365	£1.67	£2.00
48 - CLEANER COVER ASS'Y HIT-6690402.A3 6690402	£12.16	£14.59
49 - COVER FIXING BOLT COMP. HIT-6698730.A32 6698730	£5.52	£6.63
50 - SCREW M5X55 HIT-6694914.A28 6694914	-
51 - SMALL WASHER 5 HIT-6684864.A39 6684864	-
52 - CHOKE PLATE 2.0 HIT-6691276.A0 6691276	£1.67	£2.00
53 - CHOKE CONTROL LEVER HIT-6691239.A26 6691239	£2.98	£3.57
54A - TANK HIT-6697951.A0 6697951	-
55 - COLLAR 5.8 HIT-6692244.A60 6692244	£1.67	£2.00
56 - RETURN GROMMET HIT-6697846.A30 6697846	£2.08	£2.50
57 - FUEL PIPE 3X5X65 HIT-6684626.A5 6684626	£1.67	£2.00
58A - PUMP FILTER BODY COMP HIT-66A3864.A22 66A3864	-
59 - CLIP D6 HIT-6685198.A29 6685198	-
60 - SHIELD TUBE SET HIT-6698970.A3 6698970	-
61 - BRAKE SHAFT WASHER TILL J069670 HIT-6689681.A11 6689681	£1.67	£2.00
62 - TANK CAP D ASS'Y HIT-6691748.A25 6691748	£6.04	£7.25
63 - HEX. HOLE BOLT 5X20PS TILL J069670 HIT-6695506.A3 6695506	-
64 - HEX. HOLE BOLT 5X16/PS TILL J069670 HIT-6695504.A25 6695504	£1.67	£2.00
64A - BOLT (W/FLANGE) L17.8 SINCE J069671 HIT-6696574.A14 6696574	£1.67	£2.00
65 - TAP SCREW 4X14 P HIT-6695280.A43 6695280	£1.67	£2.00
66 - BOLT WASHER M4 HIT-6685070.A12 6685070	£1.67	£2.00
67 - S.WASHER 5 HIT-6684662.A35 6684662	£1.67	£2.00
71 - CYLINDER COVER (BLK) HIT-6685693.A5 6685693	-
72 - HEX. HOLE BOLT 5X16/PS HIT-6695504.A24 6695504	£1.67	£2.00
73 - HEX. HOLE BOLT M6X65 HIT-6695067.A32 6695067	£1.67	£2.00
74 - BOLT WASHER 6 HIT-6684639.A141 6684639	£1.67	£2.00
75 - MUFFLER COMP. HIT-6692575.A3 6692575	-
77 - MUFFLER PROTECTOR HIT-6692817.A3 6692817	£22.97	£27.56
79 - COVER HIT-6687216.A2 6687216	-
80 - CLUTCH WASHER B TILL J069670 HIT-6684642.A7 6684642	£1.67	£2.00
80A - CLUTCH WASHER B SINCE J069671 HIT-6697619.A15 6697619	£1.67	£2.00
81 - CLUTCH SHOE COMP. TILL J069670 HIT-6684643.A18 6684643	£12.01	£14.41
81A - CLUTCH SHOE SINCE J069671 HIT-6697656.A1 6697656	-
82 - CLUTCH SPRING TILL J069670 HIT-6684644.A5 6684644	£3.12	£3.74
82A - CLUTCH SPRING SINCE J069671 HIT-6697657.A12 6697657	-
83 - CLUTCH PLATE A 0.5 TILL J069670 HIT-6684645.A24 6684645	£1.67	£2.00
83A - CLUTCH PLATE (A) SINCE J069671 HIT-6689528.A32 6689528	£1.67	£2.00
84 - STEP BOLT TILL J069670 HIT-6684646.A11 6684646	£3.72	£4.46
84A - STEP BOLT SINCE J069671 HIT-6689627.A31 6689627	£1.67	£2.00
85 - HEX. HOLE BOLT M5X18/WS HIT-6684647.A20 6684647	£1.67	£2.00
86 - BENT WASHER 8 HIT-6684648.A30 6684648	£1.67	£2.00
87 - CLUTCH SET SINCE J069671 HIT-6697655.A23 6697655	£9.68	£11.62
88 - HEX. HOLE BOLT 4X15/PS HIT-6684682.A36 6684682	£1.67	£2.00
89 - HEAT SHIELD HIT-6687265.A13 6687265	£5.70	£6.84
90 - TAPPING SCREW 4X14 HIT-6684751.A4 6684751	£1.67	£2.00
91 - FAN CASE COMP HIT-6687037.A5 6687037	-
92 - PRIMARY CORD GROMMET HIT-6688057.A18 6688057	-
93 - MUFFLER SPECIAL GASKET HIT-6692886.A6 6692886	-
94 - TAIL PIPE SET HIT-6692716.A5 6692716	-
95 - SCREW M4X8/WS HIT-6684651.A7 6684651	-
96 - SPARK ARRESTER HIT-6692702.A7 6692702	-
101 - RECOIL STARTER BODY ASS'Y HIT-6684938.A12 6684938	£18.59	£22.31
102 - RECOIL STARTER BODY COMP. HIT-6684944.A13 6684944	-
103 - STARTER ROPE REEL HIT-6684941.A3 6684941	£7.41	£8.89
104 - RECOIL SPRING HIT-6684942.A12 6684942	£5.17	£6.20
105 - SWING ARM HIT-6684940.A12 6684940	£1.67	£2.00
106 - SET SCREW HIT-6684679.A79 6684679	£2.98	£3.57
107 - PULLEY STAY HIT-6684939.A3 6684939	-
108 - ROPE 3.0X800 HIT-6684943.A3 6684943	-
109 - STARTER HANDLE HIT-6684680.A57 6684680	£5.87	£7.04
110 - SPECIAL NUT M5 HIT-6685000.A9 6685000	-
111 - STARTER PULLEY HIT-6684937.A3 6684937	£3.56	£4.27
112 - HEX. HOLE BOLT 4X18WS HIT-6695508.A32 6695508	£1.67	£2.00
121 - PUMP BODY COMP. HIT-6684879.A37 6684879	£35.37	£42.44
122 - PRIMING PUMP COMP. HIT-6684687.A54 6684687	£9.27	£11.12
123 - DIAPHRAGM COVER HIT-6684688.A45 6684688	£5.70	£6.84
124 - PRIMING BODY HIT-6684689.A54 6684689	£5.87	£7.04
125 - METERING DIAPHRAGM HIT-6684690.A57 6684690	£24.05	£28.86
126 - DIAPHRAGM GASKET HIT-6684691.A51 6684691	£5.70	£6.84
127 - PUMP DIAPHRAGM HIT-6684693.A109 6684693	£5.70	£6.84
128 - PUMP GASKET HIT-6684692.A54 6684692	£17.28	£20.73
129 - MAIN JET #38.5 HIT-6696130.A3 6696130	-
130 - O-RING HIT-6684695.A89 6684695	£1.67	£2.00
131 - STOP RING HIT-6684696.A124 6684696	-
132 - SWIVEL HIT-6684697.A62 6684697	-
133 - THROTTLE SET SCREW HIT-6684870.A34 6684870	-
134 - CABLE ADJUSTER STAY HIT-6684873.A43 6684873	-
137 - CLEANER PACKING HIT-6684875.A43 6684875	-
138 - SET SCREW HIT-6684699.A49 6684699	-
139 - THRUST WASHER HIT-6684874.A35 6684874	-
140 - INLET SCREEN HIT-6684700.A137 6684700	-
151 - GEAR CASE A COMP. HIT-6685578.A7 6685578	£62.67	£75.20
152 - NO LONGER AVAILABLE HIT-6685593.A16 6685593	-
153 - CLUTCH HOUSING COMP. HIT-6688198.A0 6688198	-
154 - GEAR 2 HIT-6685655.A0 6685655	-
155 - GEAR 3 HIT-6685703.A1 6685703	-
156 - WOOD-RUFF KEY 3X10X3.7 HIT-6686454.A8 6686454	-
157 - BALL BEARING #6001Z 1 HIT-6695532.A9 6695532	£15.01	£18.01
158 - BALL BEARING 6001 C3 HIT-6684608.A106 6684608	£5.70	£6.84
159 - STOP RING C-12 OUTER HIT-6684664.A19 6684664	-
160 - GEAR 4 HIT-6685786.A0 6685786	-
161 - BALL BEARING #7202B 1 HIT-6695587.A9 6695587	£26.15	£31.38
162 - WASHAER C 5.0 HIT-6686065.A7 6686065	-
163 - BALL BEARING #6202Z 1 HIT-6695559.A8 6695559	£12.76	£15.31
164 - WAVE WASHER B.B 35 HIT-6695206.A7 6695206	-
165 - STOP RING C-35 1 HIT-6695296.A9 6695296	-
166 - WOOD-RUFF KEY 3X13X5 HIT-6686455.A4 6686455	£1.67	£2.00
167 - DRIVE SHAFT HIT-6685824.A10 6685824	£26.42	£31.70
168 - SCREW 5X18/S HIT-6695339.A11 6695339	-
169 - STOP RING C-13 1 HIT-6695283.A5 6695283	-
170 - GREASE NIPPLE COMP. HIT-6688643.A6 6688643	£1.67	£2.00
191 - PLUS BOLT 6X30 HIT-6695022.A4 6695022	£1.67	£2.00
192 - S.WASHER 6 HIT-6695219.A54 6695219	£1.67	£2.00
193 - HANDLE A COMP HIT-6688370.A4 6688370	£46.49	£55.79
194 - HANDLE GRIP A HIT-6687624.A2 6687624	£7.34	£8.81
195 - THROTTLE LEVER HIT-6686401.A3 6686401	£2.75	£3.30
196 - TAP SCREW 4X14 P HIT-6695280.A19 6695280	£1.67	£2.00
197 - SCREW 4X6 HIT-6694860.A7 6694860	£1.67	£2.00
198 - CORD CLAMP HIT-6688015.A24 6688015	-
199 - PLUS BOLT 6X16 HIT-6695019.A0 6695019	£1.67	£2.00
200 - S.WASHER 6 HIT-6695219.A55 6695219	£1.67	£2.00
201 - HANDLE COMP. B HIT-6688372.A2 6688372	£23.41	£28.09
202 - HANDLE GRIP HIT-6686350.A7 6686350	£8.64	£10.37
203 - S.WASHER 10 HIT-6695225.A11 6695225	£1.67	£2.00
204 - THROTTLE BODY B HIT-6693818.A0 6693818	£5.58	£6.69
205 - THROTTLE BODY A HIT-6693795.A5 6693795	£5.58	£6.69
207 - STOP SWITCH COMP. HIT-6687776.A4 6687776	£15.94	£19.13
208 - STOP BUTTON MARK HIT-6694588.A1 6694588	£2.98	£3.57
209 - BUTTON STOP HIT-6688366.A38 6688366	£1.67	£2.00
210 - SCREW 3X10 HIT-6684913.A48 6684913	£1.67	£2.00
211 - THROTTLE LEVER SPRING HIT-6686421.A2 6686421	£1.67	£2.00
212 - THROTTLE WIRE 400+30 HIT-6693988.A4 6693988	£11.52	£13.82
213 - PROTECTION TUBE 345L HIT-6687535.A3 6687535	-
214 - CHUCK HANDLE HOLDER HIT-6687420.A3 6687420	-
215 - HANDLE SUPPORT COMP. HIT-6688404.A0 6688404	£25.49	£30.59
216 - S.WASHER 6 HIT-6695219.A56 6695219	£1.67	£2.00
217 - NUT M6 HIT-6684792.A49 6684792	-
501 - SPECIAL WRENCH 31 HIT-6693647.A5 6693647	-
502 - COMBI BOX SPANNER 10X19 HIT-6685999.A3 6685999	-
503 - HANDLE ADAPTOR HIT-6686620.A2 6686620	-
