Hitachi / Hikoki TED-270LS Engine Drill Spare Parts

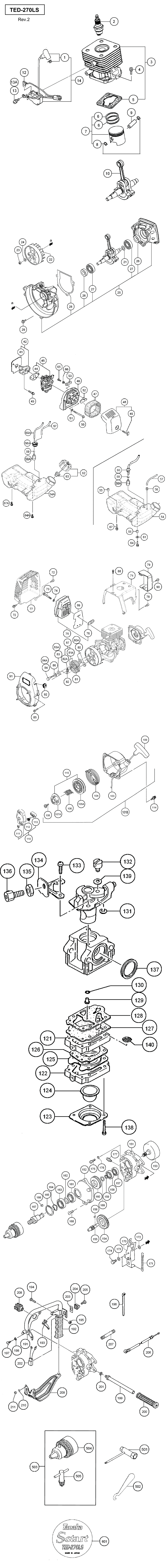

An exploded diagram and spare parts listing for the Hitachi / Hikoki TED-270LS Engine Drill

	Ex VAT	Inc VAT
1 - PLUG CAP HIT-6684894.A1 6684894	£7.75	£9.30
2 - SPARK PLUG ASS'Y BPMR6A HIT-6699319.A1 6699319	-
3 - CYLINDER SET HIT-6685493.A0 6685493	£72.13	£86.56
4 - HEX.HOLE BOLT M5X18/S HIT-6684586.A89 6684586	-
5 - CYLINDER GASKET T=1.0 HIT-6685750.A6 6685750	£2.81	£3.37
6 - PISTON RING HIT-6686121.A23 6686121	£6.47	£7.76
7 - PISTON SET HIT-6685902.A5 6685902	£30.58	£36.70
8 - CIR CLIP HIT-6684590.A20 6684590	£1.67	£2.00
9 - PISTON PIN HIT-6684591.A72 6684591	£3.29	£3.95
10 - CRANK SHAFT COMP. HIT-6686219.A15 6686219	£121.07	£145.28
12 - STOP CORD B 190M HIT-6687836.A9 6687836	-
13 - HEX. HOLE BOLT M4X18/WS TILL J030650 HIT-6684599.A0 6684599	-
13A - HIGH TENSION SCREW 4X18WS SINCE J030651 HIT-6695407.A62 6695407	-
14 - IGNITION COIL ASS'Y HIT-6687686.A3 6687686	-
*21 - GEAR SHAFT SHIM 0.20 HIT-6684604.A75 6684604	-
*21 - GEAR SHAFT SHIM 0.30 HIT-6684605.A6 6684605	-
22 - MAGNETO ROTOR COMP. HIT-6687384.A0 6687384	-
23 - HEX. NUT M8 HIT-6684612.A22 6684612	-
24 - BOLT WASHER M8 HIT-6684611.A90 6684611	-
25 - CRANK CASE ASS'Y HIT-6684905.A1 6684905	£30.92	£37.11
26 - OIL SEAL TB 12227 HIT-6684607.A15 6684607	£4.07	£4.88
27 - BALL BEARING 6001 C3 HIT-6684608.A180 6684608	£5.70	£6.84
28 - CRANK CASE GASKET HIT-6684904.A21 6684904	£1.67	£2.00
29 - HEX. HOLE BOLT M5X16/S HIT-6684903.A16 6684903	-
41 - INLET MANIFOLD GASKET HIT-6689895.A10 6689895	£1.67	£2.00
42 - INSULATOR SET HIT-6689972.A10 6689972	£6.59	£7.91
43 - HEX. HOLE BOLT M5X25WS HIT-6695515.A11 6695515	£1.67	£2.00
44 - CARBURETOR GASKET HIT-6684615.A38 6684615	£1.67	£2.00
45 - CABURETOR SET WYJ-431 HIT-6690519.A6 6690519	£113.54	£136.25
46 - CLEANER BODY COMP. HIT-6690120.A22 6690120	£12.32	£14.78
47 - CLEANER SPONGE HIT-6690365.A31 6690365	£1.67	£2.00
48 - CLEANER COVER ASS'Y HIT-6690421.A18 6690421	£14.48	£17.38
49 - COVER FIXING BOLT COMP. HIT-6698730.A42 6698730	£5.52	£6.63
50 - SCREW 5X57/S HIT-6695353.A28 6695353	£1.67	£2.00
51 - SMALL WASHER 5 HIT-6684864.A48 6684864	-
52 - CHOKE LEVER 1.5 HIT-6691281.A9 6691281	£1.67	£2.00
53 - CHOKE CONTROL LEVER HIT-6691239.A21 6691239	£2.98	£3.57
54 - TANK WHT TILL TL043340 HIT-6691602.A5 6691602	£13.82	£16.59
54A - TANK SINCE TL043341 HIT-6601167.A3 6601167	-
55 - COLLAR 5.8 TILL J030650 HIT-6692244.A63 6692244	£1.67	£2.00
56 - RETURN GROMMET TILL TL043340 HIT-6697846.A49 6697846	£2.08	£2.50
56A - FUEL GROMMET SINCE TL043341 HIT-6600358.A67 6600358	£1.67	£2.00
57 - FUEL PIPE 3X5X65 HIT-6684626.A0 6684626	£1.67	£2.00
58A - PUMP FILTER BODY COMP HIT-66A3864.A30 66A3864	-
59 - CLIP D6 HIT-6685198.A1 6685198	-
60 - SHIELD TUBE 3X5X180 TILL TL043340 HIT-6684618.A2 6684618	£6.12	£7.35
60A - FUEL PIPE SINCE TL043341 HIT-6601181.A3 6601181	-
61 - BRAKE SHAFT WASHER TILL J030650 HIT-6689681.A7 6689681	£1.67	£2.00
62 - TANK CAP ASS'Y HIT-6685049.A32 6685049	£9.94	£11.93
63 - TANK CAP CHAIN HIT-6684625.A92 6684625	-
64 - HEX.HOLE BOLT 5X20/PS TILL J030650 HIT-6684634.A65 6684634	£1.67	£2.00
64A - BOLT (W/FLANGE) L17.8 SINCE J030651 HIT-6696574.A24 6696574	£1.67	£2.00
65 - TAP SCREW 4X14 P HIT-6695280.A51 6695280	£1.67	£2.00
66 - BOLT WASHER M4 HIT-6685070.A16 6685070	£1.67	£2.00
67 - HEX. HOLE BOLT 5X16/PS TILL J030650 HIT-6695504.A5 6695504	£1.67	£2.00
67A - BOLT (W/FLANGE) L17.8 SINCE J030651 HIT-6696574.A25 6696574	£1.67	£2.00
71 - CYLINDER COVER HIT-6685690.A7 6685690	£5.70	£6.84
72 - HEX. HOLE BOLT 5X16/PS HIT-6695504.A4 6695504	£1.67	£2.00
73 - HEX. HOLE BOLT M6X55 HIT-6684638.A4 6684638	£1.67	£2.00
74 - BOLT WASHER 6 HIT-6684639.A192 6684639	£1.67	£2.00
75 - MUFFLER SET HIT-6692501.A2 6692501	-
76 - MUFFLER GASKET HIT-6692732.A0 6692732	£1.67	£2.00
77 - MUFFLER PROTECTOR OR HIT-6692815.A2 6692815	£3.56	£4.27
78 - HEX. HOLE BOLT 4X18WS HIT-6695508.A16 6695508	£1.67	£2.00
79 - DEFLECTOR HIT-6687214.A1 6687214	£3.56	£4.27
80 - CLUTCH WASHER B TILL J038100 HIT-6684642.A2 6684642	£1.67	£2.00
80A - CLUTCH WASHER B SINCE J038101 HIT-6697619.A4 6697619	£1.67	£2.00
81 - CLUTCH SHOE COMP. TILL J038100 HIT-6684643.A23 6684643	£12.01	£14.41
81A - CLUTCH SHOE SINCE J038101 HIT-6697656.A7 6697656	-
82 - CLUTCH SPRING TILL J038100 HIT-6684644.A0 6684644	£3.12	£3.74
82A - CLUTCH SPRING SINCE J038101 HIT-6697657.A6 6697657	-
83 - CLUTCH PLATE A 0.5 TILL J038100 HIT-6684645.A26 6684645	£1.67	£2.00
83A - CLUTCH PLATE (A) SINCE J038101 HIT-6689528.A17 6689528	£1.67	£2.00
84 - STEP BOLT TILL J038100 HIT-6684646.A0 6684646	£3.72	£4.46
84A - STEP BOLT SINCE J038101 HIT-6689627.A39 6689627	£1.67	£2.00
85 - HEX. HOLE BOLT M5X18/WS HIT-6684647.A28 6684647	£1.67	£2.00
86 - BENT WASHER 8 HIT-6684648.A0 6684648	£1.67	£2.00
87 - CLUTCH SET SINCE J038101 HIT-6697655.A11 6697655	£9.68	£11.62
88 - HEX. HOLE BOLT 4X15/PS HIT-6684682.A50 6684682	£1.67	£2.00
89 - HEAT SHIELD HIT-6687264.A0 6687264	-
90 - TAPPING SCREW 4X14 HIT-6684751.A37 6684751	£1.67	£2.00
91 - FAN CASE COMP HIT-6687037.A3 6687037	-
92 - PRIMARY CORD GROMMET HIT-6688057.A4 6688057	-
101B - RECOIL STARTER BODY ASS'Y INCLUD.103-109 HIT-6601570.A60 6601570	£23.15	£27.78
103 - STARTER ROPE 3.5X860 HIT-6684674.A13 6684674	£5.70	£6.84
104 - RECOIL SPRING HIT-6684675.A128 6684675	£8.82	£10.58
105A - STARTER ROPE REEL SINCE TL031471 HIT-6699997.A78 6699997	-
106 - DAMPER SPRING HIT-6684677.A18 6684677	£5.70	£6.84
107A - CAM PLATE SINCE TL031471 HIT-6699996.A11 6699996	£4.28	£5.13
108 - SET SCREW HIT-6684679.A22 6684679	£2.98	£3.57
109 - STARTER HANDLE HIT-6684680.A98 6684680	£5.87	£7.04
110 - STARTER PULLEY ASS'Y HIT-6684681.A17 6684681	£18.16	£21.79
111 - D4E RETAINING RING HIT-6685101.A45 6685101	-
112 - STARTER PAWL SPRING HIT-6684684.A103 6684684	£3.29	£3.95
113 - STARTER PAWL HIT-6684685.A14 6684685	£5.07	£6.08
114 - HEX. HOLE BOLT 4X18WS HIT-6695508.A17 6695508	£1.67	£2.00
115 - CAMPLATE ASS'Y TILL TLT031740 HIT-6699691.A18 6699691	£7.75	£9.30
121 - PUMP BODY COMP. HIT-6684879.A70 6684879	£35.37	£42.44
122 - PRIMING PUMP COMP. HIT-6684687.A89 6684687	£9.27	£11.12
123 - DIAPHRAGM COVER HIT-6684688.A10 6684688	£5.70	£6.84
124 - PRIMING BODY HIT-6684689.A91 6684689	£5.87	£7.04
125 - METERING DIAPHRAGM COMP. HIT-6690830.A56 6690830	£14.58	£17.50
126 - DIAPHRAGM GASKET HIT-6684691.A92 6684691	£5.70	£6.84
127 - PUMP DIAPHRAGM HIT-6684693.A181 6684693	£5.70	£6.84
128 - PUMP GASKET HIT-6684692.A12 6684692	£17.28	£20.73
129 - MAIN JET #43 HIT-6691848.A5 6691848	£8.77	£10.52
130 - O-RING HIT-6684695.A23 6684695	£1.67	£2.00
131 - STOP RING HIT-6684696.A194 6684696	-
132 - SWIVEL HIT-6684697.A21 6684697	-
133 - THROTTLE SET SCREW HIT-6684870.A8 6684870	-
134 - CABLE ADJUSTER STAY HIT-6684873.A65 6684873	-
135 - LOCK NUT M6 HIT-6684872.A10 6684872	-
136 - CABLE ADJUSTER HIT-6684871.A56 6684871	-
137 - CLEANER PACKING HIT-6684875.A67 6684875	-
138 - SET SCREW HIT-6684699.A18 6684699	-
139 - THRUST WASHER HIT-6684874.A8 6684874	-
140 - INLET SCREEN HIT-6684700.A199 6684700	-
151 - GEAR CASE A COMP. HIT-6685578.A9 6685578	£62.67	£75.20
152 - NO LONGER AVAILABLE HIT-6685593.A7 6685593	-
153 - CLUTCH HOUSING COMP. HIT-6688210.A2 6688210	-
154 - GEAR 2 HIT-6685656.A2 6685656	£31.02	£37.23
155 - GEAR 3 HIT-6685702.A8 6685702	£28.68	£34.41
156 - WOOD-RUFF KEY 3X10X3.7 HIT-6686454.A9 6686454	-
157 - BALL BEARING #6001Z 1 HIT-6695532.A22 6695532	£15.01	£18.01
158 - BALL BEARING #16001 HIT-6695534.A0 6695534	-
159 - STOP RING C 11 1 HIT-6695282.A6 6695282	-
160 - GEAR 4 HIT-6685788.A7 6685788	£20.91	£25.09
161 - BALL BEARING #7202B 1 HIT-6695587.A8 6695587	£26.15	£31.38
162 - WASHAER C 5.0 HIT-6686065.A11 6686065	-
163 - BALL BEARING #6202Z 1 HIT-6695559.A13 6695559	£12.76	£15.31
164 - WAVE WASHER B.B 35 HIT-6695206.A11 6695206	-
165 - STOP RING C-35 1 HIT-6695296.A14 6695296	-
166 - WOOD-RUFF KEY 3X13X5 HIT-6686455.A2 6686455	£1.67	£2.00
167 - DRIVE SHAFT HIT-6685824.A13 6685824	£26.42	£31.70
168 - SCREW 5X18/S HIT-6695339.A18 6695339	-
169 - STOP RING C-13 1 HIT-6695283.A0 6695283	-
170 - LOCK LEVER COMP. HIT-6689992.A2 6689992	-
171 - LOCK LEVER SPRING HIT-6689998.A3 6689998	-
172 - SPECIAL WASHER HIT-6687942.A15 6687942	-
173 - BOLT WASHER M7 HIT-6685103.A16 6685103	-
174 - STEP BOLT HIT-6693366.A21 6693366	-
175 - PLUS BOLT 6X30 HIT-6695022.A9 6695022	£1.67	£2.00
176 - S.WASHER 6 HIT-6695219.A71 6695219	£1.67	£2.00
177 - GREASE NIPPLE COMP. HIT-6688643.A32 6688643	£1.67	£2.00
191 - HANDLE COMP.A HIT-6688369.A5 6688369	-
192 - HANDLE GRIP A HIT-6687624.A9 6687624	£7.34	£8.81
193 - THROTTLE LEVER HIT-6686799.A3 6686799	-
194 - SCREW 5X25 HIT-6694896.A3 6694896	-
195 - NUT M5 HIT-6684965.A17 6684965	£1.67	£2.00
196 - CORD CLAMP HIT-6688015.A10 6688015	-
197 - PLUS BOLT 6X16 HIT-6695019.A13 6695019	£1.67	£2.00
198 - S.WASHER 6 HIT-6695219.A72 6695219	£1.67	£2.00
199 - HANDLE COMP. B HIT-6688372.A10 6688372	£23.41	£28.09
200 - HANDLE GRIP HIT-6686350.A4 6686350	£8.64	£10.37
201 - S.WASHER 10 HIT-6695225.A3 6695225	£1.67	£2.00
202 - STOP SWITCH COMP. HIT-6687431.A3 6687431	£12.76	£15.31
203 - STOP BUTTON MARK HIT-6694589.A3 6694589	£3.37	£4.04
204 - BUTTON STOP HIT-6688366.A19 6688366	£1.67	£2.00
205 - SCREW 3X10 HIT-6684913.A5 6684913	£1.67	£2.00
206 - THROTTLE WIRE 370+45.5 HIT-6693987.A3 6693987	-
207 - CORRUGATED TUBE 7X290L HIT-6687532.A5 6687532	-
208 - CHUCK HANDLE HOLDER HIT-6687420.A9 6687420	-
209 - HANDLE SUPPORT COMP. HIT-6688404.A5 6688404	£25.49	£30.59
210 - S.WASHER 6 HIT-6695219.A79 6695219	£1.67	£2.00
211 - NUT M6 HIT-6684792.A26 6684792	-
501 - COMBI BOX SPANNER 10X19 HIT-6685999.A0 6685999	-
502 - SPECIAL WRENCH 31 HIT-6693647.A8 6693647	-
503 - CHUCK HANDLE SET HIT-6686372.A1 6686372	£45.98	£55.17
504 - DRILL CHUCK ASS'Y HIT-6686377.A8 6686377	£64.09	£76.91
505 - CHUCK HANDLE COMP. HIT-6686410.A8 6686410	£11.25	£13.50
601 - NAME PLATE TED270LS HIT-6696407.A0 6696407	-
