Hitachi / Hikoki TED-250DLS Engine Drill Spare Parts

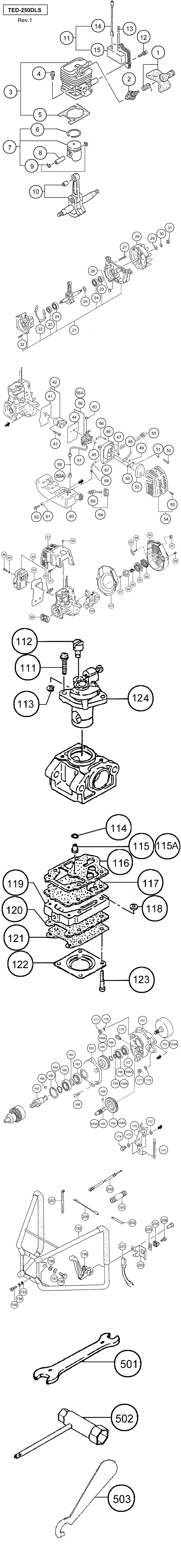

An exploded diagram and spare parts listing for the Hitachi / Hikoki TED-250DLS Engine Drill

	Ex VAT	Inc VAT
1 - SPARK PLUG CAP HIT-6687476.A0 6687476	-
2 - SPARK PLUG ASS'Y RCJ8Y HIT-6699328.A2 6699328	£5.70	£6.84
3 - CYLINDER ASS'Y HIT-6685481.A4 6685481	£68.00	£81.60
4 - HEX.HOLE BOLT M5X18/S HIT-6684586.A66 6684586	-
5 - CYLINDER GASKET HIT-6685744.A8 6685744	£1.67	£2.00
6 - PISTON RING HIT-6684588.A14 6684588	£6.38	£7.66
7 - PISTON ASS'Y HIT-6685893.A0 6685893	£34.72	£41.67
8 - PISTON PIN HIT-6684591.A59 6684591	£3.29	£3.95
9 - PISTON PIN CIRCLIP HIT-6686028.A9 6686028	-
10 - CRANK SHAFT COMP. HIT-6686205.A1 6686205	£145.70	£174.84
11 - IGNITION COIL ASS'Y HIT-6695927.A1 6695927	£30.92	£37.11
12 - HEX. HOLE BOLT M4X18/WS HIT-6684599.A29 6684599	-
13 - INSULATOR TUBE 50L HIT-6684597.A17 6684597	-
14 - CORD HIT-6687866.A1 6687866	-
15 - IGNITION COIL COMP HIT-6695939.A11 6695939	£34.64	£41.57
22 - CRANK CASE GASKET HIT-6686720.A22 6686720	-
23 - OIL SEAL TB 12227 HIT-6684607.A65 6684607	£4.07	£4.88
24 - BALL BEARING 6001 C3 HIT-6684608.A131 6684608	£5.70	£6.84
*25 - GEAR SHAFT SHIM 0.10 HIT-6689177.A29 6689177	-
*25 - GEAR SHAFT SHIM 0.15 HIT-6689178.A6 6689178	-
*25 - GEAR SHAFT SHIM 0.20 HIT-6684604.A57 6684604	-
*25 - GEAR SHAFT SHIM 0.30 HIT-6684605.A24 6684605	-
27 - HEX. SOCKET HD. BOLT M5X30 S HIT-6684786.A51 6684786	£1.67	£2.00
28 - MAGNETO ROTOR COMP. HIT-6687389.A5 6687389	-
29 - BOLT WASHER M8 HIT-6684611.A74 6684611	-
30 - S.WASHER 8 HIT-6684971.A33 6684971	-
31 - HEX. NUT M8 HIT-6684612.A47 6684612	-
32 - STUD BOLT 6X26 HIT-6686778.A0 6686778	-
41 - INTAKE PIPE GASKET HIT-6689891.A0 6689891	£3.38	£4.06
42 - CARB. INSULATOR SET 1 HIT-6689966.A9 6689966	£13.22	£15.87
43 - HEX. HOLE BOLT M5X25WS HIT-6695515.A28 6695515	£1.67	£2.00
44 - CARBURETOR GASKET HIT-6689839.A22 6689839	£2.98	£3.57
45 - O-RING P-15 HIT-6698966.A8 6698966	£1.67	£2.00
46 - CLEANER BODY COMP. HIT-6690119.A5 6690119	£8.95	£10.74
47 - COLLAR 7.5 HIT-6690804.A14 6690804	£1.67	£2.00
48 - CHOKE VALVE HIT-6691272.A3 6691272	£1.67	£2.00
49 - WAVE WASHER 8 HIT-6684658.A15 6684658	£1.67	£2.00
50 - BLOW OVER CHECK BOARD HIT-6690843.A24 6690843	£1.67	£2.00
51 - S.WASHER 5 HIT-6684662.A20 6684662	£1.67	£2.00
52 - SCREW M5X60 HIT-6684660.A3 6684660	-
53 - CLEANER SPONGE HIT-6690364.A0 6690364	£1.67	£2.00
54 - CLEANER COVER ASS'Y HIT-6690417.A0 6690417	£11.15	£13.38
55 - SPECIAL SCREW HIT-6689737.A37 6689737	-
56 - CARBURETOR SET WYL112 TILL B001000 HIT-6690482.A8 6690482	£73.85	£88.62
56A - CARBURETOR SET WYL219 SINCE B001001 HIT-6690493.A0 6690493	-
57 - SHIELD TUBE HIT-6685247.A19 6685247	£4.32	£5.19
58 - CLIP 1 HIT-6684619.A34 6684619	£1.67	£2.00
59A - PUMP FILTER BODY COMP HIT-66A3864.A2 66A3864	-
60 - TANK WHT HIT-6691582.A1 6691582	£11.71	£14.05
61 - COLLAR 5.8 HIT-6692244.A46 6692244	£1.67	£2.00
62 - HEX. HOLE BOLT 5X18PS HIT-6695505.A25 6695505	-
63 - SWIVEL CAP HIT-6691337.A52 6691337	£1.67	£2.00
64 - TANK CAP D ASS'Y 1 HIT-6691763.A26 6691763	£13.46	£16.15
65 - PRIMING PUMP COMP. HIT-6685139.A45 6685139	£10.67	£12.80
66 - FUEL PIPE 2.5X4X80 HIT-6692347.A0 6692347	£1.67	£2.00
67 - FUEL PIPE 2.5X4X70 HIT-6692346.A17 6692346	£1.67	£2.00
68 - RETURN GROMMET HIT-6697846.A4 6697846	£2.08	£2.50
69 - TANK CAP CHAIN HIT-6684625.A65 6684625	-
81 - MUFFLER PROTECTOR HIT-6692799.A6 6692799	£10.64	£12.77
82 - MUFFLER GASKET HIT-6692744.A21 6692744	£1.67	£2.00
83 - HEAT SHIELD HIT-6687252.A22 6687252	£2.82	£3.39
84 - MUFFLER SET HIT-6692480.A2 6692480	-
85 - WASHER 5 HIT-6684661.A81 6684661	£1.67	£2.00
86 - HEX. SOCKET HD. BOLT M5X50 HIT-6685114.A3 6685114	£1.67	£2.00
87 - GROMMET HIT-6688050.A22 6688050	£1.67	£2.00
88 - HEX.HOLE BOLT 4X18PS HIT-6695502.A3 6695502	£1.67	£2.00
89 - CLUTCH HIT-6688494.A0 6688494	£14.82	£17.78
90 - TAPPING SCREW D4.5X16 HIT-6684636.A15 6684636	£1.67	£2.00
91 - BOLT 4X12PS HIT-6695441.A8 6695441	-
92 - FAN CASE COMP. HIT-6687014.A12 6687014	£21.02	£25.23
93 - STARTER ROPE REEL HIT-6693072.A5 6693072	£9.60	£11.52
94 - CAM PLATE HIT-6684678.A15 6684678	£5.17	£6.20
95 - DAMPER SPRING HIT-6684677.A30 6684677	£6.66	£7.99
96 - RECOIL SPRING HIT-6684675.A116 6684675	£8.82	£10.58
97 - SET SCREW HIT-6684679.A39 6684679	£2.98	£3.57
98 - ROPE 3X890 HIT-6693172.A7 6693172	£3.70	£4.44
99 - STARTER HANDLE HIT-6693237.A12 6693237	£4.55	£5.46
100 - STARTER PULLEY ASS'Y HIT-6684681.A30 6684681	£18.16	£21.79
101 - DEFLECTOR HIT-6687209.A0 6687209	-
102 - STARTER PAWL HIT-6684685.A37 6684685	£5.07	£6.08
103 - STARTER PAWL SPRING HIT-6684684.A80 6684684	£3.29	£3.95
104 - STOP RING E-5 HIT-6684683.A5 6684683	-
111 - THROTTLE SET SCREW HIT-6684698.A49 6684698	-
112 - SWIVEL HIT-6684697.A40 6684697	-
113 - STOP RING HIT-6684696.A160 6684696	-
114 - O-RING HIT-6684695.A54 6684695	£1.67	£2.00
115 - MAIN JET #40 TILL B001000 HIT-6691845.A16 6691845	-
116 - PUMP GASKET HIT-6691457.A54 6691457	£8.48	£10.18
117 - PUMP DIAPHRAGM HIT-6684693.A146 6684693	£5.70	£6.84
118 - INLET SCREEN HIT-6684700.A171 6684700	-
119 - PUMP BODY COMP. HIT-6691430.A9 6691430	-
120 - DIAPHRAGM PACKING-METERING HIT-6685220.A146 6685220	£2.81	£3.37
121 - METERING DIAPHRAGM COMP. HIT-6690830.A36 6690830	£14.58	£17.50
122 - DIAPHRAGM COVER-METERING HIT-6685222.A29 6685222	£5.70	£6.84
123 - SET SCREW HIT-6691312.A14 6691312	-
124 - THROTTLE VALVE TILL B001000 HIT-6684883.A31 6684883	£32.24	£38.69
151 - GEAR CASE A COMP. HIT-6685578.A6 6685578	£62.67	£75.20
152 - NO LONGER AVAILABLE HIT-6685593.A12 6685593	-
153 - CLUTCH HOUSING COMP. TILL C239300 HIT-6688201.A0 6688201	-
154 - GEAR 2 TILL C239300 HIT-6685655.A2 6685655	-
154A - GEAR 2 SINCE C239301 HIT-6685656.A3 6685656	£31.02	£37.23
155A - GEAR 3 SINCE C173601 HIT-6685702.A6 6685702	£28.68	£34.41
156 - WOOD-RUFF KEY 3X10X3.7 HIT-6686454.A6 6686454	-
157 - BALL BEARING #6001Z 1 HIT-6695532.A12 6695532	£15.01	£18.01
158 - BALL BEARING 6001 C3 TILL C239300 HIT-6684608.A133 6684608	£5.70	£6.84
158A - BALL BEARING #16001 SINCE C239301 HIT-6695534.A3 6695534	-
159 - STOP RING C-12 OUTER TILL C239300 HIT-6684664.A28 6684664	-
159A - STOP RING C 11 1 HIT-6695282.A2 6695282	-
160 - GEAR 4 TILL C173600 HIT-6685787.A2 6685787	£40.30	£48.36
160A - GEAR 4 SINCE C173601 HIT-6685788.A0 6685788	£20.91	£25.09
161 - BALL BEARING #7202B 1 HIT-6695587.A13 6695587	£26.15	£31.38
162 - WASHAER C 5.0 HIT-6686065.A3 6686065	-
163 - BALL BEARING #6202Z 1 HIT-6695559.A2 6695559	£12.76	£15.31
164 - WAVE WASHER B.B 35 HIT-6695206.A3 6695206	-
165 - STOP RING C-35 1 HIT-6695296.A7 6695296	-
166 - WOOD-RUFF KEY 3X13X5 HIT-6686455.A6 6686455	£1.67	£2.00
167 - DRIVE SHAFT HIT-6685824.A5 6685824	£26.42	£31.70
168 - SCREW 5X18/S HIT-6695339.A6 6695339	-
169 - STOP RING C-13 1 HIT-6695283.A8 6695283	-
171 - LOCK LEVER SPRING HIT-6689998.A6 6689998	-
172 - SPECIAL WASHER HIT-6687942.A1 6687942	-
173 - BOLT WASHER M7 HIT-6685103.A34 6685103	-
174 - STEP BOLT HIT-6693366.A9 6693366	-
175 - GREASE NIPPLE COMP. HIT-6688643.A17 6688643	£1.67	£2.00
176 - S.WASHER 6 HIT-6695219.A107 6695219	£1.67	£2.00
177 - NUT M6 HIT-6684792.A6 6684792	-
191 - PROTECTION TUBE 10X420L HIT-6687577.A1 6687577	-
192 - HANDLE COMP. HIT-6686247.A0 6686247	-
193 - BOLT WASHER 6 HIT-6684639.A122 6684639	£1.67	£2.00
194 - S.WASHER 6 HIT-6695219.A108 6695219	£1.67	£2.00
195 - PLUS BOLT 6X12 HIT-6695015.A6 6695015	-
196 - WASHER 10 HIT-6695198.A3 6695198	-
197 - S.WASHER 10 HIT-6695225.A5 6695225	£1.67	£2.00
198 - BOLT 10X20 HIT-6695005.A2 6695005	-
199 - THROTTLE LEVER ASS'Y HIT-6686800.A0 6686800	-
200 - THROTTLE WIRE COMP. HIT-6693916.A0 6693916	-
201 - STOP BUTTON COMP. HIT-6687759.A0 6687759	-
202 - CORD CLAMP COMP. HIT-6688008.A5 6688008	-
203 - STOP BUTTON BRACKET HIT-6692138.A0 6692138	-
204 - BUTTON STOP HIT-6688366.A5 6688366	£1.67	£2.00
205 - STOP BUTTON MARK HIT-6694589.A9 6694589	£3.37	£4.04
206 - SCREW 3X10 HIT-6684913.A16 6684913	£1.67	£2.00
207 - CORD CLAMP HIT-6688015.A1 6688015	-
208 - CORD 1 HIT-6688461.A0 6688461	-
501 - SPANNER 17X19 HIT-6686251.A0 6686251	-
502 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A69 6684764	£7.64	£9.17
503 - SPECIAL WRENCH 31 SINCE B001001 HIT-6693647.A3 6693647	-
