Hitachi / Hikoki TCS33EDTP Engine Chain Saw Spare Parts

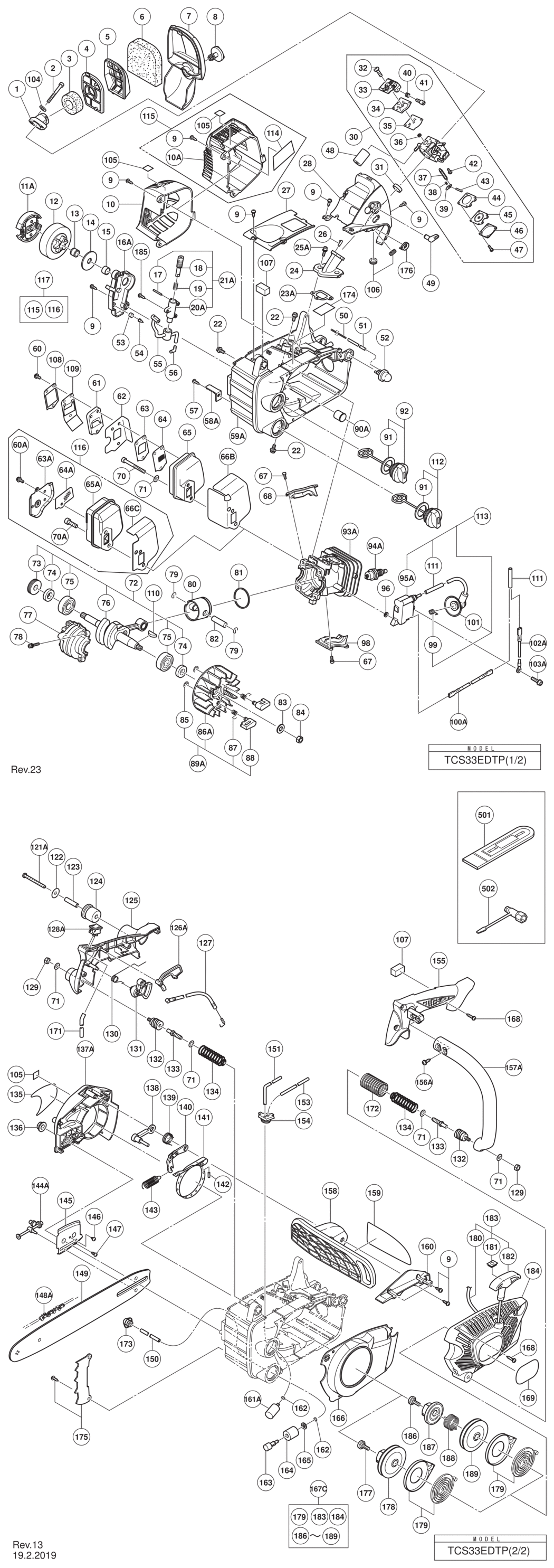

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCS33EDTP Engine Chain Saw

	Ex VAT	Inc VAT
1 - AIR CLEANER BASE HIT-6685225.A4 6685225	-
2 - HEX. SOCKET HD. BOLT M5X45 (10 PCS.) HIT-949824.A5 949824	-
3 - CLEANER SPONGE (B) HIT-6696826.A2 6696826	-
4 - CLEANER ELEMENT A COMP. HIT-6685230.A2 6685230	£4.26	£5.11
5 - CLEANER ELEMENT B COMP. HIT-6685231.A2 6685231	£4.26	£5.11
6 - CLEANER SPONGE (A) HIT-6696825.A1 6696825	£1.67	£2.00
7 - CLEANER COVER HIT-6696785.A1 6696785	£7.03	£8.44
8 - CLEANER KNOB HIT-6696786.A2 6696786	£1.67	£2.00
9 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A108 305812	£1.67	£2.00
10 - MUFFLER COVER TILL 8.2017 (SINCE 9.2017 EXCEPT FOR HIT-6696821.A5 6696821	-
10A - MUFFLER COVER (B) SINCE 9.2017 FOR USA HIT-6601512.A0 6601512	-
11A - CLUTCH HIT-6600316.A6 6600316	-
12 - CLUTCH HOUSING HIT-6698856.A2 6698856	-
13 - NEEDLE BEARING (D) HIT-6685361.A0 6685361	£12.57	£15.08
14 - CLUTCH WASHER HIT-6685414.A8 6685414	£3.49	£4.19
15 - CRANK SHAFT COLLAR HIT-6685360.A11 6685360	£6.75	£8.10
16A - OIL PUMP COVER HIT-6699610.A5 6699610	-
17 - NEEDLE ROLLER 2.5X19.8 HIT-6685356.A9 6685356	£3.49	£4.19
18 - PUMP GEAR HIT-6685354.A4 6685354	£6.75	£8.10
19 - PUMP GEAR SPRING HIT-6685355.A1 6685355	£3.49	£4.19
20A - PUMP CASE HIT-6699119.A6 6699119	-
21A - PUMP ASS'Y INCLUD.17-20 HIT-6699120.A1 6699120	-
22 - SEAL LOCK BOLT M5X15 HIT-6685136.A6 6685136	-
23A - INTAKE PACKING HIT-6699952.A7 6699952	-
24 - INTAKE HIT-6696794.A2 6696794	-
25A - HEX. SOCKET BOLT M4 HIT-6698792.A6 6698792	-
26 - PULSE GUIDE HIT-6685203.A2 6685203	-
27 - ENGINE CASE COVER HIT-6696812.A2 6696812	-
28 - CLEANER BODY HIT-6696792.A1 6696792	-
30 - CARBURETOR ASS'Y INCLUD.32-47 HIT-6696795.A2 6696795	-
31 - INLET SPACER HIT-6698857.A1 6698857	-
32 - SCREW HIT-6685210.A13 6685210	-
33 - PUMP BODY HIT-6685211.A10 6685211	-
34 - PUMP GASKET HIT-6685212.A13 6685212	£3.29	£3.95
35 - PUMP DIAPHRAGM HIT-6685213.A43 6685213	£8.44	£10.13
36 - INLET SCREEN HIT-6684700.A166 6684700	-
37 - NEEDLE VALVE HIT-6685215.A12 6685215	£6.79	£8.15
38 - VALVE SPRING HIT-6685216.A5 6685216	-
39 - CONTROL LEVER HIT-6685217.A13 6685217	-
40 - IDLE ADJUST SPRING HIT-6685297.A10 6685297	-
41 - IDLE ADJUST SCREW HIT-6685298.A32 6685298	£1.67	£2.00
42 - HINGE PIN SET SCREW HIT-6685218.A56 6685218	-
43 - HINGE PIN HIT-6685219.A14 6685219	-
44 - DIAPHRAGM PACKING-METERING HIT-6685220.A144 6685220	£2.81	£3.37
45 - METERING DIAPHRAGM HIT-6684690.A36 6684690	£24.05	£28.86
46 - DIAPHRAGM COVER-METERING HIT-6685222.A31 6685222	£5.70	£6.84
47 - SET SCREW HIT-6685223.A57 6685223	-
48 - IDOL SPONGE HIT-6696793.A2 6696793	-
49 - CHOKE LEVER HIT-6685206.A5 6685206	-
50 - PROTECTIVE COIL HIT-6698699.A2 6698699	-
51 - FUEL PIPE 2.5X4X47 HIT-6698850.A1 6698850	-
52 - PRIMING PUMP COMP. HIT-6685139.A42 6685139	£10.67	£12.80
53 - AIR VENT SPONGE HIT-6685371.A12 6685371	£3.49	£4.19
54 - AIR VENT VALVE (B) HIT-6685370.A4 6685370	£6.75	£8.10
55 - OIL PIPE HIT-6696811.A4 6696811	-
56 - PIPE JOINT HIT-6685358.A4 6685358	£3.49	£4.19
57 - FLANGED TAPPING SCREW D5X15 HIT-6698456.A4 6698456	-
58A - CHAIN CATCHER HIT-6699950.A4 6699950	-
59A - ENGINE CASE ASS'Y INCLUD.54 HIT-6696807.A1 6696807	-
60 - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) TILL 8.2019 (SINCE 9.2017 EXCEPT FOR HIT-935196.A14 935196	£1.67	£2.00
60A - HEX. SOCKET HD. BOLT (W/FLANGE) M4X10 SINCE 9.2017 FOR USA HIT-329983.A7 329983	£1.67	£2.00
61 - EXHAUST PIPE TILL 8.2019 (SINCE 9.2017 EXCEPT FOR HIT-6696816.A3 6696816	-
62 - MUFFLER SPECIAL PACKING TILL 8.2019 (SINCE 9.2017 EXCEPT FOR HIT-6696818.A3 6696818	-
63 - GAUZE FIXING PLATE TILL 8.2019 (SINCE 9.2017 EXCEPT FOR HIT-6696817.A4 6696817	-
63A - MUFFLER PROTECTOR (B) SINCE 9.2017 FOR USA HIT-6601519.A1 6601519	-
64 - MUFFLER GAUZE TILL 8.2019 (SINCE 9.2017 EXCEPT FOR HIT-6696815.A4 6696815	-
64A - MUFFLER GAUZE (B) SINCE 9.2017 FOR USA HIT-6601518.A0 6601518	-
65 - MUFFLER (W/CATALYZER) TILL 8.2019 (SINCE 9.2017 EXCEPT FOR HIT-6696813.A0 6696813	-
65A - MUFFLER (B) ASS'Y SINCE 9.2017 FOR USA HIT-6601517.A1 6601517	-
66B - MUFFLER PACKING TILL 8.2019 (SINCE 9.2017 EXCEPT FOR HIT-6600445.A2 6600445	-
66C - MUFFLER PACKING (B) SINCE 9.2017 FOR USA HIT-6601516.A0 6601516	-
67 - HEX. SOCKET HD. BOLT M4X10 (10 PCS.) HIT-949812.A7 949812	£2.98	£3.57
68 - SCAVENGING COVER (B) HIT-6696766.A3 6696766	-
70 - HEX. SOCKET HD. BOLT M6X55 TILL 8.2019 (SINCE 9.2017 EXCEPT FOR HIT-6696819.A8 6696819	-
70A - SEAL LOCK HEX. SOCKET HD. BOLT M6X20 SINCE 9.2017 FOR USA HIT-6698899.A8 6698899	£1.67	£2.00
71 - BOLT WASHER M6 (10 PCS.) TILL 8.2019 (SINCE 9.2017 EXCEPT FOR HIT-949432.A66 949432	£1.67	£2.00
*71 - BOLT WASHER M6 (10 PCS.) SINCE 9.2017 FOR USA HIT-949432.A67 949432	£1.67	£2.00
72 - CRANK WORM ASS'Y INCLUD.73-76 HIT-6698853.A3 6698853	-
73 - WORM HIT-6685330.A8 6685330	-
74 - OIL SEAL HIT-6685329.A1 6685329	£5.87	£7.04
75 - BALL BEARING HIT-6685328.A11 6685328	-
76 - CRANK SHAFT HIT-6696762.A4 6696762	-
77 - CRANK CASE HIT-6696767.A4 6696767	-
78 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A55 6698386	-
79 - CIRCLIP HIT-6685326.A6 6685326	-
80 - PISTON (M) HIT-6698806.A5 6698806	-
81 - PISTON RING (XR1-1856) HIT-6685331.A5 6685331	£12.57	£15.08
82 - PISTON PIN HIT-6696764.A4 6696764	-
83 - BOLT WASHER M7 HIT-6685103.A37 6685103	-
84 - FLYWHEEL NUT HIT-6685104.A1 6685104	-
85 - RETAINING RING D4 HIT-6685336.A33 6685336	£3.49	£4.19
86A - MAGNETO ROTOR COMP. HIT-6600053.A15 6600053	-
87 - STARTER PAWL SPRING HIT-6685335.A2 6685335	£2.84	£3.41
88 - STARTER PAWL HIT-6685334.A28 6685334	£2.84	£3.41
89A - MAGNETO SUB ASS'Y INCLUD.85-88 HIT-6600090.A8 6600090	-
90A - INNER CAP HIT-6685351.A1 6685351	-
91 - TANK CAP PACKING HIT-6685179.A21 6685179	£1.67	£2.00
92 - FUEL TANK CAP ASS'Y (VERMILION) INCLUD.91 HIT-6698854.A14 6698854	£7.03	£8.44
93A - CYLINDER HIT-6601440.A1 6601440	-
94A - SPARK PLUG ASS'Y BPMR7A HIT-6699320.A23 6699320	-
95A - IGNITION COIL HIT-6699999.A1 6699999	-
96 - GLASS WASHER HIT-6698700.A20 6698700	£1.67	£2.00
98 - SCAVENGING COVER (A) HIT-6696765.A4 6696765	-
99 - METAL FITTING OF PLUG CAP (A) HIT-6696772.A4 6696772	-
100A - CORD (A) HIT-6696787.A2 6696787	-
101 - SPARK PLUG CAP HIT-6696771.A3 6696771	-
102A - CORD (B) HIT-6696791.A2 6696791	-
103A - HEX. SOCKET HD. BOLT (W/FLANGE) M4X18 HIT-6696326.A10 6696326	-
104 - WASHER M5 (BLACK) HIT-6685226.A1 6685226	-
105 - CAUTION LABEL (HOT) HIT-6698864.A3 6698864	-
106 - GROMMET HIT-6698787.A11 6698787	-
107 - PROTECTION SHEET HIT-6698860.A2 6698860	-
108 - PACKING PLATE TILL 8.2019 (SINCE 9.2017 EXCEPT FOR HIT-6698861.A1 6698861	-
109 - MUFFLER SPECIAL PACKING (S) TILL 8.2019 (SINCE 9.2017 EXCEPT FOR HIT-6698862.A6 6698862	-
110 - WOODRUFF KEY 3X13X4.5 HIT-6684899.A79 6684899	-
111 - CORD INSULATION TUBE HIT-6698863.A1 6698863	-
112 - FUEL TANK CAP ASS'Y (BLACK) INCLUD.91 HIT-6698358.A3 6698358	£3.56	£4.27
113 - IGNITION COIL ASS'Y INCLUD.95A HIT-6601441.A2 6601441	-
114 - ALUMINUM TAPE SINCE 9.2017 FOR USA HIT-6601513.A1 6601513	-
*115 - MUFFLER COVER (B) ASS'Y (REPAIR) INCLUD.9 HIT-6601514.A0 6601514	-
116 - MAFFLER (B) ASS'Y (REPAIR) INCLUD.60A HIT-6601520.A0 6601520	-
117 - MAFFLER. COVER ASS'Y (REPAIR) INCLUD.115 HIT-6601515.A1 6601515	-
121A - TAPPING SCREW (W/FLANGE) D5X40 HIT-6699403.A1 6699403	-
122 - WASHER 1.0 HIT-6698858.A2 6698858	-
123 - COLLAR 28.2 HIT-6696800.A3 6696800	£3.02	£3.63
124 - DAMPER HIT-6696775.A2 6696775	-
125 - REAR HANDLE (B) HIT-6696774.A1 6696774	-
126A - TRIGGER LOCKOUT HIT-6685244.A1 6685244	-
127 - THROTTLE WIRE HIT-6696797.A1 6696797	-
128A - STOP SWITCH HIT-6601275.A51 6601275	£1.67	£2.00
129 - NUT M6 HIT-6698449.A4 6698449	£1.67	£2.00
130 - THROTTLE LEVER SPRING HIT-6698691.A2 6698691	-
131 - THROTTLE LEVER HIT-6685242.A3 6685242	-
132 - SPRING HOLDER HIT-6698409.A4 6698409	-
133 - DAMPER SET BOLT HIT-6698859.A2 6698859	-
134 - ANTIVIBRATION SPRING HIT-6698428.A9 6698428	-
135 - NAME PLATE HIT-000000.A3332 000000	-
136 - FLANGE NUT M8 HIT-6698581.A2 6698581	£1.67	£2.00
137A - SIDE CASE (VERMILION) HIT-6696776.A1 6696776	-
138 - BRAKE SUPPORT PLATE HIT-6696782.A5 6696782	-
139 - BRAKE LEVER SPRING HIT-6696783.A4 6696783	-
140 - BRAKE LINK HIT-6685388.A10 6685388	£12.57	£15.08
141 - BRAKE BAND HIT-6685140.A2 6685140	£22.02	£26.43
142 - NEEDLE ROLLER D3 HIT-6685391.A24 6685391	£3.49	£4.19
143 - BRAKE SPRING HIT-6685389.A8 6685389	£3.49	£4.19
144A - CHAIN PULLER HIT-6698986.A15 6698986	£18.88	£22.66
145 - GUIDE PLATE (B) HIT-6696784.A5 6696784	£3.02	£3.63
146 - TAPPING SCREW D3X6 HIT-696352.A6 696352	-
147 - TAPPING SCREW D4X10 HIT-958715.A10 958715	£1.67	£2.00
*148A - SAW CHAIN (3/8X12) 91PX-45XJ HIT-781122.A4 781122	£12.41	£14.89
*148A - SAW CHAIN (3/8X14) 91PX-52XJ HIT-781124.A12 781124	£13.99	£16.79
*149 - CHAIN BAR 12 INCH 3/8 SPROCKET PRC HIT-6696993.A2 6696993	-
*149 - CHAIN BAR 14 INCH 3/8 SPROCKET PRC HIT-6696994.A2 6696994	-
150 - FUEL PIPE HIT-6698715.A2 6698715	£12.74	£15.29
151 - FUEL PIPE (FKM) L240 HIT-6698851.A2 6698851	-
153 - FUEL PIPE (FKM) L260 HIT-6698852.A1 6698852	-
154 - FUEL GROMMET HIT-6696167.A0 6696167	-
155 - REAR HANDLE (A) HIT-6696773.A2 6696773	-
156A - D5 TAPPING SCREW W/F HIT-6600026.A2 6600026	-
157A - FRONT HANDLE HIT-6696798.A3 6696798	-
158 - BRAKE HANDLE HIT-6698866.A2 6698866	-
158A - FRONT HANDLE HIT-6696798.A2 6696798	-
159 - CAUTION LABEL (A) HIT-000000.A3333 000000	-
160 - BRAKE LINK COVER HIT-6696779.A3 6696779	-
161A - PUMP FILTER HIT-6600351.A58 6600351	£4.45	£5.34
162 - CLIP HIT-6685311.A22 6685311	£1.67	£2.00
163 - OIL FILTER BODY HIT-6685310.A4 6685310	£1.67	£2.00
164 - OIL FILTER HIT-6696804.A4 6696804	-
165 - BOLT WASHER D5 HIT-6685407.A4 6685407	-
166 - AIR DEFLECTOR HIT-6696790.A1 6696790	-
167C - RECOIL STARTER (S) (VERMILION) INCLUD.179 HIT-6699417.A2 6699417	£25.68	£30.81
168 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-302086.A23 302086	£1.67	£2.00
169 - TANAKA LABEL HIT-6696340.A1 6696340	-
171 - CORD INSULATION TUBE HIT-6698457.A3 6698457	-
172 - SPRING COVER HIT-6698865.A4 6698865	-
173 - FUEL GROMMET (A) HIT-6685308.A9 6685308	£3.49	£4.19
174 - CAUTION LABEL (L) FOR USA HIT-6698923.A2 6698923	-
175 - SPIKE SET FOR USA HIT-6696827.A3 6696827	-
176 - GROMMET (A) HIT-6699404.A2 6699404	-
177 - SET SCREW TILL 3.2015 HIT-6699475.A1 6699475	-
178 - REEL TILL 3.2015 HIT-6699483.A2 6699483	-
179 - SPIRAL SPRING CASE HIT-6699480.A9 6699480	£9.34	£11.21
180 - STARTER ROPE HIT-6699469.A5 6699469	-
181 - ROPE STOPPER HIT-6699465.A3 6699465	-
182 - STARTER KNOB HIT-6699467.A3 6699467	-
183 - STARTER HANDLE ASS'Y INCLUD.180-182 HIT-6699473.A2 6699473	-
184 - FAN CASE HIT-6699490.A2 6699490	-
185 - TAPPING SCREW (W/FLANGE) D4 HIT-6699947.A1 6699947	-
186 - SET SCREW SINCE 4.2015 HIT-6699476.A6 6699476	£1.67	£2.00
187 - CAM PLATE SINCE 4.2015 HIT-6699478.A5 6699478	-
188 - DAMPER SPRING SINCE 4.2015 HIT-6699479.A2 6699479	£2.77	£3.32
189 - REEL SINCE 4.2015 HIT-6699484.A1 6699484	£4.10	£4.92
*501 - CHAIN COVER 12 HIT-6685401.A0 6685401	-
*501 - CHAIN COVER 14 HIT-6685439.A15 6685439	-
502 - COMBI BOX SPANNER 13X19 HIT-6698582.A9 6698582	£6.50	£7.80
601 - SPIKE SET HIT-6696827.A2 6696827	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki TCS33EDTP Engine Chain Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
