Hitachi / Hikoki TCS33EB Engine Chain Saw Spare Parts

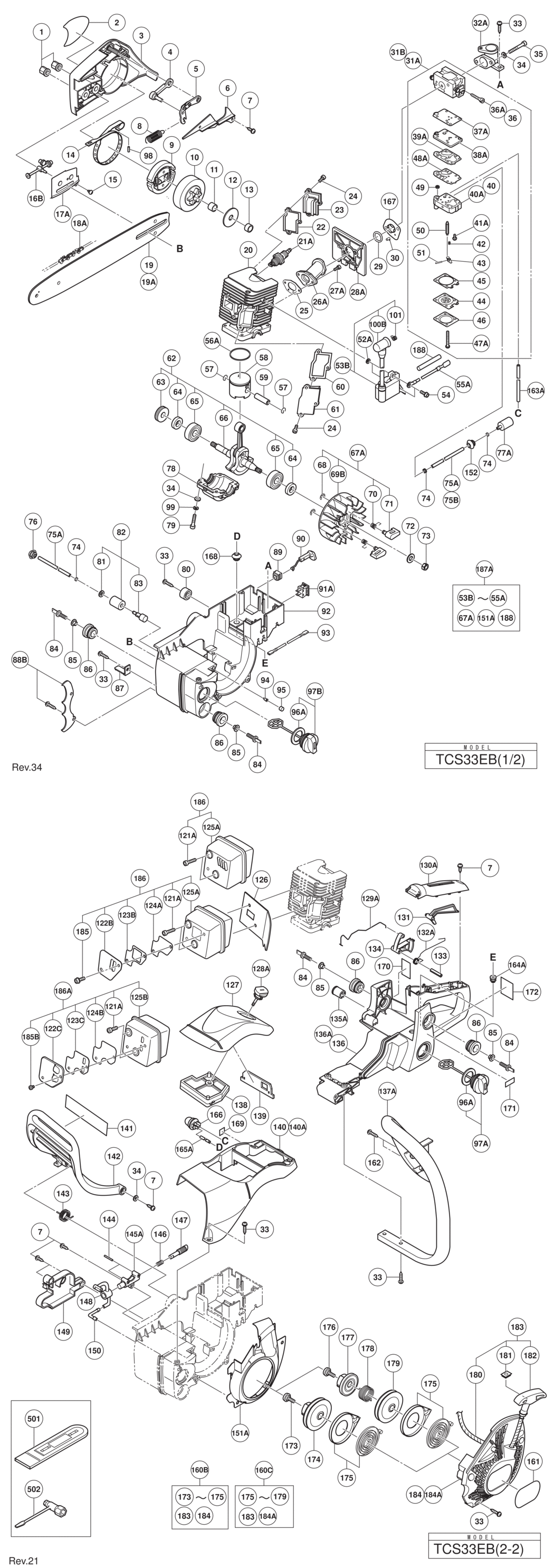

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCS33EB Engine Chain Saw

	Ex VAT	Inc VAT
1 - CHAIN BAR CLAMP NUT HIT-6685416.A3 6685416	£3.49	£4.19
*2 - NAME PLATE EXCEPT FOR USA HIT-6696331.A0 6696331	-
*2 - NAME PLATE FOR KOR HIT-6696332.A0 6696332	-
3 - SIDE COVER SUB HIT-6685406.A0 6685406	£23.82	£28.59
4 - BRAKE SUPPORT HIT-6685387.A0 6685387	£12.57	£15.08
5 - BRAKE LINK HIT-6685388.A17 6685388	£12.57	£15.08
6 - BRAKE LINK COVER HIT-6685392.A1 6685392	£3.49	£4.19
7 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A29 305812	£1.67	£2.00
8 - BRAKE SPRING HIT-6685389.A3 6685389	£3.49	£4.19
9 - CLUTCH HIT-6685142.A18 6685142	£16.34	£19.61
10 - CLUTCH HOUSING HIT-6685403.A8 6685403	£27.52	£33.02
11 - NEEDLE BEARING (D) HIT-6685361.A15 6685361	£12.57	£15.08
12 - CLUTCH WASHER HIT-6685414.A2 6685414	£3.49	£4.19
13 - CRANK SHAFT COLLAR HIT-6685360.A0 6685360	£6.75	£8.10
14 - BRAKE BAND HIT-6685390.A3 6685390	£12.57	£15.08
15 - TAPPING SCREW D3X8 HIT-6685415.A1 6685415	£3.49	£4.19
16B - CHAIN PULLER HIT-6698986.A3 6698986	£18.88	£22.66
17A - GUIDE PLATE HIT-6685394.A0 6685394	£6.75	£8.10
*18A - SAW CHAIN (3/8X12) 91PX-45XJ HIT-781122.A18 781122	£12.41	£14.89
*18A - SAW CHAIN (3/8X14) 91PX-52XJ HIT-781124.A19 781124	£13.99	£16.79
*18A - SAW CHAIN (3/8X16) 91PX-57XJ HIT-781126.A16 781126	£19.00	£22.80
*19 - BAR 12 INCH WITHOUT SPROCKET HIT-6685259.A0 6685259	-
*19 - BAR 14 INCH WITHOUT SPROCKET HIT-6685261.A0 6685261	-
*19 - BAR 16 INCH WITHOUT SPROCKET HIT-6685395.A0 6685395	-
*19A - CHAIN BAR 12 INCH 3/8 SPROCKET PRC WITH SPROCKET HIT-6696993.A0 6696993	-
*19A - CHAIN BAR 14 INCH 3/8 SPROCKET PRC WITH SPROCKET HIT-6696994.A4 6696994	-
*20 - CYLINDER (B) HIT-6685405.A1 6685405	-
*20 - CYLINDER (A) FOR EUROPE HIT-6685404.A0 6685404	£115.62	£138.75
*21A - SPARK PLUG ASS'Y BPMR6A HIT-6699319.A21 6699319	-
*21A - SPARK PLUG ASS'Y BPM6A EXCEPT FOR EUROPE HIT-6699317.A18 6699317	-
22 - COVER PACKING (B) FOR EUROPE HIT-6685317.A0 6685317	-
23 - SCAVENGING COVER (B) FOR EUROPE HIT-6685315.A0 6685315	-
24 - SEAL LOCK HEX. SOCKET HD. BOLT M4X8 FOR EUROPE HIT-6696315.A0 6696315	-
25 - INTAKE PACKING HIT-6685318.A1 6685318	£3.49	£4.19
26A - INTAKE (A) HIT-6698897.A0 6698897	£10.73	£12.88
27A - SEAL LOCK HEX. SOCKET HD. BOLT M4X10 HIT-6696860.A1 6696860	-
28A - CARBURETOR INSULATOR (A) HIT-6698898.A1 6698898	-
29 - O-RING HIT-6696316.A1 6696316	£1.67	£2.00
30 - PULSE GUIDE HIT-6685321.A0 6685321	£1.67	£2.00
31A - CARBURETOR (C) WLB-3 INCLUD.36A-39A HIT-6685437.A1 6685437	-
31B - CARBURETOR ASS'Y (E) WLB-5A INCLUD.36-51 SINCE 5.2011 FOR EUROPE HIT-6698683.A1 6698683	£120.70	£144.84
32A - CLEANER SUPPORT HIT-6696843.A0 6696843	-
33 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A12 302089	£1.67	£2.00
34 - WASHER 5 TILL 11.2013 HIT-6685408.A19 6685408	£3.49	£4.19
*34 - WASHER 5 SINCE 12.2013 HIT-6685408.A20 6685408	£3.49	£4.19
35 - HEX. SOCKET HD. BOLT M5X45 HIT-6696317.A0 6696317	-
36 - IDLE ADJUSTING SCREW FOR WLB-5A HIT-6699731.A1 6699731	-
36A - IDLE ADJUSTING SCREW FOER WLB-1A AND WLB-3 HIT-6696318.A1 6696318	-
37A - PASSAGE GASKET HIT-6696319.A0 6696319	£13.86	£16.63
38A - PASSAGE PLATE HIT-6696320.A1 6696320	£47.16	£56.59
39A - PUMP GASKET HIT-6684692.A93 6684692	£17.28	£20.73
40 - PUMP BODY FOR WLB-5A HIT-6699645.A0 6699645	-
40A - PUMP BODY FOR WLB-1A AND WLB-3 HIT-6696322.A0 6696322	-
41A - HINGE PIN SET SCREW HIT-6691305.A5 6691305	-
42 - METERING LEVER SPRING HIT-6696323.A5 6696323	-
43 - CONTROL LEVER HIT-6685217.A36 6685217	-
44 - METERING DIAPHRAGM HIT-6684690.A99 6684690	£24.05	£28.86
45 - DIAPHRAGM PACKING-METERING HIT-6685220.A87 6685220	£2.81	£3.37
46 - DIAPHRAGM COVER-METERING HIT-6685222.A91 6685222	£5.70	£6.84
47A - SET SCREW HIT-6684699.A94 6684699	-
48A - PUMP DIAPHRAGM HIT-6684693.A49 6684693	£5.70	£6.84
49 - INLET SCREEN HIT-6684700.A26 6684700	-
50 - NEEDLE VALVE HIT-6685215.A53 6685215	£6.79	£8.15
51 - HINGE PIN HIT-6685219.A50 6685219	-
52A - GLASS WASHER HIT-6698700.A60 6698700	£1.67	£2.00
53B - IGNITION COIL INCLUD.100B HIT-6699989.A1 6699989	-
54 - HEX. SOCKET HD. BOLT (W/FLANGE) M4X18 HIT-6696326.A16 6696326	-
55A - CORD SINCE 11.2013 HIT-6699991.A1 6699991	-
56A - PISTON RING (XR1-1856) HIT-6685331.A25 6685331	£12.57	£15.08
57 - CIRCLIP HIT-6685326.A0 6685326	-
*58 - PISTON HIT-6685325.A1 6685325	-
*58 - PISTON FOR EUROPE HIT-6696313.A1 6696313	£42.88	£51.46
59 - PISTON PIN HIT-6685327.A1 6685327	-
60 - COVER PACKING (A) FOR EUROPE HIT-6685316.A0 6685316	-
61 - SCAVENGING COVER (A) FOR EUROPE HIT-6685314.A1 6685314	-
62 - CRANK WORM ASS'Y INCLUD.63-66 HIT-6685396.A0 6685396	-
63 - WORM HIT-6685330.A0 6685330	-
64 - OIL SEAL HIT-6685329.A9 6685329	£5.87	£7.04
65 - BALL BEARING HIT-6685328.A0 6685328	-
66 - CRANK SHAFT HIT-6685324.A0 6685324	-
67A - MAGNETO SUB ASS'Y INCLUD.68-71 SINCE 11.2013 HIT-6699993.A0 6699993	-
68 - RETAINING RING D4 HIT-6685336.A7 6685336	£3.49	£4.19
69B - MAGNETO ROTOR SINCE 11.2013 HIT-6699990.A0 6699990	£9.10	£10.92
70 - STARTER PAWL SPRING HIT-6685335.A25 6685335	£2.84	£3.41
71 - STARTER PAWL HIT-6685334.A9 6685334	£2.84	£3.41
72 - BOLT WASHER D8 HIT-6685410.A2 6685410	-
73 - FLYWHEEL NUT HIT-6685337.A46 6685337	-
74 - CLIP HIT-6685311.A9 6685311	£1.67	£2.00
75A - FUEL PIPE HIT-6698715.A13 6698715	£12.74	£15.29
75B - FUEL PIPE FOR USA HIT-6698998.A1 6698998	-
76 - FUEL GROMMET (A) HIT-6685308.A3 6685308	£3.49	£4.19
77A - PUMP FILTER HIT-6600351.A33 6600351	£4.45	£5.34
78 - CRANK CASE HIT-6685339.A0 6685339	-
79 - SEAL LOCK HEX. SOCKET HD. BOLT M5 HIT-6685412.A4 6685412	-
80 - DAMPER (B) HIT-6685313.A0 6685313	-
81 - BOLT WASHER D5 HIT-6685407.A26 6685407	-
82 - OIL FILTER BODY ASS'Y INCLUD.81 HIT-6685249.A18 6685249	£1.67	£2.00
83 - OIL FILTER BODY HIT-6685310.A10 6685310	£1.67	£2.00
84 - DAMPER SET BOLT HIT-6685413.A3 6685413	-
85 - DISTANCE PIECE (B) HIT-696314.A1 696314	-
86 - DAMPER (A) HIT-6696327.A3 6696327	£12.57	£15.08
87 - CHAIN CATCHER HIT-6685363.A0 6685363	-
88B - SPIKE SET FOR EUROPE HIT-6696329.A0 6696329	£13.43	£16.12
89 - CHOKE ROD RUBBER HIT-6685369.A0 6685369	£1.67	£2.00
90 - CHOKE BUTTON HIT-6685368.A1 6685368	-
91A - STOP SWITCH HIT-6601275.A33 6601275	£1.67	£2.00
92 - ENGINE CASE HIT-6685307.A0 6685307	£40.42	£48.50
93 - CORD (A) HIT-6685365.A0 6685365	-
94 - AIR VENT VALVE (B) HIT-6685370.A15 6685370	£6.75	£8.10
95 - AIR VENT SPONGE HIT-6685371.A0 6685371	£3.49	£4.19
96A - TANK CAP PACKING HIT-6685179.A23 6685179	£1.67	£2.00
97A - FUEL TANK CAP ASS'Y (VERMILION) INCLUD.96A HIT-6698854.A9 6698854	£7.03	£8.44
97A - FUEL TANK CAP ASS'Y (GREEN) INCLUD.96A FOR USA HIT-6698855.A4 6698855	-
97B - FUEL TANK CAP ASS'Y (BLACK) INCLUD.96A HIT-6698358.A13 6698358	£3.56	£4.27
98 - NEEDLE ROLLER D3 HIT-6685391.A8 6685391	£3.49	£4.19
99 - SPRING WASHER M5 (10 PCS.) HIT-949454.A70 949454	£1.67	£2.00
100B - PLUG CAP HIT-6601421.A20 6601421	£1.67	£2.00
101 - PLUG CAP METAL HIT-6699186.A29 6699186	£1.67	£2.00
121A - SEAL LOCK HEX. SOCKET HD. BOLT M5X16 SINCE 8.2013 (SINCE 9.2012 FOR RUS BRA) HIT-6699415.A1 6699415	£3.02	£3.63
122B - EXHAUST PIPE (B) SINCE 7.2013 TILL 4.2017 FOR EUROPE HIT-6699412.A0 6699412	-
122C - EXHAUST PIPE (C) SINCE 5.2017 FOR EUROPE HIT-6601472.A1 6601472	-
123B - GAUZE FIXING PLATE (B) SINCE 7.2013 TILL 4.2017 FOR EUROPE HIT-6699414.A0 6699414	£1.67	£2.00
123C - GAUZE FIXING PLATE (C) SINCE 5.2017 FOR EUROPE HIT-6601473.A0 6601473	-
124A - MUFFLER GAUZE (B) SINCE 7.2013 TILL 4.2017 FOR EUROPE HIT-6699413.A1 6699413	£1.67	£2.00
124B - MUFFLER GAUZE (C) SINCE 5.2017 FOR EUROPE HIT-6601474.A1 6601474	-
125A - MUFFLER (B) SINCE 12.2013 FOR AUS HIT-6699411.A1 6699411	-
125B - MUFFLER (C) SINCE 5.2017 FOR EUROPE HIT-6601471.A0 6601471	-
126 - MUFFLER PACKING HIT-6685346.A1 6685346	£6.75	£8.10
127 - CLEANER COVER HIT-6685382.A1 6685382	£6.75	£8.10
128A - CLEANER KNOB HIT-6696849.A1 6696849	-
129A - THROTTLE ROD HIT-6696846.A0 6696846	£1.67	£2.00
130A - REAR HANDLE GRIP HIT-6698805.A7 6698805	£1.67	£2.00
131 - TRIGGER LOCKOUT (VERMILION) HIT-6685350.A0 6685350	£1.67	£2.00
132A - THROTTLE LEVER SPRING HIT-6600341.A10 6600341	£1.67	£2.00
133 - SPRING PIN 5X25 HIT-6685282.A13 6685282	£1.67	£2.00
134 - THROTTLE LEVER HIT-6685348.A1 6685348	£1.67	£2.00
135A - INNER CAP HIT-6685351.A15 6685351	-
136 - REAR HANDLE TILL 4.2011 FOR EUROPE HIT-6685347.A0 6685347	£40.89	£49.07
136A - REAR HANDLE SINCE 5.2011 FOR EUROPE HIT-6698685.A1 6698685	-
137A - FRONT HANDLE HIT-6698997.A0 6698997	£14.95	£17.94
138 - CLEANER ELEMENT HIT-6685378.A1 6685378	£17.62	£21.14
139 - SHUTTER PLATE HIT-6685381.A0 6685381	-
*140 - CYLINDER COVER TILL 5.2012 EXCEPT FOR EUROPE HIT-6685376.A1 6685376	£9.50	£11.40
*140 - CYLINDER COVER FOR EUROPE HIT-6685377.A0 6685377	-
140A - CYLINDER COVER SINCE 5.2011 FOR EUROPE HIT-6698687.A0 6698687	£18.96	£22.75
140A - CYLINDER COVER SINCE 6.2012 EXCEPT FOR EUROPE HIT-6699001.A0 6699001	-
*141 - CAUTION LABEL (D) FOR AUS HIT-6696335.A0 6696335	-
*141 - CAUTION LABEL (E) FOR ASIA HIT-6696336.A2 6696336	-
142 - BRAKE HANDLE HIT-6685373.A3 6685373	£15.77	£18.92
143 - BRAKE LEVER SPRING HIT-6685374.A0 6685374	-
144 - NEEDLE ROLLER 2.5X19.8 HIT-6685356.A0 6685356	£3.49	£4.19
145A - PUMP CASE HIT-6699118.A1 6699118	£11.68	£14.02
146 - PUMP GEAR SPRING HIT-6685355.A5 6685355	£3.49	£4.19
147 - PUMP GEAR HIT-6685354.A0 6685354	£6.75	£8.10
148 - OIL PIPE HIT-6685357.A1 6685357	£9.50	£11.40
149 - PUMP COVER HIT-6685359.A1 6685359	£3.49	£4.19
150 - PIPE JOINT HIT-6685358.A0 6685358	£3.49	£4.19
151A - AIR DEFLECTOR SINCE 11.2013 HIT-6600345.A0 6600345	-
152 - FUEL GROMMET HIT-6688156.A59 6688156	-
160B - RECOIL STARTER INCLUD.173-175 HIT-6696847.A1 6696847	£26.04	£31.25
160C - RECOIL STARTER (C) FOR S-START INCLUD.175-182 HIT-6698684.A0 6698684	-
*161 - TANAKA LABEL HIT-6696339.A0 6696339	-
*161 - TANAKA LABEL FOR USA HIT-6696340.A6 6696340	-
162 - TAPPING SCREW (W/FLANGE) D5X25 (BLACK) HIT-305558.A5 305558	£1.67	£2.00
163A - FUEL PIPE SINCE 5.2011 FOR EUROPE HIT-6601442.A1 6601442	-
164A - RETURN GROMMET SINCE 5.2011 FOR EUROPE HIT-6697846.A158 6697846	£2.08	£2.50
165A - FUEL PIPE SINCE 5.2011 FOR EUROPE HIT-6601459.A0 6601459	-
166 - PRIMING PUMP COMP. SINCE 5.2011 FOR EUROPE HIT-6685139.A70 6685139	£10.67	£12.80
167 - INTAKE SPACER HIT-6698847.A1 6698847	-
168 - FUEL GROMMET (A) SINCE 5.2011 FOR EUROPE HIT-6685308.A4 6685308	£3.49	£4.19
*169 - PRIMER LABEL SINCE 5.2011 FOR EUROPE HIT-6699000.A10 6699000	-
170 - CAUTION LABEL (L) SINCE6.2012 FOR USA HIT-6698923.A8 6698923	-
*171 - TANK MARK LABEL (50:1) HIT-6698921.A47 6698921	-
*171 - TANK MARK LABEL (25:1) FOR ASIA HIT-6698922.A7 6698922	-
172 - START LABEL SINCE 5.2011 FOR EUROPE HIT-6698999.A0 6698999	-
173 - SET SCREW HIT-6699475.A5 6699475	-
174 - REEL HIT-6699481.A1 6699481	£3.29	£3.95
175 - SPIRAL SPRING CASE HIT-6699480.A0 6699480	£9.34	£11.21
176 - SET SCREW FOR S-START HIT-6699476.A0 6699476	£1.67	£2.00
177 - CAM PLATE FOR S-START HIT-6699478.A0 6699478	-
178 - DAMPER SPRING FOR S-START HIT-6699479.A7 6699479	£2.77	£3.32
179 - REEL FOR S-START HIT-6699485.A2 6699485	£4.01	£4.81
180 - STARTER ROPE HIT-6699468.A0 6699468	-
*180 - STARTER ROPE FOR S-START HIT-6699469.A2 6699469	-
181 - ROPE STOPPER HIT-6699465.A11 6699465	-
182 - STARTER KNOB HIT-6699467.A10 6699467	-
183 - STARTER HANDLE ASS'Y INCLUD.180-182 HIT-6699471.A1 6699471	-
*183 - STARTER HANDLE ASS'Y INCLUD.180-182 FOR S-START HIT-6699473.A6 6699473	-
184 - FAN CASE HIT-6699486.A0 6699486	-
184A - FAN CASE FOR S-START HIT-6699494.A0 6699494	-
185 - HEX. SOCKET HD. BOLT (W/FLANGE) M4X10 SINCE 7.2013 TILL 4.2017 FOR EUROPE HIT-329983.A2 329983	£1.67	£2.00
185B - HEX.SOCKET BOLT M4X6 SINCE 5.2017 FOR EUROPE HIT-370899.A3 370899	-
*186 - MUFFLER SET (REPAIR) INCLUD.125A HIT-6699407.A0 6699407	£14.36	£17.23
*186 - MUFFLER SET (REPAIR) INCLUD.121A HIT-6699408.A1 6699408	£15.41	£18.49
186A - EXHAUST (C) ASS'Y INCLUD.121A HIT-6601475.A0 6601475	-
187A - MAGNETO SET INCLUD.53B-55A HIT-6600344.A1 6600344	£45.38	£54.45
188 - CORD INSULATION TUBE SINCE 11.2013 HIT-6600343.A0 6600343	-
*501 - CHAIN COVER 12 HIT-6685401.A13 6685401	-
*501 - CHAIN COVER 14 HIT-6685439.A0 6685439	-
*501 - CHAIN COVER 16 HIT-6685440.A20 6685440	£13.86	£16.63
502 - COMBI BOX SPANNER 10/19MM HIT-6685402.A1 6685402	£9.50	£11.40
*601 - CHAIN BAR 16 INCH 3/8 SPROCKET PRC WITH SPRCKET HIT-6696995.A1 6696995	-
*601A - CHAIN BAR 12 INCH 3/8 SPROCKET PRC WITH SPRCKET HIT-6696993.A1 6696993	-
*601A - CHAIN BAR 14 INCH 3/8 SPROCKET PRC WITH SPRCKET HIT-6696994.A3 6696994	-
602 - SPIKE SET HIT-6696329.A1 6696329	£13.43	£16.12

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki TCS33EB Engine Chain Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki TCS33EB Engine Chain Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki TCS33EB Engine Chain Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
