Hitachi / Hikoki TCS27EPA Engine Chain Saw Spare Parts

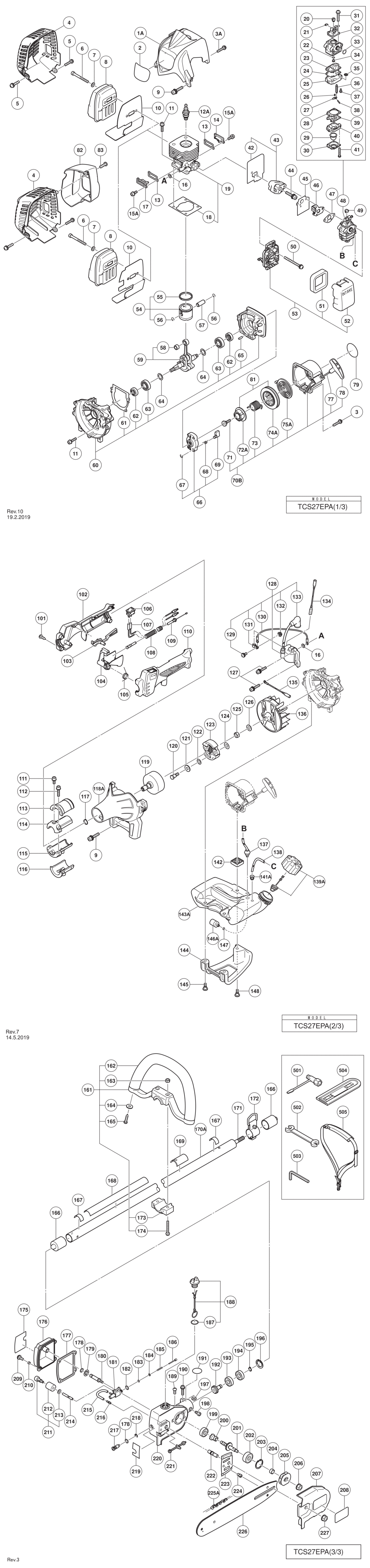

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCS27EPA Engine Chain Saw

	Ex VAT	Inc VAT
1A - CYLINDER COVER HIT-6697921.A10 6697921	£8.59	£10.31
2 - TANAKA LABEL HIT-6696339.A9 6696339	-
3A - M4 SCREW (BLACK) HIT-6699780.A8 6699780	-
4 - MUFFLER COVER HIT-6698493.A0 6698493	£5.88	£7.06
*4 - MUFFLER COVER FOR EUROPE HIT-6600336.A6 6600336	£10.02	£12.02
5 - SCREW 5X16/PS HIT-6695386.A15 6695386	£1.67	£2.00
6 - HEX. HOLE BOLT M6X55 HIT-6684638.A6 6684638	£1.67	£2.00
*6 - HEX. HOLE BOLT M6X65 FOR EUROPE HIT-6695067.A36 6695067	£1.67	£2.00
7 - BOLT WASHER 6 HIT-6684639.A172 6684639	£1.67	£2.00
8 - MUFFLER HIT-6698477.A22 6698477	£15.61	£18.73
*8 - MUFFLER (B) FOR EUROPE HIT-6600461.A7 6600461	-
9 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-6698950.A11 6698950	-
10 - HEAT PROTECTION PANEL HIT-6698491.A0 6698491	£5.88	£7.06
*10 - HEAT PROTECTION PANEL FOR EUROPE HIT-6600324.A11 6600324	-
11 - HEX. HOLE BOLT 5X20S HIT-6695491.A8 6695491	£1.67	£2.00
*12A - SPARK PLUG ASS'Y BMR7A HIT-6699316.A69 6699316	£12.43	£14.92
*12A - SPARK PLUG ASS'Y CJ6 EXCEPT FOR AUS HIT-6699322.A11 6699322	£3.73	£4.48
13 - COVER PACKING HIT-6697684.A1 6697684	-
14 - SCAVENGING COVER (A) HIT-6698484.A19 6698484	-
15A - HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 HIT-6684595.A4 6684595	£1.67	£2.00
16 - WASHER T1.6 HIT-6684600.A57 6684600	-
17 - SCAVENGING COVER (B) HIT-6698485.A3 6698485	-
18 - CYLINDER GASKET HIT-6697681.A5 6697681	-
19 - CYLINDER SET PN INCLUD.18 HIT-6697679.A6 6697679	£39.62	£47.54
20 - SWIVEL HIT-6684697.A4 6684697	-
21 - STOP RING HIT-6684696.A215 6684696	-
22 - O-RING HIT-6684695.A4 6684695	£1.67	£2.00
23 - PUMP GASKET HIT-6684692.A2 6684692	£17.28	£20.73
24 - PUMP DIAPHRAGM HIT-6684693.A200 6684693	£5.70	£6.84
25 - PUMP BODY HIT-6699942.A1 6699942	-
26 - METERING LEVER SPRING HIT-6696323.A11 6696323	-
27 - CONTROL LEVER HIT-6685217.A30 6685217	-
28 - DIAPHRAGM GASKET HIT-6684691.A96 6684691	£5.70	£6.84
29 - PRIMING BODY HIT-6684689.A98 6684689	£5.87	£7.04
30 - DIAPHRAGM COVER HIT-6684688.A3 6684688	£5.70	£6.84
31 - THROTTLE SET SCREW HIT-6684698.A69 6684698	-
32 - THROTTLE VALVE HIT-6684883.A22 6684883	£32.24	£38.69
33 - O-RING P-15 HIT-6695670.A13 6695670	-
34 - MAIN JET #32 HIT-6699943.A9 6699943	-
35 - INLET SCREEN HIT-6684700.A232 6684700	-
36 - NEEDLE VALVE HIT-6685215.A42 6685215	£6.79	£8.15
37 - HINGE PIN SET SCREW HIT-6691305.A3 6691305	-
38 - HINGE PIN HIT-6685219.A42 6685219	-
39 - METERING DIAPHRAGM HIT-6684690.A2 6684690	£24.05	£28.86
40 - PRIMING PUMP COMP. HIT-6684687.A96 6684687	£9.27	£11.12
41 - SET SCREW HIT-6684699.A2 6684699	-
42 - INTAKE PACKING HIT-6697691.A2 6697691	-
43 - CARBURETOR INSULATOR SET PN INCLUD.42 HIT-6698954.A6 6698954	-
44 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A56 6698844	£1.67	£2.00
45 - CARBURETOR PACKING HIT-6684616.A1 6684616	£1.67	£2.00
46 - THROTTLE WIRE FIXING PLATE HIT-6684629.A18 6684629	-
47 - CARBURETOR GASKET HIT-6684615.A45 6684615	£1.67	£2.00
48 - CARBURETOR ASS'Y INCLUD.20-41 HIT-6698960.A8 6698960	£47.62	£57.14
50 - PLUS SCREW 5X60WS HIT-6695431.A8 6695431	-
51 - CLEANER ELEMENT HIT-6690347.A8 6690347	£7.15	£8.58
52 - AIR CLEANER CAP HIT-6690139.A10 6690139	£7.15	£8.58
53 - AIR FILTER ASS'Y INCLUD.51 HIT-6698961.A2 6698961	£8.46	£10.15
54 - PISTON SET PN INCLUD.55 HIT-6697683.A5 6697683	£15.61	£18.73
55 - PISTON RING HIT-6686121.A29 6686121	£6.47	£7.76
56 - CIR CLIP HIT-6684590.A9 6684590	£1.67	£2.00
57 - PISTON PIN HIT-6684591.A79 6684591	£3.29	£3.95
58 - NEEDLE BEARING HK0810B HIT-6695590.A3 6695590	-
59 - CRANK SHAFT ASS'Y INCLUD.58 HIT-6698969.A1 6698969	-
60 - CRANK CASE ASS'Y INCLUD.61-63 HIT-6697687.A5 6697687	-
61 - CRANK CASE PACKING HIT-6697688.A2 6697688	£1.67	£2.00
62 - OIL SEAL TB 12227 HIT-6684607.A36 6684607	£4.07	£4.88
63 - BALL BEARING 6001 C3 HIT-6684608.A161 6684608	£5.70	£6.84
64 - CRANK SHAFT WASHER HIT-6697685.A5 6697685	-
65 - KNOCK PIN 4X12 HIT-6695521.A31 6695521	-
66 - STARTER PULLEY ASS'Y INCLUD.67-69 HIT-6684681.A5 6684681	£18.16	£21.79
67 - D4E RETAINING RING HIT-6685101.A71 6685101	-
68 - STARTER PAWL SPRING HIT-6684684.A115 6684684	£3.29	£3.95
69 - STARTER PAWL HIT-6684685.A4 6684685	£5.07	£6.08
70B - RECOIL STARTER BODY ASS'Y INCLUD.71-75A HIT-6601570.A42 6601570	£23.15	£27.78
71 - SET SCREW HIT-6684679.A5 6684679	£2.98	£3.57
72A - CAM PLATE SINCE TL000001 HIT-6699996.A22 6699996	£4.28	£5.13
73 - DAMPER SPRING HIT-6684677.A3 6684677	£5.70	£6.84
74A - STARTER ROPE REEL SINCE TL000001 HIT-6699997.A67 6699997	-
75A - RECOIL SPRING HIT-6684675.A143 6684675	£8.82	£10.58
78 - STARTER HANDLE HIT-6684680.A110 6684680	£5.87	£7.04
79 - NAME PLATE HIT-000000.A4626 000000	-
81 - CAMPLATE ASS'Y INCLUD.72A HIT-6699691.A4 6699691	£7.75	£9.30
82 - MUFFLER REAR COVER FOR EUROPE HIT-6600335.A9 6600335	£13.36	£16.03
83 - TAPPING SCREW D4 FOR EUROPE HIT-6600332.A3 6600332	£1.67	£2.00
101 - TAPPING SCREW D4 HIT-6697190.A9 6697190	£1.67	£2.00
102 - HANDLE (B) HIT-6696487.A24 6696487	£5.88	£7.06
103 - LOCK LEVER HIT-6696490.A15 6696490	£2.84	£3.41
104 - LEVER HIT-6696488.A13 6696488	£1.67	£2.00
105 - SPRING (A) HIT-6698819.A3 6698819	£1.67	£2.00
106 - STOP SWITCH HIT-6685239.A6 6685239	£6.88	£8.25
107 - STOP SWITCH CORD HIT-6698820.A7 6698820	£4.28	£5.13
108 - PROTECTION TUBE HIT-6698822.A7 6698822	£1.67	£2.00
109 - THROTTLE WIRE HIT-6698821.A3 6698821	£6.42	£7.70
110 - HANDLE (A) HIT-6696486.A10 6696486	£5.88	£7.06
111 - HEX.HOLE BOLT M5X12/S HIT-6684667.A59 6684667	£1.67	£2.00
112 - HEX. HOLE BOLT M5X25/S HIT-6684709.A6 6684709	£1.67	£2.00
113 - ANTI-VIBE RUBBER (A) HIT-6684666.A3 6684666	£3.58	£4.29
114 - PIPE HOLDER (A) HIT-6698643.A45 6698643	£3.56	£4.27
115 - PIPE HOLDER (B) HIT-6698644.A2 6698644	£3.56	£4.27
116 - ANTI-VIBE RUBBER (B) HIT-6684665.A7 6684665	£3.58	£4.29
117 - STOP RING C-12 OUTER HIT-6684664.A4 6684664	£1.67	£2.00
118A - FAN CASE HIT-6697922.A3 6697922	-
119 - CLUTCH DRUM COMP. HIT-6684663.A7 6684663	£22.38	£26.85
120 - STEP BOLT HIT-6689627.A44 6689627	£1.67	£2.00
121 - BENT WASHER 8 HIT-6684648.A24 6684648	£1.67	£2.00
122 - CLUTCH PLATE (A) HIT-6689528.A20 6689528	£1.67	£2.00
123 - CLUTCH SET HIT-6697655.A16 6697655	£9.68	£11.62
124 - CLUTCH WASHER B HIT-6697619.A8 6697619	£1.67	£2.00
125 - HEX. NUT M8 HIT-6684612.A0 6684612	-
126 - BOLT WASHER M8 HIT-6684611.A115 6684611	-
127 - HEX. HOLE BOLT 4X18WS HIT-6695508.A6 6695508	£1.67	£2.00
*128 - IGNITION COIL ASS'Y INCLUD.133 HIT-6698492.A9 6698492	£28.42	£34.11
*128 - IGNITION COIL (A) ASS'Y INCLUD.129-133 FOR EUROPE HIT-6699941.A1 6699941	-
130 - EARTH CORD FOR EUROPE HIT-6699940.A3 6699940	-
131 - CLIP FOR EUROPE HIT-6699939.A4 6699939	-
132 - FLANGE NUT M4 FOR EUROPE HIT-6699938.A3 6699938	-
*133 - CORD HIT-6696833.A10 6696833	-
133 - CORD HIT-000000.A4496 000000	-
134 - CORD HIT-6698964.A3 6698964	-
135 - CORD HIT-6697690.A10 6697690	-
136 - MAGNETO ROTOR COMP. HIT-6698396.A26 6698396	£11.52	£13.82
137 - SHIELD TUBE 3X5X180 HIT-6684618.A9 6684618	£6.12	£7.35
138 - FUEL PIPE 3X5X85 HIT-6684880.A4 6684880	-
139A - FUEL TANK CAP ASS'Y INCLUD.TANK CAP CHAIN HIT-6698402.A17 6698402	-
140 - TANK CAP CHAIN HIT-6684625.A100 6684625	-
141A - RETURN GROMMET HIT-6697846.A79 6697846	£2.08	£2.50
142 - SPACER HIT-6698496.A4 6698496	-
143A - TANK (B) HIT-6600317.A21 6600317	£12.36	£14.83
144 - STAND HIT-6694787.A11 6694787	£3.56	£4.27
145 - FLANGE BOLT HIT-6696557.A25 6696557	£1.67	£2.00
146A - PUMP FILTER BODY COMP HIT-66A3864.A45 66A3864	-
147 - CLIP 1 HIT-6684619.A45 6684619	£1.67	£2.00
148 - BOLT (W/FLANGE) L27.8 HIT-6698991.A18 6698991	-
161 - LOOP HANDLE ASS'Y ANTI-VIB. INCLUD.162-165 HIT-6696088.A4 6696088	-
162 - HANDLE GRIP HIT-6691098.A8 6691098	£10.90	£13.08
163 - HEX.NUT 6 HIT-6684835.A42 6684835	£1.67	£2.00
164 - BRAKE SHAFT WASHER HIT-6689681.A5 6689681	£1.67	£2.00
165 - TAPPING SCREW 5X20 HIT-6695255.A39 6695255	-
166 - CAP (A) HIT-6698515.A14 6698515	-
167 - LEVEL MARK HIT-6684851.A46 6684851	-
168 - CAUTION PLATE TANAKA HIT-000000.A4498 000000	-
169 - LEVEL MARK HIT-6684852.A6 6684852	-
170A - MAIN PIPE COMP. HIT-6699654.A1 6699654	-
171 - DRIVE SHAFT 1829L HIT-6689443.A7 6689443	-
172 - HANGER D24 HIT-6689277.A16 6689277	-
173 - HANDLE BRACKET A HIT-6691134.A16 6691134	£3.10	£3.72
174 - BOLT 6X43/P (BLACK) HIT-6684838.A6 6684838	£1.67	£2.00
175 - OIL ADJUSTMENT MARK HIT-6694578.A1 6694578	£1.67	£2.00
176 - OIL TANK COVER HIT-6686138.A9 6686138	£2.81	£3.37
177 - OIL TANK PACKING HIT-6699567.A11 6699567	£2.77	£3.32
178 - O-RING P-5 HIT-6695661.A7 6695661	£1.67	£2.00
179 - 8 PUSH NUT HIT-6695239.A2 6695239	-
180 - STEP BOLT A HIT-6689757.A2 6689757	-
181 - OIL PUMP COMP. HIT-6686487.A2 6686487	£39.35	£47.22
183 - O-RING 1.4 HIT-6695656.A11 6695656	-
184 - WASHER 2 HIT-6695187.A2 6695187	-
185 - OIL PUMP SPRING HIT-6690381.A2 6690381	-
186 - OIL PUMP PISTON COMP. HIT-6686608.A2 6686608	-
187 - O-RING P-15 HIT-6698966.A0 6698966	£1.67	£2.00
188 - OIL TANK CAP ASS'Y INCLUD.187 HIT-6692050.A11 6692050	£15.87	£19.04
189 - SCREW 6X8 HIT-6695458.A12 6695458	-
190 - HEX. HOLE BOLT 5X22/S HIT-6695492.A41 6695492	-
192 - PINION HIT-6698967.A3 6698967	-
193 - BALL BEARING 609 HIT-6684734.A9 6684734	-
194 - BALL BEARING 609Z ST HIT-6684735.A26 6684735	£15.48	£18.57
195 - STOP RING C-9 1 HIT-6695281.A3 6695281	-
196 - STOP RING C-24 1 HIT-6684732.A20 6684732	£1.67	£2.00
198 - HEX. HOLE BOLT 5X10 HIT-6695042.A57 6695042	£1.67	£2.00
199 - BALL BEARING 627 C3 HIT-6695568.A2 6695568	£8.95	£10.74
200 - CAM HIT-6690428.A2 6690428	-
201 - GEAR HIT-6698968.A0 6698968	-
202 - BALL BEARING 638Z HIT-6697603.A11 6697603	-
203 - STOP RING C-28 1 HIT-6684741.A25 6684741	-
204 - COLLAR HIT-6685962.A11 6685962	-
205 - SPROCKET COMP. 1 HIT-6689117.A11 6689117	£47.37	£56.84
206 - FLANGE NUT 6 HIT-6695170.A77 6695170	£1.67	£2.00
207 - SIDE COVER COMP. HIT-6686038.A2 6686038	£9.67	£11.60
209 - SMALL SCREW 4X12WS HIT-6695403.A7 6695403	-
210 - COLLAR HIT-000000.A4499 000000	-
211 - FILTER ASS'Y INCLUD.212 HIT-6690913.A11 6690913	-
212 - OIL FILTER HIT-6690917.A9 6690917	£1.67	£2.00
213 - WASHER 5 HIT-6684661.A102 6684661	£1.67	£2.00
214 - FUEL PIPE 3X5X60 HIT-6692414.A2 6692414	-
215 - FUEL PIPE 3X5X75 HIT-6692415.A9 6692415	-
216 - BANJO 1 HIT-6686637.A11 6686637	-
217 - OIL PUMP ADJUSTER HIT-6691066.A2 6691066	£8.79	£10.55
218 - STOP RING E-6 HIT-6695311.A7 6695311	£1.67	£2.00
219 - OIL MARK HIT-6694576.A2 6694576	-
220 - CASE HIT-6685793.A11 6685793	£12.52	£15.03
221 - CHAIN TENSIONER HIT-6687063.A11 6687063	£5.70	£6.84
222 - CHAIN BAR TIGHTENING BOLT HIT-6686803.A11 6686803	£8.53	£10.24
223 - GUIDE PLATE HIT-6697596.A0 6697596	£4.38	£5.26
224 - CHAIN BAR KNOCK PIN HIT-6687130.A2 6687130	-
225A - SAW CHAIN HIT-6699679.A2 6699679	£20.67	£24.80
226 - GUIDE BAR S/N HIT-6686875.A5 6686875	£33.19	£39.83
227 - CHAIN BAR CLAMP NUT HIT-6687105.A17 6687105	£1.67	£2.00
501 - COMBI. BOX SPANNER 13X19 MINUS HIT-6693809.A9 6693809	-
502 - WRENCH 8X10 HIT-6684766.A7 6684766	-
503 - HEX. BAR WRENCH 4MM HIT-6684813.A89 6684813	-
504 - GUIDE BAR COVER 1 HIT-6694796.A0 6694796	£11.79	£14.15
505 - SHOULDER BELT HIT-6692867.A17 6692867	£8.37	£10.04
601 - EXT-200 HIT-000000.A4502 000000	-
602 - EXT-300 HIT-000000.A4503 000000	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki TCS27EPA Engine Chain Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki TCS27EPA Engine Chain Saw Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki TCS27EPA Engine Chain Saw Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
