Hitachi / Hikoki TCM75EBP Engine Hedge Trimmer Spare Parts

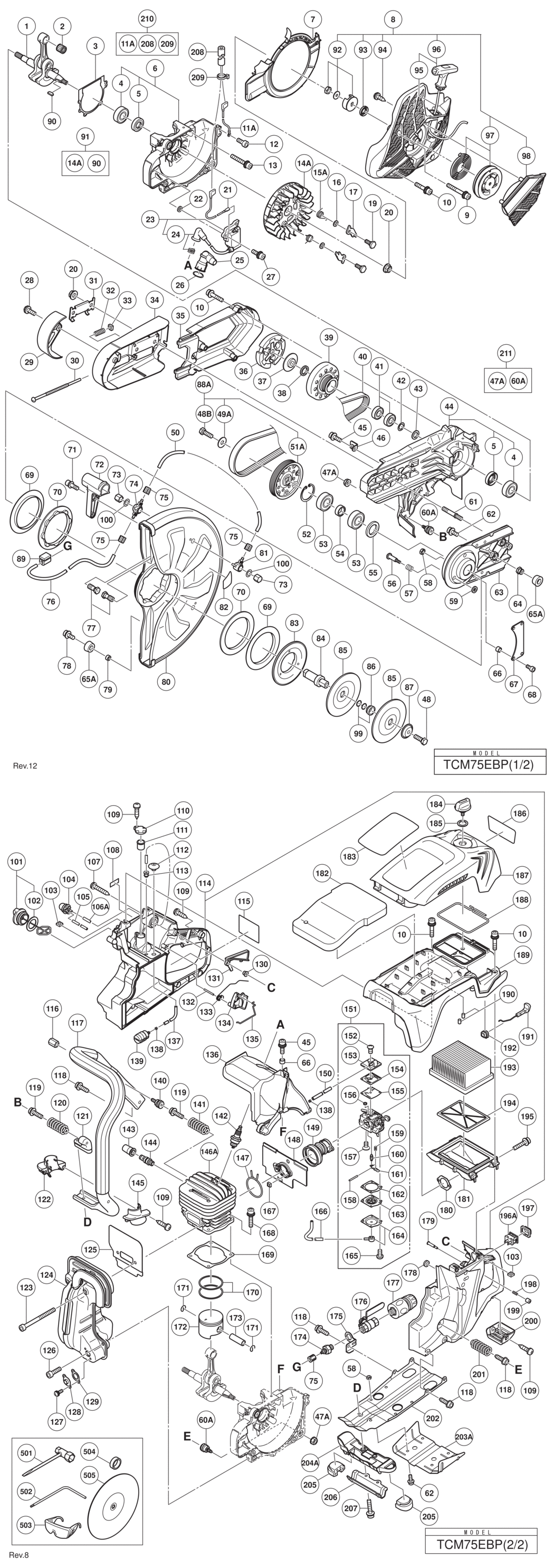

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCM75EBP Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - CRANK SHAFT HIT-6699801.A3 6699801	£39.68	£47.62
2 - NEEDLE BEARING (A) HIT-6699803.A3 6699803	£5.88	£7.06
3 - CRANK CASE PACKING HIT-6699800.A0 6699800	£1.67	£2.00
4 - BALL BEARING 6202C3 HIT-6202C3.A0 6202C3	£7.83	£9.40
5 - OIL SEAL HIT-6698914.A7 6698914	£5.25	£6.30
6 - CRANK CASE (A) INCLUD.4 HIT-6600364.A0 6600364	£117.72	£141.27
7 - FAN GUIDE HIT-6699875.A0 6699875	-
8 - RECOIL STARTER ASS'Y INCLUD.92-98 HIT-6699925.A0 6699925	-
9 - SET BOLT M5 HIT-6600374.A0 6600374	£2.84	£3.41
10 - SET BOLT M5X25 HIT-6699871.A3 6699871	£1.67	£2.00
11A - EARTH CORD SINCE 8.2016 HIT-6696567.A0 6696567	£3.56	£4.27
12 - HEX. SOCKET HD. BOLT M4X10 (10 PCS.) HIT-949812.A22 949812	£2.98	£3.57
13 - SEAL LOCK HEX. SOCKET HD. BOLT M5 HIT-6600365.A3 6600365	-
14A - MAGNETO ROTOR SINCE 2.2015 HIT-6600458.A1 6600458	£17.43	£20.92
15A - STARTER PAWL SPRING (B) HIT-6600477.A1 6600477	£1.67	£2.00
16 - WASHER 0.8 HIT-6696857.A7 6696857	£1.67	£2.00
17 - STARTER PAWL HIT-6699811.A0 6699811	£1.67	£2.00
19 - STEP BOLT TILL 12.2016 HIT-6696878.A6 6696878	£1.67	£2.00
*19 - STEP BOLT SINCE 1.2017 HIT-6696878.A7 6696878	£1.67	£2.00
20 - FLANGE NUT M8 HIT-6698581.A9 6698581	£1.67	£2.00
21 - CORD HIT-6699812.A3 6699812	£1.67	£2.00
22 - GLASS WASHER HIT-6698700.A45 6698700	£1.67	£2.00
23 - IGNITION COIL ASS'Y INCLUD.24 HIT-6699809.A3 6699809	£44.87	£53.84
24 - CORD SET HIT-6600434.A2 6600434	-
25 - SHIELD COVER EXCEPT FOR USA HIT-6699814.A0 6699814	£4.55	£5.46
26 - SHIELD COVER RING EXCEPT FOR USA HIT-6600373.A2 6600373	£1.67	£2.00
27 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A42 6698388	£1.67	£2.00
28 - SEAL LOCK HEX. SOCKET BUTTON BOLT M5X10 HIT-6699909.A1 6699909	£1.67	£2.00
29 - COVER PLATE HIT-6699908.A2 6699908	£7.03	£8.44
30 - TENSIONER BOLT HIT-6699907.A1 6699907	£3.56	£4.27
31 - TENSIONER PLATE HIT-6699904.A2 6699904	£3.56	£4.27
32 - TENSIONER SPRING HIT-6699906.A2 6699906	-
33 - TENSION NUT HIT-6699905.A1 6699905	-
34 - ARM COVER HIT-6699928.A1 6699928	-
35 - CLUTCH COVER HIT-6699926.A0 6699926	-
36 - CLUTCH HIT-6699823.A0 6699823	£29.63	£35.56
37 - CLUTCH FLANGE HIT-6699822.A3 6699822	-
38 - FELT PACKING HIT-301946.A18 301946	£1.67	£2.00
39 - CLUTCH HOUSING HIT-6699821.A0 6699821	-
40 - BELT HIT-6699877.A2 6699877	£16.52	£19.83
41 - BALL BEARING 6001DDCMPS2L HIT-6001DD.A13 6001DD	£9.23	£11.08
42 - SHIM T0.2 HIT-6696946.A9 6696946	£1.67	£2.00
43 - BOLT WASHER M12 HIT-6685072.A3 6685072	-
44 - CRANK CASE (B) INCLUD.4 HIT-6600366.A0 6600366	£159.47	£191.36
45 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X16 HIT-6699826.A3 6699826	-
46 - TENSIONER BASE HIT-6699825.A0 6699825	-
47A - FLANGE NUT M6 SINCE 11.2016 HIT-329934.A7 329934	-
48 - BOLT M8 TILL 6.2014 HIT-6699902.A6 6699902	£1.67	£2.00
*48 - BOLT M8 SINCE 7.2014 FOR GBR HIT-6699902.A7 6699902	£1.67	£2.00
48B - BOLT (W/FLANGE) M8X15.5 SINCE 7.2014 FOR GBR HIT-6600463.A3 6600463	-
50 - WATER SUPPLY HOSE HIT-6699910.A1 6699910	£1.67	£2.00
51A - PULLEY (B) SINCE 7.2014 FOR GBR HIT-6600436.A3 6600436	£16.35	£19.62
52 - RETAINING RING FOR D40 HOLE HIT-948391.A11 948391	£1.67	£2.00
53 - BALL BEARING 6203DDCMPS2L HIT-6203DD.A27 6203DD	£8.64	£10.37
54 - BB COLLAR HIT-6699880.A0 6699880	-
55 - FELT HIT-6699879.A3 6699879	-
56 - BOLT M5 (S) HIT-6699896.A3 6699896	£1.67	£2.00
57 - WHEEL GUARD SPRING HIT-6699895.A0 6699895	-
58 - LOCK NUT M5 (10 PCS.) HIT-949566.A3 949566	£1.67	£2.00
59 - WASHER M6 (10 PCS.) HIT-949425.A14 949425	£1.67	£2.00
60A - SPRING HOLDER SINCE 11.2016 HIT-6601390.A0 6601390	£4.62	£5.55
61 - CHAIN BAR BOLT HIT-6699881.A3 6699881	£3.56	£4.27
62 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12 HIT-6699176.A28 6699176	£1.67	£2.00
63 - ARM HIT-6600367.A3 6600367	£79.77	£95.72
64 - STOPPER HOLDER HIT-6699883.A3 6699883	-
65A - STOP RUBBER (2 PCS.) HIT-6600442.A3 6600442	£5.70	£6.84
66 - COLLAR HIT-6699866.A1 6699866	-
67 - ARM PLATE HIT-6600396.A0 6600396	-
68 - HEX. SOCKET HD. BOLT M5X12 (PRECOAT) HIT-6696836.A4 6696836	-
69 - PLATE (A) HIT-6699885.A0 6699885	-
70 - DAMPER (A) HIT-6699886.A3 6699886	-
71 - SET BOLT M5X16 HIT-6699889.A0 6699889	£1.67	£2.00
72 - HANDLE (W) HIT-6699888.A3 6699888	£3.56	£4.27
73 - CAP NUT HIT-6699892.A3 6699892	£3.56	£4.27
74 - WATER SUPPLY JOINT (B) HIT-6699891.A0 6699891	£1.67	£2.00
75 - LOCK NUT HIT-6699912.A3 6699912	£1.67	£2.00
76 - WATER SUPPLY HOSE HIT-6699911.A0 6699911	£1.67	£2.00
77 - NOZZLE BOLT HIT-6699893.A0 6699893	£7.03	£8.44
78 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X12 HIT-996399.A13 996399	£1.67	£2.00
79 - STOPPER HOLDER (B) HIT-6600375.A2 6600375	-
80 - WHEEL GUARD (14) HIT-6699920.A1 6699920	-
81 - WATER SUPPLY JOINT (A) HIT-6699890.A3 6699890	£1.67	£2.00
82 - WHEEL MARK LABEL (14) HIT-6600377.A1 6600377	-
83 - FLANGE (A) HIT-6699894.A3 6699894	-
84 - SPINDLE HIT-6699882.A0 6699882	-
85 - WHEEL WASHER HIT-6699897.A0 6699897	£8.85	£10.62
86 - SPINDLE COLLAR HIT-6699898.A3 6699898	£5.34	£6.41
87 - FLANGE WASHER HIT-6699901.A0 6699901	£1.67	£2.00
88A - PULLEY (B) SET INCLUD.48B HIT-6600438.A0 6600438	£19.89	£23.87
89 - HOSE HOLDER HIT-6600457.A2 6600457	-
90 - WOODRUFF KEY SINCE 2.2915 HIT-6600459.A2 6600459	£1.67	£2.00
91 - MAGNETO ROTOR SET INCLUD.14A HIT-6600460.A1 6600460	-
92 - CAM COMPLETE SET HIT-6600469.A2 6600469	£11.02	£13.22
93 - STARTER GROMMET HIT-6600471.A2 6600471	-
94 - TAPPING SCREW D4X16 HIT-6600466.A1 6600466	-
95 - STARTER ROPE HIT-6600468.A1 6600468	£11.93	£14.32
96 - ROPE ASS'Y INCLUD.95 HIT-6600467.A2 6600467	£13.60	£16.32
97 - REEL COMPLETE SET HIT-6600470.A1 6600470	£29.78	£35.73
98 - FAN CASE COVER HIT-6600465.A0 6600465	-
99 - O-RING (S-12) HIT-875638.A28 875638	£1.67	£2.00
100 - PULLEY WASHER SINCE 9.2015 HIT-6600495.A1 6600495	£1.67	£2.00
101 - FUEL TANK CAP ASS'Y (VERMILION) INCLUD.102 HIT-6698854.A5 6698854	£7.03	£8.44
102 - TANK CAP PACKING HIT-6685179.A39 6685179	£1.67	£2.00
103 - SQUARE NUT M5 HIT-6699828.A3 6699828	£1.67	£2.00
104 - PRIMING PUMP COMP. HIT-6685139.A121 6685139	£10.67	£12.80
105 - FUEL PIPE HIT-6698722.A1 6698722	£15.11	£18.13
106A - FUEL PIPE HIT-6601460.A0 6601460	-
107 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-304035.A4 304035	£1.67	£2.00
*108 - TANK MARK LABEL (50:1) HIT-6698921.A26 6698921	-
*108 - TANK MARK LABEL (25:1) FOR ASIA HIT-6698922.A18 6698922	-
109 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A54 305812	£1.67	£2.00
110 - AIR VENT CAP HIT-6699838.A0 6699838	£1.67	£2.00
111 - INNER CAP (B) HIT-6600370.A2 6600370	-
112 - FUEL GROMMET HIT-6688156.A64 6688156	-
113 - RETURN GROMMET HIT-6697846.A84 6697846	£1.68	£2.01
114 - REAR HANDLE SET HIT-6699827.A0 6699827	-
115 - NAME PLATE HIT-000000.A953 000000	-
116 - LONG NUT M6 HIT-6699852.A0 6699852	£1.67	£2.00
117 - FRONT HANDLE HIT-6699842.A0 6699842	£32.28	£38.73
118 - FLANGED TAPPING SCREW D6 HIT-6696872.A2 6696872	£1.67	£2.00
119 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X20 HIT-881722.A0 881722	£1.67	£2.00
120 - ANTIVIBRATION SPRING HIT-6699849.A0 6699849	£1.67	£2.00
121 - FRONT ADAPTER HIT-6699847.A3 6699847	£19.10	£22.92
122 - GRIP END (B) HIT-6699844.A0 6699844	£1.67	£2.00
123 - HEX. SOCKET HD. BOLT M6X50 HIT-6699819.A3 6699819	£1.67	£2.00
124 - MUFFLER HIT-6699816.A0 6699816	£40.45	£48.54
125 - HEAT PROTECTION PLATE HIT-6699815.A3 6699815	£2.94	£3.53
126 - SEAL LOCK HEX. SOCKET HD. BOLT M6X20 HIT-6698899.A4 6698899	£1.67	£2.00
127 - MACHINE SCREW (W/SP. WASHER) M4X12 HIT-6685068.A47 6685068	-
128 - EXHAUST PIPE HIT-6699818.A0 6699818	-
129 - EXHAUST GASKET HIT-6699817.A3 6699817	£1.67	£2.00
130 - TRIGGER LOCKOUT COLLAR HIT-6699836.A3 6699836	-
131 - TRIGGER LOCKOUT HIT-6699922.A1 6699922	-
132 - NEEDLE PIN D3 HIT-6699834.A0 6699834	-
133 - THROTTLE LEVER SPRING HIT-6699833.A3 6699833	-
134 - THROTTLE LEVER HIT-6699921.A0 6699921	-
135 - THROTTLE ROD HIT-6699863.A1 6699863	£1.67	£2.00
136 - CYLINDER COVER HIT-6699865.A2 6699865	£14.36	£17.23
*137 - FUEL PIPE 3X5X290 HIT-6698908.A6 6698908	£7.75	£9.30
*137 - FUEL PIPE FOR USA HIT-6698930.A3 6698930	-
138 - CLIP HIT-6685311.A4 6685311	£1.67	£2.00
139 - PUMP FILTER BODY HIT-6692285.A19 6692285	£10.40	£12.48
140 - SPRING HOLDER HIT-6699851.A3 6699851	£3.56	£4.27
141 - ANTIVIBRATION SPRING HIT-6699824.A3 6699824	£3.56	£4.27
142 - SPARK PLUG ASS'Y BPMR7A HIT-6699320.A3 6699320	-
143 - DECOMP CAP HIT-6600378.A0 6600378	£5.61	£6.73
144 - DECOMP. HIT-6698541.A4 6698541	£32.28	£38.73
145 - GRIP END (A) HIT-6699843.A3 6699843	£1.67	£2.00
146A - CYLINDER HIT-6600478.A2 6600478	£75.53	£90.64
147 - INSULATOR CLIP HIT-6699862.A2 6699862	£1.86	£2.23
148 - INSULATOR PLATE HIT-6699858.A3 6699858	£3.29	£3.95
149 - CARBURETOR INSULATOR HIT-6699860.A3 6699860	£13.60	£16.32
150 - FUEL PIPE (FKM) HIT-6699857.A0 6699857	£9.52	£11.42
151 - CARBURETOR ASS'Y (C3M) INCLUD.152-165 HIT-6699856.A3 6699856	£78.12	£93.74
152 - SCREW (D) HIT-6600385.A0 6600385	-
153 - PUMP COVER HIT-6600386.A3 6600386	-
154 - PUMP GASKET HIT-6600387.A0 6600387	£5.54	£6.65
155 - PUMP DIAPHRAGM HIT-6600388.A3 6600388	£5.54	£6.65
156 - STRAINER HIT-6600389.A0 6600389	-
157 - SCREW (E) HIT-6600390.A3 6600390	-
158 - PIN HIT-6699082.A14 6699082	£1.67	£2.00
159 - METERING LEVER SPRING HIT-6600391.A0 6600391	£5.54	£6.65
160 - INLET NEEDLE VALVE HIT-6699081.A8 6699081	£10.93	£13.12
161 - METERING LEVER HIT-6699084.A21 6699084	£1.67	£2.00
162 - METERING CHAMBER GASKET HIT-6600392.A3 6600392	£8.38	£10.06
163 - METERING DIAPHRAGM HIT-6600393.A0 6600393	£15.06	£18.07
164 - METARING CHAMBER COVER HIT-6600394.A3 6600394	-
165 - SET SCREW (C) HIT-6699094.A22 6699094	-
166 - FUEL PIPE HIT-6698873.A10 6698873	£8.46	£10.15
167 - SQUARE NUT (B) M5 HIT-6699859.A0 6699859	-
168 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X25 HIT-991712.A6 991712	£1.67	£2.00
169 - CYLINDER PACKING (C) HIT-6600397.A3 6600397	£5.61	£6.73
170 - PISTON RING HIT-6699806.A0 6699806	£3.48	£4.17
171 - CIR CLIP HIT-6699805.A3 6699805	£1.67	£2.00
172 - PISTON (51.5) HIT-6699804.A0 6699804	-
173 - PISTON PIN HIT-6699802.A0 6699802	£2.77	£3.32
174 - WATER SUPPLY CONNECTOR HIT-6699913.A0 6699913	-
175 - MOUNTING PLATE HIT-6699914.A3 6699914	-
176 - VALVE HIT-6699915.A0 6699915	£16.52	£19.83
*177 - COUPLER HIT-6699916.A3 6699916	£5.25	£6.30
*177 - COUPLER FOR USA HIT-6699917.A0 6699917	-
178 - GROMMET HIT-6698787.A6 6698787	-
179 - THROTTLE LOCK PIN HIT-6699829.A0 6699829	-
180 - CARBURETOR PACKING HIT-6699855.A0 6699855	-
181 - CARBURETOR BRACKET HIT-6699854.A3 6699854	-
182 - PRE FILTER HIT-6699872.A0 6699872	£8.46	£10.15
183 - CAUTION LABEL (EURO) HIT-000000.A954 000000	-
183 - CAUTION LABEL (USA) HIT-000000.A955 000000	-
*183 - CAUTION LABEL (ENG) HIT-6600382.A0 6600382	£5.61	£6.73
*183 - CAUTION LABEL (BRA) HIT-6600383.A3 6600383	-
184 - CLEANER KNOB HIT-6699874.A3 6699874	£3.42	£4.11
185 - KNOB PACKING HIT-6698570.A5 6698570	£2.49	£2.99
186 - START LABEL (CM75) (EX) HIT-6600381.A3 6600381	£2.82	£3.39
187 - CLEANER BOX (B) HIT-6699924.A1 6699924	-
188 - RUBBER ROPE HIT-6699870.A0 6699870	-
189 - CLEANER BOX (A) HIT-6699869.A3 6699869	-
190 - BEARING LOCK HIT-931701.A16 931701	£1.67	£2.00
191 - CHOKE BUTTON HIT-6699923.A0 6699923	-
192 - CHOKE ROD RUBBER HIT-6685369.A9 6685369	£1.67	£2.00
193 - PAPER FILTER HIT-6699868.A0 6699868	£10.77	£12.92
194 - NYLON FILTER HIT-6699867.A3 6699867	£7.03	£8.44
195 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X55 HIT-6699861.A0 6699861	-
196A - STOP SWITCH HIT-6601275.A7 6601275	£1.67	£2.00
197 - SWITCH COVER HIT-6698400.A6 6698400	-
198 - THROTTLE LOCK PIN SPRING HIT-6699830.A3 6699830	-
199 - THROTTLE LOCK PIN CAP HIT-6699831.A0 6699831	-
200 - REAR FOOT HIT-6699839.A3 6699839	-
201 - ANTIVIBRATION SPRING HIT-6699840.A0 6699840	£1.67	£2.00
202 - LOWER GUARD HIT-6699841.A3 6699841	-
203A - MUFFLER GUARD HIT-6600443.A1 6600443	-
205A - FRONT FOOT RUBBER (B) SINCE 1.2017 HIT-6601393.A3 6601393	£1.67	£2.00
206A - FRONT FOOT PLATE (B) SINCE 1.2017 HIT-6601392.A0 6601392	-
207 - HEX. SOCKET HD. BOLT (W/WASHERS) M5 TILL 12.2016 HIT-6600372.A1 6600372	-
207A - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 SINCE 1.2017 HIT-6698386.A40 6698386	-
208 - IDLE SPONGE SINCE 8.2016 HIT-6600056.A4 6600056	-
209 - BAND FOR (AS) HIT-6698943.A7 6698943	-
210 - EARTH CORD SET INCLUD.11A HIT-6601373.A0 6601373	£1.67	£2.00
211 - SPRING HOLDER SET TILL 10.2016 HIT-6601391.A3 6601391	£7.57	£9.08
212 - WASHER (B) SINCE 1.2017 HIT-6699112.A27 6699112	£1.67	£2.00
213 - FRONT FOOT SET INCLUD.19 HIT-6601394.A0 6601394	£9.60	£11.52
501 - COMBI BOX SPANNER 13X19 HIT-6698582.A2 6698582	£6.50	£7.80
502 - HEX. BAR WRENCH 4MMX135L HIT-6699918.A2 6699918	£3.56	£4.27
503 - PROTECTIVE GLASSES HIT-875769.A109 875769	-
504 - ADAPTER COLLAR HIT-6699919.A1 6699919	-
505 - CUT-OFF WHEEL 350MM (14) (10 PCS.) HIT-402729.A0 402729	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki TCM75EBP Engine Hedge Trimmer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki TCM75EBP Engine Hedge Trimmer Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki TCM75EBP Engine Hedge Trimmer Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
