Hitachi / Hikoki TCH24EB Engine Hedge Trimmer Spare Parts

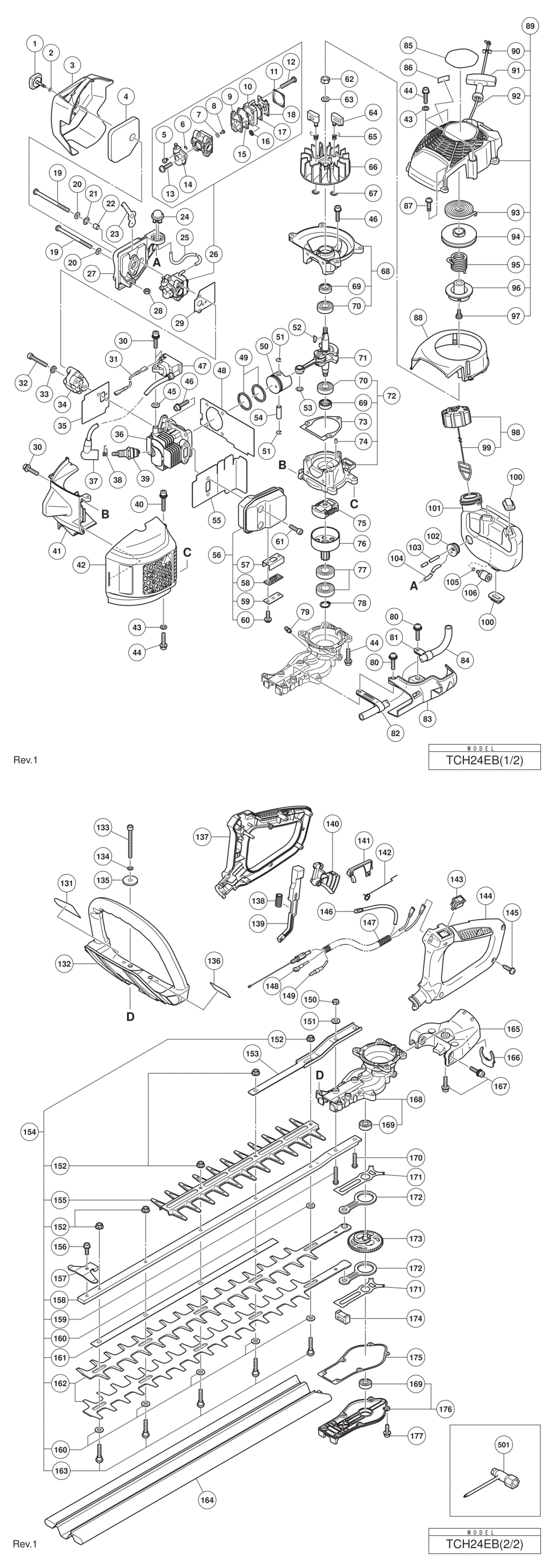

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCH24EB Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - COVER FIXING BOLT HIT-6684655.A1 6684655	£7.78	£9.34
2 - O-RING (S-4) HIT-981317.A13 981317	£1.67	£2.00
3 - AIR CLEANER COVER HIT-6601540.A4 6601540	-
4 - AIR CLEANER ELEMENT HIT-6601539.A4 6601539	-
5 - SWIVEL HIT-6684697.A156 6684697	-
6 - STOP RING HIT-6684696.A5 6684696	-
7 - O-RING HIT-6684695.A189 6684695	£1.67	£2.00
8 - MAIN JET HIT-000000.A2608 000000	-
9 - PUMP GASKET HIT-6684692.A109 6684692	£17.28	£20.73
10 - PUMP BODY HIT-000000.A2609 000000	-
11 - DIAPHRAGM COVER-METERING HIT-6685222.A125 6685222	£5.70	£6.84
12 - SET SCREW HIT-6691312.A68 6691312	-
13 - THROTTLE SET SCREW HIT-6684698.A1 6684698	-
14 - THROTTLE VALVE HIT-000000.A2610 000000	-
15 - PUMP DIAPHRAGM HIT-6684693.A5 6684693	£5.70	£6.84
16 - INLET SCREEN HIT-6684700.A22 6684700	-
17 - DIAPHRAGM PACKING-METERING HIT-6685220.A54 6685220	£2.81	£3.37
18 - METERING DIAPHRAGM HIT-6684690.A117 6684690	£24.05	£28.86
19 - SCREW M5X55 HIT-6694914.A15 6694914	-
20 - BOLT WASHER D5 HIT-6685407.A36 6685407	-
21 - WAVE WASHER 8 HIT-334242.A13 334242	-
22 - COLLAR M5 HIT-6601538.A4 6601538	-
23 - CHOKE VALVE HIT-6601537.A4 6601537	-
24 - PRIMING PUMP COMP. HIT-6685139.A96 6685139	£10.67	£12.80
25 - FUEL PIPE HIT-6601607.A5 6601607	-
26 - CARBURETOR ASS'Y (WYL-367) INCLUD.5-18 HIT-6601535.A4 6601535	-
27 - AIR CLEANER BASE HIT-6601536.A4 6601536	-
28 - LOCK NUT M6 (10 PCS.) HIT-949567.A23 949567	£1.67	£2.00
29 - CARBURETOR PACKING HIT-6698405.A70 6698405	£3.12	£3.74
30 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A14 6698388	£1.67	£2.00
31 - CORD HIT-6696544.A35 6696544	-
32 - SEAL LOCK HEX. SOCKET HD. BOLT M6X27 HIT-6601358.A4 6601358	-
33 - SPRING WASHER D6 HIT-6600910.A9 6600910	-
34 - CARBURETOR INSULATOR HIT-6601491.A3 6601491	-
35 - INTAKE PACKING HIT-6601534.A4 6601534	-
36 - CYLINDER N24 HIT-6600902.A4 6600902	-
37 - PLUG CAP HIT-6601421.A26 6601421	£1.67	£2.00
38 - PLUG CAP METAL HIT-6699186.A26 6699186	£1.67	£2.00
39 - IGNITION PLUG (TORCH L7RTC) HIT-6600542.A17 6600542	-
40 - HEX. SOCKET HD. BOLT (W/WASHERS) M5 HIT-6600372.A16 6600372	-
41 - CYLINDER COVER HIT-6601541.A4 6601541	-
42 - MUFFLER COVER HIT-6601544.A4 6601544	-
43 - WASHER 5 HIT-6685408.A10 6685408	£3.49	£4.19
44 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A12 6698386	-
45 - GLASS WASHER HIT-6698700.A78 6698700	£1.67	£2.00
46 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X22 HIT-6601339.A13 6601339	-
47 - IGNITION COIL HIT-6601612.A2 6601612	-
48 - CYLINDER PACKING HIT-6601527.A8 6601527	-
49 - PISTON RING HIT-6698404.A0 6698404	£7.03	£8.44
50 - PISTON N24 HIT-6601429.A5 6601429	-
51 - CIR CLIP HIT-6684590.A120 6684590	£1.67	£2.00
52 - WOODRUFF KEY 3X13X4.5 HIT-6601343.A13 6601343	-
53 - SHIM HIT-6600909.A14 6600909	-
54 - PISTON PIN HIT-6601344.A14 6601344	-
55 - HEAT PROTECTION PANEL HIT-6601531.A4 6601531	-
56 - MUFFLER ASS'Y INCLUD.57-60 HIT-6601530.A0 6601530	-
57 - EXHAUST PIPE PACKING HIT-6601606.A3 6601606	-
58 - SPARK ARRESTER HIT-6601605.A5 6601605	-
59 - EXHAUST PIPE HIT-6601604.A3 6601604	-
60 - MACHINE SCREW (W/SP. WASHER) M4X12 HIT-6685068.A61 6685068	-
61 - SEAL LOCK HEX. SOCKET HD. BOLT M6X16 HIT-6600518.A5 6600518	-
62 - FLYWHEEL NUT M7 HIT-6696879.A4 6696879	-
63 - BOLT WASHER D7 HIT-6696880.A23 6696880	-
64 - STARTER PAWL HIT-6685334.A0 6685334	£2.84	£3.41
65 - STARTER PAWL SPRING HIT-6685335.A30 6685335	£2.84	£3.41
66 - MAGNETO ROTOR COMP. HIT-6600053.A2 6600053	-
67 - RETAINING RING D4 HIT-6685336.A2 6685336	£3.49	£4.19
68 - CRANK CASE (F) ASS'Y INCLUD.69 HIT-6601602.A4 6601602	-
69 - OIL SEAL TB 12227 HIT-6684607.A107 6684607	£4.07	£4.88
70 - BALL BEARING 6001 C3 HIT-6684608.A93 6684608	£5.70	£6.84
71 - CRANK SHAFT HIT-6601528.A0 6601528	-
72 - CRANK CASE (G) ASS'Y INCLUD.69 HIT-6601603.A4 6601603	-
73 - CRANK CASE PACKING HIT-6600514.A25 6600514	-
74 - KNOCK PIN 4X12 HIT-6696947.A52 6696947	-
75 - CLUTCH (B) HIT-6699173.A12 6699173	£11.61	£13.93
76 - CLUTCH DRUM HIT-6601548.A3 6601548	-
77 - BALL BEARING 6002ZC3 HIT-6698740.A4 6698740	£6.94	£8.33
78 - RETAINING RING FOR D15 SHAFT (10 PCS.) HIT-939544.A2 939544	£3.64	£4.37
79 - GREASE NIPPLE COMP. HIT-6688643.A73 6688643	£1.67	£2.00
80 - MACHINE SCREW (W/WASHERS) M5X20 (BLACK) HIT-995096.A18 995096	£1.67	£2.00
81 - FIXATION PLATE (B) HIT-6699048.A1 6699048	-
82 - FIXATION PLATE (A) HIT-6699047.A12 6699047	-
83 - TAIL PIPE COVER HIT-6601564.A3 6601564	-
84 - TAIL PIPE HIT-6601563.A3 6601563	-
85 - BRAND LABEL HIT-000000.A2611 000000	-
86 - TANK MARK LABEL (25:1) HIT-6698922.A1 6698922	-
87 - TAPPING SCREW D4.5X16 HIT-6698878.A32 6698878	£1.67	£2.00
88 - AIR DEFLECTOR HIT-6601543.A6 6601543	-
89 - STARTER ASS'Y INCLUD.90-97 HIT-6601542.A2 6601542	-
90 - PLATE HIT-6685189.A11 6685189	-
91 - STARTER HANDLE HIT-6693227.A20 6693227	-
92 - STARTER ROPE HIT-000000.A2612 000000	-
93 - SPIRAL SPRING HIT-000000.A2613 000000	-
94 - REEL HIT-000000.A2614 000000	-
95 - DAMPER SPRING HIT-6685183.A14 6685183	£5.70	£6.84
96 - CAM PLATE HIT-000000.A2615 000000	-
97 - SET SCREW HIT-6684679.A164 6684679	£2.98	£3.57
98 - FUEL TANK CAP ASS'Y INCLUD.99 HIT-6698402.A99 6698402	-
99 - TANK CAP CHAIN HIT-6698732.A10 6698732	-
100 - CUSHION RUBBER HIT-6698615.A8 6698615	£3.56	£4.27
101 - TANK (FT) HIT-6601533.A5 6601533	-
102 - FUEL GROMMET HIT-6600358.A41 6600358	£1.67	£2.00
103 - FUEL PIPE HIT-6698716.A20 6698716	£5.61	£6.73
104 - FUEL PIPE HIT-6601399.A18 6601399	£3.02	£3.63
105 - CLIP HIT-6696949.A53 6696949	£1.67	£2.00
106 - PUMP FILTER HIT-6600351.A46 6600351	£4.45	£5.34
131 - NAME PLATE HIT-000000.A2616 000000	-
132 - HANDLE HIT-6699079.A10 6699079	£8.55	£10.26
133 - SEAL LOCK HEX. SOCKET HD. BOLT M5X40 HIT-6698885.A12 6698885	£2.84	£3.41
134 - SPRING WASHER M5 HIT-6698884.A3 6698884	-
135 - BRAKE AXIS WASHER HIT-6698749.A7 6698749	-
136 - CAUTION LABEL HIT-000000.A2617 000000	-
137 - REAR HANDLE (A) HIT-6601545.A5 6601545	-
138 - SPRING (A) HIT-6696348.A29 6696348	-
139 - LOCK BUTTON HIT-6601546.A3 6601546	-
140 - THROTTLE LEVER HIT-6699053.A19 6699053	-
141 - TRIGGER LOCKOUT HIT-6696344.A29 6696344	£2.84	£3.41
142 - THROTTLE LEVER SPRING HIT-6696345.A3 6696345	£2.84	£3.41
143 - STOP SWITCH HIT-6601275.A43 6601275	£1.67	£2.00
144 - REAR HANDLE (B) HIT-6601547.A5 6601547	-
145 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A14 305812	£1.67	£2.00
146 - THROTTLE WIRE HIT-6601613.A3 6601613	-
147 - PROTECTION TUBE HIT-6698738.A16 6698738	£1.67	£2.00
148 - STOP SWITCH CORD (B) HIT-6699059.A16 6699059	-
149 - STOP SWITCH CORD HIT-6696491.A6 6696491	-
150 - NYLON NUT M6 HIT-6698766.A1 6698766	-
151 - BOLT WASHER 6 HIT-6684639.A54 6684639	£1.67	£2.00
152 - U-NUT M5 HIT-6699108.A11 6699108	£2.94	£3.53
153 - SUPPORT PLATE (EB) HIT-6601616.A0 6601616	-
154 - BLADE ASS'Y (620MM) INCLUD.152 HIT-6601554.A0 6601554	-
155 - LOWER PLATE HIT-6600013.A4 6600013	£15.52	£18.63
156 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X8 HIT-6699065.A10 6699065	£1.67	£2.00
157 - GUARD PLATE HIT-6699062.A8 6699062	£1.67	£2.00
158 - BLADE GUIDE (620MM) HIT-000000.A2618 000000	-
159 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X25 HIT-6699113.A5 6699113	£2.77	£3.32
160 - WASHER (B) HIT-6699112.A21 6699112	£1.67	£2.00
161 - BLADE LINER HIT-6600360.A4 6600360	£7.12	£8.54
162 - HEDGE TRIMMER BLADE (C) 620MM HIT-6600014.A6 6600014	£33.95	£40.74
163 - SHOULDER BUTTON BOLT M5X25 HIT-000000.A2619 000000	-
164 - BLADE CASE (FOR 620MM) HIT-6698948.A1 6698948	£6.94	£8.33
165 - HANDLE BRACKET HIT-6601565.A3 6601565	-
166 - CLIP HIT-6696359.A16 6696359	£2.84	£3.41
167 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6699044.A3 6699044	-
168 - GEAR CASE (A) ASS'Y INCLUD.169 HIT-6601609.A1 6601609	-
169 - BALL BEARING 608ZZC3 HIT-6698772.A33 6698772	£2.84	£3.41
170 - HEX SOCKET BUTTON BOLT M6 HIT-6601555.A2 6601555	-
171 - GUIDE PLATE (B) HIT-6601550.A0 6601550	-
172 - CAM ROD HIT-6601552.A0 6601552	-
173 - GEAR 2 HIT-6601551.A4 6601551	-
174 - FELT PACKING (B) HIT-6601560.A0 6601560	-
175 - GEAR CASE PACKING HIT-6601561.A6 6601561	-
176 - GEAR CASE (B) ASS'Y INCLUD.169 HIT-6601611.A3 6601611	-
177 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A40 6698385	-
501 - BOX WRENCH 10/19MM HIT-6698756.A12 6698756	-
