Hitachi / Hikoki TCH24EAP Engine Hedge Trimmer Spare Parts

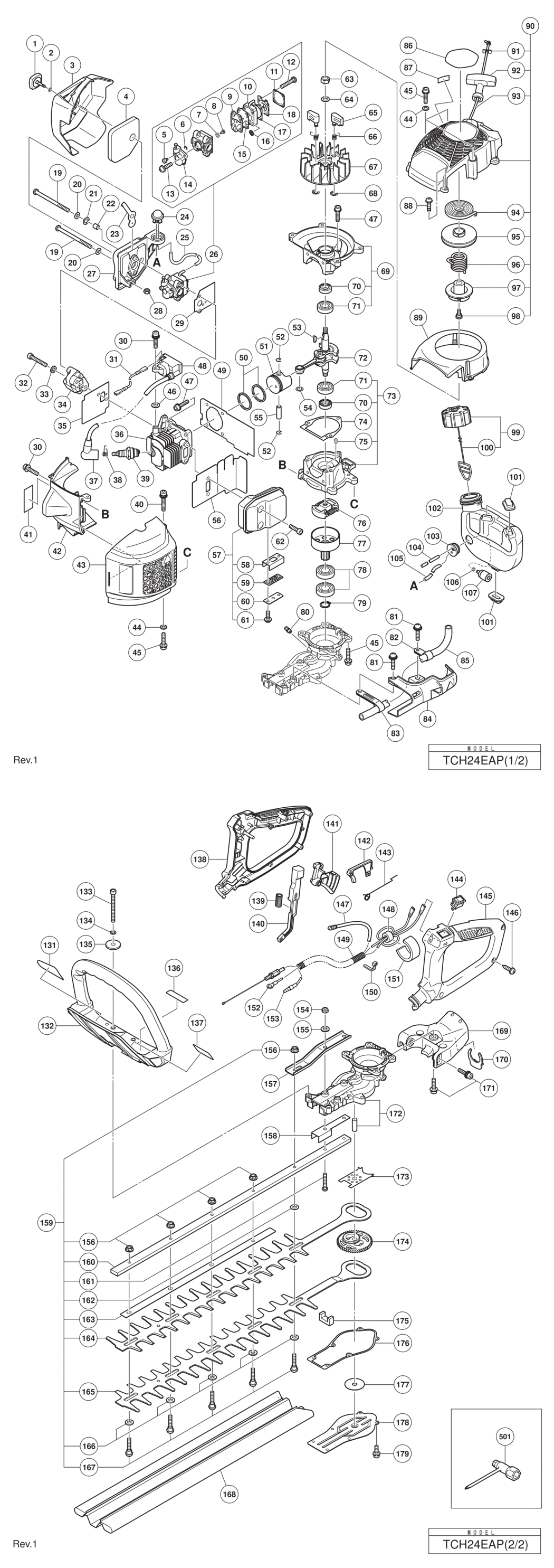

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCH24EAP Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - COVER FIXING BOLT HIT-6684655.A7 6684655	£7.78	£9.34
2 - O-RING (S-4) HIT-981317.A30 981317	£1.67	£2.00
3 - AIR CLEANER COVER HIT-6601540.A1 6601540	-
4 - AIR CLEANER ELEMENT HIT-6601539.A7 6601539	-
5 - SWIVEL HIT-6684697.A10 6684697	-
6 - STOP RING HIT-6684696.A209 6684696	-
7 - O-RING HIT-6684695.A8 6684695	£1.67	£2.00
8 - MAIN JET HIT-000000.A4571 000000	-
9 - PUMP GASKET HIT-6684692.A6 6684692	£17.28	£20.73
10 - PUMP BODY HIT-000000.A4572 000000	-
11 - DIAPHRAGM COVER-METERING HIT-6685222.A84 6685222	£5.70	£6.84
12 - SET SCREW HIT-6691312.A49 6691312	-
13 - THROTTLE SET SCREW HIT-6684698.A65 6684698	-
14 - THROTTLE VALVE HIT-000000.A4573 000000	-
15 - PUMP DIAPHRAGM HIT-6684693.A196 6684693	£5.70	£6.84
16 - INLET SCREEN HIT-6684700.A234 6684700	-
17 - DIAPHRAGM PACKING-METERING HIT-6685220.A94 6685220	£2.81	£3.37
18 - METERING DIAPHRAGM HIT-6684690.A7 6684690	£24.05	£28.86
19 - SCREW M5X55 HIT-6694914.A26 6694914	-
20 - BOLT WASHER D5 HIT-6685407.A24 6685407	-
21 - WAVE WASHER 8 HIT-334242.A29 334242	-
22 - COLLAR M5 HIT-6601538.A1 6601538	-
23 - CHOKE VALVE HIT-6601537.A7 6601537	-
24 - PRIMING PUMP COMP. HIT-6685139.A31 6685139	£10.67	£12.80
25 - FUEL PIPE HIT-6601607.A1 6601607	-
26 - CARBURETOR ASS'Y (WYL-367) INCLUD.5-18 HIT-6601535.A7 6601535	-
27 - AIR CLEANER BASE HIT-6601536.A1 6601536	-
28 - LOCK NUT M6 (10 PCS.) HIT-949567.A7 949567	£1.67	£2.00
29 - CARBURETOR PACKING HIT-6698405.A19 6698405	£3.12	£3.74
30 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A67 6698388	£1.67	£2.00
31 - CORD HIT-6696544.A12 6696544	-
32 - SEAL LOCK HEX. SOCKET HD. BOLT M6X27 HIT-6601358.A21 6601358	-
33 - SPRING WASHER D6 HIT-6600910.A20 6600910	-
34 - CARBURETOR INSULATOR HIT-6601491.A13 6601491	-
35 - INTAKE PACKING HIT-6601534.A0 6601534	-
36 - CYLINDER N24 HIT-6600902.A9 6600902	-
37 - PLUG CAP HIT-6601421.A45 6601421	£1.67	£2.00
38 - PLUG CAP METAL HIT-6699186.A11 6699186	£1.67	£2.00
39 - IGNITION PLUG (TORCH L7RTC) HIT-6600542.A7 6600542	-
40 - HEX. SOCKET HD. BOLT (W/WASHERS) M5 HIT-6600372.A20 6600372	-
41 - EMISSION LABEL (EU) HIT-000000.A4574 000000	-
41 - CAUTION LABEL (USA) HIT-000000.A4575 000000	-
42 - CYLINDER COVER HIT-6601541.A7 6601541	-
43 - MUFFLER COVER HIT-6601544.A0 6601544	-
44 - WASHER 5 HIT-6685408.A22 6685408	£3.49	£4.19
45 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A62 6698386	-
46 - GLASS WASHER HIT-6698700.A18 6698700	£1.67	£2.00
47 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X22 HIT-6601339.A21 6601339	-
48 - IGNITION COIL HIT-6601612.A7 6601612	-
49 - CYLINDER PACKING HIT-6601527.A1 6601527	-
50 - PISTON RING HIT-6698404.A23 6698404	£7.03	£8.44
51 - PISTON N24 HIT-6601429.A2 6601429	-
52 - CIR CLIP HIT-6684590.A0 6684590	£1.67	£2.00
53 - WOODRUFF KEY 3X13X4.5 HIT-6601343.A22 6601343	-
54 - SHIM HIT-6600909.A5 6600909	-
55 - PISTON PIN HIT-6601344.A5 6601344	-
56 - HEAT PROTECTION PANEL HIT-6601531.A1 6601531	-
57 - MUFFLER ASS'Y INCLUD.58-61 HIT-6601529.A0 6601529	-
58 - EXHAUST PIPE PACKING HIT-6601606.A6 6601606	-
59 - SPARK ARRESTER HIT-6601605.A2 6601605	-
60 - EXHAUST PIPE HIT-6601604.A6 6601604	-
61 - MACHINE SCREW (W/SP. WASHER) M4X12 HIT-6685068.A34 6685068	-
62 - SEAL LOCK HEX. SOCKET HD. BOLT M6X16 HIT-6600518.A20 6600518	-
63 - FLYWHEEL NUT M7 HIT-6696879.A24 6696879	-
64 - BOLT WASHER D7 HIT-6696880.A2 6696880	-
65 - STARTER PAWL HIT-6685334.A24 6685334	£2.84	£3.41
66 - STARTER PAWL SPRING HIT-6685335.A10 6685335	£2.84	£3.41
67 - MAGNETO ROTOR COMP. HIT-6600053.A12 6600053	-
68 - RETAINING RING D4 HIT-6685336.A25 6685336	£3.49	£4.19
69 - CRANK CASE (F) ASS'Y INCLUD.70 HIT-6601602.A7 6601602	-
70 - OIL SEAL TB 12227 HIT-6684607.A42 6684607	£4.07	£4.88
71 - BALL BEARING 6001 C3 HIT-6684608.A155 6684608	£5.70	£6.84
72 - CRANK SHAFT HIT-6601528.A7 6601528	-
73 - CRANK CASE (G) ASS'Y INCLUD.70 HIT-6601603.A1 6601603	-
74 - CRANK CASE PACKING HIT-6600514.A6 6600514	-
75 - KNOCK PIN 4X12 HIT-6696947.A21 6696947	-
76 - CLUTCH (B) HIT-6699173.A17 6699173	£11.61	£13.93
77 - CLUTCH DRUM HIT-6601548.A0 6601548	-
78 - BALL BEARING 6002ZC3 HIT-6698740.A17 6698740	£6.94	£8.33
79 - RETAINING RING FOR D15 SHAFT (10 PCS.) HIT-939544.A37 939544	£3.64	£4.37
80 - GREASE NIPPLE COMP. HIT-6688643.A27 6688643	£1.67	£2.00
81 - MACHINE SCREW (W/WASHERS) M5X20 (BLACK) HIT-995096.A8 995096	£1.67	£2.00
82 - FIXATION PLATE (B) HIT-6699048.A11 6699048	-
83 - FIXATION PLATE (A) HIT-6699047.A2 6699047	-
84 - TAIL PIPE COVER HIT-6601564.A0 6601564	-
85 - TAIL PIPE HIT-6601563.A6 6601563	-
86 - BRAND LABEL HIT-000000.A4576 000000	-
87 - TANK MARK LABEL (50:1) FOR EUROPE HIT-6698921.A23 6698921	-
88 - TAPPING SCREW D4.5X16 HIT-6698878.A8 6698878	£1.67	£2.00
89 - AIR DEFLECTOR HIT-6601543.A8 6601543	-
90 - STARTER ASS'Y INCLUD.91-98 HIT-6601542.A0 6601542	-
91 - PLATE HIT-6685189.A51 6685189	-
92 - STARTER HANDLE HIT-6693227.A2 6693227	-
93 - STARTER ROPE HIT-000000.A4577 000000	-
94 - SPIRAL SPRING HIT-000000.A4578 000000	-
95 - REEL HIT-000000.A4579 000000	-
96 - DAMPER SPRING HIT-6685183.A33 6685183	£5.70	£6.84
97 - CAM PLATE HIT-000000.A4580 000000	-
98 - SET SCREW HIT-6684679.A7 6684679	£2.98	£3.57
99 - FUEL TANK CAP ASS'Y INCLUD.100 HIT-6698402.A20 6698402	-
100 - TANK CAP CHAIN HIT-6698732.A61 6698732	-
101 - CUSHION RUBBER HIT-6698615.A1 6698615	£3.56	£4.27
102 - TANK (FT) HIT-6601533.A8 6601533	-
103 - FUEL GROMMET HIT-6600358.A79 6600358	£1.67	£2.00
*104 - FUEL PIPE HIT-6698716.A44 6698716	£5.61	£6.73
*104 - FUEL PIPE L180 FOR USA HIT-6698932.A8 6698932	-
105 - FUEL PIPE HIT-6601399.A3 6601399	£3.02	£3.63
106 - CLIP HIT-6696949.A31 6696949	£1.67	£2.00
107 - PUMP FILTER HIT-6600351.A84 6600351	£4.45	£5.34
131 - NAME PLATE HIT-000000.A4581 000000	-
132 - HANDLE HIT-6699079.A17 6699079	£8.55	£10.26
133 - SEAL LOCK HEX. SOCKET HD. BOLT M5X40 HIT-6698885.A2 6698885	£2.84	£3.41
134 - SPRING WASHER M5 HIT-6698884.A17 6698884	-
135 - BRAKE AXIS WASHER HIT-6698749.A14 6698749	-
136 - AIR INDEX LABEL (E) HIT-000000.A4582 000000	-
137 - CAUTION LABEL HIT-000000.A4584 000000	-
138 - REAR HANDLE (A) HIT-6601545.A8 6601545	-
139 - SPRING (A) HIT-6696348.A4 6696348	-
140 - LOCK BUTTON HIT-6601546.A0 6601546	-
141 - THROTTLE LEVER HIT-6699053.A4 6699053	-
142 - TRIGGER LOCKOUT HIT-6696344.A4 6696344	£2.84	£3.41
143 - THROTTLE LEVER SPRING HIT-6696345.A28 6696345	£2.84	£3.41
144 - STOP SWITCH HIT-6601275.A84 6601275	£1.67	£2.00
145 - REAR HANDLE (B) HIT-6601547.A8 6601547	-
146 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A129 305812	£1.67	£2.00
147 - THROTTLE WIRE HIT-6601613.A0 6601613	-
148 - FERRITE CORE HIT-334379.A33 334379	-
149 - PROTECTION TUBE HIT-6698738.A3 6698738	£1.67	£2.00
150 - BAND HIT-6698943.A29 6698943	-
151 - SUPPORT (D) HIT-6601617.A7 6601617	-
152 - STOP SWITCH CORD (B) HIT-6699059.A3 6699059	-
153 - STOP SWITCH CORD HIT-6696491.A28 6696491	-
154 - NYLON NUT M5 HIT-305491.A10 305491	-
155 - SMALL WASHER 5 HIT-6684864.A62 6684864	-
156 - U-NUT M5 HIT-6699108.A8 6699108	£2.94	£3.53
157 - SUPPORT PLATE HIT-6601558.A3 6601558	-
158 - GUIDE PLATE (EA) HIT-6601615.A3 6601615	-
159 - BLADE ASS'Y (500MM) INCLUD.156 HIT-6601553.A3 6601553	-
160 - BLADE GUIDE HIT-6600009.A7 6600009	£13.28	£15.93
161 - HEX. SOCKET HD. BOLT (W/BUTTON) M5X25 HIT-6699110.A0 6699110	£2.75	£3.30
162 - WASHER (B) HIT-6699112.A8 6699112	£1.67	£2.00
163 - BLADE LINER HIT-6600359.A0 6600359	-
164 - HEDGE TRIMMER BLADE (A) HIT-6600010.A0 6600010	£25.61	£30.73
165 - HEDGE TRIMMER BLADE (B) HIT-6600011.A7 6600011	£25.76	£30.91
166 - WASHER M7 HIT-6699111.A12 6699111	£1.67	£2.00
167 - SHOULDER BUTTON BOLT M5X25 HIT-000000.A4585 000000	-
168 - BLADE CASE (A) HIT-6698731.A0 6698731	-
169 - HANDLE BRACKET HIT-6601565.A6 6601565	-
170 - CLIP HIT-6696359.A32 6696359	£2.84	£3.41
171 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6699044.A19 6699044	-
172 - GEAR CASE (A) HIT-6601608.A3 6601608	-
173 - GUIDE PLATE (C) HIT-6601549.A3 6601549	-
174 - GEAR 2 (EA) HIT-6699038.A1 6699038	-
175 - FELT PACKING (A) HIT-6601559.A0 6601559	-
176 - GEAR CASE PACKING HIT-6601561.A8 6601561	-
177 - WASHER (EA) HIT-6601618.A0 6601618	-
178 - GEAR CASE COVER HIT-6601562.A0 6601562	-
179 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A9 6698385	-
501 - BOX WRENCH 10/19MM HIT-6698756.A3 6698756	-
