Hitachi / Hikoki TCH22EPAP Engine Hedge Trimmer Spare Parts

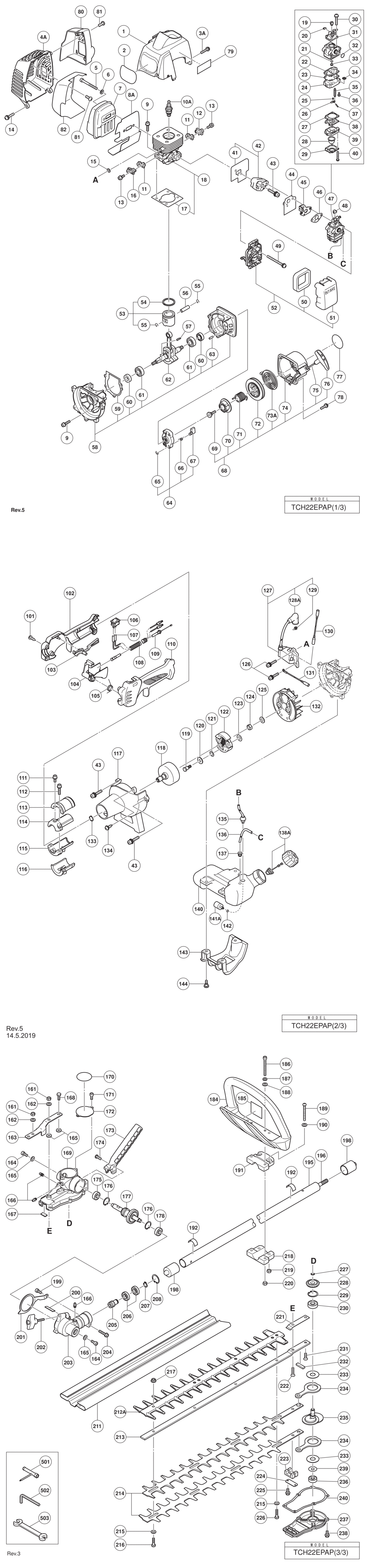

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCH22EPAP Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - CYLINDER COVER HIT-6697680.A2 6697680	-
2 - NAME PLATE (TCG) HIT-6697961.A0 6697961	-
3A - M4 SCREW (BLACK) HIT-6699780.A3 6699780	-
4A - MUFFLER PROTECTOR HIT-6600423.A8 6600423	£14.45	£17.34
5 - HEX. HOLE BOLT M6X55 HIT-6684638.A24 6684638	£1.67	£2.00
6 - BOLT WASHER 6 HIT-6684639.A66 6684639	£1.67	£2.00
7 - MUFFLER HIT-6699935.A0 6699935	-
8A - HEAT PROTECTION PANEL SINCE 11.2013 HIT-6600320.A6 6600320	£1.67	£2.00
9 - HEX. HOLE BOLT 5X20S HIT-6695491.A19 6695491	£1.67	£2.00
10A - SPARK PLUG ASS'Y BMR7A HIT-6699316.A8 6699316	£12.43	£14.92
11 - INTAKE COVER PACKING HIT-6696922.A1 6696922	-
12 - INTAKE COVER (A) HIT-6696535.A12 6696535	£1.67	£2.00
13 - HEX. HOLE BOLT 4X12WS HIT-6695507.A6 6695507	-
14 - SCREW 5X16/PS HIT-6695386.A22 6695386	£1.67	£2.00
15 - WASHER T1.6 HIT-6684600.A22 6684600	-
16 - INTAKE COVER (B) HIT-6696536.A10 6696536	-
17 - CYLINDER PACKING HIT-6696920.A1 6696920	-
18 - CYLINDER SET PN INCLUD.17 HIT-6697962.A0 6697962	-
19 - SWIVEL HIT-6684697.A87 6684697	-
20 - STOP RING HIT-6684696.A98 6684696	-
21 - O-RING HIT-6684695.A107 6684695	£1.67	£2.00
22 - PUMP GASKET HIT-6684692.A63 6684692	£17.28	£20.73
23 - PUMP DIAPHRAGM HIT-6684693.A90 6684693	£5.70	£6.84
24 - PUMP BODY HIT-6699942.A8 6699942	-
25 - METERING LEVER SPRING HIT-6696323.A1 6696323	-
26 - CONTROL LEVER HIT-6685217.A66 6685217	-
27 - DIAPHRAGM GASKET HIT-6684691.A39 6684691	£5.70	£6.84
28 - PRIMING BODY HIT-6684689.A40 6684689	£5.87	£7.04
29 - DIAPHRAGM COVER HIT-6684688.A60 6684688	£5.70	£6.84
30 - THROTTLE SET SCREW HIT-6684698.A30 6684698	-
31 - THROTTLE VALVE HIT-6684883.A10 6684883	£32.24	£38.69
32 - O-RING P-15 HIT-6695670.A2 6695670	-
33 - MAIN JET #32 HIT-6699943.A2 6699943	-
34 - INLET SCREEN HIT-6684700.A116 6684700	-
35 - NEEDLE VALVE HIT-6685215.A97 6685215	£6.79	£8.15
36 - HINGE PIN SET SCREW HIT-6691305.A9 6691305	-
37 - HINGE PIN HIT-6685219.A91 6685219	-
38 - METERING DIAPHRAGM HIT-6684690.A65 6684690	£24.05	£28.86
39 - PRIMING PUMP COMP. HIT-6684687.A0 6684687	£9.27	£11.12
40 - SET SCREW HIT-6684699.A95 6684699	-
41 - INTAKE PACKING HIT-6696933.A1 6696933	-
42 - CARBURETOR INSULATOR SET PN INCLUD.41 HIT-6699016.A1 6699016	-
43 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A5 6698844	£1.67	£2.00
44 - CARBURETOR PACKING HIT-6684616.A35 6684616	£1.67	£2.00
45 - THROTTLE WIRE FIXING PLATE HIT-6684629.A2 6684629	-
46 - CARBURETOR GASKET HIT-6684615.A12 6684615	£1.67	£2.00
47 - CARBURETOR ASS'Y INCLUD.19-40 HIT-6698960.A2 6698960	£47.62	£57.14
48 - SWIVEL CAP HIT-6691337.A25 6691337	£1.67	£2.00
49 - PLUS SCREW 5X60WS HIT-6695431.A19 6695431	-
50 - CLEANER ELEMENT HIT-6690347.A37 6690347	£7.15	£8.58
51 - AIR CLEANER CAP HIT-6690139.A2 6690139	£7.15	£8.58
52 - AIR FILTER ASS'Y INCLUD.50 HIT-6698961.A8 6698961	£8.46	£10.15
53 - PISTON SET INCLUD.54 HIT-6697682.A1 6697682	-
54 - PISTON RING HIT-6686118.A13 6686118	£6.94	£8.33
55 - CIR CLIP HIT-6684590.A112 6684590	£1.67	£2.00
56 - PISTON PIN HIT-6696944.A20 6696944	£5.61	£6.73
57 - WOODRUFF KEY 3X13X4.5 HIT-6684899.A20 6684899	-
58 - CRANK CASE ASS'Y INCLUD.59-61 HIT-6697686.A1 6697686	-
59 - CRANK CASE PACKING HIT-6696925.A1 6696925	-
60 - OIL SEAL TB 12227 HIT-6684607.A116 6684607	£4.07	£4.88
61 - BALL BEARING 6001 C3 HIT-6684608.A84 6684608	£5.70	£6.84
62 - CRANK SHAFT COMP. HIT-6699017.A1 6699017	-
63 - KNOCK PIN 4X12 HIT-6695521.A12 6695521	-
64 - STARTER PULLEY ASS'Y INCLUD.65-67 HIT-6684681.A105 6684681	£18.16	£21.79
65 - D4E RETAINING RING HIT-6685101.A109 6685101	-
66 - STARTER PAWL SPRING HIT-6684684.A6 6684684	£3.29	£3.95
67 - STARTER PAWL HIT-6684685.A100 6684685	£5.07	£6.08
69 - SET SCREW HIT-6684679.A150 6684679	£2.98	£3.57
70 - CAM PLATE HIT-6684678.A0 6684678	£5.17	£6.20
71 - DAMPER SPRING HIT-6684677.A107 6684677	£6.66	£7.99
73A - RECOIL SPRING HIT-6684675.A14 6684675	£8.82	£10.58
74 - RECOIL STARTER BODY COMP. HIT-6684673.A1 6684673	£12.98	£15.58
76 - STARTER HANDLE HIT-6684680.A8 6684680	£5.87	£7.04
77 - NAME PLATE (TCH 22EPAP) HIT-000000.A2645 000000	-
78 - SCREW 4X16/PS HIT-6695374.A2 6695374	£1.67	£2.00
79 - CAUTION PLATE (USA) HIT-000000.A2646 000000	-
80 - MUFFLER REAR COVER SINCE 11.2013 HIT-6600339.A5 6600339	£8.11	£9.73
81 - TAPPING SCREW D4X10 SINCE 11.2013 HIT-6600325.A3 6600325	-
82 - MUFFER HEAT COVER SINCE 11.2013 HIT-6600340.A1 6600340	£8.42	£10.11
101 - TAPPING SCREW D4 HIT-6697190.A3 6697190	£1.67	£2.00
102 - HANDLE (B) HIT-6696487.A2 6696487	£5.88	£7.06
103 - LOCK LEVER HIT-6696490.A44 6696490	£2.84	£3.41
104 - LEVER HIT-6696488.A38 6696488	£1.67	£2.00
105 - SPRING (A) HIT-6698819.A6 6698819	£1.67	£2.00
106 - STOP SWITCH HIT-6685239.A12 6685239	£6.88	£8.25
107 - STOP SWITCH CORD HIT-6698820.A4 6698820	£4.28	£5.13
108 - PROTECTION TUBE HIT-6698822.A4 6698822	£1.67	£2.00
109 - THROTTLE WIRE HIT-6698821.A6 6698821	£6.42	£7.70
110 - HANDLE (A) HIT-6696486.A32 6696486	£5.88	£7.06
111 - HEX.HOLE BOLT M5X12/S HIT-6684667.A2 6684667	£1.67	£2.00
112 - HEX. HOLE BOLT M5X25/S HIT-6684709.A196 6684709	£1.67	£2.00
113 - ANTI-VIBE RUBBER (A) HIT-6684666.A8 6684666	£3.58	£4.29
114 - PIPE HOLDER (A) HIT-6698643.A7 6698643	£3.56	£4.27
115 - PIPE HOLDER (B) HIT-6698644.A40 6698644	£3.56	£4.27
116 - ANTI-VIBE RUBBER (B) HIT-6684665.A2 6684665	£3.58	£4.29
118 - CLUTCH DRUM COMP. HIT-6684663.A2 6684663	£22.38	£26.85
119 - STEP BOLT HIT-6689627.A8 6689627	£1.67	£2.00
120 - BENT WASHER 8 HIT-6684648.A85 6684648	£1.67	£2.00
121 - CLUTCH PLATE (A) HIT-6689528.A12 6689528	£1.67	£2.00
122 - CLUTCH SET HIT-6697655.A6 6697655	£9.68	£11.62
123 - CLUTCH WASHER B HIT-6697619.A29 6697619	£1.67	£2.00
124 - HEX. NUT M8 HIT-6684612.A84 6684612	-
125 - BOLT WASHER M8 HIT-6684611.A41 6684611	-
126 - HEX. HOLE BOLT 4X18WS HIT-6695508.A62 6695508	£1.67	£2.00
127 - IGNITION COIL ASS'Y INCLUD.128A HIT-6699286.A0 6699286	-
128A - PLUG CAP HIT-6601421.A29 6601421	£1.67	£2.00
129 - METAL FITTING OF PLUG CAP HIT-6699933.A4 6699933	-
130 - CORD HIT-6698992.A4 6698992	-
131 - CORD HIT-6697690.A4 6697690	-
132 - MAGNETO ROTOR HIT-6699289.A10 6699289	£24.52	£29.43
133 - STOP RING C-12 OUTER HIT-6684664.A46 6684664	-
134 - TAPPING SCREW D4.5X16 HIT-6684636.A35 6684636	£1.67	£2.00
135 - SHIELD TUBE SET HIT-6698970.A6 6698970	-
136 - FUEL PIPE 3X5X95 HIT-6692358.A1 6692358	-
137 - RETURN GROMMET HIT-6697846.A138 6697846	£2.08	£2.50
138A - FUEL TANK CAP ASS'Y INCLUD.TANK CAP CHAIN HIT-6698402.A90 6698402	-
139 - TANK CAP CHAIN HIT-6684625.A27 6684625	-
140 - TANK HIT-6696552.A1 6696552	-
141A - PUMP FILTER BODY COMP HIT-66A3864.A71 66A3864	-
142 - CLIP 1 HIT-6684619.A10 6684619	£1.67	£2.00
143 - STAND HIT-6696556.A9 6696556	-
144 - FLANGE BOLT HIT-6696557.A1 6696557	£1.67	£2.00
161 - LOCK NUT 6 UPS-P HIT-6695175.A6 6695175	£1.67	£2.00
162 - BOLT WASHER 6 HIT-6684639.A43 6684639	£1.67	£2.00
163 - SUPPORT PLATE HIT-6690744.A2 6690744	£17.82	£21.39
164 - HEX. HOLE BOLT 6X12 HIT-6695078.A3 6695078	£1.67	£2.00
165 - SPECIAL WASHER B HIT-6684822.A49 6684822	£1.67	£2.00
166 - GREASE NIPPLE COMP. HIT-6688643.A69 6688643	£1.67	£2.00
167 - GREASE STOP (B) HIT-6686659.A7 6686659	£1.67	£2.00
168 - PLUS BOLT 6X14 HIT-6695016.A9 6695016	-
170 - CAUTION MARK A TANAKA HIT-6694538.A3 6694538	-
171 - HEX HOLE BOLT 4X8 HIT-6695035.A15 6695035	-
172 - GEAR CASE COVER (A) HIT-6689167.A16 6689167	-
173 - HANDLE HIT-6688089.A10 6688089	£7.75	£9.30
174 - HEX HOLE BUTTON SCREW 6X15 HIT-6695079.A17 6695079	£1.67	£2.00
175 - BALL BEARING 608DD HIT-608DDM.A63 608DDM	£6.35	£7.62
176 - RETAINING RING C-TYPE D22 HIT-6695293.A0 6695293	£1.67	£2.00
177 - GEAR SHAFT HIT-6698957.A6 6698957	£53.49	£64.19
178 - BALL BEARING 608VV HIT-333945.A8 333945	-
184 - FRONT HANDLE HIT-6688096.A0 6688096	£16.62	£19.94
186 - HEX. HOLE BOLT 5X55 HIT-6695056.A6 6695056	-
187 - SPRING WASHER 5 HIT-6684834.A51 6684834	£1.67	£2.00
188 - WASHER M5 (BLACK) HIT-6684918.A83 6684918	£1.67	£2.00
189 - HEX. HOLE BUTTON BOLT M6X25 HIT-6684714.A71 6684714	£1.67	£2.00
190 - WASHER 6 HIT-6695194.A0 6695194	-
191 - BRACKET A HIT-6688103.A0 6688103	-
192 - LEVEL MARK HIT-6684851.A7 6684851	-
*195 - MAIN PIPE L=945 FOR (S) HIT-6699930.A1 6699930	-
*195 - MAIN PIPE L=600 FOR (SM) HIT-6699931.A1 6699931	-
*196 - DRIVE SHAFT 978L FOR (S) HIT-6689440.A2 6689440	£50.06	£60.07
*196 - DRIVE SHAFT 633L FOR (SM) HIT-6689439.A2 6689439	-
198 - CAP (A) HIT-6698515.A34 6698515	-
199 - HEX. HOLE BOLT 5X10 HIT-6695042.A7 6695042	£1.67	£2.00
200 - GREASE STOP (D) HIT-6686669.A9 6686669	£1.67	£2.00
201 - ANGLE LIMITER HIT-6688159.A0 6688159	-
202 - HANDLE KNOB A COMP. HIT-6691200.A16 6691200	£12.10	£14.52
203 - GEAR CASE A 1 HIT-6688653.A1 6688653	£38.36	£46.03
204 - HEX. HOLE BOLT M5X25/S HIT-6684709.A197 6684709	£1.67	£2.00
205 - PINION HIT-6698958.A0 6698958	£16.85	£20.22
207 - STOP RING S-12 1 HIT-6695302.A8 6695302	£1.67	£2.00
208 - STOP RING C-24 1 HIT-6684732.A41 6684732	£1.67	£2.00
211 - CUTTER COVER HIT-6687301.A18 6687301	-
212A - PROTECTION PLATE HIT-6601208.A3 6601208	-
213 - CUTTER GUIDE 625.5MM HIT-6687125.A8 6687125	£37.68	£45.21
214 - CUTTER (A) HIT-6687079.A16 6687079	£46.75	£56.10
215 - WASHER 7 BLACK HIT-6687187.A43 6687187	£1.67	£2.00
216 - CUTTER FIXING BOLT B HIT-6687162.A9 6687162	£1.67	£2.00
217 - FLANGE NUT 6 HIT-6695170.A36 6695170	£1.67	£2.00
218 - BRACKET B HIT-6688104.A6 6688104	-
219 - HEX.NUT 6 HIT-6684835.A7 6684835	£1.67	£2.00
220 - NUT M5 (BLACK) HIT-6685075.A19 6685075	-
221 - SPACER HIT-6688633.A0 6688633	-
222 - HEX. HOLE FLUSH BOLT 6X25 HIT-6695075.A6 6695075	£1.67	£2.00
223 - GREASE STOP (A) HIT-6686647.A3 6686647	£1.67	£2.00
224 - CAM ROD PLATE HIT-6686826.A1 6686826	£1.67	£2.00
225 - HEX. HOLE BOLT 4X10S HIT-6695484.A18 6695484	£1.67	£2.00
226 - FIXING BOLT A M6 HIT-6687158.A27 6687158	£1.67	£2.00
227 - RETAINING RING E-TYPE D6 HIT-6695310.A11 6695310	£1.67	£2.00
228 - GEAR 2 HIT-6698959.A6 6698959	£28.02	£33.63
229 - RETAINING RING C-TYPE D26 HIT-6695294.A43 6695294	-
230 - BALL BEARING #6000ZZ 1 HIT-6695525.A1 6695525	-
231 - HEX HOLE FLUSH SCREW 6X16 HIT-6695073.A0 6695073	£1.67	£2.00
232 - GREASE STOP (C) HIT-6686666.A10 6686666	-
233 - CAM-ROD GUIDE PLATE HIT-6686611.A8 6686611	£2.98	£3.57
234 - CAM ROD (A) HIT-000000.A2647 000000	-
235 - CAM SHAFT COMP. HIT-6686790.A16 6686790	£62.78	£75.33
236 - BALL BEARING 608ZZC3 HIT-6698772.A35 6698772	£2.84	£3.41
237 - GEAR CASE COVER (B) HIT-6699737.A0 6699737	-
238 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 HIT-6684595.A44 6684595	£1.67	£2.00
239 - SPECIAL WASHER HIT-6699934.A2 6699934	-
240 - GEAR CASE PACKING HIT-6699733.A6 6699733	£1.67	£2.00
501 - COMBI. BOX SPANNER 10X19 1 HIT-6685997.A28 6685997	-
502 - HEX. BAR WRENCH 4MM HIT-6684813.A16 6684813	-
503 - WRENCH 8X10 HIT-6684766.A24 6684766	-
601 - REPAIR KIT (A-1) TILL 10.2013 HIT-6600043.A5 6600043	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki TCH22EPAP Engine Hedge Trimmer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
