Hitachi / Hikoki TCH22EC2 Engine Hedge Trimmer Spare Parts

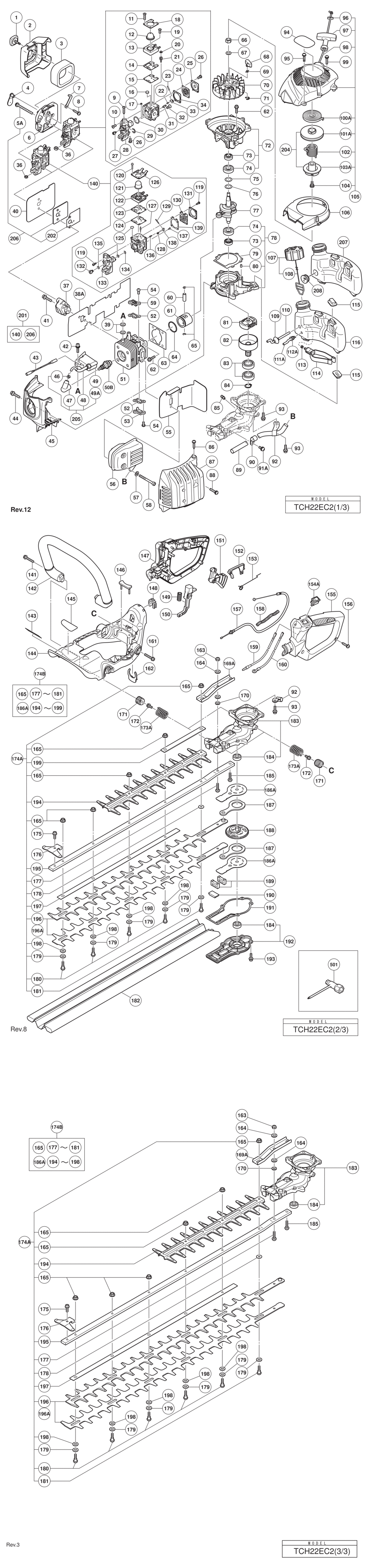

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCH22EC2 Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - COVER FIXING BOLT COMP. HIT-6698730.A28 6698730	£5.52	£6.63
2 - CLEANER COVER HIT-6698609.A9 6698609	-
3 - CLEANER SPONGE HIT-6690365.A34 6690365	£1.67	£2.00
4 - CHOKE VALVE HIT-6698608.A1 6698608	£1.67	£2.00
5A - MACHINE SCREW (W/WASHERS) M5X65 (BLACK) HIT-312440.A3 312440	£1.67	£2.00
6 - CLEANER BODY HIT-6698606.A1 6698606	£3.73	£4.48
7 - CHOKE HANDLE HIT-6698607.A10 6698607	£1.67	£2.00
8 - NO LONGER AVAILABLE HIT-309470.A0 309470	-
9 - THROTTLE ADJUST SCREW (TAS) TILL 7.2016 HIT-6699087.A18 6699087	-
10 - SET SCREW (B) TILL 7.2016 HIT-6699088.A0 6699088	-
11 - SET SCREW (D) TILL 7.2016 HIT-6699100.A0 6699100	-
12 - SYRINGE TILL 7.2016 HIT-6699098.A0 6699098	£6.86	£8.23
13 - PRIMER BASE TILL 7.2016 HIT-6699097.A18 6699097	£39.92	£47.91
14 - PUMP GASKET TILL 7.2016 HIT-6699096.A0 6699096	£7.12	£8.54
15 - PUMP DIAPHRAGM TILL 7.2016 HIT-6699095.A18 6699095	£10.02	£12.02
16 - STRAINER TILL 7.2016 HIT-6699080.A0 6699080	-
17 - GUIDE PIN ROLLER TILL 7.2016 HIT-6699103.A18 6699103	-
18 - SYRINGE RETAINER TILL 7.2016 HIT-6699099.A16 6699099	-
19 - SET SCREW (E) TILL 7.2016 HIT-6699101.A16 6699101	-
20 - BALL PLUG RETAINER TILL 7.2016 HIT-6699104.A0 6699104	-
21 - ADJUSTING SCREW (MAIN MIXTURE) TILL 7.2016 HIT-6699105.A18 6699105	-
22 - METERING LEVER SPRING TILL 7.2016 HIT-6699083.A16 6699083	-
23 - PIN TILL 7.2016 HIT-6699082.A2 6699082	£1.67	£2.00
24 - METERING DIAPHRAGM TILL 7.2016 HIT-6699091.A16 6699091	£13.60	£16.32
25 - METERING COVER TILL 7.2016 HIT-6699093.A16 6699093	-
26 - SET SCREW (C) TILL 7.2016 HIT-6699094.A2 6699094	-
27 - POST TILL 7.2016 HIT-6699089.A16 6699089	-
28 - ROTOR COVER TILL 7.2016 HIT-6699086.A2 6699086	-
29 - RETAINING RING (E-TYPE) FOR D2.5 SHAFT TILL 7.2016 HIT-6699090.A2 6699090	-
30 - O-RING TILL 7.2016 HIT-6699102.A2 6699102	-
31 - INLET NEEDLE VALVE TILL 7.2016 HIT-6699081.A20 6699081	£10.93	£13.12
32 - SET SCREW (A) TILL 7.2016 HIT-6699085.A16 6699085	-
33 - METERING LEVER TILL 7.2016 HIT-6699084.A2 6699084	£1.67	£2.00
34 - METERING GASKET TILL 7.2016 HIT-6699092.A2 6699092	£7.12	£8.54
36 - LOCK NUT M6 (10 PCS.) HIT-949567.A1 949567	£1.67	£2.00
37 - CARBURETOR INSULATOR HIT-6698387.A24 6698387	£4.72	£5.66
38A - INTAKE PAKING (A) HIT-6600456.A1 6600456	£2.77	£3.32
39 - GLASS WASHER HIT-6698700.A36 6698700	£1.67	£2.00
40 - CARBURETOR PACKING HIT-6698816.A10 6698816	£2.84	£3.41
41 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A38 6698844	£1.67	£2.00
42 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A50 6698388	£1.67	£2.00
43 - CORD HIT-6699060.A9 6699060	-
44 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-6698879.A11 6698879	-
45 - CYLINDER COVER HIT-6698871.A10 6698871	-
46 - METAL OF PLUG CAP (60) (B) HIT-6699180.A1 6699180	-
47 - PLUG CAP HIT-6698548.A1 6698548	-
48 - CORD INSULATION TUBE L60 HIT-6699175.A12 6699175	-
49A - IGNITION COIL HIT-6600890.A8 6600890	£40.12	£48.15
50B - SPARK PLUG ASS'Y BMR7A HIT-6699316.A52 6699316	£12.43	£14.92
51 - CYLINDER HIT-6698597.A10 6698597	£39.62	£47.54
52 - COVER PACKING HIT-6696534.A16 6696534	£1.67	£2.00
53 - INTAKE COVER (A) HIT-6696535.A4 6696535	£1.67	£2.00
54 - SEAL LOCK SCREW M4X10 HIT-6696835.A1 6696835	-
55 - HEAT PROTECTION PANEL HIT-6698617.A10 6698617	-
56 - MUFFLER HIT-6698632.A1 6698632	-
57 - BOLT WASHER M6 (10 PCS.) HIT-949432.A60 949432	£1.67	£2.00
58 - HEX. SOCKET HD. BOLT M6X55 HIT-6696819.A16 6696819	-
59 - INTAKE COVER (B) HIT-6696536.A18 6696536	-
60 - PISTON PIN HIT-6696944.A48 6696944	£5.61	£6.73
61 - PISTON HIT-6696531.A5 6696531	£10.77	£12.92
62 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A44 6698386	-
63 - CYLINDER PACKING HIT-6696530.A14 6696530	£1.67	£2.00
64 - PISTON RING HIT-6696532.A14 6696532	£3.56	£4.27
65 - CIR CLIP HIT-6684590.A44 6684590	£1.67	£2.00
66 - FLYWHEEL NUT M7 HIT-6696879.A21 6696879	-
67 - BOLT WASHER D7 HIT-6696880.A5 6696880	-
68 - STARTER PAWL HIT-6698603.A10 6698603	-
69 - STARTER PAWL SPRING HIT-6685335.A5 6685335	£2.84	£3.41
70 - MAGNETO ROTOR HIT-6698601.A1 6698601	-
71 - RETAINING RING D4 HIT-6685336.A30 6685336	£3.49	£4.19
72 - CRANK CASE (B) ASS'Y INCLUD.73 HIT-6698872.A2 6698872	£23.58	£28.30
73 - OIL SEAL TB 12227 HIT-6684607.A87 6684607	£4.07	£4.88
74 - BALL BEARING 6001 C3 HIT-6684608.A114 6684608	£5.70	£6.84
75 - SHIM T0.2 HIT-6696946.A39 6696946	£1.67	£2.00
76 - SHIM T0.3 HIT-6696945.A0 6696945	£1.67	£2.00
77 - CRANK SHAFT HIT-6699043.A3 6699043	-
78 - CRANK CASE (A) ASS'Y INCLUD.73 HIT-6698729.A1 6698729	-
79 - CRANK CASE PACKING HIT-6696539.A5 6696539	£1.67	£2.00
80 - KNOCK PIN 4X12 HIT-6696947.A0 6696947	-
81 - CLUTCH (B) HIT-6699173.A18 6699173	£11.61	£13.93
82 - CLUTCH DRUM HIT-6699040.A11 6699040	£14.86	£17.83
83 - BALL BEARING 6002ZC3 HIT-6698740.A20 6698740	£6.94	£8.33
84 - RETAINING RING FOR D15 SHAFT (10 PCS.) HIT-939544.A39 939544	£3.64	£4.37
85 - GREASE NIPPLE COMP. HIT-6688643.A14 6688643	£1.67	£2.00
86 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A58 302089	£1.67	£2.00
87 - MUFFLER PROTECTOR HIT-6699174.A1 6699174	-
88 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A4 791045	£2.71	£3.25
89 - TAIL PIPE HIT-6698782.A1 6698782	-
90 - FIXATION PLATE (A) HIT-6698634.A0 6698634	£3.56	£4.27
91A - MACHINE SCREW (W/WASHERS) M4X12 (BLACK) HIT-935196.A12 935196	£1.67	£2.00
92 - FIXATION PLATE (B) HIT-6699073.A3 6699073	-
93 - HEX. HOLE BOLT 6X18/S HIT-6695495.A12 6695495	-
94 - TANAKA LABEL HIT-000000.A4014 000000	-
95 - TAPPING SCREW D4.5X16 HIT-6698878.A2 6698878	£1.67	£2.00
96 - PLATE HIT-6685189.A37 6685189	-
97 - STARTER HANDLE HIT-6693227.A4 6693227	-
98 - ROPE HIT-6693168.A15 6693168	£2.82	£3.39
99 - HEX. SOCKET HD. BOLT (W/BUTTON) M5X20 HIT-6698988.A21 6698988	£1.67	£2.00
100A - RECOIL SPRING HIT-6684675.A86 6684675	£8.82	£10.58
101A - STARTER PULLEY SINCE 1.2015 HIT-6600995.A10 6600995	-
102 - DAMPER SPRING HIT-6685183.A25 6685183	£5.70	£6.84
103A - CAM PLATE SINCE 1.2015 HIT-6600996.A1 6600996	-
104 - SET SCREW HIT-6684679.A69 6684679	£2.98	£3.57
105 - RECOIL STARTER ASS'Y INCLUD.96-98 HIT-6698622.A1 6698622	£36.72	£44.07
106 - AIR DEFLECTOR HIT-6698624.A10 6698624	-
107 - FUEL TANK CAP ASS'Y INCLUD.108 HIT-6698402.A16 6698402	-
108 - TANK CAP CHAIN HIT-6698732.A50 6698732	-
109 - FUEL GROMMET TILL 9.2016 HIT-6688156.A92 6688156	-
110 - FUEL PIPE HIT-6698873.A13 6698873	£8.46	£10.15
111A - FUEL PIPE HIT-6601399.A2 6601399	£3.02	£3.63
112A - RETURN GROMMET TILL 9.2016 HIT-6697846.A37 6697846	£2.08	£2.50
113 - CLIP HIT-6696949.A4 6696949	£1.67	£2.00
114 - PUMP FILTER HIT-6698874.A2 6698874	£15.94	£19.13
115 - CUSHION RUBBER HIT-6698615.A2 6698615	£3.56	£4.27
116 - TANK TILL 9.2016 HIT-6698613.A10 6698613	£5.92	£7.11
119 - SCREW (B) SINCE 8.2016 HIT-6600883.A5 6600883	-
120 - SCREW (C) SINCE 8.2016 HIT-6600884.A13 6600884	-
121 - PRIMER PUMP SINCE 8.2016 HIT-6600889.A5 6600889	-
122 - PUMP BODY SINCE 8.2016 HIT-6600876.A15 6600876	-
123 - PUMP PACKING SINCE 8.2016 HIT-6600879.A2 6600879	-
124 - PUMP DIAPHRAGM SINCE 8.2016 HIT-6600880.A16 6600880	£5.25	£6.30
125 - INLET SCREEN SINCE 8.2016 HIT-6684700.A131 6684700	-
126 - PUMP COVER SINCE 8.2016 HIT-6600877.A2 6600877	-
127 - HIGH SPEED NEEDLE SINCE 8.2016 HIT-6600887.A5 6600887	-
128 - METERING LEVER SPRING SINCE 8.2016 HIT-6600885.A5 6600885	-
129 - HINGE PIN SINCE 8.2016 HIT-6685219.A17 6685219	-
130 - METERING DIAPHRAGM SINCE 8.2016 HIT-6600881.A2 6600881	£22.42	£26.91
131 - DIAPHRAGM COVER-METERING SINCE 8.2016 HIT-6685222.A43 6685222	£5.70	£6.84
132 - SWIVEL SINCE 8.2016 HIT-6684697.A70 6684697	-
133 - THROTTLE VALVE SINCE 8.2016 HIT-6600878.A16 6600878	-
134 - STOP RING SINCE 8.2016 HIT-6684696.A117 6684696	-
135 - WASHER SINCE 8.2016 HIT-6600886.A13 6600886	-
136 - NEEDLE VALVE SINCE 8.2016 HIT-6685215.A19 6685215	£6.79	£8.15
137 - SCREW (A) SINCE 8.2016 HIT-6600882.A18 6600882	-
138 - METERING LEVER SINCE 8.2016 HIT-6600888.A18 6600888	-
139 - DIAPHRAGM PACKING-METERING SINCE 8.2016 HIT-6685220.A95 6685220	£2.81	£3.37
140 - CARBURETOR ASS'Y WYGA-1 INCLUD.119-139 SINCE 8.2016 HIT-6600875.A2 6600875	£45.69	£54.83
141 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X32 HIT-6698814.A5 6698814	-
142 - FRONT HANDLE HIT-6698776.A4 6698776	-
143 - CAUTION LABEL HIT-000000.A4556 000000	-
144 - FRAME HIT-6698777.A1 6698777	-
145 - NAME PLATE HIT-000000.A4555 000000	-
146 - DAMPER HIT-6698778.A4 6698778	-
147 - HANDLE A HIT-6698880.A2 6698880	£12.61	£15.13
148 - FLEXIBLE GROMMET HIT-6698945.A1 6698945	-
149 - SPRING (A) HIT-6696348.A2 6696348	-
150 - LOCK LEVER HIT-6699055.A1 6699055	-
151 - THROTTLE LEVER HIT-6699053.A5 6699053	-
152 - TRIGGER LOCKOUT HIT-6696344.A2 6696344	£2.84	£3.41
153 - THROTTLE LEVER SPRING HIT-6696345.A30 6696345	£2.84	£3.41
154A - STOP SWITCH HIT-6601275.A85 6601275	£1.67	£2.00
155 - HANDLE B HIT-6699051.A2 6699051	£5.78	£6.94
156 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A128 305812	£1.67	£2.00
157 - THROTTLE WIRE HIT-6698627.A8 6698627	£6.94	£8.33
158 - PROTECTION TUBE HIT-6698738.A5 6698738	£1.67	£2.00
159 - STOP SWITCH CORD HIT-6699058.A11 6699058	-
160 - STOP SWITCH CORD (B) HIT-6699059.A0 6699059	-
161 - HEX. SOCKET HD. BOLT (W/FLANGE) M6X22 HIT-6698815.A0 6698815	£1.67	£2.00
162 - CLIP HIT-6696359.A31 6696359	£2.84	£3.41
163 - NYLON NUT M6 HIT-6698766.A16 6698766	-
*164 - BOLT WASHER 6 HIT-6684639.A181 6684639	£1.67	£2.00
*164 - BOLT WASHER 6 FOR 780MM HIT-6684639.A182 6684639	£1.67	£2.00
*165 - U-NUT M5 HIT-6699108.A2 6699108	£2.94	£3.53
*165 - U-NUT M5 FOR 780MM HIT-6699108.A3 6699108	£2.94	£3.53
169A - SUPPORT PLATE HIT-6699064.A7 6699064	-
170 - BOLT WASHER M6 (10 PCS.) FOR 620MM HIT-949432.A87 949432	£1.67	£2.00
171 - SPRING HOLDER HIT-6698779.A1 6698779	-
172 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X10 HIT-6698781.A4 6698781	-
173A - ANTIVIBRATION SPRING REPLACE THE 4 PCS. AT ONCE UNTIL 2.2015 HIT-6600480.A0 6600480	£4.37	£5.24
*174A - BLADE ASS'Y (620MM) INCLUD.165 HIT-6600398.A3 6600398	£81.91	£98.29
*174A - BLADE ASS'Y (780MM) INCLUD.165 HIT-6600410.A7 6600410	£95.87	£115.04
174B - BLADE ASS'Y (620MM) INCLUD.165 HIT-6600451.A7 6600451	£81.79	£98.15
*174B - BLADE ASS'Y (780MM) INCLUD.165 HIT-6600453.A5 6600453	-
175 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X8 HIT-6699065.A0 6699065	£1.67	£2.00
176 - GUARD PLATE HIT-6699062.A0 6699062	£1.67	£2.00
177 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X25 HIT-6699113.A11 6699113	£2.77	£3.32
178 - WASHER (A) HIT-6699114.A4 6699114	£1.67	£2.00
*179 - WASHER M7 HIT-6699111.A13 6699111	£1.67	£2.00
*179 - WASHER M7 FOR 780MM HIT-6699111.A14 6699111	£1.67	£2.00
*180 - SHOULDER BUTTON BOLT M5X25 HIT-6699109.A13 6699109	£2.77	£3.32
*180 - SHOULDER BUTTON BOLT M5X25 FOR 780MM HIT-6699109.A14 6699109	£2.77	£3.32
181 - SHOULDER BUTTON BOLT M5X31 HIT-6699179.A7 6699179	£3.73	£4.48
*182 - BLADE CASE (FOR 620MM) HIT-6698948.A7 6698948	£6.94	£8.33
*182 - BLADE CASE (FOR 780MM) HIT-6698785.A0 6698785	-
183 - GEAR CASE (A) ASS'Y INCLUD.184 HIT-6699074.A0 6699074	£48.90	£58.68
184 - BALL BEARING 608ZZC3 HIT-6698772.A1 6698772	£2.84	£3.41
185 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X25 HIT-6699113.A12 6699113	£2.77	£3.32
186A - GUIDE PLATE (B) HIT-6600418.A5 6600418	£1.67	£2.00
187 - CAM ROD HIT-6698987.A2 6698987	£3.73	£4.48
188 - GEAR 2 HIT-6699066.A7 6699066	£25.03	£30.04
189 - FELT PACKING (B) HIT-6699068.A7 6699068	£1.67	£2.00
190 - FELT PACKING (C) HIT-6699067.A0 6699067	£1.67	£2.00
191 - GEAR CASE PACKING HIT-6699042.A9 6699042	£1.67	£2.00
192 - GEAR CASE (B) ASS'Y INCLUD.184 HIT-6699071.A4 6699071	£16.36	£19.63
193 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X14 HIT-6699069.A0 6699069	£1.67	£2.00
194 - LOWER PLATE HIT-6600013.A8 6600013	£15.52	£18.63
*195 - BLADE GUIDE (620MM) HIT-6600012.A2 6600012	£15.28	£18.33
*195 - BLADE GUIDE (780MM) HIT-6600015.A1 6600015	-
*196 - HEDGE TRIMMER BLADE (C) 620MM SINCE 11.2014 HIT-6600014.A2 6600014	£33.95	£40.74
*196 - HEDGE TRIMMER BLADE (D) 780MM SINCE 11.2014 HIT-6600016.A2 6600016	£32.28	£38.73
196A - HEDGE TRIMMER BLADE (C) 620MM INCLUD.186A TILL 10.2014 HIT-6600452.A2 6600452	£32.28	£38.73
*196A - HEDGE TRIMMER BLADE (D) 780MM INCLUD.186A TILL 10.2014 HIT-6600454.A0 6600454	£32.28	£38.73
*197 - BLADE LINER HIT-6600360.A10 6600360	£7.12	£8.54
*197 - BLADE LINER FOR 780MM HIT-6600361.A2 6600361	-
*198 - WASHER (B) HIT-6699112.A6 6699112	£1.67	£2.00
*198 - WASHER (B) FOR 780MM HIT-6699112.A7 6699112	£1.67	£2.00
199 - BALANCER FOR 620MM HIT-6600362.A3 6600362	£3.48	£4.17
201 - CARBURETOR ASS'Y WYGA-1 (W/HEAT PANEL) INCLUD.140 HIT-6601361.A9 6601361	-
202 - CARBURETOR PACKING HIT-6698405.A21 6698405	£3.12	£3.74
204 - STARTER PULLEY ASS'Y INCLUD.101A HIT-6600997.A9 6600997	-
205 - IGNITION COIL ASS'Y INCLUD.46-49A HIT-6601364.A6 6601364	£26.26	£31.51
206 - CARBURETOR HEAT PANEL ASS'Y INCLUD.5A HIT-6600891.A0 6600891	-
207 - TANK SINCE 10.2016 HIT-6601419.A6 6601419	£9.60	£11.52
208 - FUEL GROMMET SINCE 10.2016 HIT-6600358.A81 6600358	£1.67	£2.00
501 - BOX WRENCH 10/19MM HIT-6698756.A1 6698756	-
601 - BOTTOM COVER SET INCLUD.141 HIT-6600487.A3 6600487	-
602 - BOTTOM COVER (C) ASS'Y INCLUD.604 HIT-6600481.A3 6600481	-
603 - SEALING SPONGE (A) HIT-6600482.A0 6600482	-
604 - SEALING SPONGE (E) HIT-6600483.A3 6600483	-
605 - SEALING SPONGE (F) HIT-6600484.A0 6600484	-
606 - SEALING SPONGE (G) HIT-6600485.A3 6600485	-
607 - HEAT PROTECTION PANEL (B) HIT-6600486.A0 6600486	-
608 - GREASE FOR IMPACT WRENCH (100G) HIT-971042.A6 971042	£16.77	£20.12

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki TCH22EC2 Engine Hedge Trimmer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki TCH22EC2 Engine Hedge Trimmer Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki TCH22EC2 Engine Hedge Trimmer Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
