Hitachi / Hikoki TCH22EB2 Engine Hedge Trimmer Spare Parts

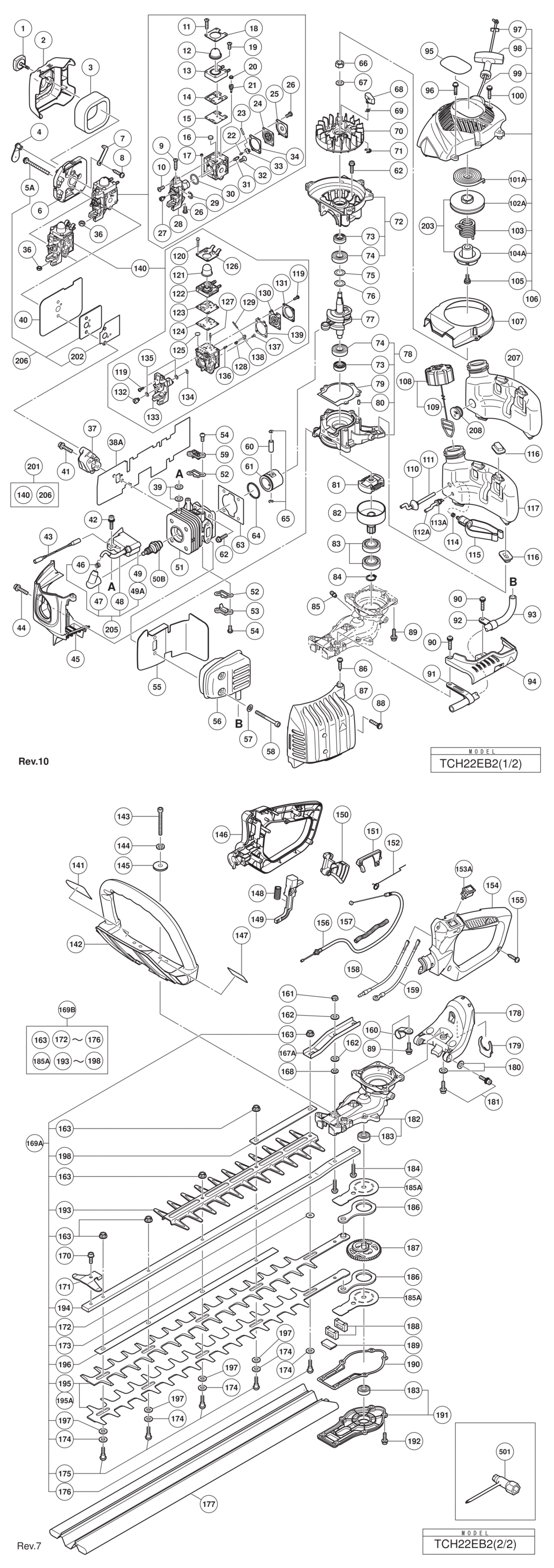

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCH22EB2 Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - COVER FIXING BOLT COMP. HIT-6698730.A29 6698730	£5.52	£6.63
2 - CLEANER COVER HIT-6698609.A8 6698609	£1.67	£2.00
3 - CLEANER SPONGE HIT-6690365.A36 6690365	£1.67	£2.00
4 - CHOKE VALVE HIT-6698608.A2 6698608	£1.67	£2.00
5A - MACHINE SCREW (W/WASHERS) M5X65 (BLACK) HIT-312440.A1 312440	£1.67	£2.00
6 - CLEANER BODY HIT-6698606.A2 6698606	£3.73	£4.48
7 - CHOKE HANDLE HIT-6698607.A9 6698607	£1.67	£2.00
8 - NO LONGER AVAILABLE HIT-309470.A2 309470	-
9 - THROTTLE ADJUST SCREW (TAS) TILL 7.2016 HIT-6699087.A15 6699087	-
10 - SET SCREW (B) TILL 7.2016 HIT-6699088.A3 6699088	-
11 - SET SCREW (D) TILL 7.2016 HIT-6699100.A1 6699100	-
12 - SYRINGE TILL 7.2016 HIT-6699098.A3 6699098	£6.86	£8.23
13 - PRIMER BASE TILL 7.2016 HIT-6699097.A15 6699097	£39.92	£47.91
14 - PUMP GASKET TILL 7.2016 HIT-6699096.A3 6699096	£7.12	£8.54
15 - PUMP DIAPHRAGM TILL 7.2016 HIT-6699095.A15 6699095	£10.02	£12.02
16 - STRAINER TILL 7.2016 HIT-6699080.A3 6699080	-
17 - GUIDE PIN ROLLER TILL 7.2016 HIT-6699103.A15 6699103	-
18 - SYRINGE RETAINER TILL 7.2016 HIT-6699099.A15 6699099	-
19 - SET SCREW (E) TILL 7.2016 HIT-6699101.A15 6699101	-
20 - BALL PLUG RETAINER TILL 7.2016 HIT-6699104.A3 6699104	-
21 - ADJUSTING SCREW (MAIN MIXTURE) TILL 7.2016 HIT-6699105.A15 6699105	-
22 - METERING LEVER SPRING TILL 7.2016 HIT-6699083.A15 6699083	-
23 - PIN TILL 7.2016 HIT-6699082.A3 6699082	£1.67	£2.00
24 - METERING DIAPHRAGM TILL 7.2016 HIT-6699091.A15 6699091	£13.60	£16.32
25 - METERING COVER TILL 7.2016 HIT-6699093.A15 6699093	-
26 - SET SCREW (C) TILL 7.2016 HIT-6699094.A3 6699094	-
27 - POST TILL 7.2016 HIT-6699089.A15 6699089	-
28 - ROTOR COVER TILL 7.2016 HIT-6699086.A3 6699086	-
29 - RETAINING RING (E-TYPE) FOR D2.5 SHAFT TILL 7.2016 HIT-6699090.A3 6699090	-
30 - O-RING TILL 7.2016 HIT-6699102.A3 6699102	-
31 - INLET NEEDLE VALVE TILL 7.2016 HIT-6699081.A19 6699081	£10.93	£13.12
32 - SET SCREW (A) TILL 7.2016 HIT-6699085.A15 6699085	-
33 - METERING LEVER TILL 7.2016 HIT-6699084.A3 6699084	£1.67	£2.00
34 - METERING GASKET TILL 7.2016 HIT-6699092.A3 6699092	£7.12	£8.54
36 - LOCK NUT M6 (10 PCS.) HIT-949567.A3 949567	£1.67	£2.00
37 - CARBURETOR INSULATOR HIT-6698387.A25 6698387	£4.72	£5.66
38A - INTAKE PAKING (A) HIT-6600456.A0 6600456	£2.77	£3.32
39 - GLASS WASHER HIT-6698700.A38 6698700	£1.67	£2.00
40 - CARBURETOR PACKING HIT-6698816.A9 6698816	£2.84	£3.41
41 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A39 6698844	£1.67	£2.00
42 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A49 6698388	£1.67	£2.00
43 - CORD HIT-6699060.A8 6699060	-
44 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-6698879.A9 6698879	-
45 - CYLINDER COVER HIT-6698871.A9 6698871	-
46 - METAL OF PLUG CAP (60) (B) HIT-6699180.A3 6699180	-
47 - PLUG CAP HIT-6698548.A3 6698548	-
48 - CORD INSULATION TUBE L60 HIT-6699175.A10 6699175	-
49A - IGNITION COIL HIT-6600890.A9 6600890	£40.12	£48.15
50B - SPARK PLUG ASS'Y BMR7A HIT-6699316.A51 6699316	£12.43	£14.92
51 - CYLINDER HIT-6698597.A8 6698597	£39.62	£47.54
52 - COVER PACKING HIT-6696534.A14 6696534	£1.67	£2.00
53 - INTAKE COVER (A) HIT-6696535.A6 6696535	£1.67	£2.00
54 - SEAL LOCK SCREW M4X10 HIT-6696835.A3 6696835	-
55 - HEAT PROTECTION PANEL HIT-6698617.A9 6698617	-
56 - MUFFLER HIT-6698734.A3 6698734	-
57 - BOLT WASHER M6 (10 PCS.) HIT-949432.A56 949432	£1.67	£2.00
58 - HEX. SOCKET HD. BOLT M6X55 HIT-6696819.A14 6696819	-
59 - INTAKE COVER (B) HIT-6696536.A16 6696536	-
60 - PISTON PIN HIT-6696944.A46 6696944	£5.61	£6.73
61 - PISTON HIT-6696531.A3 6696531	£10.77	£12.92
62 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A42 6698386	-
63 - CYLINDER PACKING HIT-6696530.A16 6696530	£1.67	£2.00
64 - PISTON RING HIT-6696532.A16 6696532	£3.56	£4.27
65 - CIR CLIP HIT-6684590.A45 6684590	£1.67	£2.00
66 - FLYWHEEL NUT M7 HIT-6696879.A19 6696879	-
67 - BOLT WASHER D7 HIT-6696880.A7 6696880	-
68 - STARTER PAWL HIT-6698603.A8 6698603	-
69 - STARTER PAWL SPRING HIT-6685335.A7 6685335	£2.84	£3.41
70 - MAGNETO ROTOR HIT-6698601.A3 6698601	-
71 - RETAINING RING D4 HIT-6685336.A28 6685336	£3.49	£4.19
72 - CRANK CASE (B) ASS'Y INCLUD.73 HIT-6698872.A1 6698872	£23.58	£28.30
73 - OIL SEAL TB 12227 HIT-6684607.A89 6684607	£4.07	£4.88
74 - BALL BEARING 6001 C3 HIT-6684608.A112 6684608	£5.70	£6.84
75 - SHIM T0.2 HIT-6696946.A37 6696946	£1.67	£2.00
76 - SHIM T0.3 HIT-6696945.A2 6696945	£1.67	£2.00
77 - CRANK SHAFT HIT-6699043.A2 6699043	-
78 - CRANK CASE (A) ASS'Y INCLUD.73 HIT-6698729.A2 6698729	-
79 - CRANK CASE PACKING HIT-6696539.A7 6696539	£1.67	£2.00
80 - KNOCK PIN 4X12 HIT-6696947.A2 6696947	-
81 - CLUTCH (B) HIT-6699173.A20 6699173	£11.61	£13.93
82 - CLUTCH DRUM HIT-6699040.A9 6699040	£14.86	£17.83
83 - BALL BEARING 6002ZC3 HIT-6698740.A19 6698740	£6.94	£8.33
84 - RETAINING RING FOR D15 SHAFT (10 PCS.) HIT-939544.A41 939544	£3.64	£4.37
85 - GREASE NIPPLE COMP. HIT-6688643.A15 6688643	£1.67	£2.00
86 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A60 302089	£1.67	£2.00
87 - MUFFLER PROTECTOR HIT-6699174.A0 6699174	-
88 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A2 791045	£2.71	£3.25
89 - HEX. HOLE BOLT 6X18/S HIT-6695495.A13 6695495	-
90 - HEX. SOCKET HD. BOLT (W/BUTTON) M5X20 HIT-6698988.A20 6698988	£1.67	£2.00
91 - FIXATION PLATE (A) HIT-6699047.A0 6699047	-
92 - FIXATION PLATE (B) HIT-6699048.A14 6699048	-
93 - TAIL PIPE (A) HIT-6699052.A7 6699052	£4.62	£5.55
94 - EXHAUST COVER HIT-6699037.A6 6699037	-
95 - TANAKA LABEL HIT-000000.A3997 000000	-
96 - TAPPING SCREW D4.5X16 HIT-6698878.A1 6698878	£1.67	£2.00
97 - PLATE HIT-6685189.A36 6685189	-
98 - STARTER HANDLE HIT-6693227.A6 6693227	-
99 - ROPE HIT-6693168.A13 6693168	£2.82	£3.39
100 - HEX. SOCKET HD. BOLT (W/BUTTON) M5X20 HIT-6698988.A19 6698988	£1.67	£2.00
101A - RECOIL SPRING HIT-6684675.A88 6684675	£8.82	£10.58
102A - STARTER PULLEY SINCE 1.2015 HIT-6600995.A8 6600995	-
103 - DAMPER SPRING HIT-6685183.A26 6685183	£5.70	£6.84
104A - CAM PLATE SINCE 1.2015 HIT-6600996.A3 6600996	-
105 - SET SCREW HIT-6684679.A71 6684679	£2.98	£3.57
106 - RECOIL STARTER ASS'Y INCLUD.97-99 HIT-6698622.A2 6698622	£36.72	£44.07
107 - AIR DEFLECTOR HIT-6698624.A9 6698624	-
108 - FUEL TANK CAP ASS'Y INCLUD.109 HIT-6698402.A15 6698402	-
109 - TANK CAP CHAIN HIT-6698732.A48 6698732	-
110 - FUEL GROMMET TILL 9.2016 HIT-6688156.A90 6688156	-
111 - FUEL PIPE HIT-6698873.A14 6698873	£8.46	£10.15
112A - FUEL PIPE HIT-6601399.A0 6601399	£3.02	£3.63
113A - RETURN GROMMET TILL 9.2016 HIT-6697846.A42 6697846	£1.68	£2.01
114 - CLIP HIT-6696949.A2 6696949	£1.67	£2.00
115 - PUMP FILTER HIT-6698874.A1 6698874	£15.94	£19.13
116 - CUSHION RUBBER HIT-6698615.A3 6698615	£3.56	£4.27
117 - TANK TILL 9.2016 HIT-6698613.A9 6698613	£5.92	£7.11
119 - SCREW (B) SINCE 8.2016 HIT-6600883.A4 6600883	-
120 - SCREW (C) SINCE 8.2016 HIT-6600884.A14 6600884	-
121 - PRIMER PUMP SINCE 8.2016 HIT-6600889.A4 6600889	-
122 - PUMP BODY SINCE 8.2016 HIT-6600876.A12 6600876	-
123 - PUMP PACKING SINCE 8.2016 HIT-6600879.A5 6600879	-
124 - PUMP DIAPHRAGM SINCE 8.2016 HIT-6600880.A13 6600880	£5.25	£6.30
125 - INLET SCREEN SINCE 8.2016 HIT-6684700.A134 6684700	-
126 - PUMP COVER SINCE 8.2016 HIT-6600877.A5 6600877	-
127 - HIGH SPEED NEEDLE SINCE 8.2016 HIT-6600887.A4 6600887	-
128 - METERING LEVER SPRING SINCE 8.2016 HIT-6600885.A4 6600885	-
129 - HINGE PIN SINCE 8.2016 HIT-6685219.A18 6685219	-
130 - METERING DIAPHRAGM SINCE 8.2016 HIT-6600881.A5 6600881	£22.42	£26.91
131 - DIAPHRAGM COVER-METERING SINCE 8.2016 HIT-6685222.A44 6685222	£5.70	£6.84
132 - SWIVEL SINCE 8.2016 HIT-6684697.A66 6684697	-
133 - THROTTLE VALVE SINCE 8.2016 HIT-6600878.A13 6600878	-
134 - STOP RING SINCE 8.2016 HIT-6684696.A120 6684696	-
135 - WASHER SINCE 8.2016 HIT-6600886.A14 6600886	-
136 - NEEDLE VALVE SINCE 8.2016 HIT-6685215.A18 6685215	£6.79	£8.15
137 - SCREW (A) SINCE 8.2016 HIT-6600882.A13 6600882	-
138 - METERING LEVER SINCE 8.2016 HIT-6600888.A13 6600888	-
139 - DIAPHRAGM PACKING-METERING SINCE 8.2016 HIT-6685220.A132 6685220	£2.81	£3.37
140 - CARBURETOR ASS'Y WYGA-1 INCLUD.119-139 SINCE 8.2016 HIT-6600875.A5 6600875	£45.69	£54.83
141 - NAME PLATE HIT-000000.A3998 000000	-
142 - HANDLE HIT-6699079.A20 6699079	£8.55	£10.26
143 - SEAL LOCK HEX. SOCKET HD. BOLT M5X40 HIT-6698885.A1 6698885	£2.84	£3.41
144 - SPRING WASHER M5 HIT-6698884.A20 6698884	-
145 - BRAKE AXIS WASHER HIT-6698749.A12 6698749	-
146 - HANDLE A HIT-6698880.A1 6698880	£12.61	£15.13
147 - CAUTION LABEL HIT-000000.A3999 000000	-
148 - SPRING (A) HIT-6696348.A9 6696348	-
149 - LOCK LEVER HIT-6699055.A4 6699055	-
150 - THROTTLE LEVER HIT-6699053.A0 6699053	-
151 - TRIGGER LOCKOUT HIT-6696344.A10 6696344	£2.84	£3.41
152 - THROTTLE LEVER SPRING HIT-6696345.A22 6696345	£2.84	£3.41
153A - STOP SWITCH HIT-6601275.A63 6601275	£1.67	£2.00
154 - HANDLE B HIT-6699051.A0 6699051	£5.78	£6.94
155 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A86 305812	£1.67	£2.00
156 - THROTTLE WIRE HIT-6698627.A10 6698627	£6.94	£8.33
157 - PROTECTION TUBE HIT-6698738.A0 6698738	£1.67	£2.00
158 - STOP SWITCH CORD HIT-6699058.A7 6699058	-
159 - STOP SWITCH CORD (B) HIT-6699059.A5 6699059	-
160 - FIXATION PLATE (B) HIT-6699049.A0 6699049	-
161 - NYLON NUT M6 HIT-6698766.A12 6698766	-
162 - BOLT WASHER 6 HIT-6684639.A147 6684639	£1.67	£2.00
163 - U-NUT M5 HIT-6699108.A1 6699108	£2.94	£3.53
167A - SUPPORT PLATE HIT-6699064.A3 6699064	-
168 - BOLT WASHER M6 (10 PCS.) HIT-949432.A57 949432	£1.67	£2.00
169A - BLADE ASS'Y (620MM) INCLUD.163 HIT-6600398.A8 6600398	£81.91	£98.29
169B - BLADE ASS'Y (620MM) INCLUD.163 HIT-6600451.A9 6600451	£81.79	£98.15
170 - HEX. SOCKET HD. BOLT (W/FLANGE) M5X8 HIT-6699065.A4 6699065	£1.67	£2.00
171 - GUARD PLATE HIT-6699062.A4 6699062	£1.67	£2.00
172 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X25 HIT-6699113.A20 6699113	£2.77	£3.32
173 - WASHER (A) HIT-6699114.A0 6699114	£1.67	£2.00
174 - WASHER M7 HIT-6699111.A21 6699111	£1.67	£2.00
175 - SHOULDER BUTTON BOLT M5X25 HIT-6699109.A15 6699109	£2.77	£3.32
176 - SHOULDER BUTTON BOLT M5X31 HIT-6699179.A5 6699179	£3.73	£4.48
177 - BLADE CASE (FOR 620MM) HIT-6698948.A10 6698948	£6.94	£8.33
178 - HANDLE BRACKET HIT-6699041.A2 6699041	-
179 - CLIP HIT-6696359.A24 6696359	£2.84	£3.41
180 - BOLT WASHER D5 HIT-6685407.A11 6685407	-
181 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6699044.A17 6699044	-
182 - GEAR CASE (A) ASS'Y INCLUD.183 HIT-6699070.A2 6699070	-
183 - BALL BEARING 608ZZC3 HIT-6698772.A6 6698772	£2.84	£3.41
184 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X25 HIT-6699113.A19 6699113	£2.77	£3.32
185A - GUIDE PLATE (B) HIT-6600418.A3 6600418	£1.67	£2.00
186 - CAM ROD HIT-6698987.A3 6698987	£3.73	£4.48
187 - GEAR 2 HIT-6699066.A3 6699066	£25.03	£30.04
188 - FELT PACKING (B) HIT-6699068.A3 6699068	£1.67	£2.00
189 - FELT PACKING (C) HIT-6699067.A4 6699067	£1.67	£2.00
190 - GEAR CASE PACKING HIT-6699042.A6 6699042	£1.67	£2.00
191 - GEAR CASE (B) ASS'Y INCLUD.183 HIT-6699071.A1 6699071	£16.36	£19.63
192 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X14 HIT-6699069.A4 6699069	£1.67	£2.00
193 - LOWER PLATE HIT-6600013.A7 6600013	£15.52	£18.63
194 - BLADE GUIDE (620MM) HIT-6600012.A3 6600012	£15.28	£18.33
195 - HEDGE TRIMMER BLADE (C) 620MM SINCE 11.2014 HIT-6600014.A3 6600014	£33.95	£40.74
195A - HEDGE TRIMMER BLADE (C) 620MM INCLUD.185A TILL 10.2014 HIT-6600452.A0 6600452	£32.28	£38.73
196 - BLADE LINER HIT-6600360.A8 6600360	£7.12	£8.54
197 - WASHER (B) HIT-6699112.A0 6699112	£1.67	£2.00
198 - BALANCER HIT-6600362.A7 6600362	£3.48	£4.17
201 - CARBURETOR ASS'Y WYGA-1 (W/HEAT PANEL) INCLUD.140 HIT-6601361.A0 6601361	-
202 - CARBURETOR PACKING HIT-6698405.A15 6698405	£3.12	£3.74
203 - STARTER PULLEY ASS'Y INCLUD.102A HIT-6600997.A6 6600997	-
205 - IGNITION COIL ASS'Y INCLUD.46-49A HIT-6601364.A11 6601364	£26.26	£31.51
206 - CARBURETOR HEAT PANEL ASS'Y INCLUD.5A HIT-6600891.A5 6600891	-
207 - TANK SINCE 10.2016 HIT-6601419.A10 6601419	£9.60	£11.52
208 - FUEL GROMMET SINCE 10.2016 HIT-6600358.A62 6600358	£1.67	£2.00
501 - BOX WRENCH 10/19MM HIT-6698756.A5 6698756	-
601 - GREASE FOR IMPACT WRENCH (100G) HIT-971042.A2 971042	£16.77	£20.12

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki TCH22EB2 Engine Hedge Trimmer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
