Hitachi / Hikoki TCH22EA2 Engine Hedge Trimmer Spare Parts

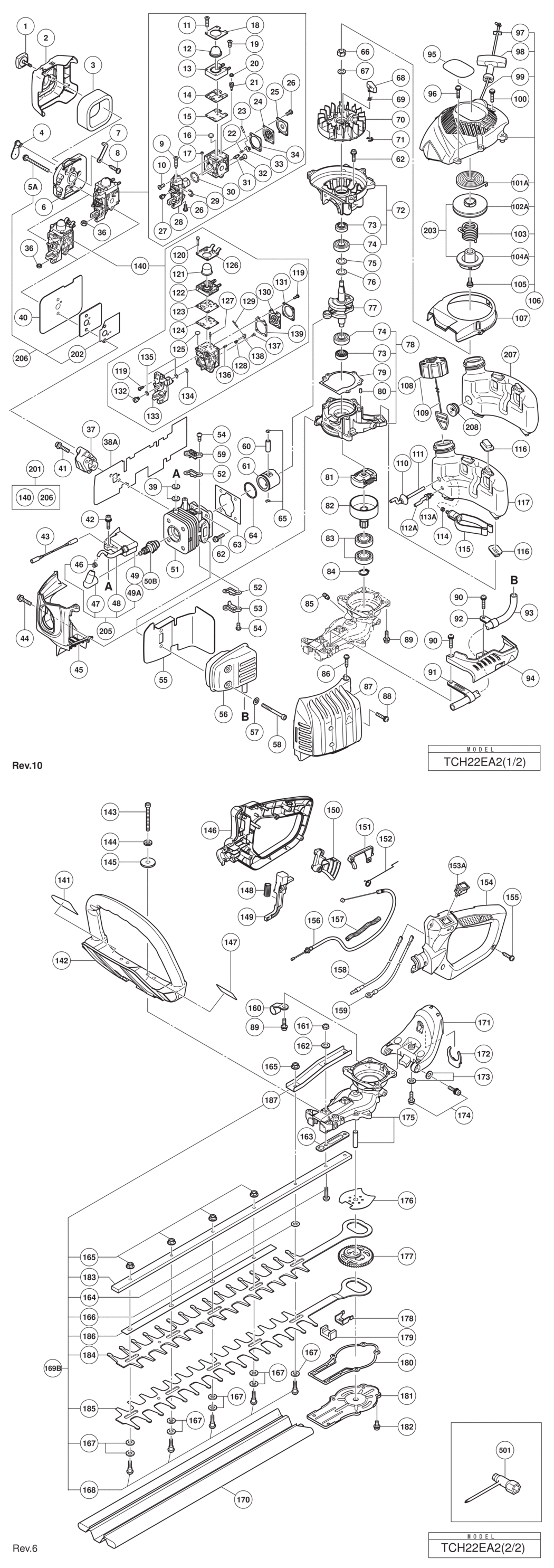

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCH22EA2 Engine Hedge Trimmer

	Ex VAT	Inc VAT
1 - COVER FIXING BOLT COMP. HIT-6698730.A3 6698730	£5.52	£6.63
2 - CLEANER COVER HIT-6698609.A5 6698609	£1.67	£2.00
3 - CLEANER SPONGE HIT-6690365.A18 6690365	£1.67	£2.00
4 - CHOKE VALVE HIT-6698608.A5 6698608	£1.67	£2.00
5A - MACHINE SCREW (W/WASHERS) M5X65 (BLACK) HIT-312440.A6 312440	£1.67	£2.00
6 - CLEANER BODY HIT-6698606.A5 6698606	£3.73	£4.48
7 - CHOKE HANDLE HIT-6698607.A6 6698607	£1.67	£2.00
8 - NO LONGER AVAILABLE HIT-309470.A16 309470	-
9 - THROTTLE ADJUST SCREW (TAS) TILL 7.2016 HIT-6699087.A8 6699087	-
10 - SET SCREW (B) TILL 7.2016 HIT-6699088.A10 6699088	-
11 - SET SCREW (D) TILL 7.2016 HIT-6699100.A10 6699100	-
12 - SYRINGE TILL 7.2016 HIT-6699098.A10 6699098	£6.86	£8.23
13 - PRIMER BASE TILL 7.2016 HIT-6699097.A8 6699097	£39.92	£47.91
14 - PUMP GASKET TILL 7.2016 HIT-6699096.A10 6699096	£7.12	£8.54
15 - PUMP DIAPHRAGM TILL 7.2016 HIT-6699095.A12 6699095	£10.02	£12.02
16 - STRAINER TILL 7.2016 HIT-6699080.A8 6699080	-
17 - GUIDE PIN ROLLER TILL 7.2016 HIT-6699103.A8 6699103	-
18 - SYRINGE RETAINER TILL 7.2016 HIT-6699099.A8 6699099	-
19 - SET SCREW (E) TILL 7.2016 HIT-6699101.A8 6699101	-
20 - BALL PLUG RETAINER TILL 7.2016 HIT-6699104.A10 6699104	-
21 - ADJUSTING SCREW (MAIN MIXTURE) TILL 7.2016 HIT-6699105.A8 6699105	-
22 - METERING LEVER SPRING TILL 7.2016 HIT-6699083.A12 6699083	-
23 - PIN TILL 7.2016 HIT-6699082.A8 6699082	£1.67	£2.00
24 - METERING DIAPHRAGM TILL 7.2016 HIT-6699091.A12 6699091	£13.60	£16.32
25 - METERING COVER TILL 7.2016 HIT-6699093.A12 6699093	-
26 - SET SCREW (C) TILL 7.2016 HIT-6699094.A6 6699094	-
27 - POST TILL 7.2016 HIT-6699089.A12 6699089	-
28 - ROTOR COVER TILL 7.2016 HIT-6699086.A6 6699086	-
29 - RETAINING RING (E-TYPE) FOR D2.5 SHAFT TILL 7.2016 HIT-6699090.A6 6699090	-
30 - O-RING TILL 7.2016 HIT-6699102.A8 6699102	-
31 - INLET NEEDLE VALVE TILL 7.2016 HIT-6699081.A14 6699081	£10.93	£13.12
32 - SET SCREW (A) TILL 7.2016 HIT-6699085.A12 6699085	-
33 - METERING LEVER TILL 7.2016 HIT-6699084.A6 6699084	£1.67	£2.00
34 - METERING GASKET TILL 7.2016 HIT-6699092.A6 6699092	£7.12	£8.54
36 - LOCK NUT M6 (10 PCS.) HIT-949567.A26 949567	£1.67	£2.00
37 - CARBURETOR INSULATOR HIT-6698387.A44 6698387	£4.72	£5.66
38A - INTAKE PAKING (A) HIT-6600456.A10 6600456	£2.77	£3.32
39 - GLASS WASHER HIT-6698700.A81 6698700	£1.67	£2.00
40 - CARBURETOR PACKING HIT-6698816.A7 6698816	£2.84	£3.41
41 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A6 6698844	£1.67	£2.00
42 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A20 6698388	£1.67	£2.00
43 - CORD HIT-6699060.A0 6699060	-
44 - SEAL LOCK HEX. SOCKET HD. BOLT M4X12 HIT-6698879.A1 6698879	-
45 - CYLINDER COVER HIT-6698871.A1 6698871	-
46 - METAL OF PLUG CAP (60) (B) HIT-6699180.A8 6699180	-
47 - PLUG CAP HIT-6698548.A14 6698548	-
48 - CORD INSULATION TUBE L60 HIT-6699175.A7 6699175	-
49A - IGNITION COIL HIT-6600890.A0 6600890	£40.12	£48.15
50B - SPARK PLUG ASS'Y BMR7A HIT-6699316.A23 6699316	£12.43	£14.92
51 - CYLINDER HIT-6698597.A6 6698597	£39.62	£47.54
52 - COVER PACKING HIT-6696534.A2 6696534	£1.67	£2.00
53 - INTAKE COVER (A) HIT-6696535.A20 6696535	£1.67	£2.00
54 - SEAL LOCK SCREW M4X10 HIT-6696835.A8 6696835	-
55 - HEAT PROTECTION PANEL HIT-6698617.A5 6698617	-
56 - MUFFLER HIT-6698734.A0 6698734	-
57 - BOLT WASHER M6 (10 PCS.) HIT-949432.A52 949432	£1.67	£2.00
58 - HEX. SOCKET HD. BOLT M6X55 HIT-6696819.A21 6696819	-
59 - INTAKE COVER (B) HIT-6696536.A0 6696536	-
60 - PISTON PIN HIT-6696944.A21 6696944	£5.61	£6.73
61 - PISTON HIT-6696531.A17 6696531	£10.77	£12.92
62 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A19 6698386	-
63 - CYLINDER PACKING HIT-6696530.A3 6696530	£1.67	£2.00
64 - PISTON RING HIT-6696532.A3 6696532	£3.56	£4.27
65 - CIR CLIP HIT-6684590.A114 6684590	£1.67	£2.00
66 - FLYWHEEL NUT M7 HIT-6696879.A2 6696879	-
67 - BOLT WASHER D7 HIT-6696880.A25 6696880	-
68 - STARTER PAWL HIT-6698603.A6 6698603	-
69 - STARTER PAWL SPRING HIT-6685335.A31 6685335	£2.84	£3.41
70 - MAGNETO ROTOR HIT-6698601.A5 6698601	-
71 - RETAINING RING D4 HIT-6685336.A1 6685336	£3.49	£4.19
72 - CRANK CASE (B) ASS'Y INCLUD.73 HIT-6698872.A10 6698872	£23.58	£28.30
73 - OIL SEAL TB 12227 HIT-6684607.A118 6684607	£4.07	£4.88
74 - BALL BEARING 6001 C3 HIT-6684608.A82 6684608	£5.70	£6.84
75 - SHIM T0.2 HIT-6696946.A15 6696946	£1.67	£2.00
76 - SHIM T0.3 HIT-6696945.A22 6696945	£1.67	£2.00
77 - CRANK SHAFT HIT-6699043.A11 6699043	-
78 - CRANK CASE (A) ASS'Y INCLUD.73 HIT-6698729.A11 6698729	-
79 - CRANK CASE PACKING HIT-6696539.A20 6696539	£1.67	£2.00
80 - KNOCK PIN 4X12 HIT-6696947.A46 6696947	-
81 - CLUTCH (B) HIT-6699173.A14 6699173	£11.61	£13.93
82 - CLUTCH DRUM HIT-6699040.A2 6699040	£14.86	£17.83
83 - BALL BEARING 6002ZC3 HIT-6698740.A5 6698740	£6.94	£8.33
84 - RETAINING RING FOR D15 SHAFT (10 PCS.) HIT-939544.A5 939544	£3.64	£4.37
85 - GREASE NIPPLE COMP. HIT-6688643.A66 6688643	£1.67	£2.00
86 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A6 302089	£1.67	£2.00
87 - MUFFLER PROTECTOR HIT-6699174.A2 6699174	-
88 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A37 791045	£2.71	£3.25
89 - HEX. HOLE BOLT 6X18/S HIT-6695495.A25 6695495	-
90 - HEX. SOCKET HD. BOLT (W/BUTTON) M5X20 HIT-6698988.A4 6698988	£1.67	£2.00
91 - FIXATION PLATE (A) HIT-6699047.A8 6699047	-
92 - FIXATION PLATE (B) HIT-6699048.A5 6699048	-
93 - TAIL PIPE (A) HIT-6699052.A1 6699052	£4.62	£5.55
94 - EXHAUST COVER HIT-6699037.A0 6699037	-
95 - TANAKA LABEL HIT-000000.A2621 000000	-
96 - TAPPING SCREW D4.5X16 HIT-6698878.A28 6698878	£1.67	£2.00
97 - PLATE HIT-6685189.A5 6685189	-
98 - STARTER HANDLE HIT-6693227.A15 6693227	-
99 - ROPE HIT-6693168.A40 6693168	£2.82	£3.39
100 - HEX. SOCKET HD. BOLT (W/BUTTON) M5X20 HIT-6698988.A3 6698988	£1.67	£2.00
101A - RECOIL SPRING HIT-6684675.A20 6684675	£8.82	£10.58
102A - STARTER PULLEY SINCE 1.2015 HIT-6600995.A6 6600995	-
103 - DAMPER SPRING HIT-6685183.A20 6685183	£5.70	£6.84
104A - CAM PLATE SINCE 1.2015 HIT-6600996.A5 6600996	-
105 - SET SCREW HIT-6684679.A148 6684679	£2.98	£3.57
106 - RECOIL STARTER ASS'Y INCLUD.97-99 HIT-6698622.A5 6698622	£36.72	£44.07
107 - AIR DEFLECTOR HIT-6698624.A6 6698624	-
108 - FUEL TANK CAP ASS'Y INCLUD.109 HIT-6698402.A88 6698402	-
109 - TANK CAP CHAIN HIT-6698732.A0 6698732	-
110 - FUEL GROMMET TILL 9.2016 HIT-6688156.A88 6688156	-
111 - FUEL PIPE HIT-6698873.A0 6698873	£8.46	£10.15
112A - FUEL PIPE HIT-6601399.A20 6601399	£3.02	£3.63
113A - RETURN GROMMET TILL 9.2016 HIT-6697846.A137 6697846	£1.68	£2.01
114 - CLIP HIT-6696949.A55 6696949	£1.67	£2.00
115 - PUMP FILTER HIT-6698874.A20 6698874	£15.94	£19.13
116 - CUSHION RUBBER HIT-6698615.A11 6698615	£3.56	£4.27
117 - TANK TILL 9.2016 HIT-6698613.A6 6698613	£5.92	£7.11
119 - SCREW (B) SINCE 8.2016 HIT-6600883.A16 6600883	-
120 - SCREW (C) SINCE 8.2016 HIT-6600884.A2 6600884	-
121 - PRIMER PUMP SINCE 8.2016 HIT-6600889.A16 6600889	-
122 - PUMP BODY SINCE 8.2016 HIT-6600876.A2 6600876	-
123 - PUMP PACKING SINCE 8.2016 HIT-6600879.A17 6600879	-
124 - PUMP DIAPHRAGM SINCE 8.2016 HIT-6600880.A2 6600880	£5.25	£6.30
125 - INLET SCREEN SINCE 8.2016 HIT-6684700.A16 6684700	-
126 - PUMP COVER SINCE 8.2016 HIT-6600877.A16 6600877	-
127 - HIGH SPEED NEEDLE SINCE 8.2016 HIT-6600887.A16 6600887	-
128 - METERING LEVER SPRING SINCE 8.2016 HIT-6600885.A16 6600885	-
129 - HINGE PIN SINCE 8.2016 HIT-6685219.A65 6685219	-
130 - METERING DIAPHRAGM SINCE 8.2016 HIT-6600881.A16 6600881	£22.42	£26.91
131 - DIAPHRAGM COVER-METERING SINCE 8.2016 HIT-6685222.A121 6685222	£5.70	£6.84
132 - SWIVEL SINCE 8.2016 HIT-6684697.A137 6684697	-
133 - THROTTLE VALVE SINCE 8.2016 HIT-6600878.A2 6600878	-
134 - STOP RING SINCE 8.2016 HIT-6684696.A24 6684696	-
135 - WASHER SINCE 8.2016 HIT-6600886.A2 6600886	-
136 - NEEDLE VALVE SINCE 8.2016 HIT-6685215.A68 6685215	£6.79	£8.15
137 - SCREW (A) SINCE 8.2016 HIT-6600882.A2 6600882	-
138 - METERING LEVER SINCE 8.2016 HIT-6600888.A2 6600888	-
139 - DIAPHRAGM PACKING-METERING SINCE 8.2016 HIT-6685220.A58 6685220	£2.81	£3.37
140 - CARBURETOR ASS'Y WYGA-1 INCLUD.119-139 SINCE 8.2016 HIT-6600875.A16 6600875	£45.69	£54.83
141 - NAME PLATE HIT-000000.A2622 000000	-
142 - HANDLE HIT-6699079.A14 6699079	£8.55	£10.26
143 - SEAL LOCK HEX. SOCKET HD. BOLT M5X40 HIT-6698885.A8 6698885	£2.84	£3.41
144 - SPRING WASHER M5 HIT-6698884.A7 6698884	-
145 - BRAKE AXIS WASHER HIT-6698749.A5 6698749	-
146 - HANDLE A HIT-6698880.A9 6698880	£12.61	£15.13
147 - CAUTION LABEL HIT-000000.A2623 000000	-
148 - SPRING (A) HIT-6696348.A24 6696348	-
149 - LOCK LEVER HIT-6699055.A11 6699055	-
150 - THROTTLE LEVER HIT-6699053.A13 6699053	-
151 - TRIGGER LOCKOUT HIT-6696344.A25 6696344	£2.84	£3.41
152 - THROTTLE LEVER SPRING HIT-6696345.A7 6696345	£2.84	£3.41
153A - STOP SWITCH HIT-6601275.A35 6601275	£1.67	£2.00
154 - HANDLE B HIT-6699051.A9 6699051	£5.78	£6.94
155 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A16 305812	£1.67	£2.00
156 - THROTTLE WIRE HIT-6698627.A5 6698627	£6.94	£8.33
157 - PROTECTION TUBE HIT-6698738.A13 6698738	£1.67	£2.00
158 - STOP SWITCH CORD HIT-6699058.A0 6699058	-
159 - STOP SWITCH CORD (B) HIT-6699059.A20 6699059	-
160 - FIXATION PLATE (B) HIT-6699049.A6 6699049	-
161 - NYLON NUT M5 HIT-305491.A1 305491	-
162 - SMALL WASHER 5 HIT-6684864.A114 6684864	-
163 - SPACER HIT-6699045.A2 6699045	-
164 - HEX. SOCKET HD. BOLT (W/BUTTON) M5X25 HIT-6699110.A1 6699110	£2.75	£3.30
165 - U-NUT M5 HIT-6699108.A9 6699108	£2.94	£3.53
166 - WASHER (B) HIT-6699112.A13 6699112	£1.67	£2.00
167 - WASHER M7 HIT-6699111.A9 6699111	£1.67	£2.00
168 - SHOULDER BUTTON BOLT M5X25 HIT-6699109.A8 6699109	£2.77	£3.32
169B - BLADE ASS'Y (500MM) INCLUD.164-168 HIT-6600455.A0 6600455	£63.22	£75.87
170 - BLADE CASE (A) HIT-6698731.A7 6698731	-
171 - HANDLE BRACKET HIT-6699041.A7 6699041	-
172 - CLIP HIT-6696359.A12 6696359	£2.84	£3.41
173 - BOLT WASHER D5 HIT-6685407.A37 6685407	-
174 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6699044.A0 6699044	-
175 - GEAR CASE (A) HIT-6699057.A3 6699057	-
176 - GUIDE PLATE (C) HIT-6699035.A3 6699035	-
177 - GEAR 2 (EA) HIT-6699038.A4 6699038	-
178 - GUIDE PLATE (A) HIT-6699034.A0 6699034	-
179 - FELT PACKING (A) HIT-6699046.A0 6699046	£1.67	£2.00
180 - GEAR CASE PACKING HIT-6699042.A0 6699042	£1.67	£2.00
181 - GEAR CASE COVER HIT-6699050.A0 6699050	-
182 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12 HIT-6699176.A24 6699176	£1.67	£2.00
183 - BLADE GUIDE HIT-6600009.A2 6600009	£13.28	£15.93
184 - HEDGE TRIMMER BLADE (A) HIT-6600010.A5 6600010	£25.61	£30.73
185 - HEDGE TRIMMER BLADE (B) HIT-6600011.A2 6600011	£25.76	£30.91
186 - BLADE LINER HIT-6600359.A2 6600359	-
187 - SUPPORT PLATE HIT-6600417.A1 6600417	£1.67	£2.00
201 - CARBURETOR ASS'Y WYGA-1 (W/HEAT PANEL) INCLUD.140 HIT-6601361.A18 6601361	-
202 - CARBURETOR PACKING HIT-6698405.A71 6698405	£3.12	£3.74
203 - STARTER PULLEY ASS'Y INCLUD.102A HIT-6600997.A5 6600997	-
205 - IGNITION COIL ASS'Y INCLUD.46-49A HIT-6601364.A0 6601364	£26.26	£31.51
206 - CARBURETOR HEAT PANEL ASS'Y INCLUD.5A HIT-6600891.A11 6600891	-
207 - TANK SINCE 10.2016 HIT-6601419.A4 6601419	£9.60	£11.52
208 - FUEL GROMMET SINCE 10.2016 HIT-6600358.A44 6600358	£1.67	£2.00
501 - BOX WRENCH 10/19MM HIT-6698756.A13 6698756	-
601 - GREASE FOR IMPACT WRENCH (100G) HIT-971042.A11 971042	£16.77	£20.12

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki TCH22EA2 Engine Hedge Trimmer Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
