Hitachi / Hikoki TCG27EBDP Engine Brush Cutter Spare Parts

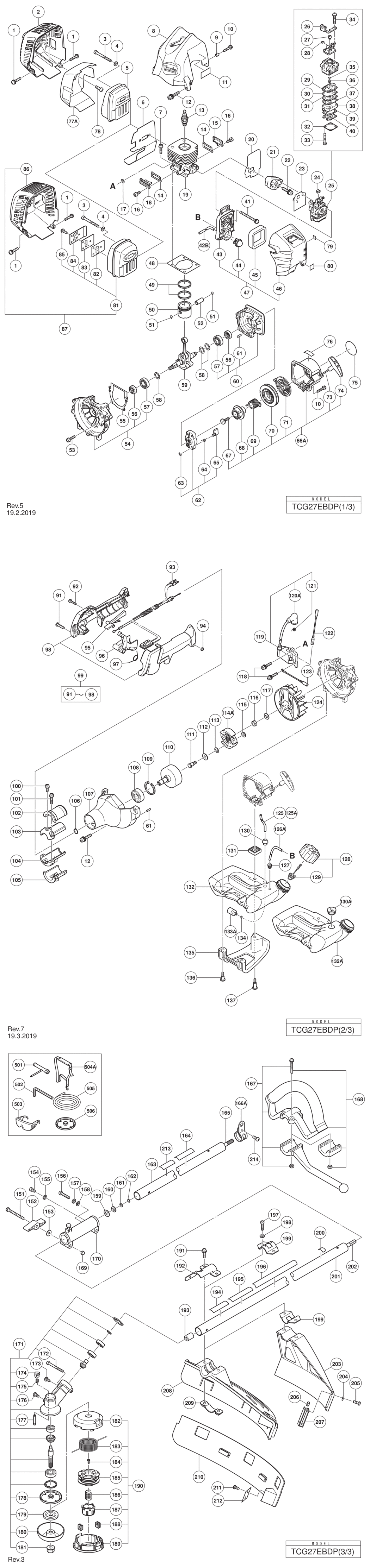

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCG27EBDP Engine Brush Cutter

	Ex VAT	Inc VAT
1 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A13 791045	£2.71	£3.25
2 - MUFFLER COVER EXCEPT FOR USA HIT-6600322.A5 6600322	£10.60	£12.72
3 - HEX. SOCKET HD. BOLT M6X65 HIT-6698384.A31 6698384	-
4 - BOLT WASHER M6 (10 PCS.) HIT-949432.A97 949432	£1.67	£2.00
5 - MUFFLER (B) EXCEPT FOR USA HIT-6600004.A1 6600004	-
6 - HEAT PROTECTION PANEL HIT-6600324.A7 6600324	-
7 - HEX. SOCKET BOLT M5X20 HIT-6696958.A3 6696958	-
8 - CYLINDER COVER HIT-6699431.A1 6699431	-
9 - COLLAR (B) HIT-6600008.A1 6600008	-
10 - HEX. SOCKET HD. BOLT (W/FLANGE) M4X18 HIT-6696326.A2 6696326	-
11 - CAUTION LABEL HIT-000000.A5655 000000	-
12 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-6698950.A15 6698950	-
*13 - SPARK PLUG ASS'Y BMR7A HIT-6699316.A62 6699316	£12.43	£14.92
*13 - SPARK PLUG ASS'Y CJ6 FOR USA HIT-6699322.A8 6699322	£3.73	£4.48
14 - COVER PACKING HIT-6698365.A7 6698365	£1.67	£2.00
15 - SCAVENGING COVER (A) HIT-6698484.A18 6698484	-
16 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A3 6698385	-
17 - GLASS WASHER HIT-6698700.A7 6698700	£1.67	£2.00
18 - SCAVENGING COVER (B) HIT-6698485.A4 6698485	-
19 - CYLINDER HIT-6698480.A11 6698480	£50.30	£60.36
20 - INTAKE PACKING HIT-6699437.A12 6699437	£1.67	£2.00
21 - CARBURETOR INSULATOR HIT-6698387.A2 6698387	£4.72	£5.66
22 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A63 6698844	£1.67	£2.00
23 - CARBURETOR PACKING HIT-6698405.A30 6698405	£3.12	£3.74
24 - SWIVEL CAP HIT-6691337.A68 6691337	£1.67	£2.00
25 - CARBURETOR ASS'Y WYC-37 INCLUD.26-40 HIT-6600326.A2 6600326	£38.72	£46.46
26 - CABLE ADJUST STAY HIT-6699287.A5 6699287	-
27 - SWIVEL HIT-6696830.A21 6696830	-
28 - STOP RING HIT-6684696.A183 6684696	-
29 - PUMP GASKET HIT-6684692.A19 6684692	£17.28	£20.73
30 - PUMP DIAPHRAGM HIT-6684693.A169 6684693	£5.70	£6.84
31 - PUMP PLATE HIT-6691242.A27 6691242	-
32 - DIAPHRAGM COVER-METERING HIT-6685222.A73 6685222	£5.70	£6.84
33 - SET SCREW HIT-6691312.A32 6691312	-
34 - SET SCREW M3X12 HIT-6696829.A27 6696829	-
35 - O-RING HIT-6684695.A34 6684695	£1.67	£2.00
36 - MAIN JET HIT-000000.A5656 000000	-
37 - CIRCUIT PLATE HIT-6691234.A30 6691234	-
38 - PUMP BODY COMP. HIT-6696828.A21 6696828	£13.28	£15.93
39 - DIAPHRAGM PACKING-METERING HIT-6685220.A106 6685220	£2.81	£3.37
40 - METERING DIAPHRAGM HIT-6684690.A21 6684690	£24.05	£28.86
41 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A11 307224	£1.67	£2.00
42B - FUEL PIPE HIT-6601444.A5 6601444	-
43 - AIR CLEANER HOUSING HIT-66965549.A16 66965549	£15.62	£18.74
44 - PRIMING PUMP COMP. HIT-6685139.A19 6685139	£10.67	£12.80
45 - CLEANER ELEMENT HIT-6690347.A3 6690347	£7.15	£8.58
46 - CLEANER COVER HIT-6699185.A15 6699185	£11.28	£13.53
47 - AIR CLEANER (A) ASS'Y INCLUD.43-46 HIT-6699132.A15 6699132	£13.52	£16.23
48 - CYLINDER PACKING HIT-6698366.A12 6698366	£1.67	£2.00
49 - PISTON RING HIT-6686121.A26 6686121	£6.47	£7.76
50 - PISTON HIT-6699432.A1 6699432	£12.43	£14.92
51 - CIR CLIP HIT-6684590.A18 6684590	£1.67	£2.00
52 - PISTON PIN HIT-6684591.A74 6684591	£3.29	£3.95
53 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A70 6698386	-
54 - CRANK CASE (B) ASS'Y INCLUD.56 HIT-6698370.A7 6698370	£23.00	£27.60
55 - CRANK CASE PACKING HIT-6698371.A11 6698371	£1.67	£2.00
56 - OIL SEAL TB 12227 HIT-6684607.A8 6684607	£4.07	£4.88
57 - BALL BEARING 6001 C3 HIT-6684608.A187 6684608	£5.70	£6.84
58 - SHIM T0.5 HIT-6698490.A14 6698490	-
59 - CRANK SHAFT HIT-6699438.A1 6699438	-
60 - CRANK CASE (A) ASS'Y INCLUD.56 HIT-6698369.A11 6698369	£17.94	£21.53
61 - KNOCK PIN 4X12 HIT-6696947.A22 6696947	-
62 - STARTER PULLEY ASS'Y INCLUD.63-65 HIT-6684681.A22 6684681	£18.16	£21.79
63 - D4E RETAINING RING HIT-6685101.A52 6685101	-
64 - STARTER PAWL SPRING HIT-6684684.A99 6684684	£3.29	£3.95
65 - STARTER PAWL HIT-6684685.A18 6684685	£5.07	£6.08
66A - RECOIL STARTER BODY ASS'Y INCLUD.67-71 HIT-6601570.A47 6601570	£23.15	£27.78
67 - SET SCREW HIT-6684679.A30 6684679	£2.98	£3.57
68 - CAM PLATE HIT-6699996.A4 6699996	£4.28	£5.13
69 - DAMPER SPRING HIT-6684677.A13 6684677	£6.66	£7.99
70 - STARTER ROPE REEL HIT-6699997.A85 6699997	-
71 - RECOIL SPRING HIT-6684675.A133 6684675	£8.82	£10.58
73 - STARTER ROPE 3.5X860 HIT-6684674.A8 6684674	£5.70	£6.84
74 - STARTER HANDLE HIT-6684680.A92 6684680	£5.87	£7.04
75 - NAME PLATE HIT-000000.A5657 000000	-
76 - TANK MARK LABEL (50:1) HIT-6698921.A16 6698921	-
77A - MUFFLER HEAT COVER EXCEPT FOR USA HIT-6600422.A3 6600422	-
78 - TAPPING SCREW D4X10 EXCEPT FOR USA HIT-6600325.A17 6600325	-
79 - MARK PLATE (T) FOR EUROPE HIT-6600327.A15 6600327	-
80 - PRIMER LABEL FOR EUROPE HIT-6699000.A27 6699000	-
81 - MUFFLER ASS'Y INCLUD.82-85 FOR USA HIT-6601585.A2 6601585	-
82 - SPARK ARRESTER FOR USA HIT-6600489.A4 6600489	-
83 - EXHAUST PIPE GASKET FOR USA HIT-6600490.A1 6600490	-
84 - EXHAUST PIPE FOR USA HIT-6600491.A4 6600491	-
85 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR USA HIT-6685068.A16 6685068	-
86 - MUFFLER COVER FOR USA HIT-6601587.A1 6601587	-
87 - EXHAUST SET INCLUD.81 HIT-6601589.A0 6601589	-
91 - MACHINE SCREW M5X20 (BLACK) HIT-6699195.A1 6699195	-
92 - P TITE SCREW D4X20 (BLACK) HIT-6699194.A16 6699194	-
93 - SWITCH WIRE SET HIT-6699197.A1 6699197	-
94 - NUT M5 HIT-6699196.A16 6699196	-
95 - STOP LEVER HIT-6699192.A16 6699192	-
96 - LONG LEVER HIT-6699191.A1 6699191	-
97 - RETURN SPRING HIT-6699193.A1 6699193	-
98 - STAY SET HIT-6699190.A16 6699190	-
99 - THROTTLE LEVER (A) ASS'Y INCLUD.91-98 HIT-6699133.A2 6699133	-
100 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12 HIT-6699176.A6 6699176	£1.67	£2.00
101 - HEX. HOLE BOLT 5X22/S HIT-6695492.A39 6695492	-
102 - ANTI VIBE RUBBER (A) HIT-6696963.A7 6696963	£3.12	£3.74
103 - PIPE HOLDER (A) HIT-6698643.A38 6698643	£3.56	£4.27
104 - PIPE HOLDER (B) HIT-6698644.A9 6698644	£3.56	£4.27
105 - ANTI VIBE RUBBER (B) HIT-6696964.A33 6696964	£3.02	£3.63
106 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A40 939542	£2.98	£3.57
107 - FAN CASE (A) HIT-6699433.A6 6699433	£22.42	£26.91
108 - BALL BEARING 6301ZZC3 HIT-6699435.A14 6699435	£4.28	£5.13
109 - RETAINING RING 37MM HIT-322813.A22 322813	£1.67	£2.00
110 - CLUTCH SHAFT HIT-6699434.A1 6699434	£11.28	£13.53
111 - STEP BOLT HIT-6696469.A8 6696469	£2.84	£3.41
112 - BENT WASHER 8 HIT-6684648.A15 6684648	£1.67	£2.00
113 - CLUTCH PLATE (A) HIT-6696546.A2 6696546	£1.67	£2.00
114A - CLUTCH HIT-6601431.A5 6601431	-
115 - CLUTCH WASHER (B) HIT-6699131.A2 6699131	-
116 - FLYWHEEL NUT HIT-6685337.A22 6685337	-
117 - BOLT WASHER M8 (BLACK) HIT-323212.A5 323212	£1.67	£2.00
118 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A78 6698388	£1.67	£2.00
119 - IGNITION COIL ASS'Y INCLUD.120A HIT-6699436.A1 6699436	-
120A - PLUG CAP HIT-6601421.A34 6601421	£1.67	£2.00
121 - METAL FITTING OF PLUG CAP HIT-6699933.A11 6699933	-
122 - CORD HIT-6696544.A2 6696544	-
123 - EARTH CORD HIT-6696545.A48 6696545	-
124 - MAGNETO ROTOR COMP. HIT-6698396.A18 6698396	£11.52	£13.82
*125 - FUEL PIPE HIT-6698716.A39 6698716	£5.61	£6.73
125A - FUEL PIPE FOR USA HIT-6601525.A10 6601525	-
126A - FUEL PIPE L70 HIT-6699014.A39 6699014	£2.77	£3.32
127 - RETURN GROMMET TILL 7.2015 (SINCE 8.2015 FOR USA) HIT-6697846.A61 6697846	£2.08	£2.50
128 - FUEL TANK CAP ASS'Y INCLUD.129 HIT-6698402.A30 6698402	-
129 - TANK CAP CHAIN HIT-6698732.A75 6698732	-
130 - FUEL GROMMET TILL 7.2015 (SINCE 8.2015 FOR USA) HIT-6688156.A54 6688156	-
130A - FUEL GROMMET SINCE 8.2015 (EXCEPT FOR USA) HIT-6600358.A68 6600358	£1.67	£2.00
131 - SPACER HIT-6699558.A10 6699558	-
*132 - TANK (B) TILL 7.2014 HIT-6600317.A13 6600317	£12.36	£14.83
*132 - TANK FOR USA HIT-6699719.A10 6699719	£23.15	£27.78
132A - TANK (C) SINCE 8.2015 HIT-6600354.A4 6600354	-
133A - PUMP FILTER HIT-6600351.A73 6600351	£4.45	£5.34
134 - CLIP HIT-6696949.A20 6696949	£1.67	£2.00
135 - STAND HIT-6694787.A0 6694787	£3.56	£4.27
136 - FLANGE BOLT HIT-6696557.A28 6696557	£1.67	£2.00
137 - BOLT (W/FLANGE) L27.8 HIT-6698991.A23 6698991	-
151 - HEX. BOLT 6X50 HIT-6684824.A1 6684824	£1.67	£2.00
152 - HANDLE KNOB HIT-6684823.A22 6684823	£3.51	£4.21
153 - SPECIAL WASHER B HIT-6684822.A2 6684822	£1.67	£2.00
154 - HEX. SOCKET HD. BOLT M5X12 HIT-6684829.A23 6684829	-
155 - SPRING WASHER M5 HIT-6698884.A18 6698884	-
156 - HEX. SOCKET HD. BOLT (W/BUTTON) M6 HIT-6684825.A22 6684825	£1.67	£2.00
157 - SPRING WASHER M6 (10 PCS.) HIT-949455.A7 949455	£1.67	£2.00
158 - WASHER M6 (10 PCS.) HIT-949425.A51 949425	£1.67	£2.00
159 - SPACER 1.6 HIT-6689139.A1 6689139	£2.84	£3.41
160 - SPACER HIT-6684819.A14 6684819	-
161 - PULLEY WASHER HIT-6684820.A1 6684820	-
162 - RETAINING RING FOR D10 SHAFT (10 PCS.) HIT-939540.A25 939540	£1.67	£2.00
163 - MAIN PIPE (A) HIT-6699460.A7 6699460	-
164 - LEVEL MARK FOR USA HIT-6684852.A3 6684852	-
165 - DRIVE SHAFT (A) HIT-6699462.A7 6699462	£26.26	£31.51
166A - HANGER HIT-6600504.A27 6600504	£1.67	£2.00
167 - LOOP HANDLE (W/BARRIER) FOR EUROPE HIT-6699448.A7 6699448	-
168 - LOOP HANDLE FOR USA HIT-6699449.A6 6699449	-
169 - CAP NUT 6 HIT-6684828.A5 6684828	£1.67	£2.00
170 - JOINT CASE HIT-6684817.A1 6684817	£35.67	£42.80
*171 - GEAR CASE ASS'Y (4BB) INCLUD.172-181 FOR EUROPE (SL) HIT-6699439.A12 6699439	£60.67	£72.80
*171 - GEAR CASE ASS'Y (4BB) INCLUD.172-177 FOR USA HIT-6699440.A0 6699440	-
172 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) FOR USA HIT-949664.A28 949664	£4.33	£5.20
173 - SCREW 5X12/W.S FOR USA HIT-6695414.A15 6695414	£1.67	£2.00
174 - CAP FOR USA HIT-6600005.A18 6600005	-
175 - SPRING FOR USA HIT-6600006.A1 6600006	-
176 - BOLT (W/PLUS) M6X8 FOR USA HIT-6684737.A51 6684737	-
177 - LOCK PIN FOR USA HIT-6600007.A18 6600007	-
178 - CUTTER HOLDER (A) FOR EUROPE (SL) HIT-6699441.A15 6699441	-
179 - CUTTER HOLDER (B) FOR EUROPE (SL) HIT-6698659.A27 6698659	£15.99	£19.19
180 - NUT COVER FOR EUROPE (SL) HIT-6699188.A44 6699188	£10.93	£13.12
181 - U-NUT (LEFT HAND) M10 FOR EUROPE (SL) HIT-335759.A29 335759	£1.67	£2.00
182 - COVER FOR (SL) HIT-6698937.A15 6698937	£22.42	£26.91
183 - NYLON CORD HIT-000000.A5658 000000	-
184 - SET SCREW FOR (SL) HIT-6698795.A38 6698795	-
185 - REEL FOR (SL) HIT-6698939.A15 6698939	-
186 - RETURN SPRING FOR (SL) HIT-6698941.A15 6698941	-
187 - BUTTON FOR (SL) HIT-6698940.A3 6698940	-
188 - CORD GUIDE FOR (SL) HIT-6698942.A3 6698942	-
189 - CASE FOR (SL) HIT-6698938.A3 6698938	-
190 - NYLON HEAD ASS'Y INCLUD.182-189 FOR (SL) HIT-6698639.A6 6698639	£31.92	£38.31
191 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE (SL) HIT-6684714.A123 6684714	£1.67	£2.00
192 - COVER BRACKET FOR EUROPE (SL) HIT-6699442.A4 6699442	-
193 - BUSHING FOR (SL) HIT-6684833.A23 6684833	£3.85	£4.62
195 - SYMBOL MARK SMART FIT FOR (SL) HIT-6694743.A0 6694743	-
*196 - CAUTION MARK FOR EUROPE (SL) HIT-6684959.A8 6684959	-
*196 - CAUTION MARK FOR USA HIT-6685056.A2 6685056	-
197 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 FOR USA HIT-6685064.A10 6685064	-
198 - SPRING WASHER M6 (10 PCS.) FOR USA HIT-949455.A2 949455	£1.67	£2.00
199 - COVER BRACKET FOR USA HIT-6696978.A7 6696978	-
200 - LEVEL MARK FOR (SL) HIT-6684851.A52 6684851	-
201 - MAIN PIPE (A) FOR (SL) HIT-6699461.A0 6699461	-
202 - DRIVE SHAFT B 783L FOR (SL) HIT-6684832.A1 6684832	£35.25	£42.30
203 - GUARD FOR USA HIT-6696981.A5 6696981	-
204 - BOLT WASHER M4 (BLACK) FOR USA HIT-323210.A12 323210	-
205 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR USA HIT-6685068.A19 6685068	-
206 - NUT M4 (10 PCS.) FOR USA HIT-949554.A15 949554	£1.67	£2.00
207 - KNIFE FOR USA HIT-6696584.A29 6696584	-
208 - GUARD FOR EUROPE (SL) HIT-6696980.A28 6696980	£27.49	£32.99
209 - GUARD HOLDER FOR EUROPE (SL) HIT-6696951.A13 6696951	£3.02	£3.63
210 - COVER GUARD FOR EUROPE (SL) HIT-6696950.A24 6696950	£11.18	£13.42
211 - TAPPING SCREW 4X14 FOR EUROPE (SL) HIT-6684751.A50 6684751	£1.67	£2.00
212 - KNIFE FOR EUROPE (SL) HIT-6684750.A50 6684750	£3.64	£4.37
213 - CAUTION LABEL (HEDGE) FOR EUROPE HIT-6600328.A7 6600328	-
214 - MACHINE SCREW M5X10 (10 PCS.) HIT-949236.A39 949236	£1.67	£2.00
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A88 6684764	£7.64	£9.17
502 - HEX. BAR WRENCH 4MM HIT-944458.A45 944458	£1.67	£2.00
503 - PROTECTIVE GLASSES HIT-875769.A28 875769	-
504A - SHOULDER BELT SINGLE FOR (SL) HIT-6601420.A24 6601420	-
505 - MEGA TWIST CORD FOR USA HIT-6698640.A8 6698640	-
506 - CUTTER HOLDER (A) FOR (SL) HIT-6699441.A16 6699441	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki TCG27EBDP Engine Brush Cutter Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
