Hitachi / Hikoki TCG27EASP Engine Brush Cutter Spare Parts

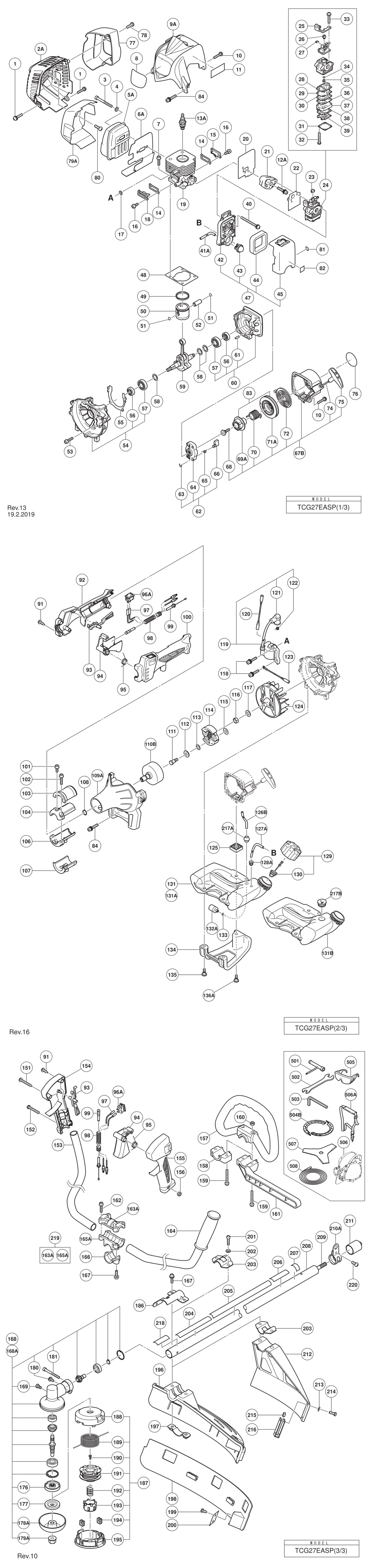

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCG27EASP Engine Brush Cutter

	Ex VAT	Inc VAT
1 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A25 791045	£2.71	£3.25
2A - MUFFLER COVER SINCE 11.2013 HIT-6600336.A3 6600336	£10.02	£12.02
3 - HEX. SOCKET HD. BOLT M6X65 HIT-6698384.A13 6698384	-
4 - BOLT WASHER M6 (10 PCS.) HIT-949432.A10 949432	£1.67	£2.00
5A - MUFFLER (B) HIT-6600004.A18 6600004	-
6A - HEAT PROTECTION PANEL SINCE 11.2013 HIT-6600324.A13 6600324	-
7 - HEX. SOCKET BOLT M5X20 HIT-6696958.A12 6696958	-
*8 - TANAKA LABEL HIT-6696339.A5 6696339	-
*8 - TANAKA LABEL FOR USA HIT-6696340.A3 6696340	-
9A - CYLINDER COVER HIT-6697921.A0 6697921	£8.59	£10.31
10 - MACHINE SCREW (W/WASHERS) M4X20 (BLACK) HIT-307606.A21 307606	£1.67	£2.00
11 - CAUTION LABEL HIT-000000.A850 000000	-
12A - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A26 6698844	£1.67	£2.00
*13A - SPARK PLUG ASS'Y BMR7A HIT-6699316.A12 6699316	£12.43	£14.92
*13A - SPARK PLUG ASS'Y CJ6 FOR USA HIT-6699322.A34 6699322	£3.73	£4.48
14 - COVER PACKING HIT-6698365.A15 6698365	£1.67	£2.00
15 - SCAVENGING COVER (A) HIT-6698484.A6 6698484	-
16 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A23 6698385	-
17 - WASHER T1.6 HIT-6684600.A39 6684600	-
18 - SCAVENGING COVER (B) HIT-6698485.A16 6698485	-
19 - CYLINDER HIT-6698480.A4 6698480	£50.30	£60.36
20 - INTAKE PACKING HIT-6698473.A2 6698473	-
21 - CARBURETOR INSULATOR HIT-6698387.A29 6698387	£4.72	£5.66
22 - CARBURETOR PACKING HIT-6698405.A45 6698405	£3.12	£3.74
24 - CARBURETOR ASS'Y WYC-29 INCLUD.25-39 HIT-6698489.A5 6698489	-
25 - CABLE ADJUST STAY HIT-6699287.A24 6699287	-
26 - SWIVEL HIT-6696830.A41 6696830	-
27 - STOP RING HIT-6684696.A62 6684696	-
28 - PUMP GASKET HIT-6684692.A85 6684692	£17.28	£20.73
29 - PUMP DIAPHRAGM HIT-6684693.A58 6684693	£5.70	£6.84
30 - PUMP PLATE HIT-6691242.A45 6691242	-
31 - DIAPHRAGM COVER-METERING HIT-6685222.A150 6685222	£5.70	£6.84
32 - SET SCREW HIT-6691312.A81 6691312	-
33 - SET SCREW M3X12 HIT-6696829.A11 6696829	-
34 - O-RING HIT-6684695.A137 6684695	£1.67	£2.00
35 - JET HIT-000000.A851 000000	-
36 - CIRCUIT PLATE HIT-6691234.A13 6691234	-
37 - PUMP BODY COMP. HIT-6696828.A41 6696828	£13.28	£15.93
38 - DIAPHRAGM PACKING-METERING HIT-6685220.A25 6685220	£2.81	£3.37
39 - METERING DIAPHRAGM HIT-6684690.A84 6684690	£24.05	£28.86
40 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A37 307224	£1.67	£2.00
41A - FUEL PIPE HIT-6698720.A10 6698720	£4.72	£5.66
42 - AIR CLEANER HOUSING HIT-000000.A852 000000	-
43 - PRIMING PUMP COMP. HIT-6685139.A108 6685139	£10.67	£12.80
44 - CLEANER ELEMENT HIT-6690347.A23 6690347	£7.15	£8.58
45 - CLEANER COVER HIT-000000.A853 000000	-
47 - AIR CLEANER ASS'Y INCLUD.42-45 HIT-6696549.A11 6696549	£13.36	£16.03
48 - CYLINDER PACKING HIT-6698366.A6 6698366	£1.67	£2.00
49 - PISTON RING HIT-6686121.A0 6686121	£6.47	£7.76
50 - PISTON HIT-6698483.A5 6698483	-
51 - CIR CLIP HIT-6684590.A83 6684590	£1.67	£2.00
52 - PISTON PIN HIT-6684591.A35 6684591	£3.29	£3.95
53 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A37 6698386	-
54 - CRANK CASE (B) ASS'Y INCLUD.56 HIT-6698370.A10 6698370	£23.00	£27.60
55 - CRANK CASE PACKING HIT-6698371.A8 6698371	£1.67	£2.00
56 - OIL SEAL TB 12227 HIT-6684607.A172 6684607	£4.07	£4.88
57 - BALL BEARING 6001 C3 HIT-6695535.A0 6695535	£5.70	£6.84
58 - SHIM T0.5 HIT-6698490.A4 6698490	-
59 - CRANK SHAFT COMP. HIT-6698488.A1 6698488	-
60 - CRANK CASE (A) ASS'Y INCLUD.56 HIT-6698369.A8 6698369	£17.94	£21.53
61 - KNOCK PIN 4X12 HIT-6696947.A55 6696947	-
62 - STARTER PULLEY ASS'Y INCLUD.63-66 HIT-6684681.A79 6684681	£18.16	£21.79
63 - D4E RETAINING RING HIT-6685101.A121 6685101	-
64 - STARTER PULLEY HIT-000000.A854 000000	-
65 - STARTER PAWL SPRING HIT-6684684.A34 6684684	£3.29	£3.95
66 - STARTER PAWL HIT-6684685.A77 6684685	£5.07	£6.08
67B - RECOIL STARTER BODY ASS'Y INCLUD.68-72 HIT-6601570.A7 6601570	£23.15	£27.78
68 - SET SCREW HIT-6684679.A110 6684679	£2.98	£3.57
69A - CAM PLATE SINCE 9.2013 HIT-6699996.A49 6699996	£4.28	£5.13
70 - DAMPER SPRING HIT-6684677.A83 6684677	£6.66	£7.99
71A - STARTER ROPE REEL SINCE 9.2013 HIT-6699997.A40 6699997	-
72 - RECOIL SPRING HIT-6684675.A45 6684675	£8.82	£10.58
74 - STARTER ROPE 3.5X860 HIT-6684674.A65 6684674	£5.70	£6.84
75 - STARTER HANDLE HIT-6684680.A39 6684680	£5.87	£7.04
76 - NAME PLATE HIT-000000.A855 000000	-
77 - MUFFLER REAR COVER SINCE 11.2013 HIT-6600335.A13 6600335	£13.36	£16.03
78 - TAPPING SCREW D4 SINCE 11.2013 HIT-6600332.A14 6600332	£1.67	£2.00
79A - MUFFLER HEAT COVER SINCE 11.2013 HIT-6600422.A19 6600422	-
80 - TAPPING SCREW D4X10 SINCE 11.2013 HIT-6600325.A14 6600325	-
81 - MARK PLATE (T) SINCE 11.2013 FOR EUROPE HIT-6600327.A10 6600327	-
82 - PRIMER LABEL SINCE 11.2013 FOR EUROPE HIT-6699000.A1 6699000	-
83 - CAMPLATE ASS'Y INCLUD.69A HIT-6699691.A51 6699691	£7.75	£9.30
84 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-6698950.A26 6698950	-
*91 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A57 305812	£1.67	£2.00
*91 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) FOR EUROPE (S) HIT-305812.A58 305812	£1.67	£2.00
*92 - HANDLE (B) FOR EUROPE (SL) HIT-6696487.A6 6696487	£5.88	£7.06
*92 - HANDLE (B) FOR USA HIT-6696942.A18 6696942	-
93 - LOCK LEVER FOR EUROPE HIT-6696490.A37 6696490	£2.84	£3.41
94 - LEVER HIT-6696488.A33 6696488	£1.67	£2.00
95 - SPRING (A) HIT-6696489.A5 6696489	£2.84	£3.41
96A - STOP SWITCH HIT-6601275.A2 6601275	£1.67	£2.00
*97 - STOP SWITCH CORD FOR (SL) HIT-6696491.A8 6696491	-
*97 - STOP SWITCH CORD FOR (S) HIT-6696592.A2 6696592	-
*98 - PROTECTION TUBE FOR (SL) HIT-6696967.A24 6696967	-
*98 - PROTECTION TUBE FOR (S) HIT-6696594.A2 6696594	-
*99 - THROTTLE WIRE COMP. FOR (SL) HIT-6696560.A8 6696560	£8.35	£10.02
*99 - THROTTLE WIRE COMP. FOR (S) HIT-6696593.A14 6696593	£7.12	£8.54
*100 - HANDLE (A) FOR EUROPE (SL) HIT-6696486.A29 6696486	£5.88	£7.06
*100 - HANDLE (A) FOR USA HIT-6696941.A6 6696941	-
101 - HEX.HOLE BOLT M5X12/S HIT-6684667.A52 6684667	£1.67	£2.00
102 - HEX. HOLE BOLT 5X22/S HIT-6695492.A0 6695492	-
103 - ANTI VIBE RUBBER (A) HIT-6696963.A31 6696963	£3.12	£3.74
104 - PIPE HOLDER (A) HIT-6698643.A12 6698643	£3.56	£4.27
106 - PIPE HOLDER (B) HIT-6698644.A35 6698644	£3.56	£4.27
107 - ANTI VIBE RUBBER (B) HIT-6696964.A9 6696964	£3.02	£3.63
108 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A25 939542	£2.98	£3.57
109A - FAN CASE HIT-6697922.A13 6697922	-
110B - CLUTCH SHAFT HIT-6699400.A2 6699400	£14.52	£17.43
111 - STEP BOLT HIT-6696469.A38 6696469	£2.84	£3.41
112 - BENT WASHER 8 HIT-6684648.A76 6684648	£1.67	£2.00
113 - CLUTCH PLATE (A) HIT-6696546.A26 6696546	£1.67	£2.00
114 - CLUTCH HIT-6696948.A10 6696948	£15.02	£18.03
115 - CLUTCH WASHER (B) HIT-6696547.A10 6696547	£1.67	£2.00
116 - FLYWHEEL NUT HIT-6685337.A38 6685337	-
117 - BOLT WASHER M8 (BLACK) HIT-323212.A36 323212	£1.67	£2.00
118 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A40 6698388	£1.67	£2.00
119 - IGNITION COIL ASS'Y INCLUD.121 HIT-6698492.A2 6698492	£28.42	£34.11
120 - CORD HIT-6698495.A3 6698495	-
121 - PLUG CAP HIT-000000.A856 000000	-
122 - METAL FITTING OF PLUG CAP HIT-000000.A857 000000	-
123 - EARTH CORD HIT-6696545.A13 6696545	-
124 - MAGNETO ROTOR COMP. HIT-6698396.A11 6698396	£11.52	£13.82
125 - SPACER HIT-6698496.A11 6698496	-
126B - FUEL PIPE HIT-6601525.A6 6601525	-
127A - FUEL PIPE L70 HIT-6699014.A7 6699014	£2.77	£3.32
128A - RETURN GROMMET TILL 7.2015 (SINCE 8.2015 FOR USA CAN) HIT-6697846.A88 6697846	£2.08	£2.50
129 - FUEL TANK CAP ASS'Y INCLUD.130 HIT-6698402.A43 6698402	-
130 - TANK CAP CHAIN HIT-000000.A858 000000	-
131A - TANK (B) TILL 7.2015 HIT-6600317.A31 6600317	£12.36	£14.83
131A - TANK FOR USA HIT-6699719.A1 6699719	£23.15	£27.78
131B - TANK (C) SINCE 8.2016 HIT-6600354.A28 6600354	-
132A - PUMP FILTER HIT-6600351.A13 6600351	£4.45	£5.34
133 - CLIP HIT-6696949.A57 6696949	£1.67	£2.00
134 - STAND HIT-6694787.A43 6694787	£3.56	£4.27
135 - FLANGE BOLT HIT-6696557.A16 6696557	£1.67	£2.00
136A - BOLT (W/FLANGE) L27.8 HIT-6698991.A0 6698991	-
151 - TAPPING SCREW (W/FLANGE) D4X30 FOR EUROPE (S) HIT-323837.A6 323837	-
152 - MACHINE SCREW M5X30 (BLACK) FOR EUROPE (S) HIT-323041.A2 323041	-
153 - HANDLE RIGHT FOR EUROPE (S) HIT-6698637.A9 6698637	-
154 - HANDLE (B) FOR EUROPE (S) HIT-6696590.A4 6696590	-
155 - HANDLE (A) FOR EUROPE (S) HIT-6696588.A4 6696588	-
156 - NUT M5 (BLACK) FOR EUROPE (S) HIT-302012.A26 302012	£1.67	£2.00
157 - LOOP HANDLE FOR EUROPE (SL) HIT-6696975.A2 6696975	£13.36	£16.03
158 - HANDLE HOLDER (A) FOR USA HIT-6696972.A22 6696972	-
159 - BOLT (BLACK) M6 FOR EUROPE (SL) HIT-6696974.A41 6696974	£1.67	£2.00
160 - NUT M6 (10 PCS.) FOR EUROPE (SL) HIT-949556.A57 949556	£1.67	£2.00
161 - BARRIER FOR EUROPE (SL) HIT-6696973.A2 6696973	£8.35	£10.02
162 - HEX. HOLE BOLT M5X25/S FOR EUROPE (S) HIT-6684709.A108 6684709	£1.67	£2.00
163A - HANDLE HOLDER (A) SINCE 7.2015 FOR EUROPE (S) HIT-6600500.A24 6600500	-
164 - HANDLE (LEFT) FOR EUROPE (S) HIT-6698638.A8 6698638	-
165A - HANDLE HOLDER (B) SINCE 7.2015 FOR EUROPE (S) HIT-6600501.A7 6600501	-
166 - HANDLE HOLDER (C) FOR EUROPE (S) HIT-6696578.A7 6696578	-
*167 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE (S) HIT-6684714.A8 6684714	£1.67	£2.00
*167 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE (SL) HIT-6684714.A9 6684714	£1.67	£2.00
*168 - GEAR CASE ASS'Y 3BB (B) INCLUD.169 HIT-6696976.A21 6696976	£60.73	£72.88
168A - GEAR CASE ASS'Y 3BB (A) INCLUD.169 HIT-6699402.A18 6699402	-
169 - BOLT (BLACK) M6 HIT-6696974.A42 6696974	£1.67	£2.00
176 - CUTTER HOLDER (A) HIT-6696977.A3 6696977	£18.01	£21.61
177 - CUTTER HOLDER (B) FOR EUROPE HIT-6698659.A8 6698659	£15.99	£19.19
178A - NUT COVER FOR EUROPE HIT-6699188.A11 6699188	£10.93	£13.12
179A - U-NUT (LEFT HAND) M10 FOR EUROPE HIT-335759.A48 335759	£1.67	£2.00
180 - SCREW 5X12/W.S HIT-6695414.A60 6695414	£1.67	£2.00
181 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) HIT-949664.A19 949664	£4.33	£5.20
186 - COVER BRACKET FOR EUROPE HIT-6696494.A22 6696494	£3.02	£3.63
*187 - NYLON HEAD ASS'Y INCLUD.188-195 HIT-6696454.A25 6696454	£48.12	£57.75
*187 - NYLON HEAD ASS'Y INCLUD.188-195 FOR USA HIT-6698639.A8 6698639	£31.92	£38.31
188 - COVER HIT-6698794.A19 6698794	£17.58	£21.09
*188 - COVER FOR USA HIT-6698937.A6 6698937	£22.42	£26.91
189 - NYLON CORD HIT-000000.A859 000000	-
190 - SET SCREW HIT-6698795.A17 6698795	-
191 - REEL HIT-6698796.A27 6698796	£7.12	£8.54
*191 - REEL FOR USA HIT-6698939.A6 6698939	-
192 - RETURN SPRING HIT-6698797.A10 6698797	£1.67	£2.00
*192 - RETURN SPRING FOR USA HIT-6698941.A6 6698941	-
193 - BUTTON HIT-6698798.A27 6698798	£7.12	£8.54
*193 - BUTTON FOR USA HIT-6698940.A12 6698940	-
194 - CORD GUIDE HIT-6698799.A12 6698799	£7.12	£8.54
*194 - CORD GUIDE FOR USA HIT-6698942.A12 6698942	-
195 - CASE HIT-6698800.A19 6698800	£14.11	£16.93
*195 - CASE FOR USA HIT-6698938.A12 6698938	-
196 - GUARD FOR EUROPE HIT-6696980.A7 6696980	£27.49	£32.99
197 - GUARD HOLDER FOR EUROPE HIT-6696951.A30 6696951	£3.02	£3.63
198 - COVER GUARD FOR EUROPE HIT-6696950.A8 6696950	£11.18	£13.42
199 - TAPPING SCREW 4X14 FOR EUROPE HIT-6684751.A87 6684751	£1.67	£2.00
200 - KNIFE FOR EUROPE HIT-6684750.A16 6684750	£3.64	£4.37
201 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 FOR USA HIT-6685064.A25 6685064	-
202 - SPRING WASHER M6 (10 PCS.) FOR USA HIT-949455.A127 949455	£1.67	£2.00
203 - COVER BRACKET FOR USA HIT-6696978.A25 6696978	-
*205 - CAUTION MARK HIT-6684959.A4 6684959	-
*205 - CAUTION MARK FOR USA HIT-6685056.A5 6685056	-
206 - LEVEL MARK FOR EUROPE (SL) HIT-6684852.A20 6684852	-
207 - LEVEL MARK FOR EUROPE HIT-6684851.A28 6684851	-
208 - MAIN PIPE COMP. HIT-6696558.A14 6696558	£22.07	£26.48
209 - DRIVE SHAFT HIT-6698514.A10 6698514	£19.46	£23.35
210A - HANGER FOR EUROPE HIT-6600504.A16 6600504	£1.67	£2.00
211 - CAP (A) FOR EUROPE HIT-6698515.A24 6698515	-
212 - GUARD FOR USA HIT-6696981.A21 6696981	-
213 - NUT M4 (10 PCS.) FOR USA HIT-949554.A54 949554	£1.67	£2.00
214 - BOLT WASHER M4 (BLACK) FOR USA HIT-323210.A35 323210	-
215 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR USA HIT-6685068.A45 6685068	-
216 - KNIFE FOR USA HIT-6696584.A14 6696584	-
217A - FUEL GROMMET TILL 7.2015 (SINCE 8.2015 FOR USA CAN) HIT-6688156.A52 6688156	-
217B - FUEL GROMMET SINCE 8.2015 (EXCEPT FOR USA CAN) HIT-6600358.A9 6600358	£1.67	£2.00
218 - CAUTION LABEL (HEDGE) SINCE 11.2013 FOR EUROPE HIT-6600328.A9 6600328	-
219 - HANDLE HOLDER (A).(B) SET INCLUD.163A HIT-6600499.A10 6600499	-
*223 - HANDLE HOLDER (A).(B) SET FOR EUROPE (S) HIT-6600499.A11 6600499	-
220 - MACHINE SCREW M5X10 (10 PCS.) FOR EUROPE HIT-949236.A80 949236	£1.67	£2.00
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A43 6684764	£7.64	£9.17
502 - WRENCH 8X10 FOR EUROPE HIT-6696596.A5 6696596	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A130 944458	£1.67	£2.00
504B - CUTTER COVER FOR EUROPE (S) HIT-6684768.A47 6684768	-
505 - PROTECTIVE GLASSES HIT-875769.A110 875769	-
*506 - SHOULDER BELT ASS'Y W FOR EUROPE (S) HIT-6696184.A10 6696184	£25.30	£30.36
506A - SHOULDER BELT SINGLE FOR EUROPE (SL) HIT-6601420.A39 6601420	-
507 - BLADE 3TX255XT1.8 FOR EUROPE (S) HIT-6698711.A0 6698711	-
508 - MEGA TWIST CORD FOR USA HIT-6698640.A6 6698640	-
*601 - REPAIR KIT (D-3) TILL 10.2013 FOR EUROPE HIT-6600036.A1 6600036	-
*601 - REPAIR KIT (E) TILL 10.2013 FOR USA HIT-6600038.A0 6600038	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki TCG27EASP Engine Brush Cutter Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki TCG27EASP Engine Brush Cutter Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki TCG27EASP Engine Brush Cutter Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
