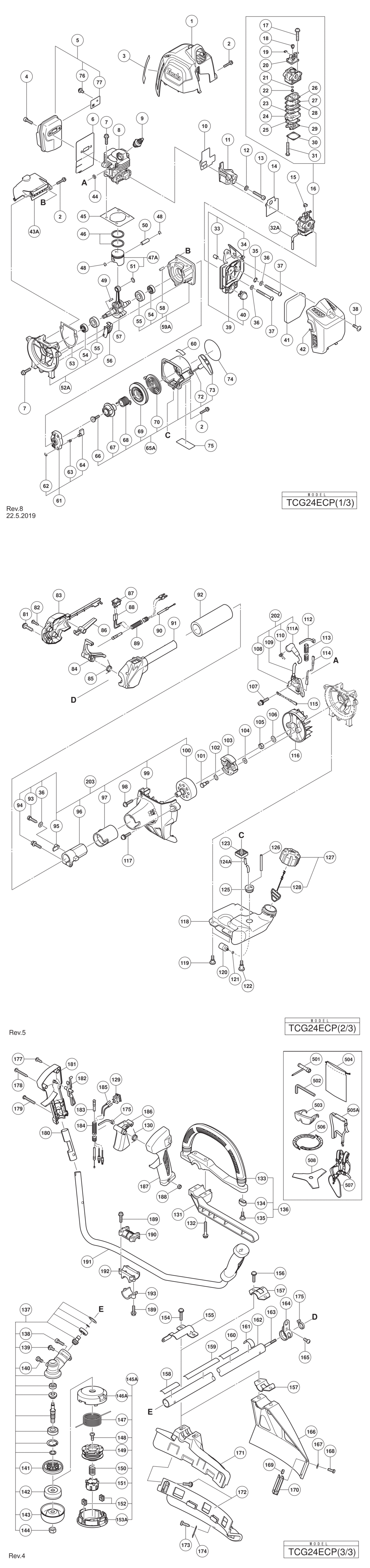

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCG24ECP Engine Brush Cutter
Ex VAT Inc VAT
1 - CYLINDER COVER HIT-6600544.A1 6600544 -
2 - SEAL LOCK HEX. SOCKET HD. BOLT M4 HIT-6600918.A3 6600918 -
3 - IDENTIFICATION LABEL HIT-000000.A5230 000000 -
4 - SEAL LOCK HEX. SOCKET HD. BOLT M6X16 HIT-6600518.A15 6600518 -
5 - MUFFLER INCLUD.76 HIT-6600908.A3 6600908 £38.68 £46.42
6 - HEAT PROTECTION PANEL HIT-6600517.A8 6600517 -
7 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X22 HIT-6601339.A15 6601339 -
8 - CYLINDER N24 HIT-6600902.A7 6600902 -
9 - IGNITION PLUG (TORCH L7RTC) HIT-6600542.A3 6600542 -
10 - INTAKE PACKING HIT-6600524.A7 6600524 -
11 - CARBURETOR INSULATOR HIT-6600525.A3 6600525 -
12 - SPRING WASHER D6 HIT-6600910.A23 6600910 -
13 - SEAL LOCK HEX. SOCKET HD. BOLT M6X27 HIT-6601358.A19 6601358 -
14 - CARBURETOR PACKING HIT-6698405.A34 6698405 £3.12 £3.74
15 - SWIVEL CAP HIT-6691337.A77 6691337 £1.67 £2.00
16 - CARBURETOR ASS'Y WYC-43 INCLUD.17-31 HIT-6600526.A4 6600526 -
17 - THROTTLE SET SCREW HIT-6684698.A59 6684698 -
18 - SWIVEL HIT-6696830.A26 6696830 -
19 - STOP RING HIT-6684696.A203 6684696 -
21 - O-RING HIT-6684695.A14 6684695 £1.67 £2.00
22 - MAIN JET HIT-000000.A5231 000000 -
23 - CIRCUIT PLATE HIT-6691234.A40 6691234 -
24 - PUMP BODY COMP. HIT-6696828.A29 6696828 £13.28 £15.93
25 - DIAPHRAGM PACKING-METERING HIT-6685220.A129 6685220 £2.81 £3.37
26 - PUMP GASKET HIT-6684692.A9 6684692 £17.28 £20.73
27 - PUMP DIAPHRAGM HIT-6684693.A190 6684693 £5.70 £6.84
28 - PUMP PLATE HIT-6691242.A19 6691242 -
29 - METERING DIAPHRAGM HIT-6684690.A12 6684690 £24.05 £28.86
30 - DIAPHRAGM COVER-METERING HIT-6685222.A47 6685222 £5.70 £6.84
31 - SET SCREW HIT-6691312.A43 6691312 -
32A - FUEL PIPE HIT-6601444.A2 6601444 -
33 - COLLAR M5 HIT-6601340.A9 6601340 -
34 - CHOKE VALVE HIT-6601341.A7 6601341 -
35 - WAVE WASHER 8 HIT-334242.A22 334242 -
36 - BOLT WASHER D5 HIT-6685407.A13 6685407 -
37 - SCREW M5X55 HIT-6694914.A22 6694914 -
38 - SPECIAL SCREW M5 HIT-6600532.A4 6600532 -
39 - AIR CLEANER BASE ASS'Y INCLUD.33 HIT-6600911.A3 6600911 -
40 - PRIMING PUMP COMP. HIT-6685139.A25 6685139 £10.67 £12.80
41 - AIR CLEANER ELEMENT HIT-6600529.A14 6600529 -
42 - AIR CLEANER COVER HIT-6600530.A3 6600530 -
43A - MUFFLER TANK PARTITION HIT-6601430.A3 6601430 £4.28 £5.13
44 - GLASS WASHER HIT-6698700.A15 6698700 £1.67 £2.00
45 - CYLINDER PACKING HIT-6600510.A0 6600510 -
46 - PISTON RING HIT-6698404.A15 6698404 £7.03 £8.44
47A - PISTON SET INCLUD.51 HIT-6601476.A3 6601476 -
48 - CIR CLIP HIT-6684590.A31 6684590 £1.67 £2.00
49 - WOODRUFF KEY 3X13X4.5 HIT-6601343.A19 6601343 -
50 - PISTON PIN HIT-6601344.A8 6601344 -
51 - SHIM HIT-6600909.A2 6600909 -
52A - CRANK CASE (F) ASS'Y INCLUD.54 HIT-6601619.A11 6601619 -
53 - CRANK CASE PACKING HIT-6600514.A0 6600514 -
54 - OIL SEAL TB 12227 HIT-6684607.A28 6684607 £4.07 £4.88
55 - BALL BEARING 6001 C3 HIT-6684608.A169 6684608 £5.70 £6.84
56 - CRANK CASE GUARD HIT-6600924.A18 6600924 -
57 - CRANK SHAFT HIT-6600511.A11 6600511 -
58 - KNOCK PIN 4X12 HIT-6696947.A33 6696947 -
59A - CRANK CASE (R) ASS'Y INCLUD.54 HIT-6600906.A7 6600906 -
60 - TANK MARK LABEL (50:1) HIT-6698921.A22 6698921 -
61 - STARTER PULLEY ASS'Y INCLUD.62-64 HIT-6684681.A8 6684681 £18.16 £21.79
62 - D4E RETAINING RING HIT-6685101.A64 6685101 -
63 - STARTER PAWL SPRING HIT-6684684.A109 6684684 £3.29 £3.95
64 - STARTER PAWL HIT-6684685.A8 6684685 £5.07 £6.08
65A - RECOIL STARTER BODY ASS'Y INCLUD.66-70 HIT-6601570.A64 6601570 £23.15 £27.78
66 - SET SCREW HIT-6684679.A10 6684679 £2.98 £3.57
67 - CAM PLATE HIT-6699996.A18 6699996 £4.28 £5.13
68 - DAMPER SPRING HIT-6684677.A27 6684677 £5.70 £6.84
69 - STARTER ROPE REEL HIT-6699997.A71 6699997 -
70 - RECOIL SPRING HIT-6684675.A119 6684675 £8.82 £10.58
72 - STARTER ROPE 3.5X860 HIT-6684674.A22 6684674 £5.70 £6.84
73 - STARTER HANDLE HIT-6684680.A107 6684680 £5.87 £7.04
74 - NAME PLATE HIT-000000.A5232 000000 -
75 - CAUTION LABEL HIT-000000.A5233 000000 -
76 - MACHINE SCREW (W/WASHERS) M4X8 (BLACK) HIT-6601439.A14 6601439 -
77 - SPARK ARRESTER HIT-6601438.A4 6601438 -
81 - MACHINE SCREW (W/WASHERS) M5X20 (BLACK) FOR (SL) HIT-995096.A5 995096 £1.67 £2.00
82 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) FOR (SL) HIT-305812.A155 305812 £1.67 £2.00
83 - HANDLE (B) FOR (SL) HIT-6600566.A4 6600566 -
84 - THROTTLE LEVER FOR (SL) HIT-6600568.A4 6600568 -
85 - SPRING (A) FOR (SL) HIT-6696489.A24 6696489 £2.84 £3.41
86 - TRIGGER LOCKOUT FOR (SL) HIT-6600567.A3 6600567 -
87 - STOP SWITCH FOR (SL) HIT-6601275.A75 6601275 £1.67 £2.00
88 - STOP SWITCH CORD FOR (SL) HIT-6696491.A29 6696491 -
89 - PROTECTION TUBE FOR (SL) HIT-6696967.A9 6696967 -
90 - THROTTLE WIRE COMP FOR (SL) HIT-6600569.A3 6600569 -
91 - HANDLE (A) FOR (SL) HIT-6600565.A3 6600565 -
92 - GRIP (LOOP) FOR (SL) HIT-6600538.A2 6600538 £7.75 £9.30
93 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5 HIT-6600919.A7 6600919 -
94 - HEX. SOCKET HD. BOLT (W/WASHERS) M5 HIT-6600372.A23 6600372 -
95 - METAL FITTING HIT-6689664.A29 6689664 £6.12 £7.35
96 - PIPE HOLDER HIT-6600551.A7 6600551 -
97 - DAMPER (HOLDER) HIT-6600552.A4 6600552 -
98 - TAPPING SCREW D4.5X16 HIT-6698878.A10 6698878 £1.67 £2.00
99 - FAN CASE HIT-6600548.A7 6600548 -
100 - CLUTCH SHAFT HIT-6600549.A4 6600549 -
101 - STEP BOLT HIT-6696469.A12 6696469 £2.84 £3.41
102 - BENT WASHER 8 HIT-6684648.A18 6684648 £1.67 £2.00
103 - CLUTCH HIT-6696948.A15 6696948 £15.02 £18.03
104 - CLUTCH WASHER (B) HIT-6696547.A38 6696547 £1.67 £2.00
105 - FLYWHEEL NUT HIT-6685337.A28 6685337 -
106 - BOLT WASHER M8 (BLACK) HIT-323212.A1 323212 £1.67 £2.00
107 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A81 6698388 £1.67 £2.00
108 - IGNITION COIL HIT-6600515.A11 6600515 -
109 - CORD INSULATION TUBE L100 HIT-6600051.A11 6600051 -
110 - PLUG CAP METAL HIT-6699186.A6 6699186 £1.67 £2.00
111A - PLUG CAP HIT-6601421.A43 6601421 £1.67 £2.00
112 - BAND FOR IRL HIT-6698943.A21 6698943 -
113 - PROTECTION TUBE L50 FOR IRL HIT-6601345.A6 6601345 -
*114 - CORD HIT-6698495.A13 6698495 -
*114 - CORD FOR USA HIT-6696544.A10 6696544 -
115 - EARTH CORD HIT-6696545.A37 6696545 -
116 - MAGNETO ROTOR HIT-6699289.A41 6699289 £24.52 £29.43
117 - MACHINE SCREW (W/WASHERS) M5X18 HIT-6600920.A4 6600920 -
*118 - TANK HIT-6600519.A6 6600519 -
*118 - TANK FOR USA HIT-6600520.A4 6600520 -
119 - BOLT (W/FLANGE) L17.8 HIT-6696574.A26 6696574 £1.67 £2.00
120 - PUMP FILTER HIT-6600351.A78 6600351 £4.45 £5.34
121 - CLIP HIT-6696949.A29 6696949 £1.67 £2.00
122 - BOLT (W/FLANGE) L23.8 HIT-6698512.A14 6698512 £1.67 £2.00
123 - SPACER HIT-6699558.A15 6699558 -
124A - FUEL PIPE L70 HIT-6699014.A53 6699014 £2.77 £3.32
125 - FUEL GROMMET HIT-6600358.A76 6600358 £1.67 £2.00
*126 - FUEL PIPE L140 HIT-6600521.A0 6600521 £1.67 £2.00
*126 - FUEL PIPE L140 FOR USA HIT-6600522.A4 6600522 -
127 - FUEL TANK CAP ASS'Y INCLUD.128 HIT-6698402.A41 6698402 -
128 - TANK CAP CHAIN HIT-6698732.A66 6698732 -
129 - STOP SWITCH FOR (S) HIT-6601275.A76 6601275 £1.67 £2.00
130 - SPRING (A) FOR (S) HIT-6696489.A23 6696489 £2.84 £3.41
131 - BARRIER FOR (SL) HIT-6696973.A31 6696973 £8.35 £10.02
132 - BOLT (BLACK) M6 FOR (SL) HIT-6696974.A1 6696974 £1.67 £2.00
133 - LOOP HANDLE FOR (SL) HIT-6601348.A3 6601348 -
134 - CUSHION RUBBER FOR (SL) HIT-6601349.A4 6601349 -
135 - BOLT (W/FLANGE) L23.8 FOR (SL) HIT-6698512.A15 6698512 £1.67 £2.00
136 - LOOP HANDLE ASS'Y INCLUD.133-135 FOR (SL) HIT-6600922.A4 6600922 -
*137 - GEAR CASE ASS'Y 3BB (D) INCLUD.138-144 HIT-6600553.A3 6600553 -
*137 - GEAR CASE ASS'Y 3BB (D) INCLUD.138-141 FOR USA HIT-6600555.A1 6600555 -
138 - HEX. SOCKET HD. BOLT M5X25 (10 PCS.) HIT-949662.A8 949662 £3.64 £4.37
139 - SCREW 5X12/W.S HIT-6695414.A0 6695414 £1.67 £2.00
140 - BOLT (W/PLUS) M6X8 HIT-6684737.A57 6684737 -
141 - CUTTER HOLDER (A) HIT-6601354.A4 6601354 £8.01 £9.61
142 - CUTTER HOLDER (B) FOR IRL HIT-6601355.A3 6601355 -
143 - NUT COVER FOR IRL HIT-6699188.A39 6699188 £10.93 £13.12
144 - U-NUT (LEFT HAND) M10 FOR IRL HIT-335759.A17 335759 £1.67 £2.00
145A - NYLON HEAD ASS'Y INCLUD.146A HIT-6601432.A4 6601432 -
146A - COVER HIT-000000.A5234 000000 -
147 - NYLON CORD HIT-000000.A5236 000000 -
148 - SET SCREW FOR (SL) HIT-6698795.A46 6698795 -
149 - REEL FOR (SL) HIT-6698796.A2 6698796 £7.12 £8.54
150 - RETURN SPRING FOR (SL) HIT-6698797.A35 6698797 £1.67 £2.00
151 - BUTTON FOR (SL) HIT-6698798.A2 6698798 £7.12 £8.54
152 - CORD GUIDE FOR (SL) HIT-6698799.A37 6698799 £7.12 £8.54
153A - CASE HIT-000000.A5237 000000 -
154 - HEX. HOLE BUTTON BOLT M6X25 FOR IRL HIT-6684714.A152 6684714 £1.67 £2.00
155 - COVER BRACKET FOR IRL HIT-6699443.A7 6699443 -
156 - BOLT (W/SP.WASHER) M6 FOR USA HIT-6600509.A1 6600509 -
157 - COVER BRACKET FOR USA HIT-6696978.A10 6696978 -
158 - LOGO LABEL TBC-2390 HIT-000000.A5239 000000 -
*159 - CAUTION MARK HIT-6600449.A6 6600449 -
*159 - CAUTION MARK (USA) FOR USA HIT-6600448.A0 6600448 -
160 - LEVEL MARK (B) FOR (SL) HIT-6600446.A6 6600446 -
161 - LEVEL MARK FOR IRL HIT-6684851.A59 6684851 -
162 - MAIN PIPE (T1.1) HIT-6600556.A0 6600556 -
163 - DRIVE SHAFT HIT-6600558.A7 6600558 -
164 - HANGER FOR IRL HIT-6600504.A23 6600504 £1.67 £2.00
165 - MACHINE SCREW M5X10 (10 PCS.) FOR IRL HIT-949236.A33 949236 £1.67 £2.00
166 - GUARD FOR USA HIT-6696981.A9 6696981 -
167 - BOLT WASHER M4 (BLACK) FOR USA HIT-323210.A1 323210 -
168 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR USA HIT-6685068.A32 6685068 -
169 - NUT M4 (10 PCS.) FOR USA HIT-949554.A7 949554 £1.67 £2.00
170 - KNIFE FOR USA HIT-6696584.A35 6696584 -
171 - GUARD ASS'Y (EU) FOR IRL HIT-6600528.A3 6600528 -
172 - COVER GUARD (EU) ASS'Y FOR IRL HIT-6601356.A4 6601356 -
173 - TAPPING SCREW 4X14 FOR IRL HIT-6684751.A29 6684751 £1.67 £2.00
174 - KNIFE FOR IRL HIT-6684750.A66 6684750 £3.64 £4.37
175 - BAND FOR (S) HIT-6698943.A22 6698943 -
177 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) FOR (S) HIT-302086.A3 302086 £1.67 £2.00
178 - TAPPING SCREW (W/FLANGE) D4X30 FOR (S) HIT-323837.A19 323837 -
179 - MACHINE SCREW M5X30 (BLACK) FOR (S) HIT-323041.A20 323041 -
180 - HANDLE COLLAR FOR (S) HIT-6600503.A2 6600503 -
181 - HANDLE (B) FOR (S) HIT-6696590.A23 6696590 -
182 - LOCK LEVER FOR (S) HIT-6696490.A11 6696490 £2.84 £3.41
183 - THROTTLE WIRE COMP. FOR (S) HIT-6600900.A4 6600900 £3.56 £4.27
184 - PROTECTION TUBE L770 FOR (S) HIT-6601347.A3 6601347 -
185 - STOP SWITCH CORD FOR (S) HIT-6696592.A21 6696592 -
186 - LEVER FOR (S) HIT-6696488.A10 6696488 £1.67 £2.00
187 - HANDLE (A) FOR (S) HIT-6696588.A21 6696588 -
188 - NUT M5 (BLACK) FOR (S) HIT-302012.A6 302012 £1.67 £2.00
189 - HEX. HOLE BOLT M5X25/S FOR (S) HIT-6684709.A48 6684709 £1.67 £2.00
190 - HANDLE HOLDER (A) FOR (S) HIT-6600561.A7 6600561 -
191 - U-HANDLE FOR (S) HIT-6600896.A0 6600896 -
192 - HANDLE HOLDER (B) FOR (S) HIT-6600562.A2 6600562 -
193 - HANDLE HOLDER (C) FOR (S) HIT-6600563.A7 6600563 -
202 - IGNITION COIL ASS'Y INCLUD.108-111A HIT-6601380.A11 6601380 £45.18 £54.22
203 - FAN CASE (A) ASS'Y INCLUD.36 HIT-6601378.A0 6601378 -
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A98 6684764 £7.64 £9.17
502 - HEX. BAR WRENCH 4MM HIT-944458.A23 944458 £1.67 £2.00
503 - PROTECTIVE GLASSES HIT-875769.A4 875769 -
504 - TOOL BAG 410X330 HIT-66A2943.A2 66A2943 -
505A - SHOULDER BELT SINGLE FOR IRL (SL) HIT-6601420.A13 6601420 -
506 - CUTTER COVER FOR (S) HIT-6684768.A16 6684768 -
507 - SHOULDER BELT ASS'Y W FOR (S) HIT-6696184.A3 6696184 £25.30 £30.36
508 - BLADE 3TX255XT1.8 FOR (S) HIT-6698711.A22 6698711 -
601 - AIR CLEANER ELEMENT HIT-6601389.A4 6601389 -

Recently Viewed


x
Powered by kartris
