Hitachi / Hikoki TCG24EBDP Engine Brush Cutter Spare Parts

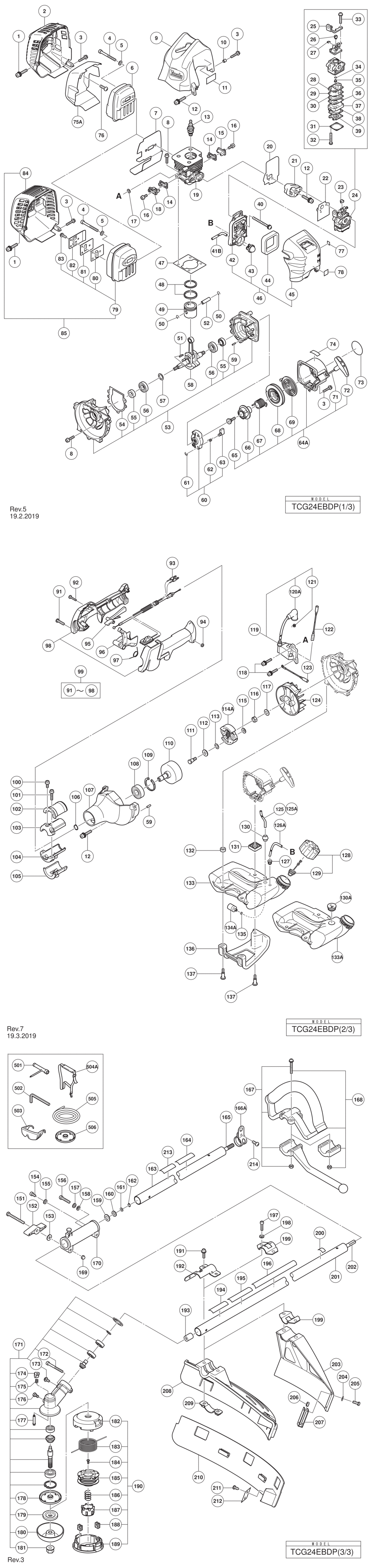

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCG24EBDP Engine Brush Cutter

	Ex VAT	Inc VAT
1 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-6698950.A36 6698950	-
2 - MUFFLER COVER EXCEPT FOR USA HIT-6600319.A10 6600319	-
3 - HEX. SOCKET HD. BOLT (W/FLANGE) M4X18 HIT-6696326.A20 6696326	-
4 - HEX. SOCKET HD. BOLT M6X65 HIT-6698384.A3 6698384	-
5 - BOLT WASHER M6 (10 PCS.) HIT-949432.A33 949432	£1.67	£2.00
6 - MUFFLER (B) EXCEPT FOR USA HIT-6600004.A14 6600004	-
7 - HEAT PROTECTION PANEL HIT-6600320.A1 6600320	£1.67	£2.00
8 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A6 6698386	-
9 - CYLINDER COVER HIT-6699455.A3 6699455	-
10 - COLLAR (B) HIT-6600008.A11 6600008	-
11 - CAUTION LABEL HIT-000000.A2384 000000	-
12 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A14 6698844	£1.67	£2.00
*13 - SPARK PLUG ASS'Y BMR7A HIT-6699316.A32 6699316	£12.43	£14.92
*13 - SPARK PLUG ASS'Y CJ6 FOR USA HIT-6699322.A28 6699322	£3.73	£4.48
14 - COVER PACKING HIT-6698468.A13 6698468	-
15 - SCAVENGING COVER (A) HIT-6698469.A2 6698469	-
16 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A41 6698385	-
17 - GLASS WASHER HIT-6698700.A64 6698700	£1.67	£2.00
18 - SCAVENGING COVER (B) HIT-6698470.A13 6698470	-
19 - CYLINDER HIT-6698465.A2 6698465	£40.69	£48.83
20 - INTAKE PACKING HIT-6699437.A1 6699437	£1.67	£2.00
21 - CARBURETOR INSULATOR HIT-6698387.A50 6698387	£4.72	£5.66
22 - CARBURETOR PACKING HIT-6698405.A55 6698405	£3.12	£3.74
23 - SWIVEL CAP HIT-6691337.A29 6691337	£1.67	£2.00
24 - CARBURETOR ASS'Y WYC-36 INCLUD.25-39 HIT-6600321.A5 6600321	£39.03	£46.84
25 - CABLE ADJUST STAY HIT-6699287.A38 6699287	-
26 - SWIVEL HIT-6696830.A30 6696830	-
27 - STOP RING HIT-6684696.A52 6684696	-
28 - PUMP GASKET HIT-6684692.A94 6684692	£17.28	£20.73
29 - PUMP DIAPHRAGM HIT-6684693.A47 6684693	£5.70	£6.84
30 - PUMP PLATE HIT-6691242.A57 6691242	-
31 - DIAPHRAGM COVER-METERING HIT-6685222.A101 6685222	£5.70	£6.84
32 - SET SCREW HIT-6691312.A59 6691312	-
33 - SET SCREW M3X12 HIT-6696829.A22 6696829	-
34 - O-RING HIT-6684695.A145 6684695	£1.67	£2.00
35 - MAIN JET HIT-000000.A2385 000000	-
36 - CIRCUIT PLATE HIT-6691234.A0 6691234	-
37 - PUMP BODY COMP. HIT-6696828.A30 6696828	£13.28	£15.93
38 - DIAPHRAGM PACKING-METERING HIT-6685220.A77 6685220	£2.81	£3.37
39 - METERING DIAPHRAGM HIT-6684690.A100 6684690	£24.05	£28.86
40 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A41 307224	£1.67	£2.00
41B - Part Name Not Listed HIT-6601443.A0 6601443	-
42 - AIR CLEANER HOUSING HIT-66965549.A22 66965549	£15.62	£18.74
43 - PRIMING PUMP COMP. HIT-6685139.A78 6685139	£10.67	£12.80
44 - CLEANER ELEMENT HIT-6690347.A34 6690347	£7.15	£8.58
45 - CLEANER COVER HIT-6699185.A5 6699185	£11.28	£13.53
46 - AIR CLEANER (A) ASS'Y INCLUD.42-45 HIT-6699132.A7 6699132	£13.52	£16.23
47 - CYLINDER GASKET HIT-6684587.A13 6684587	£1.67	£2.00
48 - PISTON RING HIT-6698404.A9 6698404	£7.03	£8.44
49 - PISTON HIT-6699456.A0 6699456	-
50 - CIR CLIP HIT-6684590.A147 6684590	£1.67	£2.00
51 - WOODRUFF KEY 3X13X4.5 HIT-6684899.A6 6684899	-
52 - PISTON PIN HIT-6684591.A4 6684591	£3.29	£3.95
53 - CRANK CASE ASS'Y INCLUD.54-56 HIT-6684606.A0 6684606	£40.68	£48.82
54 - CRANK CASE GASKET HIT-6684609.A15 6684609	-
55 - OIL SEAL TB 12227 HIT-6684607.A125 6684607	£4.07	£4.88
56 - BALL BEARING 6001 C3 HIT-6684608.A76 6684608	£5.70	£6.84
*57 - SHIM T0.2 HIT-6696946.A19 6696946	£1.67	£2.00
*57 - SHIM T0.3 HIT-6696945.A18 6696945	£1.67	£2.00
58 - CRANK SHAFT COMP. HIT-6696533.A26 6696533	£42.11	£50.53
59 - KNOCK PIN 4X12 HIT-6696947.A35 6696947	-
60 - STARTER PULLEY ASS'Y INCLUD.61-63 HIT-6684681.A94 6684681	£18.16	£21.79
61 - D4E RETAINING RING HIT-6685101.A84 6685101	-
62 - STARTER PAWL SPRING HIT-6684684.A26 6684684	£3.29	£3.95
63 - STARTER PAWL HIT-6684685.A85 6684685	£5.07	£6.08
64A - RECOIL STARTER BODY ASS'Y INCLUD.65-69 HIT-6601570.A29 6601570	£23.15	£27.78
65 - SET SCREW HIT-6684679.A130 6684679	£2.98	£3.57
66 - CAM PLATE HIT-6699996.A74 6699996	£4.28	£5.13
67 - DAMPER SPRING HIT-6684677.A104 6684677	£5.70	£6.84
68 - STARTER ROPE REEL HIT-6699997.A15 6699997	-
69 - RECOIL SPRING HIT-6684675.A21 6684675	£8.82	£10.58
71 - STARTER ROPE 3.5X860 HIT-6684674.A86 6684674	£5.70	£6.84
72 - STARTER HANDLE HIT-6684680.A21 6684680	£5.87	£7.04
73 - NAME PLATE HIT-000000.A2386 000000	-
74 - TANK MARK LABEL (50:1) HIT-6698921.A48 6698921	-
75A - MUFFLER HEAT COVER EXCEPT FOR USA HIT-6600422.A15 6600422	-
76 - TAPPING SCREW D4X10 EXCEPT FOR USA HIT-6600325.A1 6600325	-
77 - MARK PLATE (T) FOR EUROPE HIT-6600327.A0 6600327	-
78 - PRIMER LABEL FOR EUROPE HIT-6699000.A11 6699000	-
79 - MUFFLER ASS'Y INCLUD.80-83 FOR USA HIT-6601585.A1 6601585	-
80 - SPARK ARRESTER FOR USA HIT-6600489.A1 6600489	-
81 - EXHAUST PIPE GASKET FOR USA HIT-6600490.A4 6600490	-
82 - EXHAUST PIPE FOR USA HIT-6600491.A1 6600491	-
83 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR USA HIT-6685068.A66 6685068	-
84 - MUFFLER COVER FOR USA HIT-6601586.A0 6601586	-
85 - EXHAUST SET INCLUD.79 HIT-6601589.A3 6601589	-
91 - MACHINE SCREW M5X20 (BLACK) HIT-6699195.A11 6699195	-
92 - P TITE SCREW D4X20 (BLACK) HIT-6699194.A6 6699194	-
93 - SWITCH WIRE SET HIT-6699197.A11 6699197	-
94 - NUT M5 HIT-6699196.A6 6699196	-
95 - STOP LEVER HIT-6699192.A6 6699192	-
96 - LONG LEVER HIT-6699191.A11 6699191	-
97 - RETURN SPRING HIT-6699193.A11 6699193	-
98 - STAY SET HIT-6699190.A6 6699190	-
99 - THROTTLE LEVER (A) ASS'Y INCLUD.91-98 HIT-6699133.A10 6699133	-
100 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12 HIT-6699176.A20 6699176	£1.67	£2.00
101 - HEX. HOLE BOLT 5X22/S HIT-6695492.A15 6695492	-
102 - ANTI VIBE RUBBER (A) HIT-6696963.A24 6696963	£3.12	£3.74
103 - PIPE HOLDER (A) HIT-6698643.A2 6698643	£3.56	£4.27
104 - PIPE HOLDER (B) HIT-6698644.A45 6698644	£3.56	£4.27
105 - ANTI VIBE RUBBER (B) HIT-6696964.A16 6696964	£3.02	£3.63
106 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A10 939542	£2.98	£3.57
107 - FAN CASE (A) HIT-6699457.A7 6699457	-
108 - BALL BEARING 6301ZZC3 HIT-6699435.A2 6699435	£4.28	£5.13
109 - RETAINING RING 37MM HIT-322813.A1 322813	£1.67	£2.00
110 - CLUTCH SHAFT HIT-6699434.A13 6699434	£11.28	£13.53
111 - STEP BOLT HIT-6696469.A47 6696469	£2.84	£3.41
112 - BENT WASHER 8 HIT-6684648.A99 6684648	£1.67	£2.00
113 - CLUTCH PLATE (A) HIT-6696546.A34 6696546	£1.67	£2.00
114A - CLUTCH HIT-6601431.A10 6601431	-
115 - CLUTCH WASHER (B) HIT-6699131.A10 6699131	-
116 - FLYWHEEL NUT HIT-6685337.A49 6685337	-
117 - BOLT WASHER M8 (BLACK) HIT-323212.A54 323212	£1.67	£2.00
118 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A8 6698388	£1.67	£2.00
119 - IGNITION COIL ASS'Y INCLUD.120A HIT-6699458.A0 6699458	£37.28	£44.74
120A - PLUG CAP HIT-6601421.A17 6601421	£1.67	£2.00
121 - METAL FITTING OF PLUG CAP HIT-6699933.A5 6699933	-
122 - CORD HIT-6696544.A38 6696544	-
123 - EARTH CORD HIT-6696545.A4 6696545	-
124 - MAGNETO ROTOR HIT-6699289.A3 6699289	£24.52	£29.43
*125 - FUEL PIPE HIT-6698716.A15 6698716	£5.61	£6.73
125A - FUEL PIPE FOR USA HIT-6601525.A2 6601525	-
126A - FUEL PIPE L70 HIT-6699014.A25 6699014	£2.77	£3.32
127 - RETURN GROMMET TILL 7.2015 (SINCE 8.2015 FOR USA) HIT-6697846.A167 6697846	£1.68	£2.01
128 - FUEL TANK CAP ASS'Y INCLUD.129 HIT-6698402.A73 6698402	-
129 - TANK CAP CHAIN HIT-6698732.A20 6698732	-
130 - FUEL GROMMET TILL 7.2015 (SINCE 8.2015 FOR USA) HIT-6688156.A48 6688156	-
130A - FUEL GROMMET SINCE 8.2015 (EXCEPT FOR USA) HIT-6600358.A30 6600358	£1.67	£2.00
131 - SPACER HIT-6699558.A32 6699558	-
132 - SPACER (B) HIT-6699459.A7 6699459	-
*133 - TANK (B) TILL 7.2015 HIT-6600317.A25 6600317	£12.36	£14.83
*133 - TANK FOR USA HIT-6699719.A4 6699719	£23.15	£27.78
133A - TANK (C) SINCE 8.2015 HIT-6600354.A22 6600354	-
134A - PUMP FILTER HIT-6600351.A35 6600351	£4.45	£5.34
135 - CLIP HIT-6696949.A45 6696949	£1.67	£2.00
136 - STAND HIT-6694787.A26 6694787	£3.56	£4.27
137 - BOLT (W/FLANGE) L27.8 HIT-6698991.A9 6698991	-
151 - HEX. BOLT 6X50 HIT-6684824.A22 6684824	£1.67	£2.00
152 - HANDLE KNOB HIT-6684823.A0 6684823	£3.51	£4.21
153 - SPECIAL WASHER B HIT-6684822.A57 6684822	£1.67	£2.00
154 - HEX. SOCKET HD. BOLT M5X12 HIT-6684829.A7 6684829	-
155 - SPRING WASHER M5 HIT-6698884.A8 6698884	-
156 - HEX. SOCKET HD. BOLT (W/BUTTON) M6 HIT-6684825.A0 6684825	£1.67	£2.00
157 - SPRING WASHER M6 (10 PCS.) HIT-949455.A80 949455	£1.67	£2.00
158 - WASHER M6 (10 PCS.) HIT-949425.A27 949425	£1.67	£2.00
159 - SPACER 1.6 HIT-6689139.A12 6689139	£2.84	£3.41
160 - SPACER HIT-6684819.A2 6684819	-
161 - PULLEY WASHER HIT-6684820.A16 6684820	-
162 - RETAINING RING FOR D10 SHAFT (10 PCS.) HIT-939540.A36 939540	£1.67	£2.00
163 - MAIN PIPE (A) HIT-6699460.A0 6699460	-
164 - LEVEL MARK HIT-6684852.A32 6684852	-
165 - DRIVE SHAFT (A) HIT-6699462.A0 6699462	£26.26	£31.51
166A - HANGER HIT-6600504.A5 6600504	£1.67	£2.00
167 - LOOP HANDLE (W/BARRIER) FOR EUROPE HIT-6699448.A13 6699448	-
168 - LOOP HANDLE FOR USA HIT-6699449.A2 6699449	-
169 - CAP NUT 6 HIT-6684828.A18 6684828	£1.67	£2.00
170 - JOINT CASE HIT-6684817.A15 6684817	£35.67	£42.80
*171 - GEAR CASE ASS'Y (4BB) INCLUD.172-181 FOR EUROPE (SL) HIT-6699439.A4 6699439	£60.67	£72.80
*171 - GEAR CASE ASS'Y (4BB) INCLUD.172-177 FOR USA HIT-6699440.A2 6699440	-
172 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) FOR USA HIT-949664.A4 949664	£4.33	£5.20
173 - SCREW 5X12/W.S FOR USA HIT-6695414.A48 6695414	£1.67	£2.00
174 - CAP FOR USA HIT-6600005.A7 6600005	-
175 - SPRING FOR USA HIT-6600006.A12 6600006	-
176 - BOLT (W/PLUS) M6X8 FOR USA HIT-6684737.A2 6684737	-
177 - LOCK PIN FOR USA HIT-6600007.A7 6600007	-
178 - CUTTER HOLDER (A) FOR EUROPE (SL) HIT-6699441.A3 6699441	-
179 - CUTTER HOLDER (B) FOR EUROPE (SL) HIT-6698659.A18 6698659	£15.99	£19.19
180 - NUT COVER FOR EUROPE (SL) HIT-6699188.A16 6699188	£10.93	£13.12
181 - U-NUT (LEFT HAND) M10 FOR EUROPE (SL) HIT-335759.A36 335759	£1.67	£2.00
*182 - COVER FOR EUROPE (SL) HIT-6698794.A28 6698794	£17.58	£21.09
*182 - COVER FOR USA HIT-6698937.A0 6698937	£22.42	£26.91
183 - NYLON CORD HIT-000000.A2387 000000	-
184 - SET SCREW FOR USA HIT-6698795.A3 6698795	-
*185 - REEL FOR EUROPE (SL) HIT-6698796.A36 6698796	£7.12	£8.54
*185 - REEL FOR USA HIT-6698939.A0 6698939	-
*186 - RETURN SPRING FOR EUROPE (SL) HIT-6698797.A2 6698797	£1.67	£2.00
*186 - RETURN SPRING FOR USA HIT-6698941.A0 6698941	-
*187 - BUTTON FOR EUROPE (SL) HIT-6698798.A36 6698798	£7.12	£8.54
*187 - BUTTON FOR USA HIT-6698940.A18 6698940	-
*188 - CORD GUIDE FOR EUROPE (SL) HIT-6698799.A3 6698799	£7.12	£8.54
*188 - CORD GUIDE FOR USA HIT-6698942.A18 6698942	-
*189 - CASE FOR EUROPE (SL) HIT-6698800.A28 6698800	£14.11	£16.93
*189 - CASE FOR USA HIT-6698938.A18 6698938	-
*190 - NYLON HEAD ASS'Y INCLUD.182-189 FOR EUROPE (SL) HIT-6696454.A21 6696454	£48.12	£57.75
*190 - NYLON HEAD ASS'Y INCLUD.182-189 FOR USA HIT-6698639.A16 6698639	£31.92	£38.31
191 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE (SL) HIT-6684714.A58 6684714	£1.67	£2.00
192 - COVER BRACKET FOR EUROPE (SL) HIT-6699442.A9 6699442	-
193 - BUSHING FOR USA HIT-6684833.A2 6684833	£3.85	£4.62
195 - SYMBOL MARK SMART FIT FOR USA HIT-6694743.A3 6694743	-
*196 - CAUTION MARK FOR EUROPE (SL) HIT-6684959.A1 6684959	-
*196 - CAUTION MARK FOR USA HIT-6685056.A3 6685056	-
197 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 FOR USA HIT-6685064.A36 6685064	-
198 - SPRING WASHER M6 (10 PCS.) FOR USA HIT-949455.A79 949455	£1.67	£2.00
199 - COVER BRACKET FOR USA HIT-6696978.A31 6696978	-
200 - LEVEL MARK FOR USA HIT-6684851.A10 6684851	-
201 - MAIN PIPE (A) FOR USA HIT-6699461.A6 6699461	-
202 - DRIVE SHAFT B 783L FOR USA HIT-6684832.A19 6684832	£35.25	£42.30
203 - GUARD FOR USA HIT-6696981.A27 6696981	-
204 - BOLT WASHER M4 (BLACK) FOR USA HIT-323210.A53 323210	-
205 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR USA HIT-6685068.A67 6685068	-
206 - NUT M4 (10 PCS.) FOR USA HIT-949554.A35 949554	£1.67	£2.00
207 - KNIFE FOR USA HIT-6696584.A7 6696584	-
208 - GUARD FOR EUROPE (SL) HIT-6696980.A2 6696980	£27.49	£32.99
209 - GUARD HOLDER FOR EUROPE (SL) HIT-6696951.A25 6696951	£3.02	£3.63
210 - COVER GUARD FOR EUROPE (SL) HIT-6696950.A12 6696950	£11.18	£13.42
211 - TAPPING SCREW 4X14 FOR EUROPE (SL) HIT-6684751.A65 6684751	£1.67	£2.00
212 - KNIFE FOR EUROPE (SL) HIT-6684750.A35 6684750	£3.64	£4.37
213 - CAUTION LABEL (HEDGE) FOR EUROPE HIT-6600328.A16 6600328	-
214 - MACHINE SCREW M5X10 (10 PCS.) HIT-949236.A59 949236	£1.67	£2.00
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A18 6684764	£7.64	£9.17
502 - HEX. BAR WRENCH 4MM HIT-944458.A106 944458	£1.67	£2.00
503 - PROTECTIVE GLASSES HIT-875769.A147 875769	-
504A - SHOULDER BELT SINGLE HIT-6601420.A32 6601420	-
505 - MEGA TWIST CORD FOR USA HIT-6698640.A1 6698640	-
506 - CUTTER HOLDER (A) FOR USA HIT-6699441.A4 6699441	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki TCG24EBDP Engine Brush Cutter Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki TCG24EBDP Engine Brush Cutter Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki TCG24EBDP Engine Brush Cutter Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
