Hitachi / Hikoki TCG24EAP2 Engine Brush Cutter Spare Parts

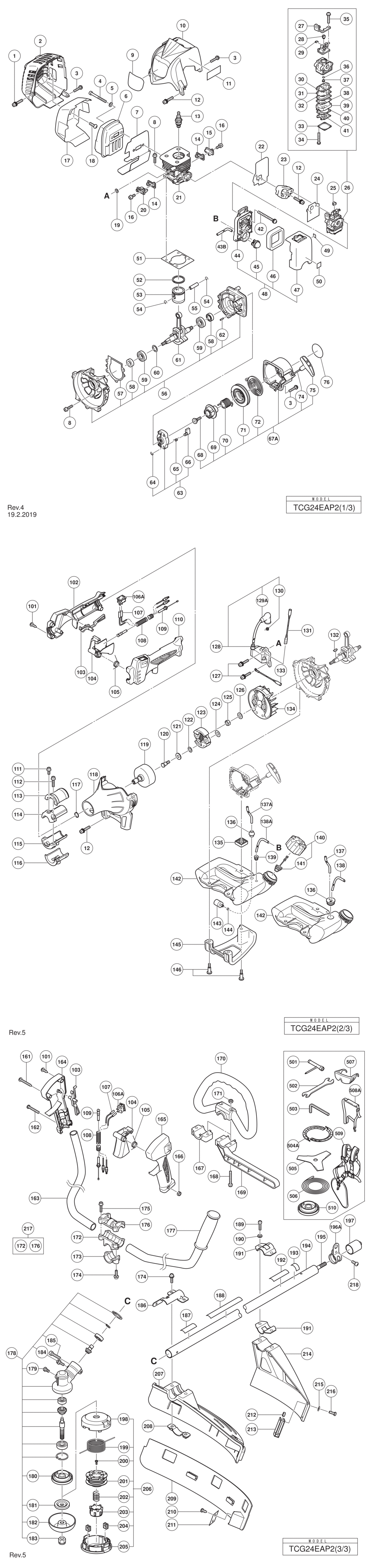

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCG24EAP2 Engine Brush Cutter

	Ex VAT	Inc VAT
1 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-6698950.A31 6698950	-
2 - MUFFLER COVER HIT-6600319.A7 6600319	-
3 - MACHINE SCREW (W/WASHERS) M4X20 (BLACK) HIT-307606.A18 307606	£1.67	£2.00
4 - HEX. SOCKET HD. BOLT M6X65 HIT-6698384.A7 6698384	-
5 - BOLT WASHER M6 (10 PCS.) HIT-949432.A47 949432	£1.67	£2.00
6 - MUFFLER (B) HIT-6600004.A11 6600004	-
7 - HEAT PROTECTION PANEL HIT-6600320.A5 6600320	£1.67	£2.00
8 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A18 6698386	-
*9 - TANAKA LABEL HIT-6696339.A2 6696339	-
*9 - TANAKA LABEL FOR USA HIT-6696340.A4 6696340	-
10 - CYLINDER COVER HIT-6699128.A7 6699128	-
11 - CAUTION LABEL HIT-000000.A2539 000000	-
12 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A3 6698844	£1.67	£2.00
*13 - SPARK PLUG ASS'Y BMR7A HIT-6699316.A25 6699316	£12.43	£14.92
*13 - SPARK PLUG ASS'Y CJ6 FOR USA HIT-6699322.A24 6699322	£3.73	£4.48
14 - COVER PACKING HIT-6698468.A12 6698468	-
15 - SCAVENGING COVER (A) HIT-6698469.A3 6698469	-
16 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A33 6698385	-
17 - MUFFLER HEAT COVER HIT-6600422.A12 6600422	-
18 - TAPPING SCREW D4X10 HIT-6600325.A5 6600325	-
19 - GLASS WASHER HIT-6698700.A73 6698700	£1.67	£2.00
20 - SCAVENGING COVER (B) HIT-6698470.A12 6698470	-
21 - CYLINDER HIT-6698465.A3 6698465	£40.69	£48.83
22 - INTAKE PACKING HIT-6699437.A4 6699437	£1.67	£2.00
23 - CARBURETOR INSULATOR HIT-6698387.A45 6698387	£4.72	£5.66
24 - CARBURETOR PACKING HIT-6698405.A64 6698405	£3.12	£3.74
25 - SWIVEL CAP HIT-6691337.A20 6691337	£1.67	£2.00
26 - CARBURETOR ASS'Y WYC-28 INCLUD.27-41 HIT-6698474.A11 6698474	£63.80	£76.56
27 - CABLE ADJUST STAY HIT-6699287.A33 6699287	-
28 - SWIVEL HIT-6696830.A38 6696830	-
29 - STOP RING HIT-6684696.A2 6684696	-
30 - PUMP GASKET HIT-6684692.A112 6684692	£17.28	£20.73
31 - PUMP DIAPHRAGM HIT-6684693.A2 6684693	£5.70	£6.84
32 - PUMP PLATE HIT-6691242.A52 6691242	-
33 - DIAPHRAGM COVER-METERING HIT-6685222.A131 6685222	£5.70	£6.84
34 - SET SCREW HIT-6691312.A73 6691312	-
35 - SET SCREW M3X12 HIT-6696829.A14 6696829	-
36 - O-RING HIT-6684695.A192 6684695	£1.67	£2.00
37 - MAIN JET #32.5 HIT-6697842.A4 6697842	-
38 - CIRCUIT PLATE HIT-6691234.A7 6691234	-
39 - PUMP BODY COMP. HIT-6696828.A38 6696828	£13.28	£15.93
40 - DIAPHRAGM PACKING-METERING HIT-6685220.A48 6685220	£2.81	£3.37
41 - METERING DIAPHRAGM HIT-6684690.A113 6684690	£24.05	£28.86
42 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A44 307224	£1.67	£2.00
43B - FUEL PIPE HIT-6601444.A31 6601444	-
44 - AIR CLEANER HOUSING HIT-66965549.A25 66965549	£15.62	£18.74
45 - PRIMING PUMP COMP. HIT-6685139.A101 6685139	£10.67	£12.80
46 - CLEANER SPONGE HIT-6600704.A8 6600704	-
47 - AIR CLEANER COVER HIT-6696831.A7 6696831	£9.68	£11.62
48 - AIR CLEANER ASS'Y INCLUD.44-47 HIT-6696549.A1 6696549	£13.36	£16.03
49 - MARK PLATE (T) FOR EUROPE HIT-6600327.A5 6600327	-
50 - PRIMER LABEL FOR EUROPE HIT-6699000.A15 6699000	-
51 - CYLINDER GASKET HIT-6684587.A12 6684587	£1.67	£2.00
52 - PISTON RING HIT-6698404.A3 6698404	£7.03	£8.44
53 - PISTON HIT-6698368.A10 6698368	£11.35	£13.62
54 - CIR CLIP HIT-6684590.A123 6684590	£1.67	£2.00
55 - PISTON PIN HIT-6684591.A16 6684591	£3.29	£3.95
56 - CRANK CASE ASS'Y INCLUD.57-59 HIT-6684606.A4 6684606	£40.68	£48.82
57 - CRANK CASE GASKET HIT-6684609.A11 6684609	-
58 - OIL SEAL TB 12227 HIT-6684607.A96 6684607	£4.07	£4.88
59 - BALL BEARING 6001 C3 HIT-6684608.A104 6684608	£5.70	£6.84
*60 - SHIM T0.2 HIT-6696946.A11 6696946	£1.67	£2.00
*60 - SHIM T0.3 HIT-6696945.A26 6696945	£1.67	£2.00
61 - CRANK SHAFT COMP. HIT-6696533.A21 6696533	£42.11	£50.53
62 - KNOCK PIN 4X12 HIT-6696947.A50 6696947	-
63 - STARTER PULLEY ASS'Y INCLUD.64-66 HIT-6684681.A113 6684681	£18.16	£21.79
64 - STOP RING E-5 HIT-6684683.A19 6684683	-
65 - STARTER PAWL SPRING HIT-6684684.A1 6684684	£3.29	£3.95
66 - STARTER PAWL HIT-6684685.A102 6684685	£5.07	£6.08
67A - RECOIL STARTER BODY ASS'Y INCLUD.68-72 HIT-6601570.A22 6601570	£23.15	£27.78
68 - SET SCREW HIT-6684679.A156 6684679	£2.98	£3.57
69 - CAM PLATE HIT-6699996.A88 6699996	£4.28	£5.13
70 - DAMPER SPRING HIT-6684677.A114 6684677	£5.70	£6.84
71 - STARTER ROPE REEL HIT-6699997.A1 6699997	-
72 - RECOIL SPRING HIT-6684675.A1 6684675	£8.82	£10.58
74 - STARTER ROPE 3.5X860 HIT-6684674.A93 6684674	£5.70	£6.84
75 - STARTER HANDLE HIT-6684680.A2 6684680	£5.87	£7.04
76 - NAME PLATE HIT-000000.A2540 000000	-
*101 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A9 305812	£1.67	£2.00
*101 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) FOR (S) HIT-302086.A58 302086	£1.67	£2.00
*102 - HANDLE (B) FOR EUROPE (SL) HIT-6696487.A3 6696487	£5.88	£7.06
*102 - HANDLE (B) FOR USA HIT-6696942.A13 6696942	-
103 - LOCK LEVER FOR EUROPE HIT-6696490.A41 6696490	£2.84	£3.41
104 - LEVER HIT-6696488.A37 6696488	£1.67	£2.00
105 - SPRING (A) HIT-6696489.A0 6696489	£2.84	£3.41
106A - STOP SWITCH HIT-6601275.A41 6601275	£1.67	£2.00
*107 - STOP SWITCH CORD HIT-6696491.A0 6696491	-
*107 - STOP SWITCH CORD FOR (S) HIT-6696592.A6 6696592	-
*108 - PROTECTION TUBE HIT-6696967.A22 6696967	-
*108 - PROTECTION TUBE FOR (S) HIT-6696594.A5 6696594	-
*109 - THROTTLE WIRE COMP. HIT-6696560.A0 6696560	£8.35	£10.02
*109 - THROTTLE WIRE COMP. FOR (S) HIT-6696593.A11 6696593	£7.12	£8.54
*110 - HANDLE (A) FOR EUROPE (SL) HIT-6696486.A31 6696486	£5.88	£7.06
*110 - HANDLE (A) FOR USA HIT-6696941.A10 6696941	-
111 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12 HIT-6699176.A25 6699176	£1.67	£2.00
112 - HEX. HOLE BOLT 5X22/S HIT-6695492.A25 6695492	-
113 - ANTI VIBE RUBBER (A) HIT-6696963.A27 6696963	£3.12	£3.74
114 - PIPE HOLDER (A) HIT-6698643.A5 6698643	£3.56	£4.27
115 - PIPE HOLDER (B) HIT-6698644.A42 6698644	£3.56	£4.27
116 - ANTI VIBE RUBBER (B) HIT-6696964.A13 6696964	£3.02	£3.63
117 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A4 939542	£2.98	£3.57
118 - FAN CASE HIT-6699129.A1 6699129	£13.52	£16.23
119 - CLUTCH SHAFT HIT-6699400.A5 6699400	£14.52	£17.43
120 - STEP BOLT HIT-6696469.A46 6696469	£2.84	£3.41
121 - BENT WASHER 8 HIT-6684648.A86 6684648	£1.67	£2.00
122 - CLUTCH PLATE (A) HIT-6696546.A33 6696546	£1.67	£2.00
123 - CLUTCH HIT-6696948.A11 6696948	£15.02	£18.03
124 - CLUTCH WASHER (B) HIT-6696547.A4 6696547	£1.67	£2.00
125 - FLYWHEEL NUT HIT-6685337.A52 6685337	-
126 - BOLT WASHER M8 (BLACK) HIT-323212.A65 323212	£1.67	£2.00
127 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A17 6698388	£1.67	£2.00
128 - IGNITION COIL ASS'Y INCLUD.129A HIT-6699464.A2 6699464	£27.08	£32.49
129A - PLUG CAP HIT-6601421.A24 6601421	£1.67	£2.00
130 - PLUG CAP METAL HIT-6699186.A25 6699186	£1.67	£2.00
131 - CORD HIT-6696544.A33 6696544	-
132 - WOODRUFF KEY 3X13X4.5 HIT-6684899.A24 6684899	-
133 - EARTH CORD HIT-6696545.A6 6696545	-
134 - MAGNETO ROTOR HIT-6699289.A7 6699289	£24.52	£29.43
135 - SPACER HIT-6699558.A30 6699558	-
*136 - FUEL GROMMET HIT-6600358.A37 6600358	£1.67	£2.00
*136 - FUEL GROMMET FOR USA HIT-6688156.A75 6688156	-
*137 - FUEL PIPE HIT-6698716.A22 6698716	£5.61	£6.73
137A - FUEL PIPE FOR USA HIT-6601525.A3 6601525	-
138A - FUEL PIPE L70 HIT-6699014.A34 6699014	£2.77	£3.32
139 - RETURN GROMMET FOR USA HIT-6697846.A126 6697846	£2.08	£2.50
140 - FUEL TANK CAP ASS'Y INCLUD.141 HIT-6698402.A95 6698402	-
141 - TANK CAP CHAIN HIT-6698732.A4 6698732	-
*142 - TANK (C) HIT-6600354.A18 6600354	-
*142 - TANK FOR USA HIT-6699719.A5 6699719	£23.15	£27.78
143 - PUMP FILTER HIT-6600351.A42 6600351	£4.45	£5.34
144 - CLIP HIT-6696949.A48 6696949	£1.67	£2.00
145 - STAND HIT-6694787.A31 6694787	£3.56	£4.27
146 - BOLT (W/FLANGE) L27.8 HIT-6698991.A13 6698991	-
161 - TAPPING SCREW (W/FLANGE) D4X30 FOR (S) HIT-323837.A0 323837	-
162 - MACHINE SCREW M5X30 (BLACK) FOR (S) HIT-323041.A0 323041	-
163 - HANDLE RIGHT FOR (S) HIT-6698637.A12 6698637	-
164 - HANDLE (B) FOR (S) HIT-6696590.A8 6696590	-
165 - HANDLE (A) FOR (S) HIT-6696588.A8 6696588	-
166 - NUT M5 (BLACK) FOR (S) HIT-302012.A51 302012	£1.67	£2.00
167 - HANDLE HOLDER (A) FOR USA HIT-6696972.A24 6696972	-
168 - BOLT (BLACK) M6 FOR USA HIT-6696974.A44 6696974	£1.67	£2.00
169 - BARRIER FOR EUROPE (SL) HIT-6696973.A0 6696973	£8.35	£10.02
170 - LOOP HANDLE FOR USA HIT-6696975.A0 6696975	£13.36	£16.03
171 - NUT M6 (10 PCS.) FOR USA HIT-949556.A47 949556	£1.67	£2.00
172 - HANDLE HOLDER (B) SINCE 7.2015 FOR (S) HIT-6600501.A4 6600501	-
173 - HANDLE HOLDER (C) FOR (S) HIT-6696578.A12 6696578	-
*174 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE (SL) HIT-6684714.A67 6684714	£1.67	£2.00
*174 - HEX. HOLE BUTTON BOLT M6X25 FOR (S) HIT-6684714.A68 6684714	£1.67	£2.00
175 - HEX. HOLE BOLT M5X25/S FOR (S) HIT-6684709.A207 6684709	£1.67	£2.00
176 - HANDLE HOLDER (A) SINCE 7.2015 FOR (S) HIT-6600500.A27 6600500	-
177 - HANDLE (LEFT) FOR (S) HIT-6698638.A0 6698638	-
*178 - GEAR CASE ASS'Y 3BB (A) INCLUD. 179-185 HIT-6699402.A14 6699402	-
*178 - GEAR CASE ASS'Y 3BB (B) INCLUD.179 HIT-6696976.A22 6696976	£60.73	£72.88
179 - BOLT (W/PLUS) M6X8 HIT-6684737.A12 6684737	-
180 - CUTTER HOLDER (A) FOR EUROPE HIT-6696977.A0 6696977	£18.01	£21.61
181 - CUTTER HOLDER (B) FOR EUROPE HIT-6698659.A20 6698659	£15.99	£19.19
182 - NUT COVER FOR EUROPE HIT-6699188.A19 6699188	£10.93	£13.12
183 - U-NUT (LEFT HAND) M10 FOR EUROPE HIT-335759.A37 335759	£1.67	£2.00
184 - SCREW 5X12/W.S HIT-6695414.A51 6695414	£1.67	£2.00
185 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) HIT-949664.A8 949664	£4.33	£5.20
186 - COVER BRACKET FOR EUROPE HIT-6696494.A25 6696494	£3.02	£3.63
*187 - CAUTION LABEL (HEDGE) HIT-6600328.A13 6600328	-
*188 - CAUTION MARK (USA) HIT-6600448.A3 6600448	-
*188 - CAUTION MARK FOR (S) HIT-6600449.A3 6600449	-
189 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 FOR USA HIT-6685064.A45 6685064	-
190 - SPRING WASHER M6 (10 PCS.) FOR USA HIT-949455.A95 949455	£1.67	£2.00
191 - COVER BRACKET FOR USA HIT-6696978.A27 6696978	-
192 - LEVEL MARK (B) FOR USA HIT-6600446.A17 6600446	-
193 - LEVEL MARK FOR EUROPE HIT-6684851.A3 6684851	-
194 - MAIN PIPE COMP. HIT-6696558.A19 6696558	£22.07	£26.48
195 - DRIVE SHAFT HIT-6698514.A5 6698514	£19.46	£23.35
196A - HANGER FOR EUROPE HIT-6600504.A6 6600504	£1.67	£2.00
197 - CAP (A) FOR EUROPE HIT-6698515.A28 6698515	-
*198 - COVER HIT-6698794.A29 6698794	£17.58	£21.09
*198 - COVER FOR USA HIT-6698937.A5 6698937	£22.42	£26.91
199 - NYLON CORD HIT-000000.A2541 000000	-
200 - SET SCREW HIT-6698795.A0 6698795	-
201 - REEL HIT-6698796.A37 6698796	£7.12	£8.54
*201 - REEL FOR USA HIT-6698939.A5 6698939	-
*202 - RETURN SPRING HIT-6698797.A0 6698797	£1.67	£2.00
*202 - RETURN SPRING FOR USA HIT-6698941.A5 6698941	-
*203 - BUTTON HIT-6698798.A39 6698798	£7.12	£8.54
*203 - BUTTON FOR USA HIT-6698940.A13 6698940	-
*204 - CORD GUIDE HIT-6698799.A0 6698799	£7.12	£8.54
*204 - CORD GUIDE FOR USA HIT-6698942.A13 6698942	-
*205 - CASE HIT-6698800.A31 6698800	£14.11	£16.93
*205 - CASE FOR USA HIT-6698938.A13 6698938	-
*206 - NYLON HEAD ASS'Y INCLUD.198-205 HIT-6696454.A22 6696454	£48.12	£57.75
*206 - NYLON HEAD ASS'Y INCLUD.198-205 FOR USA HIT-6698639.A17 6698639	£31.92	£38.31
207 - GUARD FOR EUROPE HIT-6696980.A4 6696980	£27.49	£32.99
208 - GUARD HOLDER FOR EUROPE HIT-6696951.A29 6696951	£3.02	£3.63
209 - COVER GUARD FOR EUROPE HIT-6696950.A9 6696950	£11.18	£13.42
210 - TAPPING SCREW 4X14 FOR EUROPE HIT-6684751.A60 6684751	£1.67	£2.00
211 - KNIFE FOR EUROPE HIT-6684750.A40 6684750	£3.64	£4.37
212 - NUT M4 (10 PCS.) FOR USA HIT-949554.A44 949554	£1.67	£2.00
213 - KNIFE FOR USA HIT-6696584.A10 6696584	-
214 - GUARD FOR USA HIT-6696981.A23 6696981	-
215 - BOLT WASHER M4 (BLACK) FOR USA HIT-323210.A44 323210	-
216 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR USA HIT-6685068.A55 6685068	-
217 - HANDLE HOLDER (A).(B) SET INCLUD.172 HIT-6600499.A6 6600499	-
218 - MACHINE SCREW M5X10 (10 PCS.) FOR EUROPE HIT-949236.A51 949236	£1.67	£2.00
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A21 6684764	£7.64	£9.17
502 - WRENCH 8X10 FOR EUROPE HIT-6696596.A9 6696596	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A89 944458	£1.67	£2.00
504A - CUTTER COVER FOR (S) HIT-6684768.A54 6684768	-
505 - BLADE 3TX255XT1.8 FOR (S) HIT-6698711.A13 6698711	-
506 - MEGA TWIST CORD FOR USA HIT-6698640.A0 6698640	-
507 - PROTECTIVE GLASSES HIT-875769.A167 875769	-
508A - SHOULDER BELT SINGLE FOR EUROPE (SL) HIT-6601420.A27 6601420	-
509 - SHOULDER BELT ASS'Y W FOR (S) HIT-6696184.A9 6696184	£25.30	£30.36
510 - CUTTER HOLDER (A) FOR USA HIT-6696977.A1 6696977	£18.01	£21.61

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki TCG24EAP2 Engine Brush Cutter Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki TCG24EAP2 Engine Brush Cutter Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki TCG24EAP2 Engine Brush Cutter Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
