Hitachi / Hikoki TCG24EA2 Engine Brush Cutter Spare Parts

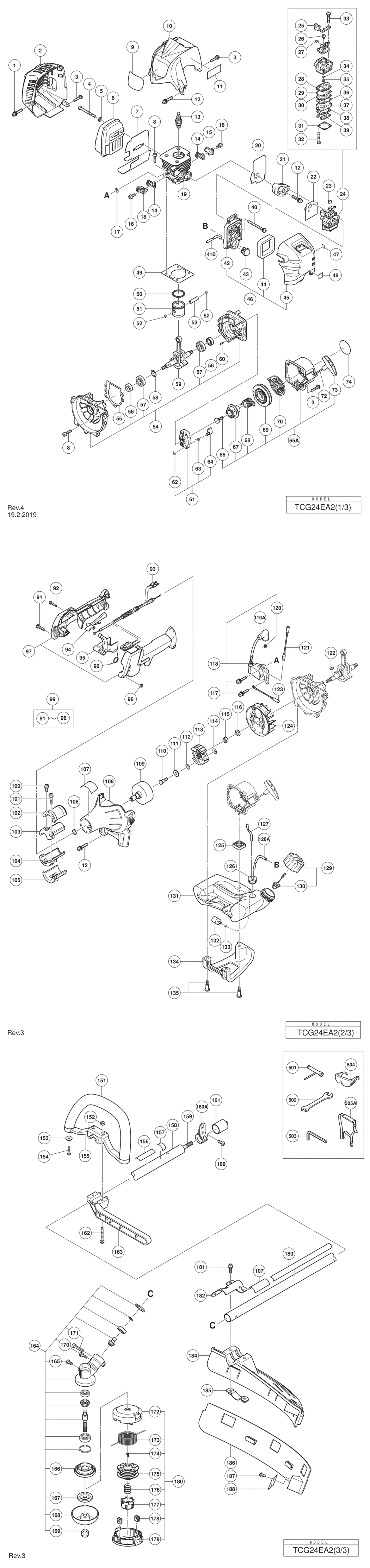

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCG24EA2 Engine Brush Cutter

	Ex VAT	Inc VAT
1 - SEAL LOCK HEX. SOCKET HD. BOLT M5X30 HIT-6698950.A32 6698950	-
2 - MUFFLER COVER HIT-6600319.A8 6600319	-
3 - MACHINE SCREW (W/WASHERS) M4X20 (BLACK) HIT-307606.A17 307606	£1.67	£2.00
4 - HEX. SOCKET HD. BOLT M6X65 HIT-6698384.A6 6698384	-
5 - BOLT WASHER M6 (10 PCS.) HIT-949432.A46 949432	£1.67	£2.00
6 - MUFFLER (B) HIT-6600461.A2 6600461	-
7 - HEAT PROTECTION PANEL HIT-6600320.A4 6600320	£1.67	£2.00
8 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A17 6698386	-
9 - TANAKA LABEL HIT-6696339.A3 6696339	-
10 - CYLINDER COVER HIT-6699128.A6 6699128	-
11 - CAUTION LABEL (EU) HIT-000000.A2534 000000	-
12 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A2 6698844	£1.67	£2.00
13 - SPARK PLUG ASS'Y BMR7A HIT-6699316.A26 6699316	£12.43	£14.92
14 - COVER PACKING HIT-6698468.A11 6698468	-
15 - SCAVENGING COVER (A) HIT-6698469.A4 6698469	-
16 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A34 6698385	-
17 - GLASS WASHER HIT-6698700.A74 6698700	£1.67	£2.00
18 - SCAVENGING COVER (B) HIT-6698470.A11 6698470	-
19 - CYLINDER HIT-6698465.A4 6698465	£40.69	£48.83
20 - INTAKE PACKING HIT-6699437.A5 6699437	£1.67	£2.00
21 - CARBURETOR INSULATOR HIT-6698387.A46 6698387	£4.72	£5.66
22 - CARBURETOR PACKING HIT-6698405.A63 6698405	£3.12	£3.74
23 - SWIVEL CAP HIT-6691337.A19 6691337	£1.67	£2.00
24 - CARBURETOR ASS'Y WYC-28 INCLUD.25-39 HIT-6698474.A12 6698474	£63.80	£76.56
25 - CABLE ADJUST STAY HIT-6699287.A34 6699287	-
26 - SWIVEL HIT-6696830.A37 6696830	-
27 - STOP RING HIT-6684696.A3 6684696	-
28 - PUMP GASKET HIT-6684692.A111 6684692	£17.28	£20.73
29 - PUMP DIAPHRAGM HIT-6684693.A3 6684693	£5.70	£6.84
30 - PUMP PLATE HIT-6691242.A51 6691242	-
31 - DIAPHRAGM COVER-METERING HIT-6685222.A132 6685222	£5.70	£6.84
32 - SET SCREW HIT-6691312.A74 6691312	-
33 - SET SCREW M3X12 HIT-6696829.A15 6696829	-
34 - O-RING HIT-6684695.A191 6684695	£1.67	£2.00
35 - MAIN JET #32.5 HIT-6697842.A3 6697842	-
36 - CIRCUIT PLATE HIT-6691234.A8 6691234	-
37 - PUMP BODY COMP. HIT-6696828.A37 6696828	£13.28	£15.93
38 - DIAPHRAGM PACKING-METERING HIT-6685220.A47 6685220	£2.81	£3.37
39 - METERING DIAPHRAGM HIT-6684690.A115 6684690	£24.05	£28.86
40 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A47 307224	£1.67	£2.00
41B - FUEL PIPE HIT-6601444.A33 6601444	-
42 - AIR CLEANER HOUSING HIT-66965549.A24 66965549	£15.62	£18.74
43 - PRIMING PUMP COMP. HIT-6685139.A98 6685139	£10.67	£12.80
44 - CLEANER ELEMENT HIT-6690347.A40 6690347	£7.15	£8.58
45 - CLEANER COVER HIT-6699185.A8 6699185	£11.28	£13.53
46 - AIR CLEANER (A) ASS'Y INCLUD.42-45 HIT-6699132.A8 6699132	£13.52	£16.23
47 - MARK PLATE (T) HIT-6600327.A3 6600327	-
48 - PRIMER LABEL HIT-6699000.A13 6699000	-
49 - CYLINDER GASKET HIT-6684587.A11 6684587	£1.67	£2.00
50 - PISTON RING HIT-6698404.A5 6698404	£7.03	£8.44
51 - PISTON HIT-6698368.A11 6698368	£11.35	£13.62
52 - CIR CLIP HIT-6684590.A127 6684590	£1.67	£2.00
53 - PISTON PIN HIT-6684591.A14 6684591	£3.29	£3.95
54 - CRANK CASE ASS'Y INCLUD.55-57 HIT-6684606.A3 6684606	£40.68	£48.82
55 - CRANK CASE GASKET HIT-6684609.A12 6684609	-
56 - OIL SEAL TB 12227 HIT-6684607.A100 6684607	£4.07	£4.88
57 - BALL BEARING 6001 C3 HIT-6684608.A100 6684608	£5.70	£6.84
*58 - SHIM T0.2 HIT-6696946.A13 6696946	£1.67	£2.00
*58 - SHIM T0.3 HIT-6696945.A24 6696945	£1.67	£2.00
59 - CRANK SHAFT COMP. HIT-6696533.A23 6696533	£42.11	£50.53
60 - KNOCK PIN 4X12 HIT-6696947.A47 6696947	-
61 - STARTER PULLEY ASS'Y INCLUD.62-64 HIT-6684681.A114 6684681	£18.16	£21.79
62 - D4E RETAINING RING HIT-6685101.A116 6685101	-
63 - STARTER PAWL SPRING HIT-6684684.A2 6684684	£3.29	£3.95
64 - STARTER PAWL HIT-6684685.A101 6684685	£5.07	£6.08
65A - RECOIL STARTER BODY ASS'Y INCLUD.66-70 HIT-6601570.A24 6601570	£23.15	£27.78
66 - SET SCREW HIT-6684679.A159 6684679	£2.98	£3.57
67 - CAM PLATE HIT-6699996.A87 6699996	£4.28	£5.13
68 - DAMPER SPRING HIT-6684677.A113 6684677	£5.70	£6.84
69 - STARTER ROPE REEL HIT-6699997.A2 6699997	-
70 - RECOIL SPRING HIT-6684675.A3 6684675	£8.82	£10.58
72 - STARTER ROPE 3.5X860 HIT-6684674.A92 6684674	£5.70	£6.84
73 - STARTER HANDLE HIT-6684680.A1 6684680	£5.87	£7.04
74 - NAME PLATE HIT-000000.A2535 000000	-
91 - MACHINE SCREW M5X20 (BLACK) HIT-6699195.A14 6699195	-
92 - P TITE SCREW D4X20 (BLACK) HIT-6699194.A3 6699194	-
93 - SWITCH WIRE SET HIT-6699197.A14 6699197	-
94 - STOP LEVER HIT-6699192.A3 6699192	-
95 - LONG LEVER HIT-6699191.A14 6699191	-
96 - RETURN SPRING HIT-6699193.A14 6699193	-
97 - STAY SET HIT-6699190.A3 6699190	-
98 - NUT M5 HIT-6699196.A3 6699196	-
99 - THROTTLE LEVER (A) ASS'Y INCLUD.91-98 HIT-6699133.A9 6699133	-
100 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X12 HIT-6699176.A26 6699176	£1.67	£2.00
101 - HEX. HOLE BOLT 5X22/S HIT-6695492.A24 6695492	-
102 - ANTI VIBE RUBBER (A) HIT-6696963.A28 6696963	£3.12	£3.74
103 - PIPE HOLDER (A) HIT-6698643.A6 6698643	£3.56	£4.27
104 - PIPE HOLDER (B) HIT-6698644.A41 6698644	£3.56	£4.27
105 - ANTI VIBE RUBBER (B) HIT-6696964.A12 6696964	£3.02	£3.63
106 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A3 939542	£2.98	£3.57
107 - LOGO LABEL (TBC-240) HIT-000000.A2536 000000	-
108 - FAN CASE HIT-6699129.A0 6699129	£13.52	£16.23
109 - CLUTCH SHAFT HIT-6699400.A4 6699400	£14.52	£17.43
110 - STEP BOLT HIT-6696469.A45 6696469	£2.84	£3.41
111 - BENT WASHER 8 HIT-6684648.A87 6684648	£1.67	£2.00
112 - CLUTCH PLATE (A) HIT-6696546.A32 6696546	£1.67	£2.00
113 - CLUTCH HIT-6600435.A0 6600435	£20.98	£25.18
114 - CLUTCH WASHER (B) HIT-6699131.A9 6699131	-
115 - FLYWHEEL NUT HIT-6685337.A54 6685337	-
116 - BOLT WASHER M8 (BLACK) HIT-323212.A63 323212	£1.67	£2.00
117 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A19 6698388	£1.67	£2.00
118 - IGNITION COIL ASS'Y INCLUD.119A HIT-6699464.A1 6699464	£27.08	£32.49
119A - PLUG CAP HIT-6601421.A22 6601421	£1.67	£2.00
120 - PLUG CAP METAL HIT-6699186.A22 6699186	£1.67	£2.00
121 - CORD HIT-6696544.A32 6696544	-
122 - WOODRUFF KEY 3X13X4.5 HIT-6684899.A23 6684899	-
123 - EARTH CORD HIT-6696545.A7 6696545	-
124 - MAGNETO ROTOR HIT-6699289.A8 6699289	£24.52	£29.43
125 - SPACER HIT-6699558.A31 6699558	-
126 - FUEL GROMMET HIT-6600358.A36 6600358	£1.67	£2.00
127 - FUEL PIPE HIT-6698716.A24 6698716	£5.61	£6.73
128A - FUEL PIPE L70 HIT-6699014.A36 6699014	£2.77	£3.32
129 - FUEL TANK CAP ASS'Y INCLUD.130 HIT-6698402.A91 6698402	-
130 - TANK CAP CHAIN HIT-6698732.A6 6698732	-
131 - TANK (C) HIT-6600354.A19 6600354	-
132 - PUMP FILTER HIT-6600351.A41 6600351	£4.45	£5.34
133 - CLIP HIT-6696949.A47 6696949	£1.67	£2.00
134 - STAND HIT-6694787.A30 6694787	£3.56	£4.27
135 - BOLT (W/FLANGE) L27.8 HIT-6698991.A14 6698991	-
151 - HANDLE GRIP HIT-6691098.A32 6691098	£10.90	£13.08
152 - NUT M6 (10 PCS.) HIT-949556.A46 949556	£1.67	£2.00
153 - BRAKE SHAFT WASHER HIT-6689681.A21 6689681	£1.67	£2.00
154 - TAPPING SCREW 5X20 HIT-6695255.A22 6695255	-
155 - LOOP HANDLE BLACK HIT-6691046.A13 6691046	£16.30	£19.56
156 - LEVEL MARK (B) HIT-6600446.A15 6600446	-
157 - LEVEL MARK HIT-6684851.A0 6684851	-
158 - MAIN PIPE HIT-6699445.A3 6699445	-
159 - DRIVE SHAFT HIT-6698514.A4 6698514	£19.46	£23.35
160A - HANGER HIT-6600504.A8 6600504	£1.67	£2.00
161 - CAP (A) HIT-6698515.A29 6698515	-
162 - BOLT 6X43/P (BLACK) HIT-6684838.A40 6684838	£1.67	£2.00
163 - BARRIER HIT-6696973.A1 6696973	£8.35	£10.02
164 - GEAR CASE ASS'Y 3BB (A) INCLUD.165-171 HIT-6699402.A15 6699402	-
165 - BOLT (W/PLUS) M6X8 HIT-6684737.A11 6684737	-
166 - CUTTER HOLDER (A) HIT-6696977.A2 6696977	£18.01	£21.61
167 - CUTTER HOLDER (B) HIT-6698659.A21 6698659	£15.99	£19.19
168 - NUT COVER HIT-6699188.A20 6699188	£10.93	£13.12
169 - U-NUT (LEFT HAND) M10 HIT-335759.A38 335759	£1.67	£2.00
170 - SCREW 5X12/W.S HIT-6695414.A50 6695414	£1.67	£2.00
171 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) HIT-949664.A7 949664	£4.33	£5.20
172 - COVER HIT-6698937.A4 6698937	£22.42	£26.91
173 - NYLON CORD HIT-000000.A2537 000000	-
174 - SET SCREW HIT-6698795.A2 6698795	-
175 - REEL HIT-6698939.A4 6698939	-
176 - RETURN SPRING HIT-6698941.A4 6698941	-
177 - BUTTON HIT-6698940.A14 6698940	-
178 - CORD GUIDE HIT-6698942.A14 6698942	-
179 - CASE HIT-6698938.A14 6698938	-
180 - NYLON HEAD ASS'Y INCLUD.172-179 HIT-6698639.A18 6698639	£31.92	£38.31
181 - HEX. HOLE BUTTON BOLT M6X25 HIT-6684714.A69 6684714	£1.67	£2.00
182 - COVER BRACKET HIT-6696494.A24 6696494	£3.02	£3.63
183 - CAUTION MARK (USA) HIT-6600448.A4 6600448	-
184 - GUARD HIT-6696980.A5 6696980	£27.49	£32.99
185 - GUARD HOLDER HIT-6696951.A28 6696951	£3.02	£3.63
186 - COVER GUARD HIT-6696950.A10 6696950	£11.18	£13.42
187 - TAPPING SCREW 4X14 HIT-6684751.A59 6684751	£1.67	£2.00
188 - KNIFE HIT-6684750.A41 6684750	£3.64	£4.37
189 - MACHINE SCREW M5X10 (10 PCS.) HIT-949236.A50 949236	£1.67	£2.00
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A22 6684764	£7.64	£9.17
502 - WRENCH 8X10 HIT-6696596.A11 6696596	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A90 944458	£1.67	£2.00
504 - PROTECTIVE GLASSES HIT-875769.A165 875769	-
505A - SHOULDER BELT SINGLE HIT-6601420.A28 6601420	-
