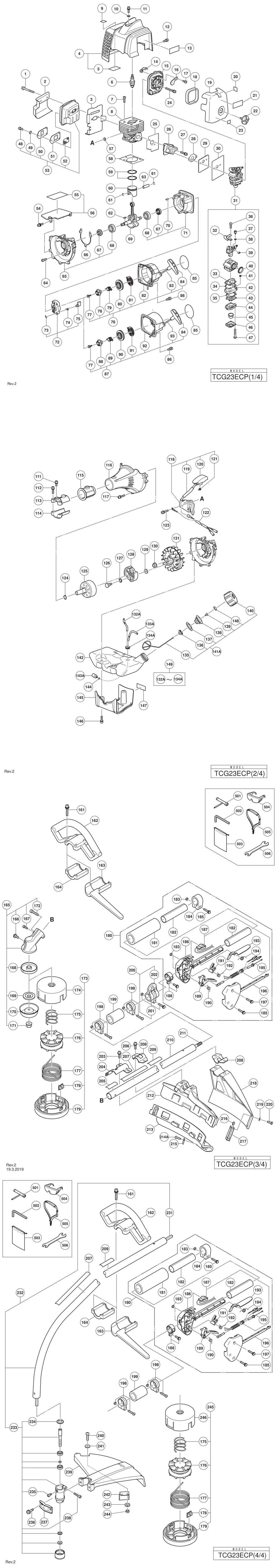

1 - HEX.SOCKET BOLT M5X55
HIT-6600706.A3
6600706
|
-
|
|
|
|
2 - HEAT SHIELD
HIT-6600707.A0
6600707
|
-
|
|
|
|
3 - MUFFLER PACKING
HIT-6600710.A1
6600710
|
-
|
|
|
|
4 - TOP COVER ASS'Y INCLUD.5
HIT-6601290.A0
6601290
|
-
|
|
|
|
5 - ALUMINUM TAPE
HIT-6600714.A1
6600714
|
-
|
|
|
|
6 - IGNITION PLUG (AC6AR)
HIT-6600713.A2
6600713
|
-
|
|
|
|
7 - HEX. SOCKET HD. BOLT M5X16
HIT-6600712.A2
6600712
|
-
|
|
|
|
8 - CYLINDER
HIT-6600711.A2
6600711
|
-
|
|
|
|
9 - CAUTION LABEL (HOT)
HIT-6698864.A6
6698864
|
-
|
|
|
|
10 - SPACER
HIT-6600715.A2
6600715
|
-
|
|
|
|
11 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X18
HIT-6600716.A3
6600716
|
-
|
|
|
|
12 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X16
HIT-6600720.A5
6600720
|
-
|
|
|
|
13 - CAUTION MARK
HIT-000000.A3485
000000
|
-
|
|
|
|
14 - CHOKE LEVER
HIT-6600721.A1
6600721
|
-
|
|
|
|
15 - CLEANER BASE
HIT-6600722.A2
6600722
|
-
|
|
|
|
16 - CHOKE PLATE
HIT-6600723.A1
6600723
|
-
|
|
|
|
17 - TAPPING SCREW ST 4.2X9.5
HIT-6600724.A2
6600724
|
-
|
|
|
|
18 - AIR FILTER ELEMENT
HIT-6600725.A1
6600725
|
-
|
|
|
|
19 - CLEANER COVER
HIT-6600726.A2
6600726
|
-
|
|
|
|
20 - PRIMER LABEL
HIT-6699000.A24
6699000
|
-
|
|
|
|
21 - START LABEL FOR USA
HIT-6601297.A0
6601297
|
-
|
|
|
|
22 - CLEANER KNOB
HIT-6600727.A1
6600727
|
-
|
|
|
|
23 - MARK PLATE (T) FOR EUROPE
HIT-6600327.A34
6600327
|
-
|
|
|
|
24 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X60
HIT-6600728.A2
6600728
|
-
|
|
|
|
25 - INTAKE PACKING
HIT-6600729.A1
6600729
|
-
|
|
|
|
26 - CARBURETOR INSULATOR
HIT-6600730.A2
6600730
|
-
|
|
|
|
27 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X25
HIT-6600731.A2
6600731
|
-
|
|
|
|
28 - CARBURETOR PACKING (A)
HIT-6600732.A2
6600732
|
-
|
|
|
|
29 - HEAT INSULATION PLATE
HIT-6600733.A1
6600733
|
-
|
|
|
|
30 - CARBURETOR PACKING (B)
HIT-6600734.A2
6600734
|
-
|
|
|
|
31 - CARBURETOR ASS'Y (WYK-483) INCLUD.32-47
HIT-6600735.A1
6600735
|
£102.91
|
£123.49
|
|
|
32 - CABLE ADJUST STAY
HIT-6601292.A1
6601292
|
-
|
|
|
|
33 - PUMP GASKET
HIT-6684692.A27
6684692
|
£17.28
|
£20.73
|
|
|
34 - PUMP DIAPHRAGM
HIT-6684693.A156
6684693
|
£5.70
|
£6.84
|
|
|
35 - DIAPHRAGM GASKET
HIT-6684691.A76
6684691
|
£5.70
|
£6.84
|
|
|
36 - THROTTLE SET SCREW
HIT-6684870.A32
6684870
|
-
|
|
|
|
37 - SWIVEL
HIT-6601293.A2
6601293
|
-
|
|
|
|
38 - THRUST WASHER
HIT-6684874.A34
6684874
|
-
|
|
|
|
39 - STOP RING
HIT-6684696.A170
6684696
|
-
|
|
|
|
40 - CLEANER PACKING
HIT-6684875.A44
6684875
|
-
|
|
|
|
41 - INLET SCREEN
HIT-6684700.A189
6684700
|
-
|
|
|
|
42 - PUMP BODY
HIT-6601294.A1
6601294
|
-
|
|
|
|
43 - METERING DIAPHRAGM
HIT-6684690.A29
6684690
|
£24.05
|
£28.86
|
|
|
44 - PRIMING PUMP COMP.
HIT-6684687.A76
6684687
|
£9.27
|
£11.12
|
|
|
45 - PRIMING BODY
HIT-6684689.A77
6684689
|
£5.87
|
£7.04
|
|
|
46 - DIAPHRAGM COVER
HIT-6684688.A23
6684688
|
£5.70
|
£6.84
|
|
|
47 - SET SCREW
HIT-6684699.A22
6684699
|
-
|
|
|
|
48 - HEX. SOCKET HD. BOLT M4X10
HIT-6600755.A1
6600755
|
-
|
|
|
|
49 - BOLT WASHER D4
HIT-6600756.A2
6600756
|
-
|
|
|
|
50 - EXHAUST PIPE
HIT-6600757.A1
6600757
|
-
|
|
|
|
51 - EXHAUST PACKING
HIT-6600758.A2
6600758
|
-
|
|
|
|
52 - SPARK ARRESTER
HIT-6600759.A1
6600759
|
-
|
|
|
|
53 - MUFFLER ASS'Y INCLUD.48-52
HIT-6600708.A1
6600708
|
-
|
|
|
|
54 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X14
HIT-6600742.A1
6600742
|
-
|
|
|
|
55 - ALUMINUM TAPE
HIT-6600744.A2
6600744
|
-
|
|
|
|
56 - INSULATION PLATE ASS'Y INCLUD.55
HIT-6601291.A1
6601291
|
-
|
|
|
|
57 - IGNITION COIL SPACER
HIT-6600660.A3
6600660
|
-
|
|
|
|
58 - CYLINDER PACKING
HIT-6600738.A1
6600738
|
-
|
|
|
|
59 - PISTON RING
HIT-6600739.A2
6600739
|
-
|
|
|
|
60 - PISTON
HIT-6600740.A1
6600740
|
£16.45
|
£19.74
|
|
|
61 - CIRCLIP
HIT-6600736.A1
6600736
|
-
|
|
|
|
62 - WOODRUFF KEY
HIT-6600741.A2
6600741
|
-
|
|
|
|
63 - PISTON PIN
HIT-6600737.A2
6600737
|
£1.67
|
£2.00
|
|
|
64 - HEX. SOCKET HD. BOLT M5X16
HIT-6600712.A3
6600712
|
-
|
|
|
|
65 - CRANK CASE (A) ASS'Y INCLUD.67
HIT-6600745.A1
6600745
|
-
|
|
|
|
66 - CRANK CASE PACKING
HIT-6600746.A2
6600746
|
-
|
|
|
|
67 - OIL SEAL
HIT-6600747.A1
6600747
|
-
|
|
|
|
68 - BALL BEARING
HIT-6600594.A3
6600594
|
-
|
|
|
|
69 - CRANK SHAFT
HIT-6600748.A2
6600748
|
£55.54
|
£66.65
|
|
|
70 - KNOCK PIN
HIT-6600749.A1
6600749
|
-
|
|
|
|
71 - CRANK CASE (B) ASS'Y INCLUD.67
HIT-6600750.A2
6600750
|
-
|
|
|
|
72 - PULLEY ASS'Y INCLUD.73-75
HIT-6600752.A0
6600752
|
-
|
|
|
|
*72 - PULLEY ASS'Y INCLUD.73-75 FOR (LB)
HIT-6600751.A1
6600751
|
-
|
|
|
|
73 - RETAINING RING
HIT-6601321.A1
6601321
|
-
|
|
|
|
74 - STARTER PAWL SPRING
HIT-6601322.A2
6601322
|
-
|
|
|
|
75 - STARTER PAWL
HIT-6601323.A1
6601323
|
-
|
|
|
|
76 - RECOIL STARTER ASS'Y (S) INCLUD.77-84
HIT-6600753.A3
6600753
|
-
|
|
|
|
77 - SET SCREW
HIT-6601307.A1
6601307
|
-
|
|
|
|
78 - CAM (S)
HIT-6601309.A1
6601309
|
-
|
|
|
|
79 - DAMPER SPRING (S)
HIT-6601311.A1
6601311
|
-
|
|
|
|
80 - REEL (S)
HIT-6601313.A1
6601313
|
-
|
|
|
|
81 - SPIRAL SPRING (S)
HIT-6601315.A1
6601315
|
-
|
|
|
|
82 - STARTER CASE (S)
HIT-6601317.A1
6601317
|
-
|
|
|
|
83 - STATER ROPE (S)
HIT-6601319.A1
6601319
|
-
|
|
|
|
84 - STARTER HANDLE
HIT-6601320.A2
6601320
|
-
|
|
|
|
85 - NAME PLATE
HIT-000000.A3486
000000
|
-
|
|
|
|
86 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X16
HIT-6600720.A4
6600720
|
-
|
|
|
|
87 - RECOIL STARTER ASS'Y INCLUD.77
HIT-6600754.A0
6600754
|
-
|
|
|
|
88 - CAM FOR (LB)
HIT-6601308.A0
6601308
|
-
|
|
|
|
89 - DAMPER SPRING FOR (LB)
HIT-6601310.A0
6601310
|
-
|
|
|
|
90 - REEL FOR (LB)
HIT-6601312.A0
6601312
|
-
|
|
|
|
91 - SPIRAL SPRING FOR (LB)
HIT-6601314.A0
6601314
|
-
|
|
|
|
92 - STARTER CASE FOR (LB)
HIT-6601316.A0
6601316
|
-
|
|
|
|
93 - STARTER ROPE FOR (LB)
HIT-6601318.A0
6601318
|
-
|
|
|
|
111 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X12
HIT-6600760.A1
6600760
|
-
|
|
|
|
112 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X25
HIT-6600731.A3
6600731
|
-
|
|
|
|
113 - HOLDER (A)
HIT-6600761.A2
6600761
|
-
|
|
|
|
114 - HOLDER (B)
HIT-6600762.A1
6600762
|
-
|
|
|
|
115 - ANTI VIBRATION RUBBER
HIT-6600763.A2
6600763
|
-
|
|
|
|
116 - FAN CASE
HIT-6600764.A1
6600764
|
-
|
|
|
|
117 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X18
HIT-6600716.A4
6600716
|
-
|
|
|
|
118 - IGNITION COIL ASS'Y INCLUD.119-121
HIT-6600765.A2
6600765
|
-
|
|
|
|
119 - CORD INSULATION TUBE
HIT-6600766.A1
6600766
|
-
|
|
|
|
120 - PLUG CAP
HIT-6600767.A2
6600767
|
-
|
|
|
|
121 - PLUG CAP METAL
HIT-6600768.A1
6600768
|
-
|
|
|
|
122 - CORD
HIT-6601296.A2
6601296
|
-
|
|
|
|
123 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X20
HIT-6600775.A1
6600775
|
-
|
|
|
|
124 - RETAINING RING
HIT-6600770.A2
6600770
|
-
|
|
|
|
125 - CLUTCH SHAFT (S) FOR (SL)
HIT-6600771.A1
6600771
|
-
|
|
|
|
*125 - CLUTCH SHAFT (F) FOR (LB)
HIT-6600772.A2
6600772
|
-
|
|
|
|
126 - STEP BOLT
HIT-6600661.A2
6600661
|
-
|
|
|
|
127 - BENT WASHER 8
HIT-6600662.A2
6600662
|
-
|
|
|
|
128 - CLUTCH
HIT-6600773.A1
6600773
|
£3.66
|
£4.39
|
|
|
129 - CLUTCH WASHER (B)
HIT-6600664.A4
6600664
|
-
|
|
|
|
130 - FLY WHEEL NUT
HIT-6600658.A4
6600658
|
-
|
|
|
|
131 - MAGNETO ROTOR
HIT-6600774.A2
6600774
|
-
|
|
|
|
*132A - FUEL PIPE SINCE 9.2016
HIT-6601401.A0
6601401
|
-
|
|
|
|
*132A - FUEL PIPE SINCE 9.2016 FOR USA
HIT-6601398.A0
6601398
|
-
|
|
|
|
133A - FUEL PIPE SINCE 9.2016
HIT-6601400.A3
6601400
|
-
|
|
|
|
134A - FUEL GROMMET FOR USA
HIT-6600671.A2
6600671
|
-
|
|
|
|
135 - TANK CAP RETAINER
HIT-6600782.A2
6600782
|
-
|
|
|
|
136 - TANK CAP RETAINER HOLDER
HIT-6600781.A1
6600781
|
-
|
|
|
|
137 - TANK CAP PACKING
HIT-6600780.A2
6600780
|
-
|
|
|
|
138 - VALVE HOLDER
HIT-6600779.A1
6600779
|
-
|
|
|
|
139 - VALVE
HIT-6600778.A2
6600778
|
-
|
|
|
|
140 - TANK CAP
HIT-6600777.A1
6600777
|
-
|
|
|
|
141A - TANK CAP ASS'Y INCLUD.135-140
HIT-6600776.A2
6600776
|
-
|
|
|
|
*142 - FUEL TANK
HIT-6600788.A1
6600788
|
-
|
|
|
|
*142 - FUEL TANK FOR USA
HIT-6600789.A1
6600789
|
-
|
|
|
|
143A - PUMP FILTER BODY
HIT-6685199.A14
6685199
|
£6.38
|
£7.66
|
|
|
144 - CLIP
HIT-6601295.A2
6601295
|
-
|
|
|
|
145 - STAND
HIT-6600791.A0
6600791
|
-
|
|
|
|
146 - HEX. SOCKET HD. BOLT (W/WASHERS) M5X18
HIT-6600716.A8
6600716
|
-
|
|
|
|
147 - TANK MARK LABEL (50:1)
HIT-6698921.A9
6698921
|
-
|
|
|
|
148 - FILTER ELEMENT
HIT-6601396.A3
6601396
|
-
|
|
|
|
*149 - FUEL PIPE SET INCLUD.132A-134A TILL 8.2016
HIT-6601403.A3
6601403
|
-
|
|
|
|
*149 - FUEL PIPE SET INCLUD.132A-134A TILL 8.2016 FOR USA
HIT-6601404.A0
6601404
|
-
|
|
|
|
161 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X35
HIT-6600873.A4
6600873
|
-
|
|
|
|
162 - LOOP HANDLE
HIT-6600800.A4
6600800
|
-
|
|
|
|
163 - BARRIER FOR EUROPE
HIT-6600802.A3
6600802
|
-
|
|
|
|
164 - LOOP HANDLE BRACKET FOR USA
HIT-6600801.A0
6600801
|
-
|
|
|
|
*165 - GEAR CASE ASS'Y (S) INCLUD.166-172
HIT-6600803.A1
6600803
|
-
|
|
|
|
*165 - GEAR CASE ASS'Y (S) INCLUD.166-168
HIT-6600804.A2
6600804
|
-
|
|
|
|
166 - BOLT (W/BOLT WASHER) M6X8
HIT-6600856.A4
6600856
|
-
|
|
|
|
167 - HEX. SOCKET HD. BOLT M5X12
HIT-6600855.A0
6600855
|
-
|
|
|
|
168 - HOLDER (A)
HIT-6600857.A0
6600857
|
-
|
|
|
|
169 - HOLDER (B) FOR EUROPE
HIT-6600858.A4
6600858
|
-
|
|
|
|
170 - NUT COVER FOR EUROPE
HIT-6600859.A0
6600859
|
-
|
|
|
|
171 - U-NUT (LEFT HAND) M10 FOR EUROPE
HIT-6600860.A4
6600860
|
-
|
|
|
|
172 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X30
HIT-6600854.A4
6600854
|
-
|
|
|
|
173 - NYLON HEAD INCLUD.174-179
HIT-6600570.A4
6600570
|
-
|
|
|
|
174 - NYLON HEAD COVER
HIT-6600806.A0
6600806
|
-
|
|
|
|
175 - RETURN SPRING
HIT-6600809.A4
6600809
|
-
|
|
|
|
176 - REEL
HIT-6600808.A0
6600808
|
-
|
|
|
|
177 - NYLON CORD
HIT-6600807.A4
6600807
|
-
|
|
|
|
178 - CORD GUIDE
HIT-6600810.A0
6600810
|
-
|
|
|
|
179 - NYLON HEAD CAP
HIT-6600811.A4
6600811
|
-
|
|
|
|
180 - THROTTLE LEVER ASS'Y INCLUD.181-197
HIT-6600822.A1
6600822
|
-
|
|
|
|
181 - GRIP
HIT-6600852.A4
6600852
|
-
|
|
|
|
182 - THROTTLE COLLAR
HIT-6601306.A4
6601306
|
-
|
|
|
|
183 - NUT M5
HIT-6600825.A2
6600825
|
-
|
|
|
|
184 - HANDLE CLAMP
HIT-6600853.A0
6600853
|
-
|
|
|
|
185 - SCREW (W/WASHERS) M5X25
HIT-6600839.A1
6600839
|
-
|
|
|
|
186 - HANDLE (B)
HIT-6600850.A4
6600850
|
-
|
|
|
|
187 - STOP SWITCH COMP.
HIT-6600851.A0
6600851
|
-
|
|
|
|
188 - HANDLE CLAMP
HIT-6600843.A1
6600843
|
-
|
|
|
|
189 - THROTTLE LEVER
HIT-6600841.A1
6600841
|
£1.67
|
£2.00
|
|
|
190 - SPRING (C)
HIT-6600842.A3
6600842
|
-
|
|
|
|
191 - CONNECTION LEVER
HIT-6600849.A1
6600849
|
-
|
|
|
|
192 - SPRING (D)
HIT-6600847.A1
6600847
|
-
|
|
|
|
193 - TRIGGER LOCKOUT
HIT-6600846.A3
6600846
|
-
|
|
|
|
194 - SPRING (E)
HIT-6600848.A3
6600848
|
-
|
|
|
|
195 - THROTTLE WIRE COMP.
HIT-6600840.A3
6600840
|
-
|
|
|
|
196 - HANDLE (A)
HIT-6600845.A1
6600845
|
-
|
|
|
|
197 - SCREW (W/WASHERS) M5X30
HIT-6600844.A3
6600844
|
-
|
|
|
|
198 - LIMIT RING FOR EUROPE
HIT-6601330.A1
6601330
|
-
|
|
|
|
199 - LOOP HANDLE RUBBER
HIT-6600821.A3
6600821
|
-
|
|
|
|
200 - HANGER ASS'Y INCLUD.201
HIT-6600818.A1
6600818
|
-
|
|
|
|
201 - HANGER CLAMP FOR EUROPE
HIT-6600838.A2
6600838
|
-
|
|
|
|
202 - HANGER FOR EUROPE
HIT-6600837.A2
6600837
|
-
|
|
|
|
203 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE
HIT-6600813.A2
6600813
|
-
|
|
|
|
204 - COVER BRACKET FOR EUROPE
HIT-6600812.A2
6600812
|
-
|
|
|
|
206 - HEX. HOLE BUTTON BOLT M6X20 FOR USA
HIT-6600815.A1
6600815
|
-
|
|
|
|
*207 - CAUTION MARK
HIT-6600449.A5
6600449
|
-
|
|
|
|
*207 - CAUTION MARK (USA) FOR USA
HIT-6600448.A1
6600448
|
-
|
|
|
|
208 - COVER BRACKET (US) FOR USA
HIT-6600814.A1
6600814
|
-
|
|
|
|
209 - LEVEL MARK (A)
HIT-6601305.A2
6601305
|
-
|
|
|
|
210 - MAIN PIPE
HIT-6600816.A1
6600816
|
-
|
|
|
|
211 - DRIVE SHAFT
HIT-6600817.A3
6600817
|
£13.86
|
£16.63
|
|
|
212 - GUARD FOR EUROPE
HIT-6601299.A2
6601299
|
-
|
|
|
|
213 - COVER GUARD (EU) FOR EUROPE
HIT-6601333.A1
6601333
|
-
|
|
|
|
214A - TAPPING SCREW 4X14 FOR EUROPE
HIT-6684751.A30
6684751
|
£1.67
|
£2.00
|
|
|
215 - KNIFE FOR EUROPE
HIT-6601302.A2
6601302
|
-
|
|
|
|
216 - NUT M4 (10 PCS.) FOR USA
HIT-949554.A6
949554
|
£1.67
|
£2.00
|
|
|
217 - KNIFE FOR USA
HIT-6696584.A36
6696584
|
-
|
|
|
|
218 - GUARD FOR USA
HIT-6696981.A10
6696981
|
-
|
|
|
|
219 - BOLT WASHER M4 (BLACK) FOR USA
HIT-323210.A2
323210
|
-
|
|
|
|
220 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR USA
HIT-6685068.A33
6685068
|
-
|
|
|
|
231 - FLEXIBLE SHAFT FOR (LB)
HIT-6698325.A6
6698325
|
£18.52
|
£22.23
|
|
|
232 - MAIN PIPE ASS'Y INCLUD.231
HIT-6601405.A2
6601405
|
-
|
|
|
|
233 - CUTTER CASE INCLUD.234
HIT-6600494.A5
6600494
|
-
|
|
|
|
234 - BEARING WASHER FOR (LB)
HIT-6698331.A5
6698331
|
-
|
|
|
|
235 - HEX. SOCKET HD. BOLT M5X10 (10 PCS.) FOR (LB)
HIT-949819.A3
949819
|
£2.98
|
£3.57
|
|
|
236 - BOLT M6 FOR (LB)
HIT-6698334.A5
6698334
|
£4.45
|
£5.34
|
|
|
237 - GUARD BRACKET FOR (LB)
HIT-6698335.A2
6698335
|
£4.45
|
£5.34
|
|
|
238 - HEX. SOCKET HD. BOLT M5X25 (10 PCS.) FOR (LB)
HIT-949662.A7
949662
|
£3.64
|
£4.37
|
|
|
239 - GUARD FOR (LB)
HIT-6698809.A2
6698809
|
£20.26
|
£24.31
|
|
|
240 - MACHINE SCREW M5X14 (10 PCS.) FOR (LB)
HIT-949238.A6
949238
|
£1.67
|
£2.00
|
|
|
241 - WASHER M5 (10 PCS.) FOR (LB)
HIT-949424.A1
949424
|
£1.67
|
£2.00
|
|
|
242 - KNIFE FOR (LB)
HIT-6698333.A2
6698333
|
£10.10
|
£12.12
|
|
|
243 - SPRING WASHER M5 (10 PCS.) FOR (LB)
HIT-949454.A137
949454
|
£1.67
|
£2.00
|
|
|
244 - NUT M5 (10 PCS.) FOR (LB)
HIT-949555.A20
949555
|
£1.67
|
£2.00
|
|
|
245 - NYLON HEAD (B) INCLUD.175-179
HIT-6601376.A2
6601376
|
-
|
|
|
|
246 - NYLON HEAD COVER (B) FOR (LB)
HIT-6601375.A1
6601375
|
-
|
|
|
|
501 - BOX SPANNER 16X17MM
HIT-6600574.A2
6600574
|
-
|
|
|
|
502 - HEX. BAR WRENCH 4MM
HIT-944458.A24
944458
|
£1.67
|
£2.00
|
|
|
503 - TOOL BAG (N)
HIT-6600863.A2
6600863
|
-
|
|
|
|
504 - SAFETY GLASSES
HIT-6600576.A2
6600576
|
-
|
|
|
|
505 - HANGING STRAP (S) FOR EUROPE
HIT-6600579.A2
6600579
|
-
|
|
|
|
506 - SPANNER 8X10 FOR EUROPE
HIT-6600874.A0
6600874
|
-
|
|
|
