Hitachi / Hikoki TCG22EAS Engine Brush Cutter Spare Parts

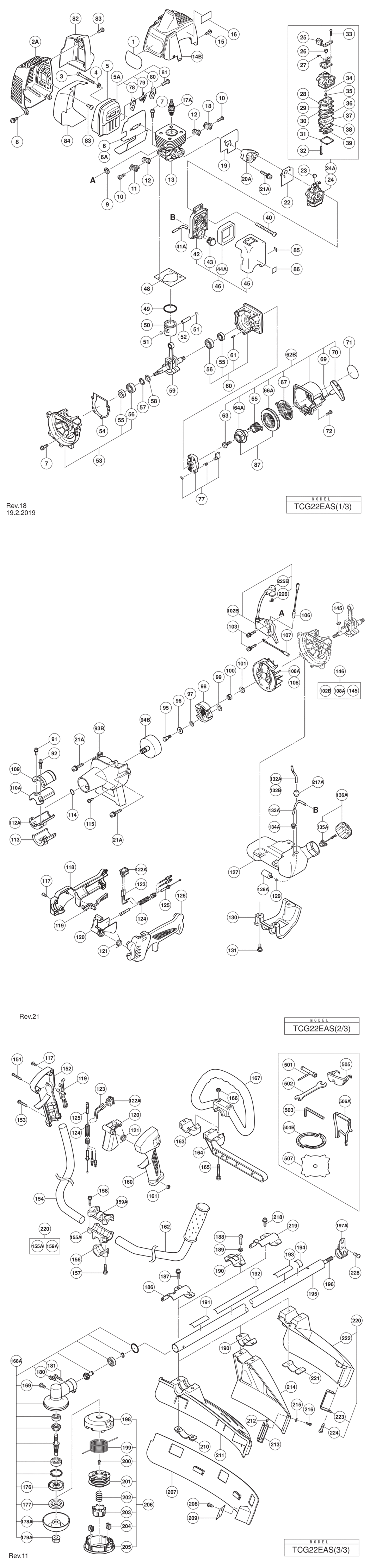

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCG22EAS Engine Brush Cutter

	Ex VAT	Inc VAT
1 - TANAKA LABEL HIT-000000.A5614 000000	-
2A - MUFFLER PROTECTOR HIT-6600338.A4 6600338	£8.35	£10.02
*2A - MUFFLER PROTECTOR SINCE 11.2013 FOR EUROPE HIT-6600423.A5 6600423	£14.45	£17.34
3 - HEX. HOLE BOLT M6X55 HIT-6684638.A2 6684638	£1.67	£2.00
4 - BOLT WASHER M6 (10 PCS.) HIT-949432.A95 949432	£1.67	£2.00
*5 - MUFFLER HIT-6696570.A0 6696570	£9.68	£11.62
*5 - MUFFLER FOR EUROPE (SLP SL) HIT-6696554.A6 6696554	£31.92	£38.31
5A - MUFFLER INCLUD.78-81 FOR AUS (SL S) HIT-6698477.A15 6698477	£15.61	£18.73
6 - HEAT PROTECTION PANEL HIT-6696553.A0 6696553	£3.02	£3.63
6A - HEAT PROTECTION PANEL SINCE 11.2013 FOR EUROPE HIT-6600320.A16 6600320	£1.67	£2.00
7 - HEX.HOLE BOLT M5X18/S HIT-6684586.A91 6684586	-
8 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A16 791045	£2.71	£3.25
9 - WASHER T1.6 FOR EUROPE (SLP SP) HIT-6684600.A66 6684600	-
10 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 HIT-6684595.A8 6684595	£1.67	£2.00
11 - INTAKE COVER (B) HIT-6696536.A20 6696536	-
12 - COVER PACKING HIT-6696534.A18 6696534	£1.67	£2.00
13 - CYLINDER HIT-6696527.A0 6696527	£35.00	£42.00
14B - CYLINDER COVER HIT-6600424.A1 6600424	-
15 - MACHINE SCREW (W/WASHERS) M4X20 (BLACK) HIT-307606.A3 307606	£1.67	£2.00
16 - CAUTION MARK HIT-000000.A5615 000000	-
*17A - SPARK PLUG ASS'Y CJ6 HIT-6699322.A4 6699322	£3.73	£4.48
*17A - SPARK PLUG ASS'Y BMR7A FOR EUROPE (SLP SP) HIT-6699316.A60 6699316	£12.43	£14.92
*17A - SPARK PLUG ASS'Y BMR7A NZL (SL S) HIT-6699316.A61 6699316	£12.43	£14.92
18 - INTAKE COVER (A) HIT-6696535.A2 6696535	£1.67	£2.00
19 - INTAKE PACKING HIT-6696548.A0 6696548	£1.67	£2.00
20A - CARBURETOR INSULATOR HIT-6698387.A5 6698387	£4.72	£5.66
21A - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A64 6698844	£1.67	£2.00
22 - CARBURETOR PACKING HIT-6684616.A7 6684616	£1.67	£2.00
24 - CARBURETOR ASS'Y WYC-22 INCLUD.25-39 HIT-6696550.A0 6696550	£61.22	£73.46
24A - CARBURETOR ASS'Y WYC-28 INCLUD.25-39 FOR AUS HIT-6698474.A4 6698474	£63.80	£76.56
25 - CABLE ADJUST STAY HIT-6699287.A6 6699287	-
26 - SWIVEL HIT-6696830.A23 6696830	-
27 - STOP RING HIT-6684696.A185 6684696	-
28 - PUMP GASKET HIT-6684692.A17 6684692	£17.28	£20.73
29 - PUMP DIAPHRAGM HIT-6684693.A172 6684693	£5.70	£6.84
30 - PUMP PLATE HIT-6691242.A28 6691242	-
31 - DIAPHRAGM COVER-METERING HIT-6685222.A75 6685222	£5.70	£6.84
32 - SET SCREW HIT-6691312.A31 6691312	-
33 - SET SCREW M3X12 HIT-6696829.A25 6696829	-
34 - O-RING HIT-6684695.A32 6684695	£1.67	£2.00
35 - JET HIT-000000.A5616 000000	-
36 - CIRCUIT PLATE HIT-6691234.A29 6691234	-
37 - PUMP BODY COMP. HIT-6696828.A23 6696828	£13.28	£15.93
38 - DIAPHRAGM PACKING-METERING HIT-6685220.A104 6685220	£2.81	£3.37
39 - METERING DIAPHRAGM HIT-6684690.A23 6684690	£24.05	£28.86
40 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A9 307224	£1.67	£2.00
41A - FUEL PIPE HIT-6698720.A8 6698720	£4.72	£5.66
42 - AIR CLEANER HOUSING HIT-66965549.A14 66965549	£15.62	£18.74
43 - PRIMING PUMP COMP. HIT-6685139.A18 6685139	£10.67	£12.80
44A - CLEANER SPONGE HIT-6600704.A14 6600704	-
45 - AIR CLEANER COVER HIT-6696831.A10 6696831	£9.68	£11.62
46 - AIR CLEANER ASS'Y INCLUD.42-45 HIT-6696549.A21 6696549	£13.36	£16.03
48 - CYLINDER PACKING HIT-6696530.A18 6696530	£1.67	£2.00
49 - PISTON RING HIT-6696532.A18 6696532	£3.56	£4.27
50 - PISTON HIT-6696531.A1 6696531	£10.77	£12.92
51 - CIR CLIP HIT-6684590.A16 6684590	£1.67	£2.00
52 - PISTON PIN HIT-6696944.A32 6696944	£5.61	£6.73
53 - CRANK CASE (B) COMP INCLUD.55 HIT-6696538.A7 6696538	£15.19	£18.23
54 - CRANK CASE PACKING HIT-6696539.A0 6696539	£1.67	£2.00
55 - OIL SEAL TB 12227 HIT-6684607.A7 6684607	£4.07	£4.88
56 - BALL BEARING 6001 C3 HIT-6684608.A188 6684608	£5.70	£6.84
57 - SHIM T0.2 HIT-6696946.A27 6696946	£1.67	£2.00
58 - SHIM T0.3 HIT-6696945.A12 6696945	£1.67	£2.00
59 - CRANK SHAFT COMP. HIT-6696533.A0 6696533	£42.11	£50.53
60 - CRANK CASE (A) ASS'Y INCLUD.55 HIT-6696537.A0 6696537	£15.66	£18.79
61 - KNOCK PIN 4X12 HIT-6695521.A19 6695521	-
62B - RECOIL STARTER BODY ASS'Y INCLUD.63-67 HIT-6601570.A49 6601570	£23.15	£27.78
63 - SET SCREW HIT-6684679.A32 6684679	£2.98	£3.57
64A - CAM PLATE SINCE 9.2013 HIT-6699996.A5 6699996	£4.28	£5.13
65 - DAMPER SPRING HIT-6684677.A11 6684677	£6.66	£7.99
66A - STARTER ROPE REEL SINCE 9.2013 HIT-6699997.A84 6699997	-
67 - RECOIL SPRING HIT-6684675.A135 6684675	£8.82	£10.58
69 - STARTER ROPE 3.5X860 HIT-6684674.A6 6684674	£5.70	£6.84
70 - STARTER HANDLE HIT-6684680.A90 6684680	£5.87	£7.04
71 - NAME PLATE HIT-000000.A5617 000000	-
72 - MACHINE SCREW (W/WASHERS) M4X16 HIT-993539.A2 993539	£1.67	£2.00
77 - STARTER PULLEY ASS'Y HIT-6684681.A24 6684681	£18.16	£21.79
78 - MUFFLER SPECIAL GASKET FOR AUS (SL S) HIT-6684650.A4 6684650	£1.67	£2.00
79 - SPARK ARRESTOR FOR AUS (SL S) HIT-6684652.A5 6684652	£2.81	£3.37
80 - EXHAUST PIPE FOR AUS (SL S) HIT-6685047.A1 6685047	-
81 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR AUS (SL HIT-6685068.A12 6685068	-
82 - MUFFLER REAR COVER SINCE 11.2013 HIT-6600339.A1 6600339	£8.11	£9.73
83 - TAPPING SCREW D4X10 SINCE 11.2013 HIT-6600325.A19 6600325	-
84 - MUFFER HEAT COVER SINCE 11.2013 HIT-6600340.A6 6600340	£8.42	£10.11
85 - MARK PLATE (T) SINCE 11.2013 FOR EUROPE HIT-6600327.A16 6600327	-
86 - PRIMER LABEL SINCE 11.2013 FOR EUROPE HIT-6699000.A29 6699000	-
87 - CAMPLATE ASS'Y INCLUD.64A HIT-6699691.A11 6699691	£7.75	£9.30
91 - HEX.HOLE BOLT M5X12/S HIT-6684667.A78 6684667	£1.67	£2.00
92 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X20 HIT-305583.A18 305583	£1.67	£2.00
93B - FAN CASE (VERMILION) HIT-6699159.A3 6699159	£14.29	£17.15
94B - CLUTCH SHAFT COMP HIT-6696541.A5 6696541	£14.95	£17.94
95 - STEP BOLT HIT-6696469.A6 6696469	£2.84	£3.41
96 - BENT WASHER 8 HIT-6684648.A14 6684648	£1.67	£2.00
97 - CLUTCH PLATE (A) HIT-6696546.A0 6696546	£1.67	£2.00
98 - CLUTCH HIT-6696948.A25 6696948	£15.02	£18.03
99 - CLUTCH WASHER (B) HIT-6696547.A33 6696547	£1.67	£2.00
100 - FLYWHEEL NUT HIT-6685337.A20 6685337	-
101 - BOLT WASHER M8 (BLACK) HIT-323212.A7 323212	£1.67	£2.00
102B - IGNITION COIL ASS'Y INCLUD.225B HIT-6699464.A13 6699464	£27.08	£32.49
103 - HEX. HOLE BOLT M4X18/WS HIT-6684599.A10 6684599	-
106 - CORD HIT-6696544.A0 6696544	-
107 - EARTH CORD HIT-6696545.A50 6696545	-
108 - MAGNETO ROTOR COMP. TILL 7.2013 HIT-6696928.A2 6696928	£50.30	£60.36
108A - MAGNETO ROTOR SINCE 8.2013 HIT-6699289.A36 6699289	£24.52	£29.43
109 - ANTI VIBE RUBBER (A) HIT-6696963.A8 6696963	£3.12	£3.74
110 - PIPE HOLDER (A) HIT-6696542.A0 6696542	£1.67	£2.00
110A - PIPE HOLDER (A) FOR AUS HIT-6698643.A39 6698643	£3.56	£4.27
112 - PIPE HOLDER (B) HIT-6696543.A7 6696543	£1.67	£2.00
112A - PIPE HOLDER (B) FOR AUS HIT-6698644.A8 6698644	£3.56	£4.27
113 - ANTI VIBE RUBBER (B) HIT-6696964.A32 6696964	£3.02	£3.63
114 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A42 939542	£2.98	£3.57
115 - TAPPING SCREW D4.5X16 HIT-6684636.A1 6684636	£1.67	£2.00
117 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A158 305812	£1.67	£2.00
*118 - HANDLE (B) HIT-6696942.A10 6696942	-
*118 - HANDLE (B) FOR EUROPE (SLP) HIT-6696487.A27 6696487	£5.88	£7.06
*119 - LOCK LEVER FOR EUROPE (SLP SP) HIT-6696490.A8 6696490	£2.84	£3.41
120 - LEVER HIT-6696488.A7 6696488	£1.67	£2.00
121 - SPRING (A) HIT-6696489.A30 6696489	£2.84	£3.41
122A - STOP SWITCH HIT-6601275.A67 6601275	£1.67	£2.00
*123 - STOP SWITCH CORD FOR (SL) HIT-6696491.A33 6696491	-
*123 - STOP SWITCH CORD FOR (S) HIT-6696592.A16 6696592	-
*124 - PROTECTION TUBE FOR (SL) HIT-6696967.A5 6696967	-
*124 - PROTECTION TUBE FOR (S) HIT-6696594.A13 6696594	-
*125 - THROTTLE WIRE COMP. FOR (SL) HIT-6696560.A11 6696560	£8.35	£10.02
*125 - THROTTLE WIRE COMP. FOR (S) HIT-6696593.A4 6696593	£7.12	£8.54
*126 - HANDLE (A) HIT-6696941.A13 6696941	-
*126 - HANDLE (A) FOR EUROPE (SLP) HIT-6696486.A7 6696486	£5.88	£7.06
*127 - TANK HIT-6696569.A8 6696569	£7.75	£9.30
*127 - TANK FOR USA (SLP) HIT-6696552.A8 6696552	-
128A - PUMP FILTER HIT-6600351.A72 6600351	£4.45	£5.34
129 - CLIP HIT-6696949.A18 6696949	£1.67	£2.00
130 - STAND FOR USA (SLP) HIT-6696556.A1 6696556	-
*131 - BOLT (W/FLANGE) L17.8 HIT-6696574.A17 6696574	£1.67	£2.00
*131 - FLANGE BOLT FOR USA (SLP) HIT-6696557.A27 6696557	£1.67	£2.00
132A - FUEL PIPE HIT-6698716.A40 6698716	£5.61	£6.73
132B - FUEL PIPE L180 FOR USA HIT-6698932.A9 6698932	-
133A - FUEL PIPE L70 HIT-6699014.A41 6699014	£2.77	£3.32
134A - RETURN GROMMET HIT-6697846.A60 6697846	£2.08	£2.50
*135A - TANK CAP CHAIN FOR EUROPE (SLP SP) HIT-6698732.A71 6698732	-
*135A - TANK CAP CHAIN CAN (SLP) HIT-6698732.A72 6698732	-
136A - FUEL TANK CAP ASS'Y INCLUD.135A HIT-6698402.A31 6698402	-
145 - WOODRUFF KEY 3X13X4.5 SINCE 8.2013 HIT-6684899.A55 6684899	-
146 - MAGNETO KEY SET INCLUD.102B HIT-6699463.A0 6699463	£34.78	£41.74
*151 - TAPPING SCREW (W/FLANGE) D4X30 FOR EUROPE (SP) HIT-323837.A24 323837	-
*152 - HANDLE (B) HIT-6696591.A2 6696591	-
*152 - HANDLE (B) FOR EUROPE (SL) HIT-6696590.A16 6696590	-
*153 - MACHINE SCREW M5X30 (BLACK) FOR EUROPE (SP) HIT-323041.A23 323041	-
*154 - HANDLE RIGHT FOR EUROPE (SP) HIT-6696585.A1 6696585	-
*155A - HANDLE HOLDER (B) SINCE 7.2015 FOR EUROPE (SP) HIT-6600501.A19 6600501	-
*156 - HANDLE HOLDER (C) FOR EUROPE (SP) HIT-6696578.A20 6696578	-
*157 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE (SP) HIT-6684714.A127 6684714	£1.67	£2.00
*158 - HEX. HOLE BOLT M5X25/S FOR EUROPE (SP) HIT-6684709.A34 6684709	£1.67	£2.00
*159A - HANDLE HOLDER (A) SINCE 7.2015 FOR EUROPE (SP) HIT-6600500.A12 6600500	-
*160 - HANDLE (A) HIT-6696589.A2 6696589	-
*160 - HANDLE (A) FOR EUROPE (SP) HIT-6696588.A16 6696588	-
161 - NUT M5 (BLACK) HIT-302012.A12 302012	£1.67	£2.00
*162 - HANDLE LEFT FOR EUROPE (SP) HIT-6696595.A1 6696595	-
*163 - HANDLE HOLDER (A) FOR USA (SLP) HIT-6696972.A3 6696972	-
*164 - BARRIER FOR EUROPE (SLP) HIT-6696973.A23 6696973	£8.35	£10.02
*165 - BOLT (BLACK) M6 FOR EUROPE (SLP) HIT-6696974.A10 6696974	£1.67	£2.00
*166 - NUT M6 (10 PCS.) FOR EUROPE (SLP) HIT-949556.A18 949556	£1.67	£2.00
*167 - LOOP HANDLE FOR EUROPE (SLP) HIT-6696975.A23 6696975	£13.36	£16.03
*168 - GEAR CASE ASS'Y 3BB (B) INCLUD.169 HIT-6696976.A3 6696976	£60.73	£72.88
*168 - GEAR CASE ASS'Y 3BB (B) CAN (SLP) HIT-6696976.A4 6696976	£60.73	£72.88
168A - GEAR CASE ASS'Y 3BB (A) INCLUD.169 HIT-6699402.A6 6699402	-
169 - BOLT (W/PLUS) M6X8 HIT-6684737.A50 6684737	-
176 - CUTTER HOLDER (A) HIT-6696977.A20 6696977	£18.01	£21.61
177 - CUTTER HOLDER (B) EXCEPT FOR USA (SLP) HIT-6698659.A24 6698659	£15.99	£19.19
178A - NUT COVER EXCEPT FOR USA (SLP) HIT-6699188.A43 6699188	£10.93	£13.12
179A - U-NUT (LEFT HAND) M10 EXCEPT FOR USA (SLP) HIT-335759.A26 335759	£1.67	£2.00
180 - SCREW 5X12/W.S HIT-6695414.A13 6695414	£1.67	£2.00
181 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) HIT-949664.A26 949664	£4.33	£5.20
*186 - COVER BRACKET FOR EUROPE (SLP SP) HIT-6696494.A7 6696494	£3.02	£3.63
*187 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE (SLP SP) HIT-6684714.A126 6684714	£1.67	£2.00
*188 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 FOR USA (SLP) HIT-6685064.A14 6685064	-
*189 - SPRING WASHER M6 (10 PCS.) FOR USA (SLP) HIT-949455.A6 949455	£1.67	£2.00
*190 - COVER BRACKET FOR USA (SLP) HIT-6696978.A9 6696978	-
191 - LEVEL MARK HIT-000000.A5641 000000	-
192 - CAUTION MARK HIT-6684959.A6 6684959	-
*193 - LEVEL MARK FOR EUROPE (SLP) HIT-6684852.A4 6684852	-
194 - LEVEL MARK HIT-6684851.A51 6684851	-
195 - MAIN PIPE COMP. HIT-6696558.A10 6696558	£22.07	£26.48
196A - DRIVE SHAFT HIT-6698514.A14 6698514	£19.46	£23.35
197A - HANGER EXCEPT FOR USA (SLP) HIT-6600504.A28 6600504	£1.67	£2.00
198 - COVER HIT-6698794.A5 6698794	£17.58	£21.09
199 - NYLON CORD HIT-000000.A5645 000000	-
200 - SET SCREW HIT-6698795.A35 6698795	-
201 - REEL HIT-6698796.A9 6698796	£7.12	£8.54
202 - RETURN SPRING HIT-6698797.A28 6698797	£1.67	£2.00
203 - BUTTON HIT-6698798.A9 6698798	£7.12	£8.54
204 - CORD GUIDE HIT-6698799.A30 6698799	£7.12	£8.54
205 - CASE HIT-6698800.A5 6698800	£14.11	£16.93
206 - NYLON HEAD ASS'Y INCLUD.198-205 HIT-6696454.A5 6696454	£48.12	£57.75
*207 - COVER GUARD FOR EUROPE (SLP SP) HIT-6696950.A22 6696950	£11.18	£13.42
*208 - TAPPING SCREW 4X14 FOR EUROPE (SLP SP) HIT-6684751.A49 6684751	£1.67	£2.00
*209 - KNIFE FOR EUROPE (SLP SP) HIT-6684750.A51 6684750	£3.64	£4.37
*210 - GUARD HOLDER FOR EUROPE (SLP SP) HIT-6696951.A15 6696951	£3.02	£3.63
*211 - GUARD FOR EUROPE (SLP SP) HIT-6696980.A27 6696980	£27.49	£32.99
212 - NUT M4 (10 PCS.) HIT-949554.A11 949554	£1.67	£2.00
213 - KNIFE HIT-6696584.A30 6696584	-
*214 - GUARD FOR UAE (SLP) HIT-6696981.A6 6696981	-
215 - BOLT WASHER M4 (BLACK) HIT-323210.A14 323210	-
216 - MACHINE SCREW (W/SP. WASHER) M4X12 HIT-6685068.A14 6685068	-
217A - FUEL GROMMET HIT-6688156.A44 6688156	-
218 - HEX. HOLE BUTTON BOLT M6X25 SINCE 7.2012 FOR AUS (SL) HIT-6684714.A125 6684714	£1.67	£2.00
219 - COVER BRACKET SINCE 7.2012 FOR AUS (SL) HIT-6699011.A3 6699011	-
220 - COVER ASS'Y INCLUD.222-224 SINCE 7.2012 FOR AUS (SL) HIT-6697880.A12 6697880	-
*220 - COVER ASS'Y NZL (SL) HIT-6697880.A13 6697880	-
221 - COVER HOLDER SINCE 7.2012 FOR AUS (SL) HIT-6698813.A6 6698813	-
222 - GUARD 24 DIA. SINCE 7.2012 FOR AUS (SL) HIT-6690272.A11 6690272	-
223 - KNIFE SINCE 7.2012 FOR AUS (SL) HIT-6693388.A9 6693388	-
224 - TAPPING SCREW 5X20 SINCE 7.2012 FOR AUS (SL) HIT-6684753.A38 6684753	£1.67	£2.00
225B - PLUG CAP HIT-6601421.A33 6601421	£1.67	£2.00
226 - PLUG CAP METAL HIT-6699186.A2 6699186	£1.67	£2.00
*227 - HANDLE HOLDER (A).(B) SET INCLUD.155A HIT-6600499.A24 6600499	-
*227 - HANDLE HOLDER (A).(B) SET FOR EUROPE (SP) HIT-6600499.A25 6600499	-
*227 - HANDLE HOLDER (A).(B) SET TPE (S) HIT-6600499.A26 6600499	-
228 - MACHINE SCREW M5X10 (10 PCS.) EXCEPT FOR USA (SLP) HIT-949236.A37 949236	£1.67	£2.00
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A86 6684764	£7.64	£9.17
502 - WRENCH 8X10 HIT-6696596.A23 6696596	-
503 - HEX. BAR WRENCH 4MM HIT-944458.A47 944458	£1.67	£2.00
504B - CUTTER COVER FOR EUROPE (SP) HIT-6684768.A3 6684768	-
505 - PROTECTIVE GLASSES HIT-875769.A31 875769	-
506A - SHOULDER BELT SINGLE EXCEPT FOR USA (SLP) HIT-6601420.A22 6601420	-
507 - CUTTING BLADE 4X230 1 HIT-6684767.A4 6684767	£15.17	£18.20
601 - CUTTER HOLDER (B) HIT-6698659.A25 6698659	£15.99	£19.19
602 - NUT COVER HIT-6698660.A0 6698660	-
603 - LEFT HAND NYLON NUT M10 HIT-6698658.A2 6698658	£8.59	£10.31
*604 - REPAIR KIT (A) TILL 10.2013 FOR EUROPE HIT-6600027.A0 6600027	-
*604 - REPAIR KIT (A-1) TILL 10.2013 FOR USA HIT-6600043.A1 6600043	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki TCG22EAS Engine Brush Cutter Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
