Hitachi / Hikoki TCG22EAD Engine Brush Cutter Spare Parts

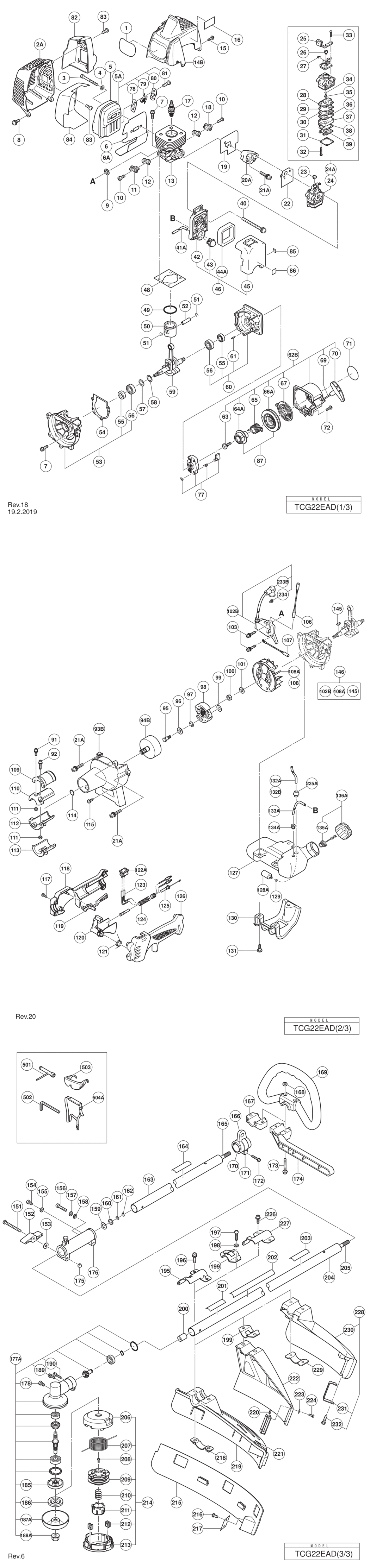

An exploded diagram and spare parts listing for the Hitachi / Hikoki TCG22EAD Engine Brush Cutter

	Ex VAT	Inc VAT
1 - TANAKA LABEL HIT-000000.A5590 000000	-
2A - MUFFLER PROTECTOR HIT-6600338.A5 6600338	£8.35	£10.02
*2A - MUFFLER PROTECTOR SINCE 11.2013 FOR EUROPE HIT-6600423.A4 6600423	£14.45	£17.34
3 - HEX. HOLE BOLT M6X55 HIT-6684638.A3 6684638	£1.67	£2.00
4 - BOLT WASHER M6 (10 PCS.) HIT-949432.A96 949432	£1.67	£2.00
*5 - MUFFLER HIT-6696570.A1 6696570	£9.68	£11.62
*5 - MUFFLER FOR EUROPE (SLP) HIT-6696554.A5 6696554	£31.92	£38.31
5A - MUFFLER INCLUD.78-81 FOR AUS (SL S) HIT-6698477.A16 6698477	£15.61	£18.73
6 - HEAT PROTECTION PANEL HIT-6696553.A1 6696553	£3.02	£3.63
6A - HEAT PROTECTION PANEL SINCE 11.2013 FOR EUROPE HIT-6600320.A17 6600320	£1.67	£2.00
7 - HEX.HOLE BOLT M5X18/S HIT-6684586.A90 6684586	-
8 - SCREW (W/WASHERS) M5X16 (BLACK) HIT-791045.A17 791045	£2.71	£3.25
9 - WASHER T1.6 FOR EUROPE (SLP) HIT-6684600.A65 6684600	-
10 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M4X12 HIT-6684595.A7 6684595	£1.67	£2.00
11 - INTAKE COVER (B) HIT-6696536.A19 6696536	-
12 - COVER PACKING HIT-6696534.A17 6696534	£1.67	£2.00
13 - CYLINDER HIT-6696527.A1 6696527	£35.00	£42.00
14B - CYLINDER COVER HIT-6600424.A2 6600424	-
15 - MACHINE SCREW (W/WASHERS) M4X20 (BLACK) HIT-307606.A4 307606	£1.67	£2.00
16 - CAUTION LABEL HIT-000000.A5591 000000	-
*17A - SPARK PLUG ASS'Y BMR7A HIT-6699316.A59 6699316	£12.43	£14.92
*17A - SPARK PLUG ASS'Y CJ6 FOR USA (SLP) HIT-6699322.A2 6699322	£3.73	£4.48
*17A - SPARK PLUG ASS'Y CJ6 TPE (SL) HIT-6699322.A3 6699322	£3.73	£4.48
18 - INTAKE COVER (A) HIT-6696535.A3 6696535	£1.67	£2.00
19 - INTAKE PACKING HIT-6696548.A1 6696548	£1.67	£2.00
20A - CARBURETOR INSULATOR HIT-6698387.A4 6698387	£4.72	£5.66
21A - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A65 6698844	£1.67	£2.00
22 - CARBURETOR PACKING HIT-6684616.A6 6684616	£1.67	£2.00
24 - CARBURETOR ASS'Y WYC-22 INCLUD.25-39 HIT-6696550.A1 6696550	£61.22	£73.46
24A - CARBURETOR ASS'Y WYC-28 INCLUD.25-39 FOR AUS HIT-6698474.A3 6698474	£63.80	£76.56
25 - BRACKET CABLE HIT-000000.A5592 000000	-
26 - SWIVEL HIT-000000.A5593 000000	-
27 - STOP RING HIT-6684696.A184 6684696	-
28 - PUMP GASKET HIT-6684692.A18 6684692	£17.28	£20.73
29 - PUMP DIAPHRAGM HIT-6684693.A171 6684693	£5.70	£6.84
30 - PUMP PLATE HIT-6691242.A29 6691242	-
31 - DIAPHRAGM COVER-METERING HIT-6685222.A76 6685222	£5.70	£6.84
32 - SET SCREW HIT-6691312.A30 6691312	-
33 - SCREW HIT-000000.A5594 000000	-
34 - O-RING HIT-6684695.A33 6684695	£1.67	£2.00
35 - JET HIT-000000.A5595 000000	-
36 - CIRCUIT PLATE HIT-6691234.A28 6691234	-
37 - BODY ASS'Y PUMP HIT-000000.A5596 000000	-
38 - DIAPHRAGM PACKING-METERING HIT-6685220.A103 6685220	£2.81	£3.37
39 - METERING DIAPHRAGM HIT-6684690.A22 6684690	£24.05	£28.86
40 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A8 307224	£1.67	£2.00
41A - FUEL PIPE HIT-6698720.A7 6698720	£4.72	£5.66
42 - AIR CLEANER HOUSING HIT-66965549.A13 66965549	£15.62	£18.74
43 - PRIMING PUMP COMP. HIT-6685139.A17 6685139	£10.67	£12.80
44A - CLEANER SPONGE HIT-6600704.A15 6600704	-
45 - AIR CLEANER COVER HIT-6696831.A11 6696831	£9.68	£11.62
46 - AIR CLEANER ASS'Y INCLUD.42-45 HIT-6696549.A20 6696549	£13.36	£16.03
48 - CYLINDER PACKING HIT-6696530.A17 6696530	£1.67	£2.00
49 - PISTON RING HIT-6696532.A17 6696532	£3.56	£4.27
50 - PISTON HIT-6696531.A2 6696531	£10.77	£12.92
51 - CIR CLIP HIT-6684590.A17 6684590	£1.67	£2.00
52 - PISTON PIN HIT-6696944.A31 6696944	£5.61	£6.73
53 - CRANK CASE (B) COMP INCLUD.55 HIT-6696538.A6 6696538	£15.19	£18.23
54 - CRANK CASE PACKING HIT-6696539.A1 6696539	£1.67	£2.00
55 - OIL SEAL TB 12227 HIT-6684607.A6 6684607	£4.07	£4.88
56 - BALL BEARING 6001 C3 HIT-6684608.A189 6684608	£5.70	£6.84
57 - SHIM T0.2 HIT-6696946.A26 6696946	£1.67	£2.00
58 - SHIM T0.3 HIT-6696945.A13 6696945	£1.67	£2.00
59 - CRANK SHAFT COMP. HIT-6696533.A1 6696533	£42.11	£50.53
60 - CRANK CASE (A) ASS'Y INCLUD.55 HIT-6696537.A1 6696537	£15.66	£18.79
61 - KNOCK PIN 4X12 HIT-6695521.A18 6695521	-
62B - RECOIL STARTER BODY ASS'Y INCLUD.63-67 HIT-6601570.A50 6601570	£23.15	£27.78
63 - SET SCREW HIT-6684679.A33 6684679	£2.98	£3.57
64A - CAM PLATE SINCE 9.2013 HIT-6699996.A6 6699996	£4.28	£5.13
65 - DAMPER SPRING HIT-6684677.A10 6684677	£5.70	£6.84
66A - STARTER ROPE REEL SINCE 9.2013 HIT-6699997.A83 6699997	-
67 - RECOIL SPRING HIT-6684675.A136 6684675	£8.82	£10.58
69 - STARTER ROPE 3.5X860 HIT-6684674.A5 6684674	£5.70	£6.84
70 - STARTER HANDLE HIT-6684680.A89 6684680	£5.87	£7.04
71 - NAME PLATE HIT-000000.A5597 000000	-
72 - MACHINE SCREW (W/WASHERS) M4X16 HIT-993539.A3 993539	£1.67	£2.00
77 - STARTER PULLEY ASS'Y HIT-6684681.A25 6684681	£18.16	£21.79
78 - MUFFLER SPECIAL GASKET FOR AUS (SL S) HIT-6684650.A5 6684650	£1.67	£2.00
79 - SPARK ARRESTOR FOR AUS (SL S) HIT-6684652.A4 6684652	£2.81	£3.37
80 - EXHAUST PIPE FOR AUS (SL S) HIT-6685047.A0 6685047	-
81 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR AUS (SL HIT-6685068.A13 6685068	-
82 - MUFFLER REAR COVER SINCE 11.2013 HIT-6600339.A0 6600339	£8.11	£9.73
83 - TAPPING SCREW D4X10 SINCE 11.2013 HIT-6600325.A18 6600325	-
84 - MUFFER HEAT COVER SINCE 11.2013 HIT-6600340.A7 6600340	£8.42	£10.11
85 - MARK PLATE (T) SINCE 11.2013 FOR EUROPE HIT-6600327.A17 6600327	-
86 - PRIMER LABEL SINCE 11.2013 FOR EUROPE HIT-6699000.A28 6699000	-
87 - CAMPLATE ASS'Y INCLUD.64A HIT-6699691.A10 6699691	£7.75	£9.30
91 - HEX.HOLE BOLT M5X12/S HIT-6684667.A77 6684667	£1.67	£2.00
92 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X20 HIT-305583.A17 305583	£1.67	£2.00
93B - FAN CASE (VERMILION) HIT-6699159.A2 6699159	£14.29	£17.15
94B - CLUTCH SHAFT COMP HIT-6696541.A4 6696541	£14.95	£17.94
95 - STEP BOLT HIT-6696469.A7 6696469	£2.84	£3.41
96 - BENT WASHER 8 HIT-6684648.A13 6684648	£1.67	£2.00
97 - CLUTCH PLATE (A) HIT-6696546.A1 6696546	£1.67	£2.00
98 - CLUTCH HIT-6696948.A26 6696948	£15.02	£18.03
98B - FAN CASE (VERMILION) HIT-6699159.A1 6699159	£14.29	£17.15
99 - CLUTCH WASHER (B) HIT-6696547.A32 6696547	£1.67	£2.00
100 - FLYWHEEL NUT HIT-6685337.A19 6685337	-
101 - BOLT WASHER M8 (BLACK) HIT-323212.A8 323212	£1.67	£2.00
102B - IGNITION COIL ASS'Y INCLUD.233B HIT-6699464.A12 6699464	£27.08	£32.49
103 - HEX. HOLE BOLT M4X18/WS HIT-6684599.A11 6684599	-
106 - CORD HIT-6696544.A1 6696544	-
107 - EARTH CORD HIT-6696545.A49 6696545	-
108 - MAGNETO ROTOR COMP. TILL 7.2013 HIT-6696928.A3 6696928	£50.30	£60.36
108A - MAGNETO ROTOR SINCE 8.2013 HIT-6699289.A37 6699289	£24.52	£29.43
109 - ANTI VIBE RUBBER (A) HIT-6696963.A9 6696963	£3.12	£3.74
110 - PIPE HOLDER (A) HIT-6696542.A1 6696542	£1.67	£2.00
111 - NUT M5 (BLACK) HIT-302012.A13 302012	£1.67	£2.00
112 - PIPE HOLDER (B) HIT-6696543.A6 6696543	£1.67	£2.00
113 - ANTI VIBE RUBBER (B) HIT-6696964.A31 6696964	£3.02	£3.63
114 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A43 939542	£2.98	£3.57
115 - TAPPING SCREW D4.5X16 HIT-6684636.A0 6684636	£1.67	£2.00
117 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-305812.A159 305812	£1.67	£2.00
*118 - HANDLE (B) HIT-6696487.A28 6696487	£5.88	£7.06
*118 - HANDLE (B) FOR USA (SLP) HIT-6696942.A11 6696942	-
119 - LOCK LEVER FOR EUROPE (SLP) HIT-6696490.A7 6696490	£2.84	£3.41
120 - LEVER HIT-6696488.A6 6696488	£1.67	£2.00
121 - SPRING (A) HIT-6696489.A31 6696489	£2.84	£3.41
122A - STOP SWITCH HIT-6601275.A66 6601275	£1.67	£2.00
123 - STOP SWITCH CORD HIT-6696491.A34 6696491	-
124 - PROTECTION TUBE HIT-6696967.A6 6696967	-
125 - THROTTLE WIRE COMP. HIT-6696560.A12 6696560	£8.35	£10.02
*126 - HANDLE (A) HIT-6696486.A6 6696486	£5.88	£7.06
*126 - HANDLE (A) FOR USA (SLP) HIT-6696941.A12 6696941	-
*127 - TANK HIT-6696569.A7 6696569	£7.75	£9.30
*127 - TANK FOR USA (SLP) HIT-6696552.A7 6696552	-
128A - PUMP FILTER HIT-6600351.A71 6600351	£4.45	£5.34
129 - CLIP HIT-6696949.A17 6696949	£1.67	£2.00
130 - STAND FOR USA (SLP) HIT-6696556.A2 6696556	-
*131 - BOLT (W/FLANGE) L17.8 HIT-6696574.A16 6696574	£1.67	£2.00
*131 - FLANGE BOLT FOR USA (SLP) HIT-6696557.A26 6696557	£1.67	£2.00
132A - FUEL PIPE HIT-6698716.A41 6698716	£5.61	£6.73
132B - FUEL PIPE L180 FOR USA HIT-6698932.A10 6698932	-
133A - FUEL PIPE L70 HIT-6699014.A42 6699014	£2.77	£3.32
134A - RETURN GROMMET HIT-6697846.A59 6697846	£2.08	£2.50
*135A - TANK CAP CHAIN FOR EUROPE (SLP) HIT-6698732.A73 6698732	-
*135A - TANK CAP CHAIN AUS (SL) HIT-6698732.A74 6698732	-
*136A - FUEL TANK CAP ASS'Y INCLUD.135A FOR EUROPE (SLP) HIT-6698402.A32 6698402	-
*136A - FUEL TANK CAP ASS'Y CAN (SLP) HIT-6698402.A33 6698402	-
145 - WOODRUFF KEY 3X13X4.5 SINCE 8.2013 HIT-6684899.A54 6684899	-
146 - MAGNETO KEY SET INCLUD.102B HIT-6699463.A1 6699463	£34.78	£41.74
151 - HEX. BOLT 6X50 HIT-6684824.A2 6684824	£1.67	£2.00
152 - HANDLE KNOB HIT-6684823.A21 6684823	£3.51	£4.21
153 - SPECIAL WASHER B HIT-6684822.A3 6684822	£1.67	£2.00
154 - HEX. SOCKET HD. BOLT M5X12 HIT-6684829.A22 6684829	-
155 - SPRING WASHER M5 (10 PCS.) HIT-949454.A140 949454	£1.67	£2.00
156 - HEX. SOCKET HD. BOLT (W/BUTTON) M6 HIT-6684825.A21 6684825	£1.67	£2.00
157 - SPRING WASHER M6 (10 PCS.) HIT-949455.A0 949455	£1.67	£2.00
158 - WASHER M6 (10 PCS.) HIT-949425.A52 949425	£1.67	£2.00
160 - SPACER HIT-6684819.A15 6684819	-
161 - PULLEY WASHER HIT-6684820.A0 6684820	-
162 - RETAINING RING FOR D10 SHAFT (10 PCS.) HIT-939540.A24 939540	£1.67	£2.00
163 - MAIN PIPE COMP. HIT-6684815.A3 6684815	£64.29	£77.15
164 - LEVEL MARK HIT-000000.A5600 000000	-
165 - DRIVE SHAFT A HIT-6684814.A0 6684814	£38.90	£46.68
166 - HANGER HIT-6684705.A6 6684705	-
*167 - HANDLE HOLDER (A) FOR USA (SLP) HIT-6696972.A4 6696972	-
168 - NUT M6 (10 PCS.) HIT-949556.A17 949556	£1.67	£2.00
169 - LOOP HANDLE HIT-6696975.A22 6696975	£13.36	£16.03
170 - HANGER COLLAR HIT-6684704.A0 6684704	-
171 - HANGER FIXING BRACKET HIT-6684706.A0 6684706	-
172 - HEX. HOLE BOLT M5X25/S HIT-6684709.A33 6684709	£1.67	£2.00
173 - BOLT (BLACK) M6 HIT-6696974.A11 6696974	£1.67	£2.00
174 - BARRIER FOR EUROPE (SLP) HIT-6696973.A22 6696973	£8.35	£10.02
175 - CAP NUT 6 HIT-6684828.A6 6684828	£1.67	£2.00
176 - JOINT CASE HIT-6684817.A0 6684817	£35.67	£42.80
*177 - GEAR CASE ASS'Y 3BB (B) INCLUD.178 HIT-6696976.A5 6696976	£60.73	£72.88
*177 - GEAR CASE ASS'Y 3BB (B) CAN (SLP) HIT-6696976.A6 6696976	£60.73	£72.88
177A - GEAR CASE ASS'Y 3BB (A) INCLUD.178 HIT-6699402.A5 6699402	-
178 - BOLT (W/PLUS) M6X8 HIT-6684737.A49 6684737	-
185 - CUTTER HOLDER (A) HIT-6696977.A19 6696977	£18.01	£21.61
186 - CUTTER HOLDER (B) EXCEPT FOR USA (SLP) HIT-6698659.A23 6698659	£15.99	£19.19
187A - NUT COVER EXCEPT FOR USA (SLP) HIT-6699188.A42 6699188	£10.93	£13.12
188A - U-NUT (LEFT HAND) M10 EXCEPT FOR USA (SLP) HIT-335759.A27 335759	£1.67	£2.00
189 - SCREW 5X12/W.S HIT-6695414.A12 6695414	£1.67	£2.00
190 - HEX. SOCKET HD. BOLT M5X30 (10 PCS.) HIT-949664.A27 949664	£4.33	£5.20
195 - COVER BRACKET FOR EUROPE (SLP) HIT-6696494.A5 6696494	£3.02	£3.63
*195 - COVER BRACKET AUS (SL) HIT-6696494.A6 6696494	£3.02	£3.63
196 - HEX. HOLE BUTTON BOLT M6X25 FOR EUROPE (SLP) HIT-6684714.A128 6684714	£1.67	£2.00
*196 - HEX. HOLE BUTTON BOLT M6X25 AUS (SL) HIT-6684714.A129 6684714	£1.67	£2.00
*197 - HEX. SOCKET HD. BOLT (W/BUTTON) M6X20 FOR USA (SLP) HIT-6685064.A15 6685064	-
*198 - SPRING WASHER M6 (10 PCS.) FOR USA (SLP) HIT-949455.A1 949455	£1.67	£2.00
*199 - COVER BRACKET FOR USA (SLP) HIT-6696978.A4 6696978	-
200 - BUSHING HIT-6684833.A22 6684833	£3.85	£4.62
201 - LEVEL MARK HIT-6684851.A48 6684851	-
202 - CAUTION MARK HIT-000000.A5605 000000	-
203 - LEVEL MARK HIT-6684851.A49 6684851	-
205 - DRIVE SHAFT B 783L HIT-6684832.A2 6684832	£35.25	£42.30
206 - COVER HIT-6698794.A6 6698794	£17.58	£21.09
207 - NYLON CORD HIT-000000.A5606 000000	-
208 - SET SCREW HIT-6698795.A34 6698795	-
209 - REEL HIT-6698796.A10 6698796	£7.12	£8.54
210 - RETURN SPRING HIT-6698797.A27 6698797	£1.67	£2.00
211 - BUTTON HIT-6698798.A10 6698798	£7.12	£8.54
212 - CORD GUIDE HIT-6698799.A29 6698799	£7.12	£8.54
213 - CASE HIT-6698800.A6 6698800	£14.11	£16.93
214 - NYLON HEAD ASS'Y INCLUD.206-213 HIT-6696454.A6 6696454	£48.12	£57.75
215 - COVER GUARD FOR EUROPE (SLP) HIT-6696950.A25 6696950	£11.18	£13.42
*215 - COVER GUARD AUS (SL) HIT-6696950.A26 6696950	£11.18	£13.42
216 - TAPPING SCREW 4X14 FOR EUROPE (SLP) HIT-6684751.A46 6684751	£1.67	£2.00
*216 - TAPPING SCREW 4X14 AUS (SL) HIT-6684751.A47 6684751	£1.67	£2.00
217 - KNIFE FOR EUROPE (SLP) HIT-6684750.A52 6684750	£3.64	£4.37
*217 - KNIFE AUS (SL) HIT-6684750.A53 6684750	£3.64	£4.37
218 - GUARD HOLDER FOR EUROPE (SLP) HIT-6696951.A11 6696951	£3.02	£3.63
*218 - GUARD HOLDER AUS (SL) HIT-6696951.A12 6696951	£3.02	£3.63
219 - GUARD FOR EUROPE (SLP) HIT-6696980.A30 6696980	£27.49	£32.99
*219 - GUARD AUS (SL) HIT-6696980.A31 6696980	£27.49	£32.99
*220 - NUT M4 (10 PCS.) FOR USA (SLP) HIT-949554.A16 949554	£1.67	£2.00
*221 - KNIFE FOR USA (SLP) HIT-6696584.A32 6696584	-
*222 - GUARD FOR USA(SLP) HIT-6696981.A2 6696981	-
*223 - BOLT WASHER M4 (BLACK) FOR USA (SLP) HIT-323210.A9 323210	-
*224 - MACHINE SCREW (W/SP. WASHER) M4X12 FOR USA (SLP) HIT-6685068.A11 6685068	-
225A - FUEL GROMMET HIT-6688156.A43 6688156	-
226 - HEX. HOLE BUTTON BOLT M6X25 SINCE 7.2012 FOR AUS (SL) HIT-6684714.A130 6684714	£1.67	£2.00
227 - COVER BRACKET SINCE 7.2012 FOR AUS (SL) HIT-6699011.A2 6699011	-
228 - COVER ASS'Y INCLUD.230-232 SINCE 7.2012 FOR AUS (SL) HIT-6697880.A8 6697880	-
*228 - COVER ASS'Y NZL (SL) HIT-6697880.A9 6697880	-
229 - COVER HOLDER SINCE 7.2012 FOR AUS (SL) HIT-6698813.A5 6698813	-
230 - GUARD 24 DIA. SINCE 7.2012 FOR AUS (SL) HIT-6690272.A9 6690272	-
231 - KNIFE SINCE 7.2012 FOR AUS (SL) HIT-6693388.A8 6693388	-
232 - TAPPING SCREW 5X20 SINCE 7.2012 FOR AUS (SL) HIT-6684753.A39 6684753	£1.67	£2.00
233B - PLUG CAP HIT-6601421.A35 6601421	£1.67	£2.00
234 - PLUG CAP METAL HIT-6699186.A3 6699186	£1.67	£2.00
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A84 6684764	£7.64	£9.17
502 - HEX. BAR WRENCH 4MM HIT-944458.A43 944458	£1.67	£2.00
503 - PROTECTIVE GLASSES HIT-875769.A27 875769	-
504A - SHOULDER BELT SINGLE HIT-6601420.A21 6601420	-
601 - CUTTER HOLDER (B) HIT-6698659.A22 6698659	£15.99	£19.19
602 - NUT COVER HIT-6698660.A1 6698660	-
603 - LEFT HAND NYLON NUT M10 HIT-6698658.A3 6698658	£8.59	£10.31
*604 - REPAIR KIT (A) TILL 10.2013 FOR EUROPE HIT-6600027.A1 6600027	-
*604 - REPAIR KIT (A-1) TILL 10.2013 FOR USA HIT-6600043.A0 6600043	-

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki TCG22EAD Engine Brush Cutter Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki TCG22EAD Engine Brush Cutter Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki TCG22EAD Engine Brush Cutter Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
