Hitachi / Hikoki TC-47V Engine Spare Parts

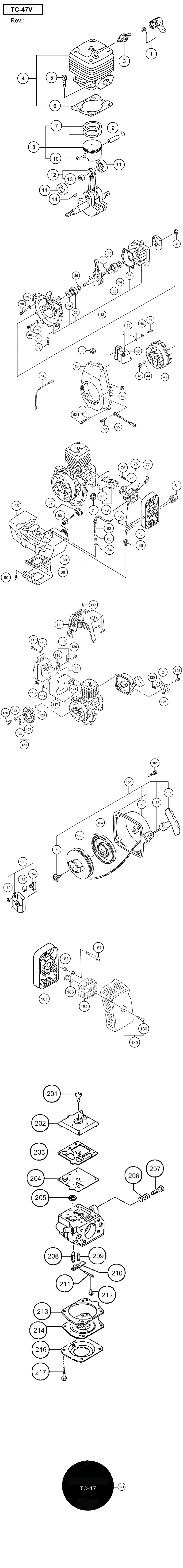

An exploded diagram and spare parts listing for the Hitachi / Hikoki TC-47V Engine

	Ex VAT	Inc VAT
1 - SPARK PLUG CAP ASS'Y HIT-6687468.A64 6687468	£3.64	£4.37
3 - SPARK PLUG ASS'Y BPMR6A HIT-6699319.A12 6699319	-
4 - CYLINDER SET HIT-6685470.A4 6685470	£85.28	£102.33
5 - HEX.HOLE BOLT M5X18/S HIT-6684586.A68 6684586	-
6 - CYLINDER GASKET HIT-6685738.A4 6685738	£1.67	£2.00
7 - PISTON RING HIT-6686126.A0 6686126	£9.27	£11.12
8 - PISTON SET HIT-6685887.A4 6685887	£35.58	£42.69
9 - PISTON PIN 10X35 HIT-6686019.A5 6686019	£4.12	£4.94
10 - PISTON PIN CIRCLIP HIT-6686026.A14 6686026	£1.67	£2.00
11 - PISTON PIN COLLAR HIT-6685993.A13 6685993	£5.70	£6.84
12 - CRANK SHAFT COMP. HIT-6686190.A4 6686190	£123.58	£148.29
13 - NEEDLE BEARING 1 HIT-6695602.A4 6695602	-
14 - WOOD-RUFF KEY 3X13X5 HIT-6686457.A21 6686457	£1.67	£2.00
31 - SMALL NUT 10 HIT-6695139.A27 6695139	-
32 - CRANK CASE ASS'Y HIT-6686553.A4 6686553	£60.99	£73.19
33 - CRANK CASE GASKET HIT-6686713.A7 6686713	£1.67	£2.00
34 - OIL SEAL UD15257 HIT-6695637.A5 6695637	£3.66	£4.39
35 - BALL BEARING #6202 2 HIT-6695557.A6 6695557	-
36 - CRANK SHAFT WASHER 15.2X22 HIT-6686463.A9 6686463	-
*37 - CRANK SHAFT SHIM 0.20 HIT-6686472.A14 6686472	£1.67	£2.00
*37 - CRANK SHAFT SHIM 0.30 HIT-6686473.A17 6686473	£1.67	£2.00
38 - HEX HOLE BUTTON SCREW 6X45 HIT-6695084.A1 6695084	-
39 - S.WASHER 6 HIT-6684826.A7 6684826	£1.67	£2.00
40 - HEX. SOCKET HD. BOLT (W/BUTTON) M6 HIT-6684825.A20 6684825	£1.67	£2.00
41 - LOCK NUT M6 HIT-6684872.A36 6684872	-
42 - OUTER RECEIVER HIT-6694043.A1 6694043	-
43 - MAGNETO ROTOR COMP. HIT-6687371.A1 6687371	£59.76	£71.71
44 - SMALL WASHER 10 HIT-6695185.A9 6695185	-
45 - NUT 10 HIT-6695138.A7 6695138	-
46 - IGNITION COIL COMP. HIT-6687649.A1 6687649	£38.26	£45.91
47 - SCREW 5X18/S HIT-6695339.A9 6695339	-
48 - SMALL WASHER 5 HIT-6684864.A24 6684864	-
49 - PRIMARY CORD GROMMET HIT-6688049.A5 6688049	-
50 - CORD CLAMP COMP. HIT-6688004.A14 6688004	-
51 - FAN CASE 1 HIT-6686974.A2 6686974	£24.68	£29.61
52 - SCREW 6X25/S HIT-6695363.A1 6695363	-
53 - PRIMARY CORD GROMMET HIT-6688055.A6 6688055	-
54 - STOP CORD COMP. HIT-6687864.A2 6687864	-
55 - EARTH CORD B 180M HIT-6688452.A1 6688452	-
56 - SMALL WASHER 6 HIT-6695183.A17 6695183	-
71 - FUEL TANK CUSHION RUBBER HIT-6692225.A1 6692225	£1.67	£2.00
72 - INLET MANUFOLD GASKET HIT-6689883.A5 6689883	£1.67	£2.00
73 - CARB. INSULATOR SET HIT-6689950.A5 6689950	-
74 - CARBURETOR GASKET HIT-6689826.A13 6689826	£1.67	£2.00
75 - CARBURETOR SET HDA180A HIT-6697706.A2 6697706	£94.70	£113.64
76 - SCREW 5X24WS HIT-6695423.A7 6695423	-
77 - CHOKE LEVER HIT-6691004.A12 6691004	£2.98	£3.57
78 - FUEL PIPE 2.5X4X80 HIT-6692347.A3 6692347	£1.67	£2.00
81 - PRIMING PUMP COMP. HIT-6685139.A62 6685139	£10.67	£12.80
82 - FUEL PIPE ASS'Y 3X5X230 HIT-6688166.A3 6688166	£5.17	£6.20
83 - CLIP 1 HIT-6684619.A25 6684619	£1.67	£2.00
84 - PUMP FILTER BODY ASS'Y HIT-6692273.A6 6692273	£9.60	£11.52
85 - FUEL TANK 1 HIT-6691526.A3 6691526	£14.33	£17.20
86 - RETURN GROMMET HIT-6697846.A24 6697846	£2.08	£2.50
87 - TANK CAP D ASS'Y 1 HIT-6691763.A28 6691763	£13.46	£16.15
88 - TANK HOLDING BAND HIT-6691927.A0 6691927	£14.69	£17.63
89 - CUSHION RUBBER HIT-6692193.A7 6692193	£12.50	£15.00
90 - SCREW 5X16/PS HIT-6695386.A5 6695386	£1.67	£2.00
92 - TANK CAP CHAIN HIT-6684625.A69 6684625	-
111 - MUFFLER PROTECTOR HIT-6692777.A3 6692777	-
112 - SCREW 5X12/PS HIT-6695383.A0 6695383	£1.67	£2.00
113 - HEX.HOLE BOLT M5X12/S HIT-6684667.A106 6684667	£1.67	£2.00
114 - WASHER M5 (BLACK) HIT-6684918.A54 6684918	£1.67	£2.00
115 - HEX. HOLE BUTTON SCREW 6X65 HIT-6695088.A2 6695088	£3.72	£4.46
116 - BOLT WASHER 6 HIT-6684639.A117 6684639	£1.67	£2.00
117 - MUFFLER SET 1 HIT-6692465.A2 6692465	£36.60	£43.92
118 - MUFFLER SPECIAL GASKET HIT-6692883.A11 6692883	-
119 - TAIL PIPE SET 1 HIT-6692648.A2 6692648	-
120 - SCREW 4X8/S HIT-6695325.A4 6695325	-
121 - MUFFLER GASKET HIT-6692741.A14 6692741	£3.89	£4.67
122 - HEAT SHIELD HIT-6687242.A7 6687242	£4.81	£5.77
123 - SCREW 5X18/PS HIT-6695389.A1 6695389	£1.67	£2.00
124 - TANK BRACKET HIT-6692205.A2 6692205	£10.50	£12.60
125 - FUEL TANK CUSHION RUBBER HIT-6692227.A9 6692227	£1.67	£2.00
126 - CLUTCH WASHER B HIT-6689645.A41 6689645	£1.67	£2.00
127 - CLUTCH ARM HIT-6688615.A7 6688615	£20.95	£25.14
128 - CLUTCH SPRING HIT-6689429.A2 6689429	£4.26	£5.11
129 - WAVE WASHER 10 HIT-6695203.A28 6695203	£1.67	£2.00
130 - CLUTCH STEP BOLT HIT-6689628.A5 6689628	£3.29	£3.95
131 - CLUTCH SET ASS'Y HIT-6699561.A1 6699561	£25.82	£30.99
151 - RECOIL STARTER BODY ASS'Y HIT-6697645.A1 6697645	£28.11	£33.73
152 - RECOIL STARTER BODY COMP HIT-6697646.A22 6697646	-
153 - STARTER ROPE REEL HIT-6697647.A1 6697647	-
154 - RECOIL SPRING HIT-6697648.A22 6697648	-
155 - STARTER ROPE HIT-6697649.A1 6697649	-
157 - STARTER HANDLE HIT-6697650.A22 6697650	-
158 - SET SCREW HIT-6693634.A12 6693634	-
159 - STARTER PAWL HIT-6697643.A1 6697643	-
160 - D4E RETAINING RING HIT-6685101.A26 6685101	-
161 - SCREW 5X25PS HIT-6695395.A10 6695395	-
162 - STARTER PAWL SPRING HIT-6697642.A22 6697642	-
163 - STARTER PULLEY ASS'Y HIT-6697644.A22 6697644	£12.94	£15.53
181 - CLEANER BODY HIT-6697705.A4 6697705	-
182 - COLLAR 5.8 HIT-6692244.A49 6692244	£1.67	£2.00
183 - BLOW OVER CHECK BOARD COMP. HIT-6690848.A5 6690848	-
184 - CLEANER ELEMENT HIT-6690357.A7 6690357	£3.38	£4.06
185 - CLEANER COVER ASS'Y HIT-6690149.A7 6690149	£16.05	£19.26
186 - COVER FIXING BOLT HIT-6690383.A8 6690383	-
187 - SCREW 5X60/S HIT-6695354.A8 6695354	£1.67	£2.00
201 - SCREW HIT-6685210.A17 6685210	-
202 - PUMP BODY HIT-6691420.A14 6691420	-
203 - PUMP GASKET HIT-6691455.A5 6691455	-
204 - PUMP DIAPHRAGM HIT-6691446.A14 6691446	-
205 - INLET SCREEN HIT-6684700.A186 6684700	-
206 - IDLE ADJUST SPRING HIT-6690766.A22 6690766	-
207 - IDLE ADJUST SCREW HIT-6690736.A13 6690736	-
208 - NEEDLE VALVE HIT-6685215.A15 6685215	£6.79	£8.15
209 - VALVE SPRING HIT-6690874.A8 6690874	-
210 - CONTROL LEVER HIT-6690819.A9 6690819	-
211 - HINGE PIN HIT-6685219.A0 6685219	-
212 - HINGE PIN SET SCREW HIT-6685218.A70 6685218	-
213 - DIAPHRAGM GASKET HIT-6690838.A8 6690838	-
214 - METERING DIAPHRAGM COMP. HIT-6690828.A8 6690828	-
216 - DIAPHRAGM COVER HIT-6690858.A6 6690858	-
217 - SET SCREW HIT-6685223.A71 6685223	-
601 - NAME PLATE HIT-6601153.A0 6601153	-
