Hitachi / Hikoki TC-3301 Engine Spare Parts

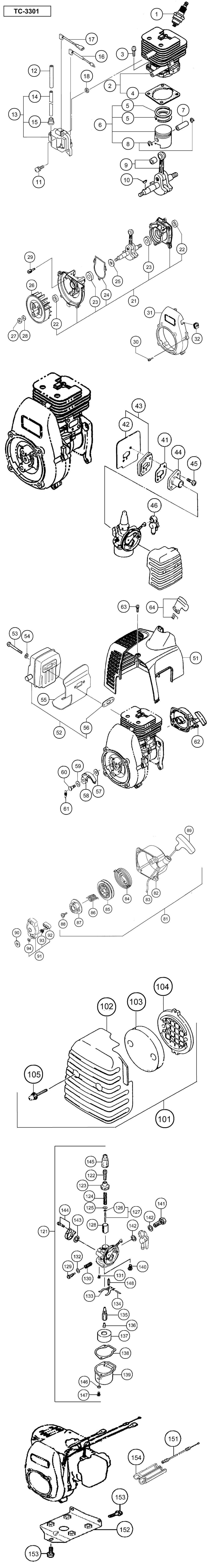

An exploded diagram and spare parts listing for the Hitachi / Hikoki TC-3301 Engine

	Ex VAT	Inc VAT
1 - SPARK PLUG ASS'Y CJ6Y HIT-6699323.A5 6699323	-
2 - CYLINDER SET HIT-6685487.A5 6685487	£43.64	£52.37
3 - HEX. HOLE BOLT M5X16/S HIT-6684903.A26 6684903	-
4 - CYLINDER GASKET HIT-6685746.A9 6685746	£2.86	£3.43
5 - PISTON RING (XR1-1856) HIT-6685331.A8 6685331	£12.57	£15.08
6 - PISTON SET HIT-6685898.A0 6685898	£37.49	£44.99
7 - PISTON PIN HIT-6686008.A11 6686008	£3.64	£4.37
8 - CIRCLIP HIT-6685078.A7 6685078	-
9 - CRANK SHAFT COMP HIT-6696499.A5 6696499	-
10 - WOODRUFF KEY 3X13X4.5 HIT-6684899.A106 6684899	-
11 - HIGH TENSION SCREW 4X18WS HIT-6695407.A45 6695407	-
12 - INSULATOR TUBE 1 HIT-6688319.A10 6688319	£1.67	£2.00
13 - IGNITION COIL ASS'Y HIT-6699772.A23 6699772	-
14 - HIGH TENSION CORD 140L HIT-6687888.A4 6687888	£3.89	£4.67
15 - RUBBER CAP HIT-6684602.A27 6684602	-
16 - CORD B 200M HIT-6687934.A0 6687934	-
17 - CORD B 200M HIT-6687872.A0 6687872	-
18 - WASHER T1.6 HIT-6684600.A40 6684600	-
21 - CRANK CASE ASS'Y HIT-6686580.A2 6686580	-
22 - OIL SEAL TB 12227 HIT-6684607.A74 6684607	£4.07	£4.88
23 - BALL BEARING 6001 C3 HIT-6684608.A128 6684608	£5.70	£6.84
24 - CRANK CASE GASKET HIT-6686721.A2 6686721	£1.67	£2.00
*25 - GEAR SHAFT SHIM 0.20 HIT-6684604.A47 6684604	-
*25 - GEAR SHAFT SHIM 0.30 HIT-6684605.A34 6684605	-
26 - MAGNETO ROTOR COMP. HIT-6687375.A6 6687375	-
27 - HEX. NUT M8 HIT-6684612.A43 6684612	-
28 - SMALL WASHER 8 HIT-6695184.A6 6695184	-
29 - HEX. HOLE BOLT M5X16/S HIT-6684903.A25 6684903	-
30 - SCREW 5X20/WS HIT-6695420.A2 6695420	-
31 - FAN CASE (VERMILION) HIT-6687022.A0 6687022	-
32 - PRIMARY CORD GROMMET HIT-6688057.A9 6688057	-
41 - INLET MANIFOLD GASKET HIT-6689858.A0 6689858	-
42 - INLET MANIFOLD GASKET HIT-6689861.A0 6689861	-
43 - INLET MANIFOLD SET HIT-6689916.A0 6689916	-
44 - INLET MANIFOLD HIT-6689794.A0 6689794	-
45 - HEX. HOLE BOLT M5X25/S HIT-6684709.A99 6684709	£1.67	£2.00
46 - PET-COCK ASS'Y HIT-6691651.A0 6691651	-
51 - MUFFLER PROTECTER HIT-6692810.A0 6692810	-
52 - MUFFLER SET HIT-6692497.A1 6692497	-
53 - HEX. HOLE BOLT M6X55 HIT-6684638.A14 6684638	£1.67	£2.00
54 - BOLT WASHER 6 HIT-6684639.A115 6684639	£1.67	£2.00
55 - HEAT SHIELD HIT-6687260.A2 6687260	£5.77	£6.92
56 - MUFFLER GASKET HIT-6692732.A3 6692732	£1.67	£2.00
57 - CLUTCH WASHER B HIT-6689645.A42 6689645	£1.67	£2.00
58 - CLUTCH ARM COMP. HIT-6688610.A10 6688610	£13.94	£16.73
59 - WAVE WASHER 10 HIT-6695203.A27 6695203	£1.67	£2.00
60 - CLUTCH STEP BOLT HIT-6689628.A6 6689628	£3.29	£3.95
61 - CLUTCH SPRING HIT-6689420.A0 6689420	£2.81	£3.37
62 - HEX. HOLE BOLT 4X20 PS HIT-6695503.A5 6695503	-
63 - SCREW 4X15PS HIT-6695373.A3 6695373	-
64 - SPARK PLUG CAP ASS'Y HIT-6687468.A65 6687468	£3.64	£4.37
81 - RECOIL STARTER BODY ASS'Y HIT-6692991.A5 6692991	£33.01	£39.61
82 - RECOIL STARTER BODY COMP. HIT-6693040.A7 6693040	£11.14	£13.37
83 - STARTER ROPE 3.5X860 HIT-6684674.A40 6684674	£5.70	£6.84
84 - RECOIL SPRING HIT-6684675.A97 6684675	£8.82	£10.58
85 - STARTER PULLEY HIT-6693081.A0 6693081	-
86 - DAMPER SPRING HIT-6684677.A47 6684677	£6.66	£7.99
87 - CAM PLATE HIT-6692938.A1 6692938	£5.64	£6.77
88 - SET SCREW HIT-6684679.A67 6684679	£2.98	£3.57
89 - STARTER HANDLE HIT-6684680.A61 6684680	£5.87	£7.04
90 - CLUTCH WASHER B HIT-6689645.A43 6689645	£1.67	£2.00
91 - STARTER PULLEY ASS'Y HIT-6684681.A51 6684681	£18.16	£21.79
92 - STARTER PAWL HIT-6684685.A30 6684685	£5.07	£6.08
93 - STARTER PAWL SPRING HIT-6684684.A87 6684684	£3.29	£3.95
94 - D4E RETAINING RING HIT-6685101.A24 6685101	-
101 - CLEANER ASS'Y HIT-6690049.A0 6690049	-
102 - CLEANER BODY HIT-6690125.A0 6690125	-
103 - CLEANER ELEMENT HIT-6690348.A0 6690348	-
104 - CLEANER FIXING BASE HIT-6690194.A0 6690194	-
105 - SCREW 4X25/WS HIT-6695411.A5 6695411	-
121 - CARBURETOR ASS'Y PC10T-1F HIT-6690559.A0 6690559	-
122 - CABLE ADJUSTER HIT-6691799.A0 6691799	-
123 - BODY CAP HIT-6691777.A0 6691777	-
124 - THROTTLE VALVE SPRING HIT-6691703.A0 6691703	-
125 - THROTTLE SPRING RECEIVE HIT-6692025.A0 6692025	-
126 - JET NEEDLE CLIP HIT-6691693.A0 6691693	-
127 - JET NEEDLE ASS'Y HIT-6691681.A0 6691681	-
128 - THROTTLE VALVE ASS'Y HIT-6691630.A0 6691630	-
129 - ADJUST SCREW HIT-6692037.A0 6692037	-
130 - ADJUST SPRING HIT-6692044.A0 6692044	-
131 - SCREW 3X6 HIT-6694855.A5 6694855	-
132 - O-RING A HIT-6691326.A0 6691326	-
133 - FLOAT ARM HIT-6692071.A0 6692071	-
134 - FLOAT ARM PIN HIT-6691959.A0 6691959	-
135 - NEEDLE JET 2080 HIT-6691819.A0 6691819	-
136 - MAIN JET #55 HIT-6691841.A0 6691841	-
137 - FLOAT HIT-6691950.A0 6691950	-
138 - FLOAT CHAMBER GASKET HIT-6691989.A0 6691989	-
139 - FLOAT CHAMBER HIT-6691976.A0 6691976	-
140 - SCREW 4X16/S HIT-6695328.A0 6695328	-
141 - FUEL INLET BOLT HIT-6691061.A0 6691061	-
142 - FUEL INLET GASKET HIT-6691026.A0 6691026	-
143 - FLANGE GASKET HIT-6691411.A0 6691411	-
144 - BODY BAND ASS'Y HIT-6691375.A0 6691375	-
145 - RUBBER CAP HIT-6691338.A0 6691338	-
146 - DRAIN SCREW GASKET HIT-6692091.A0 6692091	-
147 - SCREW 4X6 HIT-6694860.A0 6694860	£1.67	£2.00
148 - NEEDLE VALVE COMP. HIT-6691938.A0 6691938	-
151 - THROTTLE WIRE COMP. HIT-6693858.A0 6693858	-
152 - ENGINE BASE B COMP. HIT-6688151.A0 6688151	-
153 - SCREW 5X12/PS HIT-6695382.A2 6695382	-
154 - CONNECTOR CASE HIT-6694031.A3 6694031	-
