Hitachi / Hikoki TBC-270S Brush Cutter Spare Parts

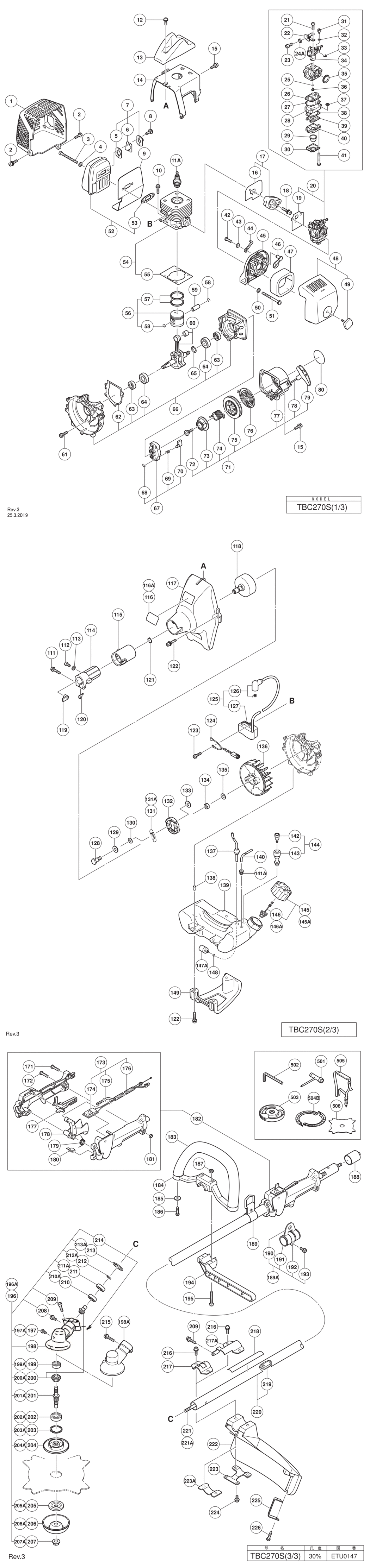

An exploded diagram and spare parts listing for the Hitachi / Hikoki TBC-270S Brush Cutter

	Ex VAT	Inc VAT
1 - MUFFLER PROTECTOR HIT-6692813.A5 6692813	£8.89	£10.67
2 - HEX. HOLE BOLT 5X16/PS HIT-6695504.A49 6695504	£1.67	£2.00
3 - HEX. SOCKET HD. BOLT M6X55 HIT-6696819.A20 6696819	-
4 - BOLT WASHER 6 HIT-6684639.A1 6684639	£1.67	£2.00
5 - MUFFLER SPECIAL GASKET SINCE D106801 HIT-6692887.A12 6692887	-
6 - SPARK ARRESTOR SINCE D106801 HIT-6692699.A1 6692699	-
7 - TAIL PIPE SET INCLUD.5 HIT-6692670.A2 6692670	-
8 - MACHINE SCREW (W/SP. WASHER) M4X8 SINCE D106801 HIT-958523.A3 958523	£1.67	£2.00
9 - HEAT SHIELD HIT-6687264.A5 6687264	-
10 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A11 6698386	-
11A - SPARK PLUG ASS'Y BPMR6A HIT-6699319.A28 6699319	-
12 - TAPPING SCREW D4.5X16 HIT-6684636.A44 6684636	£1.67	£2.00
13 - PLUG CAP HIT-6688345.A2 6688345	£4.99	£5.99
14 - CYLINDER COVER HIT-6685690.A5 6685690	£5.70	£6.84
15 - HEX. HOLE BOLT 4X18WS HIT-6695508.A56 6695508	£1.67	£2.00
16 - INLET MANIFOLD GASKET HIT-6689895.A17 6689895	£1.67	£2.00
17 - INSULATOR SET INCLUD.16 HIT-6689972.A17 6689972	£6.59	£7.91
18 - HEX. HOLE BOLT M5X25WS HIT-6695515.A55 6695515	£1.67	£2.00
19 - CARBURETOR PACKING HIT-6698405.A62 6698405	£3.12	£3.74
20 - CARBURETOR SET WYJ-437 INCLUD.19 HIT-6690520.A0 6690520	-
21 - THROTTLE SET SCREW HIT-6684870.A43 6684870	-
22 - CABLE ADJUSTER STAY HIT-6684873.A34 6684873	-
23 - CABLE ADJUSTER HIT-6684871.A30 6684871	-
24A - LOCK NUT M6 HIT-6684872.A45 6684872	-
25 - O-RING HIT-6684695.A141 6684695	£1.67	£2.00
26 - PUMP GASKET HIT-6684692.A90 6684692	£17.28	£20.73
27 - PUMP DIAPHRAGM HIT-6684693.A52 6684693	£5.70	£6.84
28 - PUMP BODY COMP. HIT-6684879.A16 6684879	£35.37	£42.44
29 - PRIMING BODY HIT-6684689.A21 6684689	£5.87	£7.04
30 - DIAPHRAGM COVER HIT-6684688.A78 6684688	£5.70	£6.84
31 - SWIVEL HIT-6684697.A112 6684697	-
32 - THRUST WASHER HIT-6684874.A44 6684874	-
33 - STOP RING HIT-6684696.A56 6684696	-
34 - THROTTLE VALVE COMP. HIT-6690940.A0 6690940	-
35 - CLEANER PACKING HIT-6684875.A36 6684875	-
37 - INLET SCREEN HIT-6684700.A61 6684700	-
38 - DIAPHRAGM GASKET HIT-6684691.A22 6684691	£5.70	£6.84
39 - METERING DIAPHRAGM COMP. HIT-6690830.A15 6690830	£14.58	£17.50
40 - PRIMING PUMP COMP. HIT-6684687.A24 6684687	£9.27	£11.12
41 - SET SCREW HIT-6684699.A80 6684699	-
42 - TAP SCREW 4X14 P HIT-6695280.A10 6695280	£1.67	£2.00
43 - BOLT WASHER M4 HIT-6685070.A47 6685070	£1.67	£2.00
44 - CHOKE CONTROL LEVER HIT-6691239.A7 6691239	£2.98	£3.57
45 - CLEANER BODY COMP. HIT-6690120.A20 6690120	£12.32	£14.78
46 - CHOKE LEVER 1.5 HIT-6691281.A2 6691281	£1.67	£2.00
47 - CLEANER SPONGE HIT-6690365.A28 6690365	£1.67	£2.00
48 - CLEANER COVER ASS'Y INCLUD.49 HIT-6690421.A7 6690421	£14.48	£17.38
49 - COVER FIXING BOLT COMP. HIT-6698730.A13 6698730	£5.52	£6.63
50 - SMALL WASHER 5 HIT-6684864.A99 6684864	-
51 - SCREW 5X57/S HIT-6695353.A16 6695353	£1.67	£2.00
*52 - MUFFLER SET INCLUD.53 TILL D106800 HIT-6692498.A3 6692498	£25.72	£30.86
*52 - MUFFLER SET INCLUD.53 SINCE D106801 HIT-6692500.A1 6692500	-
53 - MUFFLER GASKET HIT-6692732.A12 6692732	£1.67	£2.00
54 - CYLINDER SET INCLUD.55 HIT-6685493.A5 6685493	£72.13	£86.56
55 - CYLINDER GASKET HIT-6684896.A15 6684896	£1.67	£2.00
56 - PISTON SET INCLUD.57 HIT-6685902.A9 6685902	£30.58	£36.70
57 - PISTON RING HIT-6686121.A17 6686121	£6.47	£7.76
58 - CIR CLIP HIT-6684590.A133 6684590	£1.67	£2.00
59 - PISTON PIN HIT-6684591.A12 6684591	£3.29	£3.95
60 - CRANK SHAFT COMP. HIT-6686219.A0 6686219	£121.07	£145.28
*61 - HEX. HOLE BOLT M5X16/S TILL D038500 HIT-6684903.A88 6684903	-
*61 - HEX. HOLE BOLT M5X16/S SINCE D038501 HIT-6684903.A89 6684903	-
*62 - CRANK CASE GASKET TILL D038500 HIT-6686725.A0 6686725	-
*62 - CRANK CASE GASKET SINCE D038501 HIT-6684904.A0 6684904	£1.67	£2.00
63 - OIL SEAL TB 12227 HIT-6684607.A154 6684607	£4.07	£4.88
64 - BALL BEARING 6001 C3 HIT-6684608.A51 6684608	£5.70	£6.84
*65 - GEAR SHAFT SHIM 0.10 HIT-6689177.A11 6689177	-
*65 - GEAR SHAFT SHIM 0.15 HIT-6689178.A24 6689178	-
*65 - GEAR SHAFT SHIM 0.20 HIT-6684604.A2 6684604	-
*65 - GEAR SHAFT SHIM 0.30 HIT-6684605.A79 6684605	-
67 - STARTER PULLEY ASS'Y INCLUD.68-70 HIT-6684681.A90 6684681	£18.16	£21.79
68 - D4E RETAINING RING HIT-6685101.A106 6685101	-
69 - STARTER PAWL SPRING HIT-6684684.A31 6684684	£3.29	£3.95
70 - STARTER PAWL HIT-6684685.A80 6684685	£5.07	£6.08
72 - SET SCREW HIT-6684679.A125 6684679	£2.98	£3.57
73 - CAM PLATE HIT-6684678.A3 6684678	£5.17	£6.20
74 - DAMPER SPRING HIT-6684677.A90 6684677	£6.66	£7.99
76 - RECOIL SPRING HIT-6684675.A38 6684675	£8.82	£10.58
77 - RECOIL STARTER BODY COMP. HIT-6684673.A3 6684673	£12.98	£15.58
78 - STARTER ROPE 3.5X860 HIT-6684674.A72 6684674	£5.70	£6.84
79 - STARTER HANDLE HIT-6684680.A26 6684680	£5.87	£7.04
80 - S?START MARK TILL 4.2009 HIT-6694472.A1 6694472	-
111 - HEX. HOLE BOLT M5X25/S HIT-6684709.A193 6684709	£1.67	£2.00
112 - HEX. HOLE BOLT 5X16 HIT-6695046.A39 6695046	£1.67	£2.00
113 - WASHER M5 (BLACK) HIT-6684918.A58 6684918	£1.67	£2.00
114 - PIPE HOLDER 1 HIT-6689651.A16 6689651	£8.88	£10.66
115 - CUSHION RUBBER HIT-6691823.A1 6691823	£3.56	£4.27
116A - LABEL (TANAKA) HIT-000000.A2065 000000	-
117 - FAN CASE COMP. HIT-6686959.A3 6686959	£25.96	£31.15
118 - CLUTCH DRUM COMP. HIT-6688580.A2 6688580	£16.79	£20.15
119 - METAL FITTING HIT-6689664.A18 6689664	£6.12	£7.35
120 - GEAR CASE WASHER HIT-6689159.A36 6689159	-
121 - RETAINING RING FOR D12 SHAFT (10 PCS.) HIT-939542.A16 939542	£2.98	£3.57
122 - HEX.HOLE BOLT 5X20/PS HIT-6684634.A19 6684634	£1.67	£2.00
123 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A12 6698388	£1.67	£2.00
124 - LEAD WIRE ASS'Y HIT-6687965.A0 6687965	£4.26	£5.11
125 - IGNITION COIL ASS'Y MB-55 INCLUD.126 HIT-6687684.A2 6687684	£35.79	£42.95
126 - PLUG CAP HIT-6684894.A10 6684894	£7.75	£9.30
128 - STEP BOLT HIT-6684646.A36 6684646	£3.72	£4.46
129 - BENT WASHER 8 HIT-6684648.A104 6684648	£1.67	£2.00
130 - CLUTCH PLATE A 0.5 HIT-6684645.A0 6684645	£1.67	£2.00
131 - CLUTCH SPRING TILL 4.2009 HIT-6684644.A24 6684644	£3.12	£3.74
131A - CLUTCH SPRING SINCE 5.2009 HIT-6697704.A0 6697704	-
132 - CLUTCH SHOE COMP. HIT-6684643.A0 6684643	£12.01	£14.41
133 - CLUTCH WASHER B HIT-6684642.A39 6684642	£1.67	£2.00
134 - HEX. NUT M8 HIT-6684612.A99 6684612	-
135 - BOLT WASHER M8 HIT-6684611.A21 6684611	-
136 - MAGNETO ROTOR COMP. HIT-6687384.A11 6687384	-
137 - SHIELD TUBE 3X5X180 HIT-6684618.A31 6684618	£6.12	£7.35
138 - COLLAR C HIT-6684623.A21 6684623	£1.67	£2.00
*139 - TANK WHT TILL C189400 HIT-6691602.A8 6691602	£13.82	£16.59
*139 - TANK SINCE C189401 TILL F115850 HIT-6696502.A0 6696502	-
140 - FUEL PIPE 3X5X65 HIT-6684626.A21 6684626	£1.67	£2.00
141A - RETURN GROMMET HIT-6697846.A171 6697846	£2.08	£2.50
142 - AIR VENT VALVE ASS'Y SINCE C189401 TILL F115850 HIT-6692171.A22 6692171	-
144 - AIR VENT ASS'Y SINCE C189401 TILL F115850 HIT-6691389.A18 6691389	£16.64	£19.97
*145 - TANK CAP ASS'Y INCLUD.146 TILL C189400 HIT-6685049.A23 6685049	£9.94	£11.93
*145 - TANK CAP ASS'Y INCLUD.146 SINCE C189401 TILL F115850 HIT-6691747.A2 6691747	-
145A - FUEL TANK CAP ASS'Y INCLUD.146A SINCE 5.2009 HIT-6698402.A83 6698402	-
146 - TANK CAP CHAIN TILL 4.2009 HIT-6684625.A17 6684625	-
146A - TANK CAP CHAIN SINCE 5.2009 HIT-6698732.A11 6698732	-
147A - PUMP FILTER HIT-6600351.A39 6600351	£4.45	£5.34
148 - CLIP HIT-6696949.A35 6696949	£1.67	£2.00
149 - STAND HIT-6694787.A29 6694787	£3.56	£4.27
171 - SCREW M4X20 (BLACK) HIT-6684725.A3 6684725	-
172 - SCREW M5X20 HIT-6684803.A20 6684803	-
173 - THROTTLE WIRE COMP. INCLUD.174-176 HIT-6693978.A8 6693978	£22.29	£26.75
174 - STOP SWITCH COMP. HIT-6687459.A5 6687459	£17.33	£20.80
175 - THROTTLE WIRE HIT-6694022.A4 6694022	-
176 - PROTECTION TUBE 7X175 HIT-6687526.A5 6687526	-
177 - TRIGGER LOCK OUT HIT-6684721.A11 6684721	£5.17	£6.20
178 - THROTTLE LEVER HIT-6684804.A10 6684804	£6.86	£8.23
179 - RETURN SPRING HIT-6684722.A21 6684722	£1.67	£2.00
180 - BLIND PLUG HIT-6684724.A16 6684724	-
181 - CONTAL NUT 5 HIT-6684727.A34 6684727	£1.67	£2.00
182 - THROTTLE LEVER ASS'Y 24 DIA. INCLUD.171-173 HIT-6693767.A0 6693767	-
183 - HANDLE GRIP HIT-6691098.A4 6691098	£10.90	£13.08
184 - LOOP HANDLE BLACK HIT-6691046.A3 6691046	£16.30	£19.56
185 - BRAKE SHAFT WASHER HIT-6689681.A20 6689681	£1.67	£2.00
186 - TAPPING SCREW 5X20 HIT-6695255.A33 6695255	-
187 - HEX.NUT 6 HIT-6684835.A31 6684835	£1.67	£2.00
188 - CAP (A) HIT-6698515.A8 6698515	-
189 - HANGER D24 TILL 4.2009 HIT-6689277.A17 6689277	-
189A - HANGER 24 INCLUD.190-193 SINCE 5.2009 HIT-6689282.A1 6689282	-
190 - HANGER SINCE 5.2009 HIT-6684705.A4 6684705	-
191 - HANGER COLLAR SINCE 5.2009 HIT-6684704.A2 6684704	-
192 - HANGER FIXING BRACKET SINCE 5.2009 HIT-6684706.A2 6684706	-
193 - HEX. HOLE BOLT M5X25/S SINCE 5.2009 HIT-6684709.A93 6684709	£1.67	£2.00
194 - BARRIER HIT-6696973.A16 6696973	£8.35	£10.02
195 - BOLT 6X43/P (BLACK) HIT-6684838.A17 6684838	£1.67	£2.00
196 - GEAR CASE ASS'Y 24 INCLUD.197-214 TILL 4.2009 HIT-6688797.A1 6688797	£102.98	£123.57
196A - GEAR CASE ASS'Y 24 INCLUD.197A-207A HIT-6684731.A0 6684731	£64.14	£76.97
*196A - GEAR CASE ASS'Y 24 5.2009 HIT-6684731.A1 6684731	£64.14	£76.97
197 - OILING BOLT TILL 4.2009 HIT-6689109.A29 6689109	-
197A - BOLT (W/PLUS) M6X8 SINCE 5.2009 HIT-6684737.A30 6684737	-
198 - GEAR CASE 24 TILL 4.2009 HIT-6688808.A4 6688808	-
198A - GEAR CASE 24 SINCE 5.2009 HIT-6684736.A0 6684736	-
199 - BALL BEARING 609 TILL 4.2009 HIT-6684734.A1 6684734	-
199A - BALL BEARING #608 1 HIT-6684738.A1 6684738	-
200 - GEAR PINION SET SPARE TILL 4.2009 HIT-6688882.A3 6688882	£41.72	£50.07
200A - GEAR PINION SET SINCE 5.2009 HIT-6684752.A1 6684752	£40.99	£49.19
201 - GEAR SHAFT TILL 4.2009 HIT-6688924.A20 6688924	-
201A - GEAR SHAFT SINCE 5.2009 HIT-6684739.A1 6684739	-
202 - BALL BEARING 6201D 1 HIT-6695554.A12 6695554	-
202A - BALL BEARING 6001DD 1 HIT-6684740.A0 6684740	-
203 - STOP RING C-32 1 HIT-6695295.A69 6695295	£1.67	£2.00
203A - STOP RING C-28 1 HIT-6684741.A18 6684741	-
204 - CUTTER HOLDER TILL 4.2009 HIT-6689032.A5 6689032	£15.16	£18.19
204A - CUTTER HOLDER SINCE 5.2009 HIT-6684742.A0 6684742	-
205 - CUTTER HOLDER CAP TILL 4.2009 HIT-6689055.A21 6689055	£12.10	£14.52
205A - CUTTER HOLDER CAP SINCE 5.2009 HIT-6684744.A0 6684744	£5.70	£6.84
206 - PROTECTION COVER B TILL 4.2009 HIT-6688995.A20 6688995	£4.81	£5.77
206A - PROTECTION COVER SINCE 5.2009 HIT-6684743.A1 6684743	-
207 - FIXING NUT M10X1.25 TILL 4.2009 HIT-6689073.A14 6689073	£8.32	£9.99
207A - FIXING NUT L M10X1.25 SINCE 5.2009 HIT-6684745.A0 6684745	-
208 - HEX.HOLE BOLT M5X12/S HIT-6684667.A109 6684667	£1.67	£2.00
*209 - HEX. HOLE BOLT M5X25/S TILL 4.2009 HIT-6684709.A94 6684709	£1.67	£2.00
*209 - HEX. HOLE BOLT M5X25/S SINCE 5.2009 HIT-6684709.A95 6684709	£1.67	£2.00
210 - BALL BEARING 6900 1 HIT-6695577.A0 6695577	-
210A - BALL BEARING 609 SINCE 5.2009 HIT-6684734.A0 6684734	-
211 - BALL BEARING TILL 4.2009 HIT-6695579.A4 6695579	-
211A - BALL BEARING 609Z ST SINCE 5.2009 HIT-6684735.A33 6684735	£15.48	£18.57
212 - STOP RING OUTER 10 TILL 4.2009 HIT-6695315.A28 6695315	-
212A - STOP RING 9 SINCE 5.2009 HIT-6684733.A1 6684733	-
213 - RETAINING RING C-TYPE D22 TILL 4.2009 HIT-6695293.A33 6695293	£1.67	£2.00
213A - STOP RING C-24 1 HIT-6684732.A0 6684732	£1.67	£2.00
215 - HEX.HOLE BOLT M5X30/WS SINCE 5.2009 HIT-6684973.A13 6684973	-
216 - HEX. HOLE BUTTON BOLT M6X25 HIT-6684714.A102 6684714	£1.67	£2.00
217 - GUARD BRACKET TILL 4.2009 HIT-6685065.A8 6685065	-
217A - COVER BRACKET SINCE 5.2009 HIT-6698812.A0 6698812	-
218 - CAUTION MARK HIT-6684959.A13 6684959	-
219 - BUSH ASS'Y HIT-6684831.A24 6684831	-
220 - DRIVE SHAFT PIPE COMP. INCLUD.219 HIT-6689386.A5 6689386	£52.12	£62.54
221 - DRIVE SHAFT 1487L TILL 4.2009 HIT-6689477.A1 6689477	£21.52	£25.82
221A - DRIVE SHAFT 1434L SINCE 5.2009 HIT-6696010.A0 6696010	-
222 - GUARD 24 DIA. HIT-6690272.A18 6690272	-
223 - GUARD HOLDER TILL 4.2009 HIT-6690343.A2 6690343	-
223A - COVER HOLDER SINCE 5.2009 HIT-6698813.A0 6698813	-
224 - HEX.HOLE BOLT M5X12/S TILL 4.2009 HIT-6684667.A108 6684667	£1.67	£2.00
225 - KNIFE HIT-6693388.A20 6693388	-
226 - TAPPING SCREW 5X20 HIT-6684753.A0 6684753	£1.67	£2.00
501 - BOX WRENCH (HEX. SOCKET 17/19) HIT-6684764.A71 6684764	£7.64	£9.17
502 - HEX. BAR WRENCH 4MM HIT-6684813.A57 6684813	-
503 - NYLON CORD BODY HIT-6684855.A0 6684855	-
504B - CUTTER COVER HIT-6684768.A18 6684768	-
506 - CUTTING BLADE 4X230 1 HIT-6684767.A2 6684767	£15.17	£18.20

Attribute Name	Value
Brand	Hikoki

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Hitachi / Hikoki TBC-270S Brush Cutter Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Hitachi / Hikoki TBC-270S Brush Cutter Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Hitachi / Hikoki TBC-270S Brush Cutter Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
