Hitachi / Hikoki SP18VA Disc Sander Spare Parts

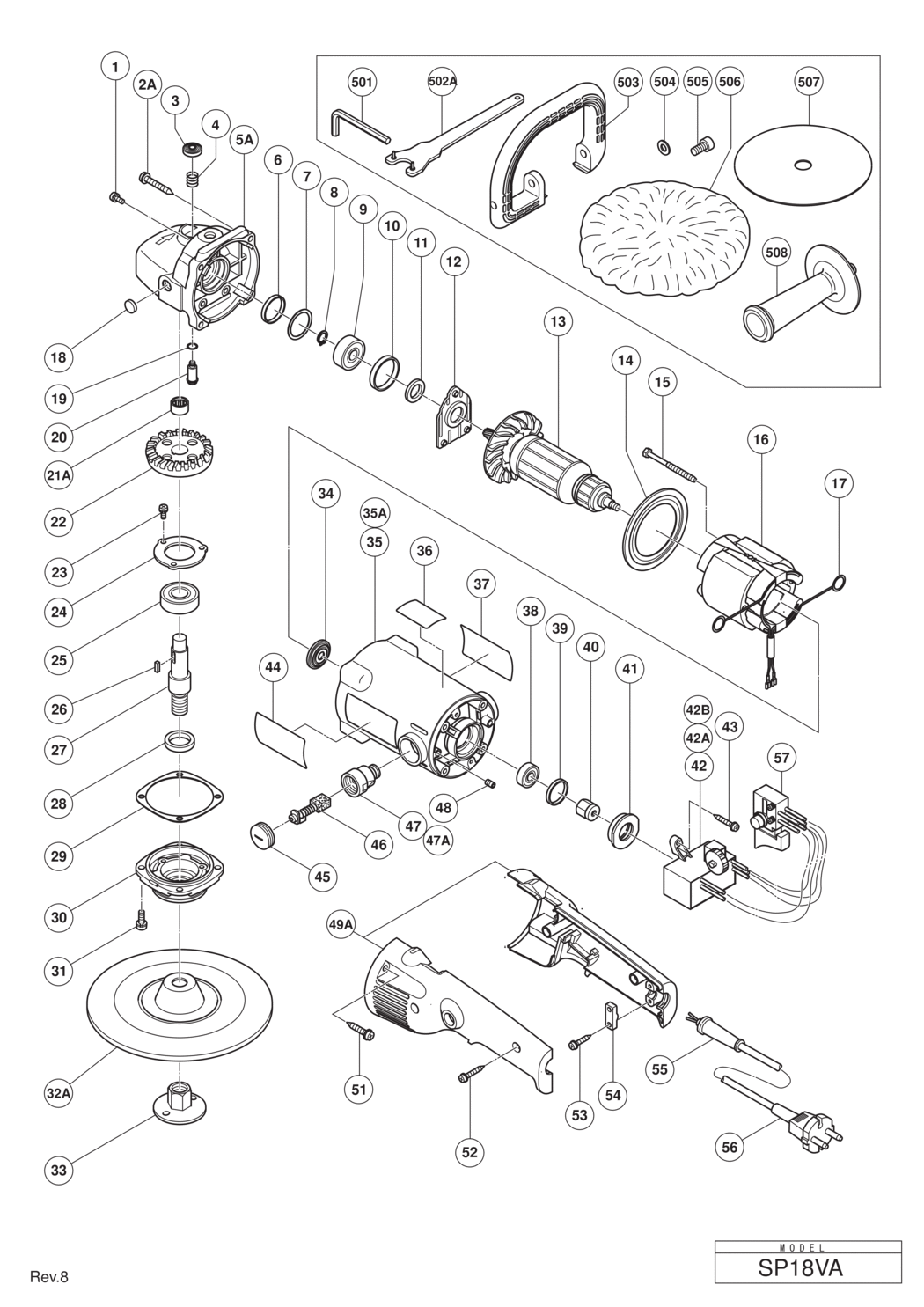

An exploded diagram and spare parts listing for the Hitachi / Hikoki SP18VA Disc Sander

	Ex VAT	Inc VAT
1 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-303255.A10 303255	£1.67	£2.00
2A - TAPPING SCREW (W/FLANGE) D5X30 (BLACK) HIT-333713.A2 333713	-
3 - PUSHING BUTTON HIT-306888.A2 306888	£1.67	£2.00
4 - SPRING HIT-306889.A3 306889	£1.67	£2.00
5A - GEAR COVER ASS'Y INCLUD.3 HIT-320936.A0 320936	-
6 - SEAL RING (A) HIT-315055.A1 315055	£1.67	£2.00
7 - WASHER (A) HIT-315054.A0 315054	£1.67	£2.00
8 - RETAINING RING FOR D10 SHAFT (10 PCS.) HIT-939540.A27 939540	£1.67	£2.00
9 - BALL BEARING 6200DDCMPS2L HIT-6200DD.A1 6200DD	£8.32	£9.99
10 - RUBBER RING (A) HIT-315053.A1 315053	£1.67	£2.00
11 - FELT PACKING (B) HIT-315052.A0 315052	£1.67	£2.00
12 - BEARING COVER (B) HIT-315051.A1 315051	£4.16	£4.99
*13 - ARMATURE ASS'Y 110V-120V INCLUD.9 HIT-360576U.A0 360576U	£132.47	£158.96
*13 - ARMATURE 220V-240V HIT-360576E.A0 360576E	£122.78	£147.34
14 - FAN GUIDE HIT-315046.A1 315046	£1.67	£2.00
15 - HEX. HD. TAPPING SCREW D5X60 HIT-961501.A5 961501	£1.67	£2.00
*16 - STATOR ASS'Y 110V INCLUD.17 HIT-340526C.A0 340526C	-
*16 - STATOR ASS'Y 220V-240V INCLUD.17 HIT-340526E.A0 340526E	£48.61	£58.33
17 - BRUSH TERMINAL HIT-930703.A8 930703	£3.28	£3.93
18 - FELT WASHER HIT-315049.A1 315049	-
19 - O-RING HIT-320218.A5 320218	£1.67	£2.00
20 - LOCK PIN HIT-315050.A0 315050	£4.42	£5.30
21A - NEEDLE BEARING (HK1210FM) HIT-331359.A0 331359	-
22 - GEAR HIT-320937.A0 320937	£62.52	£75.02
23 - SEAL LOCK SCREW (W/SP. WASHER) M4X10 HIT-987201.A9 987201	£1.67	£2.00
24 - BEARING COVER (A) HIT-937077.A2 937077	£5.32	£6.39
25 - BALL BEARING 6202DD HIT-6202DD.A15 6202DD	£7.32	£8.78
26 - FEATHER KEY 3X3X10 HIT-940533.A15 940533	£1.67	£2.00
*27 - SPINDLE HIT-320943.A0 320943	£15.12	£18.15
28 - FELT PACKING (A) HIT-315062.A1 315062	£1.67	£2.00
29 - SEAL PACKING HIT-315060.A1 315060	£1.67	£2.00
30 - PACKING GLAND HIT-315061.A0 315061	£14.76	£17.71
31 - SEAL LOCK SCREW (W/SP.WASHER)M5X14(BLACK HIT-315636.A5 315636	-
*32 - RUBBER PAD (D14 HOLE) HIT-953247Z.A0 953247Z	£21.78	£26.13
*33 - WASHER NUT M14 HIT-953246Z.A2 953246Z	£8.88	£10.66
34 - DUST SEAL HIT-315047.A0 315047	£4.26	£5.11
*35 - HOUSING ASS'Y INCLUD.39 HIT-320945.A0 320945	-
36 - SETTING LABEL HIT-320948.A0 320948	-
37 - NAME PLATE HIT-000000.A509 000000	-
38 - BALL BEARING 608VVC2PS2L HIT-608VVM.A137 608VVM	£5.70	£6.84
39 - RUBBER RING HIT-995662.A3 995662	£1.67	£2.00
40 - MAGNET HIT-318721.A3 318721	£20.48	£24.58
41 - BEARING BUSHING HIT-320946.A0 320946	£6.94	£8.33
*42A - CONTROLLER 220V-240V EXCEPT FOR GBR (110V) HIT-337094.A0 337094	£93.05	£111.66
*42B - CONTROLLER 100V-127V FOR GBR (110V) HIT-371220.A0 371220	-
43 - TAPPING SCREW (W/FLANGE) D4X20 HIT-305095.A2 305095	-
44 - BRAND LABEL HIT-000000.A512 000000	-
45 - BRUSH CAP HIT-945161.A27 945161	£1.67	£2.00
46 - CARBON BRUSH (1 PAIR) HIT-999043.A10 999043	£5.54	£6.65
*47 - BRUSH HOLDER HIT-958900.A15 958900	£8.24	£9.89
48 - HEX. SOCKET SET SCREW M5X8 HIT-938477.A1 938477	£1.67	£2.00
49A - HANDLE (A).(B) SET HIT-334722.A0 334722	£12.43	£14.92
51 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A38 302089	£1.67	£2.00
52 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-302086.A41 302086	£1.67	£2.00
53 - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A165 984750	£1.67	£2.00
54 - CORD CLIP HIT-937631.A99 937631	£1.67	£2.00
55 - CORD ARMOR D8.8 HIT-953327.A128 953327	£1.67	£2.00
*56 - CORD (CORD ARMOR D8.8) FOR HKG HIT-500435Z.A6 500435Z	£14.14	£16.97
*56 - CORD (CORD ARMOR D8.8) FOR GBR (110V) HIT-500396Z.A2 500396Z	-
57 - SWITCH (1P PILLAR TYPE) W/LOCK HIT-321449.A0 321449	£28.14	£33.77
501 - HEX. BAR WRENCH 8MM HIT-955857.A3 955857	£4.96	£5.95
502A - WRENCH EXCEPT FOR USA HIT-711272.A5 711272	£6.18	£7.41
503 - LOOP HANDLE HIT-320949.A0 320949	£6.50	£7.80
504 - BOLT WASHER M10 (10 PCS.) HIT-949434.A1 949434	£1.67	£2.00
505 - HEX. SOCKET HD. BOLT M10X20 (10 PCS.) HIT-949844.A0 949844	£7.94	£9.53
*506 - WOOL BONNET 180MM EXCEPT FOR FRA HIT-949103.A0 949103	£27.87	£33.44
*507 - SANDING DISCS 180MM C-P50 (10 PCS.) EXCEPT FOR FRA HIT-314090.A3 314090	-
601 - SANDING DISCS 180MM C-P16 (10 PCS.) HIT-314084.A0 314084	-
602 - SANDING DISCS 180MM C-P20 (10 PCS.) HIT-314085.A2 314085	-
603 - SANDING DISCS 180MM C-P24 (10 PCS.) HIT-314086.A0 314086	-
604 - SANDING DISCS 180MM C-P36 (10 PCS.) HIT-314088.A2 314088	-
605 - SANDING DISCS 180MM C-P40 (10 PCS.) HIT-314089.A0 314089	-
606 - SANDING DISCS 180MM C-P50 (10 PCS.) HIT-314090.A2 314090	-
607 - SANDING DISCS 180MM C-P60 (10 PCS.) HIT-314091.A0 314091	-
608 - SANDING DISCS 180MM C-P100 (10 PCS.) HIT-314093.A2 314093	-
610 - SIDE HANDLE HIT-711283.A12 711283	£7.02	£8.42
