Hitachi / Hikoki SF-GT Attachment Spare Parts

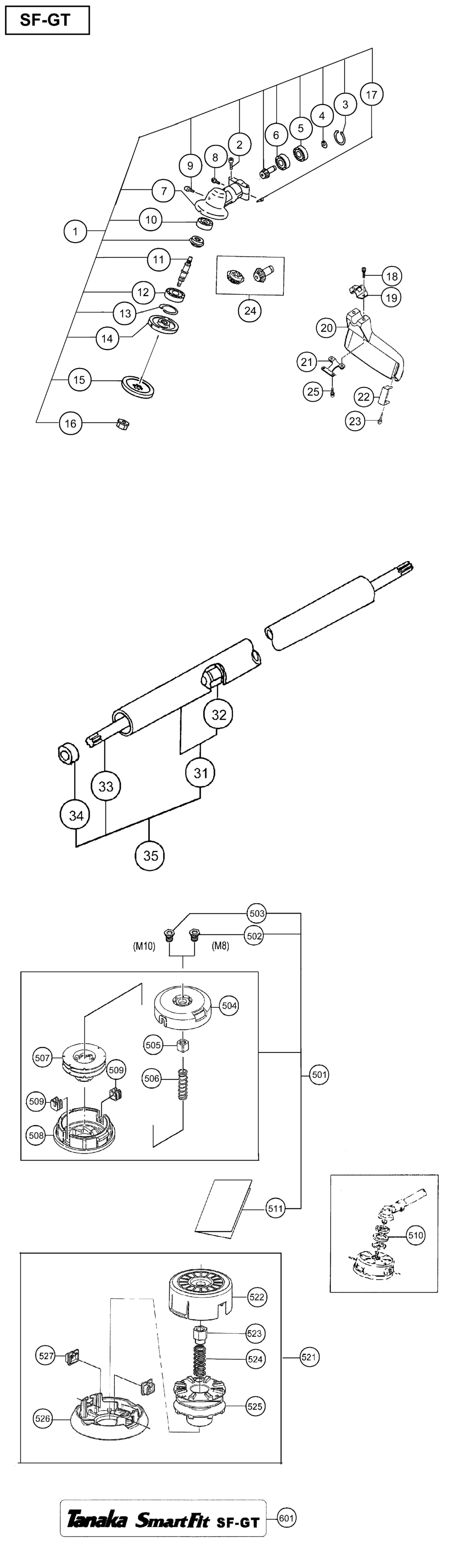

An exploded diagram and spare parts listing for the Hitachi / Hikoki SF-GT Attachment

	Ex VAT	Inc VAT
1 - GEAR CASE ASS'Y 24 HIT-6688797.A0 6688797	£102.98	£123.57
2 - HEX. HOLE BOLT M5X25/S HIT-6684709.A155 6684709	£1.67	£2.00
3 - RETAINING RING C-TYPE D22 HIT-6695293.A16 6695293	£1.67	£2.00
4 - STOP RING OUTER 10 HIT-6695315.A16 6695315	-
5 - BALL BEARING HIT-6695579.A0 6695579	-
6 - BALL BEARING 6900 1 HIT-6695577.A3 6695577	-
7 - GEAR CASE 24 HIT-6688808.A1 6688808	-
8 - HEX.HOLE BOLT M5X12/S HIT-6684667.A27 6684667	£1.67	£2.00
9 - OILING BOLT HIT-6689109.A20 6689109	-
10 - BALL BEARING 609 HIT-6684734.A47 6684734	-
11 - GEAR SHAFT HIT-6688924.A15 6688924	-
12 - BALL BEARING 6201D 1 HIT-6695554.A24 6695554	-
13 - STOP RING C-32 1 HIT-6695295.A29 6695295	£1.67	£2.00
14 - CUTTER HOLDER HIT-6689032.A29 6689032	£15.16	£18.19
15 - CUTTER HOLDER CAP HIT-6689055.A9 6689055	£12.10	£14.52
16 - FIXING NUT M10X1.25 HIT-6689073.A27 6689073	£8.32	£9.99
17 - GEAR CASE WASHER HIT-6689159.A51 6689159	-
18 - HEX. HOLE BUTTON BOLT M6X25 HIT-6684714.A33 6684714	£1.67	£2.00
19 - GUARD BRACKET HIT-6685065.A0 6685065	-
20 - GUARD 24 DIA. HIT-6690272.A3 6690272	-
21 - GUARD HOLDER HIT-6690343.A5 6690343	-
22 - KNIFE HIT-6693388.A3 6693388	-
23 - TAPPING SCREW 5X20 HIT-6684753.A103 6684753	£1.67	£2.00
24 - GEAR PINION SET SPARE HIT-6688882.A1 6688882	£41.72	£50.07
25 - HEX.HOLE BOLT M5X12/S HIT-6684667.A28 6684667	£1.67	£2.00
31 - DRIVE SHAFT COMP HIT-6697838.A6 6697838	£25.30	£30.36
32 - BUSH ASS'Y HIT-6697839.A2 6697839	-
33 - DRIVE SHAFT B 783L HIT-6684832.A15 6684832	£35.25	£42.30
34 - BUSHING HIT-6684833.A6 6684833	£3.85	£4.62
35 - MAIN PIPE ASS'Y HIT-6699353.A2 6699353	-
501 - NYLON HEAD BF-5 TILL TL050680 HIT-6695784.A10 6695784	£27.81	£33.37
502 - MOUNTING NUT L-M8X1.25 TILL TL050680 HIT-6689624.A9 6689624	-
503 - MOUNTING NUT L-M10X1.25 TILL TL050680 HIT-6684756.A7 6684756	£10.80	£12.96
504 - CUTTING BODY TILL TL050680 HIT-6684757.A7 6684757	£15.38	£18.45
505 - SPECIAL NUT TILL TL050680 HIT-6684758.A9 6684758	£6.18	£7.41
506 - REEL SPRING TILL TL050680 HIT-6684759.A7 6684759	£3.56	£4.27
507 - SPOOL TILL TL050680 HIT-6684760.A9 6684760	£13.48	£16.18
508 - CUTTING BODY CAP TILL TL050680 HIT-6684761.A7 6684761	£21.34	£25.61
509 - EYELET TILL TL050680 HIT-6684762.A9 6684762	£3.56	£4.27
510 - WINDING PROTECTOR TILL TL050680 HIT-6684763.A5 6684763	£2.98	£3.57
511 - SURE TAP MANUAL P/L 9 TILL TL050680 HIT-6697805.A5 6697805	-
521 - NYLON CORD CUTTER SINCE TL050681 HIT-6601148.A3 6601148	£25.68	£30.81
522 - CASE SINCE TL050681 HIT-6601149.A14 6601149	-
523 - NUT SINCE TL050681 HIT-6601150.A3 6601150	-
524 - REEL SPRING SINCE TL050681 HIT-6693380.A4 6693380	£6.47	£7.76
525 - LINE HOLDER SINCE TL050681 HIT-6601151.A14 6601151	-
526 - COVER SINCE TL050681 HIT-6601152.A3 6601152	-
527 - EYELET SINCE TL050681 HIT-6684810.A26 6684810	£3.29	£3.95
601 - SYMBOL MARK SF-GT HIT-6699695.A0 6699695	-

Attribute Name	Value
Brand	Hikoki
