Hitachi / Hikoki SAT-180 Disc Sander Polisher Spare Parts

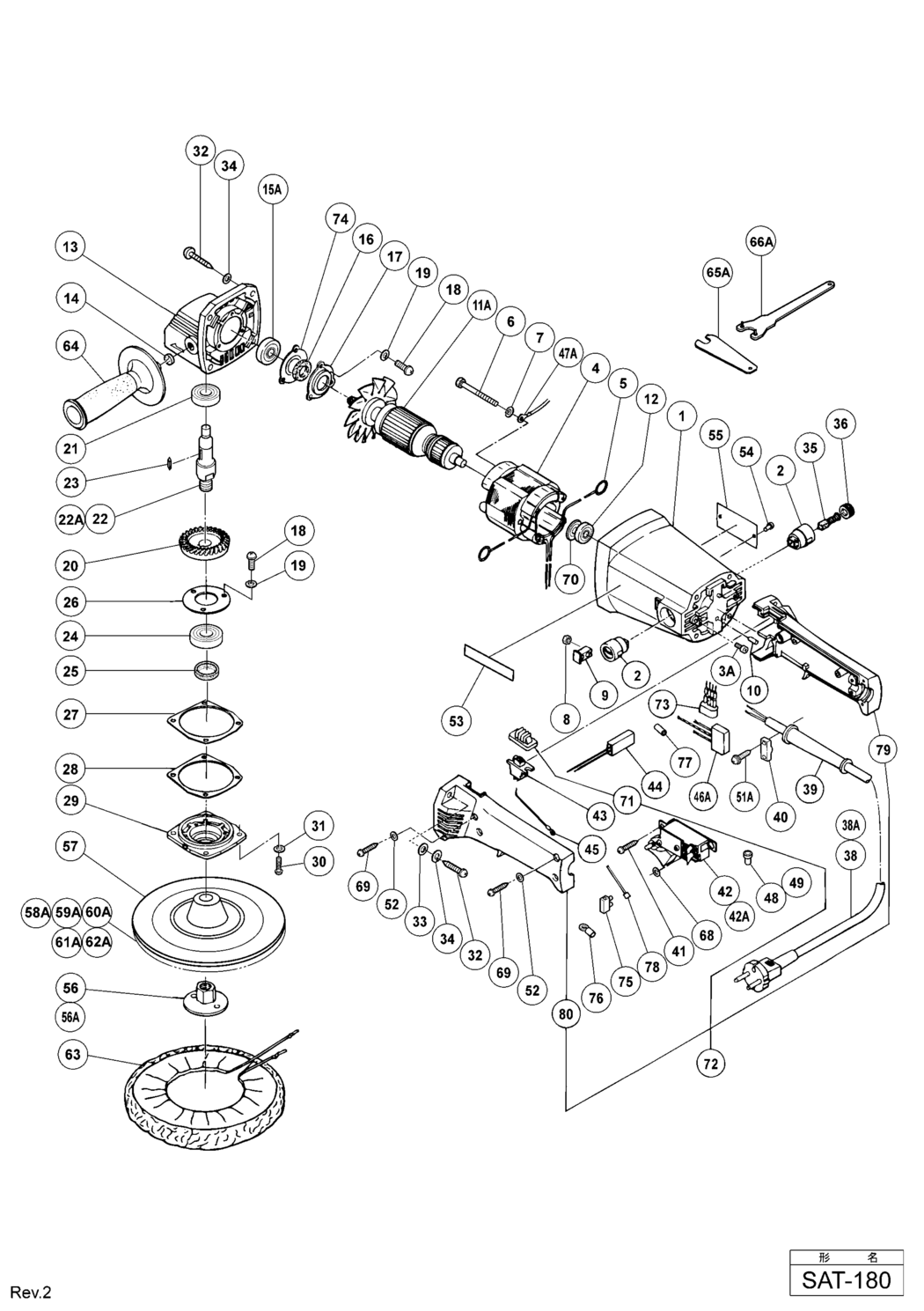

An exploded diagram and spare parts listing for the Hitachi / Hikoki SAT-180 Disc Sander Polisher

	Ex VAT	Inc VAT
1 - HOUSING ASS'Y INCLUD.2 HIT-953230.A0 953230	£40.32	£48.38
*1 - HOUSING ASS'Y INCLUD.2 HIT-953268Z.A0 953268Z	-
2 - BRUSH HOLDER HIT-958900.A8 958900	£8.24	£9.89
*2 - BRUSH HOLDER FOR AUT HIT-981586.A6 981586	£7.62	£9.15
3A - HEX. SOCKET SET SCREW M4X5 HIT-961681.A3 961681	£1.67	£2.00
*4 - STATOR ASS'Y 110V-120V INCLUD.5 HIT-953231C.A0 953231C	£30.18	£36.21
*4 - STATOR ASS'Y 220V-230V INCLUD.5 HIT-953231E.A0 953231E	£21.34	£25.61
*4 - STATOR ASS'Y 220V-230V INCLUD.5 FOR EUROPE HIT-953231L.A0 953231L	-
*4 - STATOR ASS'Y 220V-230V INCLUD.5 FOR ITA HIT-953231M.A0 953231M	-
*4 - STATOR ASS'Y 220V-230V INCLUD.5 FOR NZL HIT-953231J.A0 953231J	-
*4 - STATOR ASS'Y 220V-230V INCLUD.5 FOR SAF HIT-953231K.A0 953231K	-
*4 - STATOR ASS'Y 240V INCLUD.5 HIT-953231F.A0 953231F	£30.18	£36.21
*4 - STATOR ASS'Y 240V INCLUD.5 FOR AUS HIT-953231H.A0 953231H	-
*4 - STATOR ASS'Y 220V INCLUD.5 FOR CHN HIT-953231N.A0 953231N	-
5 - BRUSH TERMINAL HIT-930703.A26 930703	£3.28	£3.93
6 - MACHINE SCREW M5X55 (10 PCS.) HIT-949233.A1 949233	-
7 - SPRING WASHER M5 (10 PCS.) HIT-949454.A66 949454	£1.67	£2.00
8 - NUT M5 (10 PCS.) HIT-949555.A14 949555	£1.67	£2.00
9 - NUT COVER HIT-953232.A0 953232	£1.67	£2.00
10 - BEARING LOCK HIT-931701.A3 931701	£1.67	£2.00
*11A - ARMATURE ASS'Y 110V-120V INCLUD.12 HIT-953297C.A0 953297C	£68.40	£82.08
*11A - ARMATURE ASS'Y 220V-230V INCLUD.12 HIT-953297E.A0 953297E	£63.24	£75.89
*11A - ARMATURE ASS'Y 240V INCLUD.12 HIT-953297F.A0 953297F	£68.40	£82.08
12 - BALL BEARING 608VVC2PS2L HIT-608VVM.A219 608VVM	£5.70	£6.84
13 - GEAR COVER ASS'Y INCLUD.14 HIT-953234.A0 953234	£18.70	£22.44
14 - FELT WASHER HIT-937033.A15 937033	£1.67	£2.00
15A - BALL BEARING 6002VVCMPS2L HIT-6002VV.A21 6002VV	£9.32	£11.19
16 - FELT PACKING (A) HIT-953235.A0 953235	£1.67	£2.00
17 - BEARING COVER HIT-953236.A0 953236	£1.67	£2.00
18 - MACHINE SCREW M4X12 (10 PCS.) HIT-949217.A37 949217	£1.67	£2.00
19 - SPRING WASHER M4 (10 PCS.) HIT-949453.A47 949453	£1.67	£2.00
20 - GEAR HIT-953237.A0 953237	£34.64	£41.57
21 - BALL BEARING 6200VVCMPS2L HIT-6200VV.A30 6200VV	£7.36	£8.83
22 - SPINDLE HIT-953238Z.A0 953238Z	£17.57	£21.08
22A - SPINDLE 5/8-11UNC FOR USA HIT-953248P.A0 953248P	-
22A - SPINDLE ASS'Y INCLUD.56A FOR THA HIT-953380.A0 953380	-
23 - FEATHER KEY 3X3X10 HIT-940533.A13 940533	£1.67	£2.00
24 - BALL BEARING 6202VVCMPS2L HIT-6202VV.A17 6202VV	£7.02	£8.42
25 - FELT PACKING HIT-938403.A0 938403	£1.67	£2.00
26 - BEARING COVER (A) HIT-937077.A0 937077	£5.32	£6.39
27 - SEAL PACKING (A) HIT-953239.A0 953239	£1.67	£2.00
28 - THRUST WASHER (B) HIT-953240.A0 953240	£1.67	£2.00
29 - PACKING GLAND HIT-953241.A0 953241	£12.16	£14.59
30 - MACHINE SCREW M5X16 (10 PCS.) HIT-949239.A6 949239	£1.67	£2.00
31 - SPRING WASHER M5 (10 PCS.) HIT-949454.A65 949454	£1.67	£2.00
32 - TAPPING SCREW D5X25 HIT-937807.A4 937807	-
33 - WASHER M5 (10 PCS.) HIT-949424.A18 949424	£1.67	£2.00
34 - SPRING WASHER M5 (10 PCS.) HIT-949454.A64 949454	£1.67	£2.00
35 - CARBON BRUSH (1 PAIR) HIT-999043.A21 999043	£5.54	£6.65
36 - BRUSH CAP HIT-945161.A9 945161	£1.67	£2.00
*36 - BRUSH CAP FOR AUT HIT-961781.A13 961781	£3.15	£3.78
38 - CORD (CORD ARMOR D8.2) FOR AUS HIT-500439Z.A39 500439Z	-
*38 - CORD (CORD ARMOR D10.7) FOR ASIA HIT-500201Z.A0 500201Z	-
*38 - CORD (CORD ARMOR D8.2) FOR GBR (110V) HIT-500231Z.A6 500231Z	-
*38 - CORD (CORD ARMOR D8.2) FOR EUROPE HIT-500234Z.A11 500234Z	-
*38 - CORD (CORD ARMOR D8.2) FOR USA HIT-500240Z.A6 500240Z	-
*38 - CORD (CORD ARMOR D10.7) FOR SAU (127V) HIT-500420Z.A1 500420Z	-
*38 - CORD (CORD ARMOR D8.2) FOR SAU (220V) HIT-500423Z.A21 500423Z	-
*38 - CORD (CORD ARMOR D8.2) FOR SYR HIT-500447Z.A4 500447Z	£7.92	£9.51
*38 - CORD (CORD ARMOR D8.2) FOR ARG HIT-500484Z.A1 500484Z	-
38A - CORD (CORD ARMOR D8.2) FOR GBR (240V) HIT-500435Z.A26 500435Z	£14.14	£16.97
38A - CORD (CORD ARMOR D8.2) FOR CHN HIT-500455Z.A6 500455Z	-
39 - CORD ARMOR D8.2 HIT-958049.A24 958049	£1.67	£2.00
*39 - CORD ARMOR D10.7 HIT-940778.A19 940778	£3.15	£3.78
40 - CORD CLIP HIT-937631.A47 937631	£1.67	£2.00
41 - TAPPING SCREW D4X12 HIT-954017.A8 954017	£1.67	£2.00
*42 - SWITCH (A) (1P SCREW TYPE) W/LOCK HIT-986201.A0 986201	£17.94	£21.53
*42 - SWITCH (2P PILLAR TYPE) W/LOCK FOR ITA HIT-931573.A0 931573	£48.87	£58.64
*42 - SWITCH (B) (2P SCREW TYPE) W/O LOCK FOR CAN HIT-953249P.A0 953249P	-
*42A - SWITCH (B) (2P SCREW TYPE) W/LOCK FOR AUS HIT-956632.A0 956632	£14.88	£17.85
*42A - SWITCH (B) (2P SCREW TYPE) W/LOCK CHN HIT-956632.A1 956632	£14.88	£17.85
43 - SLIDE SWITCH (1P SOLDER TYPE) HIT-953261.A0 953261	£15.58	£18.69
*43 - SLIDE SWITCH ASS'Y (1P SOLDER TYPE) INCLUD.45 FOR USA HIT-953266Z.A0 953266Z	£14.68	£17.61
*43 - SLIDE SWITCH (1P SOLDER TYPE) INCLUD.45 FOR CHN HIT-953383.A0 953383	-
*44 - DIODE 100V-127V HIT-956613.A0 956613	£24.16	£28.99
*44 - DIODE 220V-240V HIT-957556.A0 957556	£18.40	£22.08
*44 - DIODE 110V-115V FOR USA HIT-953267Z.A0 953267Z	-
*44 - CONTROLLER CIRCUIT FOR AUS HIT-990373.A0 990373	-
45 - INTERNAL WIRE HIT-953243.A0 953243	£1.67	£2.00
45 - INTERNAL WIRE HIT-000000.A1645 000000	-
45 - INTERNAL WIRE HIT-000000.A1647 000000	-
*45 - INTERNAL WIRE ASS'Y FOR CAN HIT-953251P.A0 953251P	-
46A - NOISE SUPPRESSOR HIT-994273.A13 994273	£7.30	£8.76
47A - INTERNAL WIRE HIT-981010.A0 981010	-
48 - CONNECTOR 50091 (10 PCS.) HIT-959140.A53 959140	£4.98	£5.97
*48 - CONNECTOR 50091 (10 PCS.) HIT-959140.A54 959140	£4.98	£5.97
49 - CONNECTOR 50092 (10 PCS.) HIT-959141.A70 959141	£7.12	£8.54
51A - TAPPING SCREW (W/FLANGE) D4X16 HIT-984750.A215 984750	£1.67	£2.00
52 - WASHER M4 (10 PCS.) HIT-949423.A18 949423	£1.67	£2.00
53 - BRAND LABEL HIT-957561.A0 957561	-
54 - RIVET D2.5X3.2 (10 PCS.) HIT-949509.A1 949509	-
55 - NAME PLATE HIT-000000.A1649 000000	-
56 - WASHER NUT M14 HIT-953246Z.A0 953246Z	£8.88	£10.66
*56 - WASHER NUT 5/8-11UNC FOR USA HIT-953254P.A0 953254P	-
56A - WASHER NUT FOR THA HIT-953381.A0 953381	-
57 - RUBBER PAD (D14 HOLE) HIT-953247Z.A2 953247Z	£21.78	£26.13
*57 - RUBBER PAD (D16 HOLE) FOR USA HIT-953255.A0 953255	£35.68	£42.82
58A - SANDING DISCS 180MM C-P24 (10 PCS.) HIT-314086.A2 314086	-
59A - SANDING DISCS 180MM C-P30 (10 PCS.) HIT-314087.A0 314087	-
60A - SANDING DISCS 180MM C-P50 (10 PCS.) HIT-314090.A1 314090	-
61A - SANDING DISCS 180MM C-P80 (10 PCS.) HIT-314092.A2 314092	-
62A - SANDING DISCS 180MM C-P120 (10 PCS.) HIT-314094.A2 314094	-
63 - WOOL BONNET 180MM HIT-949103.A1 949103	£27.87	£33.44
64 - SIDE HANDLE HIT-956633.A0 956633	-
65A - WRENCH 17MM HIT-936638.A3 936638	£7.22	£8.66
66A - WRENCH HIT-711272.A0 711272	£6.18	£7.41
68 - WASHER (BRASS) M3.5 (10 PCS.) FOR AUS (FOR SWITCH) HIT-949440.A0 949440	-
69 - TAPPING SCREW D4X20 HIT-956384.A2 956384	£1.67	£2.00
70 - DUST SEAL (A) HIT-956387.A1 956387	£3.97	£4.76
71 - SLIDE SWITCH COVER HIT-971792.A0 971792	£1.67	£2.00
72 - HANDLE ASS'Y INCLUD.71 HIT-953260.A0 953260	£15.56	£18.67
*72 - HANDLE ASS'Y INCLUD.71 HIT-953264P.A0 953264P	-
*73 - CHOKE COIL HIT-958263.A0 958263	£34.64	£41.57
*73 - CHOKE COIL (A) FOR EUROPE HIT-953298.A0 953298	-
74 - DISTANCE PLATE HIT-953265.A0 953265	£1.67	£2.00
75 - PILLAR TERMINAL HIT-938307.A2 938307	£3.28	£3.93
76 - TERMINAL HIT-980063.A27 980063	£1.67	£2.00
77 - TUBE (D) HIT-981373.A47 981373	£1.67	£2.00
78 - WIRE BAND HIT-983684.A6 983684	-
79 - HANDLE (A) HIT-953258.A0 953258	-
80 - HANDLE (B) HIT-953259.A0 953259	-
*80 - HANDLE (B) FOR CAN HIT-953263P.A0 953263P	-
601 - SANDING DISCS 180MM C-P16 (10 PCS.) HIT-314084.A2 314084	-
602 - SANDING DISCS 180MM C-P20 (10 PCS.) HIT-314085.A0 314085	-
603 - SANDING DISCS 180MM C-P36 (10 PCS.) HIT-314088.A1 314088	-
604 - SANDING DISCS 180MM C-P40 (10 PCS.) HIT-314089.A1 314089	-
605 - SANDING DISCS 180MM C-P60 (10 PCS.) HIT-314091.A1 314091	-
606 - SANDING DISCS 180MM C-P100 (10 PCS.) HIT-314093.A0 314093	-
607 - SANDING DISC SET FOR 7 DISC INCLUD.1 EACH OF 56-62 FOR USA HIT-953256Z.A0 953256Z	-
610 - SANDING DISCS 180MM C-P80 (10 PCS.) HIT-314092.A1 314092	-
612 - SANDING DISCS 180MM C-P120 (10 PCS.) HIT-314094.A1 314094	-
