Hitachi / Hikoki RP3608DA Cordless Others Spare Parts

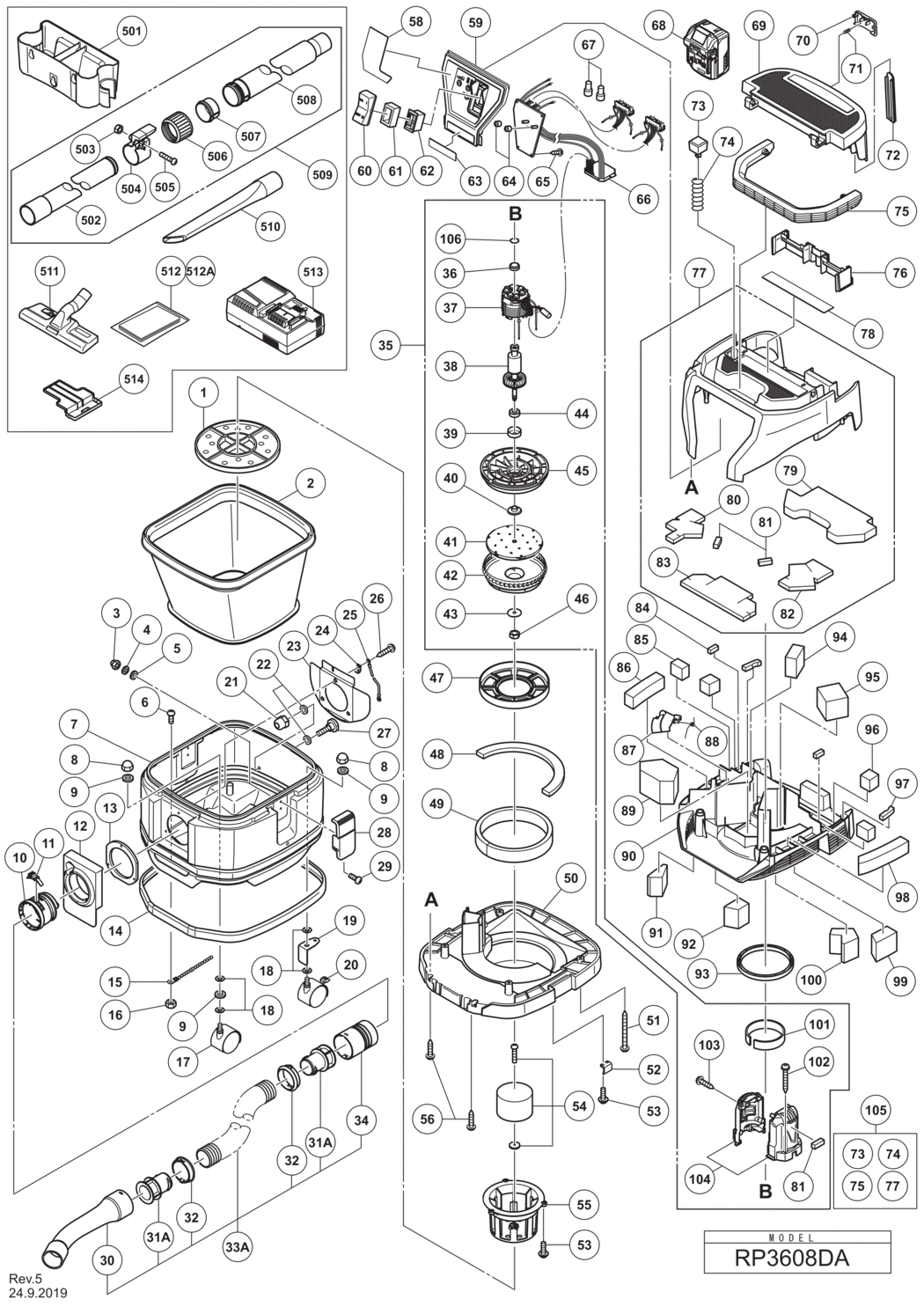

An exploded diagram and spare parts listing for the Hitachi / Hikoki RP3608DA Cordless Others

	Ex VAT	Inc VAT
1 - FILTER CAGE HIT-330599.A0 330599	-
2 - DUST FILTER (8L?15L W/WET AND DRY) HIT-337458.A0 337458	-
3 - HEX. CAP NUT M4 HIT-311839.A2 311839	-
4 - SPRING WASHER M4 (10 PCS.) HIT-949453.A66 949453	£1.67	£2.00
5 - WASHER M4 (10 PCS.) HIT-949423.A10 949423	£1.67	£2.00
6 - MACHINE SCREW M4X14 (10 PCS.) HIT-949218.A3 949218	£1.67	£2.00
7 - TANK ASS'Y (8L) INCLUD.8 HIT-373591.A1 373591	-
8 - CAP NUT M8 HIT-975597.A1 975597	-
9 - BOLT WASHER M8 (10 PCS.) HIT-949433.A55 949433	£1.67	£2.00
10 - HOSE JOINT HIT-337451.A2 337451	-
11 - HOSE STOPPER HIT-321014.A4 321014	-
12 - JOINT COVER (A) HIT-337449.A0 337449	-
13 - JOINT COVER PACKING HIT-339182.A0 339182	-
14 - BUMPER HIT-337446.A1 337446	-
15 - EARTH CHAIN HIT-329872.A0 329872	-
16 - NUT M4 (10 PCS.) HIT-949554.A45 949554	£1.67	£2.00
17 - CASTER (D50) HIT-337438.A0 337438	-
18 - RUBBER WASHER HIT-338453.A0 338453	-
19 - CASTER HOLDER HIT-338454.A1 338454	-
20 - CASTER (D50 WITH STOPPER) HIT-337439.A1 337439	-
21 - SPECIAL NUT HIT-373590.A0 373590	-
22 - WASHER HIT-374772.A1 374772	-
23 - POLY GUIDE (A) HIT-337452.A0 337452	-
24 - EARTH PLATE HIT-337454.A2 337454	-
25 - INTERNAL WIRE (D) HIT-329183.A1 329183	-
26 - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) HIT-307028.A31 307028	£1.67	£2.00
27 - SPECIAL BOLT HIT-373589.A1 373589	-
28 - CLAMP LEVER HIT-337455.A0 337455	-
29 - MACHINE SCREW M4X16 (10 PCS.) HIT-949219.A12 949219	-
30 - JOINT HANDLE HIT-373581.A0 373581	-
31A - SCREW RING (B) HIT-334396.A0 334396	-
32 - CLICK RING HIT-321066.A3 321066	-
33A - HOSE ASS'Y ID38 INCLUD.30 HIT-373580.A0 373580	-
34 - SLEEVE (A) ID38 HIT-320985.A0 320985	-
35 - MOTOR ASS'Y INCLUD.36-46 HIT-373569.A0 373569	-
36 - RUBBER BUSHING HIT-338928.A6 338928	-
*37 - STATOR FET PCB FOR EUROPE HIT-341051.A0 341051	-
38 - ROTOR HIT-361091.A0 361091	-
39 - BEARING HOLDER (B) HIT-339180.A2 339180	-
40 - FLANGE WASHER HIT-339174.A2 339174	-
41 - FAN HIT-339166.A2 339166	-
42 - CASING HIT-339177.A2 339177	-
43 - SPECIAL WASHER HIT-339178.A0 339178	-
44 - BALL BEARING 608VV HIT-333945.A6 333945	-
45 - FAN BASE HIT-373573.A1 373573	-
46 - LOCK NUT M8 HIT-339175.A0 339175	-
47 - SUPPORT RING (B) HIT-334977.A0 334977	-
48 - SILENT FILTER (H) HIT-374771.A0 374771	-
49 - SILENT FILTER (A) HIT-337475.A1 337475	-
50 - MOTOR BASE ASS'Y INCLUD.48 HIT-373592.A0 373592	-
51 - TAPPING SCREW (W/FLANGE) D4X45 (BLACK) HIT-301815.A4 301815	£1.67	£2.00
52 - STOPPER PLATE HIT-339358.A0 339358	-
53 - SCREW (PLASTIC TIE) D4X16 HIT-994810.A6 994810	-
54 - FLOAT HIT-374770.A0 374770	-
55 - FLOAT HOLDER (A) HIT-337456.A1 337456	-
56 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A147 301653	£1.67	£2.00
58 - PANEL SHEET (C) HIT-373579.A0 373579	-
59 - SWITCH HOLDER ASS'Y INCLUD.58 HIT-373571.A0 373571	-
60 - SWITCH COVER HIT-373576.A0 373576	-
61 - SWITCH PACKING HIT-373578.A0 373578	-
62 - SWITCH HIT-373577.A1 373577	-
63 - BRAND LABEL HIT-000000.A1505 000000	-
64 - CUSHION HIT-370077.A2 370077	-
65 - TAPPING SCREW (W/FLANGE) D3X12 HIT-372288.A0 372288	-
66 - CONTROLLER MAIN HIT-373567.A0 373567	-
67 - CONNECTOR HIT-374773.A0 374773	-
69 - BUTTERY GUARD ASS'Y INCLUD.70-72 HIT-373572.A0 373572	-
70 - CLAMP LEVER (A) HIT-373613.A0 373613	-
71 - CLAMP SPRING HIT-373610.A0 373610	-
72 - CORD COVER HIT-373607.A0 373607	-
73 - PUSHING BUTTON HIT-373609.A0 373609	-
74 - BUTTON SPRING HIT-373612.A0 373612	-
75 - HANDLE HIT-373604.A0 373604	-
76 - BATTERY TERMINAL HOLDER HIT-373605.A1 373605	-
77 - HEAD COVER ASS'Y INCLUD.79-83 HIT-373598.A0 373598	-
78 - NAME PLATE HIT-000000.A1506 000000	-
79 - HEAD COVER PACKING (A) HIT-373599.A0 373599	-
80 - HEAD COVER PACKING (C) HIT-373602.A0 373602	-
81 - HEAD COVER PACKING (D) HIT-373603.A1 373603	-
82 - HEAD COVER PACKING (C) HIT-373601.A1 373601	-
83 - HEAD COVER PACKING (B) HIT-373600.A0 373600	-
84 - SILENT FILTER (D) HIT-373619.A0 373619	-
85 - SILENT FILTER (C) HIT-373616.A1 373616	-
86 - SILENT FILTER (B) HIT-373615.A0 373615	-
87 - AIR VALVE HIT-373608.A0 373608	-
88 - VALVE SPRING HIT-373611.A0 373611	-
89 - SILENT FILTER (L) HIT-373626.A1 373626	-
90 - MOTOR COVER HIT-373597.A1 373597	-
91 - SILENT FILTER (F) HIT-373623.A0 373623	-
92 - SILENT FILTER (E) HIT-373621.A0 373621	-
93 - MOTOR PACKING (A) HIT-373596.A0 373596	-
94 - SILENT FILTER (J) HIT-373625.A0 373625	-
95 - SILENT FILTER (M) HIT-373624.A1 373624	-
96 - SILENT FILTER (C) HIT-373617.A0 373617	-
97 - SILENT FILTER (D) HIT-373618.A1 373618	-
98 - SILENT FILTER (A) HIT-373614.A1 373614	-
99 - SILENT FILTER (E) HIT-373620.A1 373620	-
100 - SILENT FILTER (F) HIT-373622.A1 373622	-
101 - HOUSING PACKING (A) HIT-373570.A1 373570	-
102 - TAPPING SCREW (W/FLANGE) D4X35 (BLACK) HIT-303694.A13 303694	£1.67	£2.00
103 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A146 301653	£1.67	£2.00
104 - HOUSING SET HIT-338902.A4 338902	-
105 - HEAD COVER (A) ASS'Y INCLUD.73-75 HIT-373606.A0 373606	-
106 - WASHER (A) HIT-372734.A2 372734	-
502 - MOLD PIPE (B) HIT-373584.A0 373584	-
503 - NUT M4 (10 PCS.) HIT-949554.A46 949554	£1.67	£2.00
504 - PIPE HANGER HIT-338448.A0 338448	-
505 - MACHINE SCREW (W/WASHERS) M4X16 HIT-993539.A17 993539	£1.67	£2.00
506 - PIPE SCREW HIT-373587.A0 373587	£2.40	£2.88
507 - CUT SLEEVE HIT-373585.A0 373585	-
508 - MOLD PIPE (A) HIT-373583.A0 373583	-
509 - ZOOM PIPE ASS'Y INCLUD.502-508 HIT-373582.A0 373582	-
510 - CREVICE NOZZLE HIT-337523.A0 337523	-
511 - NOZZLE FOR FLUID HIT-337522.A1 337522	-
*512A - POLYETHYLENE BAG (5 PCS.) FOR EUROPE HIT-375679.A0 375679	-
601 - DUSTBAG SET (5 PCS.) HIT-373627.A0 373627	£23.08	£27.69
