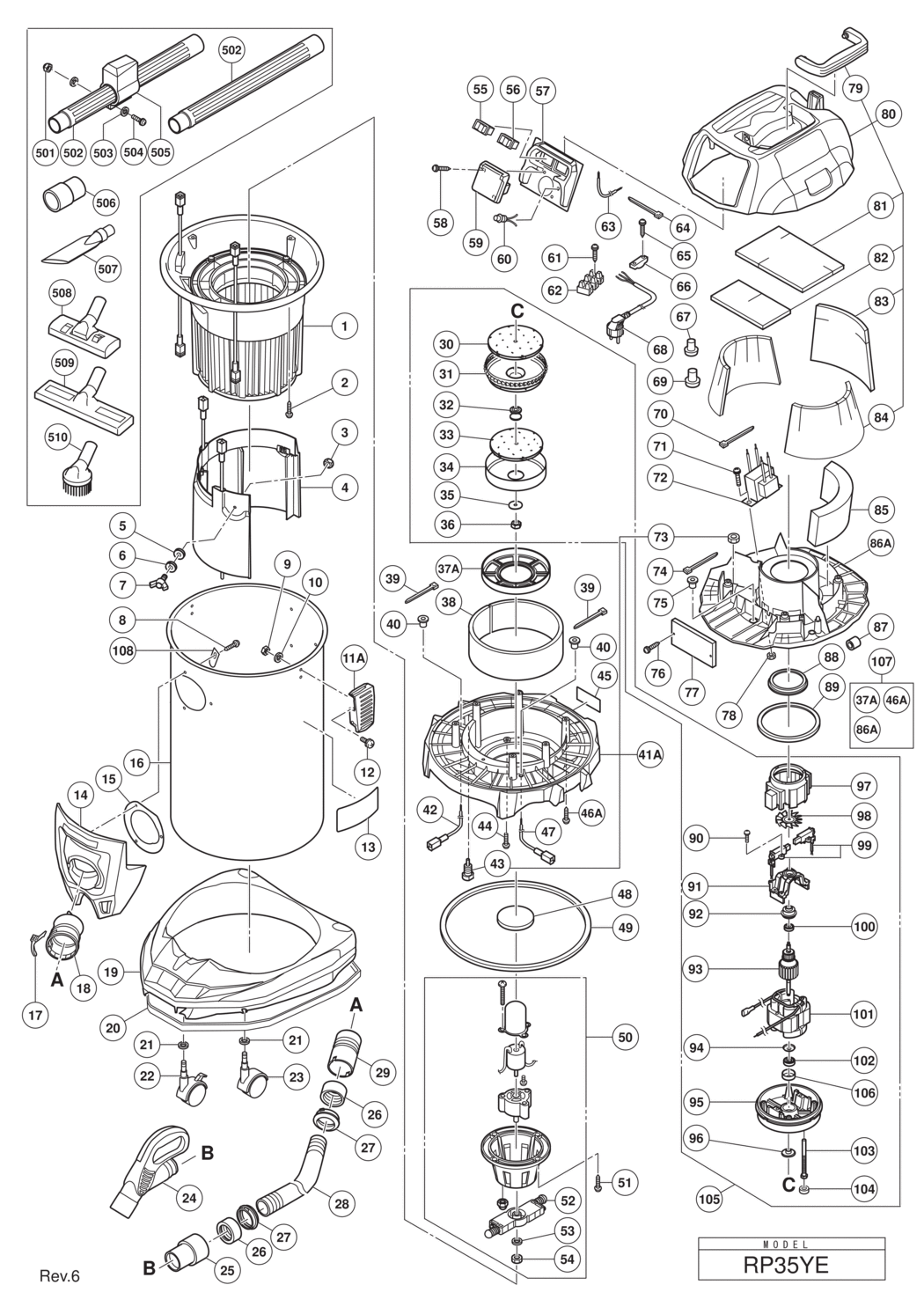

1 - POWDER FILTER
HIT-329359.A0
329359
|
-
|
|
|
|
2 - SCREW (PLASTIC TIE) D4X16
HIT-994810.A2
994810
|
-
|
|
|
|
3 - NUT M5 (10 PCS.)
HIT-949555.A22
949555
|
£1.67
|
£2.00
|
|
|
4 - WATER GUARD INCLUD.3
HIT-329360.A0
329360
|
-
|
|
|
|
5 - WASHER M5 (10 PCS.)
HIT-949424.A0
949424
|
£1.67
|
£2.00
|
|
|
6 - SPRING WASHER M5 (10 PCS.)
HIT-949454.A127
949454
|
£1.67
|
£2.00
|
|
|
7 - WING BOLT M5X15 (10 PCS.)
HIT-949393.A1
949393
|
-
|
|
|
|
8 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
HIT-307811.A46
307811
|
£1.67
|
£2.00
|
|
|
9 - HEX. CAP NUT M4
HIT-311839.A4
311839
|
-
|
|
|
|
10 - SPRING WASHER M4 (10 PCS.)
HIT-949453.A4
949453
|
£1.67
|
£2.00
|
|
|
11A - CLAMP
HIT-325867.A1
325867
|
-
|
|
|
|
12 - MACHINE SCREW M4X8 (BLACK)
HIT-323211.A7
323211
|
-
|
|
|
|
13 - DUST CLASS LABEL
HIT-000000.A5190
000000
|
-
|
|
|
|
14 - JOINT COVER (A)
HIT-329361.A0
329361
|
-
|
|
|
|
15 - JOINT COVER PACKING
HIT-325862.A1
325862
|
-
|
|
|
|
16 - TANK (SUS)
HIT-325905.A0
325905
|
-
|
|
|
|
17 - HOSE STOPPER
HIT-321014.A2
321014
|
-
|
|
|
|
18 - HOSE JOINT
HIT-325864.A0
325864
|
-
|
|
|
|
19 - BASE (SUS)
HIT-325904.A0
325904
|
-
|
|
|
|
20 - BUMPER (A)
HIT-325906.A0
325906
|
-
|
|
|
|
21 - BOLT WASHER M8 (10 PCS.)
HIT-949433.A5
949433
|
£1.67
|
£2.00
|
|
|
22 - CASTER D50 (W/STOPPER)
HIT-325859.A0
325859
|
-
|
|
|
|
23 - CASTER D50
HIT-325858.A2
325858
|
-
|
|
|
|
24 - JOINT HANDLE
HIT-325901.A1
325901
|
-
|
|
|
|
25 - SLEEVE (B) ID38
HIT-320986.A1
320986
|
-
|
|
|
|
26 - SCREW RING
HIT-321065.A0
321065
|
-
|
|
|
|
27 - CLICK RING
HIT-321066.A2
321066
|
-
|
|
|
|
28 - HOSE ASS'Y ID38 INCLUD.25-27
HIT-328684.A0
328684
|
£41.40
|
£49.68
|
|
|
29 - SLEEVE (A) ID38
HIT-320985.A2
320985
|
-
|
|
|
|
30 - FAN (A)
HIT-326218.A1
326218
|
-
|
|
|
|
31 - CASING (A)
HIT-326225.A0
326225
|
-
|
|
|
|
32 - SPACER
HIT-326226.A1
326226
|
-
|
|
|
|
33 - FAN (B)
HIT-326217.A0
326217
|
-
|
|
|
|
34 - CASING (B)
HIT-326227.A0
326227
|
-
|
|
|
|
35 - SPECIAL WASHER
HIT-326228.A1
326228
|
-
|
|
|
|
36 - LOCK NUT M8 (10 PCS.)
HIT-949568.A6
949568
|
£1.67
|
£2.00
|
|
|
37A - SUPPORT RING (B) SINCE 4.2012
HIT-334977.A2
334977
|
-
|
|
|
|
38 - MOTOR BASE FILTER
HIT-325875.A1
325875
|
-
|
|
|
|
39 - CABLE TIE
HIT-975144.A19
975144
|
-
|
|
|
|
40 - RUBBER BUSH
HIT-325950.A0
325950
|
-
|
|
|
|
41A - MOTOR BASE ASS'Y INCLUD.43
HIT-371713.A0
371713
|
-
|
|
|
|
42 - INTERNAL WIRE (J)
HIT-329362.A0
329362
|
-
|
|
|
|
43 - JOINT
HIT-325952.A0
325952
|
-
|
|
|
|
44 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK)
HIT-307811.A45
307811
|
£1.67
|
£2.00
|
|
|
45 - NAME PLATE
HIT-000000.A5191
000000
|
-
|
|
|
|
46A - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) SINCE 4.2012
HIT-307028.A2
307028
|
£1.67
|
£2.00
|
|
|
47 - INTERNAL WIRE (J)
HIT-329365.A0
329365
|
-
|
|
|
|
48 - MOTOR FILTER
HIT-325874.A0
325874
|
-
|
|
|
|
49 - MOTOR BASE PACKING
HIT-325873.A1
325873
|
-
|
|
|
|
50 - DUST MOTOR BASE ASS'Y INCLUD.52-54
HIT-328690.A0
328690
|
-
|
|
|
|
51 - P-TITE SCREW D4X20
HIT-994806.A3
994806
|
-
|
|
|
|
52 - DUST HANDLE
HIT-325947.A0
325947
|
-
|
|
|
|
53 - SPRING WASHER M6 (10 PCS.)
HIT-949455.A14
949455
|
£1.67
|
£2.00
|
|
|
54 - NUT M6 (10 PCS.)
HIT-949556.A13
949556
|
£1.67
|
£2.00
|
|
|
55 - SWITCH (B)
HIT-325931.A1
325931
|
-
|
|
|
|
56 - SWITCH (B)
HIT-325931.A2
325931
|
-
|
|
|
|
57 - SWITCH HOLDER (EU)
HIT-329756.A0
329756
|
-
|
|
|
|
58 - TAPPING SCREW (W/FLANGE) D3X16 (BLACK)
HIT-313687.A3
313687
|
£1.67
|
£2.00
|
|
|
59 - RECEPTACLE
HIT-328685.A1
328685
|
-
|
|
|
|
60 - PUSHING SWITCH
HIT-326107.A0
326107
|
-
|
|
|
|
61 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK)
HIT-301653.A36
301653
|
£1.67
|
£2.00
|
|
|
62 - TERMINAL PLATE
HIT-321041.A1
321041
|
-
|
|
|
|
63 - INTERNAL WIRE (E)
HIT-328686.A0
328686
|
-
|
|
|
|
64 - CABLE TIE
HIT-975144.A18
975144
|
-
|
|
|
|
65 - TAPPING SCREW (W/FLANGE) D4X20
HIT-305095.A4
305095
|
-
|
|
|
|
66 - CORD CLIP
HIT-995063.A1
995063
|
-
|
|
|
|
67 - CONNECTOR 50091 (10 PCS.)
HIT-959140.A67
959140
|
£4.98
|
£5.97
|
|
|
68 - CORD
HIT-500479Z.A1
500479Z
|
-
|
|
|
|
69 - CONNECTOR 50092 (10 PCS.)
HIT-959141.A44
959141
|
£7.12
|
£8.54
|
|
|
70 - CABLE TIE
HIT-975144.A16
975144
|
-
|
|
|
|
71 - MACHINE SCREW (W/WASHERS) M4X20
HIT-301295.A0
301295
|
-
|
|
|
|
72 - TRANSFORMER 230V
HIT-328687.A0
328687
|
-
|
|
|
|
73 - LOCK NUT M8 (10 PCS.)
HIT-949568.A5
949568
|
£1.67
|
£2.00
|
|
|
74 - CABLE TIE
HIT-975144.A17
975144
|
-
|
|
|
|
75 - RUBBER BUSH
HIT-328109.A0
328109
|
-
|
|
|
|
76 - TAPPING SCREW (W/FLANGE) D4X10 (BLACK)
HIT-325929.A0
325929
|
-
|
|
|
|
77 - PRINTED BOARD (A) (EU)
HIT-329366.A0
329366
|
-
|
|
|
|
78 - NUT M4 (10 PCS.)
HIT-949554.A5
949554
|
£1.67
|
£2.00
|
|
|
79 - HANDLE
HIT-325893.A0
325893
|
-
|
|
|
|
80 - HEAD COVER ASS'Y INCLUD.79
HIT-328688.A0
328688
|
-
|
|
|
|
81 - HEAD COVER PACKING (C)
HIT-325891.A0
325891
|
-
|
|
|
|
82 - HEAD COVER PACKING (D)
HIT-325892.A1
325892
|
-
|
|
|
|
83 - HEAD COVER PACKING (B)
HIT-325890.A1
325890
|
-
|
|
|
|
84 - HEAD COVER PACKING (A)
HIT-325889.A0
325889
|
-
|
|
|
|
85 - MOTOR COVER PACKING (B)
HIT-325882.A1
325882
|
-
|
|
|
|
86A - MOTOR COVER SINCE 4.2012
HIT-329367.A0
329367
|
-
|
|
|
|
87 - FERRITE CORE
HIT-329755.A0
329755
|
-
|
|
|
|
88 - SUPPORT RING (A)
HIT-325876.A0
325876
|
-
|
|
|
|
89 - MOTOR PACKING
HIT-325879.A1
325879
|
-
|
|
|
|
90 - MACHINE SCREW M4X14 (10 PCS.)
HIT-949218.A15
949218
|
£1.67
|
£2.00
|
|
|
91 - MOTOR FRAME
HIT-326221.A1
326221
|
-
|
|
|
|
92 - BEARING HOLDER (A)
HIT-326229.A1
326229
|
-
|
|
|
|
93 - ARMATURE 230V
HIT-360817.A1
360817
|
-
|
|
|
|
94 - PRESS PLATE
HIT-326222.A0
326222
|
-
|
|
|
|
95 - MOTOR BASE
HIT-326223.A1
326223
|
-
|
|
|
|
96 - FLANGE WASHER
HIT-326224.A0
326224
|
-
|
|
|
|
97 - FAN COVER
HIT-326215.A1
326215
|
-
|
|
|
|
98 - COOLING FAN
HIT-326216.A0
326216
|
-
|
|
|
|
99 - CARBON BRUSH (1 PAIR)
HIT-999102.A0
999102
|
-
|
|
|
|
100 - BALL BEARING 607Z
HIT-326231.A1
326231
|
-
|
|
|
|
101 - STATOR 230V
HIT-340710.A0
340710
|
-
|
|
|
|
102 - BALL BEARING 608RS
HIT-326230.A0
326230
|
-
|
|
|
|
103 - BOLT M5X70
HIT-326219.A1
326219
|
-
|
|
|
|
104 - RUBBER SPACER
HIT-326220.A0
326220
|
-
|
|
|
|
105 - MOTOR ASS'Y INCLUD.30-36
HIT-328689.A0
328689
|
-
|
|
|
|
106 - BEARING HOLDER (B)
HIT-334527.A0
334527
|
-
|
|
|
|
107 - MOTOR COVER SET INCLUD.37A
HIT-334980.A0
334980
|
-
|
|
|
|
108 - EARTH PLATE
HIT-325926.A0
325926
|
-
|
|
|
|
501 - HEX. CAP NUT M5 (BLACK)
HIT-321068.A0
321068
|
-
|
|
|
|
502 - EXTENSION PIPE
HIT-320990.A1
320990
|
-
|
|
|
|
503 - BOLT WASHER M5 (10 PCS.)
HIT-949431.A2
949431
|
£1.67
|
£2.00
|
|
|
504 - MACHINE SCREW M5X25 (BLACK)
HIT-302316.A3
302316
|
£1.67
|
£2.00
|
|
|
505 - PIPE HOLDER
HIT-321067.A1
321067
|
-
|
|
|
|
506 - ADAPTER
HIT-320994.A1
320994
|
£3.92
|
£4.70
|
|
|
507 - NOZZLE
HIT-320993.A1
320993
|
-
|
|
|
|
508 - NOZZLE FOR FLUID
HIT-320992.A0
320992
|
-
|
|
|
|
509 - WET NOZZLE
HIT-326127.A0
326127
|
-
|
|
|
|
510 - BRUSH
HIT-321984.A1
321984
|
-
|
|
|
|
601 - PAPER DUSTBAG SET (5 PCS.)
HIT-329638.A0
329638
|
-
|
|
|
