Hitachi / Hikoki RP35YB Dust Extractor Spare Parts

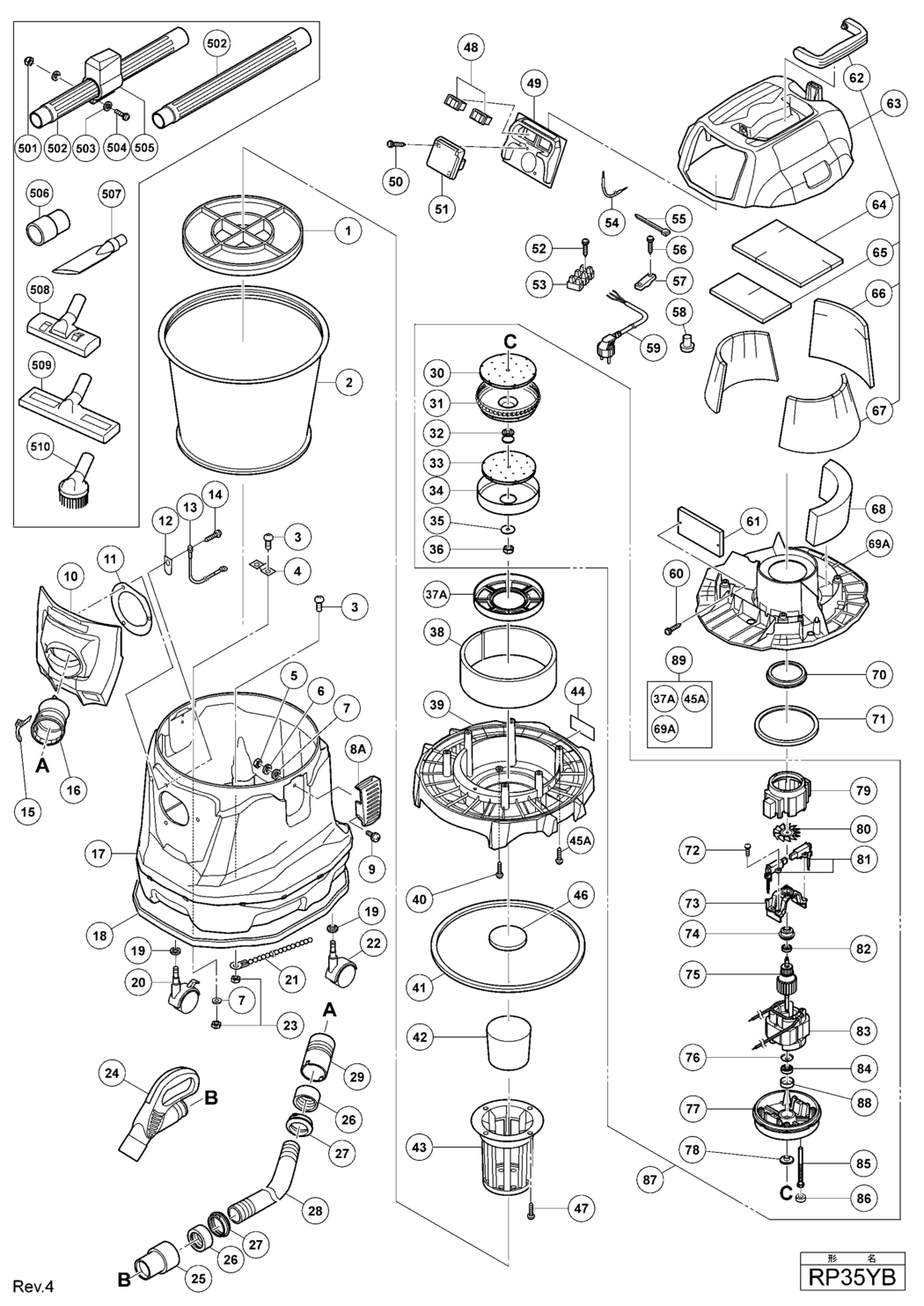

An exploded diagram and spare parts listing for the Hitachi / Hikoki RP35YB Dust Extractor

	Ex VAT	Inc VAT
1 - FILTER CAGE HIT-325869.A0 325869	-
2 - DRY DUST FILTER HIT-325626.A0 325626	-
3 - MACHINE SCREW M4X10 (10 PCS.) HIT-949216.A55 949216	£1.67	£2.00
4 - WIRE HOLDER HIT-321075.A0 321075	-
5 - HEX. CAP NUT M4 HIT-311839.A3 311839	-
6 - SPRING WASHER M4 (10 PCS.) HIT-949453.A3 949453	£1.67	£2.00
7 - WASHER M4 (10 PCS.) HIT-949423.A63 949423	£1.67	£2.00
8A - CLAMP HIT-325867.A0 325867	-
9 - MACHINE SCREW M4X12 (10 PCS.) HIT-949217.A0 949217	£1.67	£2.00
10 - JOINT COVER (B) HIT-325972.A0 325972	-
11 - JOINT COVER PACKING HIT-325862.A0 325862	-
12A - EARTH PLATE (B) HIT-334575.A0 334575	-
13 - INTERNAL WIRE (D) HIT-325871.A0 325871	-
14 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A44 307811	-
15 - HOSE STOPPER HIT-321014.A3 321014	-
16 - HOSE JOINT HIT-325864.A1 325864	-
17 - TANK (PLS) HIT-325860.A0 325860	-
18 - BUMPER (A) HIT-325906.A1 325906	-
19 - BOLT WASHER M8 (10 PCS.) HIT-949433.A7 949433	£1.67	£2.00
20 - CASTER D50 (W/STOPPER) HIT-325859.A1 325859	-
21 - EARTH CHAIN HIT-325870.A0 325870	-
22 - CASTER D50 HIT-325858.A1 325858	-
23 - NUT M4 (10 PCS.) HIT-949554.A4 949554	£1.67	£2.00
24 - JOINT HANDLE HIT-325901.A0 325901	-
25 - SLEEVE (B) ID38 HIT-320986.A2 320986	-
26 - SCREW RING HIT-321065.A1 321065	-
27 - CLICK RING HIT-321066.A1 321066	-
28 - HOSE ASS'Y ID38 INCLUD.25-27 HIT-328684.A1 328684	£41.40	£49.68
29 - SLEEVE (A) ID38 HIT-320985.A1 320985	-
30 - FAN (A) HIT-326218.A0 326218	-
31 - CASING (A) HIT-326225.A1 326225	-
32 - SPACER HIT-326226.A0 326226	-
33 - FAN (B) HIT-326217.A1 326217	-
34 - CASING (B) HIT-326227.A1 326227	-
35 - SPECIAL WASHER HIT-326228.A0 326228	-
36 - LOCK NUT M8 (10 PCS.) HIT-949568.A4 949568	£1.67	£2.00
37A - SUPPORT RING (B) SINCE 4.2012 HIT-334977.A1 334977	-
38 - MOTOR BASE FILTER HIT-325875.A0 325875	-
39 - MOTOR BASE HIT-325872.A0 325872	-
40 - TAPPING SCREW (W/FLANGE) D4X16 (BLACK) HIT-307811.A43 307811	-
41 - MOTOR BASE PACKING HIT-325873.A0 325873	-
42 - FLOAT HIT-325866.A0 325866	-
43 - FLOAT HOLDER HIT-325865.A0 325865	-
44 - NAME PLATE HIT-000000.A5187 000000	-
45A - TAPPING SCREW (W/FLANGE) D4X25 (BLACK) SINCE 4.2012 HIT-307028.A1 307028	£1.67	£2.00
46 - MOTOR FILTER HIT-325874.A1 325874	-
47 - SCREW (PLASTIC TIE) D4X16 HIT-994810.A1 994810	-
48 - SWITCH (B) HIT-325931.A0 325931	-
49 - SWITCH HOLDER HIT-328766.A0 328766	-
50 - TAPPING SCREW (W/FLANGE) D3X16 (BLACK) HIT-313687.A2 313687	£1.67	£2.00
51 - RECEPTACLE HIT-328685.A0 328685	-
52 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A37 301653	£1.67	£2.00
53 - TERMINAL PLATE HIT-321041.A0 321041	-
54 - INTERNAL WIRE (E) HIT-328686.A1 328686	-
55 - CABLE TIE HIT-975144.A15 975144	-
56 - TAPPING SCREW (W/FLANGE) D4X20 HIT-305095.A3 305095	-
57 - CORD CLIP HIT-995063.A0 995063	-
58 - CONNECTOR 50092 (10 PCS.) HIT-959141.A46 959141	£7.12	£8.54
59 - CORD HIT-500479Z.A0 500479Z	-
60 - TAPPING SCREW (W/FLANGE) D4X10 (BLACK) HIT-325929.A1 325929	-
61 - PCB FERRITE HIT-328765.A0 328765	-
62 - HANDLE HIT-325893.A1 325893	-
63 - HEAD COVER ASS'Y INCLUD.62 HIT-328688.A1 328688	-
64 - HEAD COVER PACKING (C) HIT-325891.A1 325891	-
65 - HEAD COVER PACKING (D) HIT-325892.A0 325892	-
66 - HEAD COVER PACKING (B) HIT-325890.A0 325890	-
67 - HEAD COVER PACKING (A) HIT-325889.A1 325889	-
68 - MOTOR COVER PACKING (B) HIT-325882.A0 325882	-
69A - MOTOR COVER SINCE 4.2012 HIT-325881.A0 325881	-
70 - SUPPORT RING (A) HIT-325876.A1 325876	-
71 - MOTOR PACKING HIT-325879.A0 325879	-
72 - MACHINE SCREW M4X14 (10 PCS.) HIT-949218.A13 949218	£1.67	£2.00
73 - MOTOR FRAME HIT-326221.A0 326221	-
74 - BEARING HOLDER (A) HIT-326229.A0 326229	-
75 - ARMATURE 230V HIT-360817.A0 360817	-
76 - PRESS PLATE HIT-326222.A1 326222	-
77 - MOTOR BASE HIT-326223.A0 326223	-
78 - FLANGE WASHER HIT-326224.A1 326224	-
79 - FAN COVER HIT-326215.A0 326215	-
80 - COOLING FAN HIT-326216.A1 326216	-
81 - CARBON BRUSH (1 PAIR) HIT-999066.A0 999066	-
82 - BALL BEARING 607Z HIT-326231.A0 326231	-
83 - STATOR 230V HIT-340710.A1 340710	-
84 - BALL BEARING 608RS HIT-326230.A1 326230	-
85 - BOLT M5X70 HIT-326219.A0 326219	-
86 - RUBBER SPACER HIT-326220.A1 326220	-
87 - MOTOR ASS'Y INCLUD.30-36 HIT-328689.A1 328689	-
88 - BEARING HOLDER (B) HIT-334527.A1 334527	-
89 - MOTOR COVER SET INCLUD.37A HIT-334979.A0 334979	-
501 - HEX. CAP NUT M5 (BLACK) HIT-321068.A1 321068	-
502 - EXTENSION PIPE HIT-320990.A0 320990	-
503 - BOLT WASHER M5 (10 PCS.) HIT-949431.A1 949431	£1.67	£2.00
504 - MACHINE SCREW M5X25 (BLACK) HIT-302316.A4 302316	£1.67	£2.00
505 - PIPE HOLDER HIT-321067.A0 321067	-
506 - ADAPTER HIT-320994.A0 320994	£3.92	£4.70
507 - NOZZLE HIT-320993.A0 320993	-
508 - NOZZLE FOR FLUID HIT-320992.A1 320992	-
509 - WET NOZZLE HIT-326127.A1 326127	-
510 - BRUSH HIT-321984.A0 321984	-
601 - PAPER DUSTBAG SET (5 PCS.) HIT-329639.A0 329639	-
602 - WET AND DRY FILTER HIT-326187.A0 326187	-
