Hitachi / Hikoki RP250YE Power Tool Dust Collecter Spare Parts

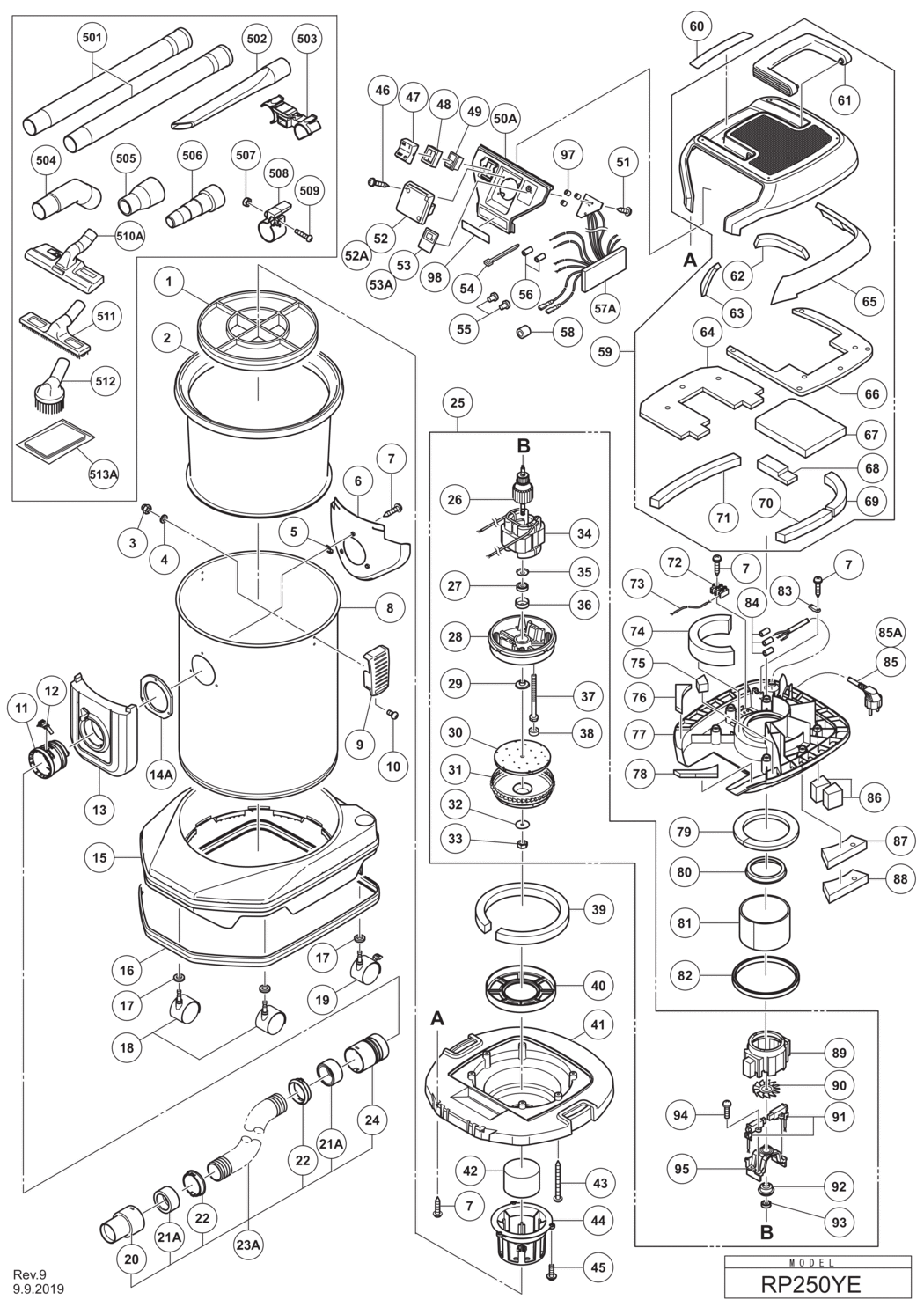

An exploded diagram and spare parts listing for the Hitachi / Hikoki RP250YE Power Tool Dust Collecter

	Ex VAT	Inc VAT
1 - FILTER CAGE HIT-325869.A1 325869	-
2 - DUST FILTER (25L?35L W/WET AND DRY) HIT-337459.A0 337459	-
3 - HEX. CAP NUT M4 HIT-311839.A5 311839	-
4 - SPRING WASHER M4 (10 PCS.) HIT-949453.A33 949453	£1.67	£2.00
5 - EARTH PLATE HIT-337454.A0 337454	-
6 - POLY GUIDE (B) HIT-337453.A0 337453	-
7 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A100 301653	£1.67	£2.00
8 - TANK HIT-337445.A0 337445	-
9 - CLAMP HIT-334398.A0 334398	-
10 - MACHINE SCREW M4X8 (BLACK) HIT-323211.A4 323211	-
11 - HOSE JOINT HIT-337451.A0 337451	-
12 - HOSE STOPPER HIT-321014.A1 321014	-
13 - JOINT COVER (B) HIT-337450.A0 337450	-
14A - JOINT COVER PACKING HIT-339182.A2 339182	-
15 - BASE (SUS) HIT-337443.A0 337443	-
16 - BUMPER (A) HIT-325906.A2 325906	-
17 - BOLT WASHER M8 (10 PCS.) HIT-949433.A28 949433	£1.67	£2.00
18 - CASTER D50 HIT-325858.A0 325858	-
19 - CASTER D50 (W/STOPPER) HIT-325859.A2 325859	-
20 - SLEEVE (B) ID38 HIT-320986.A0 320986	-
21 - SCREW RING (ID 38) TILL 7.2019 HIT-337512.A0 337512	-
21A - SCREW RING SINCE 8.2019 HIT-321065.A2 321065	-
22 - CLICK RING HIT-321066.A0 321066	-
23A - HOSE ASS'Y ID38 INCLUD.20 HIT-328684.A2 328684	£41.40	£49.68
24 - SLEEVE (A) ID38 HIT-320985.A3 320985	-
*25 - MOTOR ASS'Y INCLUD.26-38 HIT-337472.A0 337472	-
*26 - ARMATURE 230V HIT-361018.A0 361018	-
27 - BALL BEARING 608VVCM HIT-339168.A0 339168	£4.45	£5.34
28 - MOTOR BASE HIT-339173.A0 339173	-
29 - FLANGE WASHER HIT-339174.A0 339174	-
30 - FAN HIT-339166.A0 339166	-
31 - CASING HIT-339177.A0 339177	-
32 - SPECIAL WASHER HIT-339178.A2 339178	-
33 - LOCK NUT M8 HIT-339175.A2 339175	-
*34 - STATOR 230V HIT-340919.A0 340919	-
35 - PRESS PLATE HIT-339172.A0 339172	-
36 - BEARING HOLDER (B) HIT-339180.A0 339180	-
37 - BOLT (W/WASHER) M5X60 HIT-339169.A0 339169	-
38 - RUBBER COVER HIT-339170.A0 339170	-
39 - SILENT FILTER (C) HIT-337477.A0 337477	-
40 - SUPPORT RING (B) HIT-334977.A4 334977	-
41 - MOTOR BASE (B) HIT-337469.A0 337469	-
42 - FLOAT HIT-338455.A0 338455	-
43 - TAPPING SCREW (W/FLANGE) D4X45 (BLACK) HIT-301815.A9 301815	£1.67	£2.00
44 - FLOAT HOLDER (A) HIT-337456.A0 337456	-
45 - SCREW (PLASTIC TIE) D4X16 HIT-994810.A3 994810	-
*46 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) FOR GBR HIT-301653.A101 301653	£1.67	£2.00
47 - SWITCH COVER HIT-337502.A0 337502	-
48 - SWITCH PACKING HIT-337503.A0 337503	-
49 - SWITCH (B) HIT-338471.A0 338471	-
50A - SWITCH HOLDER (D) HIT-337495.A0 337495	-
51 - TAPPING SCREW (W/FLANGE) D3X12 HIT-000000.A4154 000000	-
*52 - RECEPTACLE (UK) FOR GBR HIT-337500.A0 337500	-
*53 - PANEL SHEET (D) FOR GBR HIT-338578.A0 338578	-
54 - CABLE TIE HIT-975144.A11 975144	-
55 - CONNECTOR 50092 (10 PCS.) HIT-959141.A1 959141	£7.12	£8.54
57A - CONTROLLER ASS'Y INCLUD.97 HIT-337481.A0 337481	-
58 - FERRITE CORE HIT-329755.A2 329755	-
59 - HEAD COVER ASS'Y INCLUD.61-71 HIT-338259.A0 338259	-
60 - NAME PLATE HIT-000000.A4155 000000	-
61 - HANDLE HIT-337505.A0 337505	-
62 - HEAD COVER PACKING (C) HIT-337508.A0 337508	-
63 - HEAD COVER PACKING (F) HIT-338457.A0 338457	-
64 - HEAD COVER PACKING (D) HIT-337509.A0 337509	-
65 - HEAD COVER PACKING (B) HIT-337507.A0 337507	-
66 - HEAD COVER PACKING (A) HIT-337506.A0 337506	-
67 - HEAD COVER PACKING (E) HIT-338458.A0 338458	-
68 - SILENT FILTER (E) HIT-338459.A0 338459	-
69 - SILENT FILTER (D) HIT-338460.A0 338460	-
70 - SILENT FILTER (F) HIT-338461.A0 338461	-
71 - SILENT FILTER (D) HIT-337478.A0 337478	-
72 - TERMINAL PLATE HIT-321041.A2 321041	-
*73 - INTERNAL WIRE FOR GBR HIT-338493.A0 338493	-
74 - SILENT FILTER (G) HIT-338462.A0 338462	-
75 - SILENT FILTER (M) HIT-338464.A0 338464	-
76 - MOTOR COVER PACKING (A) HIT-338466.A0 338466	-
77 - MOTOR COVER HIT-337474.A0 337474	-
78 - MOTOR COVER PACKING (A) HIT-338465.A0 338465	-
79 - SILENT FILTER (G) HIT-338463.A0 338463	-
80 - SUPPORT RING (A) HIT-325876.A2 325876	-
81 - SILENT FILTER (B) HIT-337476.A0 337476	-
82 - MOTOR PACKING (A) HIT-338467.A0 338467	-
83 - CORD CLIP HIT-995063.A2 995063	-
*84 - TUBE (D) FOR GBR HIT-981373.A118 981373	£1.67	£2.00
*85 - CORD (UK) FOR GBR HIT-337490.A0 337490	-
86 - SILENT FILTER (L) HIT-338468.A0 338468	-
87 - SILENT FILTER (K) HIT-338469.A0 338469	-
88 - SILENT FILTER (K) HIT-338470.A0 338470	-
89 - FAN COVER HIT-339163.A0 339163	-
90 - COOLING FAN HIT-339164.A0 339164	-
91 - CARBON BRUSH (1 PAIR) HIT-339161.A0 339161	-
92 - BEARING HOLDER (A) HIT-339179.A0 339179	-
93 - BALL BEARING 607VVCM HIT-339167.A0 339167	-
94 - MACHINE SCREW (W/WASHERS) M4X16 HIT-339165.A0 339165	-
95 - MOTOR FRAME HIT-339171.A0 339171	-
97 - CUSHION HIT-370077.A0 370077	-
98 - BRAND LABEL HIT-000000.A4156 000000	-
501 - MOLD PIPE HIT-337519.A0 337519	-
502 - CREVICE NOZZLE HIT-337523.A1 337523	-
503 - PIPE HOLDER HIT-337518.A0 337518	-
504 - JOINT HANDLE HIT-337521.A0 337521	-
505 - ADAPTER HIT-320994.A5 320994	£3.92	£4.70
506 - JOINT (D) HIT-337527.A1 337527	£7.39	£8.87
507 - NUT M4 (10 PCS.) HIT-949554.A28 949554	£1.67	£2.00
508 - PIPE HANGER HIT-337520.A0 337520	-
509 - MACHINE SCREW (W/WASHERS) M4X16 HIT-993539.A1 993539	£1.67	£2.00
510A - NOZZLE FOR FLUID HIT-337522.A0 337522	-
511 - WET NOZZLE HIT-326127.A2 326127	-
512 - BRUSH HIT-321984.A2 321984	-
*513A - POLYETHYLENE BAG (5 PCS.) FOR EUROPE HIT-375680.A0 375680	-
601 - PAPER DUSTBAG SET (5 PCS.) HIT-329638.A1 329638	-
