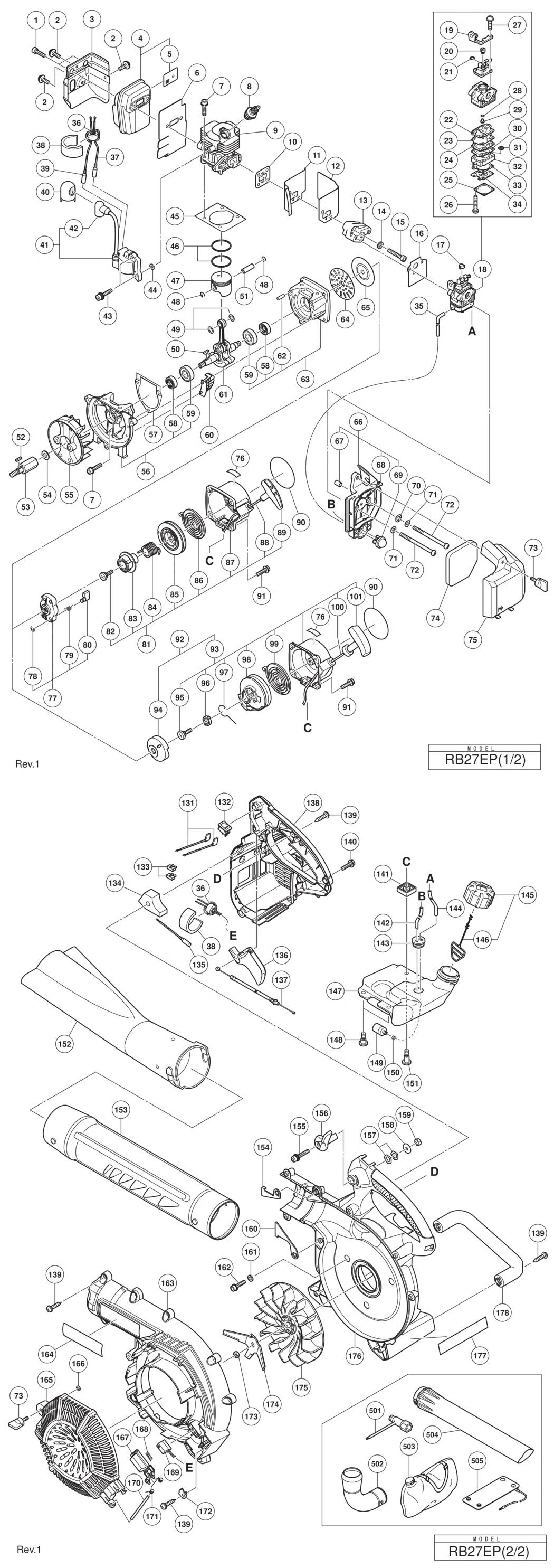

1 - SEAL LOCK HEX. SOCKET HD. BOLT M6X16
HIT-6600518.A12
6600518
|
-
|
|
|
|
2 - MACHINE SCREW (W/WASHERS) M4X8 (BLACK)
HIT-6601439.A6
6601439
|
-
|
|
|
|
3 - HEAT SHIELD
HIT-6601510.A2
6601510
|
-
|
|
|
|
4 - MUFFLER ASS'Y
HIT-6601488.A2
6601488
|
-
|
|
|
|
5 - SPARK ARRESTER
HIT-6601438.A12
6601438
|
-
|
|
|
|
6 - HEAT PROTECTION PANEL
HIT-6601492.A4
6601492
|
-
|
|
|
|
7 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X22
HIT-6601339.A4
6601339
|
-
|
|
|
|
8 - IGNITION PLUG (TORCH L7RTC)
HIT-6600542.A25
6600542
|
-
|
|
|
|
9 - CYLINDER N27
HIT-6600903.A12
6600903
|
-
|
|
|
|
10 - INSULATOR GASKET
HIT-6684865.A1
6684865
|
£1.67
|
£2.00
|
|
|
11 - AIR DEFLECTOR
HIT-6601490.A4
6601490
|
-
|
|
|
|
12 - DEFLECTOR PACKING
HIT-6601593.A4
6601593
|
-
|
|
|
|
13 - CARBURETOR INSULATOR
HIT-6601491.A6
6601491
|
-
|
|
|
|
14 - SPRING WASHER D6
HIT-6600910.A5
6600910
|
-
|
|
|
|
15 - SEAL LOCK HEX. SOCKET HD. BOLT M6X27
HIT-6601358.A12
6601358
|
-
|
|
|
|
16 - CARBURETOR PACKING
HIT-6698405.A40
6698405
|
£3.12
|
£3.74
|
|
|
17 - SWIVEL CAP
HIT-6691337.A0
6691337
|
£1.67
|
£2.00
|
|
|
18 - CARBURETOR ASS'Y INCLUD.19-34
HIT-6601487.A3
6601487
|
-
|
|
|
|
19 - CABLE ADJUST STAY
HIT-6699287.A26
6699287
|
-
|
|
|
|
20 - SWIVEL
HIT-6696830.A46
6696830
|
-
|
|
|
|
21 - STOP RING
HIT-6684696.A77
6684696
|
-
|
|
|
|
22 - PUMP GASKET
HIT-6684692.A75
6684692
|
£17.28
|
£20.73
|
|
|
23 - PUMP DIAPHRAGM
HIT-6684693.A74
6684693
|
£5.70
|
£6.84
|
|
|
24 - PUMP PLATE
HIT-6691242.A38
6691242
|
-
|
|
|
|
25 - DIAPHRAGM COVER-METERING
HIT-6685222.A145
6685222
|
£5.70
|
£6.84
|
|
|
26 - SET SCREW
HIT-6691312.A92
6691312
|
-
|
|
|
|
27 - SET SCREW M3X12
HIT-6696829.A6
6696829
|
-
|
|
|
|
28 - O-RING
HIT-6684695.A121
6684695
|
£1.67
|
£2.00
|
|
|
29 - JET
HIT-000000.A594
000000
|
-
|
|
|
|
30 - CIRCUIT PLATE
HIT-6691234.A23
6691234
|
-
|
|
|
|
31 - INLET SCREEN
HIT-6684700.A86
6684700
|
-
|
|
|
|
32 - PUMP BODY COMP.
HIT-6696828.A46
6696828
|
£13.28
|
£15.93
|
|
|
33 - DIAPHRAGM PACKING-METERING
HIT-6685220.A33
6685220
|
£2.81
|
£3.37
|
|
|
34 - METERING DIAPHRAGM
HIT-6684690.A79
6684690
|
£24.05
|
£28.86
|
|
|
35 - FUEL PIPE
HIT-6601444.A19
6601444
|
-
|
|
|
|
36 - FERRITE CORE
HIT-334379.A23
334379
|
-
|
|
|
|
37 - CORD (GREEN/YELLOW)
HIT-6601504.A1
6601504
|
-
|
|
|
|
38 - SUPPORT (D)
HIT-6601617.A6
6601617
|
-
|
|
|
|
39 - CORD (BLACK)
HIT-6601503.A1
6601503
|
-
|
|
|
|
40 - PLUG CAP COVER
HIT-6601598.A0
6601598
|
-
|
|
|
|
41 - IGNITION COIL ASS'Y INCLUD.42
HIT-6698397.A10
6698397
|
£24.24
|
£29.09
|
|
|
42 - CORD
HIT-6696833.A8
6696833
|
-
|
|
|
|
43 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18
HIT-6698388.A5
6698388
|
£1.67
|
£2.00
|
|
|
44 - GLASS WASHER
HIT-6698700.A71
6698700
|
£1.67
|
£2.00
|
|
|
45 - CYLINDER PACKING
HIT-6600510.A17
6600510
|
-
|
|
|
|
46 - PISTON RING
HIT-6601353.A8
6601353
|
-
|
|
|
|
47 - PISTON (M)
HIT-6600905.A7
6600905
|
-
|
|
|
|
48 - CIR CLIP
HIT-6684590.A136
6684590
|
£1.67
|
£2.00
|
|
|
49 - SHIM
HIT-6600909.A9
6600909
|
-
|
|
|
|
50 - WOODRUFF KEY 3X13X4.5
HIT-6601343.A11
6601343
|
-
|
|
|
|
51 - PISTON PIN
HIT-6601344.A16
6601344
|
-
|
|
|
|
52 - FEATHER KEY 3X3X12
HIT-937177.A5
937177
|
£1.67
|
£2.00
|
|
|
53 - SPECIAL BOLT (A)
HIT-6601594.A2
6601594
|
-
|
|
|
|
54 - BOLT WASHER M8 (BLACK)
HIT-323212.A62
323212
|
£1.67
|
£2.00
|
|
|
55 - MAGNETO ROTOR
HIT-6699289.A2
6699289
|
£24.52
|
£29.43
|
|
|
56 - CRANK CASE (F) ASS'Y INCLUD.58
HIT-6601619.A0
6601619
|
-
|
|
|
|
57 - CRANK CASE PACKING
HIT-6600514.A21
6600514
|
-
|
|
|
|
58 - OIL SEAL TB 12227
HIT-6684607.A150
6684607
|
£4.07
|
£4.88
|
|
|
59 - BALL BEARING 6001 C3
HIT-6684608.A55
6684608
|
£5.70
|
£6.84
|
|
|
60 - CRANK CASE GUARD
HIT-6600924.A3
6600924
|
-
|
|
|
|
61 - CRANK SHAFT
HIT-6601624.A3
6601624
|
-
|
|
|
|
62 - KNOCK PIN 4X12
HIT-6696947.A38
6696947
|
-
|
|
|
|
63 - CRANK CASE (R) ASS'Y INCLUD.58
HIT-6601620.A6
6601620
|
-
|
|
|
|
64 - RECOIL FAN (A)
HIT-6601625.A3
6601625
|
-
|
|
|
|
65 - RECOIL FAN (B)
HIT-6601626.A3
6601626
|
-
|
|
|
|
66 - AIR CLEANER BASE ASS'Y INCLUD.67-69
HIT-6600911.A10
6600911
|
-
|
|
|
|
67 - COLLAR M5
HIT-6601340.A12
6601340
|
-
|
|
|
|
68 - CHOKE VALVE
HIT-6601341.A4
6601341
|
-
|
|
|
|
69 - PRIMING PUMP COMP.
HIT-6685139.A83
6685139
|
£10.67
|
£12.80
|
|
|
70 - WAVE WASHER 8
HIT-334242.A9
334242
|
-
|
|
|
|
71 - BOLT WASHER D5
HIT-6685407.A31
6685407
|
-
|
|
|
|
72 - SCREW M5X55
HIT-6601592.A2
6601592
|
-
|
|
|
|
73 - COVER SETTING BOLT
HIT-6601509.A3
6601509
|
-
|
|
|
|
74 - AIR CLEANER ELEMENT
HIT-6600529.A3
6600529
|
-
|
|
|
|
75 - AIR CLEANER COVER
HIT-6601484.A0
6601484
|
-
|
|
|
|
76 - TANK MARK LABEL (50:1)
HIT-6698921.A55
6698921
|
-
|
|
|
|
77 - STARTER PULLEY ASS'Y INCLUD.78-80 FOR AUS
HIT-6684681.A104
6684681
|
£18.16
|
£21.79
|
|
|
78 - D4E RETAINING RING FOR AUS
HIT-6685101.A93
6685101
|
-
|
|
|
|
79 - STARTER PAWL SPRING FOR AUS
HIT-6684684.A19
6684684
|
£3.29
|
£3.95
|
|
|
80 - STARTER PAWL FOR AUS
HIT-6684685.A92
6684685
|
£5.07
|
£6.08
|
|
|
81 - RECOIL STARTER BODY ASS'Y INCLUD.82-89 FOR AUS
HIT-6601570.A36
6601570
|
£23.15
|
£27.78
|
|
|
82 - SET SCREW FOR AUS
HIT-6684679.A145
6684679
|
£2.98
|
£3.57
|
|
|
83 - CAM PLATE FOR AUS
HIT-6699996.A78
6699996
|
£4.28
|
£5.13
|
|
|
84 - DAMPER SPRING FOR AUS
HIT-6684677.A94
6684677
|
£6.66
|
£7.99
|
|
|
85 - STARTER ROPE REEL FOR AUS
HIT-6699997.A11
6699997
|
-
|
|
|
|
86 - RECOIL SPRING FOR AUS
HIT-6684675.A32
6684675
|
£8.82
|
£10.58
|
|
|
87 - RECOIL STARTER BODY COMP. FOR AUS
HIT-6684673.A2
6684673
|
£12.98
|
£15.58
|
|
|
88 - STARTER ROPE 3.5X860 FOR AUS
HIT-6684674.A76
6684674
|
£5.70
|
£6.84
|
|
|
89 - STARTER HANDLE FOR AUS
HIT-6684680.A9
6684680
|
£5.87
|
£7.04
|
|
|
90 - NAME PLATE
HIT-000000.A2307
000000
|
-
|
|
|
|
91 - HEX. SOCKET HD. BOLT (W/FLANGE) M4X14
HIT-6601591.A5
6601591
|
-
|
|
|
|
92 - RECOIL STARTER ASS'Y INCLUD.93
HIT-6600408.A5
6600408
|
£12.85
|
£15.42
|
|
|
93 - RECOIL ASS'Y INCLUD.95-101 FOR EUROPE
HIT-6600406.A5
6600406
|
£18.74
|
£22.49
|
|
|
94 - STARTER PULLEY FOR EUROPE
HIT-6600407.A5
6600407
|
£1.67
|
£2.00
|
|
|
95 - RECOIL SET SCREW FOR EUROPE
HIT-6600404.A5
6600404
|
-
|
|
|
|
96 - SWING ARM HOLDER FOR EUROPE
HIT-6600402.A5
6600402
|
-
|
|
|
|
97 - SWING ARM FOR EUROPE
HIT-6600401.A5
6600401
|
-
|
|
|
|
98 - RECOIL REEL FOR EUROPE
HIT-6600405.A5
6600405
|
-
|
|
|
|
99 - RECOIL SPRING FOR EUROPE
HIT-6600403.A5
6600403
|
-
|
|
|
|
100 - RECOIL ROPE 3X800 FOR EUROPE
HIT-6600400.A5
6600400
|
-
|
|
|
|
101 - RECOIL HANDLE FOR EUROPE
HIT-6600399.A5
6600399
|
-
|
|
|
|
131 - STOP CORD 145L
HIT-6601506.A1
6601506
|
-
|
|
|
|
132 - STOP SWITCH
HIT-6601275.A28
6601275
|
£1.67
|
£2.00
|
|
|
133 - PILLAR TERMINAL
HIT-938307.A16
938307
|
£3.28
|
£3.93
|
|
|
134 - HEAT PROTECTION SPONGE
HIT-6601623.A3
6601623
|
-
|
|
|
|
135 - LEAD WIRE
HIT-6601630.A1
6601630
|
-
|
|
|
|
136 - THROTTLE LEVER
HIT-6698391.A6
6698391
|
£1.67
|
£2.00
|
|
|
137 - THROTTLE WIRE COMP.
HIT-6698399.A10
6698399
|
£3.24
|
£3.89
|
|
|
*138 - MUFFLER PROTECTOR (VERMILION)
HIT-6601482.A0
6601482
|
-
|
|
|
|
*138 - MUFFLER PROTECTOR (GREEN) FOR AUS
HIT-6601483.A2
6601483
|
-
|
|
|
|
139 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK)
HIT-302089.A14
302089
|
£1.67
|
£2.00
|
|
|
140 - HEX. SOCKET HD. BOLT (W/FLANGE) M4X14
HIT-6601591.A6
6601591
|
-
|
|
|
|
141 - SPACER
HIT-6699558.A35
6699558
|
-
|
|
|
|
142 - FUEL PIPE L70
HIT-6699014.A32
6699014
|
£2.77
|
£3.32
|
|
|
143 - FUEL GROMMET
HIT-6600358.A29
6600358
|
£1.67
|
£2.00
|
|
|
144 - FUEL PIPE L140
HIT-6600521.A14
6600521
|
£1.67
|
£2.00
|
|
|
145 - FUEL TANK CAP ASS'Y INCLUD.146
HIT-6698402.A82
6698402
|
-
|
|
|
|
146 - TANK CAP CHAIN
HIT-6698732.A14
6698732
|
-
|
|
|
|
147 - TANK
HIT-6600519.A17
6600519
|
-
|
|
|
|
148 - BOLT (W/FLANGE) L17.8
HIT-6696574.A41
6696574
|
£1.67
|
£2.00
|
|
|
149 - PUMP FILTER
HIT-6600351.A32
6600351
|
£4.45
|
£5.34
|
|
|
150 - CLIP
HIT-6696949.A42
6696949
|
£1.67
|
£2.00
|
|
|
151 - BOLT (W/FLANGE) L23.8
HIT-6698512.A29
6698512
|
£1.67
|
£2.00
|
|
|
152 - FLAT NOZZLE
HIT-6699184.A4
6699184
|
-
|
|
|
|
153 - NOZZLE (A)
HIT-6601600.A6
6601600
|
-
|
|
|
|
154 - STOPPER PLATE (A)
HIT-6601501.A3
6601501
|
-
|
|
|
|
155 - HEX. SOCKET HD. BOLT (W/WASHERS) M5
HIT-6600372.A10
6600372
|
-
|
|
|
|
156 - CRUISE LEVER
HIT-6601498.A1
6601498
|
-
|
|
|
|
157 - WAVE WASHER
HIT-6601631.A1
6601631
|
-
|
|
|
|
158 - CLUTCH WASHER (B)
HIT-6696547.A2
6696547
|
£1.67
|
£2.00
|
|
|
159 - NUT M5 (BLACK)
HIT-302012.A47
302012
|
£1.67
|
£2.00
|
|
|
160 - STOPPER PLATE (B)
HIT-6601502.A1
6601502
|
-
|
|
|
|
161 - WASHER 5
HIT-6685408.A14
6685408
|
£3.49
|
£4.19
|
|
|
162 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18
HIT-6698386.A4
6698386
|
-
|
|
|
|
*163 - VOLUTE CASE (B) VERMILION
HIT-6601494.A1
6601494
|
-
|
|
|
|
*163 - VOLUTE CASE (B) GREEN FOR AUS
HIT-6601596.A0
6601596
|
-
|
|
|
|
164 - BRAND LABEL
HIT-000000.A2308
000000
|
-
|
|
|
|
165 - GUARD NET (B)
HIT-6601495.A1
6601495
|
-
|
|
|
|
166 - O-RING (S-4)
HIT-981317.A6
981317
|
£1.67
|
£2.00
|
|
|
167 - SWITCH COVER
HIT-6684929.A1
6684929
|
-
|
|
|
|
168 - COVER SPRING ASS'Y
HIT-6684928.A3
6684928
|
-
|
|
|
|
169 - MICRO SWITCH
HIT-6601511.A2
6601511
|
-
|
|
|
|
170 - PIN
HIT-6684931.A1
6684931
|
-
|
|
|
|
171 - SPRING
HIT-6684930.A3
6684930
|
£1.67
|
£2.00
|
|
|
172 - PIN CLIP
HIT-6601632.A1
6601632
|
-
|
|
|
|
173 - U-NUT M8
HIT-6684932.A7
6684932
|
£1.67
|
£2.00
|
|
|
174 - SHREDDER
HIT-6601499.A1
6601499
|
-
|
|
|
|
175 - FAN
HIT-6601485.A6
6601485
|
-
|
|
|
|
*176 - FAN CASE (VERMILION)
HIT-6601481.A2
6601481
|
-
|
|
|
|
*176 - FAN CASE (GREEN) FOR AUS
HIT-6601597.A0
6601597
|
-
|
|
|
|
177 - CAUTION LABEL
HIT-000000.A2309
000000
|
-
|
|
|
|
178 - SUPPORT HANDLE
HIT-6601496.A1
6601496
|
-
|
|
|
|
501 - BOX WRENCH (HEX. SOCKET 17/19)
HIT-6684764.A15
6684764
|
£7.64
|
£9.17
|
|
|
502 - BENT PIPE FOR AUS
HIT-6601497.A1
6601497
|
-
|
|
|
|
503 - DUST BAG FOR AUS
HIT-6601601.A0
6601601
|
-
|
|
|
|
504 - VACUUM PIPE FOR AUS
HIT-6684946.A5
6684946
|
£14.42
|
£17.31
|
|
|
505 - EARTH GRIP FOR AUS
HIT-6601500.A2
6601500
|
-
|
|
|
|
601 - VACUUM KIT (RB-HVA FOR RB27EP RB27E) INCLUD.602-605 FOR EUROPE
HIT-6601633.A1
6601633
|
-
|
|
|
|
602 - BENT PIPE FOR EUROPE
HIT-6601497.A2
6601497
|
-
|
|
|
|
603 - DUST BAG FOR EUROPE
HIT-6601601.A1
6601601
|
-
|
|
|
|
604 - VACUUM PIPE FOR EUROPE
HIT-6684946.A6
6684946
|
£14.42
|
£17.31
|
|
|
605 - EARTH GRIP FOR EUROPE
HIT-6601500.A1
6601500
|
-
|
|
|
|
606 - NOZZLE (B)
HIT-6698394.A10
6698394
|
£8.72
|
£10.47
|
|
