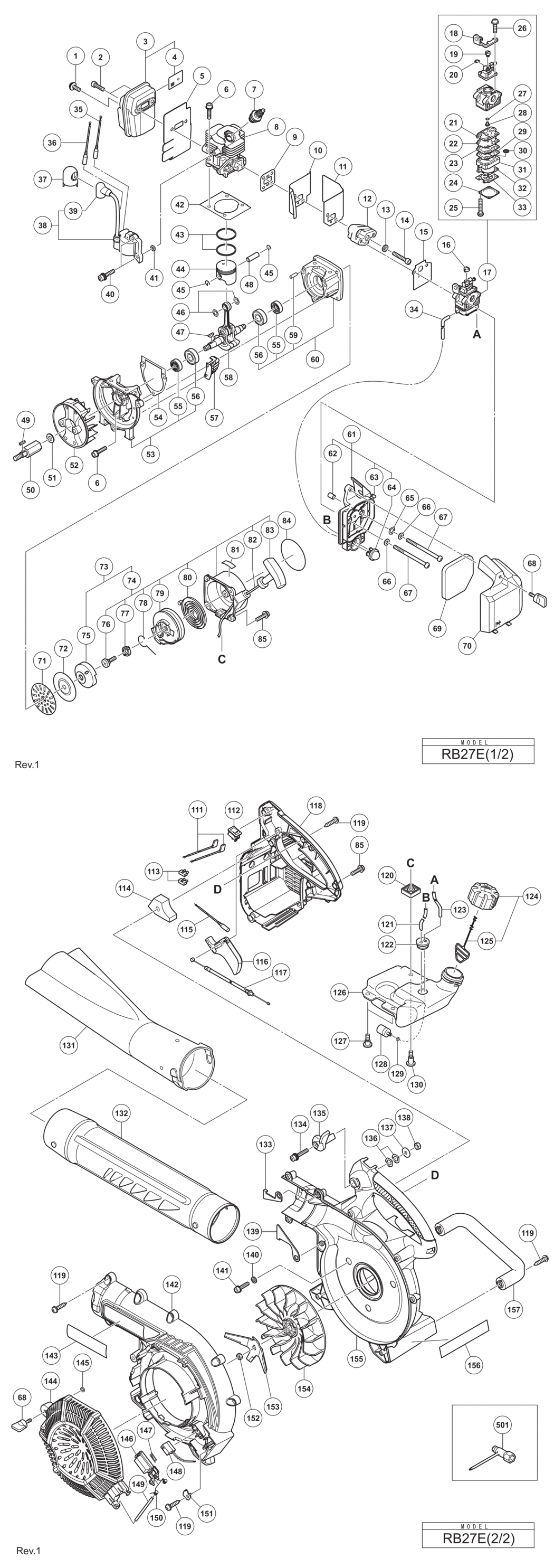

1 - MACHINE SCREW (W/WASHERS) M4X8 (BLACK)
HIT-6601439.A5
6601439
|
-
|
|
|
|
2 - SEAL LOCK HEX. SOCKET HD. BOLT M6X16
HIT-6600518.A11
6600518
|
-
|
|
|
|
3 - MUFFLER ASS'Y INCLUD.1
HIT-6601489.A1
6601489
|
-
|
|
|
|
4 - SPARK ARRESTER
HIT-6601438.A13
6601438
|
-
|
|
|
|
5 - HEAT PROTECTION PANEL
HIT-6601492.A1
6601492
|
-
|
|
|
|
6 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X22
HIT-6601339.A7
6601339
|
-
|
|
|
|
7 - IGNITION PLUG (TORCH L7RTC)
HIT-6600542.A24
6600542
|
-
|
|
|
|
8 - CYLINDER N27
HIT-6600903.A9
6600903
|
-
|
|
|
|
9 - INSULATOR GASKET
HIT-6684865.A4
6684865
|
£1.67
|
£2.00
|
|
|
10 - AIR DEFLECTOR
HIT-6601490.A1
6601490
|
-
|
|
|
|
11 - DEFLECTOR PACKING
HIT-6601593.A3
6601593
|
-
|
|
|
|
12 - CARBURETOR INSULATOR
HIT-6601491.A9
6601491
|
-
|
|
|
|
13 - SPRING WASHER D6
HIT-6600910.A4
6600910
|
-
|
|
|
|
14 - SEAL LOCK HEX. SOCKET HD. BOLT M6X27
HIT-6601358.A11
6601358
|
-
|
|
|
|
15 - CARBURETOR PACKING
HIT-6698405.A36
6698405
|
£3.12
|
£3.74
|
|
|
16 - SWIVEL CAP
HIT-6691337.A1
6691337
|
£1.67
|
£2.00
|
|
|
17 - CARBURETOR ASS'Y INCLUD.18-33
HIT-6601487.A2
6601487
|
-
|
|
|
|
18 - CABLE ADJUST STAY
HIT-6699287.A28
6699287
|
-
|
|
|
|
19 - SWIVEL
HIT-6696830.A49
6696830
|
-
|
|
|
|
20 - STOP RING
HIT-6684696.A75
6684696
|
-
|
|
|
|
21 - PUMP GASKET
HIT-6684692.A77
6684692
|
£17.28
|
£20.73
|
|
|
22 - PUMP DIAPHRAGM
HIT-6684693.A72
6684693
|
£5.70
|
£6.84
|
|
|
23 - PUMP PLATE
HIT-6691242.A41
6691242
|
-
|
|
|
|
24 - DIAPHRAGM COVER-METERING
HIT-6685222.A143
6685222
|
£5.70
|
£6.84
|
|
|
25 - SET SCREW
HIT-6691312.A89
6691312
|
-
|
|
|
|
26 - SET SCREW M3X12
HIT-6696829.A3
6696829
|
-
|
|
|
|
27 - O-RING
HIT-6684695.A123
6684695
|
£1.67
|
£2.00
|
|
|
28 - JET
HIT-000000.A576
000000
|
-
|
|
|
|
29 - CIRCUIT PLATE
HIT-6691234.A20
6691234
|
-
|
|
|
|
30 - INLET SCREEN
HIT-6684700.A87
6684700
|
-
|
|
|
|
31 - PUMP BODY COMP.
HIT-6696828.A49
6696828
|
£13.28
|
£15.93
|
|
|
32 - DIAPHRAGM PACKING-METERING
HIT-6685220.A36
6685220
|
£2.81
|
£3.37
|
|
|
33 - METERING DIAPHRAGM
HIT-6684690.A77
6684690
|
£24.05
|
£28.86
|
|
|
34 - FUEL PIPE
HIT-6601444.A20
6601444
|
-
|
|
|
|
35 - CORD (GREEN/YELLOW)
HIT-6601504.A2
6601504
|
-
|
|
|
|
36 - CORD (BLACK)
HIT-6601503.A0
6601503
|
-
|
|
|
|
37 - PLUG CAP COVER
HIT-6601598.A5
6601598
|
-
|
|
|
|
38 - IGNITION COIL ASS'Y INCLUD.39
HIT-6698397.A2
6698397
|
£24.24
|
£29.09
|
|
|
39 - CORD
HIT-6696833.A2
6696833
|
-
|
|
|
|
40 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18
HIT-6698388.A33
6698388
|
£1.67
|
£2.00
|
|
|
41 - GLASS WASHER
HIT-6698700.A49
6698700
|
£1.67
|
£2.00
|
|
|
42 - CYLINDER PACKING
HIT-6600510.A12
6600510
|
-
|
|
|
|
43 - PISTON RING
HIT-6601353.A2
6601353
|
-
|
|
|
|
44 - PISTON (M)
HIT-6600905.A2
6600905
|
-
|
|
|
|
45 - CIR CLIP
HIT-6684590.A79
6684590
|
£1.67
|
£2.00
|
|
|
46 - SHIM
HIT-6600909.A17
6600909
|
-
|
|
|
|
47 - WOODRUFF KEY 3X13X4.5
HIT-6601343.A3
6601343
|
-
|
|
|
|
48 - PISTON PIN
HIT-6601344.A24
6601344
|
-
|
|
|
|
49 - FEATHER KEY 3X3X12
HIT-937177.A6
937177
|
£1.67
|
£2.00
|
|
|
50 - SPECIAL BOLT (A)
HIT-6601594.A3
6601594
|
-
|
|
|
|
51 - BOLT WASHER M8 (BLACK)
HIT-323212.A46
323212
|
£1.67
|
£2.00
|
|
|
52 - MAGNETO ROTOR
HIT-6699289.A13
6699289
|
£24.52
|
£29.43
|
|
|
53 - CRANK CASE (F) ASS'Y INCLUD.55
HIT-6601619.A6
6601619
|
-
|
|
|
|
54 - CRANK CASE PACKING
HIT-6600514.A14
6600514
|
-
|
|
|
|
55 - OIL SEAL TB 12227
HIT-6684607.A165
6684607
|
£4.07
|
£4.88
|
|
|
56 - BALL BEARING 6001 C3
HIT-6684608.A40
6684608
|
£5.70
|
£6.84
|
|
|
57 - CRANK CASE GUARD
HIT-6600924.A9
6600924
|
-
|
|
|
|
58 - CRANK SHAFT
HIT-6601624.A2
6601624
|
-
|
|
|
|
59 - KNOCK PIN 4X12
HIT-6696947.A60
6696947
|
-
|
|
|
|
60 - CRANK CASE (R) ASS'Y INCLUD.55
HIT-6601620.A3
6601620
|
-
|
|
|
|
61 - AIR CLEANER BASE ASS'Y INCLUD.62-64
HIT-6600911.A12
6600911
|
-
|
|
|
|
62 - COLLAR M5
HIT-6601340.A14
6601340
|
-
|
|
|
|
63 - CHOKE VALVE
HIT-6601341.A3
6601341
|
-
|
|
|
|
64 - PRIMING PUMP COMP.
HIT-6685139.A126
6685139
|
£10.67
|
£12.80
|
|
|
65 - WAVE WASHER 8
HIT-334242.A3
334242
|
-
|
|
|
|
66 - BOLT WASHER D5
HIT-6685407.A49
6685407
|
-
|
|
|
|
67 - SCREW M5X55
HIT-6601592.A5
6601592
|
-
|
|
|
|
68 - COVER SETTING BOLT
HIT-6601509.A0
6601509
|
-
|
|
|
|
69 - AIR CLEANER ELEMENT
HIT-6600529.A8
6600529
|
-
|
|
|
|
70 - AIR CLEANER COVER
HIT-6601484.A5
6601484
|
-
|
|
|
|
71 - RECOIL FAN (A)
HIT-6601625.A6
6601625
|
-
|
|
|
|
72 - RECOIL FAN (B)
HIT-6601626.A0
6601626
|
-
|
|
|
|
73 - RECOIL STARTER ASS'Y INCLUD.74
HIT-6600408.A4
6600408
|
£12.85
|
£15.42
|
|
|
74 - RECOIL ASS'Y INCLUD.76-80
HIT-6600406.A4
6600406
|
£18.74
|
£22.49
|
|
|
75 - STARTER PULLEY
HIT-6600407.A6
6600407
|
£1.67
|
£2.00
|
|
|
76 - RECOIL SET SCREW
HIT-6600404.A4
6600404
|
-
|
|
|
|
77 - SWING ARM HOLDER
HIT-6600402.A4
6600402
|
-
|
|
|
|
78 - SWING ARM
HIT-6600401.A6
6600401
|
-
|
|
|
|
79 - RECOIL REEL
HIT-6600405.A6
6600405
|
-
|
|
|
|
80 - RECOIL SPRING
HIT-6600403.A6
6600403
|
-
|
|
|
|
*81 - TANK MARK LABEL (25:1)
HIT-6698922.A13
6698922
|
-
|
|
|
|
*81 - TANK MARK LABEL (50:1) FOR RUS
HIT-6698921.A33
6698921
|
-
|
|
|
|
82 - RECOIL ROPE 3X800
HIT-6600400.A4
6600400
|
-
|
|
|
|
83 - RECOIL HANDLE
HIT-6600399.A6
6600399
|
-
|
|
|
|
84 - NAME PLATE
HIT-000000.A577
000000
|
-
|
|
|
|
85 - HEX. SOCKET HD. BOLT (W/FLANGE) M4X14
HIT-6601591.A2
6601591
|
-
|
|
|
|
111 - STOP CORD 145L
HIT-6601506.A2
6601506
|
-
|
|
|
|
112 - STOP SWITCH
HIT-6601275.A9
6601275
|
£1.67
|
£2.00
|
|
|
113 - PILLAR TERMINAL
HIT-938307.A38
938307
|
£3.28
|
£3.93
|
|
|
114 - HEAT PROTECTION SPONGE
HIT-6601623.A5
6601623
|
-
|
|
|
|
115 - LEAD WIRE
HIT-6601630.A2
6601630
|
-
|
|
|
|
116 - THROTTLE LEVER
HIT-6698391.A2
6698391
|
£1.67
|
£2.00
|
|
|
117 - THROTTLE WIRE COMP.
HIT-6698399.A3
6698399
|
£3.24
|
£3.89
|
|
|
118 - MUFFLER PROTECTOR (VERMILION)
HIT-6601482.A4
6601482
|
-
|
|
|
|
119 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK)
HIT-302089.A39
302089
|
£1.67
|
£2.00
|
|
|
120 - SPACER
HIT-6699558.A23
6699558
|
-
|
|
|
|
121 - FUEL PIPE L70
HIT-6699014.A16
6699014
|
£2.77
|
£3.32
|
|
|
122 - FUEL GROMMET
HIT-6600358.A2
6600358
|
£1.67
|
£2.00
|
|
|
123 - FUEL PIPE L140
HIT-6600521.A8
6600521
|
£1.67
|
£2.00
|
|
|
124 - FUEL TANK CAP ASS'Y INCLUD.125
HIT-6698402.A48
6698402
|
-
|
|
|
|
125 - TANK CAP CHAIN
HIT-6698732.A43
6698732
|
-
|
|
|
|
126 - TANK
HIT-6600519.A10
6600519
|
-
|
|
|
|
127 - BOLT (W/FLANGE) L17.8
HIT-6696574.A49
6696574
|
£1.67
|
£2.00
|
|
|
128 - PUMP FILTER
HIT-6600351.A3
6600351
|
£4.45
|
£5.34
|
|
|
129 - CLIP
HIT-6696949.A65
6696949
|
£1.67
|
£2.00
|
|
|
130 - BOLT (W/FLANGE) L23.8
HIT-6698512.A19
6698512
|
£1.67
|
£2.00
|
|
|
131 - FLAT NOZZLE
HIT-6699184.A9
6699184
|
-
|
|
|
|
132 - NOZZLE (A)
HIT-6601600.A0
6601600
|
-
|
|
|
|
133 - STOPPER PLATE (A)
HIT-6601501.A0
6601501
|
-
|
|
|
|
134 - HEX. SOCKET HD. BOLT (W/WASHERS) M5
HIT-6600372.A2
6600372
|
-
|
|
|
|
135 - CRUISE LEVER
HIT-6601498.A2
6601498
|
-
|
|
|
|
136 - WAVE WASHER
HIT-6601631.A0
6601631
|
-
|
|
|
|
137 - CLUTCH WASHER (B)
HIT-6696547.A15
6696547
|
£1.67
|
£2.00
|
|
|
138 - NUT M5 (BLACK)
HIT-302012.A31
302012
|
£1.67
|
£2.00
|
|
|
139 - STOPPER PLATE (B)
HIT-6601502.A2
6601502
|
-
|
|
|
|
140 - WASHER 5
HIT-6685408.A2
6685408
|
£3.49
|
£4.19
|
|
|
141 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18
HIT-6698386.A31
6698386
|
-
|
|
|
|
142 - VOLUTE CASE (B) VERMILION
HIT-6601494.A2
6601494
|
-
|
|
|
|
143 - BRAND LABEL
HIT-000000.A578
000000
|
-
|
|
|
|
144 - GUARD NET (B)
HIT-6601495.A0
6601495
|
-
|
|
|
|
145 - O-RING (S-4)
HIT-981317.A22
981317
|
£1.67
|
£2.00
|
|
|
146 - SWITCH COVER
HIT-6684929.A0
6684929
|
-
|
|
|
|
147 - COVER SPRING ASS'Y
HIT-6684928.A4
6684928
|
-
|
|
|
|
148 - MICRO SWITCH
HIT-6601511.A0
6601511
|
-
|
|
|
|
149 - PIN
HIT-6684931.A0
6684931
|
-
|
|
|
|
150 - SPRING
HIT-6684930.A4
6684930
|
£1.67
|
£2.00
|
|
|
151 - PIN CLIP
HIT-6601632.A2
6601632
|
-
|
|
|
|
152 - U-NUT M8
HIT-6684932.A8
6684932
|
£1.67
|
£2.00
|
|
|
153 - SHREDDER
HIT-6601499.A0
6601499
|
-
|
|
|
|
154 - FAN
HIT-6601485.A0
6601485
|
-
|
|
|
|
155 - FAN CASE (VERMILION)
HIT-6601481.A0
6601481
|
-
|
|
|
|
156 - CAUTION MARK (EU)
HIT-000000.A579
000000
|
-
|
|
|
|
157 - SUPPORT HANDLE
HIT-6601496.A2
6601496
|
-
|
|
|
|
501 - BOX WRENCH (HEX. SOCKET 17/19)
HIT-6684764.A39
6684764
|
£7.64
|
£9.17
|
|
|
601 - VACUUM KIT (RB-HVA FOR RB27EP RB27E) INCLUD.602-605
HIT-6601633.A0
6601633
|
-
|
|
|
|
602 - BENT PIPE
HIT-6601497.A0
6601497
|
-
|
|
|
|
603 - DUST BAG
HIT-6601601.A3
6601601
|
-
|
|
|
|
604 - VACUUM PIPE
HIT-6684946.A2
6684946
|
£14.42
|
£17.31
|
|
|
605 - EARTH GRIP
HIT-6601500.A3
6601500
|
-
|
|
|
|
606 - NOZZLE (B)
HIT-6698394.A3
6698394
|
£8.72
|
£10.47
|
|
