Hitachi / Hikoki RB24EAP Engine Blower Spare Parts

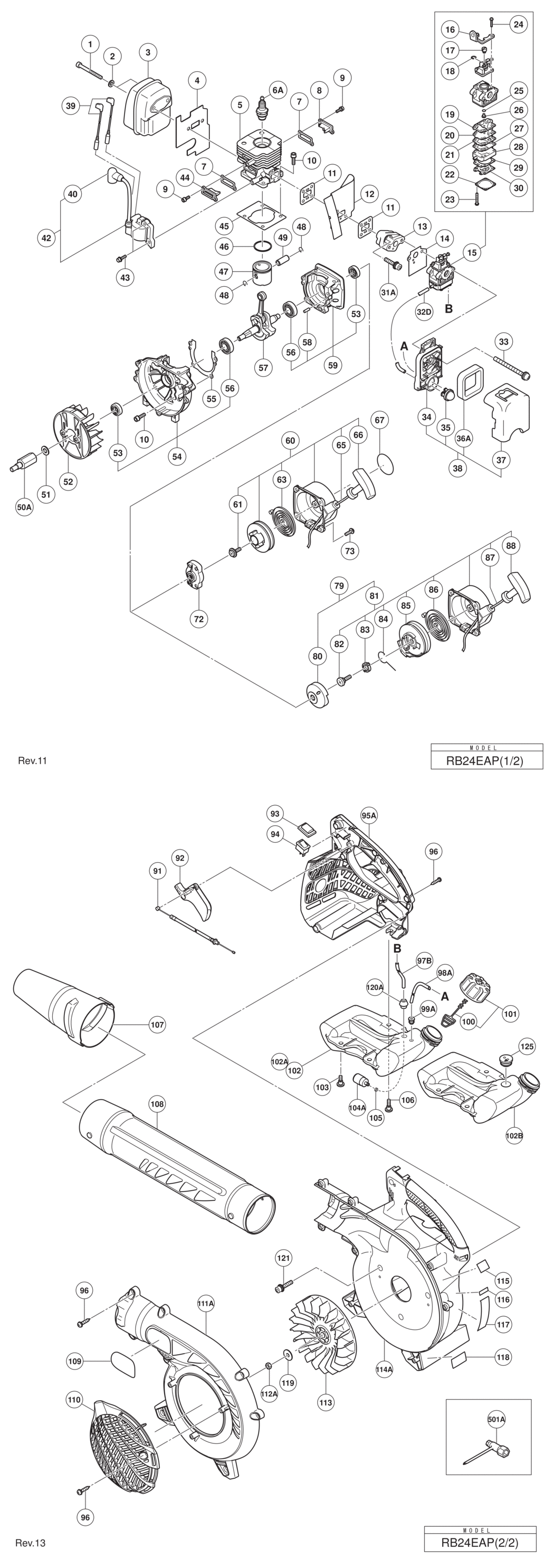

An exploded diagram and spare parts listing for the Hitachi / Hikoki RB24EAP Engine Blower

	Ex VAT	Inc VAT
1 - HEX. SOCKET HD. BOLT M6X65 HIT-6698384.A8 6698384	-
2 - BOLT WASHER M6 (10 PCS.) HIT-949432.A5 949432	£1.67	£2.00
3 - MUFFLER HIT-6698375.A1 6698375	£34.15	£40.98
4 - HEAT PROTECTION PLATE HIT-6698374.A1 6698374	£9.43	£11.32
5 - CYLINDER HIT-6698362.A2 6698362	£39.68	£47.62
*6A - SPARK PLUG ASS'Y BMR7A HIT-6699316.A18 6699316	£12.43	£14.92
*6A - SPARK PLUG ASS'Y CJ6 FOR USA HIT-6699322.A39 6699322	£3.73	£4.48
7 - COVER PACKING HIT-6698365.A9 6698365	£1.67	£2.00
8 - SCAVENGING COVER(A) HIT-6698363.A1 6698363	-
9 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A28 6698385	-
10 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A30 6698386	-
11 - INSULATOR GASKET HIT-6684865.A5 6684865	£1.67	£2.00
12 - FLASH PAN HIT-6698372.A1 6698372	£3.56	£4.27
13 - CARBURETOR INSULATOR HIT-6698387.A33 6698387	£4.72	£5.66
14 - CARBURETOR PACKING HIT-6698405.A37 6698405	£3.12	£3.74
15 - CARBURETOR ASS'Y (WYC-27) INCLUD.16-30 HIT-6698373.A2 6698373	£59.46	£71.35
16 - BRACKET CABLE HIT-000000.A563 000000	-
17 - SWIVEL HIT-6696830.A50 6696830	-
18 - STOP RING HIT-6684696.A74 6684696	-
19 - PUMP GASKET HIT-6684692.A78 6684692	£17.28	£20.73
20 - PUMP DIAPHRAGM HIT-6684693.A71 6684693	£5.70	£6.84
21 - PUMP PLATE HIT-6691242.A40 6691242	-
22 - DIAPHRAGM COVER-METERING HIT-6685222.A144 6685222	£5.70	£6.84
23 - SET SCREW HIT-6691312.A90 6691312	-
24 - SET SCREW M3X12 HIT-6696829.A2 6696829	-
25 - O-RING HIT-6684695.A124 6684695	£1.67	£2.00
26 - MAIN JET #36 HIT-6697090.A1 6697090	-
27 - CIRCUIT PLATE HIT-6691234.A21 6691234	-
28 - PUMP BODY COMP. HIT-6696828.A50 6696828	£13.28	£15.93
29 - DIAPHRAGM PACKING-METERING HIT-6685220.A35 6685220	£2.81	£3.37
30 - METERING DIAPHRAGM HIT-6684690.A76 6684690	£24.05	£28.86
31A - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A34 6698844	£1.67	£2.00
32D - FUEL PIPE HIT-6601444.A22 6601444	-
33 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A32 307224	£1.67	£2.00
34 - AIR CLEANER HOUSING HIT-66965549.A30 66965549	£15.62	£18.74
35 - PRIMING PUMP COMP. HIT-6685139.A127 6685139	£10.67	£12.80
36A - CLEANER SPONGE HIT-6600704.A2 6600704	£5.61	£6.73
37 - AIR CLEANER COVER HIT-6696831.A3 6696831	£9.68	£11.62
38 - AIR CLEANER ASS'Y INCLUD.34-37 HIT-6696549.A9 6696549	£13.36	£16.03
39 - CORD (L325) HIT-6696566.A3 6696566	-
40 - CORD HIT-6696833.A0 6696833	-
42 - IGNITION COIL ASS'Y INCLUD.40 HIT-6698397.A4 6698397	£24.24	£29.09
43 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A32 6698388	£1.67	£2.00
44 - SCAVENGING COVER (B) HIT-6698364.A2 6698364	£1.67	£2.00
45 - CYLINDER PACKING HIT-6698366.A10 6698366	£1.67	£2.00
46 - PISTON RING HIT-6698404.A14 6698404	£7.03	£8.44
47 - PISTON HIT-6698368.A7 6698368	£11.35	£13.62
48 - CIR CLIP HIT-6684590.A80 6684590	£1.67	£2.00
49 - PISTON PIN HIT-6684591.A38 6684591	£3.29	£3.95
50A - SPECIAL BOLT HIT-6600347.A3 6600347	-
51 - BOLT WASHER M8 (BLACK) HIT-323212.A45 323212	£1.67	£2.00
52 - MAGNETO ROTOR COMP. HIT-6698396.A6 6698396	£11.52	£13.82
53 - OIL SEAL TB 12227 HIT-6684607.A164 6684607	£4.07	£4.88
54 - CRANK CASE (B) ASS'Y INCLUD.53 HIT-6698370.A13 6698370	£23.00	£27.60
55 - CRANK CASE PACKING HIT-6698371.A5 6698371	£1.67	£2.00
56 - BALL BEARING 6001 C3 HIT-6684608.A41 6684608	£5.70	£6.84
57 - CRANK SHAFT COMP. HIT-6696533.A17 6696533	£42.11	£50.53
58 - KNOCK PIN 4X12 HIT-6696947.A61 6696947	-
59 - CRANK CASE (A) ASS'Y INCLUD.53 HIT-6698369.A5 6698369	£17.94	£21.53
60 - RECOIL STARTER BODY ASS'Y INCLUD.61-66 TILL 7.2014 HIT-6696572.A3 6696572	£13.43	£16.12
61 - SET SCREW TILL 7.2014 HIT-6693633.A1 6693633	£1.67	£2.00
63 - RECOIL SPRING TILL 7.2014 HIT-6684675.A53 6684675	£8.82	£10.58
65 - ROPE TILL 7.2014 HIT-6693168.A26 6693168	£2.82	£3.39
66 - STARTER HANDLE TILL 7.2014 HIT-6693227.A28 6693227	-
67 - NAME PLATE HIT-000000.A564 000000	-
72 - STARTER PULLEY ASS'Y INCLUD.68-71 TILL 7.2014 HIT-6696471.A8 6696471	£8.35	£10.02
73 - SCREW (W/WASHERS) M4X16 HIT-6698398.A2 6698398	-
79 - RECOIL STARTER ASS'Y INCLUD.80 HIT-6600408.A1 6600408	£12.85	£15.42
80 - STARTER PULLEY SINCE 8.2014 HIT-6600407.A9 6600407	£1.67	£2.00
81 - RECOIL ASS'Y INCLUD.82-88 SINCE 8.2014 HIT-6600406.A1 6600406	£11.06	£13.27
82 - RECOIL SET SCREW SINCE 8.2014 HIT-6600404.A1 6600404	-
83 - SWING ARM HOLDER SINCE 8.2014 HIT-6600402.A1 6600402	-
84 - SWING ARM SINCE 8.2014 HIT-6600401.A9 6600401	-
85 - RECOIL REEL SINCE 8.2014 HIT-6600405.A9 6600405	-
86 - RECOIL SPRING SINCE 8.2014 HIT-6600403.A9 6600403	-
87 - RECOIL ROPE 3X800 SINCE 8.2014 HIT-6600400.A1 6600400	-
88 - RECOIL HANDLE SINCE 8.2014 HIT-6600399.A9 6600399	-
91 - THROTTLE WIRE COMP. HIT-6698399.A1 6698399	£3.24	£3.89
92 - THROTTLE LEVER HIT-6698391.A3 6698391	£1.67	£2.00
93 - SWITCH COVER HIT-6698400.A4 6698400	-
94 - STOP SWITCH HIT-6685364.A1 6685364	£6.75	£8.10
*95A - MUFFLER PROTECTOR HIT-6699427.A0 6699427	£14.95	£17.94
*95A - MUFFLER PROTECTOR FOR USA HIT-6699424.A1 6699424	-
96 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A41 302089	£1.67	£2.00
97B - FUEL PIPE HIT-6601525.A4 6601525	-
98A - FUEL PIPE L70 HIT-6699014.A15 6699014	£2.77	£3.32
99A - RETURN GROMMET TILL 7.2014 HIT-6697846.A100 6697846	£1.68	£2.01
100 - TANK CAP CHAIN HIT-000000.A565 000000	-
101 - FUEL TANK CAP ASS'Y INCLUD.100 HIT-6698402.A45 6698402	-
102A - TANK (B) TILL 7.2014 EXCEPT FOR USA HIT-6600317.A34 6600317	£12.36	£14.83
102A - TANK TILL 7.2014 FOR USA HIT-6600355.A0 6600355	-
102B - TANK (C) SINCE 8.2014 EXCEPT FOR USA HIT-6600354.A34 6600354	-
102B - TANK (D) SINCE 8.2014 FOR USA HIT-6600356.A1 6600356	-
103 - BOLT (W/FLANGE) L 17.8 HIT-6698511.A5 6698511	-
104A - PUMP FILTER HIT-6600351.A0 6600351	£4.45	£5.34
105 - CLIP HIT-6696949.A64 6696949	£1.67	£2.00
106 - BOLT (W/FLANGE) L23.8 HIT-6698512.A16 6698512	£1.67	£2.00
107 - NOZZLE (B) HIT-6698394.A1 6698394	£8.72	£10.47
108 - NOZZLE (A) HIT-6698393.A2 6698393	£14.44	£17.33
109 - BRAND LABEL HIT-000000.A566 000000	-
110 - GUARD NET HIT-6698381.A1 6698381	£3.02	£3.63
*111A - VOLUTE CASE HIT-6699428.A3 6699428	£12.43	£14.92
*111A - VOLUTE CASE FOR USA HIT-6699425.A0 6699425	-
112A - U-NUT M8 HIT-6684932.A10 6684932	£1.67	£2.00
113 - FAN HIT-6698378.A2 6698378	£9.10	£10.92
*114A - FAN CASE HIT-6699429.A0 6699429	£24.24	£29.09
*114A - FAN CASE FOR USA HIT-6699426.A1 6699426	-
115 - START LABEL (B) HIT-000000.A567 000000	-
115 - FOR USA 1 HIT-000000.A568 000000	-
116 - TANK MARK LABEL HIT-000000.A569 000000	-
117 - CAUTION MARK HIT-000000.A571 000000	-
118 - CAUTION MARK EU EMISSION HIT-000000.A572 000000	-
119 - WASHER 8.1X30 HIT-6684924.A3 6684924	-
120A - FUEL GROMMET TILL 7.2014 HIT-6688156.A26 6688156	-
121 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A36 6698844	£1.67	£2.00
125 - FUEL GROMMET SINCE 8.2014 HIT-6600358.A0 6600358	£1.67	£2.00
501A - COMBI BOX SPANNER 13X19 PLUS EXCEPT FOR USA HIT-6684979.A8 6684979	-
601 - FLAT NOZZLE HIT-6699184.A10 6699184	-
