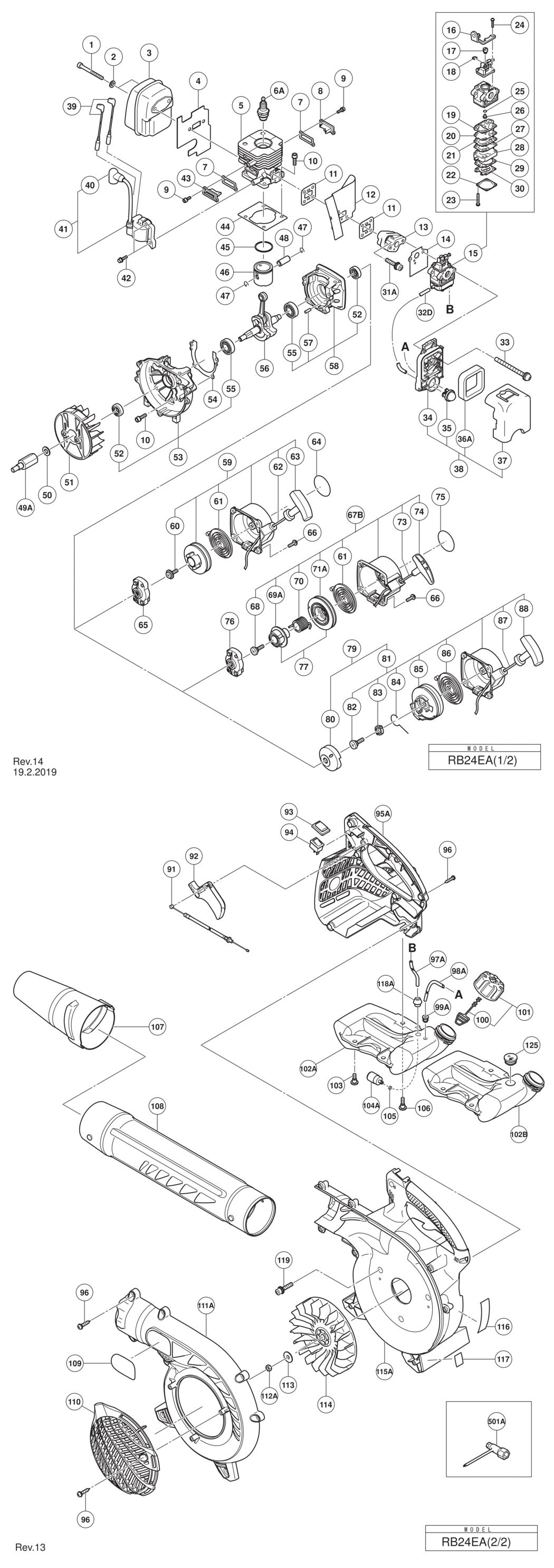

An exploded diagram and spare parts listing for the Hitachi / Hikoki RB24EA Engine Blower
Ex VAT Inc VAT
1 - HEX. SOCKET HD. BOLT M6X65 HIT-6698384.A9 6698384 -
2 - BOLT WASHER M6 (10 PCS.) HIT-949432.A2 949432 £1.67 £2.00
3 - MUFFLER HIT-6698376.A0 6698376 -
4 - HEAT PROTECTION PLATE HIT-6698374.A2 6698374 £9.43 £11.32
5 - CYLINDER HIT-6698362.A1 6698362 £39.68 £47.62
6A - SPARK PLUG ASS'Y BMR7A HIT-6699316.A14 6699316 £12.43 £14.92
7 - COVER PACKING HIT-6698365.A10 6698365 £1.67 £2.00
8 - SCAVENGING COVER(A) HIT-6698363.A2 6698363 -
9 - HEX. SOCKET HD. BOLT M4X12 HIT-6698385.A27 6698385 -
10 - HEX. SOCKET HD. BOLT (W/SP.WASHER) M5X18 HIT-6698386.A32 6698386 -
11 - INSULATOR GASKET HIT-6684865.A0 6684865 £1.67 £2.00
12 - FLASH PAN HIT-6698372.A2 6698372 £3.56 £4.27
13 - CARBURETOR INSULATOR HIT-6698387.A32 6698387 £4.72 £5.66
14 - CARBURETOR PACKING HIT-6698405.A41 6698405 £3.12 £3.74
15 - CARBURETOR ASS'Y (WYC-27) INCLUD.16-30 HIT-6698373.A1 6698373 £59.46 £71.35
16 - BRACKET CABLE HIT-000000.A551 000000 -
17 - SWIVEL HIT-6696830.A51 6696830 -
18 - STOP RING HIT-6684696.A79 6684696 -
19 - PUMP GASKET HIT-6684692.A73 6684692 £17.28 £20.73
20 - PUMP DIAPHRAGM HIT-6684693.A76 6684693 £5.70 £6.84
21 - PUMP PLATE HIT-6691242.A36 6691242 -
22 - DIAPHRAGM COVER-METERING HIT-6685222.A148 6685222 £5.70 £6.84
23 - SET SCREW HIT-6691312.A86 6691312 -
24 - SET SCREW M3X12 HIT-6696829.A1 6696829 -
25 - O-RING HIT-6684695.A119 6684695 £1.67 £2.00
26 - MAIN JET #36 HIT-6697090.A2 6697090 -
27 - CIRCUIT PLATE HIT-6691234.A17 6691234 -
28 - PUMP BODY COMP. HIT-6696828.A51 6696828 £13.28 £15.93
29 - DIAPHRAGM PACKING-METERING HIT-6685220.A34 6685220 £2.81 £3.37
30 - METERING DIAPHRAGM HIT-6684690.A75 6684690 £24.05 £28.86
31A - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A35 6698844 £1.67 £2.00
32D - FUEL PIPE HIT-6601444.A21 6601444 -
33 - MACHINE SCREW (W/WASHERS) M5X60 (BLACK) HIT-307224.A33 307224 £1.67 £2.00
34 - AIR CLEANER HOUSING HIT-66965549.A29 66965549 £15.62 £18.74
35 - PRIMING PUMP COMP. HIT-6685139.A128 6685139 £10.67 £12.80
36A - CLEANER SPONGE HIT-6600704.A3 6600704 £5.61 £6.73
37 - AIR CLEANER COVER HIT-6696831.A2 6696831 £9.68 £11.62
38 - AIR CLEANER ASS'Y INCLUD.34-37 HIT-6696549.A8 6696549 £13.36 £16.03
39 - CORD (L325) HIT-6696566.A4 6696566 -
40 - CORD HIT-6696833.A1 6696833 -
41 - IGNITION COIL ASS'Y INCLUD.40 HIT-6698397.A3 6698397 £24.24 £29.09
42 - HEX. SOCKET HD. BOLT (W/WASHERS) M4X18 HIT-6698388.A31 6698388 £1.67 £2.00
43 - SCAVENGING COVER (B) HIT-6698364.A1 6698364 £1.67 £2.00
44 - CYLINDER PACKING HIT-6698366.A9 6698366 £1.67 £2.00
45 - PISTON RING HIT-6698404.A13 6698404 £7.03 £8.44
46 - PISTON HIT-6698368.A8 6698368 £11.35 £13.62
47 - CIR CLIP HIT-6684590.A81 6684590 £1.67 £2.00
48 - PISTON PIN HIT-6684591.A37 6684591 £3.29 £3.95
49A - SPECIAL BOLT HIT-6600347.A2 6600347 -
50 - BOLT WASHER M8 (BLACK) HIT-323212.A44 323212 £1.67 £2.00
51 - MAGNETO ROTOR COMP. HIT-6698396.A5 6698396 £11.52 £13.82
52 - OIL SEAL TB 12227 HIT-6684607.A166 6684607 £4.07 £4.88
53 - CRANK CASE (B) ASS'Y INCLUD.52 HIT-6698370.A14 6698370 £23.00 £27.60
54 - CRANK CASE PACKING HIT-6698371.A4 6698371 £1.67 £2.00
55 - BALL BEARING 6001 C3 HIT-6684608.A39 6684608 £5.70 £6.84
56 - CRANK SHAFT COMP. HIT-6696533.A18 6696533 £42.11 £50.53
57 - KNOCK PIN 4X12 HIT-6696947.A62 6696947 -
58 - CRANK CASE (A) ASS'Y INCLUD.52 HIT-6698369.A4 6698369 £17.94 £21.53
59 - RECOIL STARTER BODY ASS'Y INCLUD.60-63 (TILL 6.2012 FOR AUS) HIT-6696572.A2 6696572 £13.43 £16.12
60 - SET SCREW (TILL 6.2012 FOR AUS) TILL 7.2014 HIT-6693633.A2 6693633 £1.67 £2.00
61 - RECOIL SPRING TILL 7.2014 HIT-6684675.A52 6684675 £8.82 £10.58
62 - ROPE (TILL 6.2012 FOR AUS) TILL 7.2014 HIT-6693168.A27 6693168 £2.82 £3.39
63 - STARTER HANDLE (TILL 6.2012 FOR AUS) TILL 7.2014 HIT-6693227.A27 6693227 -
64 - NAME PLATE HIT-000000.A553 000000 -
65 - STARTER PULLEY ASS'Y (TILL 6.2012 FOR AUS) TILL7.2014 HIT-6696471.A7 6696471 £8.35 £10.02
66 - SCREW (W/WASHERS) M4X16 HIT-6698398.A1 6698398 -
67B - RECOIL STARTER BODY ASS'Y INCLUD.61 HIT-6601570.A14 6601570 £23.15 £27.78
*67B - RECOIL STARTER BODY ASS'Y SINCE 7.2012 FOR AUS HIT-6601570.A15 6601570 £23.15 £27.78
68 - SET SCREW FOR (S) TYPE SINCE 7.2012 FOR AUS HIT-6684679.A121 6684679 £2.98 £3.57
69A - CAM PLATE FOR (S) TYPE SINCE 9.2013 FOR AUS HIT-6699996.A59 6699996 £4.28 £5.13
70 - DAMPER SPRING FOR (S) TYPE SINCE 7.2012 FOR AUS HIT-6684677.A76 6684677 £5.70 £6.84
71A - STARTER ROPE REEL FOR (S) TYPE SINCE 9.2013 FOR AUS HIT-6699997.A30 6699997 -
73 - STARTER ROPE 3.5X860 FOR (S) TYPE SINCE 7.2012 FOR AUS HIT-6684674.A58 6684674 £5.70 £6.84
74 - STARTER HANDLE FOR (S) TYPE SINCE 7.2012 FOR AUS HIT-6684680.A30 6684680 £5.87 £7.04
75 - NAME PLATE HIT-000000.A555 000000 -
76 - STARTER PULLEY ASS'Y FOR (S) TYPE SINCE 7.2012 FOR AUS HIT-6684681.A86 6684681 £18.16 £21.79
77 - CAMPLATE ASS'Y INCLUD.69A HIT-6699691.A55 6699691 £7.75 £9.30
*77 - CAMPLATE ASS'Y -TILL 8.2013 FOR AUS HIT-6699691.A56 6699691 £7.75 £9.30
79 - RECOIL STARTER ASS'Y INCLUD.80 HIT-6600408.A2 6600408 £12.85 £15.42
80 - STARTER PULLEY SINCE 8.2014 HIT-6600407.A8 6600407 £1.67 £2.00
81 - RECOIL ASS'Y INCLUD.82-88 SINCE 8.2014 HIT-6600406.A2 6600406 £11.06 £13.27
82 - RECOIL SET SCREW SINCE 8.2014 HIT-6600404.A2 6600404 -
83 - SWING ARM HOLDER SINCE 8.2014 HIT-6600402.A2 6600402 -
84 - SWING ARM SINCE 8.2014 HIT-6600401.A8 6600401 -
85 - RECOIL REEL SINCE 8.2014 HIT-6600405.A8 6600405 -
86 - RECOIL SPRING SINCE 8.2014 HIT-6600403.A8 6600403 -
88 - RECOIL ROPE 3X800 SINCE 8.2014 HIT-6600400.A2 6600400 -
89 - RECOIL HANDLE SINCE 8.2014 HIT-6600399.A8 6600399 -
91 - THROTTLE WIRE COMP. HIT-6698399.A2 6698399 £3.24 £3.89
92 - THROTTLE LEVER HIT-6698391.A4 6698391 £1.67 £2.00
93 - SWITCH COVER HIT-6698400.A3 6698400 -
94 - STOP SWITCH HIT-6685364.A0 6685364 £6.75 £8.10
*95A - MUFFLER PROTECTOR HIT-6699427.A1 6699427 £14.95 £17.94
*95A - MUFFLER PROTECTOR FOR KOR HIT-6699424.A0 6699424 -
96 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK) HIT-302089.A42 302089 £1.67 £2.00
97A - FUEL PIPE HIT-6698716.A4 6698716 £5.61 £6.73
98A - FUEL PIPE L70 HIT-6699014.A14 6699014 £2.77 £3.32
99A - RETURN GROMMET TILL 7.2014 HIT-6697846.A99 6697846 £2.08 £2.50
100 - TANK CAP CHAIN HIT-6684625.A40 6684625 -
101 - FUEL TANK CAP ASS'Y INCLUD.100 HIT-6698402.A46 6698402 -
102A - TANK (B) TILL 7.2014 HIT-6600317.A35 6600317 £12.36 £14.83
102B - TANK (C) SINCE 8.2014 HIT-6600354.A33 6600354 -
103 - BOLT (W/FLANGE) L 17.8 HIT-6698511.A4 6698511 -
104A - PUMP FILTER HIT-6600351.A1 6600351 £4.45 £5.34
105 - CLIP HIT-6696949.A63 6696949 £1.67 £2.00
106 - BOLT (W/FLANGE) L23.8 HIT-6698512.A17 6698512 £1.67 £2.00
107 - NOZZLE (B) HIT-6698394.A2 6698394 £8.72 £10.47
108 - NOZZLE (A) HIT-6698393.A1 6698393 £14.44 £17.33
109 - BRAND LABEL HIT-000000.A557 000000 -
110 - GUARD NET HIT-6698381.A2 6698381 £3.02 £3.63
*111A - VOLUTE CASE HIT-6699428.A2 6699428 £12.43 £14.92
*111A - VOLUTE CASE FOR KOR HIT-6699425.A1 6699425 -
112A - U-NUT M8 HIT-6684932.A11 6684932 £1.67 £2.00
113 - WASHER 8.1X30 HIT-6684924.A2 6684924 -
114 - FAN HIT-6698378.A1 6698378 £9.10 £10.92
*115A - FAN CASE HIT-6699429.A1 6699429 £24.24 £29.09
*115A - FAN CASE FOR KOR HIT-6699426.A0 6699426 -
116 - CAUTION MARK HIT-000000.A558 000000 -
117 - LABEL HIT-000000.A559 000000 -
118A - FUEL GROMMET TILL 7.2014 HIT-6688156.A25 6688156 -
119 - SEAL LOCK HEX. SOCKET BOLT (W/WASHERS)M5 HIT-6698844.A33 6698844 £1.67 £2.00
125 - FUEL GROMMET SINCE 8.2014 HIT-6600358.A1 6600358 £1.67 £2.00
501A - COMBI BOX SPANNER 13X19 PLUS HIT-6684979.A7 6684979 -
601 - FLAT NOZZLE HIT-6699184.A11 6699184 -
