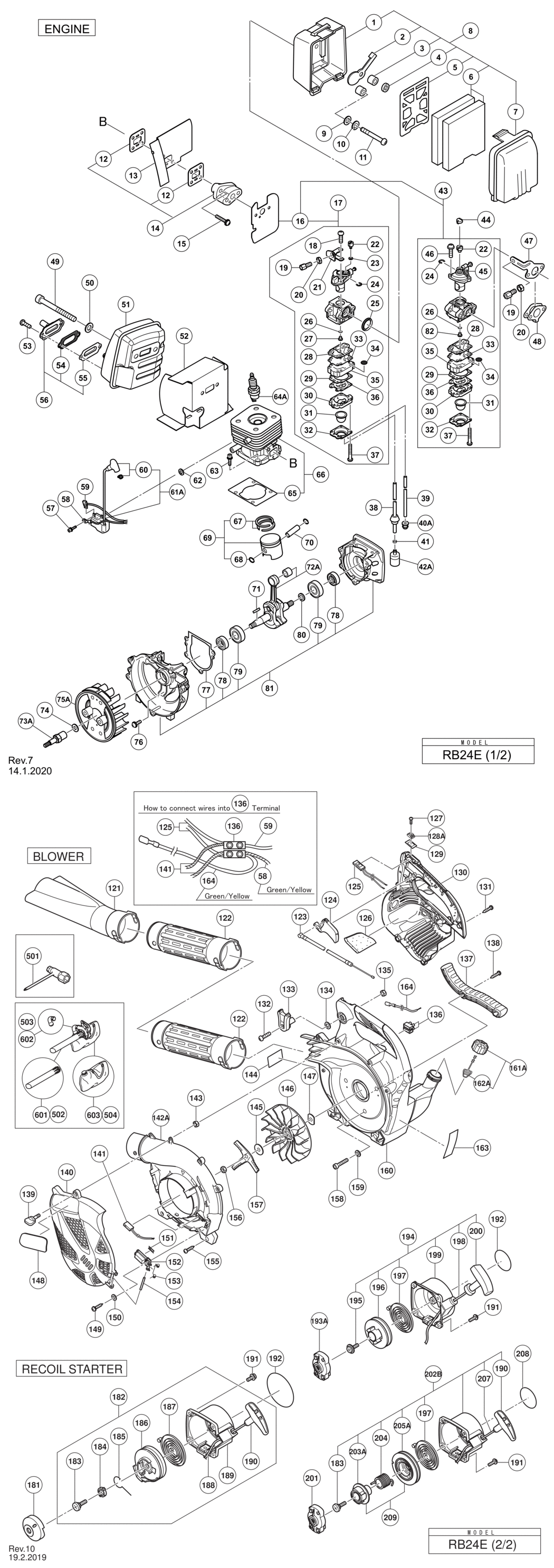

1 - AIR CLEANER BODY
HIT-6684856.A2
6684856
|
-
|
|
|
|
2 - CHOKE VALVE
HIT-6684857.A2
6684857
|
£5.70
|
£6.84
|
|
|
3 - COLLAR
HIT-6684858.A4
6684858
|
-
|
|
|
|
4 - SPACER
HIT-6684859.A9
6684859
|
-
|
|
|
|
5 - BLOW OVER CHECK BOARD
HIT-6684860.A4
6684860
|
£3.42
|
£4.10
|
|
|
6 - CLEANER SPONGE
HIT-6684861.A6
6684861
|
£6.18
|
£7.41
|
|
|
7 - CLEANER CAP
HIT-6684862.A2
6684862
|
£8.58
|
£10.29
|
|
|
8 - AIR CLEANER ASS'Y INCLUD.1-7
HIT-6684863.A2
6684863
|
£18.38
|
£22.05
|
|
|
9 - S.WASHER 5
HIT-6684662.A13
6684662
|
£1.67
|
£2.00
|
|
|
10 - SMALL WASHER 5
HIT-6684864.A40
6684864
|
-
|
|
|
|
11 - SCREW M5X60
HIT-6684660.A0
6684660
|
-
|
|
|
|
12 - INSULATOR GASKET
HIT-6684865.A10
6684865
|
£1.67
|
£2.00
|
|
|
13 - PARTITION PLATE
HIT-6684866.A0
6684866
|
-
|
|
|
|
14 - INSULATOR ASS'Y INCLUD.12
HIT-6684867.A1
6684867
|
£6.42
|
£7.70
|
|
|
15 - HEX. HOLE BOLT 5X25/WS
HIT-6684617.A18
6684617
|
-
|
|
|
|
16 - CARBURETOR GASKET
HIT-6684868.A0
6684868
|
£2.81
|
£3.37
|
|
|
17 - CARBURETOR SET WYJ470 INCLUD.16
HIT-6684869.A1
6684869
|
£85.50
|
£102.60
|
|
|
18 - THROTTLE SET SCREW FOR EUROPE
HIT-6684870.A0
6684870
|
-
|
|
|
|
19 - CABLE ADJUSTER
HIT-6684871.A62
6684871
|
-
|
|
|
|
20 - LOCK NUT M6
HIT-6684872.A0
6684872
|
-
|
|
|
|
21 - CABLE ADJUSTER STAY FOR EUROPE
HIT-6684873.A73
6684873
|
-
|
|
|
|
22 - SWIVEL
HIT-6684697.A32
6684697
|
-
|
|
|
|
23 - THRUST WASHER FOR EUROPE
HIT-6684874.A0
6684874
|
-
|
|
|
|
24 - STOP RING
HIT-6684696.A173
6684696
|
-
|
|
|
|
25 - CLEANER PACKING FOR EUROPE
HIT-6684875.A74
6684875
|
-
|
|
|
|
26 - O-RING
HIT-6684695.A43
6684695
|
£1.67
|
£2.00
|
|
|
27 - MAIN JET #37 FOR EUROPE
HIT-6684876.A0
6684876
|
-
|
|
|
|
28 - PUMP GASKET
HIT-6684692.A24
6684692
|
£17.28
|
£20.73
|
|
|
29 - DIAPHRAGM GASKET
HIT-6684691.A78
6684691
|
£5.70
|
£6.84
|
|
|
30 - PRIMING PUMP COMP.
HIT-6684687.A82
6684687
|
£9.27
|
£11.12
|
|
|
31 - PRIMING BODY
HIT-6684689.A83
6684689
|
£5.87
|
£7.04
|
|
|
32 - DIAPHRAGM COVER
HIT-6684688.A17
6684688
|
£5.70
|
£6.84
|
|
|
33 - PUMP DIAPHRAGM
HIT-6684693.A159
6684693
|
£5.70
|
£6.84
|
|
|
34 - INLET SCREEN
HIT-6684700.A220
6684700
|
-
|
|
|
|
35 - PUMP BODY COMP.
HIT-6684879.A57
6684879
|
£35.37
|
£42.44
|
|
|
36 - METERING DIAPHRAGM
HIT-6684690.A26
6684690
|
£24.05
|
£28.86
|
|
|
37 - SET SCREW
HIT-6684699.A12
6684699
|
-
|
|
|
|
38 - SHIELD TUBE 3X5X180
HIT-6684618.A0
6684618
|
£6.12
|
£7.35
|
|
|
39 - FUEL PIPE 3X5X85
HIT-6684880.A15
6684880
|
-
|
|
|
|
40A - RETURN GROMMET
HIT-6697846.A68
6697846
|
£2.08
|
£2.50
|
|
|
41 - CLIP 1
HIT-6684619.A60
6684619
|
£1.67
|
£2.00
|
|
|
42A - PUMP FILTER
HIT-6600351.A77
6600351
|
£4.45
|
£5.34
|
|
|
*43 - CARBURETOR SET WYL260 INCLUD.16
HIT-6684881.A1
6684881
|
-
|
|
|
|
*43 - CARBURETOR SET WYL260 ASIA
HIT-6684881.A2
6684881
|
-
|
|
|
|
*43 - CARBURETOR SET WYL266 INCLUD.16
HIT-6684882.A0
6684882
|
-
|
|
|
|
*43 - CARBURETOR SET WYL266 AUS
HIT-6684882.A1
6684882
|
-
|
|
|
|
45 - THROTTLE VALVE FOR ASIA
HIT-6684883.A17
6684883
|
£32.24
|
£38.69
|
|
|
46 - THROTTLE SET SCREW FOR ASIA
HIT-6684698.A54
6684698
|
-
|
|
|
|
47 - WIRE SET PLATE FOR ASIA
HIT-6684884.A0
6684884
|
-
|
|
|
|
48 - CLEANER GASKET FOR ASIA
HIT-6684885.A1
6684885
|
-
|
|
|
|
49 - HEX. HOLE BOLT M6X55
HIT-6684638.A0
6684638
|
£1.67
|
£2.00
|
|
|
50 - BOLT WASHER 6
HIT-6684639.A197
6684639
|
£1.67
|
£2.00
|
|
|
*51 - MUFFLER COMP.
HIT-6684886.A0
6684886
|
-
|
|
|
|
*51 - MUFFLER COMP. FOR ASIA
HIT-6684887.A1
6684887
|
-
|
|
|
|
52 - INSULATOR
HIT-6684888.A0
6684888
|
-
|
|
|
|
53 - SCREW M4X8/WS
HIT-6684651.A1
6684651
|
-
|
|
|
|
54 - SPARK ARRESTER
HIT-6684889.A1
6684889
|
-
|
|
|
|
55 - MUFFLER SPECIAL GASKET
HIT-6684890.A0
6684890
|
-
|
|
|
|
56 - TAIL PIPE SET INCLUD.54
HIT-6684891.A1
6684891
|
£9.18
|
£11.02
|
|
|
57 - HEX. HOLE BOLT M4X18/WS
HIT-6684599.A15
6684599
|
-
|
|
|
|
58 - EARTH CORD 120L
HIT-6684892.A0
6684892
|
-
|
|
|
|
59 - STOP CORD 145L
HIT-6684893.A1
6684893
|
-
|
|
|
|
60 - PLUG CAP
HIT-6684894.A0
6684894
|
£7.75
|
£9.30
|
|
|
61 - IGNITION COIL ASS'Y INCLUD.60
HIT-6684895.A0
6684895
|
-
|
|
|
|
62 - WASHER T1.6
HIT-6684600.A62
6684600
|
-
|
|
|
|
63 - HEX.HOLE BOLT M5X18/S
HIT-6684586.A96
6684586
|
-
|
|
|
|
64A - SPARK PLUG ASS'Y BMR7A
HIT-6699316.A56
6699316
|
£12.43
|
£14.92
|
|
|
65 - CYLINDER GASKET
HIT-6684896.A0
6684896
|
£1.67
|
£2.00
|
|
|
66 - CYLINDER ASS'Y INCLUD.65
HIT-6684897.A4
6684897
|
£79.58
|
£95.50
|
|
|
67 - PISTON RING
HIT-6684588.A21
6684588
|
£6.38
|
£7.66
|
|
|
68 - CIR CLIP
HIT-6684590.A11
6684590
|
£1.67
|
£2.00
|
|
|
69 - PISTON ASS'Y INCLUD.67
HIT-6684898.A0
6684898
|
£40.45
|
£48.54
|
|
|
70 - PISTON PIN
HIT-6684591.A77
6684591
|
£3.29
|
£3.95
|
|
|
71 - WOODRUFF KEY 3X13X4.5
HIT-6684899.A48
6684899
|
-
|
|
|
|
72A - CRANK SHAFT SET
HIT-6601584.A0
6601584
|
-
|
|
|
|
73A - SPECIAL BOLT
HIT-6695852.A1
6695852
|
-
|
|
|
|
74 - BOLT WASHER M8
HIT-6684611.A98
6684611
|
-
|
|
|
|
75 - MAGNETO ROTOR COMP.
HIT-6684902.A0
6684902
|
£62.08
|
£74.50
|
|
|
76 - HEX. HOLE BOLT M5X16/S
HIT-6684903.A0
6684903
|
-
|
|
|
|
77 - CRANK CASE GASKET
HIT-6684904.A22
6684904
|
£1.67
|
£2.00
|
|
|
78 - OIL SEAL TB 12227
HIT-6684607.A2
6684607
|
£4.07
|
£4.88
|
|
|
79 - BALL BEARING 6001 C3
HIT-6684608.A194
6684608
|
£5.70
|
£6.84
|
|
|
80 - GEAR SHAFT SHIM 0.20
HIT-6684604.A76
6684604
|
-
|
|
|
|
80 - GEAR SHAFT SHIM 0.30
HIT-6684605.A5
6684605
|
-
|
|
|
|
81 - CRANK CASE ASS'Y INCLUD.77-79
HIT-6684905.A0
6684905
|
£30.92
|
£37.11
|
|
|
*82 - MAIN JET #37 FOR ASIA
HIT-6684877.A1
6684877
|
£8.18
|
£9.81
|
|
|
*82 - MAIN JET #39 FOR AUS
HIT-6684878.A0
6684878
|
-
|
|
|
|
121 - FAN-HEADED PIPE
HIT-6684906.A1
6684906
|
£20.98
|
£25.18
|
|
|
122 - STRAIGHT PIPE
HIT-6684907.A0
6684907
|
£22.42
|
£26.91
|
|
|
*123 - THROTTLE WIRE 235+92
HIT-6684908.A1
6684908
|
-
|
|
|
|
*123 - THROTTLE WIRE 245+93 FOR ASIA
HIT-6684909.A0
6684909
|
-
|
|
|
|
124 - THROTTLE LEVER
HIT-6684910.A1
6684910
|
£1.67
|
£2.00
|
|
|
125 - STOP SWITCH COMP.
HIT-6684911.A0
6684911
|
£7.62
|
£9.15
|
|
|
126 - PROTECTION SHEET
HIT-6684912.A1
6684912
|
-
|
|
|
|
127 - SCREW 3X10
HIT-6684913.A0
6684913
|
£1.67
|
£2.00
|
|
|
128A - STOP BUTTON (RED)
HIT-6698995.A1
6698995
|
-
|
|
|
|
129 - STOP SWITCH MARK
HIT-6684915.A1
6684915
|
-
|
|
|
|
130 - MUFFLER PROTECTOR
HIT-6684916.A0
6684916
|
-
|
|
|
|
131 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK)
HIT-302089.A70
302089
|
£1.67
|
£2.00
|
|
|
132 - MACHINE SCREW (W/WASHERS) M5X25
HIT-317751.A0
317751
|
-
|
|
|
|
133 - CRUISE LEVER
HIT-6684917.A1
6684917
|
-
|
|
|
|
134 - WASHER M5 (BLACK)
HIT-6684918.A0
6684918
|
£1.67
|
£2.00
|
|
|
135 - NYLON NUT M5
HIT-305491.A11
305491
|
-
|
|
|
|
136 - PILLAR TERMINAL
HIT-938307.A76
938307
|
£3.28
|
£3.93
|
|
|
137 - SUPPORT HANDLE
HIT-6684919.A1
6684919
|
-
|
|
|
|
138 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK)
HIT-302089.A71
302089
|
£1.67
|
£2.00
|
|
|
139 - COVER SETTING BOLT
HIT-6684920.A0
6684920
|
-
|
|
|
|
140 - GUARD NET
HIT-6684921.A1
6684921
|
-
|
|
|
|
141 - MICRO SWITCH
HIT-6684922.A0
6684922
|
-
|
|
|
|
142A - VOLUTE CASE
HIT-6696390.A0
6696390
|
£37.57
|
£45.08
|
|
|
143 - LOCK NUT M5 (10 PCS.)
HIT-949566.A7
949566
|
£1.67
|
£2.00
|
|
|
144 - NAME PLATE
HIT-000000.A5506
000000
|
-
|
|
|
|
145 - WASHER 8.1X30
HIT-6684924.A4
6684924
|
-
|
|
|
|
146 - FAN
HIT-6684925.A0
6684925
|
-
|
|
|
|
147 - WASHER 10.1X30
HIT-6684926.A1
6684926
|
-
|
|
|
|
148 - SYMBOL MARK (HITACHI)
HIT-6684927.A0
6684927
|
-
|
|
|
|
149 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK)
HIT-302089.A69
302089
|
£1.67
|
£2.00
|
|
|
150 - WASHER M5 (BLACK)
HIT-6684918.A1
6684918
|
£1.67
|
£2.00
|
|
|
151 - COVER SPRING ASS'Y
HIT-6684928.A0
6684928
|
-
|
|
|
|
152 - SWITCH COVER
HIT-6684929.A4
6684929
|
-
|
|
|
|
153 - SPRING
HIT-6684930.A0
6684930
|
£1.67
|
£2.00
|
|
|
154 - PIN
HIT-6684931.A4
6684931
|
-
|
|
|
|
155 - TAPPING SCREW (W/FLANGE) D5X20 (BLACK)
HIT-302089.A68
302089
|
£1.67
|
£2.00
|
|
|
156 - U-NUT M8
HIT-6684932.A0
6684932
|
£1.67
|
£2.00
|
|
|
157 - SHREDDER
HIT-6684933.A1
6684933
|
-
|
|
|
|
158 - HEX.HOLE BOLT M5X35
HIT-6684934.A0
6684934
|
-
|
|
|
|
159 - SPRING WASHER 5
HIT-6684834.A2
6684834
|
£1.67
|
£2.00
|
|
|
160 - FAN CASE (A) ASS'Y INCLUD.38-42
HIT-6696392.A0
6696392
|
-
|
|
|
|
161A - FUEL TANK CAP ASS'Y INCLUD.162A
HIT-6698402.A36
6698402
|
-
|
|
|
|
162A - TANK CAP CHAIN
HIT-6698732.A78
6698732
|
-
|
|
|
|
163 - CAUTION MARK USA
HIT-000000.A5508
000000
|
-
|
|
|
|
164 - LEAD WIRE ASS'Y
HIT-6684936.A1
6684936
|
-
|
|
|
|
181 - STARTER PULLEY TILL 10.2009
HIT-6684937.A0
6684937
|
£3.56
|
£4.27
|
|
|
182 - RECOIL STARTER BODY ASS'Y INCLUD.183-190 TILL 10.2009
HIT-6684938.A15
6684938
|
£18.59
|
£22.31
|
|
|
183 - SET SCREW TILL 10.2009 (SINCE 11.2012 FOR ASU)
HIT-6684679.A27
6684679
|
£2.98
|
£3.57
|
|
|
184 - PULLEY STAY TILL 10.2009
HIT-6684939.A0
6684939
|
-
|
|
|
|
185 - SWING ARM TILL 10.2009
HIT-6684940.A15
6684940
|
£1.67
|
£2.00
|
|
|
186 - STARTER ROPE REEL TILL 10.2009
HIT-6684941.A0
6684941
|
£7.41
|
£8.89
|
|
|
187 - RECOIL SPRING TILL 10.2009
HIT-6684942.A15
6684942
|
£5.17
|
£6.20
|
|
|
188 - ROPE 3.0X800 TILL 10.2009
HIT-6684943.A0
6684943
|
-
|
|
|
|
189 - RECOIL STARTER BODY COMP. TILL 10.2009
HIT-6684944.A16
6684944
|
-
|
|
|
|
190 - STARTER HANDLE TILL 10.2009 (SINCE 11.2012 FOR AUS)
HIT-6684680.A96
6684680
|
£5.87
|
£7.04
|
|
|
191 - HEX. HOLE BOLT 4X15/PS
HIT-6684682.A25
6684682
|
£1.67
|
£2.00
|
|
|
192 - STARTER MARK (HITACHI) (TILL 10.2012 FOR AUS)
HIT-6684945.A0
6684945
|
-
|
|
|
|
193A - STARTER PULLEY ASS'Y SINCE 11.2009 (TILL 10.2012 FOR AUS)
HIT-6696471.A9
6696471
|
£8.35
|
£10.02
|
|
|
194 - RECOIL STARTER BODY ASS'Y INCLUD.195-200 SINCE 11.2009
HIT-6696572.A4
6696572
|
£13.43
|
£16.12
|
|
|
*194 - RECOIL STARTER BODY ASSY (TILL 10.2012 FOR AUS)
HIT-6696572.A5
6696572
|
£13.43
|
£16.12
|
|
|
195 - SET SCREW SINCE 11.2009 (TILL 10.2012 FOR AUS)
HIT-6693633.A0
6693633
|
£1.67
|
£2.00
|
|
|
196 - REEL
HIT-000000.A543
000000
|
-
|
|
|
|
197 - RECOIL SPRING SINCE 11.2009
HIT-6684675.A51
6684675
|
£8.82
|
£10.58
|
|
|
198 - ROPE SINCE 11.2009 (TILL 10.2012 FOR AUS)
HIT-6693168.A25
6693168
|
£2.82
|
£3.39
|
|
|
199 - STARTER CASE COMP.
HIT-000000.A545
000000
|
-
|
|
|
|
200 - STARTER HANDLE SINCE 11.2009 (TILL 10.2012 FOR AUS)
HIT-6693227.A26
6693227
|
-
|
|
|
|
201 - STARTER PULLEY ASS'Y FOR (S)
HIT-6684681.A85
6684681
|
£18.16
|
£21.79
|
|
|
202B - RECOIL STARTER ASS'Y INCLUD.183
HIT-6601590.A1
6601590
|
-
|
|
|
|
*202B - RECOIL STARTER ASS'Y FOR (S)
HIT-6601590.A2
6601590
|
-
|
|
|
|
203A - CAM PLATE FOR (S)
HIT-6699996.A55
6699996
|
£4.28
|
£5.13
|
|
|
204 - DAMPER SPRING FOR (S)
HIT-6684677.A77
6684677
|
£6.66
|
£7.99
|
|
|
205A - STARTER ROPE REEL FOR (S)
HIT-6699997.A34
6699997
|
-
|
|
|
|
207 - STARTER ROPE 3.5X860 FOR (S)
HIT-6684674.A59
6684674
|
£5.70
|
£6.84
|
|
|
208 - NAME PLATE
HIT-000000.A547
000000
|
-
|
|
|
|
209 - CAMPLATE ASS'Y INCLUD.203A
HIT-6699691.A53
6699691
|
£7.75
|
£9.30
|
|
|
*209 - CAMPLATE ASSY SINCE 11.2012-TILL 12.2014 FOR AUS
HIT-6699691.A54
6699691
|
£7.75
|
£9.30
|
|
|
501 - COMBI BOX SPANNER 13X19 PLUS
HIT-6684979.A6
6684979
|
-
|
|
|
|
502 - VACUUM PIPE FOR (SV) TYPE SINCE 11.2012 FOR AUS
HIT-6684946.A1
6684946
|
£14.42
|
£17.31
|
|
|
503 - BENT PIPE FOR (SV) TYPE SINCE 11.2012 FOR AUS
HIT-6684947.A2
6684947
|
-
|
|
|
|
504 - DUST BAG FOR (SV) TYPE SINCE 11.2012 FOR AUS
HIT-6684948.A1
6684948
|
£39.03
|
£46.84
|
|
|
601 - VACUUM PIPE
HIT-6684946.A0
6684946
|
£14.42
|
£17.31
|
|
|
602 - BENT PIPE
HIT-6684947.A3
6684947
|
-
|
|
|
|
603 - DUST BAG
HIT-6684948.A0
6684948
|
£39.03
|
£46.84
|
|
