Hitachi / Hikoki RB18DL Cordless Blower Spare Parts

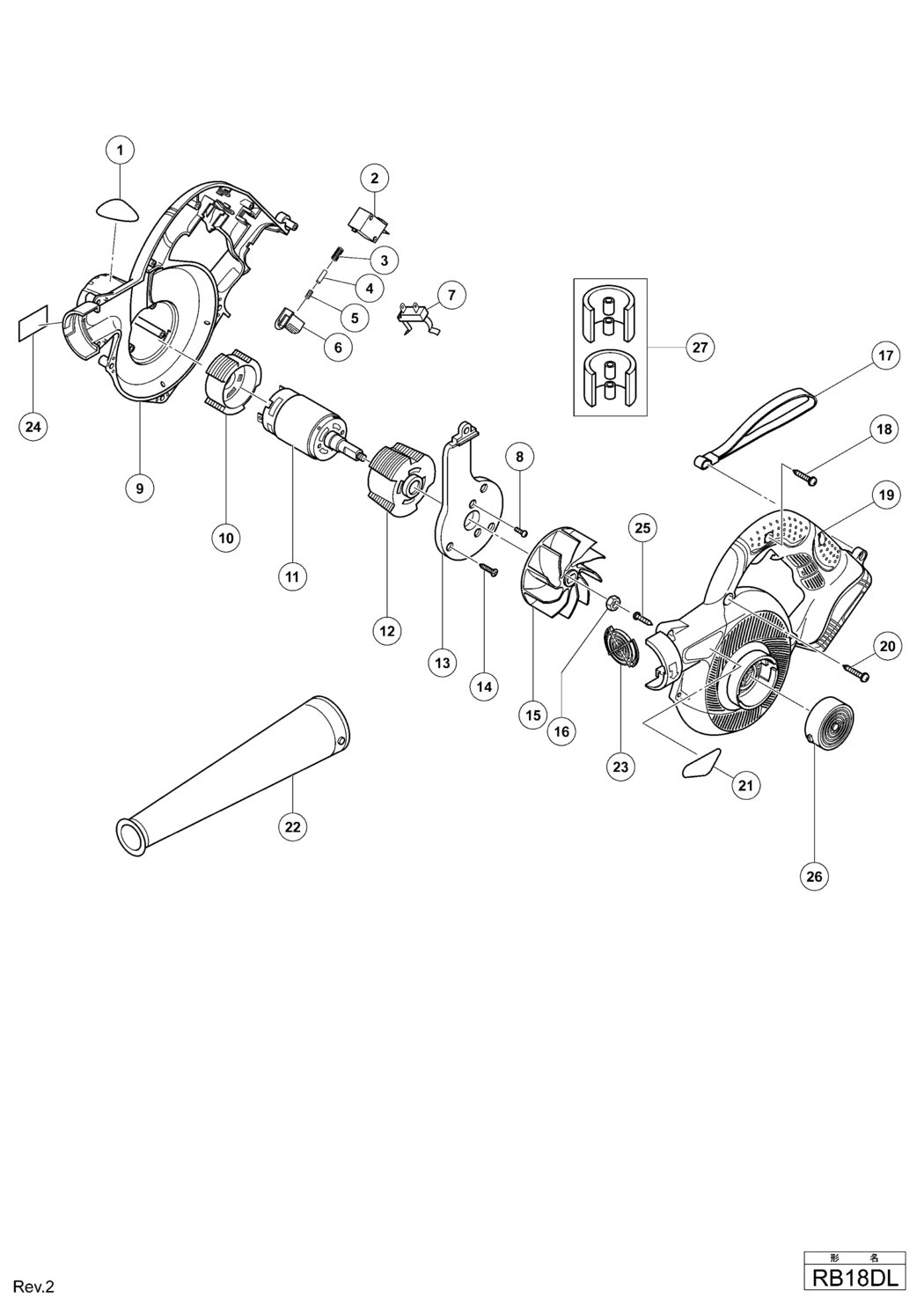

An exploded diagram and spare parts listing for the Hitachi / Hikoki RB18DL Cordless Blower

	Ex VAT	Inc VAT
1 - NAME PLATE HIT-000000.A1237 000000	-
2 - MICRO SWITCH HIT-328612.A0 328612	-
3 - SWITCH SPRING (B) HIT-328613.A0 328613	-
4 - SWITCH BAR HIT-328654.A0 328654	-
5 - SWITCH SPRING (A) HIT-328655.A0 328655	-
6 - SWITCH KNOB HIT-328614.A0 328614	-
7 - BATTERY HOLDER HIT-328611.A0 328611	-
8 - MACHINE SCREW M4X10 (10 PCS.) HIT-949216.A21 949216	£1.67	£2.00
9 - HOUSING (R) HIT-328610.A0 328610	-
10 - MOTOR HOLDER (B) HIT-328560.A2 328560	-
11 - MOTOR (W/SPINDLE) HIT-328615.A0 328615	-
12 - MOTOR HOLDER (A) HIT-328553.A1 328553	-
13 - MOTOR PLATE HIT-328563.A0 328563	-
14 - TAPPING SCREW D3.5X15 HIT-328550.A1 328550	-
15 - FAN HIT-328564.A2 328564	-
16 - NUT M6 (10 PCS.) HIT-949556.A51 949556	£1.67	£2.00
17 - STRAP HIT-328565.A0 328565	-
18 - TAPPING SCREW D3.5X15 (BLACK) HIT-328546.A2 328546	-
19 - HOUSING (L) HIT-328616.A0 328616	-
20 - TAPPING SCREW D3.5X20 (BLACK) HIT-328549.A1 328549	-
21 - BRAND LABEL HIT-000000.A1238 000000	-
22 - NOZZLE HIT-328562.A1 328562	£14.82	£17.78
*27 - FERRITE SUPPORT SET SINCE 3.2012 FOR EUROPE HIT-334869.A1 334869	-
601 - LONG NOZZLE ASS'Y HIT-317124.A1 317124	-
*602 - DUST BAG (DEEP BLUE) HIT-323587.A2 323587	£16.75	£20.10
603 - NOZZLE (B) HIT-990046.A2 990046	-

Attribute Name	Value
Brand	Hikoki
