Hitachi / Hikoki RB14DSL Cordless Blower Spare Parts

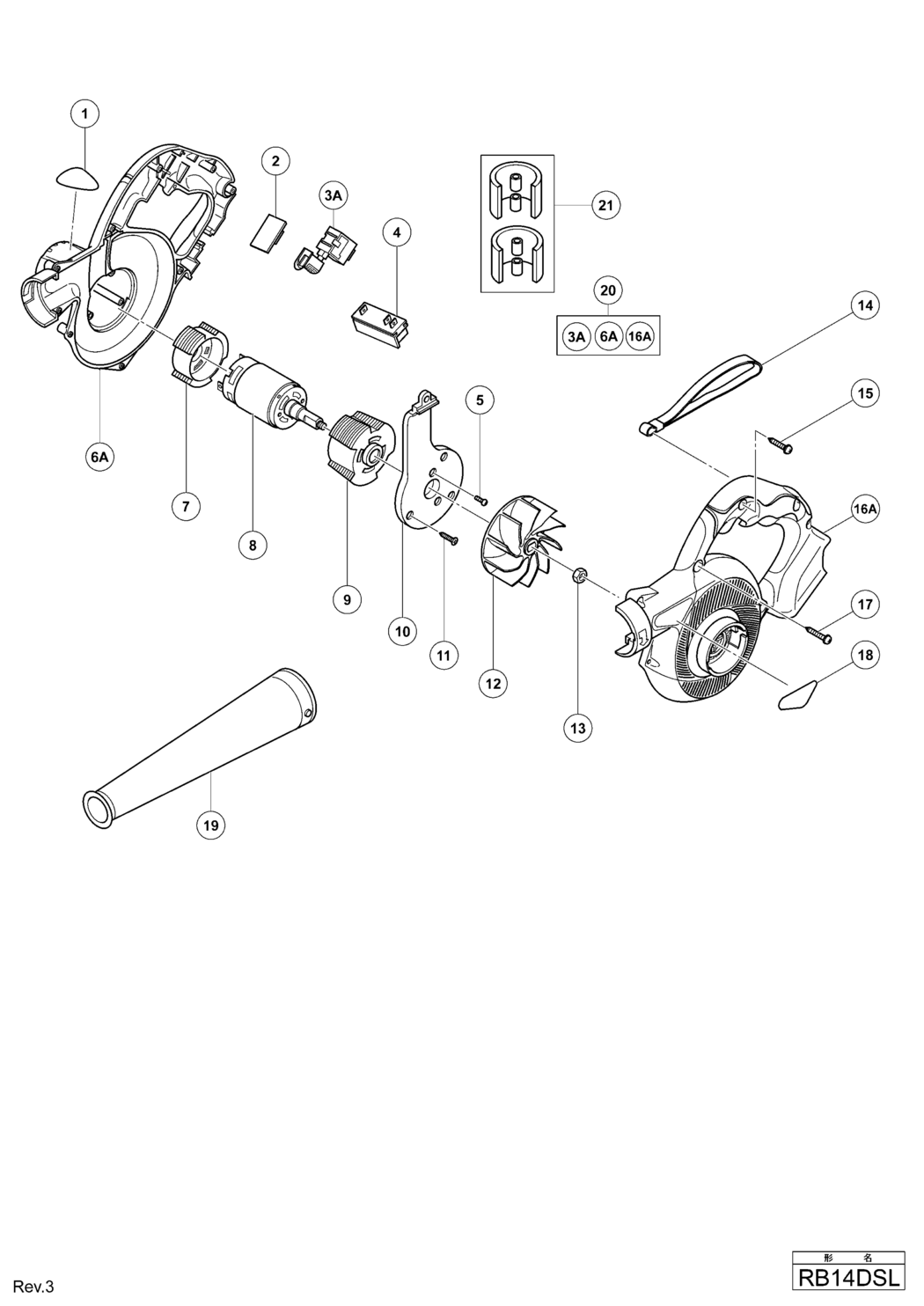

An exploded diagram and spare parts listing for the Hitachi / Hikoki RB14DSL Cordless Blower

	Ex VAT	Inc VAT
1 - NAME PLATE HIT-000000.A1234 000000	-
2 - PRINTED CIRCUIT BOARD HIT-328557.A0 328557	-
3A - DC-TRIGGER SWITCH (W/FELT) SINCE 9.2011 HIT-334702.A0 334702	-
4 - BATTERY HOLDER HIT-328554.A1 328554	-
5 - MACHINE SCREW M4X10 (10 PCS.) HIT-949216.A20 949216	£1.67	£2.00
6A - HOUSING (R) SINCE 9.2011 HIT-328559.A1 328559	-
7 - MOTOR HOLDER (B) HIT-328560.A0 328560	-
8 - MOTOR (W/SPINDLE) HIT-328561.A0 328561	-
9 - MOTOR HOLDER (A) HIT-328553.A0 328553	-
10 - MOTOR PLATE HIT-328563.A2 328563	-
11 - TAPPING SCREW D3.5X15 HIT-328550.A2 328550	-
12 - FAN HIT-328564.A0 328564	-
13 - NUT M6 (10 PCS.) HIT-949556.A52 949556	£1.67	£2.00
14 - STRAP HIT-328565.A2 328565	-
15 - TAPPING SCREW D3.5X15 (BLACK) HIT-328546.A1 328546	-
16A - HOUSING (L) SINCE 9.2011 HIT-328547.A0 328547	-
17 - TAPPING SCREW D3.5X20 (BLACK) HIT-328549.A0 328549	-
18 - BRAND LABEL HIT-000000.A1235 000000	-
19 - NOZZLE HIT-328562.A0 328562	£14.82	£17.78
20 - HOUSING. SWITCH SET INCLUD.3A HIT-334698.A0 334698	-
*21 - FERRITE SUPPORT SET SINCE 3.2012 FOR EUROPE HIT-334869.A2 334869	-
601 - LONG NOZZLE ASS'Y HIT-317124.A2 317124	-
602 - NOZZLE (B) HIT-990046.A1 990046	-
603 - DUST BAG (DEEP BLUE) HIT-323587.A3 323587	£16.75	£20.10

Attribute Name	Value
Brand	Hikoki
