Hitachi / Hikoki R18DSL Cordless Cleaner Spare Parts

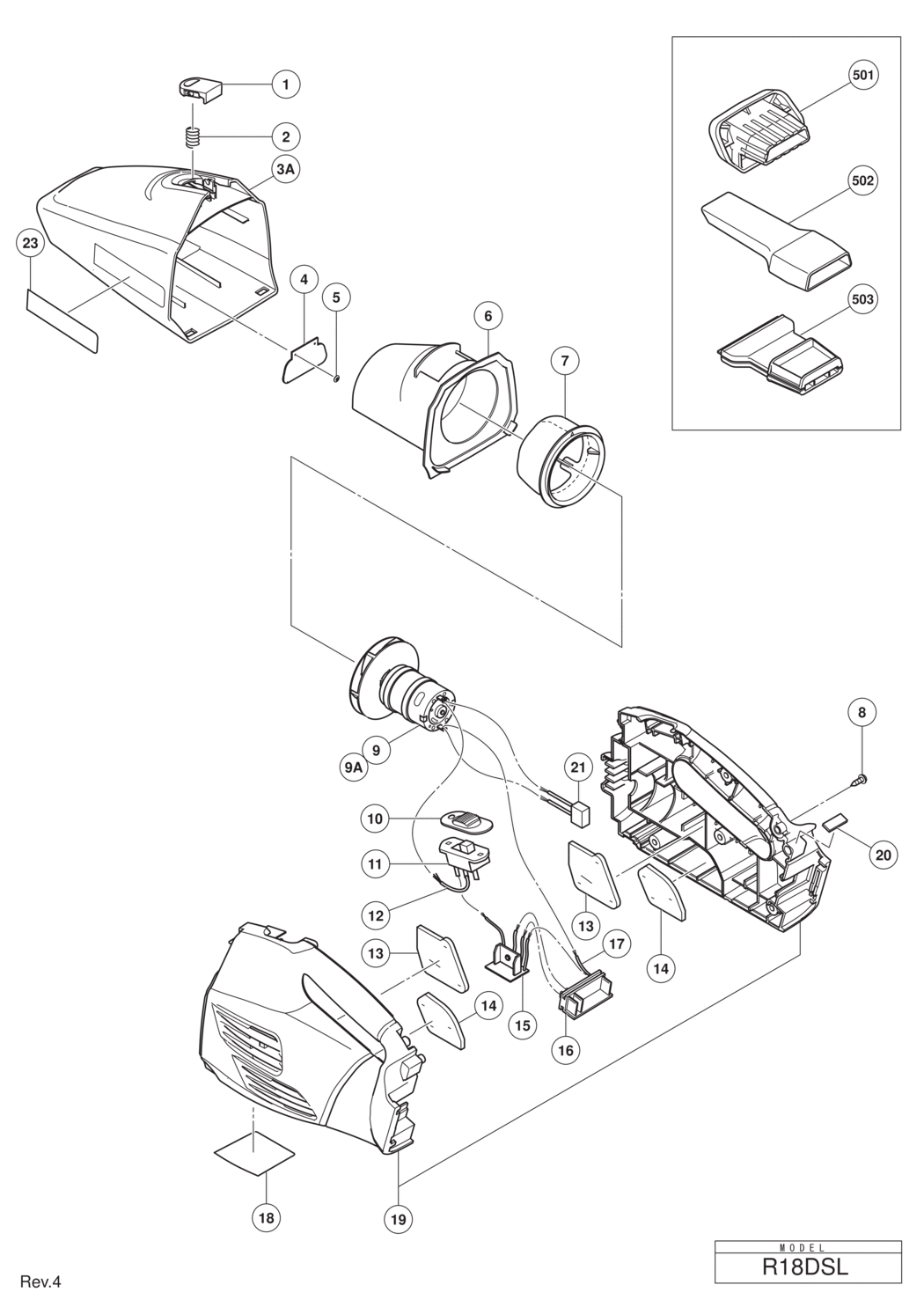

An exploded diagram and spare parts listing for the Hitachi / Hikoki R18DSL Cordless Cleaner

	Ex VAT	Inc VAT
1 - PUSHING BUTTON HIT-331382.A0 331382	-
2 - SPRING HIT-331383.A2 331383	-
3A - DUST CASE HIT-331385.A2 331385	-
4 - VALVE HIT-331386.A0 331386	£1.67	£2.00
5 - PUSHING NUT HIT-331384.A0 331384	£1.67	£2.00
6 - WATER GUARD HIT-331387.A2 331387	-
7 - FILTER HIT-331404.A0 331404	£6.42	£7.70
8 - TAPPING SCREW (W/FLANGE) D4X20 (BLACK) HIT-301653.A91 301653	£1.67	£2.00
*9A - MOTOR HIT-334898.A0 334898	-
*10 - SWITCH COVER HIT-331388.A0 331388	-
11 - SLIDE SWITCH HIT-331393.A2 331393	-
12 - INTERNAL WIRE (BLACK) HIT-331396.A1 331396	-
13 - NOISE PACKING(A) HIT-331380.A0 331380	-
14 - NOISE PACKING(B) HIT-331381.A2 331381	-
15 - PRINTED CIRCUIT BOARD HIT-331398.A0 331398	-
16 - BATTERY TERMINAL HIT-331399.A0 331399	-
17 - INTERNAL WIRE HIT-331400.A0 331400	-
18 - NAME PLATE HIT-000000.A3531 000000	-
19 - HOUSING (C).(D) SET HIT-331403.A0 331403	-
20 - PACKING HIT-328709.A5 328709	£1.67	£2.00
23 - BRAND LABEL HIT-000000.A3532 000000	-
501 - BRUSH NOZZLE HIT-331405.A2 331405	-
502 - CREVICE NOZZLE HIT-331406.A0 331406	-
503 - SQUEEGEE NOZZLE HIT-331407.A2 331407	-

Attribute Name	Value
Brand	Hikoki
